Hyundai Santa Fe 2016 Navigation Manual

Cannot identify the current location.
(GPS not receiving)
GPS cannot be used indoors and must
be connected to a power source with
ACC in a vehicle in a location where
the signal from the sky can be received
easily.
When initially connecting the GPS, it
usually takes about 10 minutes to be
working normally, but the connection
speed can differ depending on the
weather condition, and surrounding
obstacles.
If the GPS connection is unstable for a
long period of time, try the following.
• Check if the product is connected to a
power source.
• Check if the back of the GPS product
is in a location where the sky can be
seen well.
• If there are high buildings or if you are
under a tree, move to a location where
there aren’t any obstacles.
Cannot hear the voice guide.
The volume is not set correctly, or it is
turned off. Adjust the volume of voice
guidance.There is a difference between the driv-
ing road and the road on the map in
the product.
Even though GPS is usually very accu-
rate, there is a small margin for error.
When the GPS receiver is installed,
there can be an error of about 10m. But
for newly built roads, the problem could
come from the data update to the map.
Cannot see the map.
Perhaps you cannot see the map even
when you have executed the navigation
menu.
This happens when the data within the
memory is damaged. Delete all the
data in the memory and install the data
again. If the issue persists after installa-
tion, contact the A/S center.
The path guide can be different from
the actual path. (Path guide error)
• When the road is closely parallel.
• When the splitting road angle is very
small.
• When there is an adjacent road when
turning.
• When driving on a road that is narrow-
ing fast.• When driving through the mountain or
where the road is too curvy.
• When the starting, passing and arriv-
ing locations are too close within 1km.
• When you have set the starting, pass-
ing or arriving location more than 1km
away from the road.
• When driving through the tunnel.
Map matching
As mentioned, the GPS systems used
by this Navigation System are suscep-
tible to certain errors. Their calculations
may on occasion place you in a location
the map where no road exists. In this
situation, the processing system under-
stands that vehicles travel only on roads,
and is able to correct your position by
adjusting it to a nearby road. This is
called map matching.
How to update the navigation map and
software
To update the navigation map and soft-
ware, visit the site (http://www.naviga-
tion.com/hyundai).
61
Troubleshooting
With map matching.With no map
matching.

62
Troubleshooting

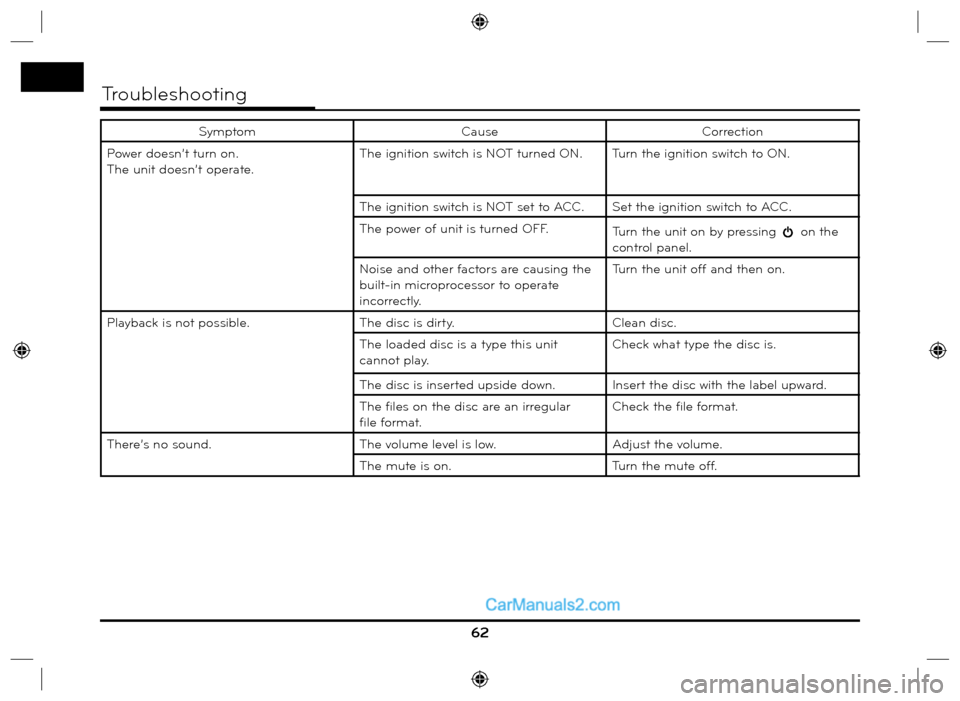

Symptom Cause Correction
Power doesn’t turn on.
The unit doesn’t operate.The ignition switch is NOT turned ON. Turn the ignition switch to ON.
The ignition switch is NOT set to ACC. Set the ignition switch to ACC.
The power of unit is turned OFF.
Turn the unit on by pressing
on the
control panel.
Noise and other factors are causing the
built-in microprocessor to operate
incorrectly.Turn the unit off and then on.
Playback is not possible. The disc is dirty. Clean disc.
The loaded disc is a type this unit
cannot play.Check what type the disc is.
The disc is inserted upside down. Insert the disc with the label upward.
The fi les on the disc are an irregular
fi le format.Check the fi le format.
There’s no sound. The volume level is low. Adjust the volume.
The mute is on. Turn the mute off.

63
Address Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Address Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Answering calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
AS (Autostore) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Bluetooth wireless technology . . . . . . . . . . . . . . . . . . . . . . 39
Changing the passkey. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Detour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Giving voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
GPS Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Help command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Home 1/ Work 2/ 3 ~ 12. . . . . . . . . . . . . . . . . . . . . . . . . . . 32
In City . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Info Nearby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Info On Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Intro scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Hyundai service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Last Destinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Making a call by entering phone number . . . . . . . . . . . . . 42
Making a call with speed dial numbers . . . . . . . . . . . . . . . 45
Near Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Near Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
NEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Phone Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
POI Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
POI (Point of Interest) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
RANDOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
REGION Auto/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Return to the beginning of the current track/file . . . . . . 46
Route Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-19
Skip to the next track/file . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Skip to the previous track/file . . . . . . . . . . . . . . . . . . . . . . 46
Split Screen/ Full Screen . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Store Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Store Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31,35
Switching the microphone on/off. . . . . . . . . . . . . . . . . . . . 42
Switching the sound path during a call . . . . . . . . . . . . . . . 42
TA (Traffic announcement) . . . . . . . . . . . . . . . . . . . . . . . . 53
Tour Planner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-30, 35
2D/ 3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Using Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using your Phone Book . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using your Calling list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59-60
Voice recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Index

64

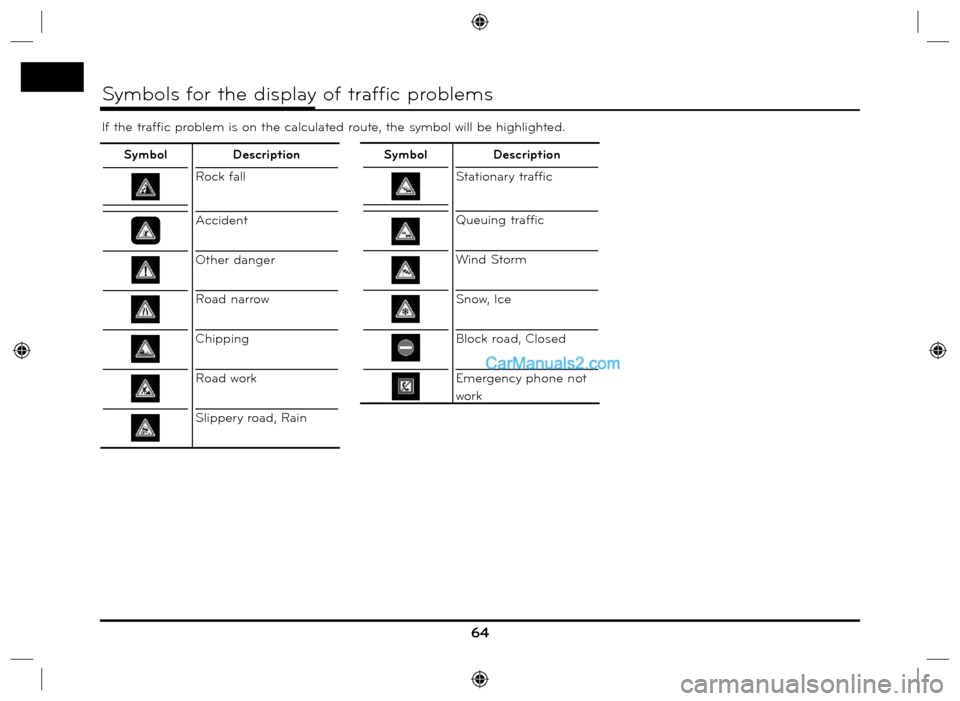

If the traffic problem is on the calculated route, the symbol will be highlighted.
Symbols for the display of traffic problems
SymbolDescription
Rock fall
Accident
Other danger
Road narrow
Chipping
Road work
Slippery road, RainSymbolDescription
Stationary traffic
Queuing traffic
Wind Storm
Snow, Ice
Block road, Closed
Emergency phone not
work

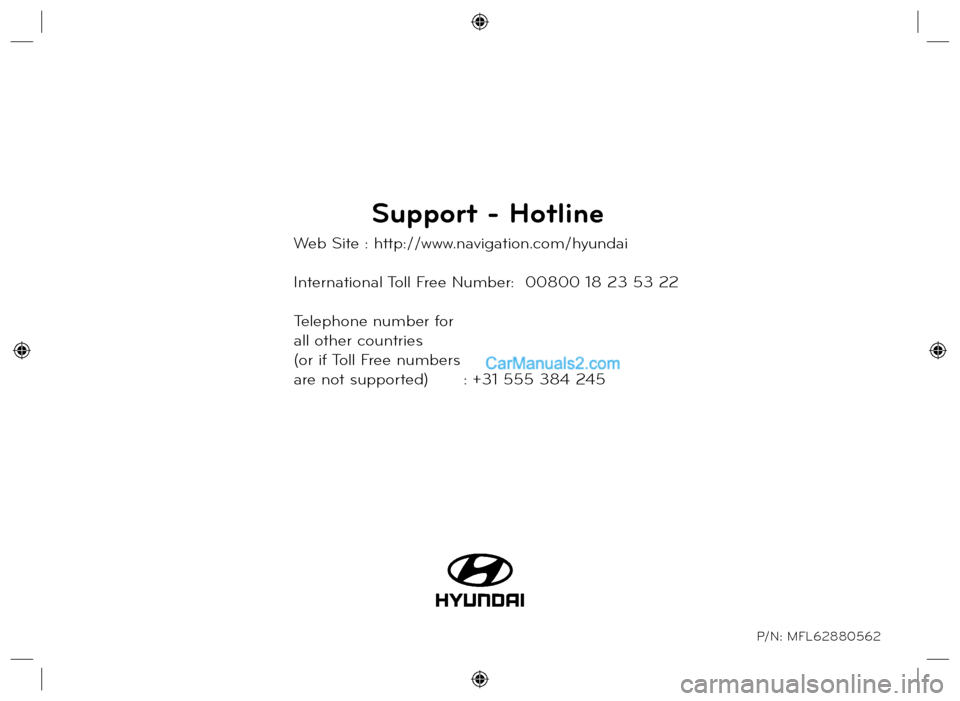

Support - Hotline
Web Site : http://www.navigation.com/hyundai
International Toll Free Number: 00800 18 23 53 22
Telephone number for
all other countries
(or if Toll Free numbers
are not supported) : +31 555 384 245
P/N: MFL62880562
