Hyundai Santa Fe 2016 Navigation Manual

Store Destination
Destinations that you often visit can be
stored in the Address Book. The stored
destinations can be easily retrieved to
set them as a destination or way point.
This is available only when the destina-
tions have been set already.
1. Press [NAV] > Touch [Advanced] >
[Store Destination].
2. Input the name of the destination
then touch [OK].
The destination is stored in the
Address Book automatically. (Page
24)
Store Position
The current vehicle position can be
stored in the Address Book.
1. Press [NAV] > Touch [Advanced] >
[Store Position].
2. Input the name of the current posi-
tion then touch [OK].

The current vehicle position is stored
in the Address Book automatically.
(Page 24)
31

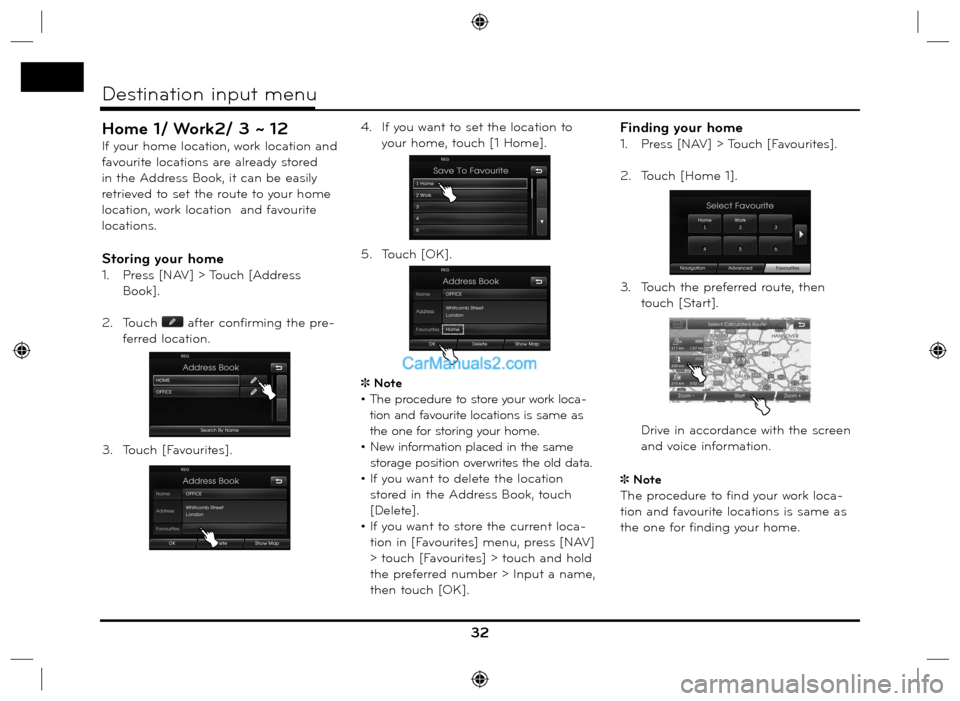

Destination input menu

Home 1/ Work2/ 3 ~ 12
If your home location, work location and
favourite locations are already stored
in the Address Book, it can be easily
retrieved to set the route to your home
location, work location and favourite
locations.
Storing your home
1. Press [NAV] > Touch [Address
Book].
2. Touch
after confirming the pre-
ferred location.
3. Touch [Favourites].4. If you want to set the location to
your home, touch [1 Home].
5. Touch [OK].
Note
• The procedure to store your work loca-
tion and favourite locations is same as
the one for storing your home.
•
New information placed in the same
storage position overwrites the old data.
• If you want to delete the location
stored in the Address Book, touch
[Delete].
• If you want to store the current loca-
tion in [Favourites] menu, press [NAV]
> touch [Favourites] > touch and hold
the preferred number > Input a name,
then touch [OK].
Finding your home
1. Press [NAV] > Touch [Favourites].
2. Touch [Home 1].
3. Touch the preferred route, then
touch [Start].

Drive in accordance with the screen
and voice information.
Note
The procedure to find your work loca-
tion and favourite locations is same as
the one for finding your home.
32
Destination input menu

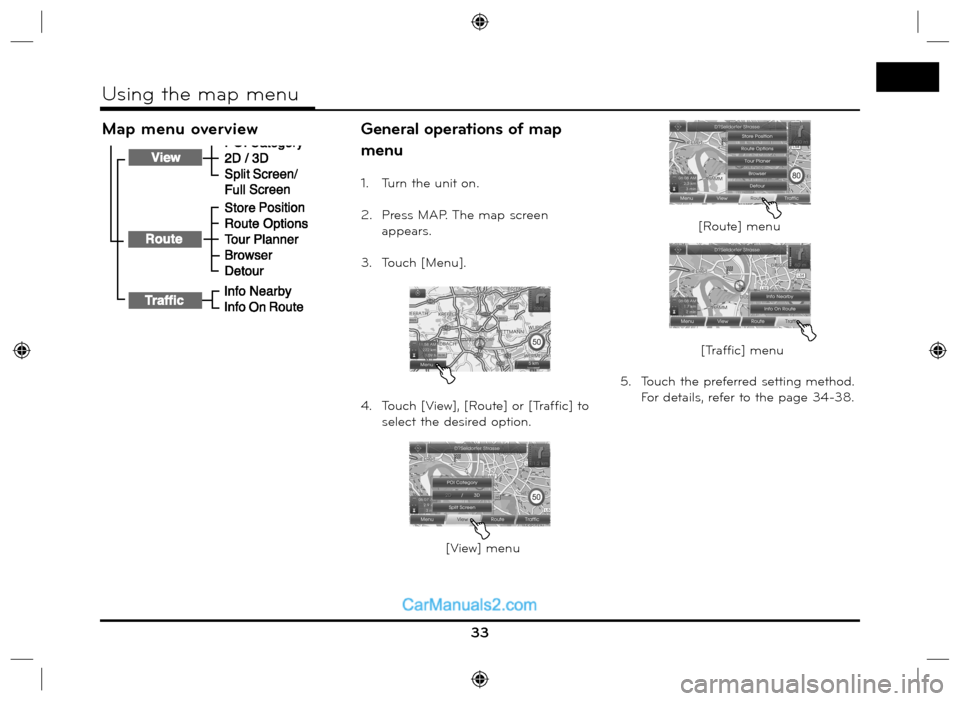

Map menu overviewGeneral operations of map
menu
1. Turn the unit on.
2. Press MAP. The map screen
appears.
3. Touch [Menu].
4. Touch [View], [Route] or [Traffic] to
select the desired option.5. Touch the preferred setting method.
For details, refer to the page 34-38.
33
Using the map menu
[View] menu
[Route] menu
[Traffic] menu

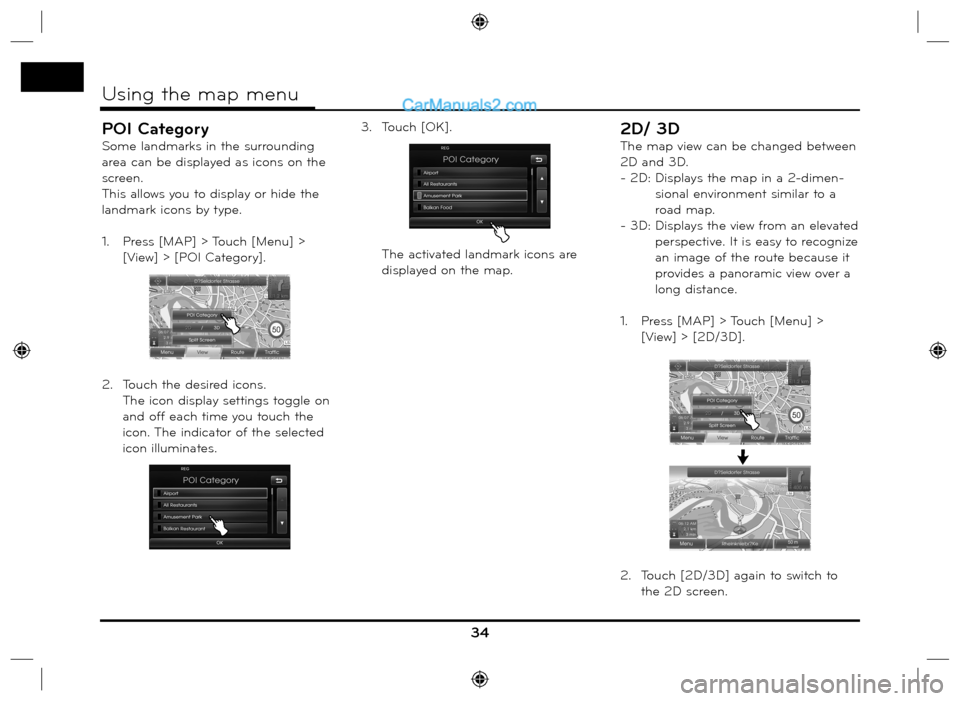

POI Category
Some landmarks in the surrounding
area can be displayed as icons on the
screen.
This allows you to display or hide the
landmark icons by type.
1. Press [MAP] > Touch [Menu] >
[View] > [POI Category].
2. Touch the desired icons.
The icon display settings toggle on
and off each time you touch the
icon. The indicator of the selected
icon illuminates.3. Touch [OK].
The activated landmark icons are
displayed on the map.
2D/ 3D
The map view can be changed between
2D and 3D.
- 2D: Displays the map in a 2-dimen-
sional environment similar to a
road map.
- 3D: Displays the view from an elevated
perspective. It is easy to recognize
an image of the route because it
provides a panoramic view over a
long distance.
1. Press [MAP] > Touch [Menu] >
[View] > [2D/3D].
2. Touch [2D/3D] again to switch to
the 2D screen.
34
Using the map menu

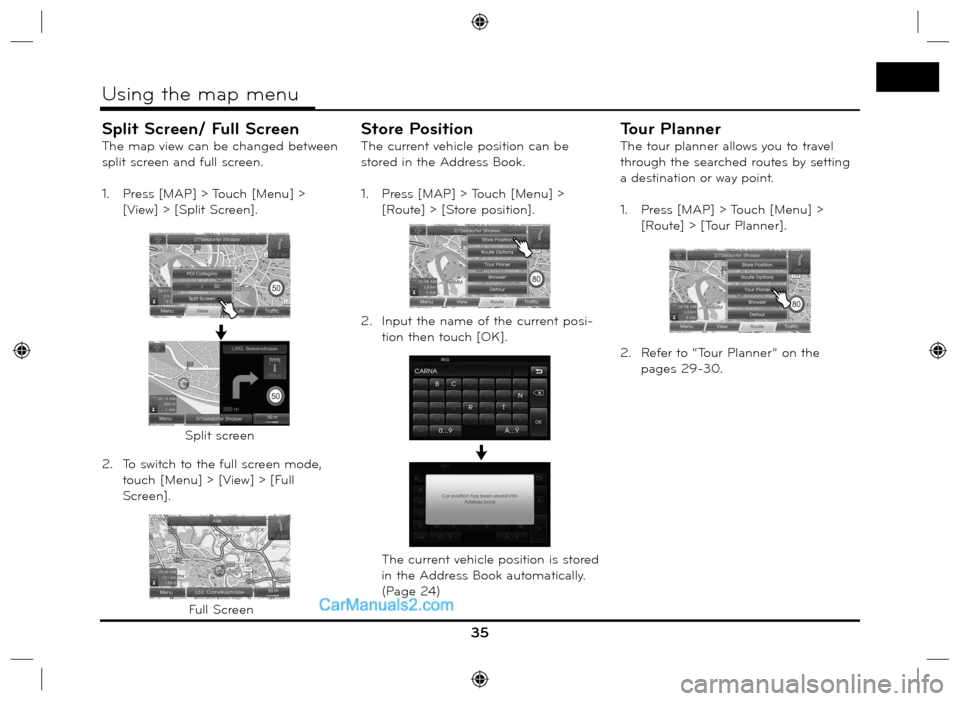

Split Screen/ Full Screen
The map view can be changed between
split screen and full screen.
1. Press [MAP] > Touch [Menu] >
[View] > [Split Screen].
2. To switch to the full screen mode,
touch [Menu] > [View] > [Full
Screen].
Store Position
The current vehicle position can be
stored in the Address Book.
1. Press [MAP] > Touch [Menu] >
[Route] > [Store position].
2. Input the name of the current posi-
tion then touch [OK].
The current vehicle position is stored
in the Address Book automatically.
(Page 24)
Tour Planner
The tour planner allows you to travel
through the searched routes by setting
a destination or way point.
1. Press [MAP] > Touch [Menu] >
[Route] > [Tour Planner].
2. Refer to “Tour Planner” on the
pages 29-30.
35
Using the map menu
Split screen
Full Screen

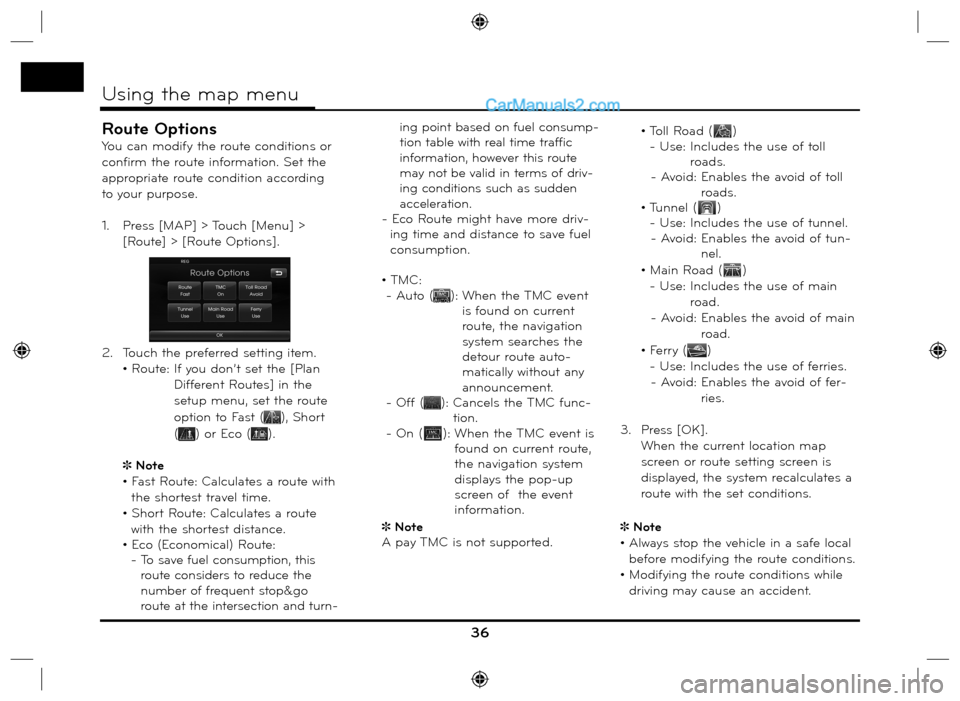

Route Options
You can modify the route conditions or
confirm the route information. Set the
appropriate route condition according
to your purpose.
1. Press [MAP] > Touch [Menu] >
[Route] > [Route Options].
2. Touch the preferred setting item.
• Route: If you don’t set the [Plan
Different Routes] in the
setup menu, set the route
option to Fast (
), Short
(
) or Eco ().
Note
• Fast Route: Calculates a route with
the shortest travel time.
• Short Route: Calculates a route
with the shortest distance.
•
Eco (Economical) Route:
- To save fuel consumption, this
route considers to reduce the
number of frequent stop&go
route at the intersection and turn-ing point based on fuel consump-
tion table with real time traffic
information, however this route
may not be valid in terms of driv-
ing conditions such as sudden
acceleration.
- Eco Route might have more driv-
ing time and distance to save fuel
consumption.

• TMC:
- Auto (
): When the TMC event
is found on current
route, the navigation
system searches the
detour route auto-
matically without any
announcement.
- Off (
): Cancels the TMC func-
tion.
- On (
): When the TMC event is
found on current route,
the navigation system
displays the pop-up
screen of the event
information.
Note
A pay TMC is not supported. • Toll Road (
)
- Use: Includes the use of toll
roads.
- Avoid: Enables the avoid of toll
roads.
• Tunnel (
)
- Use: Includes the use of tunnel.
- Avoid: Enables the avoid of tun-
nel.
• Main Road (
)
- Use: Includes the use of main
road.
- Avoid: Enables the avoid of main
road.
• Ferry (
)
- Use: Includes the use of ferries.
- Avoid: Enables the avoid of fer-
ries.
3. Press [OK].
When the current location map
screen or route setting screen is
displayed, the system recalculates a
route with the set conditions.
Note
• Always stop the vehicle in a safe local
before modifying the route conditions.
•
Modifying the route conditions while
driving may cause an accident.
36
Using the map menu

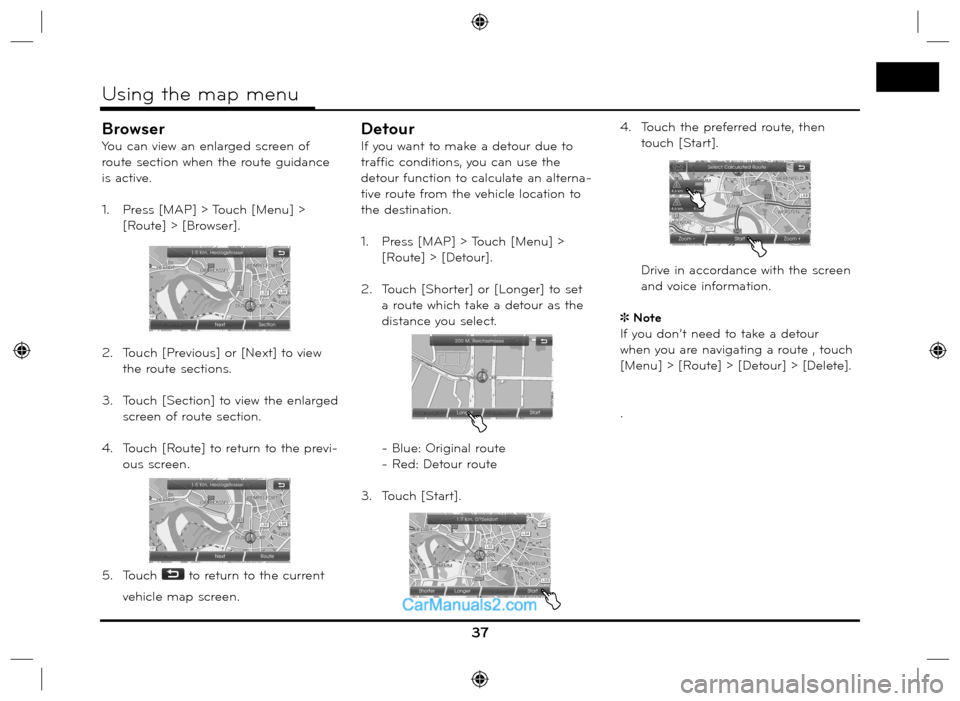

Browser
You can view an enlarged screen of
route section when the route guidance
is active.
1. Press [MAP] > Touch [Menu] >
[Route] > [Browser].
2. Touch [Previous] or [Next] to view
the route sections.
3. Touch [Section] to view the enlarged
screen of route section.
4. Touch [Route] to return to the previ-
ous screen.
5. Touch
to return to the current
vehicle map screen.
Detour
If you want to make a detour due to
traffic conditions, you can use the
detour function to calculate an alterna-
tive route from the vehicle location to
the destination.
1. Press [MAP] > Touch [Menu] >
[Route] > [Detour].
2. Touch [Shorter] or [Longer] to set
a route which take a detour as the
distance you select.
- Blue: Original route
- Red: Detour route
3. Touch [Start].4. Touch the preferred route, then
touch [Start].

Drive in accordance with the screen
and voice information.
Note
If you don’t need to take a detour
when you are navigating a route , touch
[Menu] > [Route] > [Detour] > [Delete].
.
37
Using the map menu

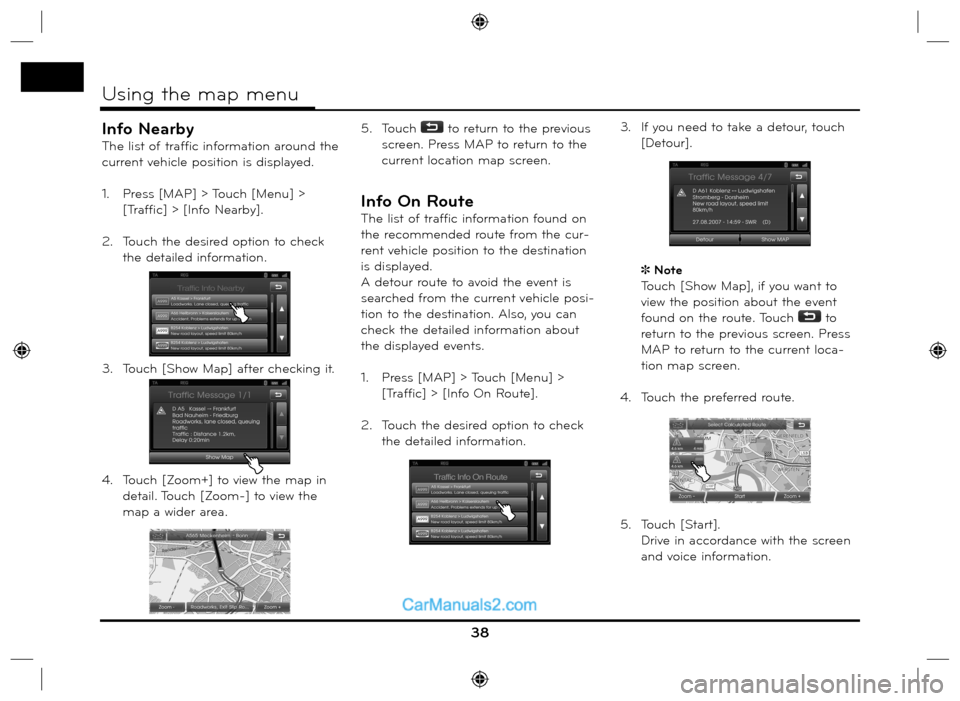

Info Nearby
The list of traffic information around the
current vehicle position is displayed.
1. Press [MAP] > Touch [Menu] >
[Traffic] > [Info Nearby].
2. Touch the desired option to check
the detailed information.
3. Touch [Show Map] after checking it.
4. Touch [Zoom+] to view the map in
detail. Touch [Zoom-] to view the
map a wider area.5. Touch
to return to the previous
screen. Press MAP to return to the
current location map screen.
Info On Route
The list of traffic information found on
the recommended route from the cur-
rent vehicle position to the destination
is displayed.
A detour route to avoid the event is
searched from the current vehicle posi-
tion to the destination. Also, you can
check the detailed information about
the displayed events.
1. Press [MAP] > Touch [Menu] >
[Traffic] > [Info On Route].
2. Touch the desired option to check
the detailed information. 3. If you need to take a detour, touch
[Detour].
Note
Touch [Show Map], if you want to
view the position about the event
found on the route. Touch
to
return to the previous screen. Press
MAP to return to the current loca-
tion map screen.
4. Touch the preferred route.
5. Touch [Start].
Drive in accordance with the screen
and voice information.
38
Using the map menu

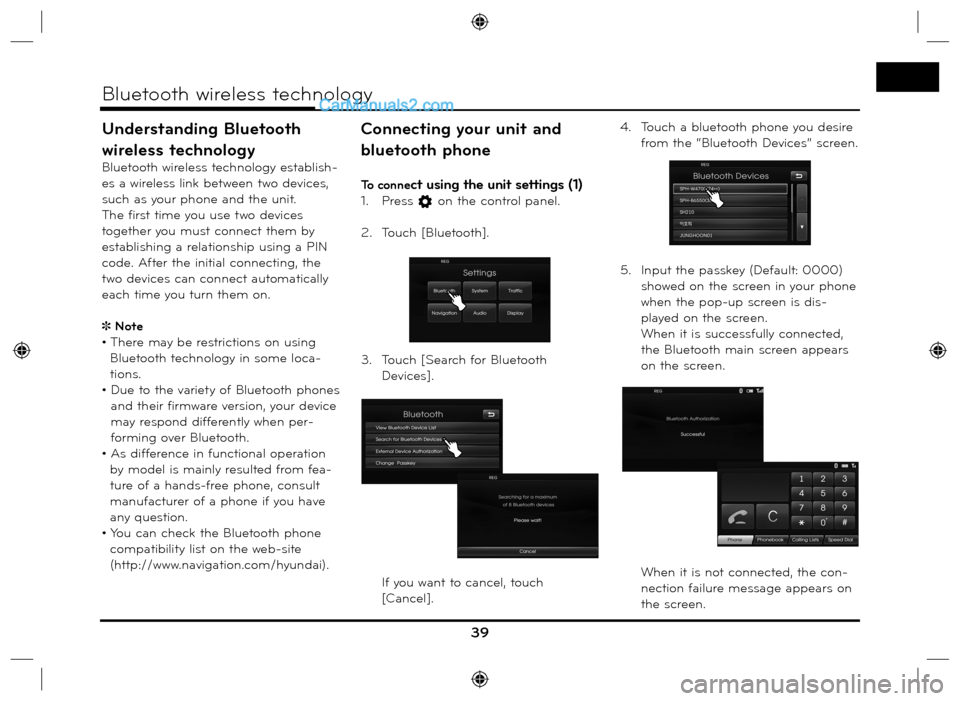

Understanding Bluetooth
wireless technology
Bluetooth wireless technology establish-
es a wireless link between two devices,
such as your phone and the unit.
The first time you use two devices
together you must connect them by
establishing a relationship using a PIN
code. After the initial connecting, the
two devices can connect automatically
each time you turn them on.
Note
• There may be restrictions on using
Bluetooth technology in some loca-
tions.
• Due to the variety of Bluetooth phones
and their firmware version, your device
may respond differently when per-
forming over Bluetooth.
• As difference in functional operation
by model is mainly resulted from fea-
ture of a hands-free phone, consult
manufacturer of a phone if you have
any question.
• You can check the Bluetooth phone
compatibility list on the web-site
(http://www.navigation.com/hyundai).
Connecting your unit and
bluetooth phone
To connect using the unit settings (1)
1. Press on the control panel.
2. Touch [Bluetooth].
3. Touch [Search for Bluetooth
Devices].
If you want to cancel, touch
[Cancel].4. Touch a bluetooth phone you desire
from the “Bluetooth Devices” screen.

5. Input the passkey (Default: 0000)
showed on the screen in your phone
when the pop-up screen is dis-
played on the screen.
When it is successfully connected,
the Bluetooth main screen appears
on the screen.
When it is not connected, the con-
nection failure message appears on
the screen.
39
Bluetooth wireless technology

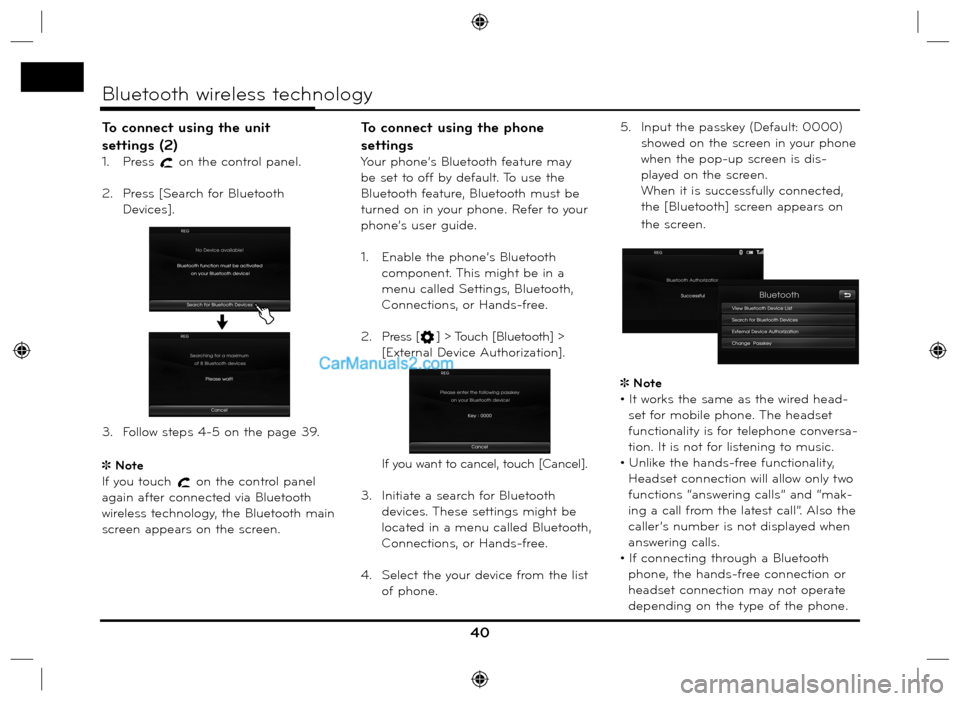

To connect using the unit
settings (2)
1. Press on the control panel.
2. Press [Search for Bluetooth
Devices].
3. Follow steps 4-5 on the page 39.
 Note
If you touch
on the control panel
again after connected via Bluetooth
wireless technology, the Bluetooth main
screen appears on the screen.
To connect using the phone
settings
Your phone’s Bluetooth feature may
be set to off by default. To use the
Bluetooth feature, Bluetooth must be
turned on in your phone. Refer to your
phone’s user guide.
1. Enable the phone’s Bluetooth
component. This might be in a
menu called Settings, Bluetooth,
Connections, or Hands-free.
2. Press [
] > Touch [Bluetooth] >
[External Device Authorization].
If you want to cancel, touch [Cancel].
3. Initiate a search for Bluetooth
devices. These settings might be
located in a menu called Bluetooth,
Connections, or Hands-free.
4. Select the your device from the list
of phone.5. Input the passkey (Default: 0000)
showed on the screen in your phone
when the pop-up screen is dis-
played on the screen.
When it is successfully connected,
the [Bluetooth] screen appears on
the screen.
 Note
• It works the same as the wired head-
set for mobile phone. The headset
functionality is for telephone conversa-
tion. It is not for listening to music.
• Unlike the hands-free functionality,
Headset connection will allow only two
functions “answering calls” and “mak-
ing a call from the latest call”. Also the
caller’s number is not displayed when
answering calls.
• If connecting through a Bluetooth
phone, the hands-free connection or
headset connection may not operate
depending on the type of the phone.
40
Bluetooth wireless technology
