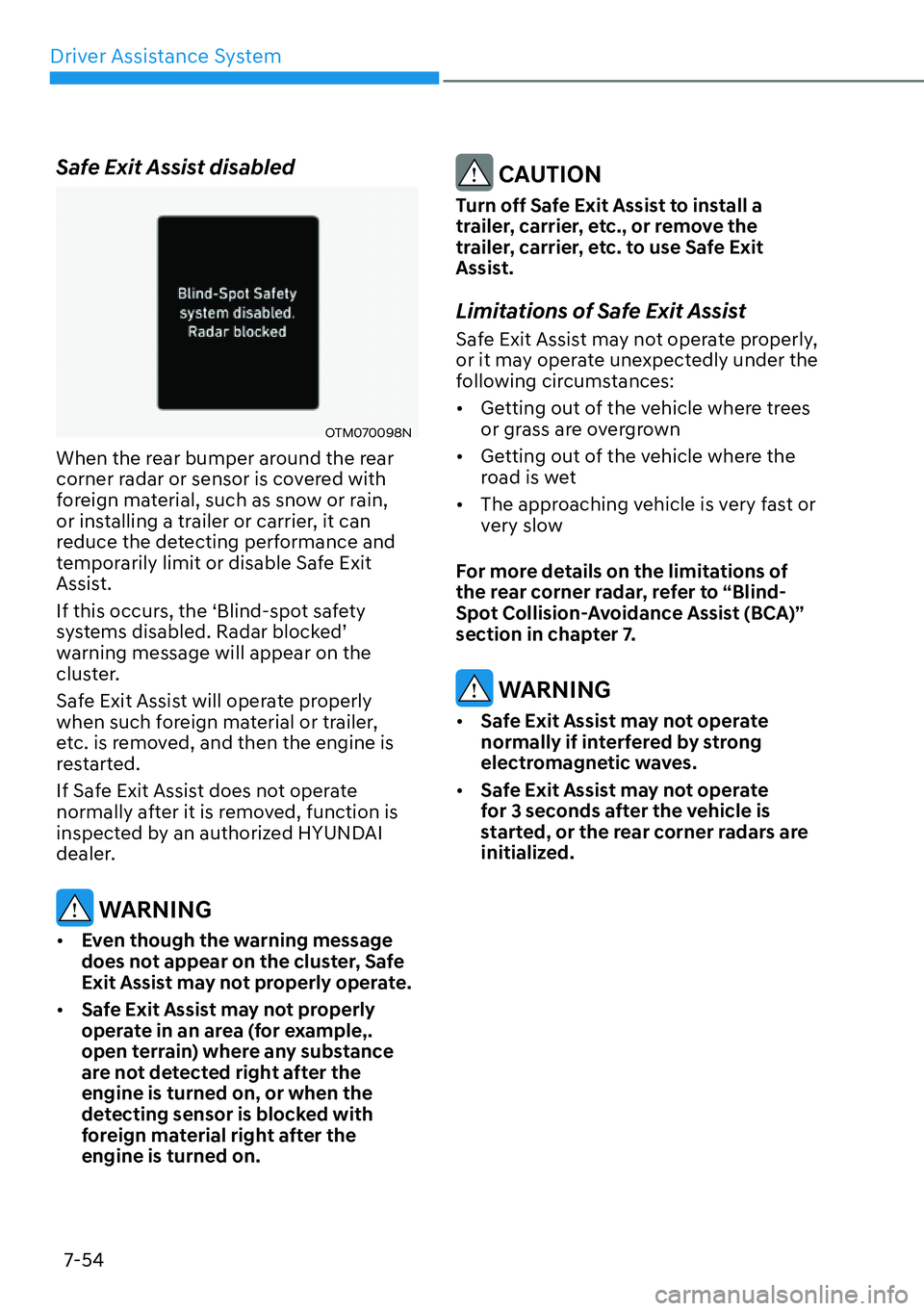

Page 441 of 638

Driver Assistance System
7-54
Safe Exit Assist disabled
OTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Assist.
If this occurs, the ‘Blind-spot safety
V \ V W H P V G L V D E O H G 5 D G D U E O R F N H GT
warning message will appear on the
cluster.
Safe Exit Assist will operate properly
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If Safe Exit Assist does not operate
normally after it is removed, function is
inspected by an authorized HYUNDAI
dealer.
WARNING
[ Even though the warning message
does not appear on the cluster, Safe
Exit Assist may not properly operate.
[ Safe Exit Assist may not properly
operate in an area (for example,.
open terrain) where any substance
are not detected right after the engine is turned on, or when the
detecting sensor is blocked with
foreign material right after the engine is turned on.
CAUTION
Turn off Safe Exit Assist to install a
trailer, carrier, etc., or remove the
trailer, carrier, etc. to use Safe Exit
Assist.
Limitations of Safe Exit Assist
Safe Exit Assist may not operate properly,
or it may operate unexpectedly under the
following circumstances: [ Getting out of the vehicle where trees
or grass are overgrown
[ Getting out of the vehicle where the
road is wet
[ The approaching vehicle is very fast or
very slow
For more details on the limitations of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Assist (BCA)”
section in chapter 7.
WARNING
[ Safe Exit Assist may not operate
normally if interfered by strong
electromagnetic waves.
[ Safe Exit Assist may not operate
for 3 seconds after the vehicle is
started, or the rear corner radars are
initialized.

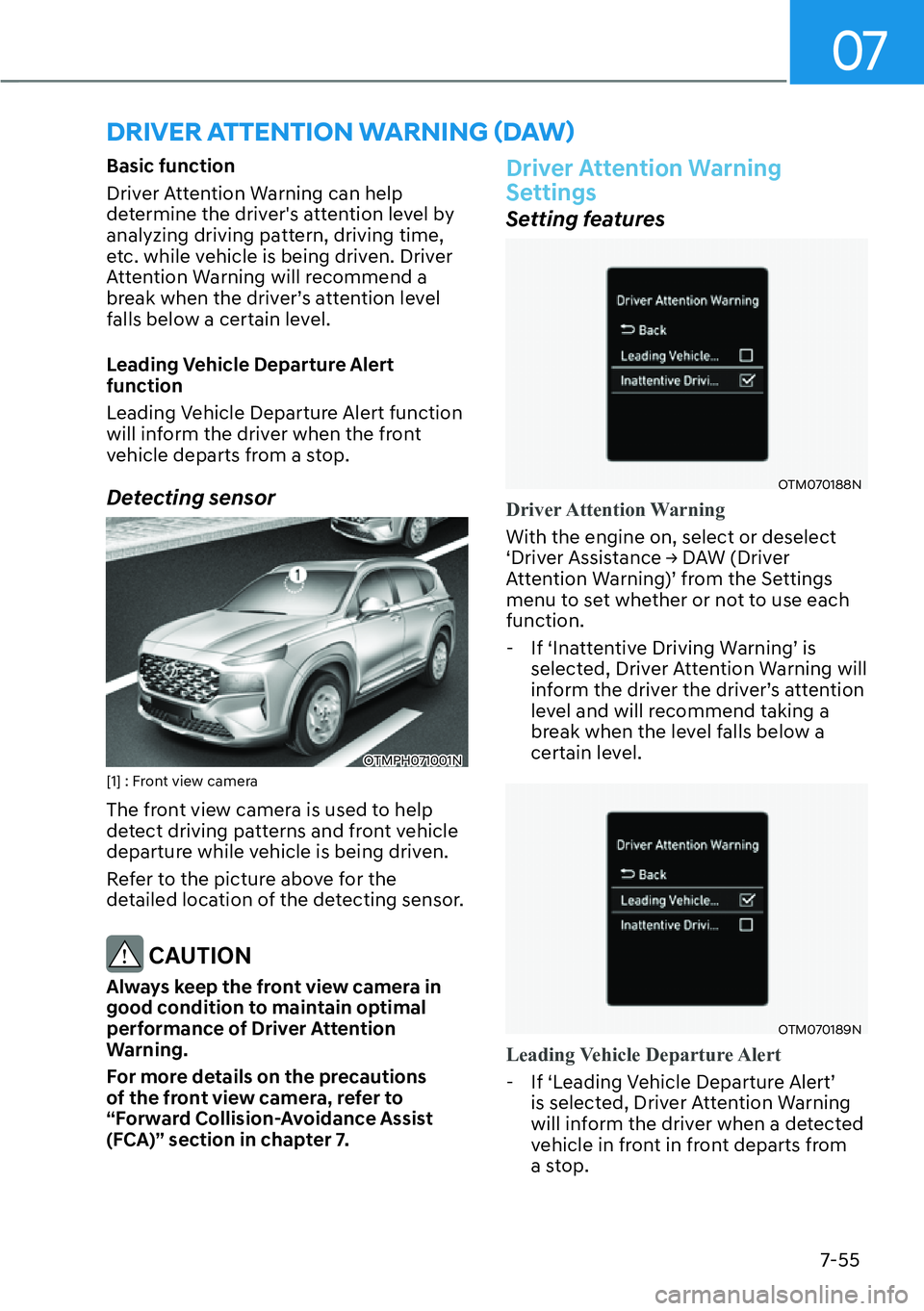

Page 442 of 638

07
7-55
Basic function
Driver Attention Warning can help
determine the driver's attention level by
analyzing driving pattern, driving time,
etc. while vehicle is being driven. Driver
Attention Warning will recommend a
E U H D N Z K H Q W K H G U L Y H UT V D W W H Q W L R Q O H Y H O
falls below a certain level.
Leading Vehicle Departure Alert function
Leading Vehicle Departure Alert function
will inform the driver when the front
vehicle departs from a stop.
Detecting sensor
OTMPH071001N
[1] : Front view camera
The front view camera is used to help
detect driving patterns and front vehicle
departure while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera in
good condition to maintain optimal
performance of Driver Attention
Warning.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Driver Attention Warning
Settings
Setting features
OTM070188N
Driver Attention Warning
With the engine on, select or deselect
S ' U L Y H U $ V V L V W D Q F H Ÿ ' $ : ' U L Y H U
$ W W H Q W L R Q : D U Q L Q J T I U R P W K H 6 H W W L Q J V
menu to set whether or not to use each function. - , I S , Q D W W H Q W L Y H ' U L Y L Q J : D U Q L Q JT L V
selected, Driver Attention Warning will
L Q I R U P W K H G U L Y H U W K H G U L Y H UT V D W W H Q W L R Q
level and will recommend taking a
break when the level falls below a
certain level.
OTM070189N
Leading Vehicle Departure Alert
- , I S / H D G L Q J 9 H K L F O H ' H S D U W X U H $ O H U WT
is selected, Driver Attention Warning
will inform the driver when a detected
vehicle in front in front departs from
a stop.
' 5 , 9 ( 5 $ 7 7 ( 1 7 , 2 1 : $ 5 1 , 1 * ã ' $ :ä
