HYUNDAI SANTA FE HYBRID 2022 Owners Manual

Driver Assistance System

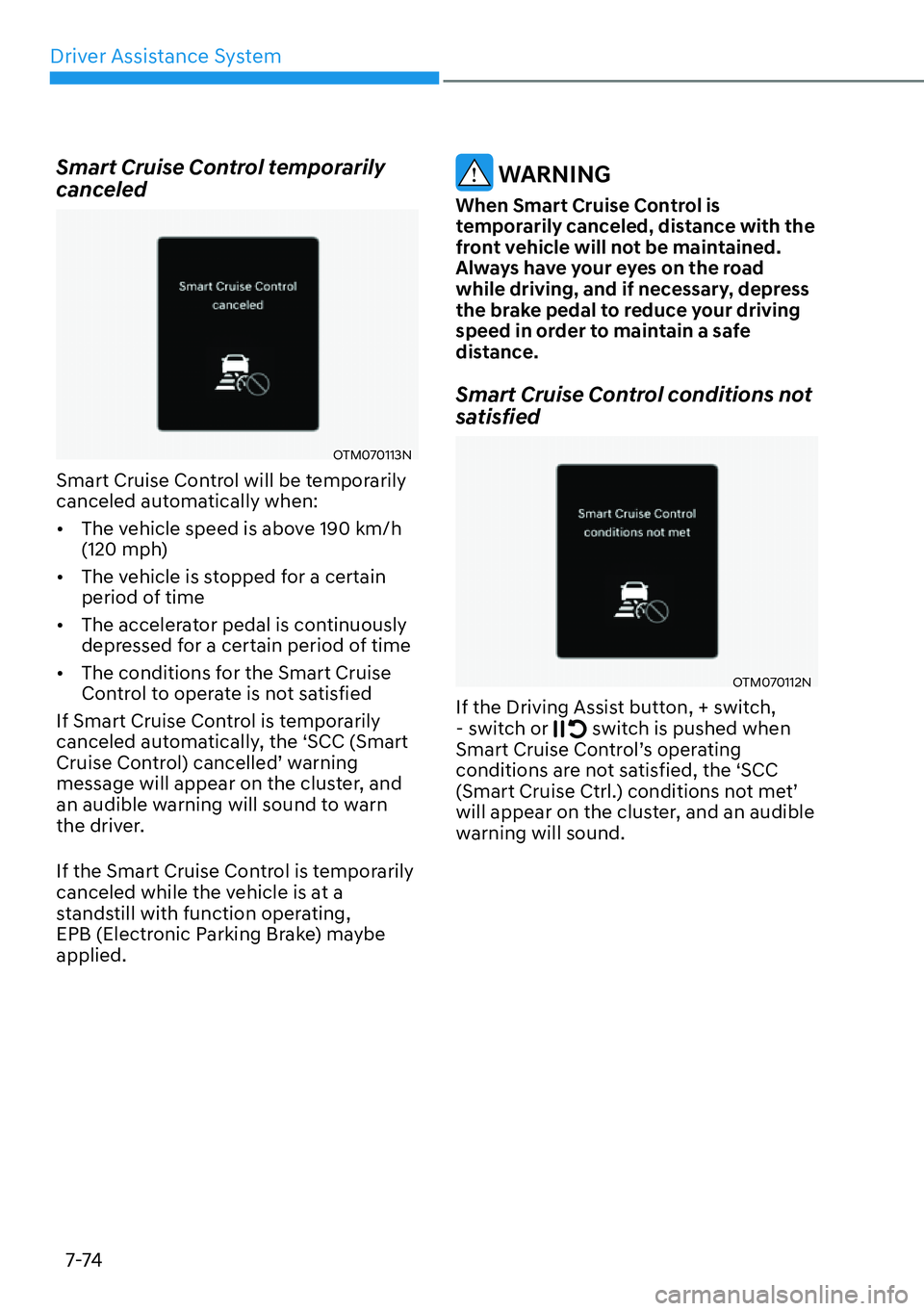

7-74
Smart Cruise Control temporarily canceled
OTM070113N
Smart Cruise Control will be temporarily
canceled automatically when:
[ The vehicle speed is above 190 km/h
(120 mph)

[ The vehicle is stopped for a certain
period of time

[ The accelerator pedal is continuously
depressed for a certain period of time

[ The conditions for the Smart Cruise
Control to operate is not satisfied
If Smart Cruise Control is temporarily
canceled automatically, the ‘SCC (Smart
&UXLVH&RQWUROFDQFHOOHG
TZDUQLQJ
message will appear on the cluster, and
an audible warning will sound to warn
the driver.
If the Smart Cruise Control is temporarily
canceled while the vehicle is at a
standstill with function operating,
EPB (Electronic Parking Brake) maybe applied.
WARNING
When Smart Cruise Control is
temporarily canceled, distance with the
front vehicle will not be maintained.
Always have your eyes on the road
while driving, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.
Smart Cruise Control conditions not
satisfied
OTM070112N
If the Driving Assist button, + switch,
- switch or
switch is pushed when
6PDUW&UXLVH&RQWURO
TVRSHUDWLQJ
conditions are not satisfied, the ‘SCC
6PDUW&UXLVH&WUOFRQGLWLRQVQRWPHW
T
will appear on the cluster, and an audible
warning will sound.

07

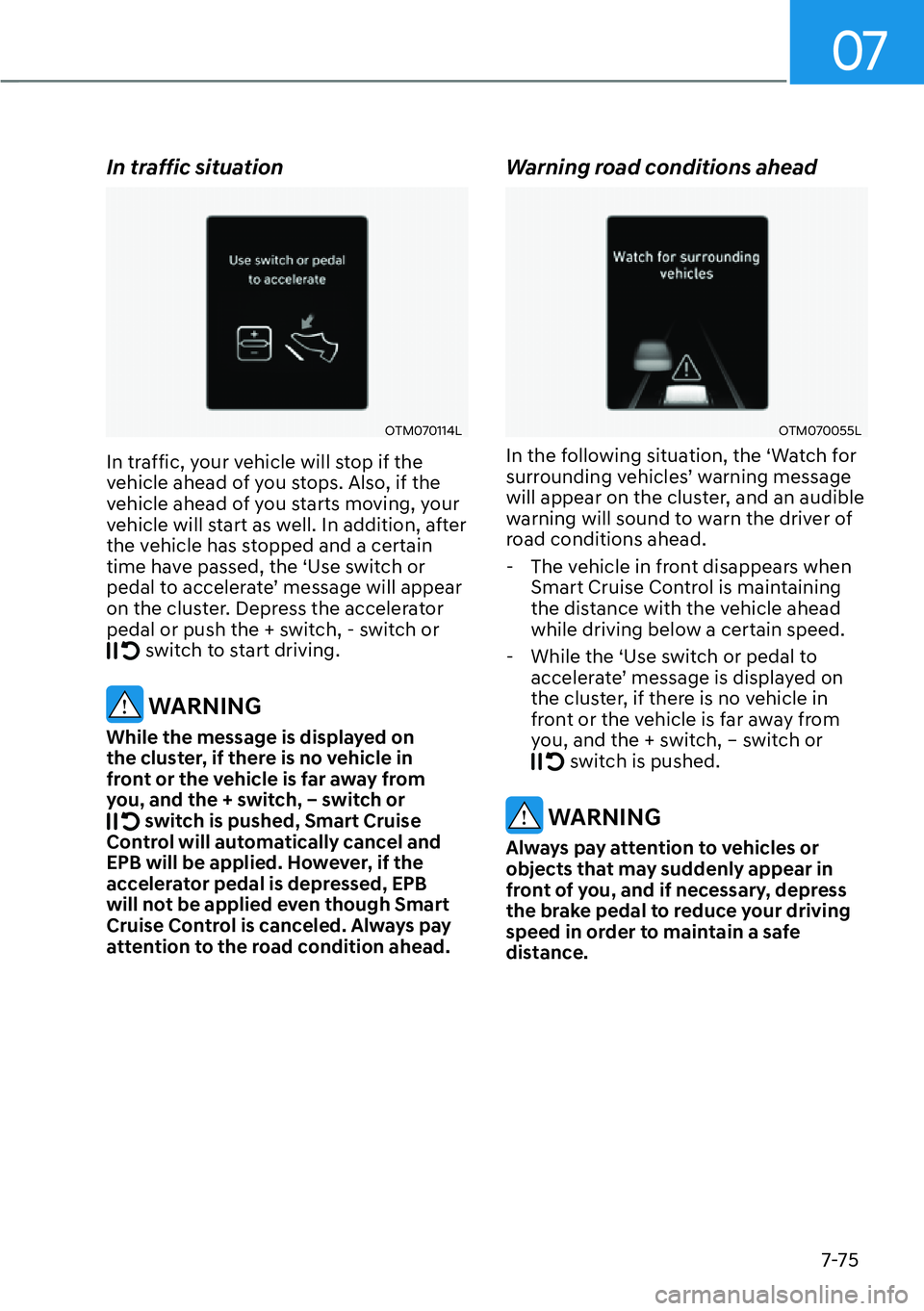

7-75
In traffic situation
OTM070114L
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving, your
vehicle will start as well. In addition, after
the vehicle has stopped and a certain
time have passed, the ‘Use switch or
SHGDOWRDFFHOHUDWH
TPHVVDJHZLOODSSHDU
on the cluster. Depress the accelerator
pedal or push the + switch, - switch or
switch to start driving.
WARNING
While the message is displayed on
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or
switch is pushed, Smart Cruise
Control will automatically cancel and
EPB will be applied. However, if the
accelerator pedal is depressed, EPB
will not be applied even though Smart
Cruise Control is canceled. Always pay
attention to the road condition ahead. Warning road conditions ahead
OTM070055L
In the following situation, the ‘Watch for
VXUURXQGLQJYHKLFOHV
TZDUQLQJPHVVDJH
will appear on the cluster, and an audible
warning will sound to warn the driver of
road conditions ahead.

- The vehicle in front disappears when
Smart Cruise Control is maintaining
the distance with the vehicle ahead
while driving below a certain speed.
- While the ‘Use switch or pedal to DFFHOHUDWH
TPHVVDJHLVGLVSOD\HGRQ
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or
switch is pushed.
WARNING
Always pay attention to vehicles or
objects that may suddenly appear in
front of you, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.

Driver Assistance System
7-76

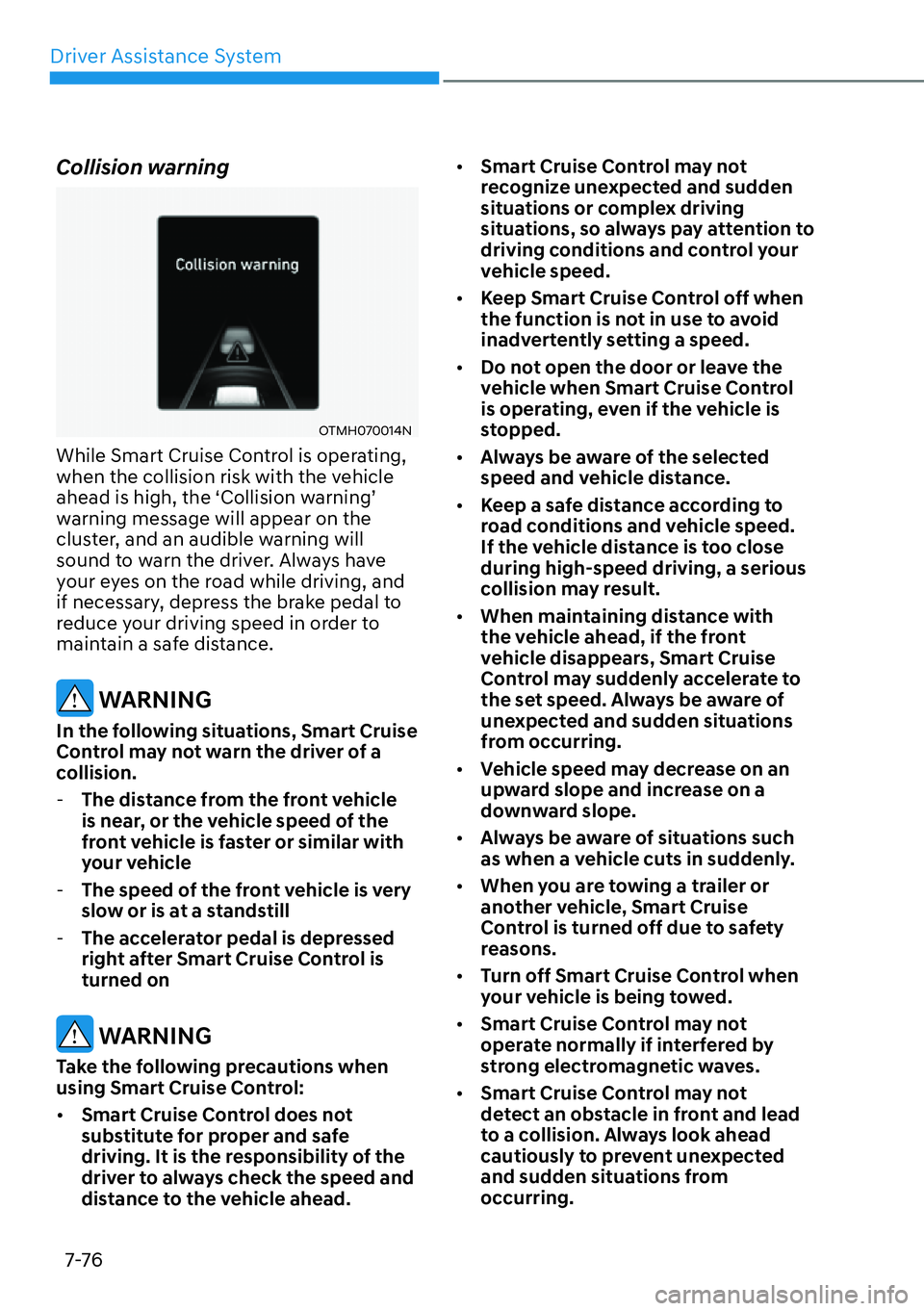

Collision warning
OTMH070014N
While Smart Cruise Control is operating,
when the collision risk with the vehicle
DKHDGLVKLJKWKH
S&ROOLVLRQZDUQLQJ
T
warning message will appear on the
cluster, and an audible warning will
sound to warn the driver. Always have
your eyes on the road while driving, and
if necessary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
WARNING
In the following situations, Smart Cruise
Control may not warn the driver of a collision. - The distance from the front vehicle
is near, or the vehicle speed of the
front vehicle is faster or similar with
your vehicle
- The speed of the front vehicle is very
slow or is at a standstill
- The accelerator pedal is depressed
right after Smart Cruise Control is turned on
WARNING
Take the following precautions when
using Smart Cruise Control:
[ Smart Cruise Control does not
substitute for proper and safe
driving. It is the responsibility of the
driver to always check the speed and
distance to the vehicle ahead.
[
Smart Cruise Control may not
recognize unexpected and sudden
situations or complex driving
situations, so always pay attention to
driving conditions and control your
vehicle speed.

[ Keep Smart Cruise Control off when
the function is not in use to avoid
inadvertently setting a speed.

[ Do not open the door or leave the
vehicle when Smart Cruise Control
is operating, even if the vehicle is
stopped.

[ Always be aware of the selected
speed and vehicle distance.

[ Keep a safe distance according to
road conditions and vehicle speed.
If the vehicle distance is too close during high-speed driving, a serious
collision may result.

[ When maintaining distance with
the vehicle ahead, if the front
vehicle disappears, Smart Cruise
Control may suddenly accelerate to
the set speed. Always be aware of
unexpected and sudden situations
from occurring.

[ Vehicle speed may decrease on an
upward slope and increase on a
downward slope.

[ Always be aware of situations such
as when a vehicle cuts in suddenly.

[ When you are towing a trailer or
another vehicle, Smart Cruise
Control is turned off due to safety
reasons.

[ Turn off Smart Cruise Control when
your vehicle is being towed.

[ Smart Cruise Control may not
operate normally if interfered by
strong electromagnetic waves.

[ Smart Cruise Control may not
detect an obstacle in front and lead
to a collision. Always look ahead
cautiously to prevent unexpected
and sudden situations from occurring.

07

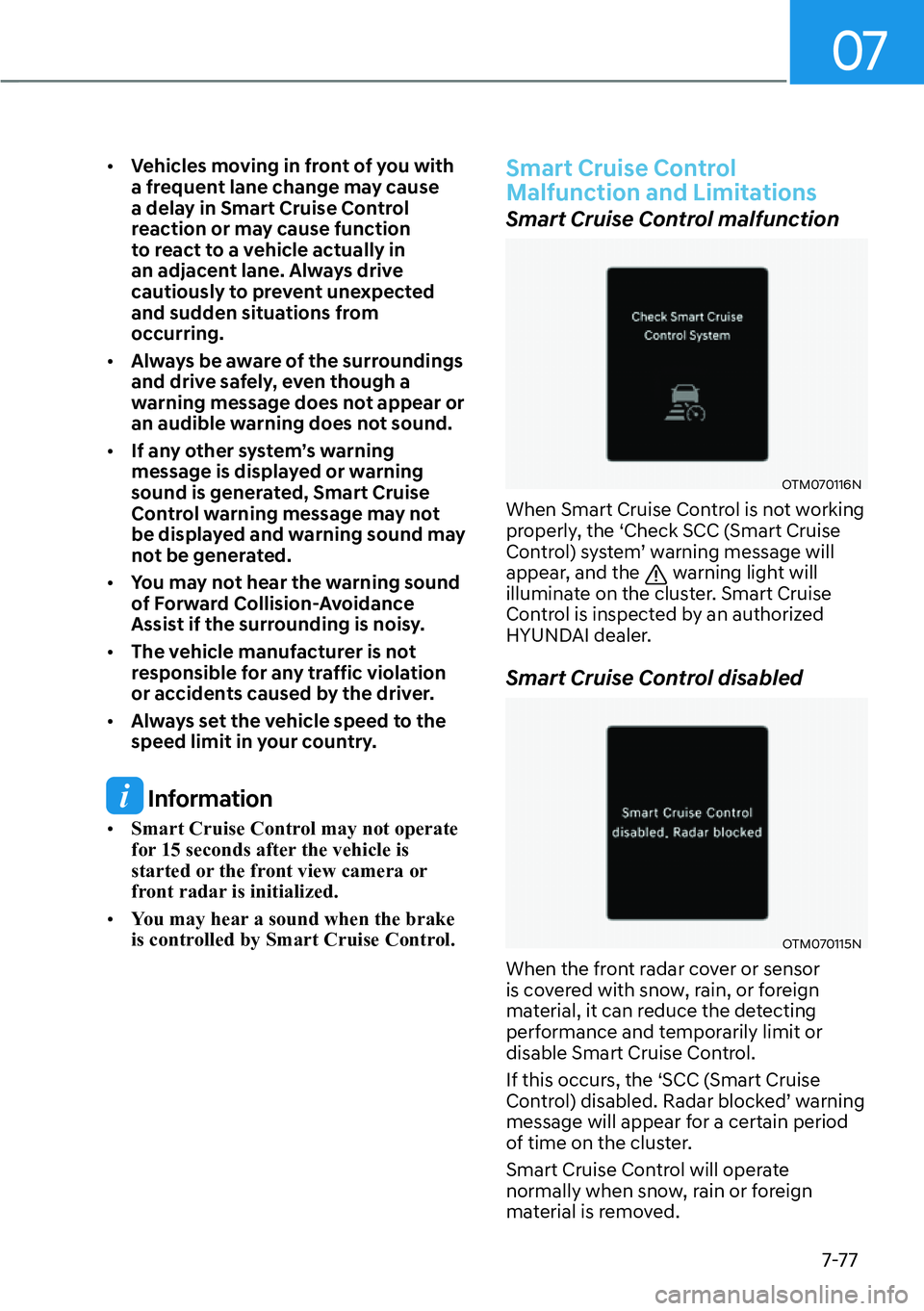

7-77

[
Vehicles moving in front of you with
a frequent lane change may cause
a delay in Smart Cruise Control
reaction or may cause function
to react to a vehicle actually in
an adjacent lane. Always drive
cautiously to prevent unexpected
and sudden situations from occurring.

[ Always be aware of the surroundings
and drive safely, even though a
warning message does not appear or
an audible warning does not sound.

[ If any other system’s warning
message is displayed or warning
sound is generated, Smart Cruise
Control warning message may not
be displayed and warning sound may
not be generated.

[ You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[ The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[ Always set the vehicle speed to the
speed limit in your country.
Information

[ Smart Cruise Control may not operate
for 15 seconds after the vehicle is
started or the front view camera or
front radar is initialized.

[ You may hear a sound when the brake
is controlled by Smart Cruise Control.
Smart Cruise Control
Malfunction and Limitations
Smart Cruise Control malfunction
OTM070116N
When Smart Cruise Control is not working
properly, the ‘Check SCC (Smart Cruise
&RQWUROV\VWHP
TZDUQLQJPHVVDJHZLOO
appear, and the
warning light will
illuminate on the cluster. Smart Cruise
Control is inspected by an authorized
HYUNDAI dealer.
Smart Cruise Control disabled
OTM070115N
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs, the ‘SCC (Smart Cruise
&RQWUROGLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear for a certain period
of time on the cluster.
Smart Cruise Control will operate
normally when snow, rain or foreign
material is removed.

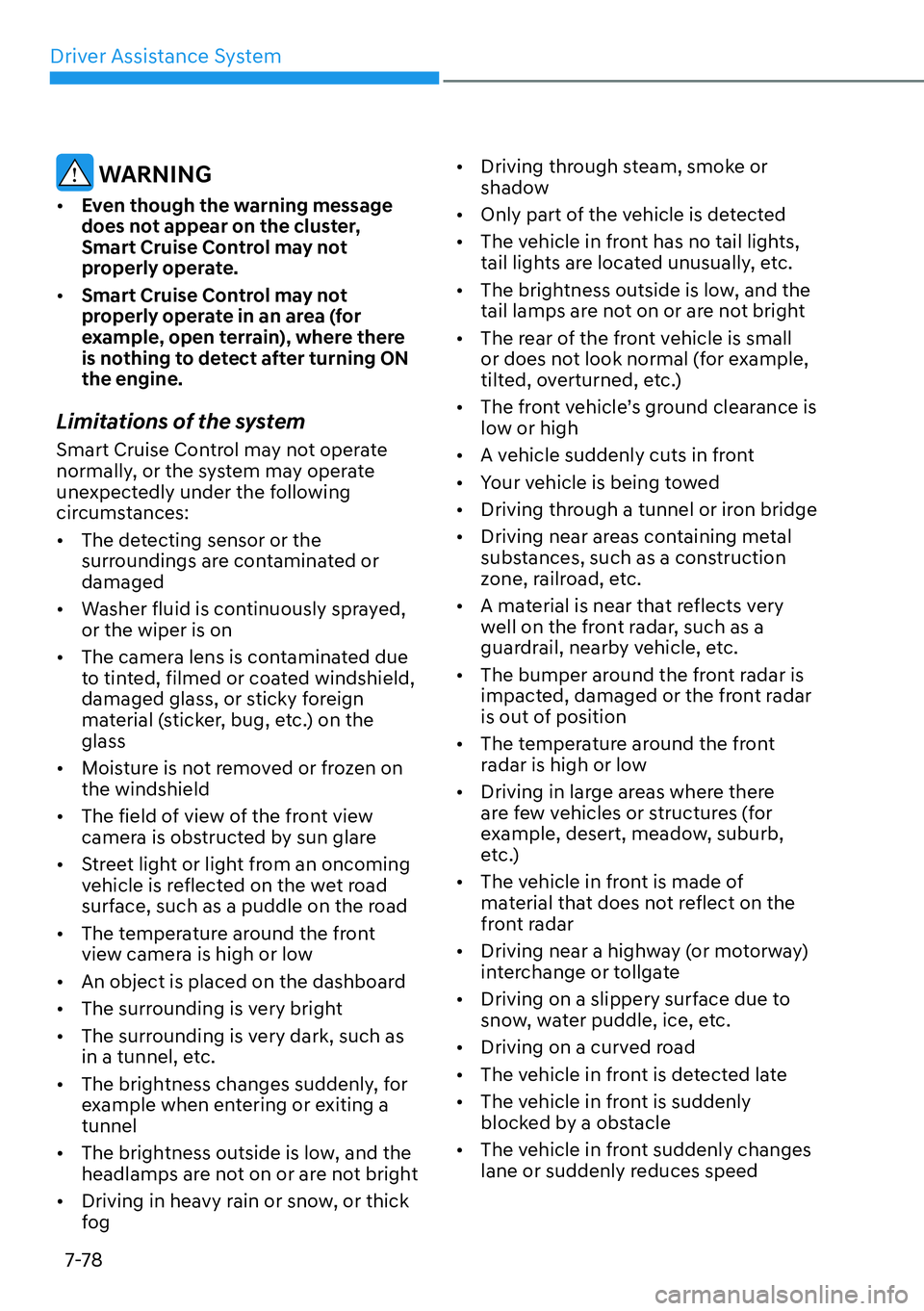

Driver Assistance System
7-78
WARNING

[ Even though the warning message
does not appear on the cluster,
Smart Cruise Control may not
properly operate.

[ Smart Cruise Control may not
properly operate in an area (for
example, open terrain), where there
is nothing to detect after turning ON the engine.
Limitations of the system
Smart Cruise Control may not operate
normally, or the system may operate
unexpectedly under the following
circumstances:
[ The detecting sensor or the
surroundings are contaminated or damaged

[ Washer fluid is continuously sprayed, or the wiper is on

[ The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the glass

[ Moisture is not removed or frozen on the windshield

[ The field of view of the front view
camera is obstructed by sun glare

[ Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[ The temperature around the front
view camera is high or low

[ An object is placed on the dashboard

[ The surrounding is very bright

[ The surrounding is very dark, such as
in a tunnel, etc.

[ The brightness changes suddenly, for
example when entering or exiting a tunnel

[ The brightness outside is low, and the
headlamps are not on or are not bright

[ Driving in heavy rain or snow, or thick
fog
[
Driving through steam, smoke or
shadow

[ Only part of the vehicle is detected

[ The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[ The brightness outside is low, and the
tail lamps are not on or are not bright

[ The rear of the front vehicle is small
or does not look normal (for example,
tilted, overturned, etc.)

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV low or high

[ A vehicle suddenly cuts in front

[ Your vehicle is being towed

[ Driving through a tunnel or iron bridge

[ Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[ A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[ The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[ The temperature around the front
radar is high or low

[ Driving in large areas where there
are few vehicles or structures (for
example, desert, meadow, suburb,
etc.)

[ The vehicle in front is made of
material that does not reflect on the
front radar

[ Driving near a highway (or motorway)
interchange or tollgate

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ Driving on a curved road

[ The vehicle in front is detected late

[ The vehicle in front is suddenly
blocked by a obstacle

[ The vehicle in front suddenly changes
lane or suddenly reduces speed

07

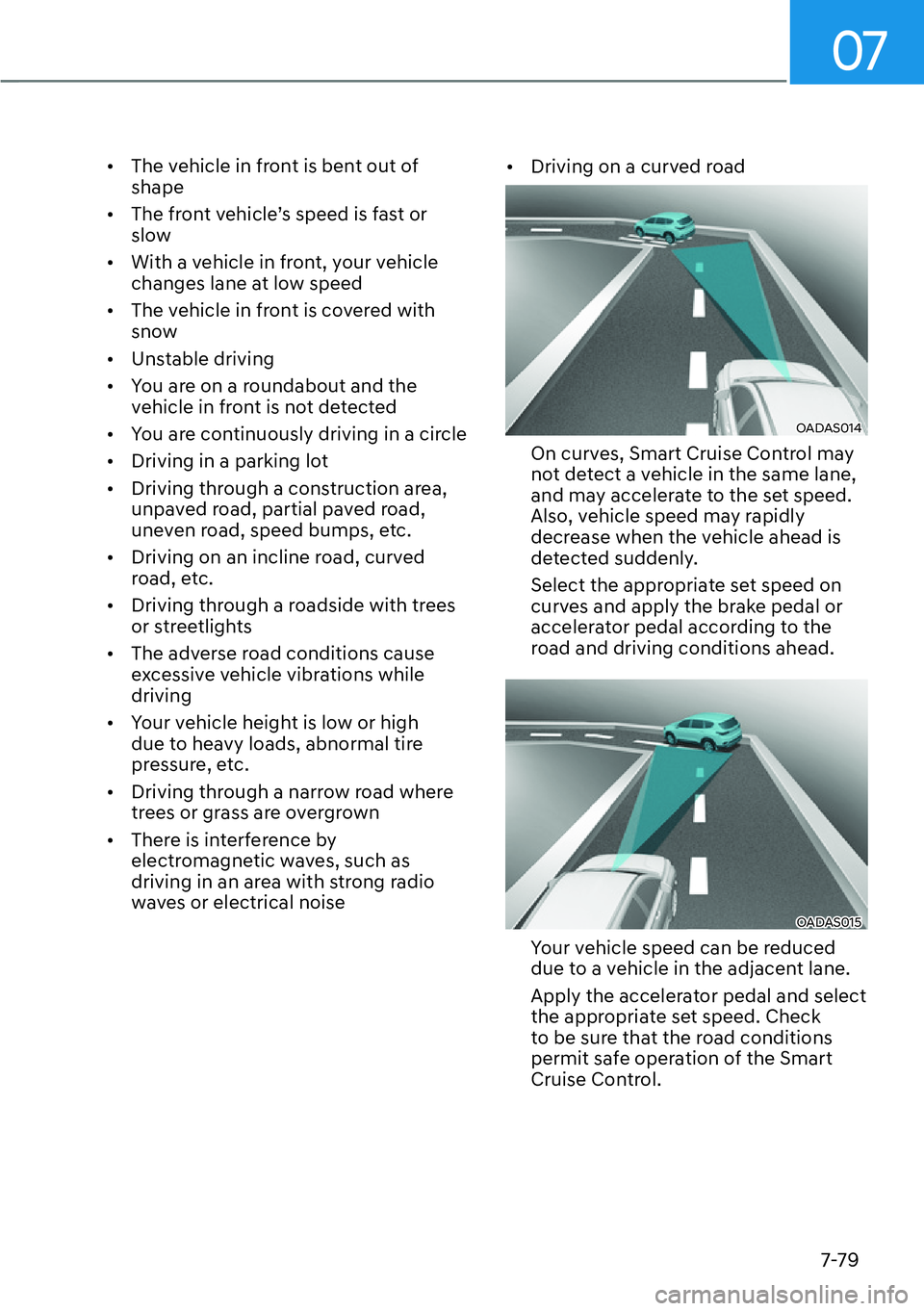

7-79

[
The vehicle in front is bent out of shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU slow

[ With a vehicle in front, your vehicle
changes lane at low speed

[ The vehicle in front is covered with
snow

[ Unstable driving

[ You are on a roundabout and the
vehicle in front is not detected

[ You are continuously driving in a circle

[ Driving in a parking lot

[ Driving through a construction area,
unpaved road, partial paved road,
uneven road, speed bumps, etc.

[ Driving on an incline road, curved
road, etc.

[ Driving through a roadside with trees
or streetlights

[ The adverse road conditions cause
excessive vehicle vibrations while driving

[ Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[ Driving through a narrow road where
trees or grass are overgrown

[ There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise
[
Driving on a curved road
OADAS014
On curves, Smart Cruise Control may
not detect a vehicle in the same lane,
and may accelerate to the set speed.
Also, vehicle speed may rapidly
decrease when the vehicle ahead is
detected suddenly.
Select the appropriate set speed on
curves and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.
OADAS015
Your vehicle speed can be reduced
due to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate set speed. Check
to be sure that the road conditions
permit safe operation of the Smart
Cruise Control.

Driver Assistance System
7-80

[

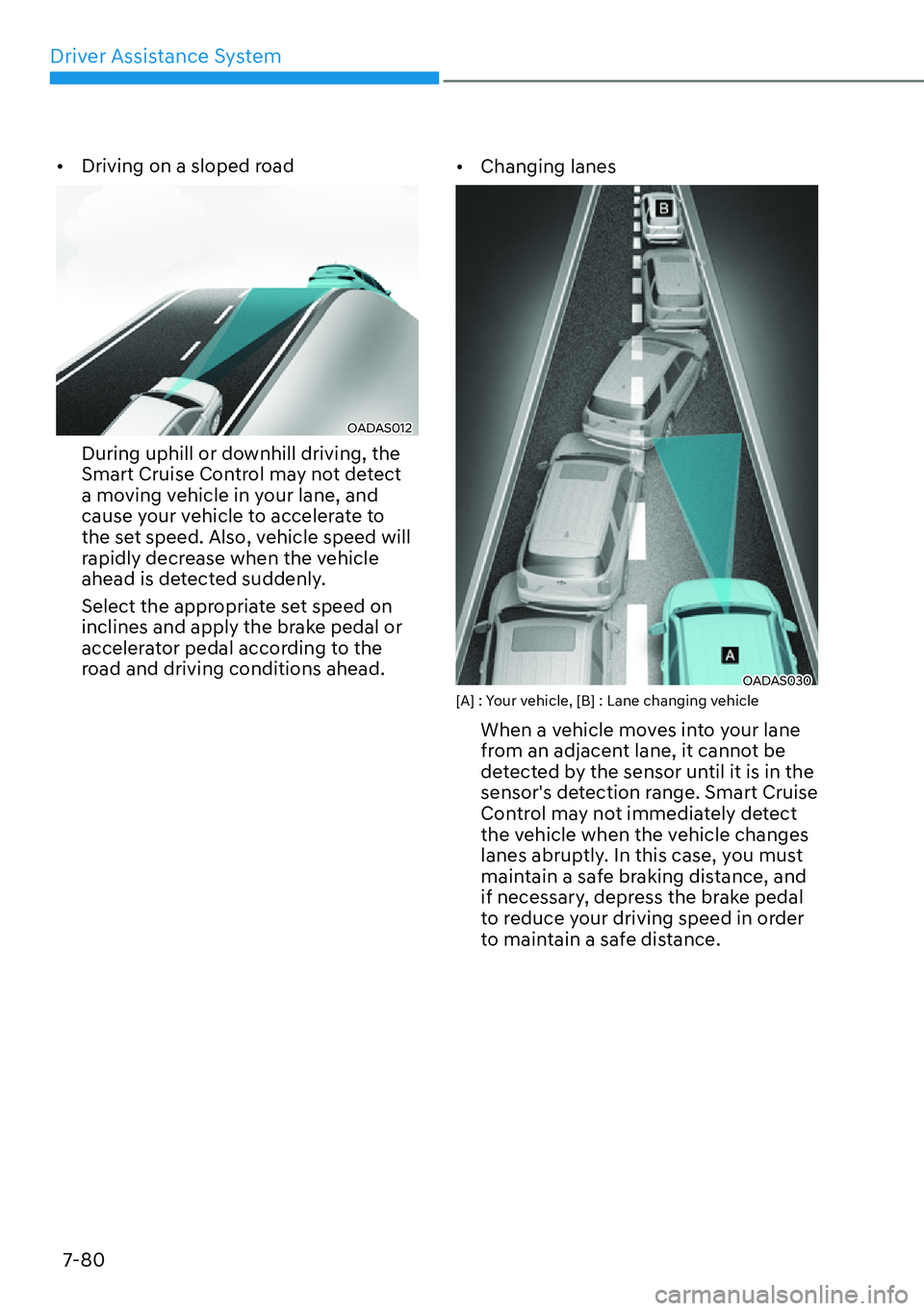

Driving on a sloped road
OADAS012
During uphill or downhill driving, the
Smart Cruise Control may not detect
a moving vehicle in your lane, and
cause your vehicle to accelerate to
the set speed. Also, vehicle speed will
rapidly decrease when the vehicle
ahead is detected suddenly.
Select the appropriate set speed on
inclines and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.
[
Changing lanes
OADAS030
[A] : Your vehicle, [B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.

07
7-81

[

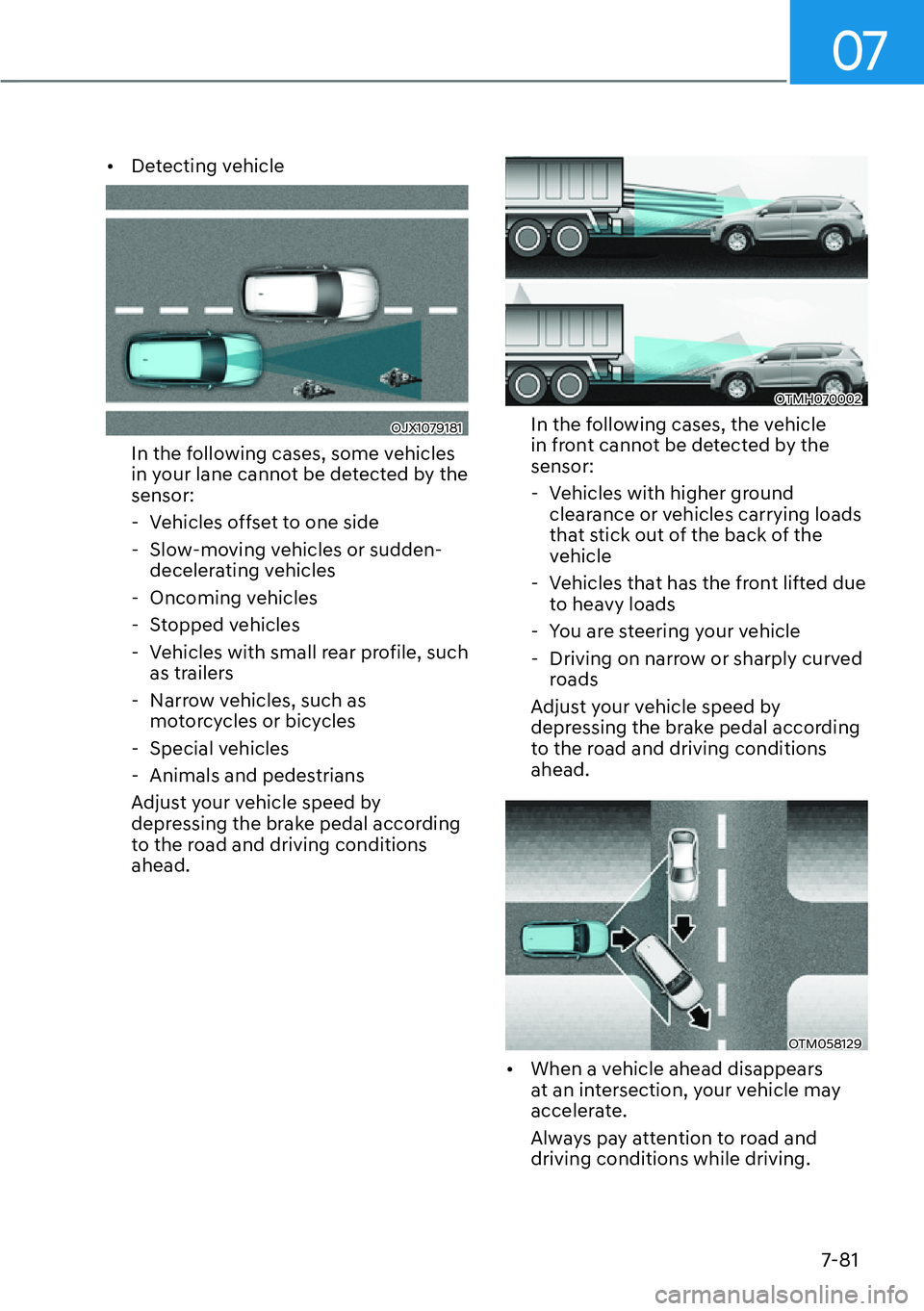

Detecting vehicle
OJX1079181
In the following cases, some vehicles
in your lane cannot be detected by the sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden- decelerating vehicles
- Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile, such
as trailers
- Narrow vehicles, such as motorcycles or bicycles
- Special vehicles
- Animals and pedestrians
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions ahead.
OTMH070002
In the following cases, the vehicle
in front cannot be detected by the sensor:
- Vehicles with higher ground clearance or vehicles carrying loads
that stick out of the back of the
vehicle

- Vehicles that has the front lifted due
to heavy loads
- You are steering your vehicle
- Driving on narrow or sharply curved roads
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions ahead.
OTM058129

[ When a vehicle ahead disappears
at an intersection, your vehicle may
accelerate.
Always pay attention to road and driving conditions while driving.

Driver Assistance System
7-82

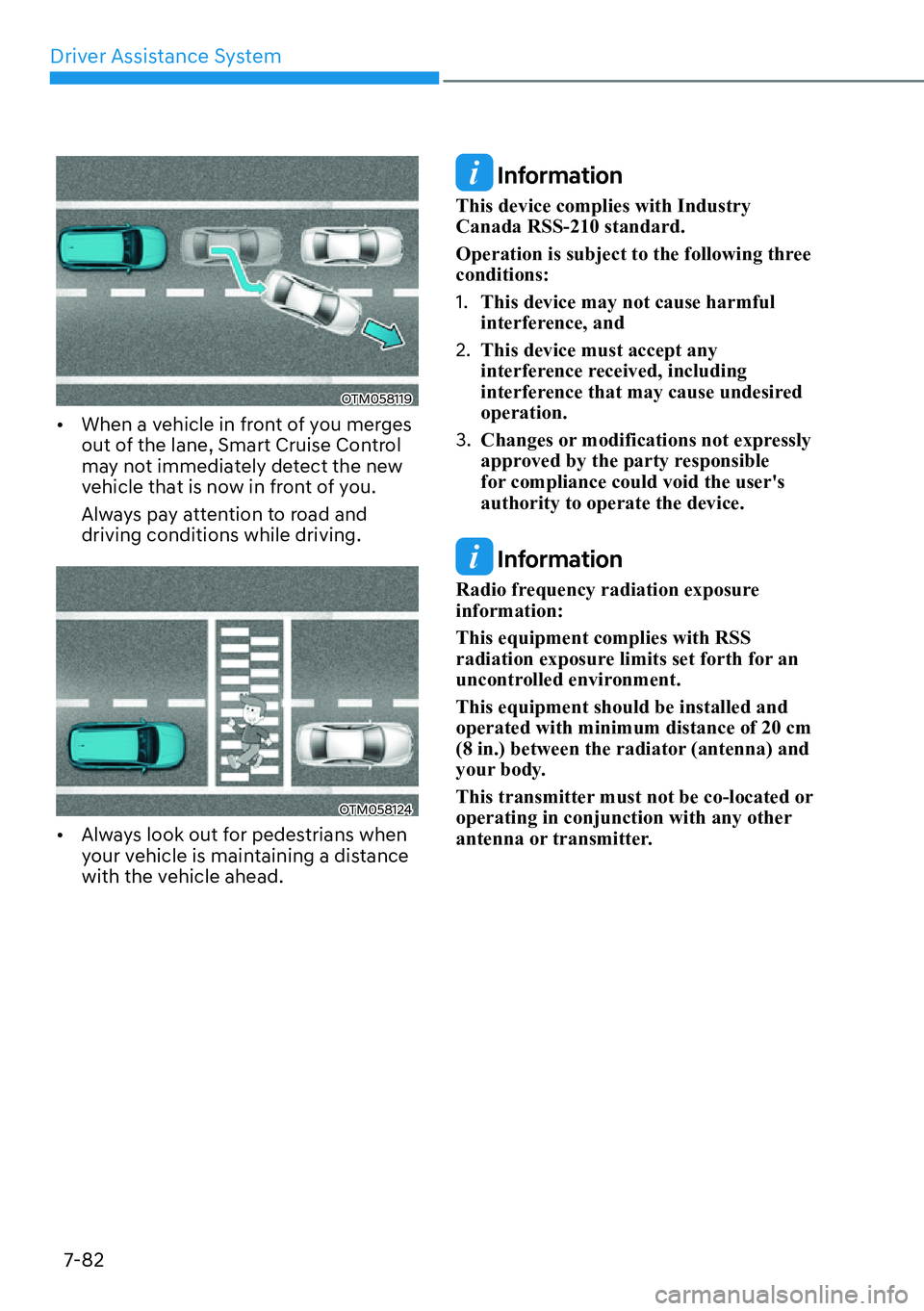

OTM058119

[ When a vehicle in front of you merges
out of the lane, Smart Cruise Control
may not immediately detect the new
vehicle that is now in front of you.
Always pay attention to road and driving conditions while driving.
OTM058124

[ Always look out for pedestrians when
your vehicle is maintaining a distance
with the vehicle ahead.
Information
This device complies with Industry Canada RSS-210 standard.
Operation is subject to the following three conditions: 1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's authority to operate the device.
Information
Radio frequency radiation exposure information: This equipment complies with RSS
radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm
(8 in.) between the radiator (antenna) and
your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-83

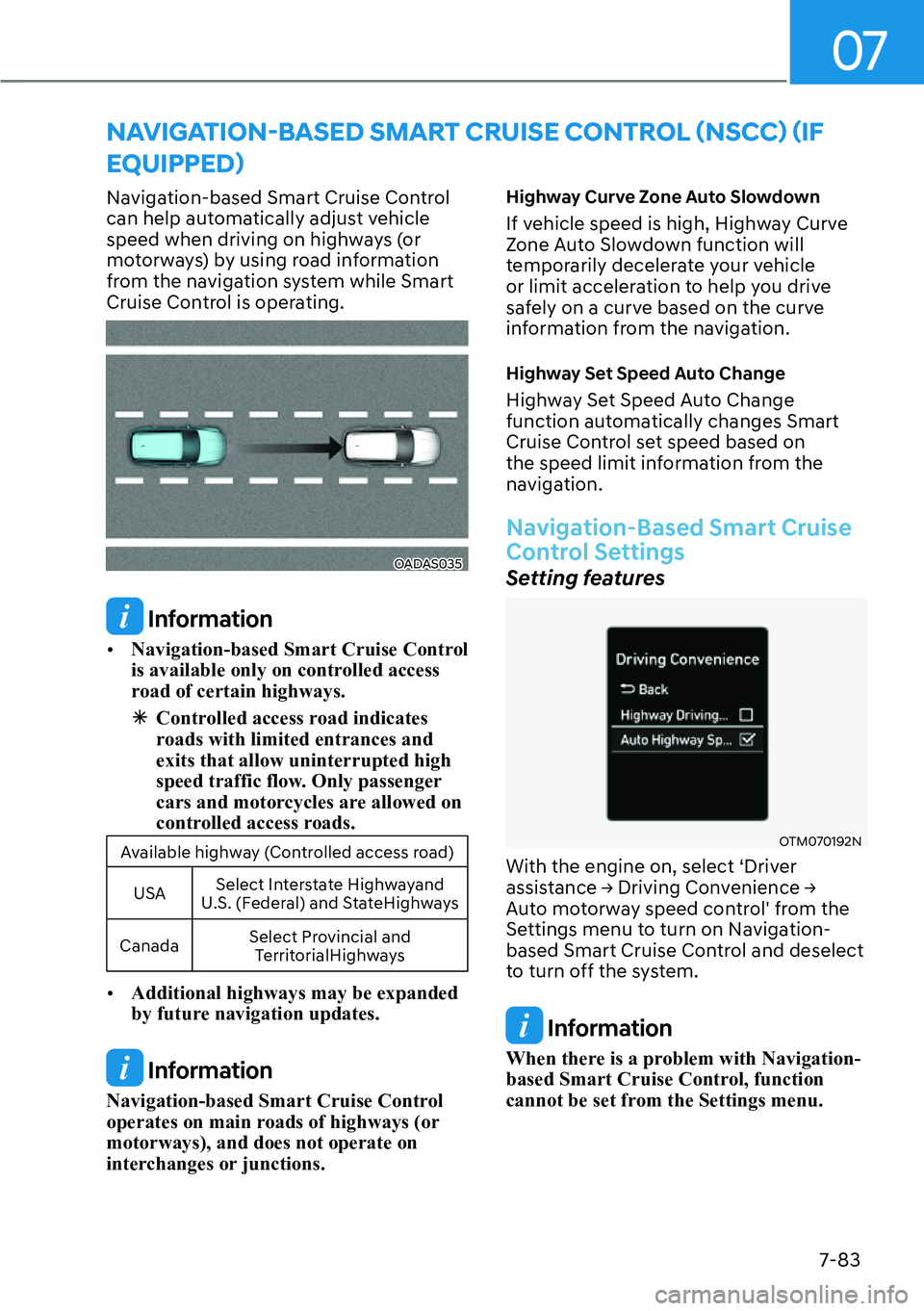

Navigation-based Smart Cruise Control
can help automatically adjust vehicle
speed when driving on highways (or
motorways) by using road information
from the navigation system while Smart
Cruise Control is operating.
OADAS035
Information

[ Navigation-based Smart Cruise Control
is available only on controlled access
road of certain highways.

à Controlled access road indicates
roads with limited entrances and exits that allow uninterrupted high
speed traffic flow. Only passenger
cars and motorcycles are allowed on
controlled access roads.
Available highway (Controlled access road)
USA Select Interstate Highwayand
U.S. (Federal) and StateHighways
Canada Select Provincial and
TerritorialHighways

[ Additional highways may be expanded
by future navigation updates.
Information
Navigation-based Smart Cruise Control
operates on main roads of highways (or motorways), and does not operate on
interchanges or junctions. Highway Curve Zone Auto Slowdown
If vehicle speed is high, Highway Curve
Zone Auto Slowdown function will
temporarily decelerate your vehicle
or limit acceleration to help you drive
safely on a curve based on the curve
information from the navigation.
Highway Set Speed Auto Change
Highway Set Speed Auto Change
function automatically changes Smart
Cruise Control set speed based on
the speed limit information from the
navigation.
Navigation-Based Smart Cruise
Control Settings
Setting features
OTM070192N
With the engine on, select ‘Driver
DVVLVWDQFH
Ÿ'ULYLQJ&RQYHQLHQFH
Ÿ
Auto motorway speed control' from the
Settings menu to turn on Navigation-
based Smart Cruise Control and deselect
to turn off the system.
Information
When there is a problem with Navigation-
based Smart Cruise Control, function
cannot be set from the Settings menu.
1$9,*$7,21
Ø%$6('60$57&58,6(&21752/
ã16&&
ä
ã,)
(48,33('
ä
