Driver Assistance System
7-124
) 2 5 : $ 5 ' 5 ( 9 ( 5 6 ( 3 $ 5 . , 1 * ' , 6 7 $ 1 & ( : $ 5 1 , 1 * ã 3 ' :ä
ã , ) ( 4 8 , 3 3 ( 'ä

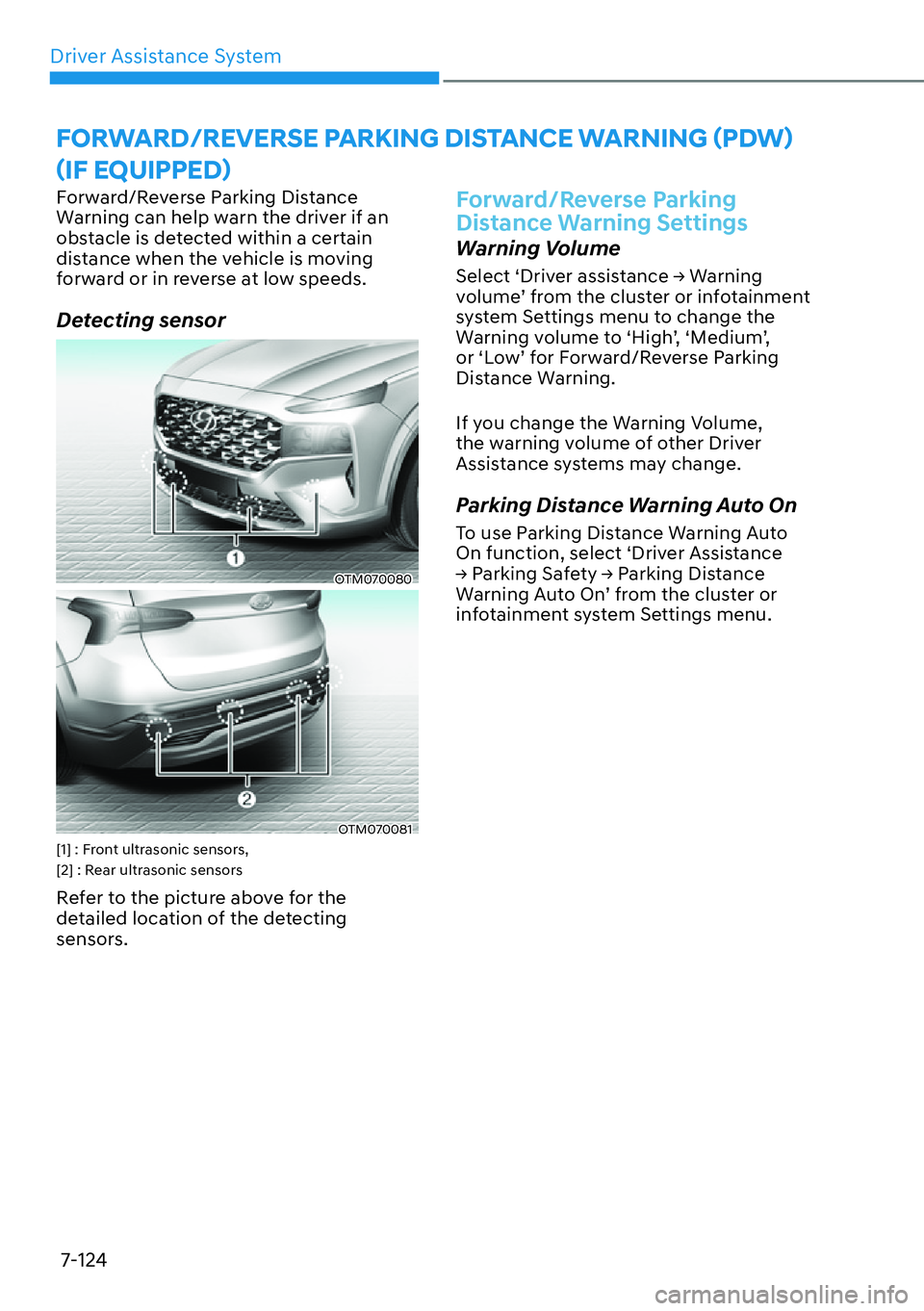

Forward/Reverse Parking Distance
Warning can help warn the driver if an
obstacle is detected within a certain
distance when the vehicle is moving
forward or in reverse at low speeds.
Detecting sensor
OTM070080
OTM070081[1] : Front ultrasonic sensors,
[2] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
Forward/Reverse Parking
Distance Warning Settings
Warning Volume
6 H O H F W S ' U L Y H U D V V L V W D Q F H Ÿ : D U Q L Q J
Y R O X P HT I U R P W K H F O X V W H U R U L Q I R W D L Q P H Q W
system Settings menu to change the
: D U Q L Q J Y R O X P H W R S + L J KT S 0 H G L X PT
R U S / R ZT I R U ) R U Z D U G 5 H Y H U V H 3 D U N L Q J
Distance Warning.
If you change the Warning Volume,
the warning volume of other Driver
Assistance systems may change.
Parking Distance Warning Auto On
To use Parking Distance Warning Auto
On function, select ‘Driver Assistance
Ÿ 3 D U N L Q J 6 D I H W \ Ÿ 3 D U N L Q J ' L V W D Q F H
: D U Q L Q J $ X W R 2 QT I U R P W K H F O X V W H U R U
infotainment system Settings menu.
Page 512 of 638
07
7-125
Forward/Reverse Parking
Distance Warning Operation

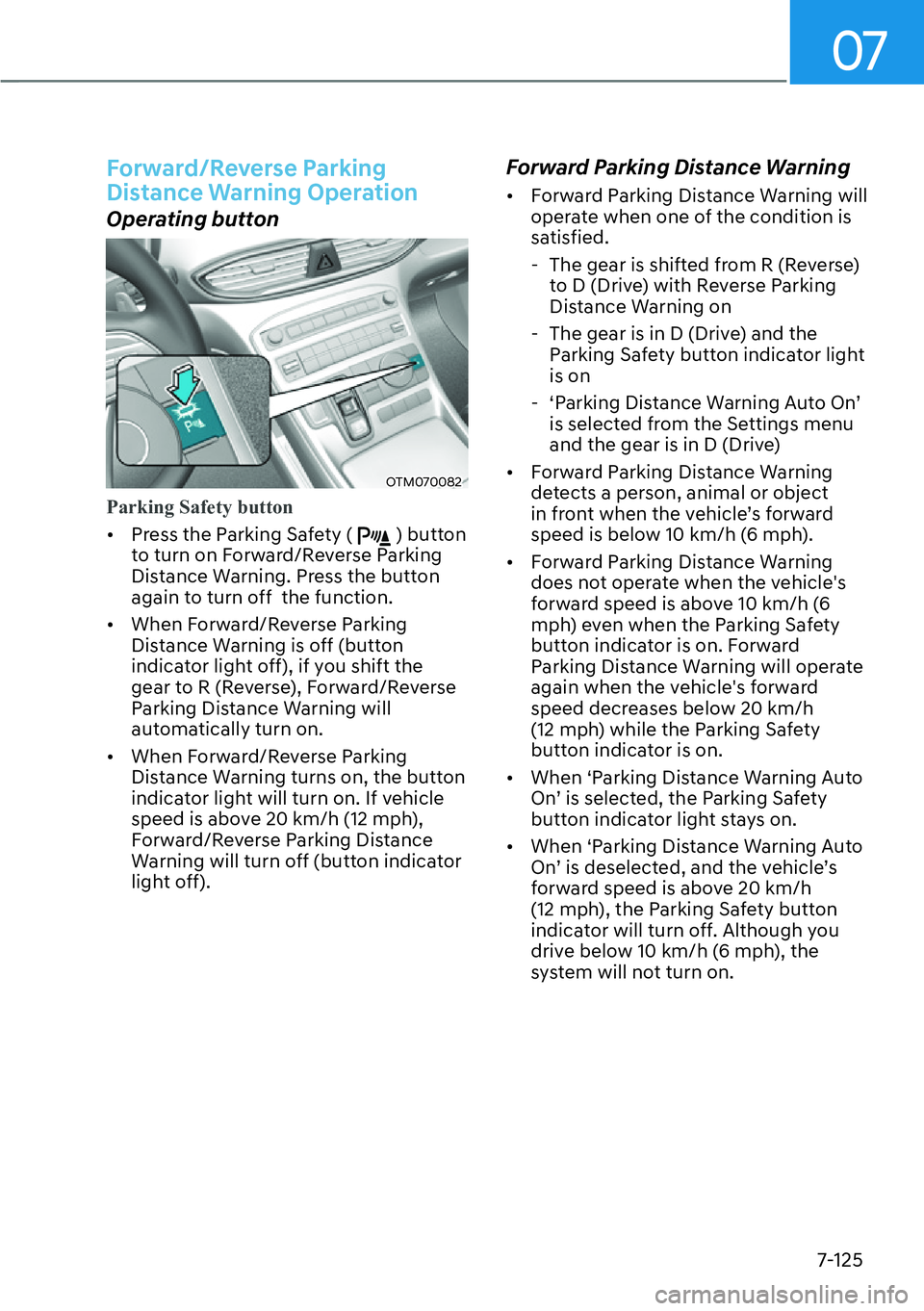

Operating button
OTM070082
Parking Safety button
[ Press the Parking Safety ( ) button
to turn on Forward/Reverse Parking
Distance Warning. Press the button
again to turn off the function.
[ When Forward/Reverse Parking
Distance Warning is off (button
indicator light off), if you shift the
gear to R (Reverse), Forward/Reverse
Parking Distance Warning will
automatically turn on.
[ When Forward/Reverse Parking
Distance Warning turns on, the button
indicator light will turn on. If vehicle
speed is above 20 km/h (12 mph),
Forward/Reverse Parking Distance
Warning will turn off (button indicator
light off). Forward Parking Distance Warning [
Forward Parking Distance Warning will
operate when one of the condition is
satisfied.
- The gear is shifted from R (Reverse) to D (Drive) with Reverse Parking
Distance Warning on
- The gear is in D (Drive) and the Parking Safety button indicator light is on
- S 3 D U N L Q J ' L V W D Q F H : D U Q L Q J $ X W R 2 QT
is selected from the Settings menu
and the gear is in D (Drive)
[ Forward Parking Distance Warning
detects a person, animal or object
L Q I U R Q W Z K H Q W K H Y H K L F O HT V I R U Z D U G
speed is below 10 km/h (6 mph).
[ Forward Parking Distance Warning
does not operate when the vehicle's
forward speed is above 10 km/h (6
mph) even when the Parking Safety
button indicator is on. Forward
Parking Distance Warning will operate
again when the vehicle's forward
speed decreases below 20 km/h
(12 mph) while the Parking Safety
button indicator is on.
[ When ‘Parking Distance Warning Auto
2 QT L V V H O H F W H G W K H 3 D U N L Q J 6 D I H W \
button indicator light stays on.
[ When ‘Parking Distance Warning Auto
2 QT L V G H V H O H F W H G D Q G W K H Y H K L F O HT V
forward speed is above 20 km/h
(12 mph), the Parking Safety button
indicator will turn off. Although you
drive below 10 km/h (6 mph), the
system will not turn on.
Page 513 of 638
Driver Assistance System
7-126

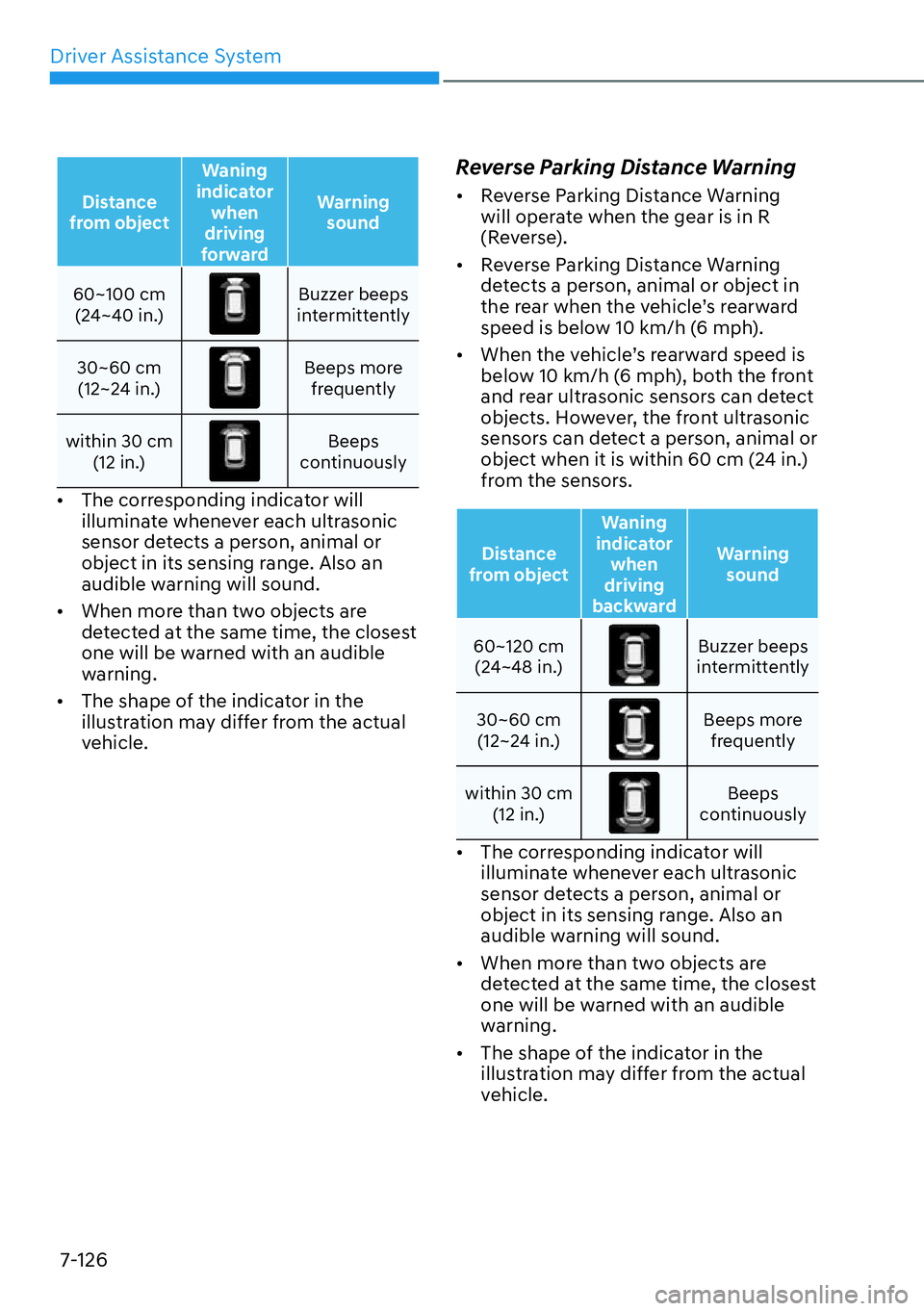

Distance
from object Waning
indicator
when
driving
forward Warning
sound
60~100 cm(24~40 in.)Buzzer beeps
intermittently
30~60 cm (12~24 in.)
Beeps more
frequently
within 30 cm (12 in.)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle. Reverse Parking Distance Warning [
Reverse Parking Distance Warning
will operate when the gear is in R
(Reverse).
[ Reverse Parking Distance Warning
detects a person, animal or object in
W K H U H D U Z K H Q W K H Y H K L F O HT V U H D U Z D U G
speed is below 10 km/h (6 mph).
[ : K H Q W K H Y H K L F O HT V U H D U Z D U G V S H H G L V below 10 km/h (6 mph), both the front
and rear ultrasonic sensors can detect
objects. However, the front ultrasonic
sensors can detect a person, animal or
object when it is within 60 cm (24 in.)
from the sensors.
Distance
from object Waning
indicator
when
driving
backward Warning
sound
60~120 cm(24~48 in.)Buzzer beeps
intermittently
30~60 cm (12~24 in.)
Beeps more frequently
within 30 cm (12 in.)
Beeps
continuously
[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Page 514 of 638
07
7-127

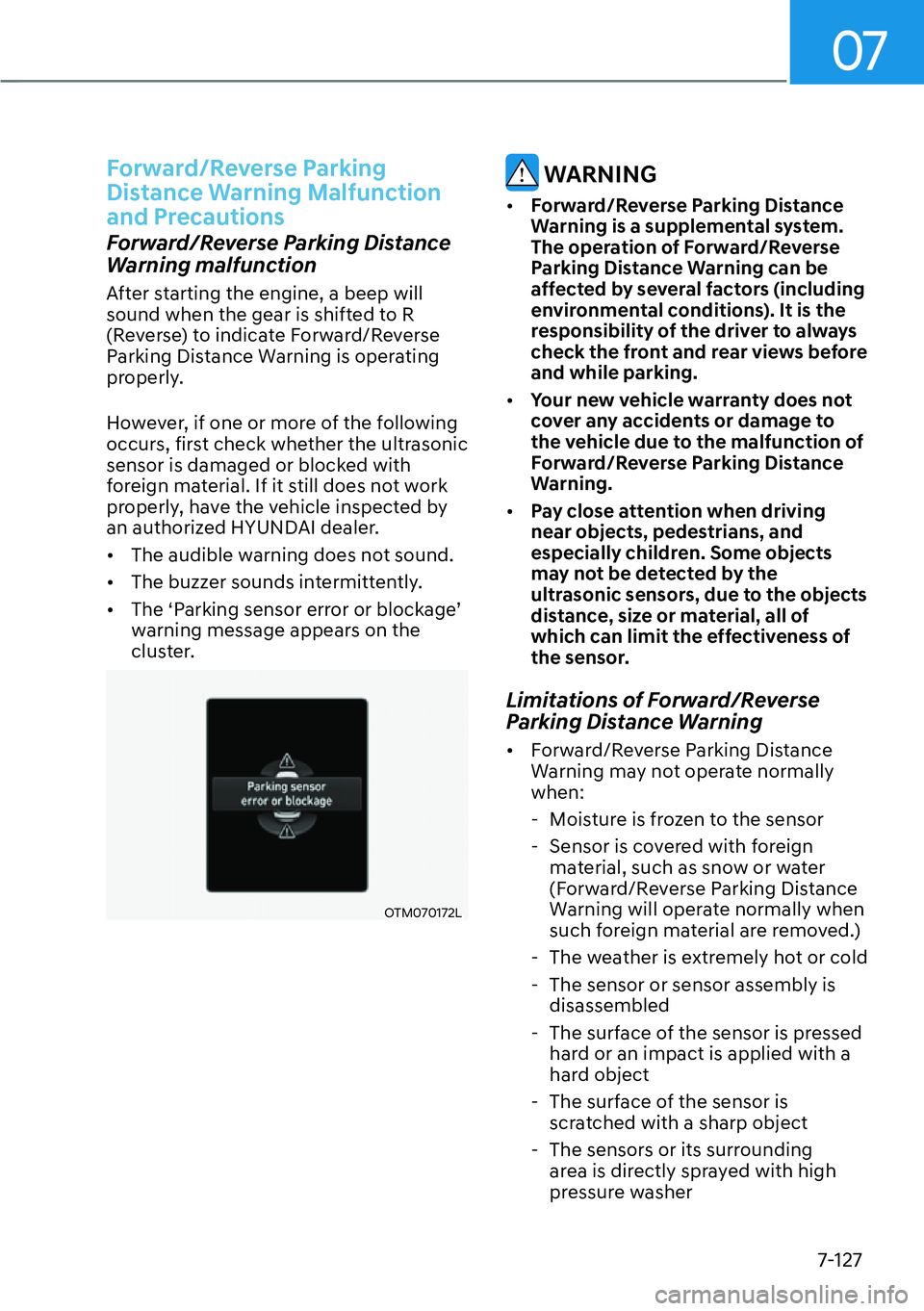

Forward/Reverse Parking
Distance Warning Malfunction
and Precautions
Forward/Reverse Parking Distance
Warning malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Forward/Reverse
Parking Distance Warning is operating
properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized HYUNDAI dealer. [ The audible warning does not sound.
[ The buzzer sounds intermittently.
[ 7 K H S 3 D U N L Q J V H Q V R U H U U R U R U E O R F N D J HT warning message appears on the
cluster.
OTM070172L
WARNING
[ Forward/Reverse Parking Distance
Warning is a supplemental system.
The operation of Forward/Reverse
Parking Distance Warning can be
affected by several factors (including
environmental conditions). It is the
responsibility of the driver to always
check the front and rear views before and while parking.
[ Your new vehicle warranty does not
cover any accidents or damage to
the vehicle due to the malfunction of
Forward/Reverse Parking Distance
Warning.
[ Pay close attention when driving
near objects, pedestrians, and
especially children. Some objects
may not be detected by the
ultrasonic sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor.
Limitations of Forward/Reverse
Parking Distance Warning [ Forward/Reverse Parking Distance
Warning may not operate normally when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign material, such as snow or water
(Forward/Reverse Parking Distance
Warning will operate normally when
such foreign material are removed.)
- The weather is extremely hot or cold
- The sensor or sensor assembly is disassembled
- The surface of the sensor is pressed hard or an impact is applied with a
hard object
- The surface of the sensor is scratched with a sharp object
- The sensors or its surrounding area is directly sprayed with high
pressure washer
Page 515 of 638
Driver Assistance System
7-128
[

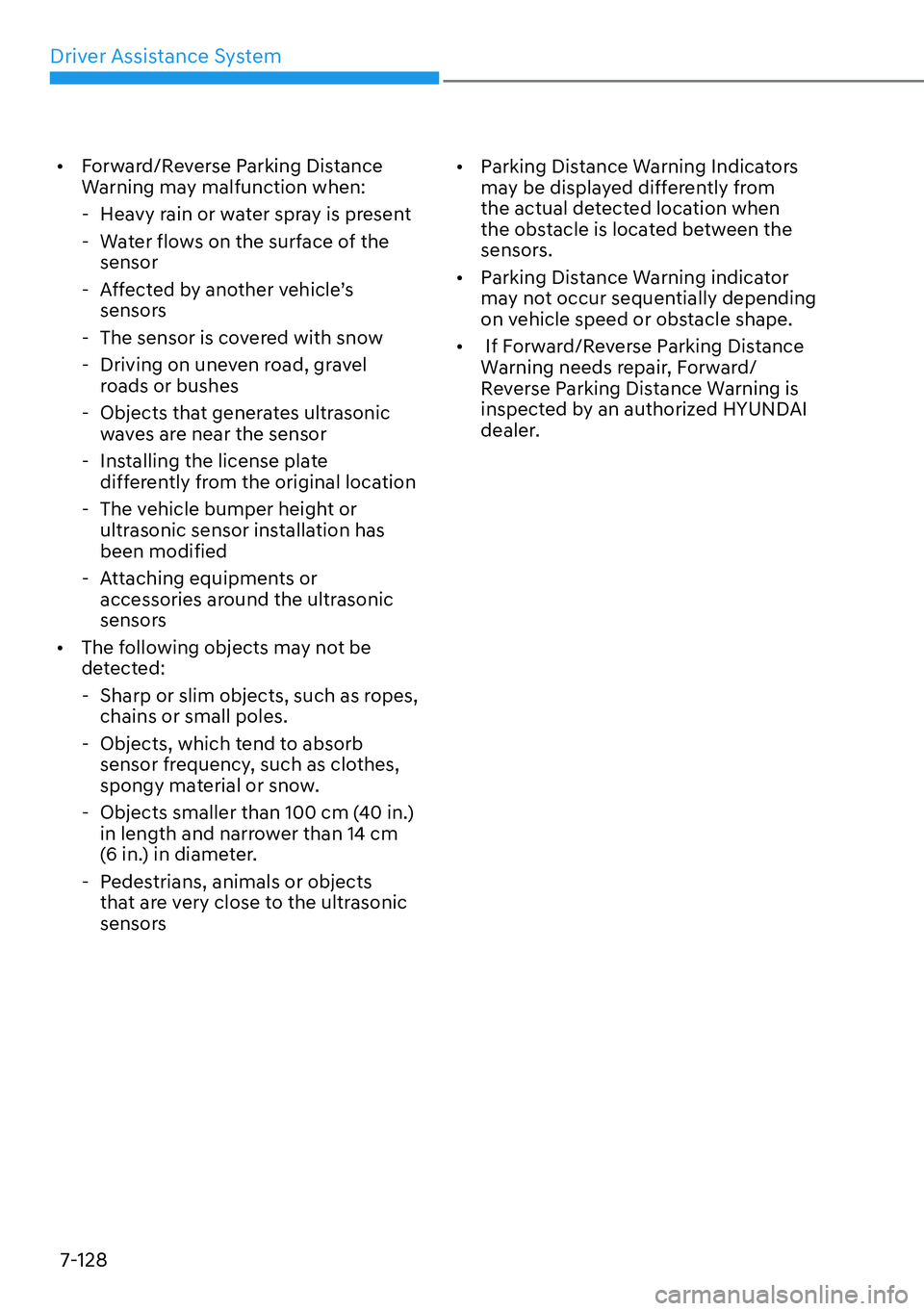

Forward/Reverse Parking Distance
Warning may malfunction when:
- Heavy rain or water spray is present
- Water flows on the surface of the sensor
- $ I I H F W H G E \ D Q R W K H U Y H K L F O HT V
sensors
- The sensor is covered with snow
- Driving on uneven road, gravel roads or bushes
- Objects that generates ultrasonic waves are near the sensor
- Installing the license plate differently from the original location
- The vehicle bumper height or ultrasonic sensor installation has been modified
- Attaching equipments or accessories around the ultrasonic
sensors
[ The following objects may not be
detected:
- Sharp or slim objects, such as ropes,
chains or small poles.
- Objects, which tend to absorb sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 100 cm (40 in.) in length and narrower than 14 cm
(6 in.) in diameter.
- Pedestrians, animals or objects that are very close to the ultrasonic
sensors [
Parking Distance Warning Indicators
may be displayed differently from
the actual detected location when
the obstacle is located between the
sensors.
[ Parking Distance Warning indicator
may not occur sequentially depending
on vehicle speed or obstacle shape.
[ If Forward/Reverse Parking Distance
Warning needs repair, Forward/
Reverse Parking Distance Warning is
inspected by an authorized HYUNDAI
dealer.
Page 516 of 638
07
7-129

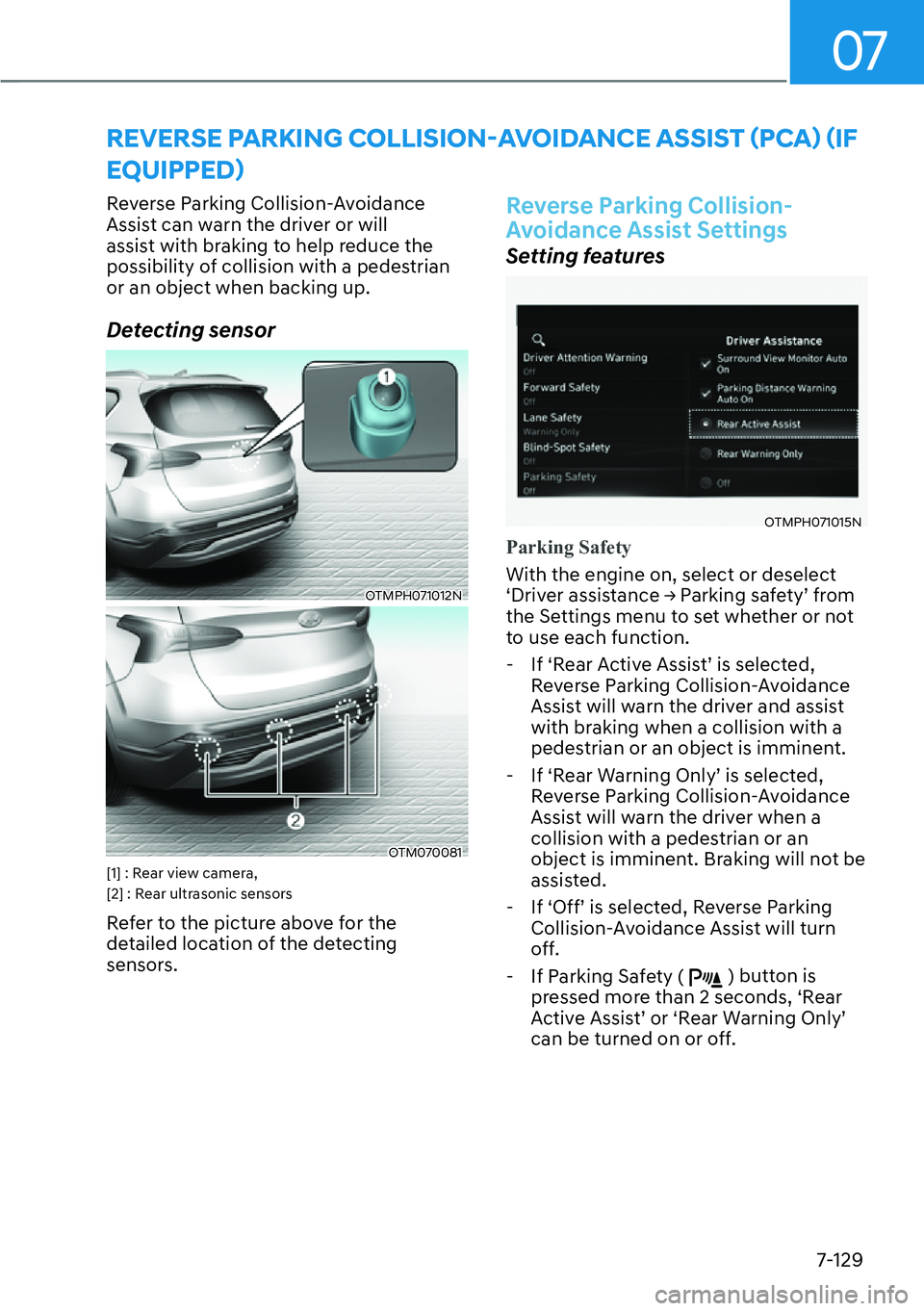

Reverse Parking Collision-Avoidance
Assist can warn the driver or will
assist with braking to help reduce the
possibility of collision with a pedestrian or an object when backing up.
Detecting sensor
OTMPH071012N
OTM070081
[1] : Rear view camera,
[2] : Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
Reverse Parking Collision-
Avoidance Assist Settings
Setting features
OTMPH071015N
Parking Safety
With the engine on, select or deselect
S ' U L Y H U D V V L V W D Q F H Ÿ 3 D U N L Q J V D I H W \T I U R P
the Settings menu to set whether or not
to use each function.
- , I S 5 H D U $ F W L Y H $ V V L V WT L V V H O H F W H G
Reverse Parking Collision-Avoidance
Assist will warn the driver and assist
with braking when a collision with a
pedestrian or an object is imminent.
- , I S 5 H D U : D U Q L Q J 2 Q O \T L V V H O H F W H G
Reverse Parking Collision-Avoidance
Assist will warn the driver when a
collision with a pedestrian or an
object is imminent. Braking will not be
assisted.
- , I S 2 I IT L V V H O H F W H G 5 H Y H U V H 3 D U N L Q J
Collision-Avoidance Assist will turn
off.
- If Parking Safety (
) button is
pressed more than 2 seconds, ‘Rear
$ F W L Y H $ V V L V WT R U S 5 H D U : D U Q L Q J 2 Q O \T
can be turned on or off.
5 ( 9 ( 5 6 ( 3 $ 5 . , 1 * & 2 / / , 6 , 2 1Ø $ 9 2 , ' $ 1 & ( $ 6 6 , 6 7 ã 3 & $ä ã , )
( 4 8 , 3 3 ( 'ä
Page 517 of 638
Driver Assistance System
7-130

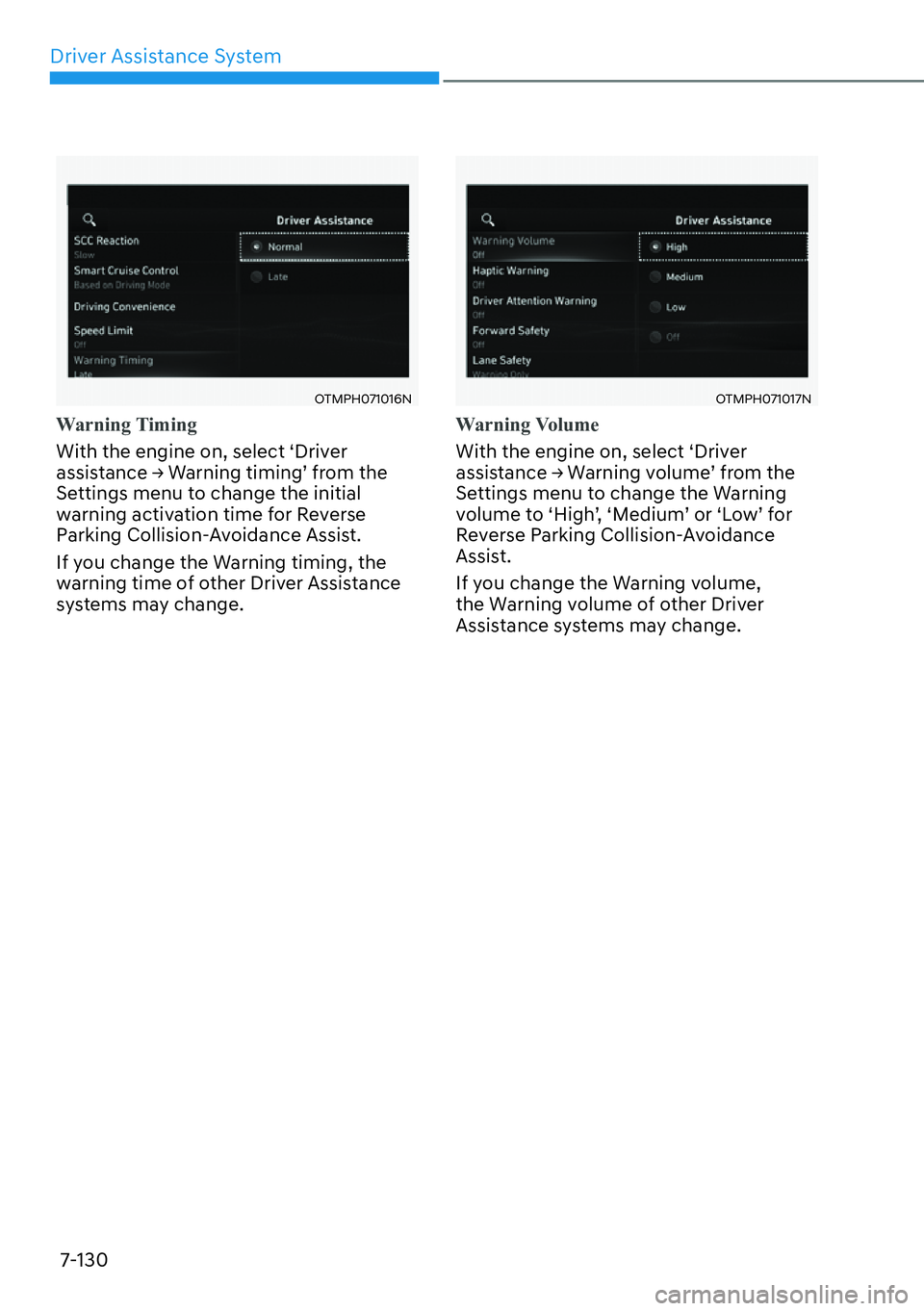

OTMPH071016N
Warning Timing
With the engine on, select ‘Driver
D V V L V W D Q F H Ÿ : D U Q L Q J W L P L Q JT I U R P W K H
Settings menu to change the initial
warning activation time for Reverse
Parking Collision-Avoidance Assist.
If you change the Warning timing, the
warning time of other Driver Assistance
systems may change.
OTMPH071017N
Warning Volume
With the engine on, select ‘Driver
D V V L V W D Q F H Ÿ : D U Q L Q J Y R O X P HT I U R P W K H
Settings menu to change the Warning
Y R O X P H W R S + L J KT S 0 H G L X PT R U S / R ZT I R U
Reverse Parking Collision-Avoidance
Assist.
If you change the Warning volume,
the Warning volume of other Driver
Assistance systems may change.
Page 518 of 638
07
7-131
Reverse Parking Collision-
Avoidance Assist Operation
Operating conditions
, I S 5 H D U D F W L Y H D V V L V WT R U S 5 H D U Z D U Q L Q J
R Q O \T L V V H W I U R P W K H 6 H W W L Q J V P H Q X
Reverse Parking Collision-Avoidance
Assist will be in the ready status when
the following conditions are satisfied: - The tailgate is closed
- The gear is shifted to R (Reverse)
- Vehicle speed is below 10 km/h (6 mph)
- System components such as the rear view camera and the rear ultrasonic
sensors are in normal conditions
When Reverse Parking Collision-
Avoidance Assist activates, a line
appears behind the vehicle image in the
instrument cluster.
Reverse Parking Collision-Avoidance
Assist operates only once after the gear
is shifted to R (Reverse). To reactivate
Reverse Parking Collision-Avoidance
Assist, shift the gear from another gear
to R (Reverse).

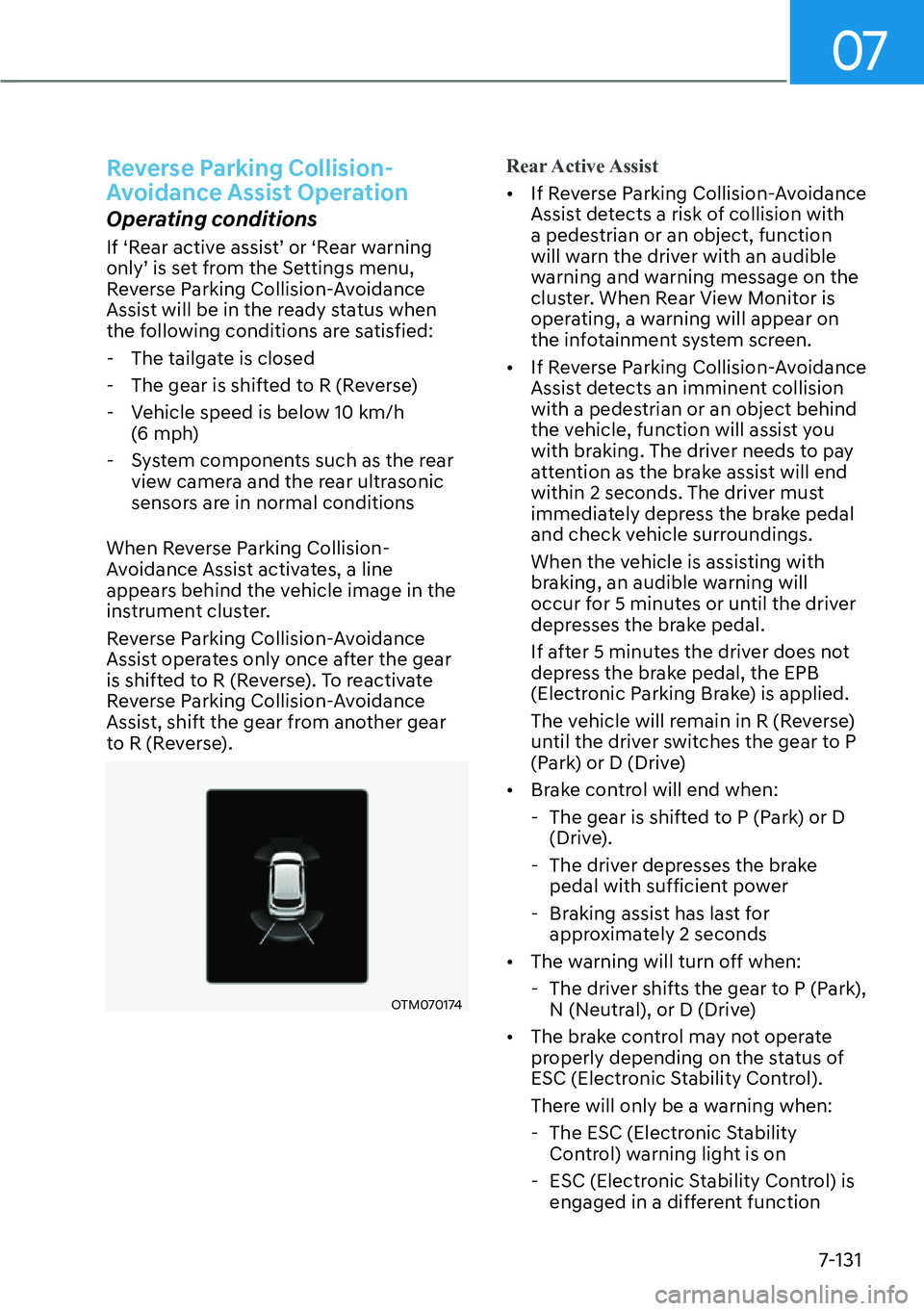

OTM070174
Rear Active Assist
[ If Reverse Parking Collision-Avoidance
Assist detects a risk of collision with
a pedestrian or an object, function
will warn the driver with an audible
warning and warning message on the
cluster. When Rear View Monitor is
operating, a warning will appear on
the infotainment system screen.
[ If Reverse Parking Collision-Avoidance
Assist detects an imminent collision
with a pedestrian or an object behind
the vehicle, function will assist you
with braking. The driver needs to pay
attention as the brake assist will end
within 2 seconds. The driver must
immediately depress the brake pedal
and check vehicle surroundings.
When the vehicle is assisting with
braking, an audible warning will
occur for 5 minutes or until the driver
depresses the brake pedal.
If after 5 minutes the driver does not
depress the brake pedal, the EPB
(Electronic Parking Brake) is applied.
The vehicle will remain in R (Reverse)
until the driver switches the gear to P
(Park) or D (Drive)
[ Brake control will end when:
- The gear is shifted to P (Park) or D (Drive).
- The driver depresses the brake pedal with sufficient power
- Braking assist has last for approximately 2 seconds
[ The warning will turn off when:
- The driver shifts the gear to P (Park), N (Neutral), or D (Drive)
[ The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control) warning light is on
- ESC (Electronic Stability Control) is engaged in a different function
Page 519 of 638
Driver Assistance System
7-132
Rear Warning Only
[ If the system detects a risk of collision
with a pedestrian or an object,
function will warn the driver with an
audible warning and warning message
on the cluster. When Rear View
Monitor is operating, a warning will
appear on the infotainment system
screen.
[ , I S 5 H D U : D U Q L Q J 2 Q O \T L V V H O H F W H G braking will not be assisted.
[ The warning will turn off when the
gear is shifted to P (Park), N (Neutral)
or D (Drive).
Reverse Parking Collision-
Avoidance Assist
Malfunctionand Limitations
Reverse Parking Collision-Avoidance
Assist malfunction
OTM070173L
When Reverse Parking Collision-
Avoidance Assist or other related
functions are not working properly, the
S & K H F N 3 D U N L Q J 6 D I H W \ V \ V W H PT Z D U Q L Q J
message will appear on the cluster, and
Reverse Parking Collision-Avoidance
Assist will turn off automatically. Have
the vehicle inspected by an authorized
HYUNDAI dealer. Reverse Parking Collision-Avoidance disabled
OTM070070

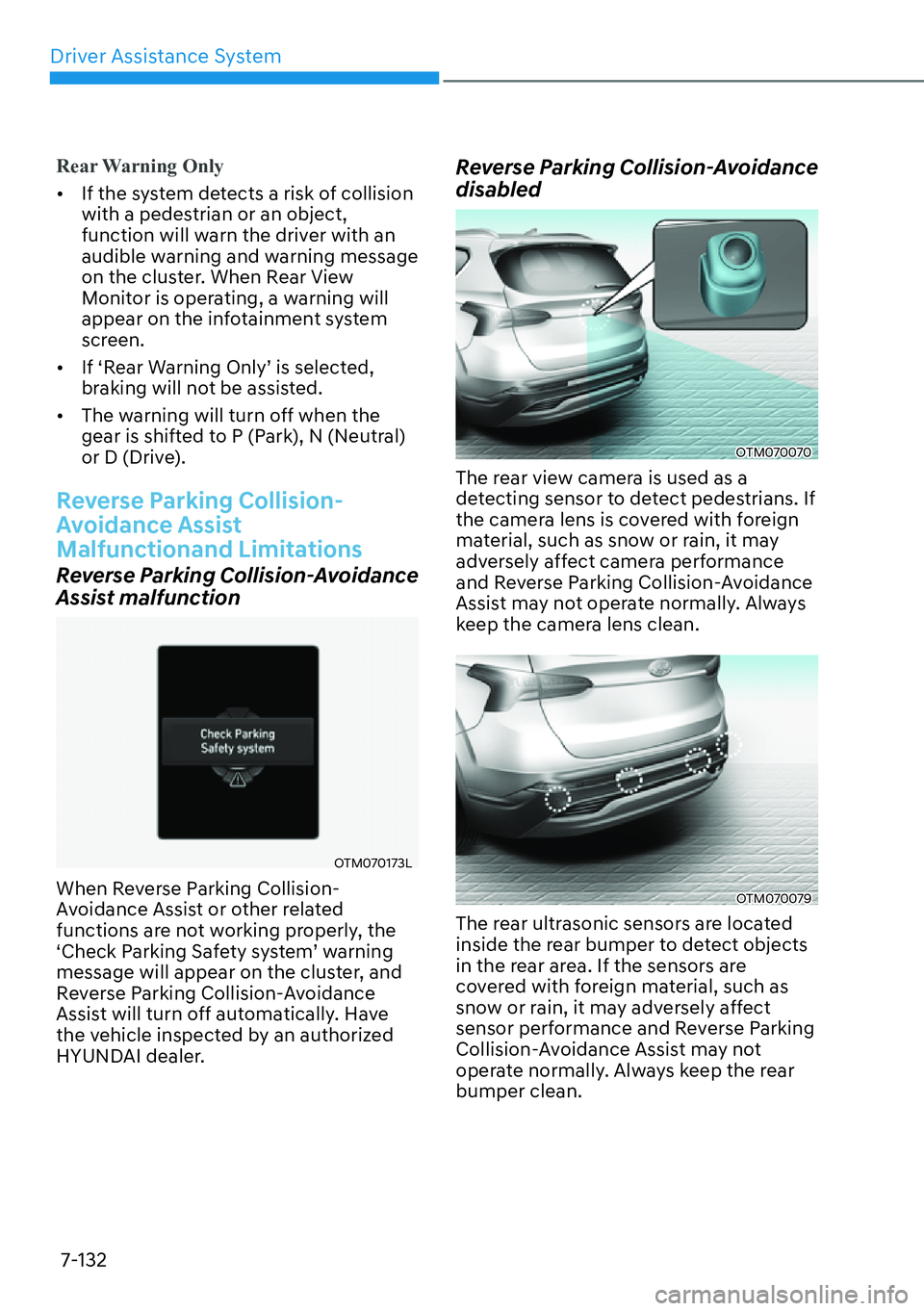

The rear view camera is used as a
detecting sensor to detect pedestrians. If
the camera lens is covered with foreign
material, such as snow or rain, it may
adversely affect camera performance
and Reverse Parking Collision-Avoidance
Assist may not operate normally. Always
keep the camera lens clean.
OTM070079
The rear ultrasonic sensors are located
inside the rear bumper to detect objects
in the rear area. If the sensors are
covered with foreign material, such as
snow or rain, it may adversely affect
sensor performance and Reverse Parking
Collision-Avoidance Assist may not
operate normally. Always keep the rear bumper clean.
Page 520 of 638
07
7-133
„Rear view camera „Rear ultrasonic sensor
OTM070219LOTM070176L

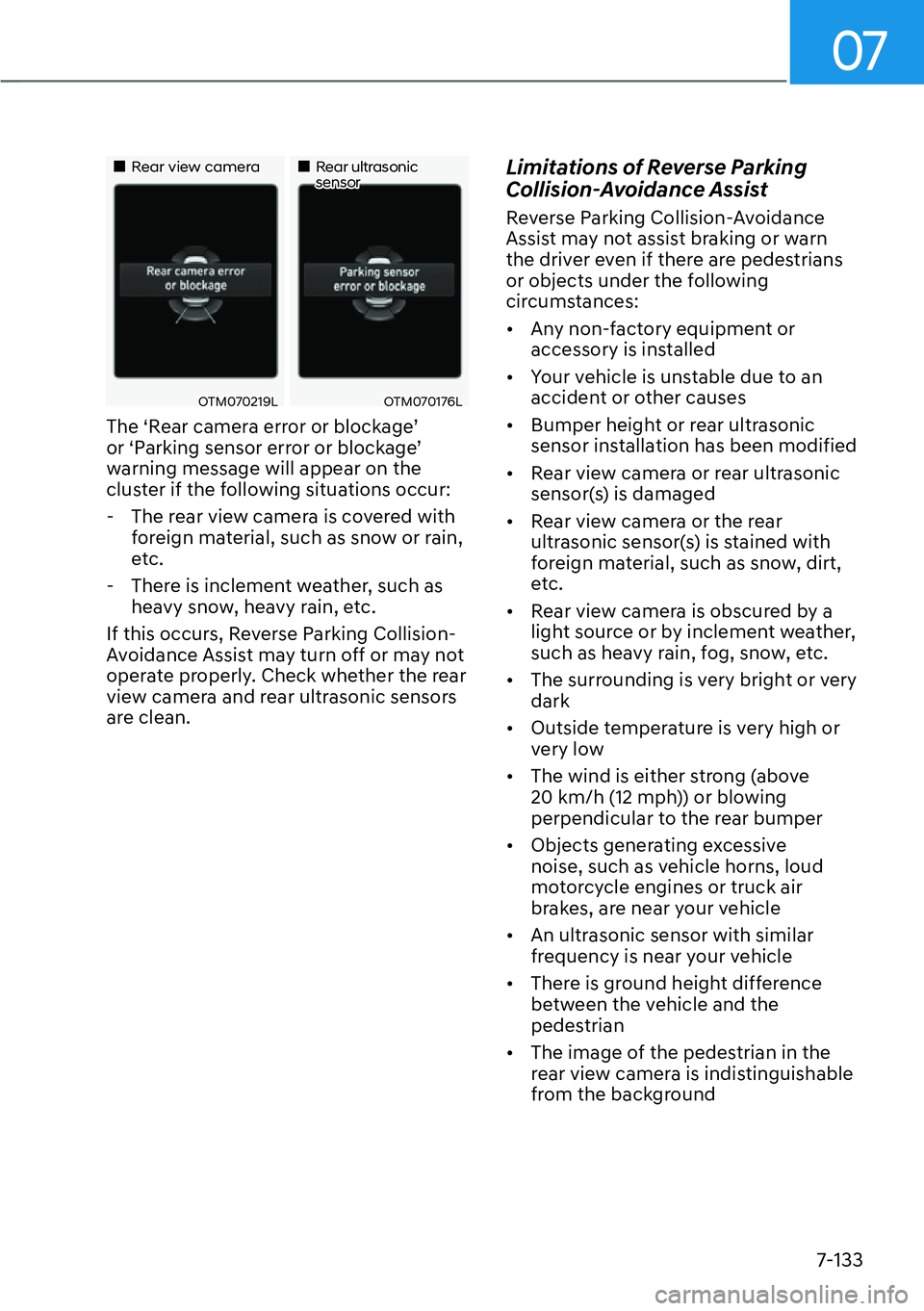

7 K H S 5 H D U F D P H U D H U U R U R U E O R F N D J HT
R U S 3 D U N L Q J V H Q V R U H U U R U R U E O R F N D J HT
warning message will appear on the
cluster if the following situations occur:
- The rear view camera is covered with foreign material, such as snow or rain,
etc.
- There is inclement weather, such as heavy snow, heavy rain, etc.
If this occurs, Reverse Parking Collision-
Avoidance Assist may turn off or may not
operate properly. Check whether the rear
view camera and rear ultrasonic sensors
are clean. Limitations of Reverse Parking
Collision-Avoidance Assist
Reverse Parking Collision-Avoidance
Assist may not assist braking or warn
the driver even if there are pedestrians
or objects under the following
circumstances: [
Any non-factory equipment or
accessory is installed
[ Your vehicle is unstable due to an
accident or other causes
[ Bumper height or rear ultrasonic
sensor installation has been modified
[ Rear view camera or rear ultrasonic
sensor(s) is damaged
[ Rear view camera or the rear
ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.
[ Rear view camera is obscured by a
light source or by inclement weather,
such as heavy rain, fog, snow, etc.
[ The surrounding is very bright or very dark
[ Outside temperature is very high or
very low
[ The wind is either strong (above
20 km/h (12 mph)) or blowing
perpendicular to the rear bumper
[ Objects generating excessive
noise, such as vehicle horns, loud
motorcycle engines or truck air
brakes, are near your vehicle
[ An ultrasonic sensor with similar
frequency is near your vehicle
[ There is ground height difference
between the vehicle and the
pedestrian
[ The image of the pedestrian in the
rear view camera is indistinguishable
from the background
