Page 91 of 308

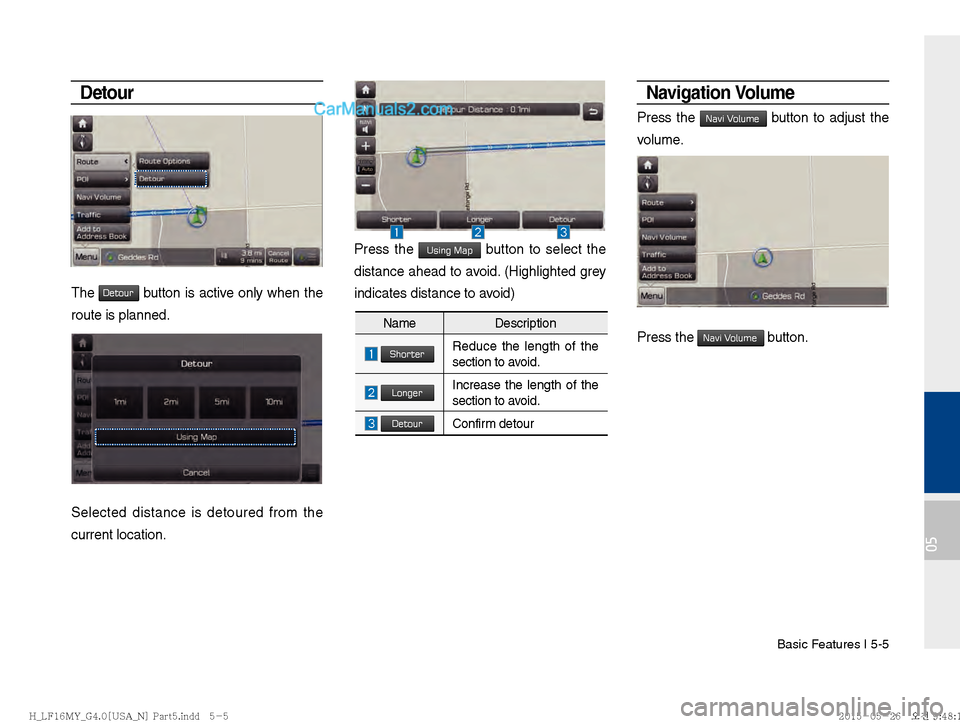

Basic Features I 5-5
05
Detour
The Detour button is active only when the
route is planned.
Selected distance is detoured from the
current location.
Press the Using Map button to select the
distance ahead to avoid. (Highlighted grey
indicates distance to avoid)
Navigation Volume
Press the Navi Volume button to adjust the
volume.
Press the Navi Volume button.Name Description
ShorterReduce the length of the
section to avoid.
LongerIncrease the length of the
section to avoid.
DetourConfirm detour
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 92 of 308

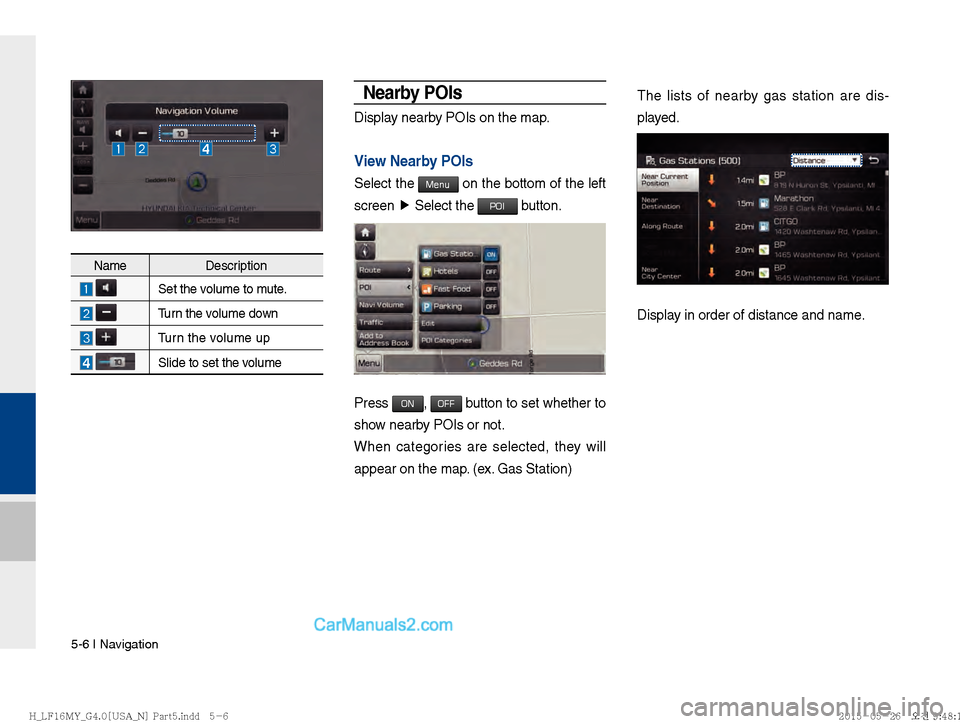

5-6 I Navigation
Nearby POIs
Display nearby POIs on the map.
View Nearby POIs
Select the Menu on the bottom of the left
screen ▶
Select the
POI button.
Press ON, OFF button to set whether to
show nearby POIs or not.
When categories are selected, they will
appear on the map. (ex. Gas Station) The lists of nearby gas station are dis-
played.
Display in order of distance and name.
Name
Description
Set the volume to mute.
Turn the volume down
Turn the volume up
Slide to set the volume
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 93 of 308
Basic Features I 5-7
05
NameDescription
Call to the selected loca-
tion (Phone needs to be
connected via Bluetooth)
Set asDestinationSet the place as a desti-
nation.
Add WaypointSet the location as a way-
point.
Add to Address Book
Save the location
POISearch nearby POIs.
!Ÿ
Editing
Change the shortcut POIs to display for
your shortcuts(ex. Gas Station)
Select the desired category to change. (ex.
Restaurants)
Select new category to display (ex.
American)
Gas Stations is changed to American .
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 94 of 308

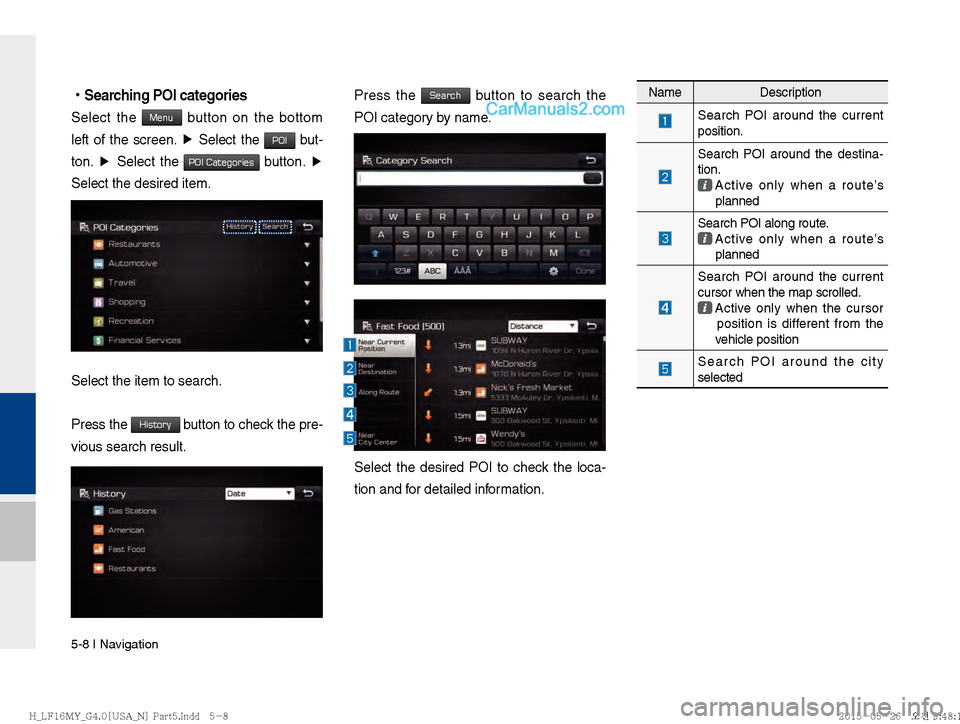

5-8 I Navigation
!Ÿ
Searching POI categories
Select the Menu button on the bottom
left of the screen. ▶
Select the
POI but-
ton. ▶
Select the
POI Categories button. ▶
Select the desired item.
Select the item to search.
Press the
History button to check the pre-
vious search result.
Press the Search button to search the
POI category by name.
Select the desired POI to check the loca-
tion and for detailed information.
Name Description
Search POI around the current
position.
Search POI around the destina-
tion.
Active only when a route’s
planned
Search POI along route.
Active only when a route’s
planned
Search POI around the current
cursor when the map scrolled.
Active only when the cursor
position is different from the
vehicle position
Search POI around the city
selected
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 95 of 308
Basic Features I 5-9
05
Traffi c List
Press the Menu button. ▶
Select the
Traffic button.
On the traffic list, the current traffic/road
event information is displayed in order of
distance Additional traffic information may be dis-
played upon clicking on the button
CategoryWhen On Route is activated, only traffic
information on your route is displayed.
Name
Description
Direction from the current loca-
tion.
Distance from the current loca-
tion (mi or km)
Displays traffic info symbol based
on the type of event.
Description of traffic event.
NameDescription
Display ‘Road Construction’ information
Display ‘Accident’ information
Display ‘Slow Traffic’ information
Display ‘Incident’ information
Display ‘Hazardous Road Conditions’
information
Display ‘Travel Information’
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 96 of 308
5-10 I Navigation
On the traffic list, the current basic traf-
fic/road event information is displayed in
order of distance.
Select the combo box to change the
arrangement in order of distance/cate-
gory.
Traffi c detail
Press the Menu button on the bottom left
of the screen. ▶
Select the
Traffic button.
Select the traffic information on the traffic
list to display the detailed screen as shown
in the screen.
Display the symbol of traffic event and
arrow which indicates the road from start
to end of the traffic event. Detailed infor-
mation is available on the right screen.
Name Description
Select the combo box to arrange.
Arrangement by category
: Display traffic information
arranged in order of traffic infor-
mation event type.
Arrangement by distance :
Display the traffic information in
order of distance closer to the
current location.
Name
Description
Symbol of traffic event
Event name of traffic information
Road name / road number includ-
ing direction
Direction and distance from the
current location
Intersection where traffic event
starts
Intersection where traffic event
ends
Total distance of traffic event
Estimated delay time
Check the previous traffic infor-
mation
Check the next traffic information
Detour the route based on the
traffic information
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 97 of 308
Basic Features I 5-11
05

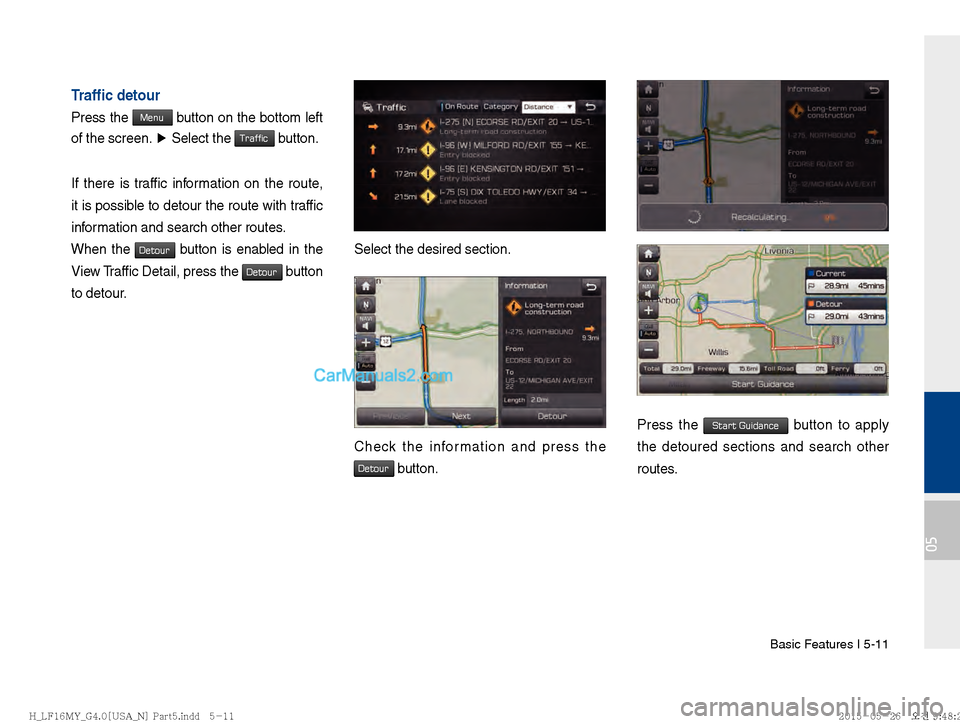

Traffi c detour
Press the Menu button on the bottom left
of the screen. ▶
Select the
Traffic button.
If there is traffic information on the route,
it is possible to detour the route with traffic
information and search other routes.
When the
Detour button is enabled in the
View Traffic Detail, press the
Detour button
to detour. on.
Select the desired section.
.
Check the information and press the
Detour button.
Press the Start Guidance button to apply
the detoured sections and search other
routes.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 98 of 308

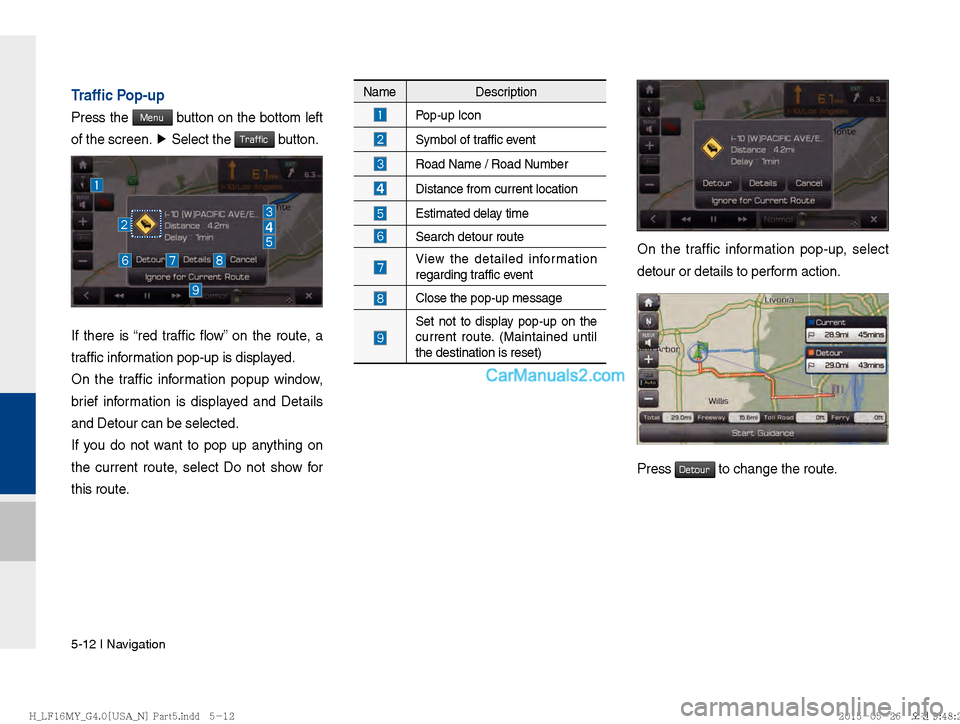

5-12 I Navigation
Traffi c Pop-up
Press the Menu button on the bottom left
of the screen. ▶
Select the
Traffic button.
If there is “red traffic flow” on the route, a
traffic information pop-up is displayed.
On the traffic information popup window,
brief information is displayed and Details
and Detour can be selected.
If you do not want to pop up anything on
the current route, select Do not show for
this route.
On the traffic information pop-up, select
detour or details to perform action.
Press Detour to change the route.
Name Description
Pop-up Icon
Symbol of traffic event
Road Name / Road Number
Distance from current location
Estimated delay time
Search detour route
View the detailed information
regarding traffic event
Close the pop-up message
Set not to display pop-up on the
current route. (Maintained until
the destination is reset)
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 99 of 308

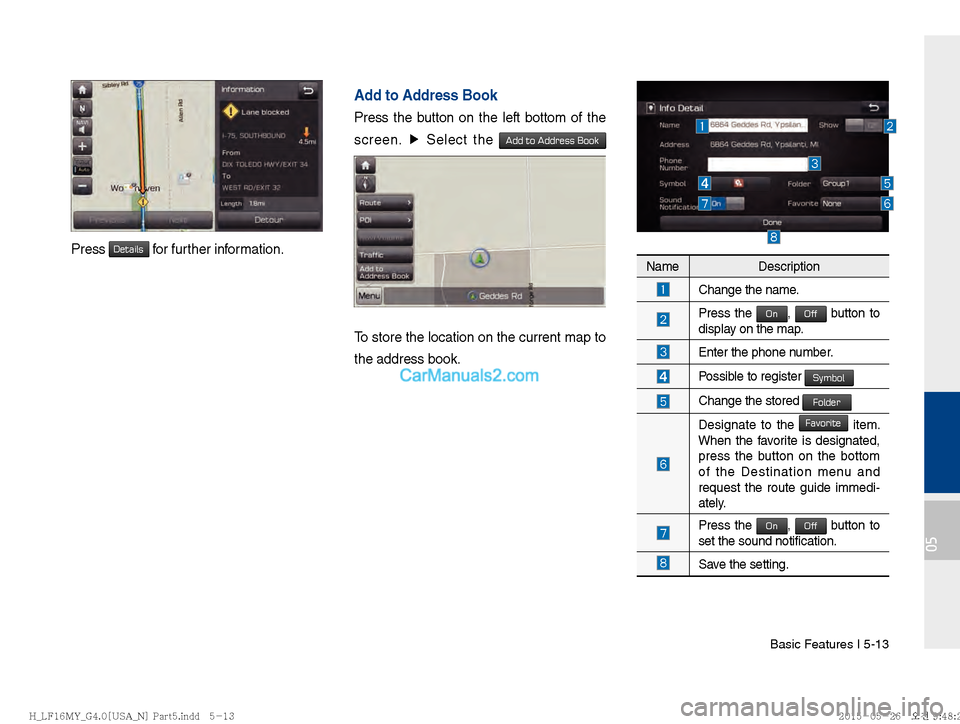

Basic Features I 5-13
05
Press Details for further information.
Add to Address Book
Press the button on the left bottom of the
screen. ▶
Select the
Add to Address Book
To store the location on the current map to
the address book.
Name Description
Change the name.
Press the On, Off button to
display on the map.
Enter the phone number.
Possible to register Symbol
Change the stored Folder
Designate to the Favorite item.
When the favorite is designated,
press the button on the bottom
of the Destination menu and
request the route guide immedi-
ately.
Press the On, Off button to
set the sound notification.
Save the setting.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 100 of 308

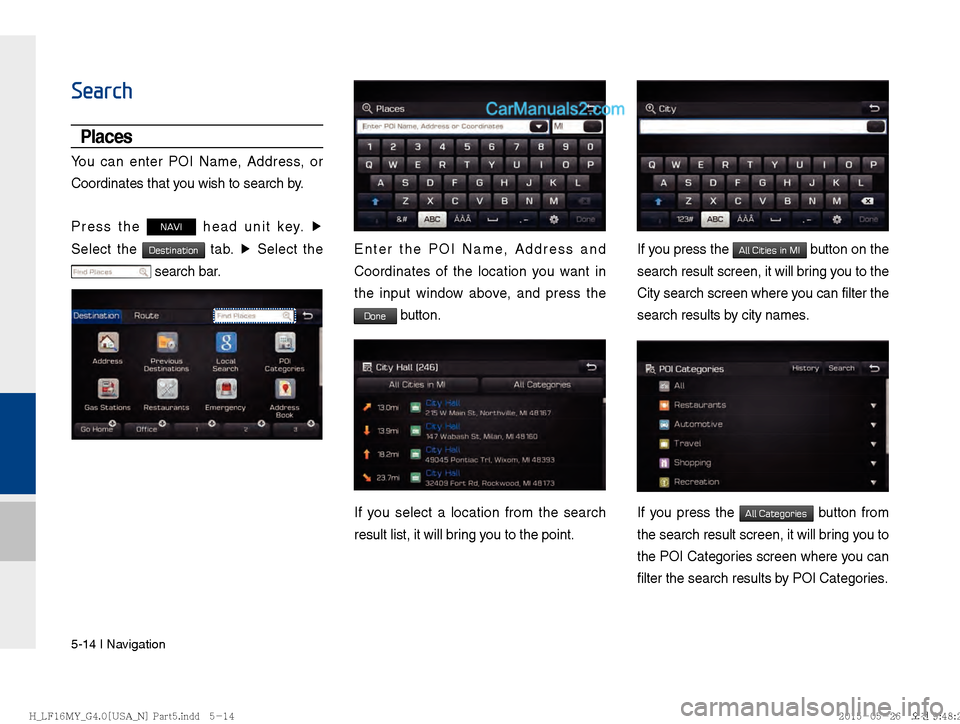

5-14 I Navigation
Search
Places
You can enter POI Name, Address, or
Coordinates that you wish to search by.
Press the
NAVI head unit key. Ü
Select the
Destination tab. Ü
Select the
search bar.
Enter the POI Name, Address and
Coordinates of the location you want in
the input window above, and press the
Done button.
If you select a location from the search
result list, it will bring you to the point.
If you press the All Cities in MI button on the
search result screen, it will bring you to the
City search screen where you can filter the
search results by city names.
If you press the All Categories button from
the search result screen, it will bring you to
the POI Categories screen where you can
filter the search results by POI Categories.
