Page 81 of 308
Before Use I 4-3
04
Before Use
What Is Blue Link?
This is a Hyundai telematics service based on our cutting-edge IT
system that makes your driving experience more convenient and
fun and features safety, security, vehicle diagnostics, remote con-
trol and even smartphone synchronization functions.
Enjoy a smarter driving style with Blue Link.
What Is Telematics?
The word “Telematics” stems from the combination of telecommu-
nications and informatics, and refers to an information system that
provides a variety of driving information through the built-in termi-
nal by analyzing each symptom and driving state. This allows for a
much safer and more comfortable driving experience.
About Transmission and
Reception of Radio Waves
Connection to the Blue Link Center or wireless data transmission
may be disrupted in the following places.
For radio wave transmission/reception status, refer to the status
displayed on the Blue Link screen.
It is recommended that you use the Blue Link system when the
antenna icon (
) shows four bars or more.
Places where Blue Link may be disrupted depending on the trans-
mission/reception status:
!Ÿ
Inside tunnels
!Ÿ
Mountainous areas or dense forest
!Ÿ
Roads close to cliff edges
!Ÿ
Densely built-up areas
!Ÿ
On highways or roads underneath higher interchange roads
!Ÿ
Inside buildings
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 82 of 308
4-4 I Blue Link® Control

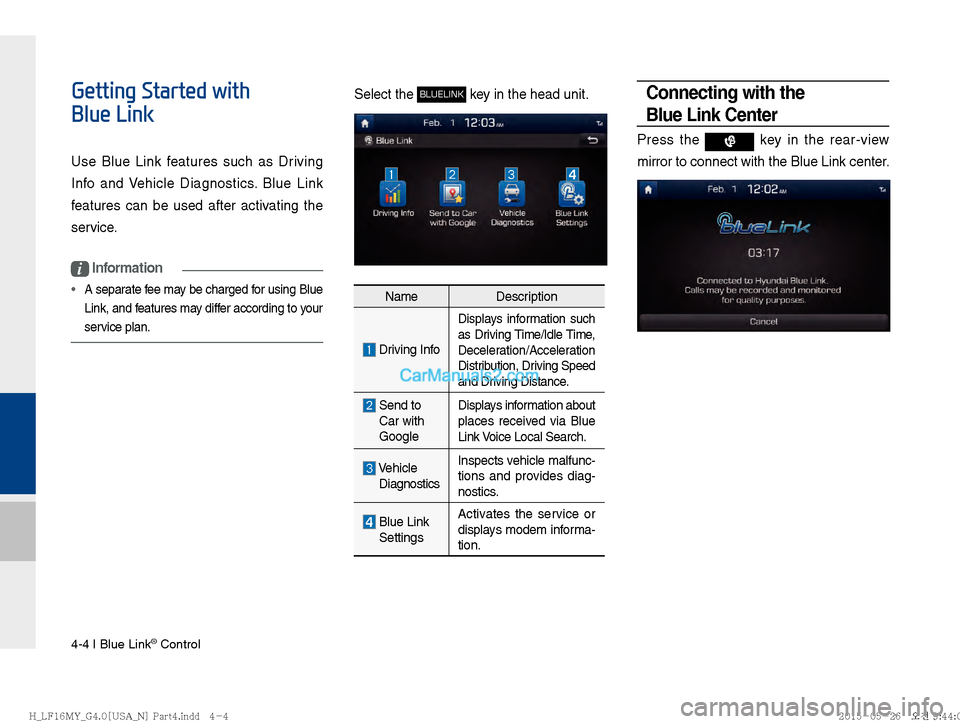

Getting Started with
Blue Link
Use Blue Link features such as Driving
Info and Vehicle Diagnostics. Blue Link
features can be used after activating the
service.
i Information
A separate fee may be charged for using Blue
Link, and features may diff
er according to your
service plan.
Select the BLUELINK key in the head unit.
Name Description
Driving Info
Displays information such
as Driving Time/Idle Time,
Deceleration/Acceleration
Distribution, Driving Speed
and Driving Distance.
Send to
Car with
Google Displays information about
places received via Blue
Link Voice Local Search.
Vehicle
Diagnostics Inspects vehicle malfunc-
tions and provides diag-
nostics.
Blue Link
Settings Activates the service or
displays modem informa-
tion.
Connecting with the
Blue Link Center
Press the key in the rear-view
mirror to connect with the Blue Link center.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 83 of 308
Getting Started with Blue Link I 4-5
04

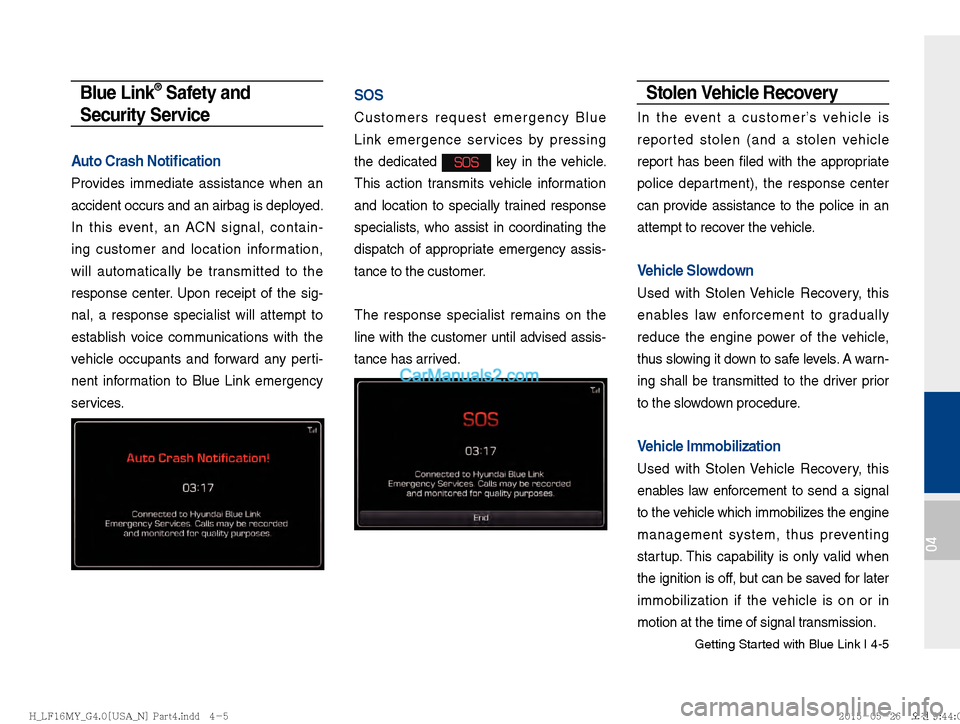

Blue Link® Safety and
Security Service
Auto Crash Noti cation
Provides immediate assistance when an
accident occurs and an airbag is deployed.
In this event, an ACN signal, contain-
ing customer and location information,
will automatically be transmitted to the
response center. Upon receipt of the sig-
nal, a response specialist will attempt to
establish voice communications with the
vehicle occupants and forward any perti-
nent information to Blue Link emergency
services.
SOS
Customers request emergency Blue
Link emergence services by pressing
the dedicated
SOS key in the vehicle.
This action transmits vehicle information
and location to specially trained response
specialists, who assist in coordinating the
dispatch of appropriate emergency assis-
tance to the customer.
The response specialist remains on the
line with the customer until advised assis-
tance has arrived.
Stolen Vehicle Recovery
In the event a customer’s vehicle is
reported stolen (and a stolen vehicle
report has been filed with the appropriate
police department), the response center
can provide assistance to the police in an
attempt to recover the vehicle.
Vehicle Slowdown
Used with Stolen Vehicle Recovery, this
enables law enforcement to gradually
reduce the engine power of the vehicle,
thus slowing it down to safe levels. A warn-
ing shall be transmitted to the driver prior
to the slowdown procedure.
Vehicle Immobilization
Used with Stolen Vehicle Recovery, this
enables law enforcement to send a signal
to the vehicle which immobilizes the engine
management system, thus preventing
startup. This capability is only valid when
the ignition is off, but can be saved for later
immobilization if the vehicle is on or in
motion at the time of signal transmission.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 84 of 308
4-6 I Blue Link® Control

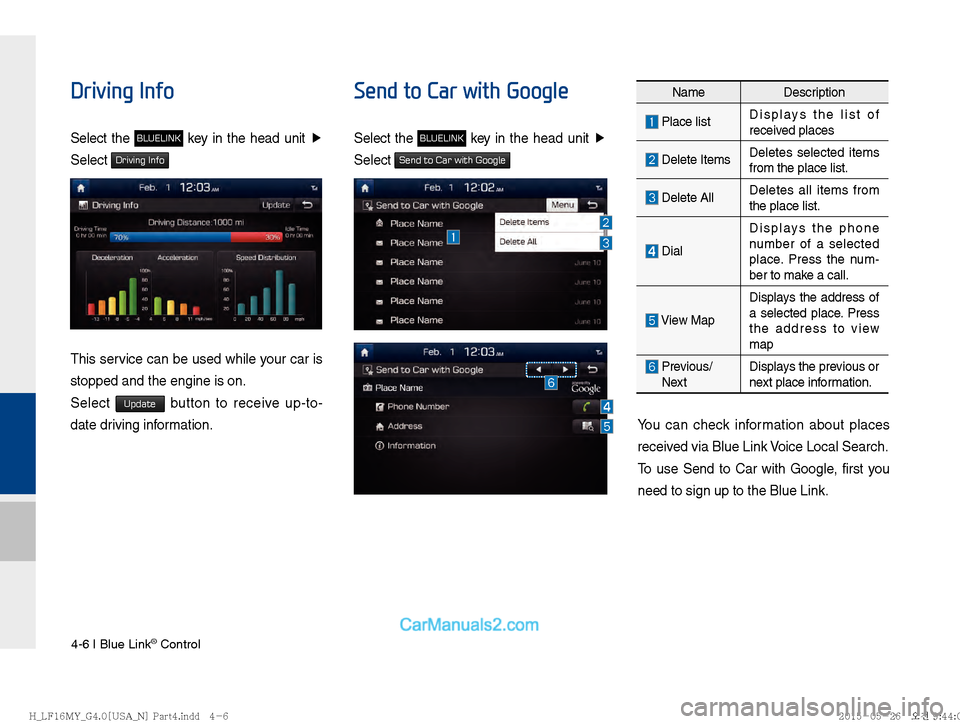

Driving Info
Select the BLUELINK key in the head unit Ü
Select
Driving Info
This service can be used while your car is
stopped and the engine is on.
Select
Update button to receive up-to-
date driving information.
Send to Car with Google
Select the BLUELINK key in the head unit Ü
Select
Send to Car with Google
You can check information about places
received via Blue Link Voice Local Search.
To use Send to Car with Google, first you
need to sign up to the Blue Link.
Name Description
Place listDisplays the list of
received places
Delete ItemsDeletes selected items
from the place list.
Delete AllDeletes all items from
the place list.
DialDisplays the phone
number of a selected
place. Press the num-
ber to make a call.
View MapDisplays the address of
a selected place. Press
the address to view
map
Previous/
Next Displays the previous or
next place information.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 85 of 308
Blue Link Settings I 4-7
04

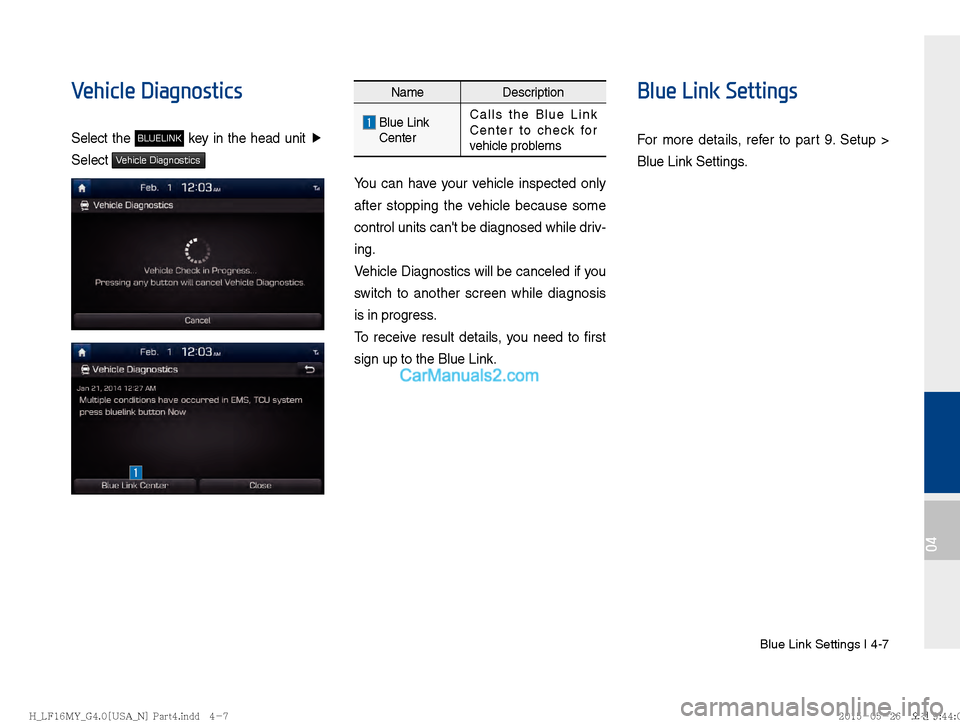

Vehicle Diagnostics
Select the BLUELINK key in the head unit Ü
Select
Vehicle Diagnostics
Name Description
Blue Link
Center Calls the Blue Link
Center to check for
vehicle problems
You can have your vehicle inspected only
after stopping the vehicle because some
control units can't be diagnosed while driv-
ing.
Vehicle Diagnostics will be canceled if you
switch to another screen while diagnosis
is in progress.
To receive result details, you need to first
sign up to the Blue Link.
Blue Link Settings
For more details, refer to part 9. Setup >
Blue Link Settings.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 86 of 308
4-8 I Blue Link® Control

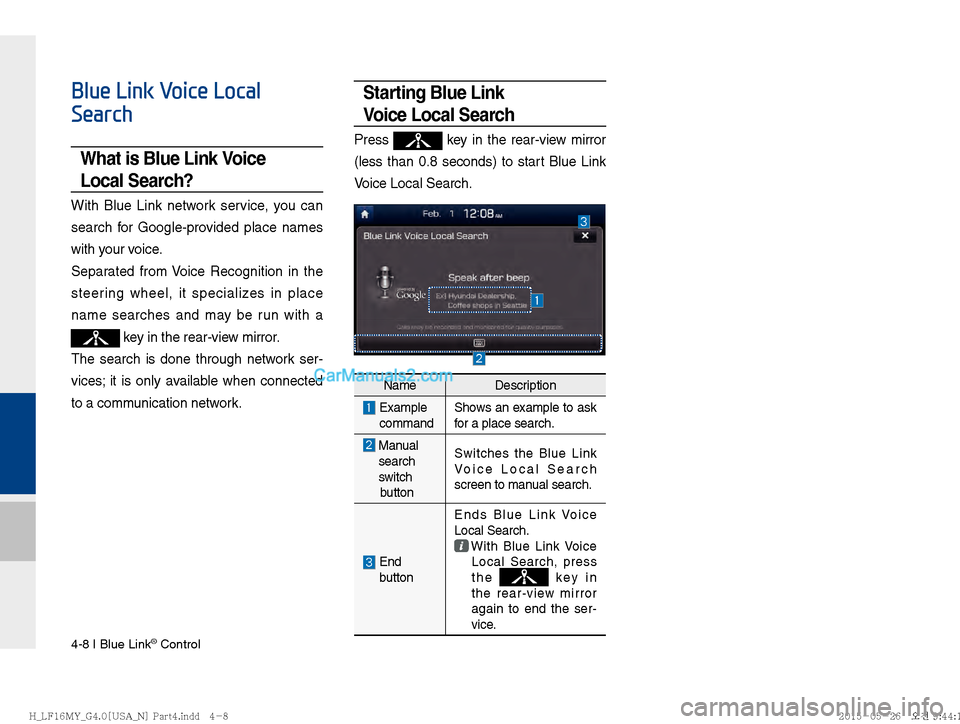

Blue Link Voice Local
Search
What is Blue Link Voice
Local Search?
With Blue Link network service, you can
search for Google-provided place names
with your voice.
Separated from Voice Recognition in the
steering wheel, it specializes in place
name searches and may be run with a
key in the rear-view mirror.
The search is done through network ser-
vices; it is only available when connected
to a communication network.
Starting Blue Link
Voice Local Search
Press key in the rear-view mirror
(less than 0.8 seconds) to start Blue Link
Voice Local Search.
Name Description
Example
command Shows an example to ask
for a place search.
Manual
search
switch
button Switches the Blue Link
Voice Local Search
screen to manual search.
End
button Ends Blue Link Voice
Local Search.
With Blue Link Voice
Local Search, press
the
key in
the rear-view mirror
again to end the ser-
vice.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 87 of 308
Basic FeaturesSearchRoute
Navigation Settings Troubleshooting

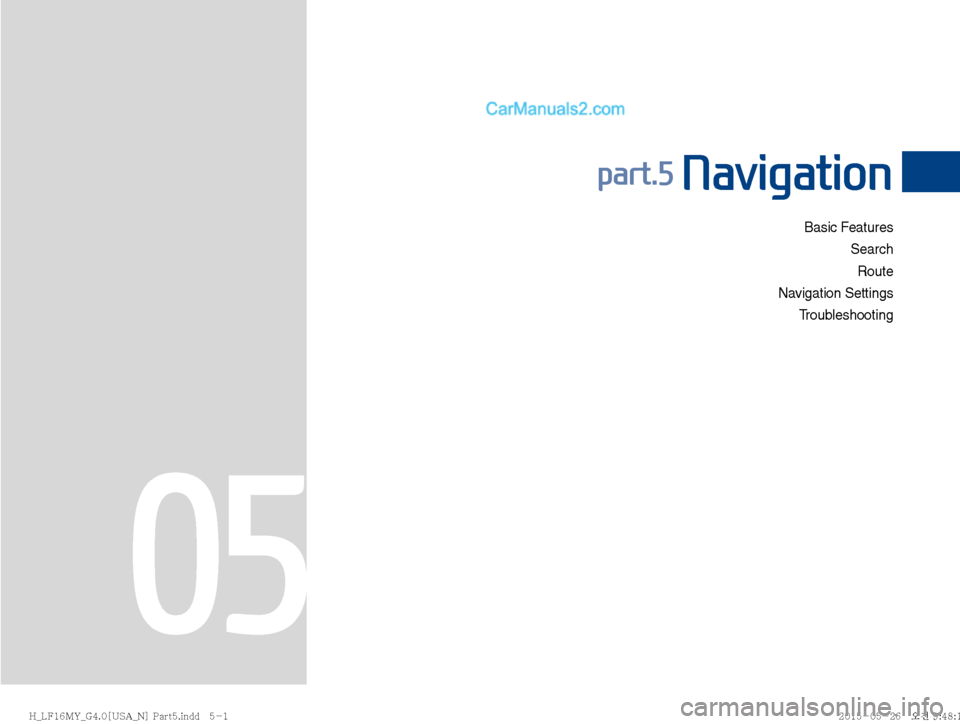

part.5 Navigation
05
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 88 of 308
5-2 I Navigation

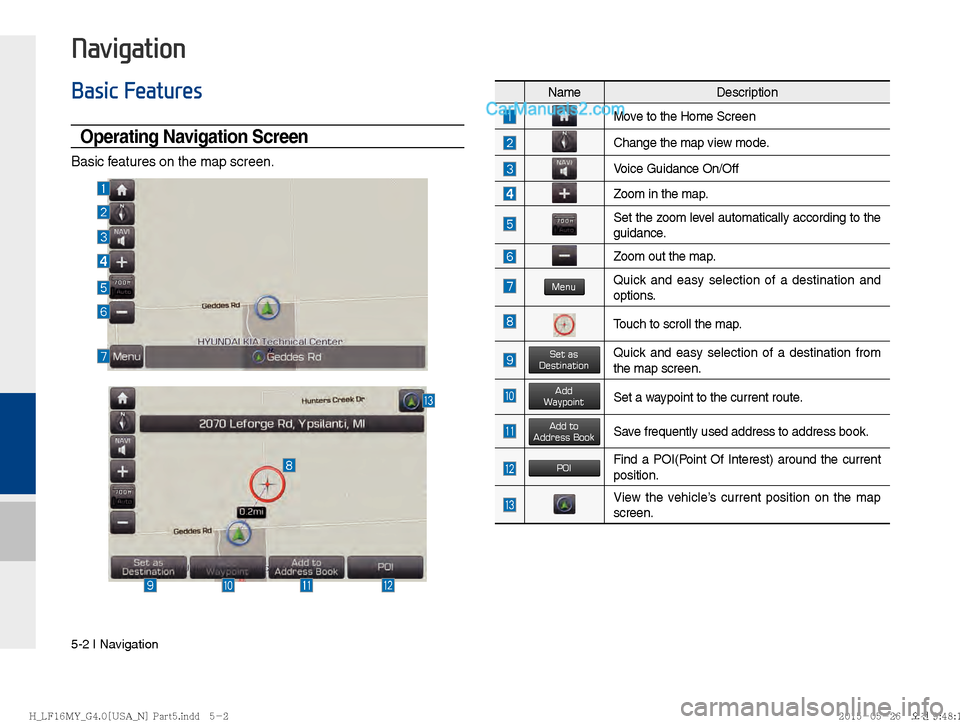

Navigation
Basic Features
Operating Navigation Screen
Basic features on the map screen.
NameDescription
Move to the Home Screen
Change the map view mode.
Voice Guidance On/Off
Zoom in the map.
Set the zoom level automatically according to the
guidance.
Zoom out the map.
MenuQuick and easy selection of a destination and
options.
Touch to scroll the map.
Set as DestinationQuick and easy selection of a destination from
the map screen.
Add WaypointSet a waypoint to the current route.
Add toAddress BookSave frequently used address to address book.
POIFind a POI(Point Of Interest) around the current
position.
View the vehicle’s current position on the map
screen.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 89 of 308
Basic Features I 5-3
05

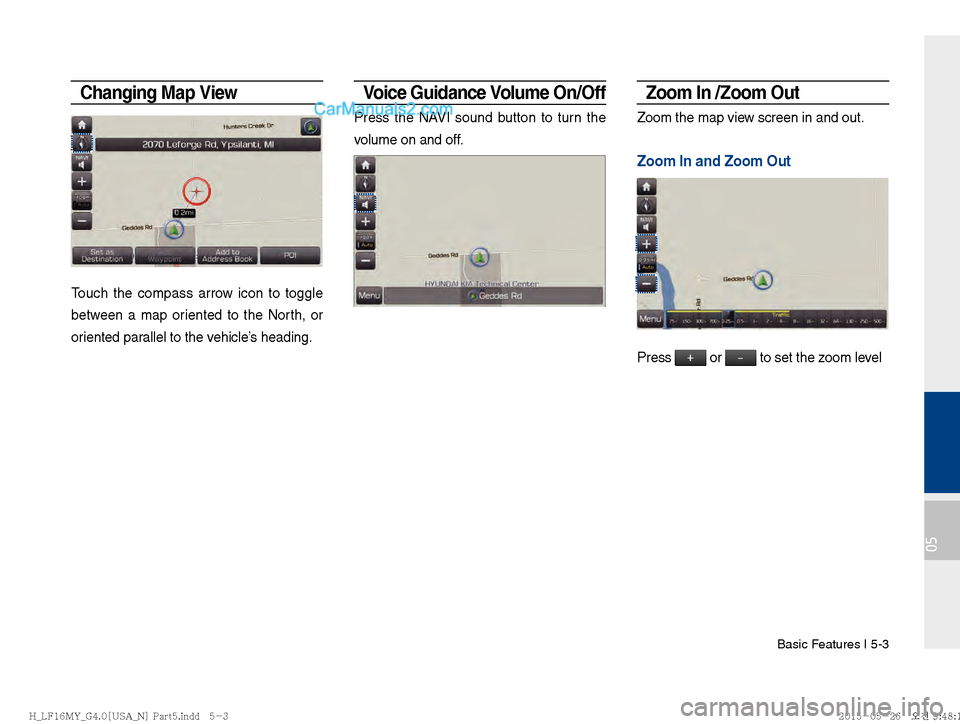

Changing Map View
Touch the compass arrow icon to toggle
between a map oriented to the North, or
oriented parallel to the vehicle’s heading.
Voice Guidance Volume On/Off
Press the NAVI sound button to turn the
volume on and off.
Zoom In /Zoom Out
Zoom the map view screen in and out.
Zoom In and Zoom Out
Press
+ or - to set the zoom level
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 90 of 308
5-4 I Navigation

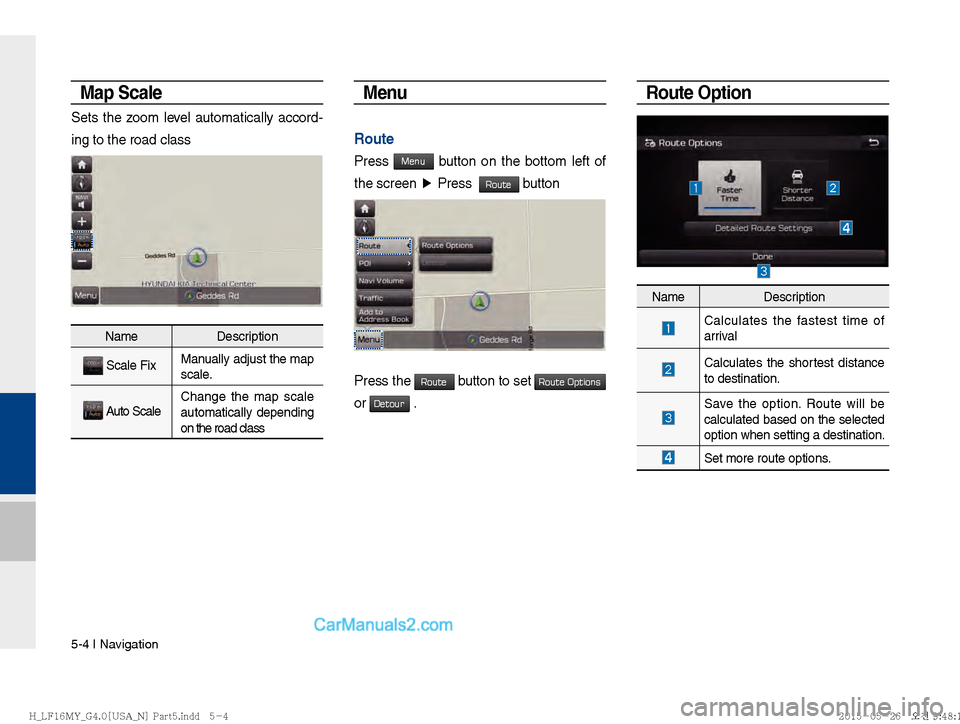

Map Scale
Sets the zoom level automatically accord-
ing to the road class
NameDescription
Scale Fix Manually adjust the map
scale.
Auto Scale Change the map scale
automatically depending
on the road class
Menu
Route
Press Menu button on the bottom left of
the screen ▶
Press
Route button
Press the Route button to set Route Options
or
Detour .
Route Option
Name Description
Calculates the fastest time of
arrival
Calculates the shortest distance
to destination.
Save the option. Route will be
calculated based on the selected
option when setting a destination.
Set more route options.
