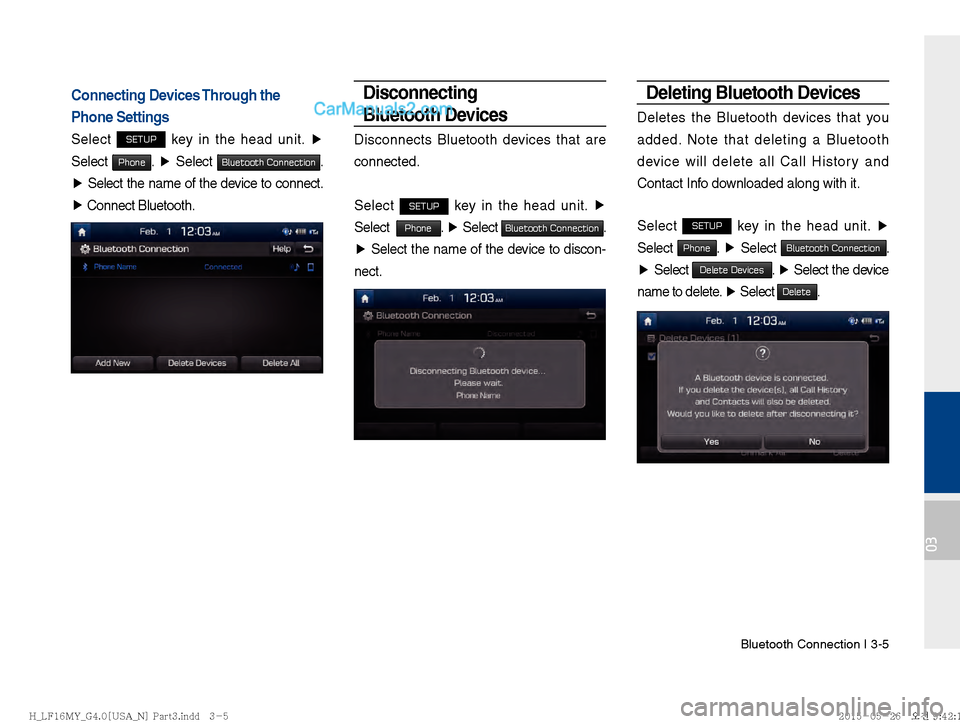

Page 71 of 308
Bluetooth Connection I 3-5
03
Connecting Devices Through the
Phone Settings
Select SETUP key in the head unit. ▶
Select
Phone. ▶
Select Bluetooth Connection.
▶ Select the name of the device to connect.
▶ Connect Bluetooth.
Disconnecting
Bluetooth Devices
Disconnects Bluetooth devices that are
connected.
Select
SETUP key in the head unit. ▶
Select
Phone. ▶
Select Bluetooth Connection.
▶ Select the name of the device to discon-
nect.
Deleting Bluetooth Devices
Deletes the Bluetooth devices that you
added. Note that deleting a Bluetooth
device will delete all Call History and
Contact Info downloaded along with it.
Select
SETUP key in the head unit. ▶
Select
Phone. ▶
Select Bluetooth Connection.
▶ Select
Delete Devices. ▶
Select the device
name to delete. ▶
Select
Delete.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

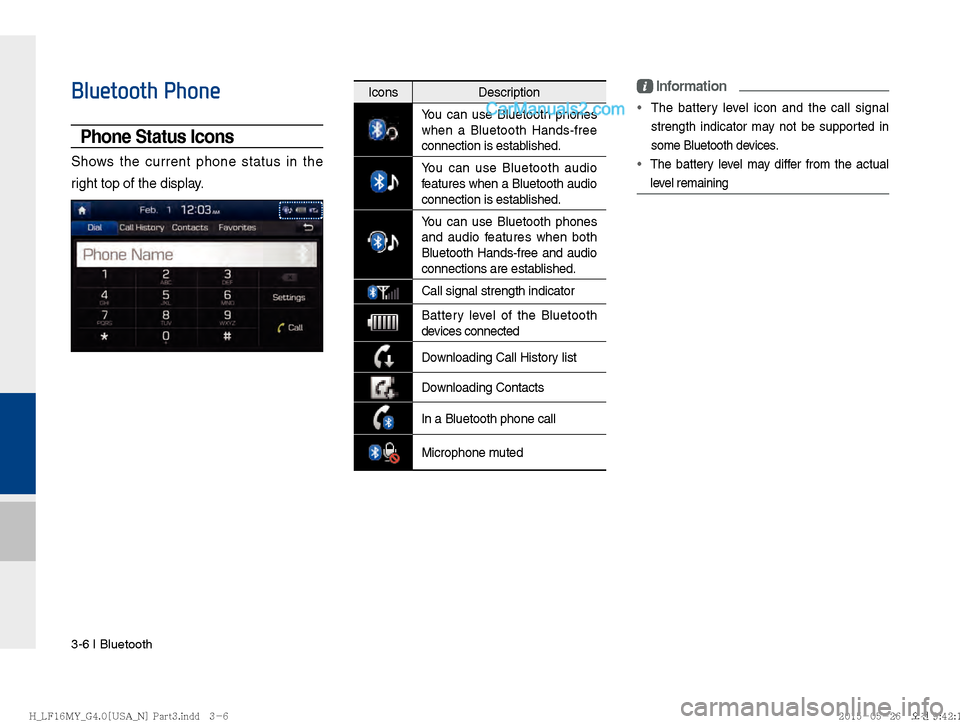

Page 72 of 308
3-6 I Bluetooth
Bluetooth Phone
Phone Status Icons
Shows the current phone status in the
right top of the display.
IconsDescription
You can use Bluetooth phones
when a Bluetooth Hands-free
connection is established.
You can use Bluetooth audio
features when a Bluetooth audio
connection is established.
You can use Bluetooth phones
and audio features when both
Bluetooth Hands-free and audio
connections are established.
Call signal strength indicator
Battery level of the Bluetooth
devices connected
Downloading Call History list
Downloading Contacts
In a Bluetooth phone call
Microphone muted
Information
The battery level icon and the call signal
strength indicator may not be supported in
some Bluetooth devices.
The battery level may differ from the actual
lev
el remaining
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

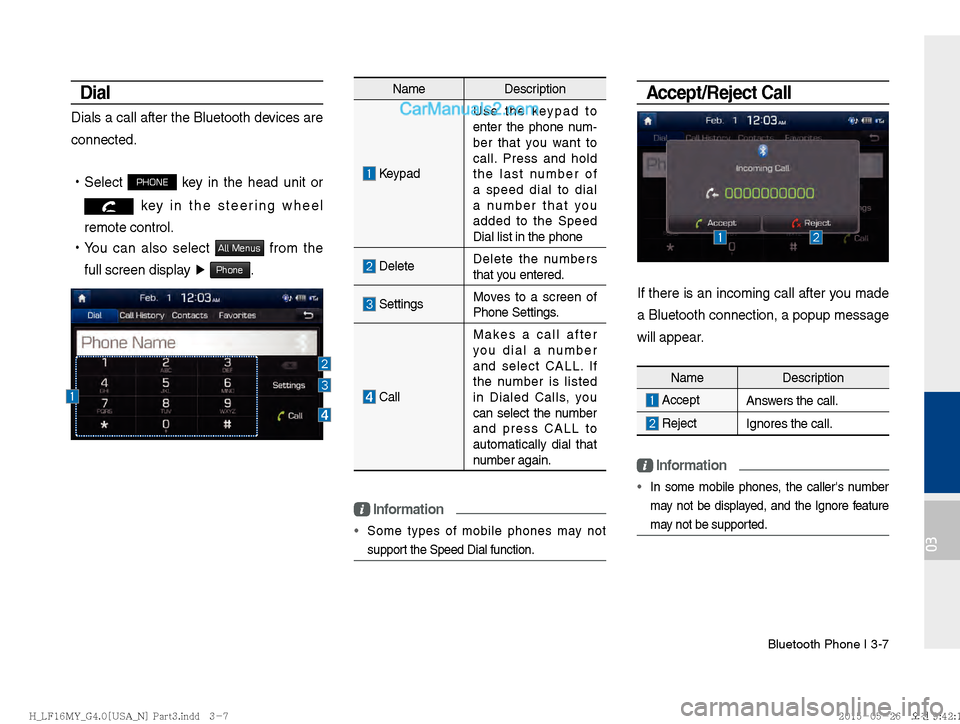

Page 73 of 308
Bluetooth Phone I 3-7
03
Dial
Dials a call after the Bluetooth devices are
connected.
!Ÿ
Select
PHONE key in the head unit or
key in the steering wheel
remote control.
!Ÿ
You can also select
All Menus from the
full screen display ▶
Phone.
Name Description
KeypadUse the keypad to
enter the phone num-
ber that you want to
call. Press and hold
the last number of
a speed dial to dial
a number that you
added to the Speed
Dial list in the phone
Delete
Delete the numbers
that you entered.
SettingsMoves to a screen of
Phone Settings.
CallMakes a call after
you dial a number
and select CALL. If
the number is listed
in Dialed Calls, you
can select the number
and press CALL to
automatically dial that
number again.
Information
Some types of mobile phones may not
support the Speed Dial function.
Accept/Reject Call
If there is an incoming call after you made
a Bluetooth connection, a popup message
will appear.
Information
In some mobile phones, the caller's number
may not be display
ed, and the Ignore feature
may not be supported.
Name Description
Accept
Answers the call.
Reject Ignores the call.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

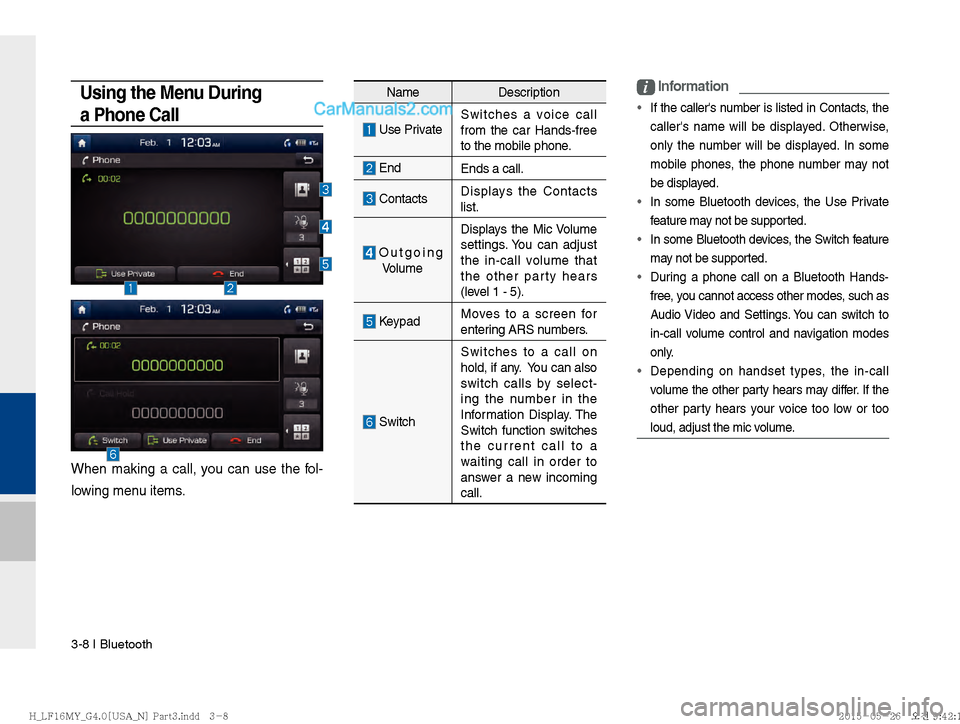

Page 74 of 308
3-8 I Bluetooth
Using the Menu During
a Phone Call
When making a call, you can use the fol-
lowing menu items.
NameDescription
Use PrivateSwitches a voice call
from the car Hands-free
to the mobile phone.
End
Ends a call.
Contacts Displays the Contacts
list.
Outgoing
Volume Displays the Mic Volume
settings. You can adjust
the in-call volume that
the other party hears
(level 1 - 5).
Keypad
Moves to a screen for
entering ARS numbers.
SwitchSwitches to a call on
hold, if any. You can also
switch calls by select-
ing the number in the
Information Display. The
Switch function switches
the current call to a
waiting call in order to
answer a new incoming
call.
i Information
If the caller's number is listed in Contacts, the
caller's name will be displayed.
Otherwise,
only the number will be displayed. In some
mobile phones, the phone number may not
be displayed.
In some Bluetooth devices, the Use Private
feature ma
y not be suppor
ted.
In some Bluetooth devices, the Switch feature
may not be suppor ted.
Dur
ing a phone call on a Bluetooth Hands-
free, y ou cannot access other modes
, such as
Audio Video and Settings. You can switch to
in-call volume control and navigation modes
only.
Depending on handset types, the in-call
volume the other par
ty hears ma
y differ. If the
other party hears your voice too low or too
loud, adjust the mic volume.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

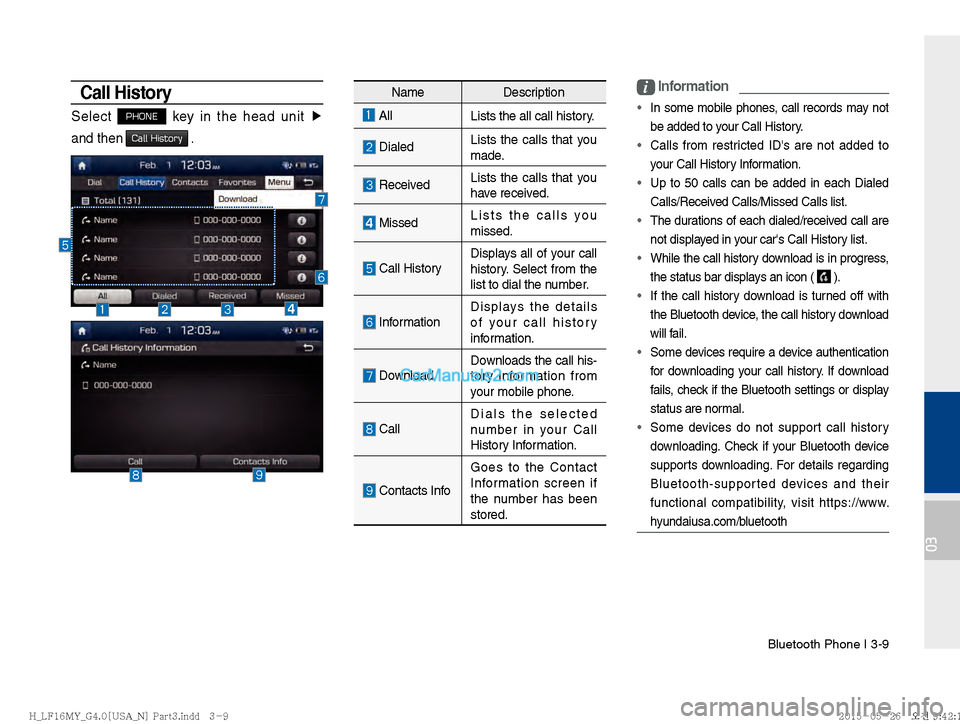

Page 75 of 308
Bluetooth Phone I 3-9
03
Call History
Select PHONE key in the head unit ▶
and then
Call History .
Name Description
All
Lists the all call history.
DialedLists the calls that you
made.
Received Lists the calls that you
have received.
Missed Lists the calls you
missed.
Call HistoryDisplays all of your call
history. Select from the
list to dial the number.
InformationDisplays the details
of your call history
information.
DownloadDownloads the call his-
tory information from
your mobile phone.
CallDials the selected
number in your Call
History Information.
Contacts InfoGoes to the Contact
Information screen if
the number has been
stored.
i Information
In some mobile phones, call records may not
be added to your Call History
.
Calls from restricted ID's are not added to
your Call Histor y Inf
ormation.
Up to 50 calls can be added in each Dialed
Calls/Received Calls/Missed Calls list.
The dur ations of each dialed/receiv
ed call are
not display ed in y
our car's Call History list.
While the call history download is in progress,
the status bar displays an icon (
).
If the call history download is turned off with
the Bluetooth device , the call histor
y download
will fail.
Some devices require a device authentication
for do
wnloading y
our call history. If download
fails, check if the Bluetooth settings or display
status are normal.
Some devices do not support call history
downloading.
Chec
k if your Bluetooth device
supports downloading. For details regarding
Bluetooth-supported devices and their
functional compatibility, visit https://www.
hyundaiusa.com/bluetooth
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 76 of 308
3-10 I Bluetooth
Contacts
Select PHONE key in the head unit ▶
and
then
Contacts
i Information
Up to 5000 phone numbers can be
downloaded from a single, paired Bluetooth
device.
You cannot edit or delete downloaded phone
numbers from y
our car
.
Contacts can be viewed only when the
Bluetooth device is connected.
Ev en if the Bluetooth de
vice is disconnected,
the downloaded data will remain.
(Note that deleting a paired phone will also
delete all downloaded Contacts and Call
History data)
Downloaded phone numbers may be lost
depending on the condition of the head unit.
K eep y
our important data in a safe place.
Contacts from both the SIM card and your
mobile phone are do wnloaded at the same
time b
y default.
The status bar displays a (
) while
downloading contacts.
The download will not be available if the
contacts download function is tur ned off on
your Bluetooth device.
Name Description
Contacts ListThe list of Contacts.
Select from the list to
dial the number.
Information
Displays contact infor-
mation.
Download Downloads contacts
from your mobile phone.
Search by
Name Searches Contacts
for the name that you
enter.
Search by
Number Searches Contacts for
the number that you
enter.
Add to
Favorites Adds a phone number
to Favorites.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

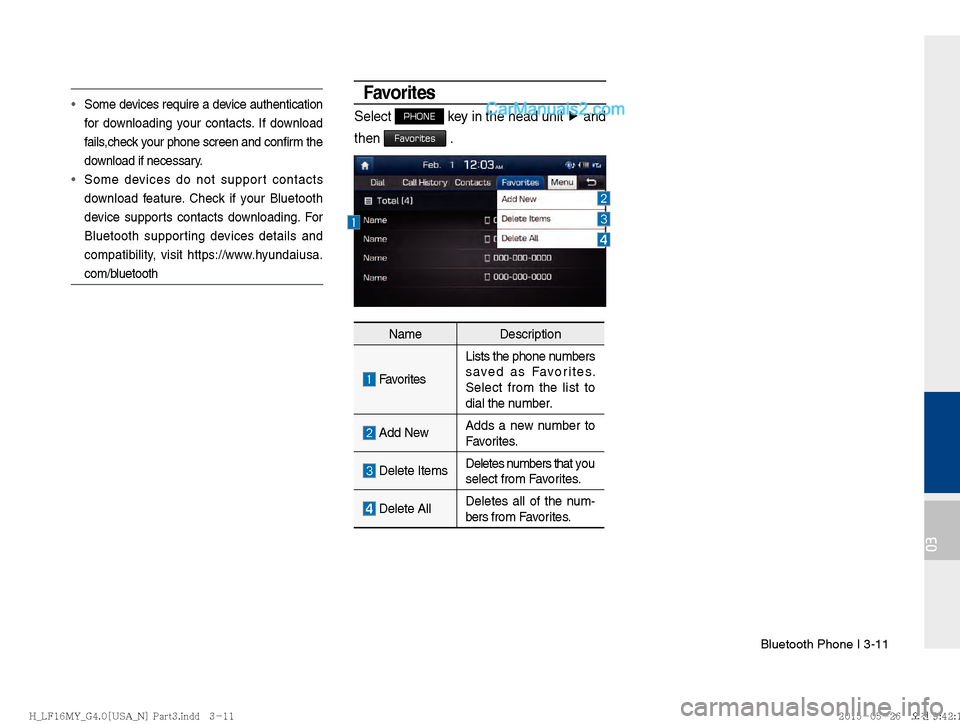

Page 77 of 308
Bluetooth Phone I 3-11
03
Some devices require a device authentication
for downloading y
our contacts. If download
fails,check your phone screen and con rm the
download if necessary.
Some devices do not support contacts
do wnload feature
. Check if your Bluetooth
device supports contacts downloading. For
Bluetooth supporting devices details and
compatibility, visit https://www.hyundaiusa.
com/bluetooth
Favorites
Select PHONE key in the head unit ▶
and
then
Favorites .
Name Description
FavoritesLists the phone numbers
saved as Favorites.
Select from the list to
dial the number.
Add New
Adds a new number to
Favorites.
Delete ItemsDeletes numbers that you
select from Favorites.
Delete AllDeletes all of the num-
bers
from Favorites.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

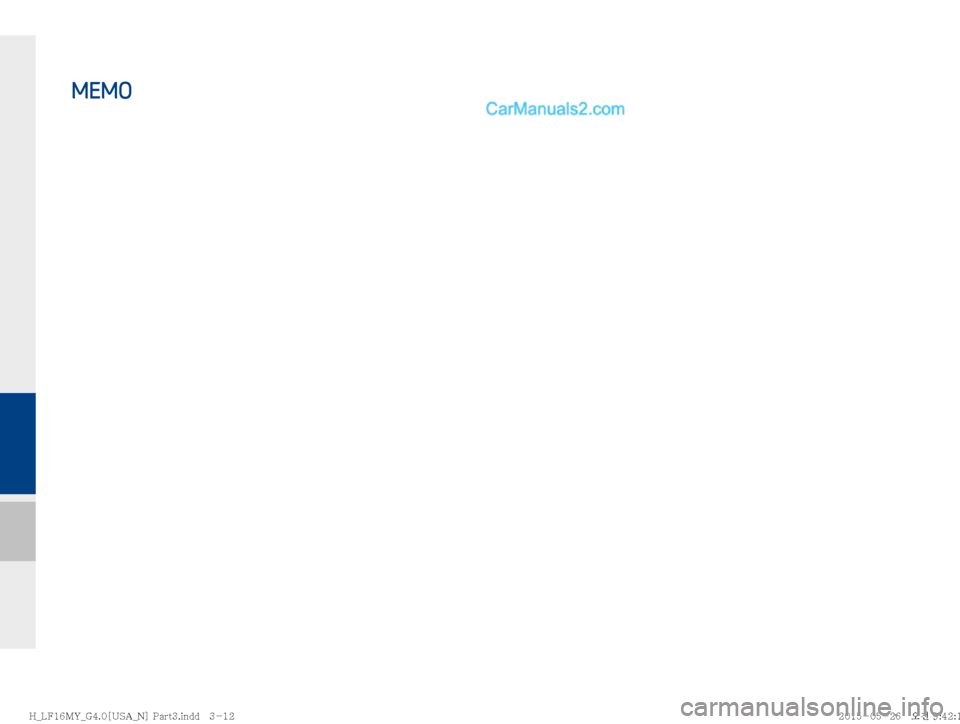

Page 78 of 308
MEMO
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

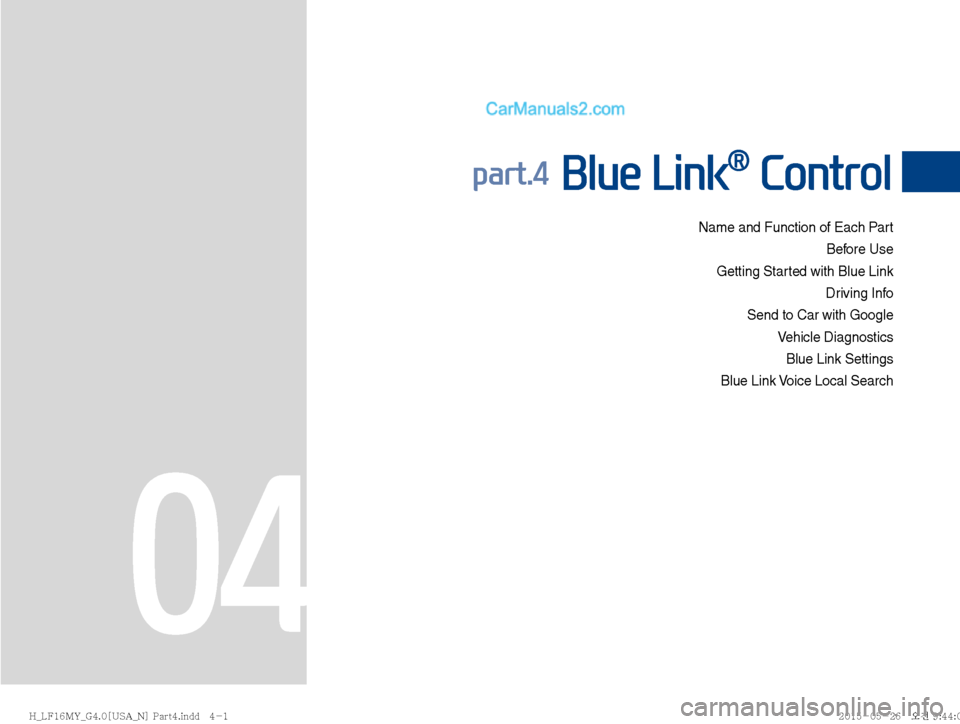

Page 79 of 308
Name and Function of Each PartBefore Use
Getting Started with Blue Link Driving Info
Send to Car with Google Vehicle DiagnosticsBlue Link Settings
Blue Link Voice Local Search
part.4 Blue Link
®
Control
04
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

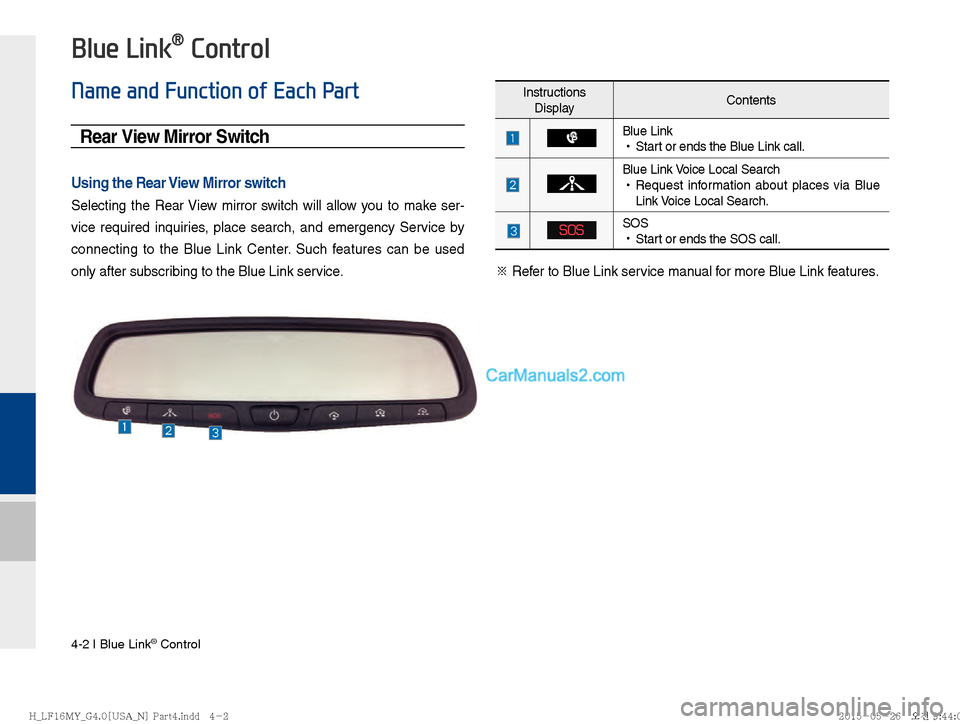

Page 80 of 308
4-2 I Blue Link® Control
Blue Link® Control
Rear View Mirror Switch
Using the Rear View Mirror switch
Selecting the Rear View mirror switch will allow you to make ser-
vice required inquiries, place search, and emergency Service by
connecting to the Blue Link Center. Such features can be used
only after subscribing to the Blue Link service.
Instructions Display Contents
Blue Link
!Ÿ
Start or ends the Blue Link call.
Blue Link Voice Local Search
!Ÿ
Request information about places via Blue
Link Voice Local Search.
SOSSOS
!Ÿ
Start or ends the SOS call.
Name and Function of Each Part
œ Refer to Blue Link service manual for more Blue Link features.
