Page 111 of 308

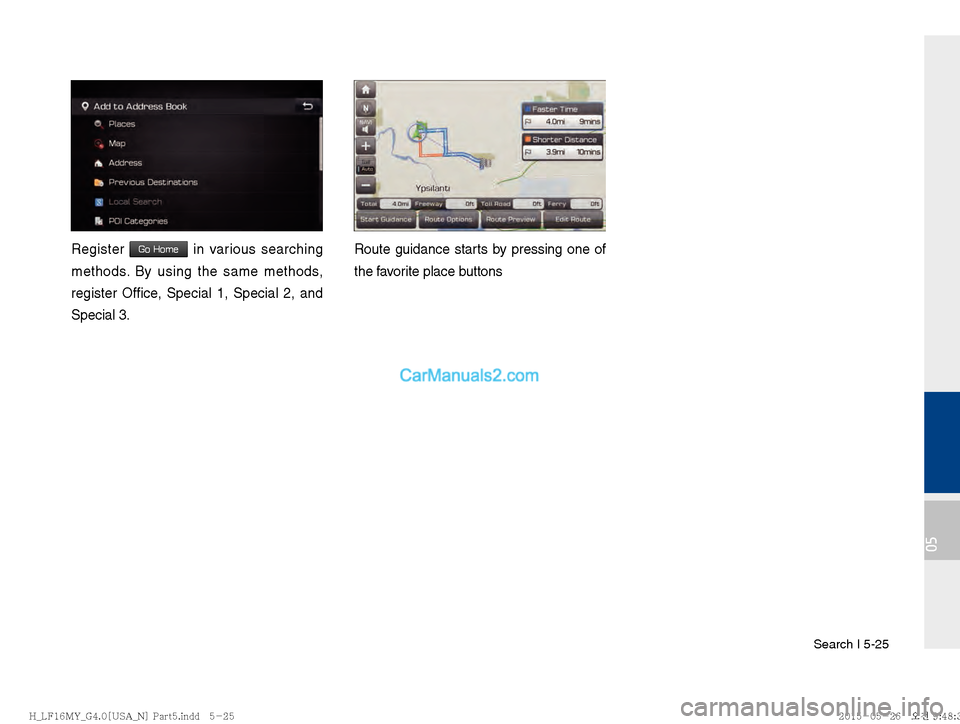

Search I 5-25
05
Register Go Home in various searching
methods. By using the same methods,
register Office, Special 1, Special 2, and
Special 3.Route guidance starts by pressing one of
the favorite place buttons
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 112 of 308
5-26 I Navigation

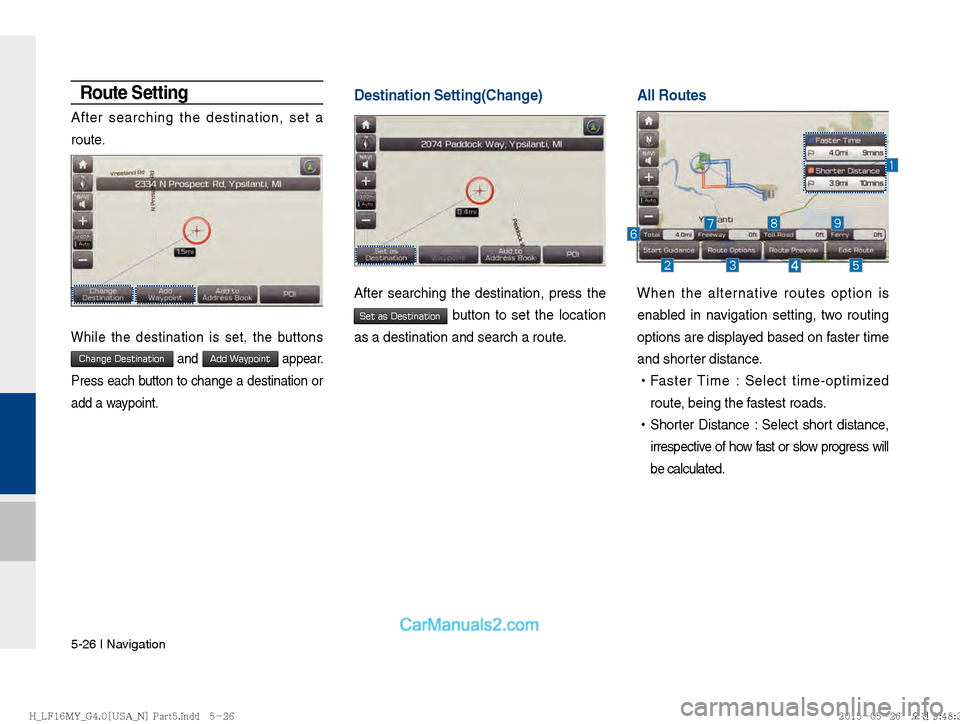

Route Setting
After searching the destination, set a
route.
While the destination is set, the buttons
Change Destination and Add Waypoint appear.
Press each button to change a destination or
add a waypoint.
Destination Setting(Change)
After searching the destination, press the
Set as Destination button to set the location
as a destination and search a route.
All Routes
When the alternative routes option is
enabled in navigation setting, two routing
options are displayed based on faster time
and shorter distance.
!Ÿ
Faster Time : Select time-optimized
route, being the fastest roads.
!Ÿ
Shorter Distance : Select short distance,
irrespective of how fast or slow progress will
be calculated.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 113 of 308
Search I 5-27
05

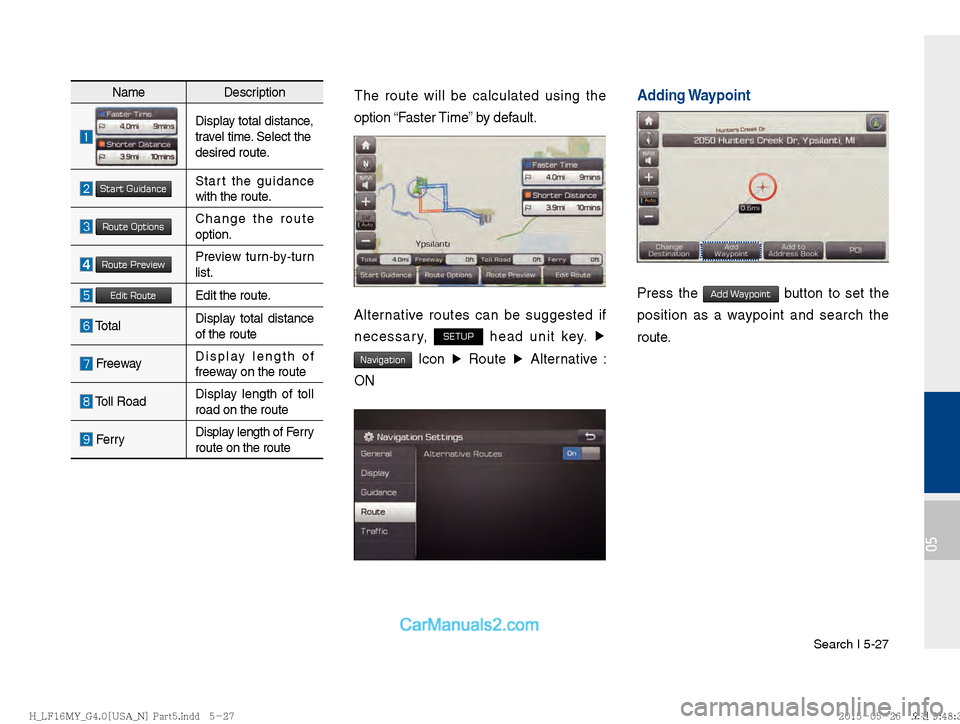

NameDescription
Display total distance,
travel time. Select the
desired route.
Start GuidanceStart the guidance
with the route.
Route OptionsChange the route
option.
Route PreviewPreview turn-by-turn
list.
Edit RouteEdit the route.
TotalDisplay total distance
of the route
Freeway Display length of
freeway on the route
Toll Road Display length of toll
road on the route
FerryDisplay length of Ferry
route on the route
The route will be calculated using the
option “Faster Time” by default.
Alternative routes can be suggested if
necessary,
SETUP head unit key.
▶
Navigation
Icon ▶
Route ▶
Alternative :
ON
Adding Waypoint
Press the Add Waypoint button to set the
position as a waypoint and search the
route.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 114 of 308
5-28 I Navigation

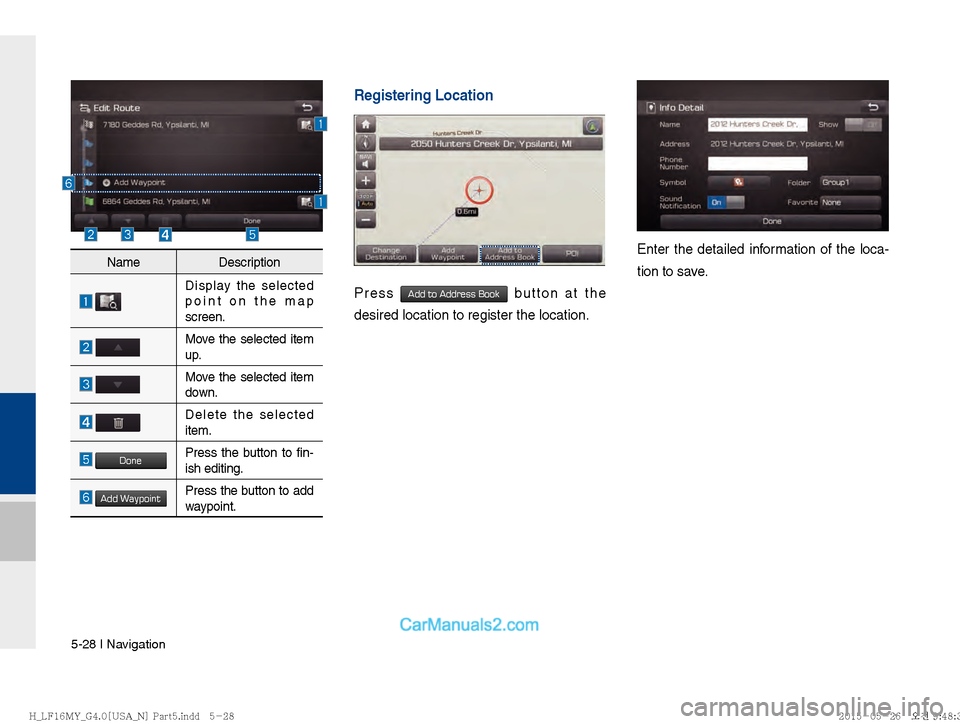

Registering Location
Press Add to Address Book button at the
desired location to register the location.
Enter the detailed information of the loca-
tion to save.Name Description
Display the selected
point on the map
screen.
Move the selected item
up.
Move the selected item
down.
Delete the selected
item.
DonePress the button to fin-
ish editing.
Add WaypointPress the button to add
waypoint.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 115 of 308
Search I 5-29
05

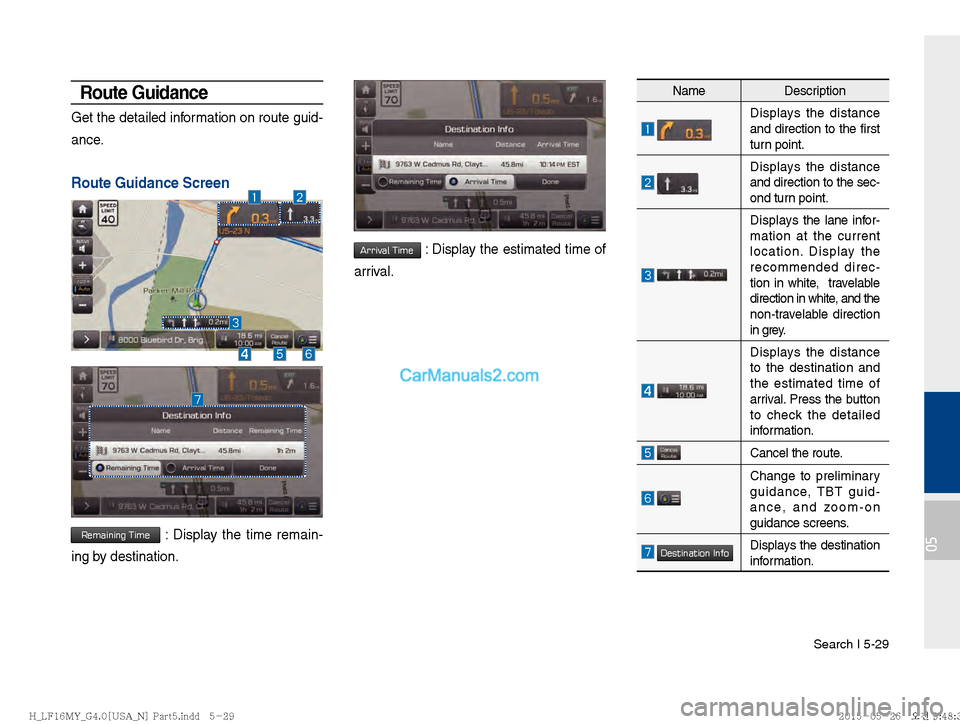

Route Guidance
Get the detailed information on route guid-
ance.
Route Guidance Screen
Remaining Time : Display the time remain-
ing by destination.
Arrival Time : Display the estimated time of
arrival.
Name Description
Displays the distance
and direction to the first
turn point.
Displays the distance
and direction to the sec-
ond turn point.
Displays the lane infor-
mation at the current
location. Display the
recommended direc-
tion in white, travelable
direction in white, and the
non-travelable direction
in grey.
Displays the distance
to the destination and
the estimated time of
arrival. Press the button
to check the detailed
information.
Cancel the route.
Change to preliminary
guidance, TBT guid-
ance, and zoom-on
guidance screens.
Destination InfoDisplays the destination
information.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 116 of 308
5-30 I Navigation

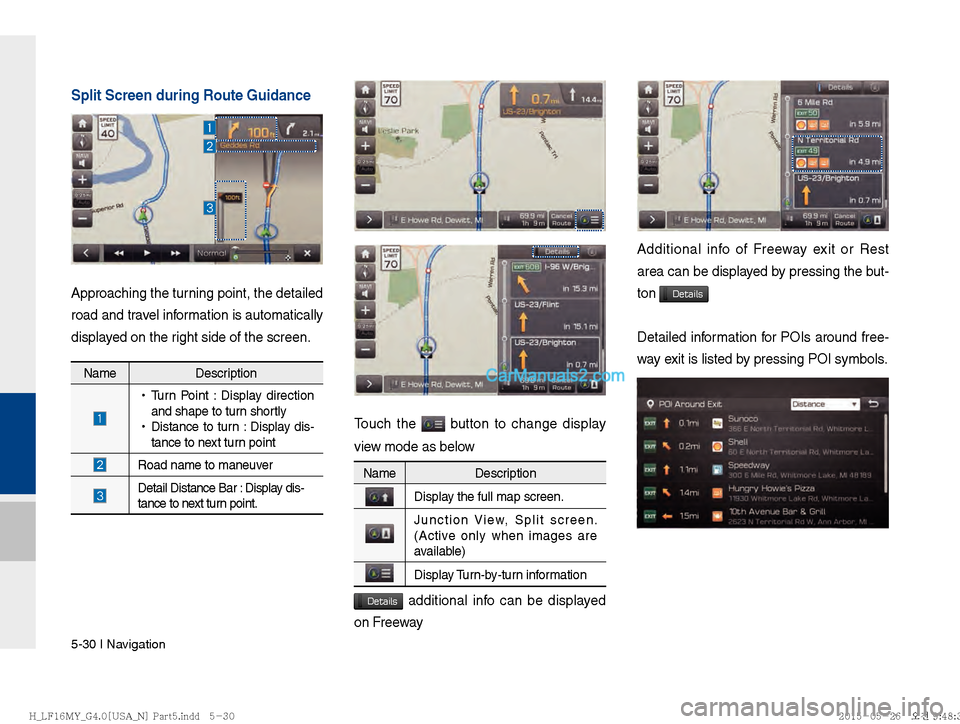

Split Screen during Route Guidance
Approaching the turning point, the detailed
road and travel information is automatically
displayed on the right side of the screen.
Touch the button to change display
view mode as below
Details additional info can be displayed
on Freeway
Additional info of Freeway exit or Rest
area can be displayed by pressing the but-
ton
Details
Detailed information for POIs around free-
way exit is listed by pressing POI symbols.
Name Description
!Ÿ
Turn Point : Display direction
and shape to turn shortly
!Ÿ
Distance to turn : Display dis-
tance to next turn point
Road name to maneuver
Detail Distance Bar : Display dis-
tance to next turn point.
Name
Description
Display the full map screen.
Junction View, Split screen.
(Active only when images are
available)
Display Turn-by-turn information
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E

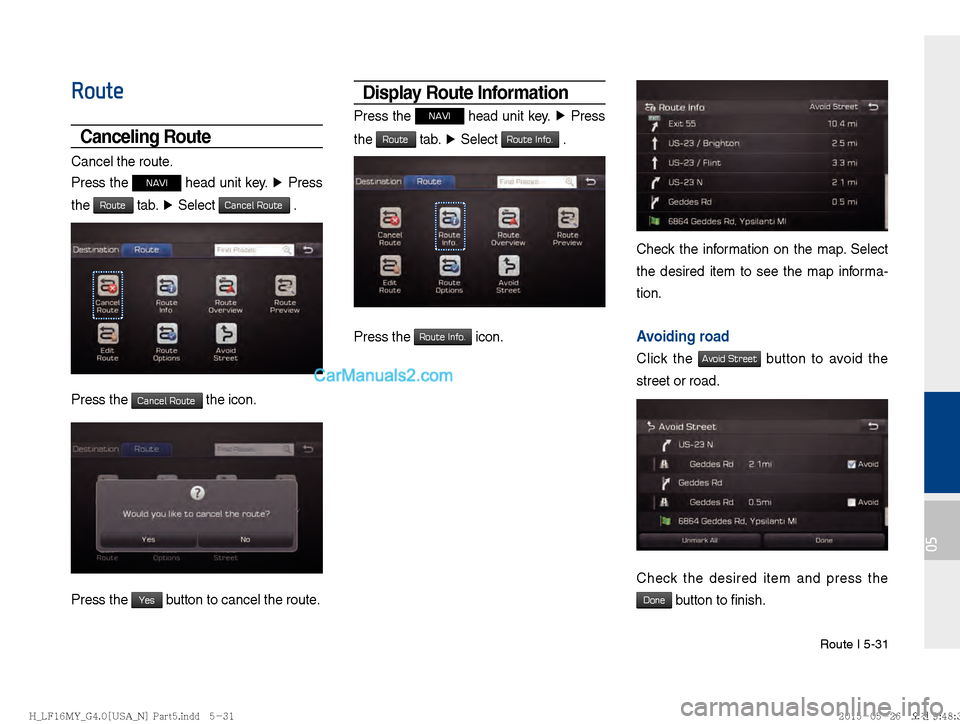

Page 117 of 308
Route I 5-31
05
Route
Canceling Route
Cancel the route.
Press the
NAVI head unit key. ▶
Press
the
Route tab. ▶
Select Cancel Route .
Press the Cancel Route the icon.
Press the Yes button to cancel the route.
Display Route Information
Press the NAVI head unit key. ▶
Press
the
Route tab. ▶
Select Route Info. .
Press the Route Info. icon.
Check the information on the map. Select
the desired item to see the map informa-
tion.
Avoiding road
Click the Avoid Street button to avoid the
street or road.
Check the desired item and press the
Done button to finish.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 118 of 308
5-32 I Navigation

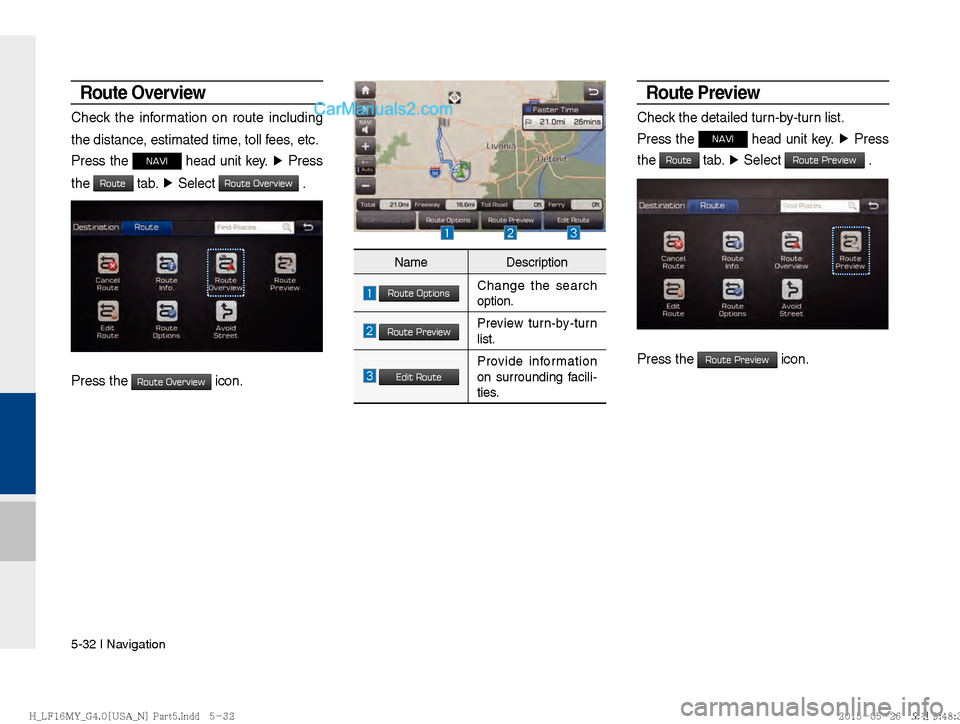

Route Overview
Check the information on route including
the distance, estimated time, toll fees, etc.
Press the
NAVI head unit key. ▶
Press
the
Route tab. ▶
Select Route Overview .
Press the Route Overview icon.
Route Preview
Check the detailed turn-by-turn list.
Press the
NAVI head unit key. ▶
Press
the
Route tab. ▶
Select Route Preview .
Press the Route Preview icon.
Name Description
Route OptionsChange the search
option.
Route PreviewPreview turn-by-turn
list.
Edit RouteProvide information
on surrounding facili-
ties.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 119 of 308
Route I 5-33
05

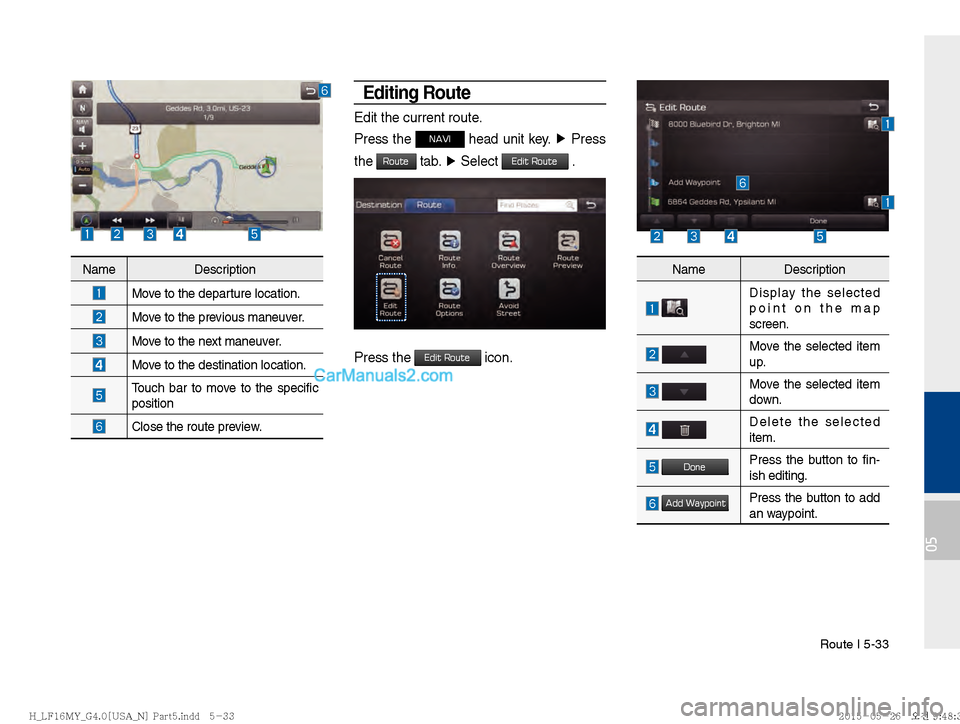

Editing Route
Edit the current route.
Press the
NAVI head unit key. ▶
Press
the
Route tab. ▶
Select Edit Route .
Press the Edit Route icon.
Name Description
Move to the departure location.
Move to the previous maneuver.
Move to the next maneuver.
Move to the destination location.
Touch bar to move to the specific
position
Close the route preview.
Name Description
Display the selected
point on the map
screen.
Move the selected item
up.
Move the selected item
down.
Delete the selected
item.
DonePress the button to fin-
ish editing.
Add WaypointPress the button to add
an waypoint.
) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E ) @ - ' . : @ ( < 6 4 " @ / > 1 B S U J O E E
Page 120 of 308
5-34 I Navigation
Add a waypoint through various searching
methods.
Route Options
Press the NAVI head unit key. ▶
Press
the
Route tab. ▶
Select Route Options .
Press the Route Options icon.
Choose between faster time or shorter
distance.
Route options such as ferry route, traffic infor-
mation, HOV, and avoiding highway can be
set by pressing Detailed Route Setting button.
Avoid Stre et
Search new route by avoiding the selected
street(s).
Press the
NAVI head unit key. ▶
Press
the
Route tab. ▶
Select Avoid Street .
Press the Avoid Street icon.
Press the Done button to plan new route
after selecting the street(s) that you want
to avoid.
