Hyundai Terracan 2003 Owner's Manual
Manufacturer: HYUNDAI, Model Year: 2003, Model line: Terracan, Model: Hyundai Terracan 2003Pages: 349, PDF Size: 4.56 MB

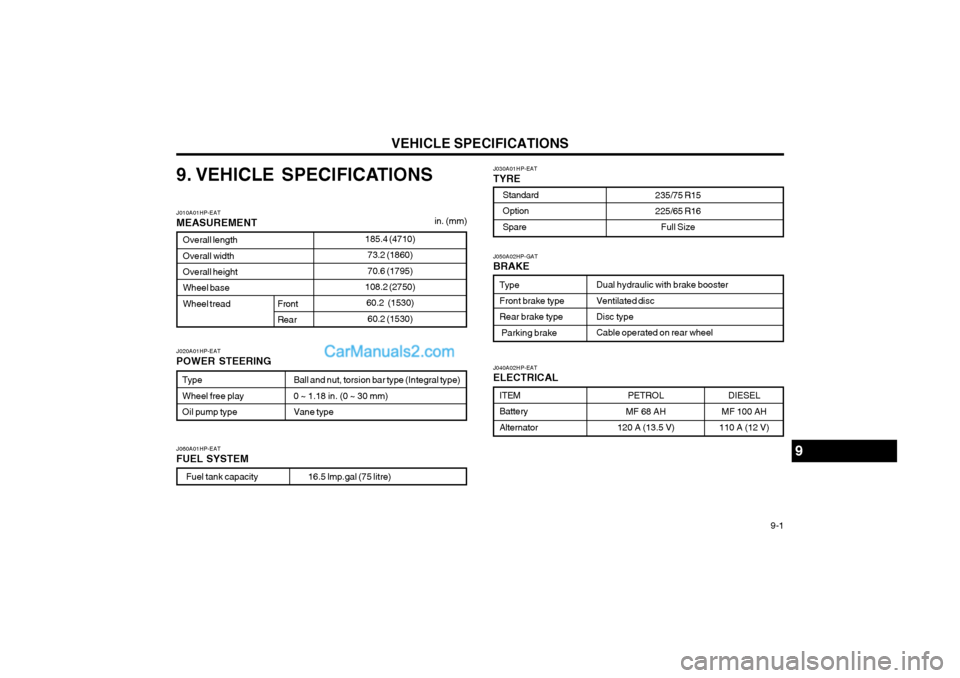

Page 341 of 349
VEHICLE SPECIFICATIONS 9-1
J050A02HP-GAT BRAKE
Dual hydraulic with brake booster Ventilated discDisc type Cable operated on rear wheel
TypeFront brake type Rear brake type
Parking brake
J030A01HP-EAT TYRE
16.5 lmp.gal (75 litre)
9. VEHICLE SPECIFICATIONS
Overall length Overall widthOverall height Wheel base Wheel tread
Front Rear
Type Wheel free playOil pump typeBall and nut, torsion bar type (Integral type) 0 ~ 1.18 in. (0 ~ 30 mm)Vane type
J010A01HP-EAT MEASUREMENT J020A01HP-EAT POWER STEERING J060A01HP-EAT FUEL SYSTEM
185.4 (4710)
73.2 (1860) 70.6 (1795)
108.2 (2750)
60.2 (1530)60.2 (1530) Standard Option Spare
ITEM Battery Alternator
J040A02HP-EAT ELECTRICAL
PETROL
MF 68 AH
120 A (13.5 V) DIESEL
MF 100 AH
110 A (12 V)
Fuel tank capacity
9
in. (mm) 235/75 R15 225/65 R16
Full Size

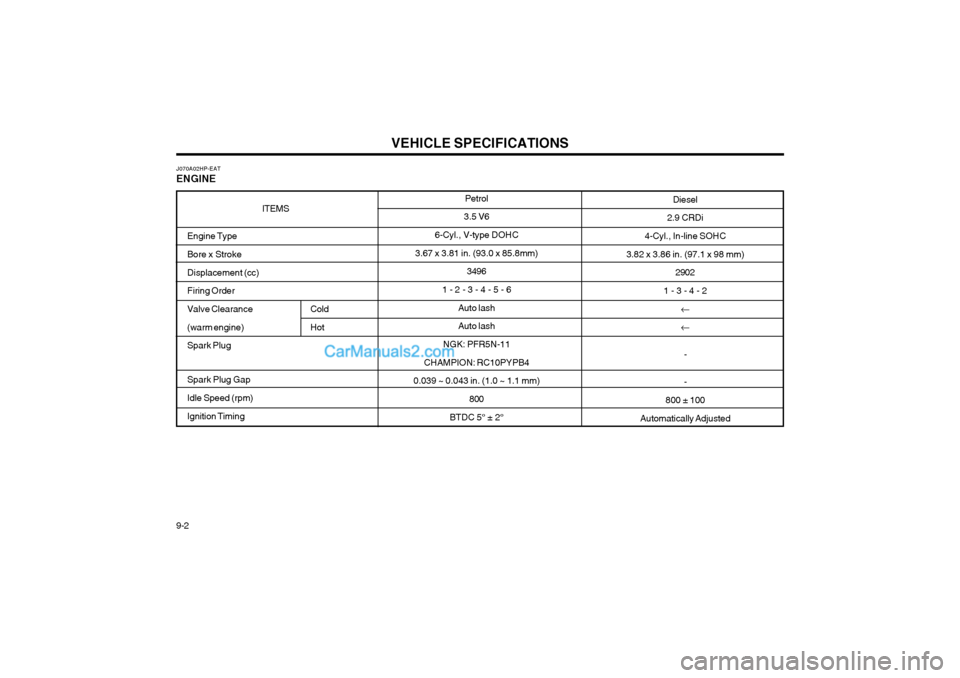

Page 342 of 349
VEHICLE SPECIFICATIONS
9-2 Petrol
3.5 V6
6-Cyl., V-type DOHC
3.67 x 3.81 in. (93.0 x 85.8mm) 3496
1 - 2 - 3 - 4 - 5 - 6 Auto lash Auto lash
NGK: PFR5N-11
CHAMPION: RC10PYPB4
0.039 ~ 0.043 in. (1.0 ~ 1.1 mm)
800
BTDC 5° ± 2°
J070A02HP-EAT ENGINE
ITEMS
Engine Type Bore x Stroke Displacement (cc) Firing OrderValve Clearance Cold
(warm engine) HotSpark Plug Spark Plug Gap
Idle Speed (rpm)
Ignition TimingDiesel
2.9 CRDi
4-Cyl., In-line SOHC
3.82 x 3.86 in. (97.1 x 98 mm)
2902
1 - 3 - 4 - 2
- -
800 ± 100
Automatically Adjusted

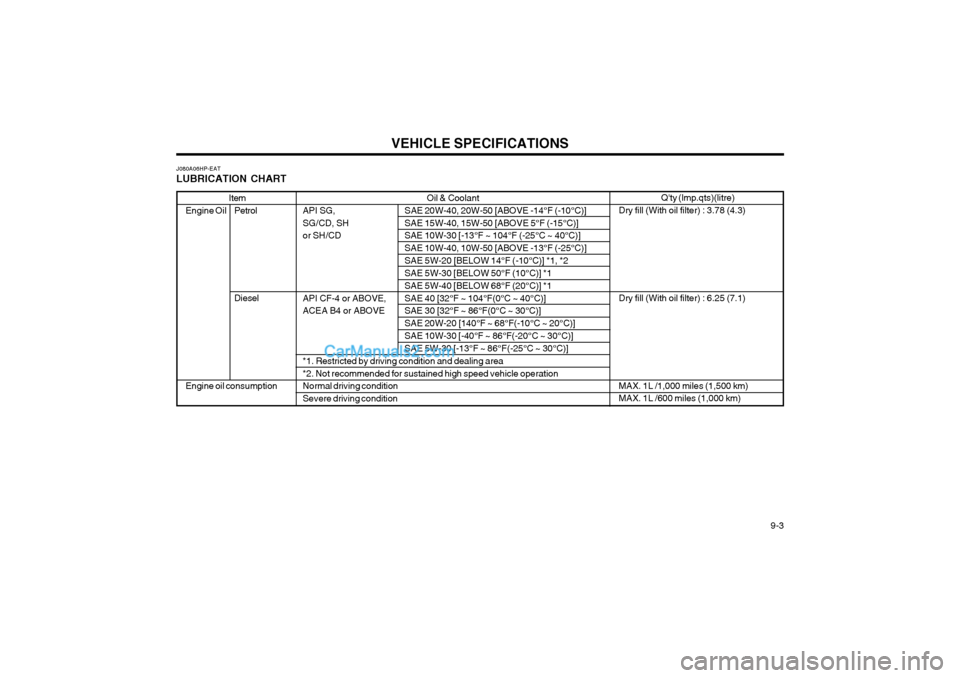

Page 343 of 349
VEHICLE SPECIFICATIONS 9-3
J080A06HP-EAT LUBRICATION CHART
Oil & Coolant
API SG, SAE 20W-40, 20W-50 [ABOVE -14°F (-10°C)]
SG/CD, SH SAE 15W-40, 15W-50 [ABOVE 5°F (-15°C)]
or SH/CD SAE 10W-30 [-13°F ~ 104°F (-25°C ~ 40°C)] SAE 10W-40, 10W-50 [ABOVE -13°F (-25°C)] SAE 5W-20 [BELOW 14°F (-10°C)] *1, *2 SAE 5W-30 [BELOW 50°F (10°C)] *1 SAE 5W-40 [BELOW 68°F (20°C)] *1
API CF-4 or ABOVE, SAE 40 [32°F ~ 104°F(0°C ~ 40°C)]
ACEA B4 or ABOVE SAE 30 [32°F ~ 86°F(0°C ~ 30°C)]
SAE 20W-20 [140°F ~ 68°F(-10°C ~ 20°C)] SAE 10W-30 [-40°F ~ 86°F(-20°C ~ 30°C)]
SAE 5W-30 [-13°F ~ 86°F(-25°C ~ 30°C)]
*1. Restricted by driving condition and dealing area *2. Not recommended for sustained high speed vehicle operation Normal driving condition Severe driving condition
Q'ty (lmp.qts)(litre)
Dry fill (With oil filter) : 3.78 (4.3) Dry fill (With oil filter) : 6.25 (7.1)MAX. 1L /1,000 miles (1,500 km) MAX. 1L /600 miles (1,000 km)
Item
Engine Oil Petrol Diesel
Engine oil consumption

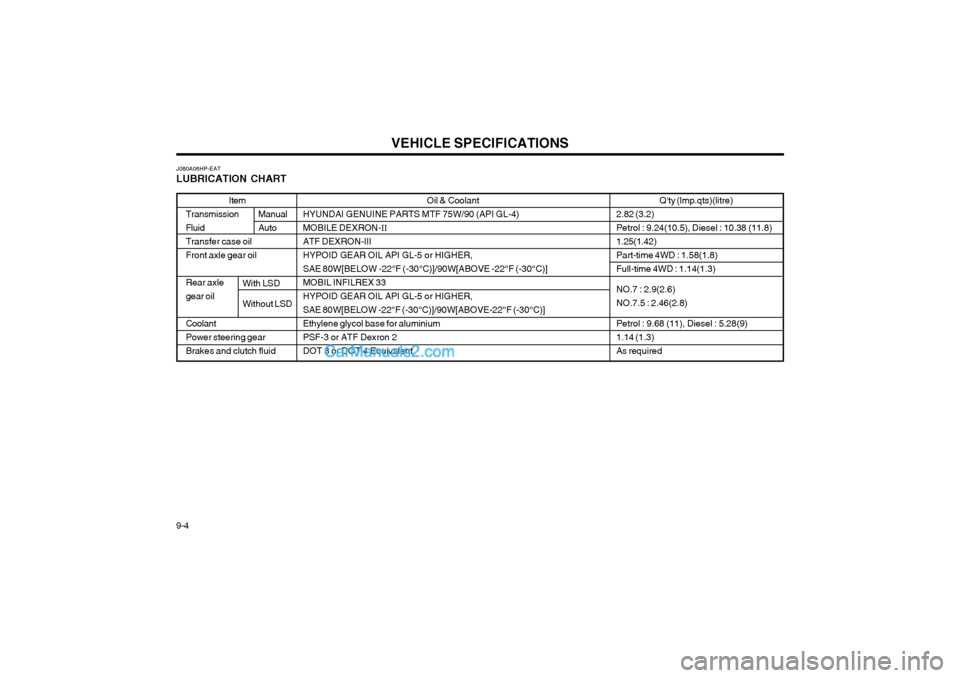

Page 344 of 349
VEHICLE SPECIFICATIONS
9-4 Oil & Coolant
HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) MOBILE DEXRON- II
ATF DEXRON-IIIHYPOID GEAR OIL API GL-5 or HIGHER,SAE 80W[BELOW -22°F (-30°C)]/90W[ABOVE -22°F (-30°C)]MOBIL INFILREX 33HYPOID GEAR OIL API GL-5 or HIGHER,SAE 80W[BELOW -22°F (-30°C)]/90W[ABOVE-22°F (-30°C)]Ethylene glycol base for aluminiumPSF-3 or ATF Dexron 2DOT 3 or DOT 4 Equivalent
Q'ty (lmp.qts)(litre)
2.82 (3.2) Petrol : 9.24(10.5), Diesel : 10.38 (11.8)1.25(1.42)Part-time 4WD : 1.58(1.8)Full-time 4WD : 1.14(1.3) NO.7 : 2.9(2.6) NO.7.5 : 2.46(2.8) Petrol : 9.68 (11), Diesel : 5.28(9) 1.14 (1.3)As required
Item
Transmission Manual
Fluid AutoTransfer case oilFront axle gear oil Rear axle gear oil Coolant Power steering gearBrakes and clutch fluid
J080A06HP-EAT LUBRICATION CHART
With LSD Without LSD

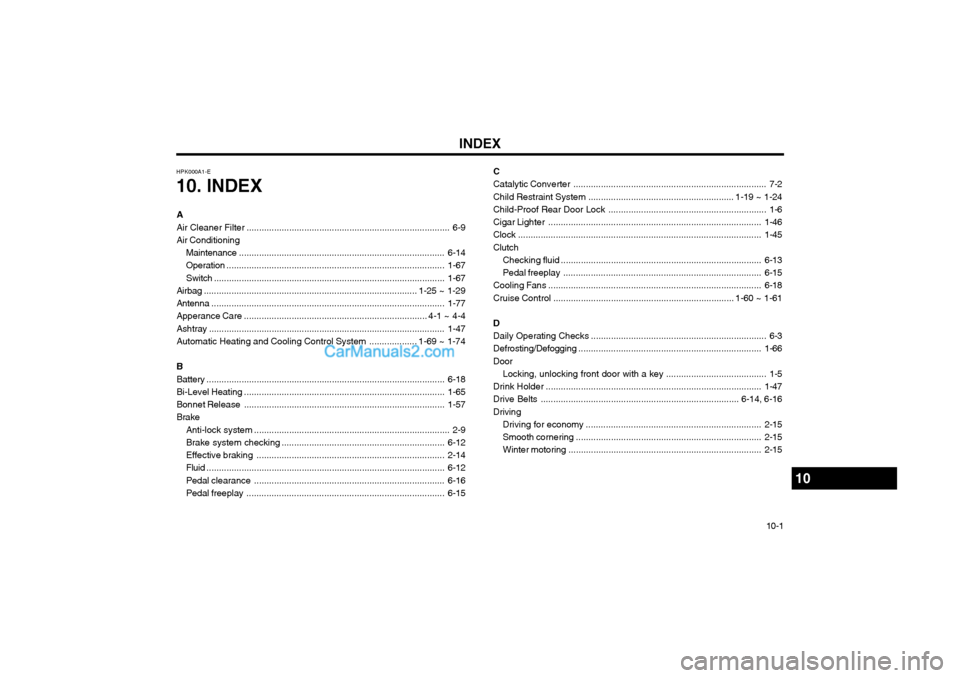

Page 345 of 349
INDEX10-1
C Catalytic Converter
............................................................................. 7-2
Child Restraint System .......................................................... 1-19 ~ 1-24
Child-Proof Rear Door Lock ......... ...................................................... 1-6
Cigar Lighter ..................................................................................... 1-46
Clock ................................................................................................. 1-45
Clutch Checking fluid ................................................................................ 6-13
Pedal freeplay ............................................................................... 6-15
Cooling Fans ..................................................................................... 6-18
Cruise Control ........................................................................ 1-60 ~ 1-61
DDaily Operating Checks ...................................................................... 6-3
Defrosting/Defogging ......................................................................... 1-66
Door Locking, unlocking front door with a key ........................................ 1-5
Drink Holder ...................................................................................... 1-47
Drive Belts ............................................................................... 6-14, 6-16
Driving Driving for economy ...................................................................... 2-15
Smooth cornering .......................................................................... 2-15
Winter motoring ............................................................................. 2-15
HPK000A1-E 10. INDEX
A Air Cleaner Filter ................................................................................. 6-9
Air Conditioning
Maintenance .................................................................................. 6-14
Operation ....................................................................................... 1-67
Switch ............................................................................................ 1-67
Airbag ..................................................................................... 1-25 ~ 1-29
Antenna ............................................................................................. 1-77
Apperance Care ......................................................................... 4-1 ~ 4-4
Ashtray .............................................................................................. 1-47
Automatic Heating and Cooling Control System ...................1-69 ~ 1-74
BBattery ............................................................................................... 6-18
Bi-Level Heating ................................................................................ 1-65
Bonnet Release ................................................................................ 1-57
Brake
Anti-lock system .............................................................................. 2-9
Brake system checking ................................................................. 6-12
Effective braking ........................................................................... 2-14
Fluid ............................................................................................... 6-12
Pedal clearance ............................................................................ 6-16
Pedal freeplay ............................................................................... 6-15
10

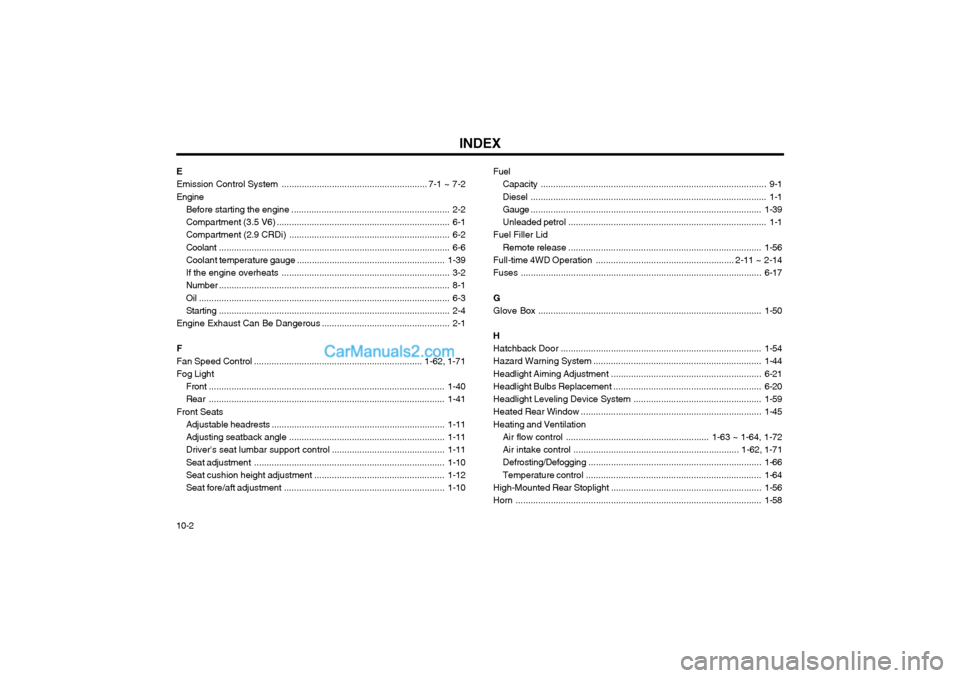

Page 346 of 349
INDEX
10-2 E Emission Control System
.......................................................... 7-1 ~ 7-2
Engine Before starting the engine ............................................................... 2-2 Compartment (3.5 V6) ..................................................................... 6-1
Compartment (2.9 CRDi) ................................................................ 6-2
Coolant ............................................................................................ 6-6
Coolant temperature gauge ........................................................... 1-39
If the engine overheats ................................................................... 3-2
Number ............................................................................................ 8-1
Oil .................................................................................................... 6-3 Starting ............................................................................................ 2-4
Engine Exhaust Can Be Dangerous ................................................... 2-1
F Fan Speed Con trol ................................................................... 1-62, 1-71
Fog Light
Front .............................................................................................. 1-40
Rear .............................................................................................. 1-41
Front Seats Adjustable headrests ..................................................................... 1-11
Adjusting seatback angle .............................................................. 1-11
Driver's seat lumbar support control .............................................1-11
Seat adjustment ............................................................................ 1-10
Seat cushion height adjustment .................................................... 1-12
Seat fore/aft adjustment ................................................................ 1-10Fuel
Capacity .......................................................................................... 9-1
Diesel .............................................................................................. 1-1
Gauge ............................................................................................ 1-39
Unleaded petrol ............................................................................... 1-1
Fuel Filler Lid
Remote release ............................................................................. 1-56
Full-time 4WD Operation .................... ................................... 2-11 ~ 2-14
Fuses ................................................................................................ 6-17
G Glove Box ......................................................................................... 1-50
H Hatchback Door ................................................................................ 1-54
Hazard Warning System ................................................................... 1-44
Headlight Aiming Adjustment ............................................................ 6-21
Headlight Bulbs Replacement ........................................................... 6-20
Headlight Leveling Device System ................................................... 1-59
Heated Rear Window ........................................................................ 1-45
Heating and Ventilation Air flow control ......................................................... 1-63 ~ 1-64, 1-72
Air intake control .................................................................. 1-62, 1-71
Defrosting/Defogging ..................................................................... 1-66
Temperature control ...................................................................... 1-64
High-Mounted Rear Stoplight ............................................................ 1-56
Horn .................................................................................................. 1-58

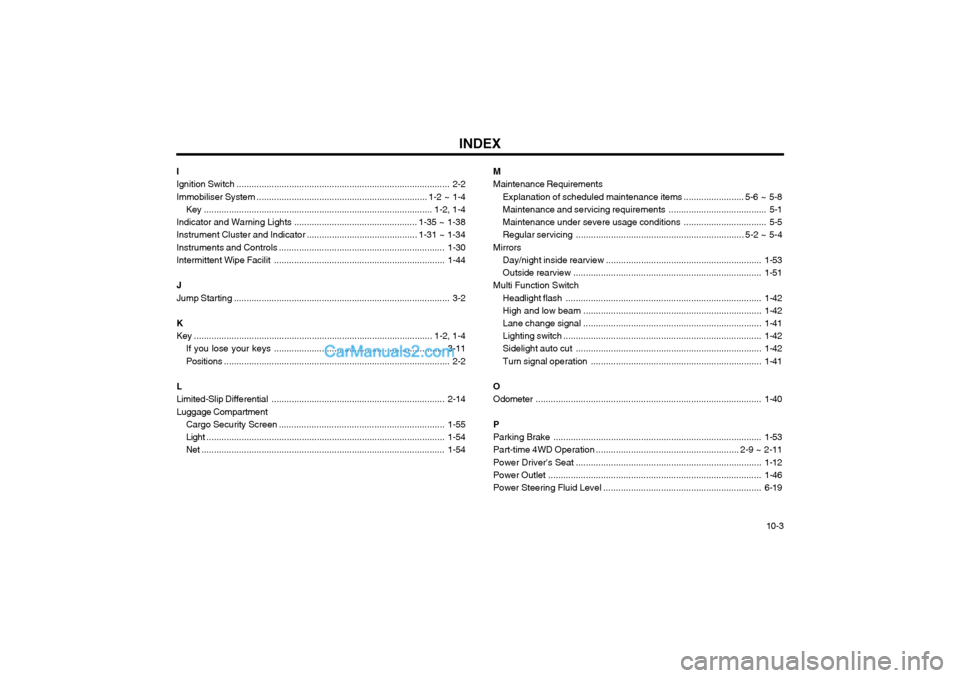

Page 347 of 349
INDEX10-3
M Maintenance Requirements
Explanation of scheduled maintenance items ........................ 5-6 ~ 5-8
Maintenance and servicing requirements ....................................... 5-1
Maintenance under severe usage conditions ................................. 5-5
Regular servicing ................................................................... 5-2 ~ 5-4
Mirrors Day/night inside rearview .............................................................. 1-53
Outside rearview ........................................................................... 1-51
Multi Function Switch
Headlight flash .............................................................................. 1-42
High and low beam ....................................................................... 1-42
Lane change signal ....................................................................... 1-41
Lighting switch ............................................................................... 1-42
Sidelight auto cut .......................................................................... 1-42
Turn signal operation .................................................................... 1-41
OOdometer .......................................................................................... 1-40
P Parking Brake ................................................................................... 1-53
Part-time 4WD Operation ......................................................... 2-9 ~ 2-11
Power Driver's Seat .......................................................................... 1-12
Power Outlet ..................................................................................... 1-46
Power Steering Fluid Level ............. ..................................................6-19
I Ignition Switch
..................................................................................... 2-2
Immobiliser System .................................................................... 1-2 ~ 1-4
Key ........................................................................................... 1-2, 1-4
Indicator and Warning Lights ................................................. 1-35 ~ 1-38
Instrument Cluster and Indicator ............................................ 1-31 ~ 1-34
Instruments and Controls ................ ..................................................1-30
Intermittent Wipe Facilit .................................................................... 1-44
J Jump Starting ...................................................................................... 3-2
K
Key ............................................................................................... 1-2, 1-4 If you lose your keys .................................................................... 3-11
Positions .......................................................................................... 2-2
LLimited-Slip Differential ..................................................................... 2-14
Luggage Compartment Cargo Security Screen .................................................................. 1-55
Light ............................................................................................... 1-54
Net ................................................................................................. 1-54

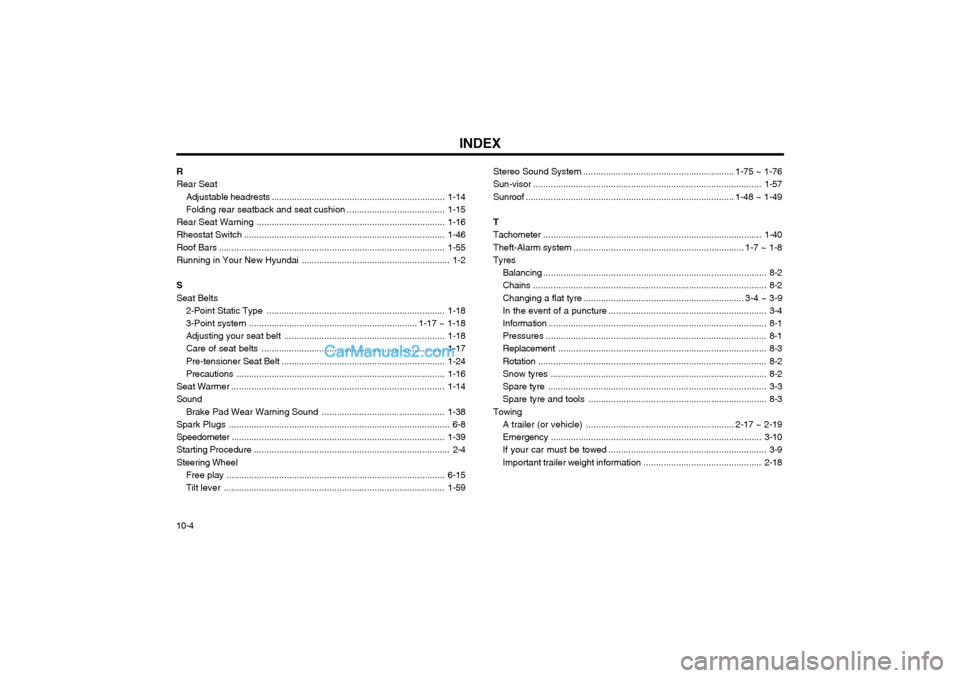

Page 348 of 349
INDEX
10-4 R Rear Seat
Adjustable headrests ..................................................................... 1-14
Folding rear seatback and seat cushion ....................................... 1-15
Rear Seat Warning........................................................................... 1-16
Rheostat Switch ................................................................................ 1-46
Roof Bars .......................................................................................... 1-55
Running in Your New Hyundai ........................................................... 1-2
S Seat Belts 2-Point Sta tic Type ....................................................................... 1-18
3-Point system ................................................................... 1-17 ~ 1-18
Adjusting your seat belt ................................................................ 1-18
Care of seat belts ......................................................................... 1-17
Pre-tensioner Seat Belt ................................................................. 1-24
Precautions ................................................................................... 1-16
Seat Warmer ..................................................................................... 1-14
Sound
Brake Pad Wear Warning Sound .................................................1-38
Spark Plugs ........................................................................................ 6-8
Speedometer ..................................................................................... 1-39
Starting Procedure .............................................................................. 2-4Steering Wheel Free play ....................................................................................... 6-15
Tilt lever ........................................................................................ 1-59Stereo Sound System ............................................................ 1-75 ~ 1-76 Sun-visor
........................................................................................... 1-57
Sunroof ................................................................................... 1-48 ~ 1-49
TTachometer ....................................................................................... 1-40
Theft-Alarm system .................................................................... 1-7 ~ 1-8
Tyres
Balancing ......................................................................................... 8-2
Chains ............................................................................................. 8-2
Changing a flat ty re ................................................................ 3-4 ~ 3-9
In the event of a puncture ..... .......................................................... 3-4
Information ....................................................................................... 8-1
Pressures ........................................................................................ 8-1Replacement ................................................................................... 8-3
Rotation ........................................................................................... 8-2
Snow tyres ...................................................................................... 8-2
Spare tyre ....................................................................................... 3-3 Spare tyre and tools ....................................................................... 8-3
Towing A trailer (or vehicle) ........................................................... 2-17 ~ 2-19
Emergency .................................................................................... 3-10
If your car must be towed ..... .......................................................... 3-9
Important trailer weight information ............................................... 2-18
Page 349 of 349
INDEX10-5
Transmission
Automatic ............................................................................... 2-6 ~ 2-9
Automatic transmission lubricant .................................................. 6-11
Manual .................................................................................... 2-5 ~ 2-6
Manual transmission lubricant ....................................................... 6-10
Trip Odometer ................................................................................... 1-40
U Under Tray ........................................................................................ 1-13
V Vehicle Identificat ion Number (VIN) .................................................... 8-1
Vehicle Specifications ................................................................ 9-1 ~ 9-4
W Windows Power .............................................................................................. 1-9
Windscreen Washer Reservoir Replenishment ................................6-10
Windscreen Wiper and Washer Switch ............................................ 1-43
Rear window wiper and washer .................................................... 1-44
Variable intermittent wipe facilit ..................................................... 1-44
Windscreen washer operation ....................................................... 1-43
Windscreen Wiper Blades ............... ................................................... 6-9
