Hyundai Terracan 2004 Owner's Manual

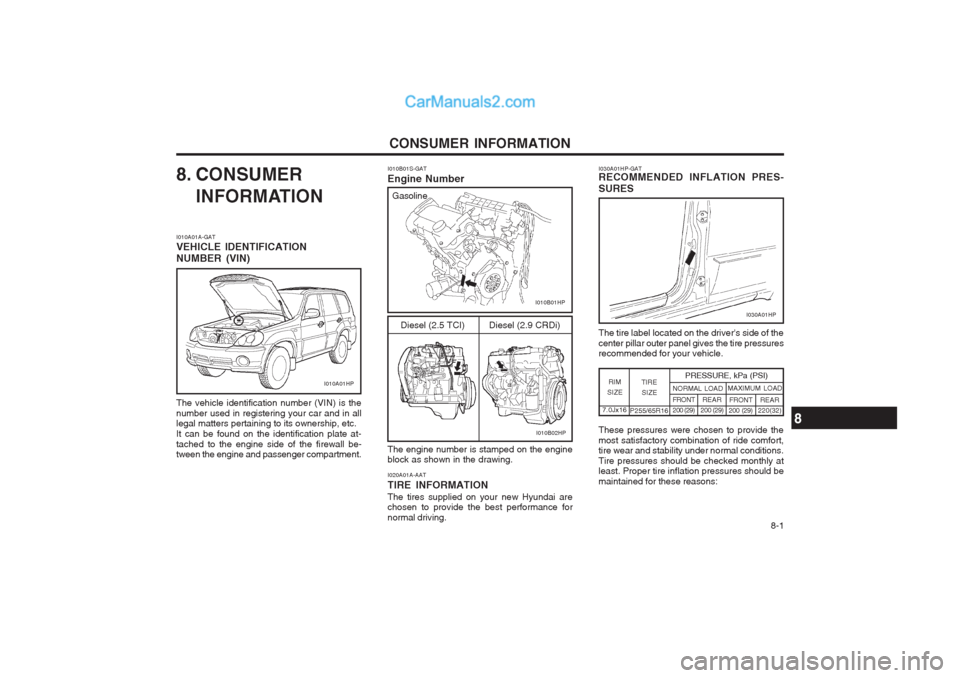

CONSUMER INFORMATION 8-1
8. CONSUMER
INFORMATION
I010A01A-GAT VEHICLE IDENTIFICATION NUMBER (VIN) The vehicle identification number (VIN) is the number used in registering your car and in all legal matters pertaining to its ownership, etc. It can be found on the identification plate at-tached to the engine side of the firewall be- tween the engine and passenger compartment. I020A01A-AAT TIRE INFORMATIONThe tires supplied on your new Hyundai are chosen to provide the best performance for normal driving.
I010A01HP I030A01HP-GAT RECOMMENDED INFLATION PRES- SURES
The tire label located on the driver's side of the center pillar outer panel gives the tire pressures recommended for your vehicle.
I030A01HP
I010B01S-GAT Engine Number The engine number is stamped on the engine block as shown in the drawing.
I010B02HP
8
I010B01HP
Diesel (2.9 CRDi)
Diesel (2.5 TCI)
Gasoline
7.0Jx16
TIRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
P255/65R16 REAR
200 (29) FRONT
200 (29)
NORMAL LOAD
MAXIMUM LOAD
REAR
220(32)
FRONT 200 (29)
These pressures were chosen to provide the most satisfactory combination of ride comfort, tire wear and stability under normal conditions. Tire pressures should be checked monthly at least. Proper tire inflation pressures should be maintained for these reasons:

CONSUMER INFORMATION

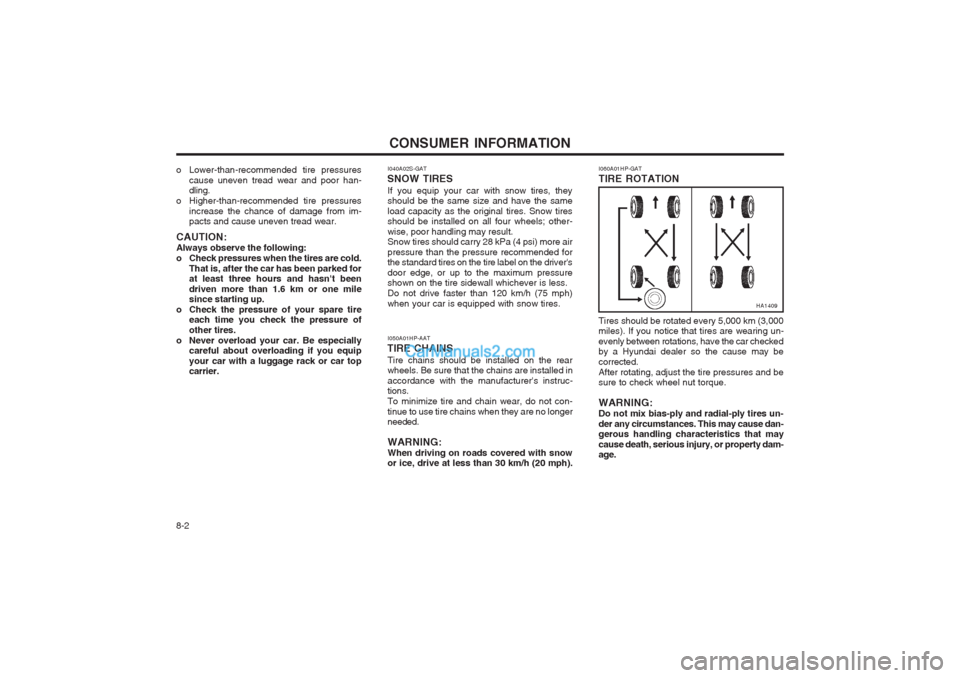

8-2 I060A01HP-GAT TIRE ROTATION
I040A02S-GAT
SNOW TIRES If you equip your car with snow tires, they should be the same size and have the same load capacity as the original tires. Snow tires should be installed on all four wheels; other- wise, poor handling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pressure recommended for the standard tires on the tire label on the driver's door edge, or up to the maximum pressure shown on the tire sidewall whichever is less. Do not drive faster than 120 km/h (75 mph)when your car is equipped with snow tires. I050A01HP-AAT
TIRE CHAINS Tire chains should be installed on the rear wheels. Be sure that the chains are installed in accordance with the manufacturer's instruc- tions. To minimize tire and chain wear, do not con-tinue to use tire chains when they are no longer needed. WARNING: When driving on roads covered with snow or ice, drive at less than 30 km/h (20 mph). Tires should be rotated every 5,000 km (3,000
miles). If you notice that tires are wearing un- evenly between rotations, have the car checked by a Hyundai dealer so the cause may be corrected.After rotating, adjust the tire pressures and be sure to check wheel nut torque. WARNING: Do not mix bias-ply and radial-ply tires un-
der any circumstances. This may cause dan- gerous handling characteristics that may
cause death, serious injury, or property dam- age.
o Lower-than-recommended tire pressures
cause uneven tread wear and poor han-dling.
o Higher-than-recommended tire pressures
increase the chance of damage from im-pacts and cause uneven tread wear.
CAUTION: Always observe the following:
o Check pressures when the tires are cold. That is, after the car has been parked for at least three hours and hasn't been driven more than 1.6 km or one mile since starting up.
o Check the pressure of your spare tire each time you check the pressure of other tires.
o Never overload your car. Be especially careful about overloading if you equipyour car with a luggage rack or car top carrier.
HA1409

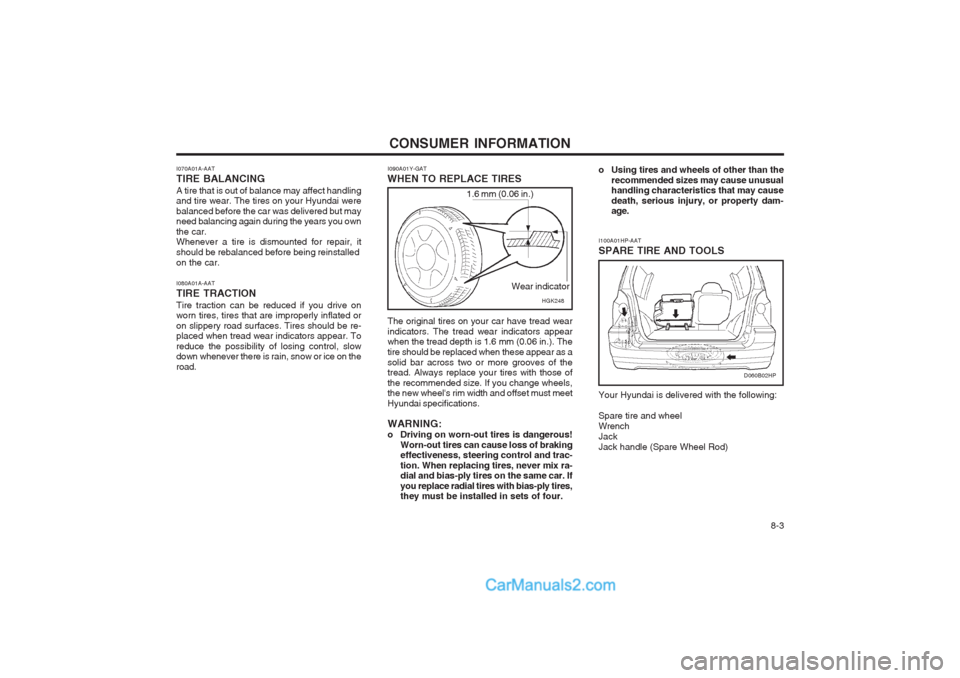

CONSUMER INFORMATION 8-3
I070A01A-AAT TIRE BALANCINGA tire that is out of balance may affect handling and tire wear. The tires on your Hyundai were balanced before the car was delivered but may need balancing again during the years you own the car. Whenever a tire is dismounted for repair, it should be rebalanced before being reinstalledon the car.
I100A01HP-AAT SPARE TIRE AND TOOLS Your Hyundai is delivered with the following: Spare tire and wheel WrenchJackJack handle (Spare Wheel Rod)
I080A01A-AAT TIRE TRACTIONTire traction can be reduced if you drive on worn tires, tires that are improperly inflated or on slippery road surfaces. Tires should be re- placed when tread wear indicators appear. To reduce the possibility of losing control, slow down whenever there is rain, snow or ice on the road. I090A01Y-GAT
WHEN TO REPLACE TIRES
The original tires on your car have tread wearindicators. The tread wear indicators appear when the tread depth is 1.6 mm (0.06 in.). The tire should be replaced when these appear as asolid bar across two or more grooves of the tread. Always replace your tires with those of the recommended size. If you change wheels, the new wheel's rim width and offset must meet Hyundai specifications. WARNING:
o Driving on worn-out tires is dangerous! Worn-out tires can cause loss of braking effectiveness, steering control and trac- tion. When replacing tires, never mix ra- dial and bias-ply tires on the same car. If
you replace radial tires with bias-ply tires, they must be installed in sets of four.
D060B02HP
Wear indicator
1.6 mm (0.06 in.)
HGK248o Using tires and wheels of other than the
recommended sizes may cause unusual handling characteristics that may cause death, serious injury, or property dam- age.

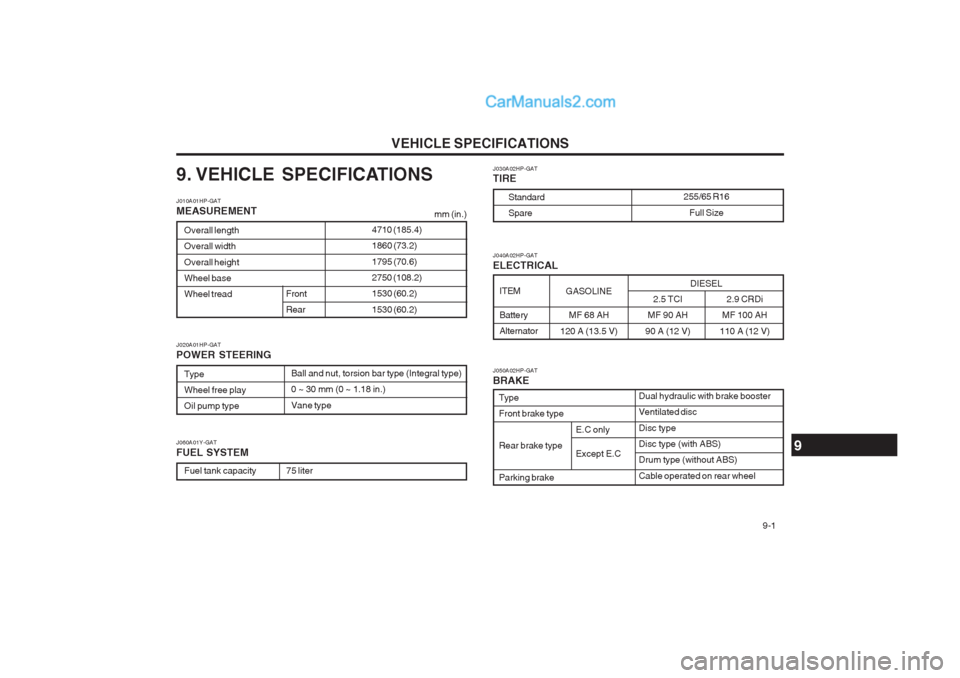

VEHICLE SPECIFICATIONS 9-1
GASOLINE
MF 68 AH
120 A (13.5 V)
9. VEHICLE SPECIFICATIONS J010A01HP-GAT MEASUREMENT
Overall length Overall width Overall height Wheel baseWheel tread
Front Rear
Type Wheel free playOil pump type
Ball and nut, torsion bar type (Integral type)0 ~ 30 mm (0 ~ 1.18 in.) Vane type
J020A01HP-GAT POWER STEERING
J050A02HP-GATBRAKE
Dual hydraulic with brake booster Ventilated disc Disc type Disc type (with ABS)Drum type (without ABS) Cable operated on rear wheel
Type Front brake type Rear brake typeParking brake
J060A01Y-GAT FUEL SYSTEM
Fuel tank capacity75 liter mm (in.)
4710 (185.4) 1860 (73.2) 1795 (70.6) 2750 (108.2)1530 (60.2) 1530 (60.2)
ITEM Battery Alternator
J040A02HP-GAT ELECTRICAL
2.5 TCI
MF 90 AH
90 A (12 V)
9
2.9 CRDi
MF 100 AH
110 A (12 V)
DIESEL
E.C only Except E.C
J030A02HP-GAT TIRE
Standard Spare
255/65 R16
Full Size

VEHICLE SPECIFICATIONS

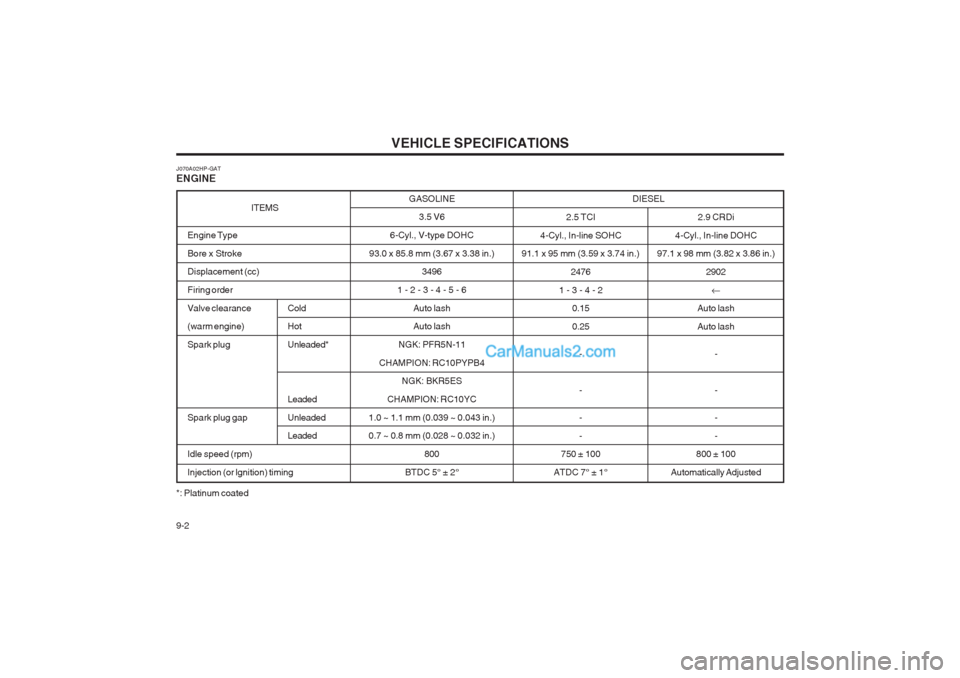

9-2 GASOLINE
3.5 V6
6-Cyl., V-type DOHC
93.0 x 85.8 mm (3.67 x 3.38 in.) 3496
1 - 2 - 3 - 4 - 5 - 6 Auto lash Auto lash
NGK: PFR5N-11
CHAMPION: RC10PYPB4 NGK: BKR5ES
CHAMPION: RC10YC
1.0 ~ 1.1 mm (0.039 ~ 0.043 in.)0.7 ~ 0.8 mm (0.028 ~ 0.032 in.)
800
BTDC 5° ± 2°
ITEMS
Engine Type Bore x Stroke Displacement (cc) Firing orderValve clearance Cold
(warm engine) HotSpark plug Unleaded* Leaded
Spark plug gap Unleaded Leaded
Idle speed (rpm) Injection (or lgnition) timing 2.5 TCI
4-Cyl., In-line SOHC
91.1 x 95 mm (3.59 x 3.74 in.)
2476
1 - 3 - 4 - 2 0.150.25
- - - -
750 ± 100
ATDC 7° ± 1°
J070A02HP-GAT ENGINE
2.9 CRDi
4-Cyl., In-line DOHC
97.1 x 98 mm (3.82 x 3.86 in.)
2902

Auto lash Auto lash
- - - -
800 ± 100
Automatically Adjusted
DIESEL
*: Platinum coated

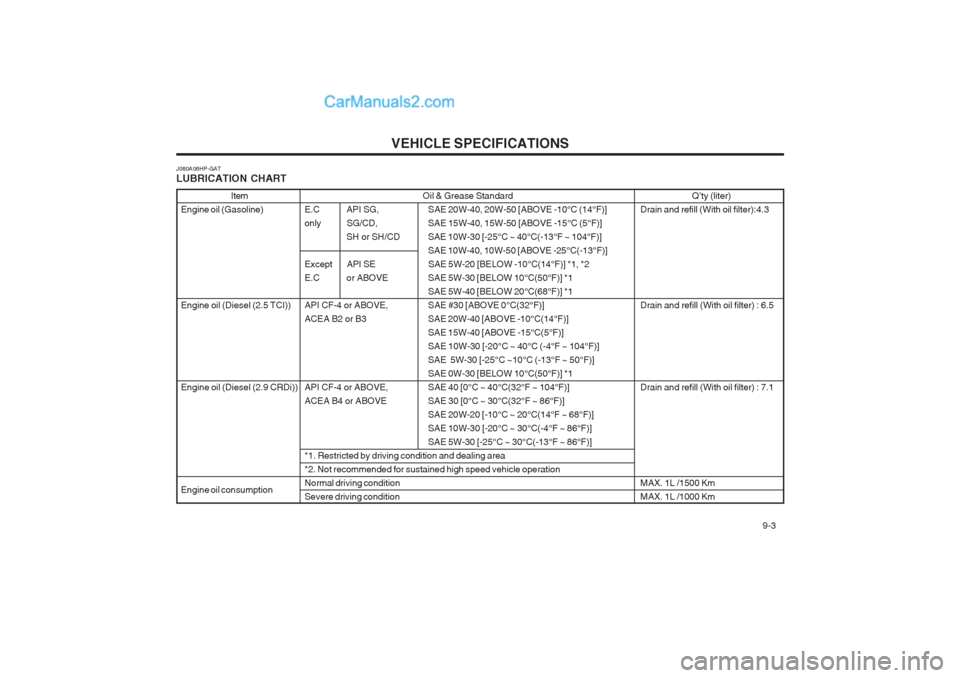

VEHICLE SPECIFICATIONS 9-3
Oil & Grease Standard
E.C API SG, SAE 20W-40, 20W-50 [ABOVE -10°C (14°F)]
only SG/CD, SAE 15W-40, 15W-50 [ABOVE -15°C (5°F)]
SH or SH/CD SAE 10W-30 [-25°C ~ 40°C(-13°F ~ 104°F)] SAE 10W-40, 10W-50 [ABOVE -25°C(-13°F)]
Except API SE SAE 5W-20 [BELOW -10°C(14°F)] *1, *2
E.C or ABOVE SAE 5W-30 [BELOW 10°C(50°F)] *1 SAE 5W-40 [BELOW 20°C(68°F)] *1
API CF-4 or ABOVE, SAE #30 [ABOVE 0°C(32°F)]
ACEA B2 or B3 SAE 20W-40 [ABOVE -10°C(14°F)] SAE 15W-40 [ABOVE -15°C(5°F)]SAE 10W-30 [-20°C ~ 40°C (-4°F ~ 104°F)]SAE 5W-30 [-25°C ~10°C (-13°F ~ 50°F)]SAE 0W-30 [BELOW 10°C(50°F)] *1
API CF-4 or ABOVE, SAE 40 [0°C ~ 40°C(32°F ~ 104°F)]
ACEA B4 or ABOVE SAE 30 [0°C ~ 30°C(32°F ~ 86°F)] SAE 20W-20 [-10°C ~ 20°C(14°F ~ 68°F)]SAE 10W-30 [-20°C ~ 30°C(-4°F ~ 86°F)]SAE 5W-30 [-25°C ~ 30°C(-13°F ~ 86°F)]
*1. Restricted by driving condition and dealing area*2. Not recommended for sustained high speed vehicle operationNormal driving conditionSevere driving condition
J080A06HP-GAT LUBRICATION CHART
Q’ty (liter)
Drain and refill (With oil filter):4.3 Drain and refill (With oil filter) : 6.5 Drain and refill (With oil filter) : 7.1 MAX. 1L /1500 Km MAX. 1L /1000 Km
Item
Engine oil (Gasoline) Engine oil (Diesel (2.5 TCI)) Engine oil (Diesel (2.9 CRDi)) Engine oil consumption

VEHICLE SPECIFICATIONS

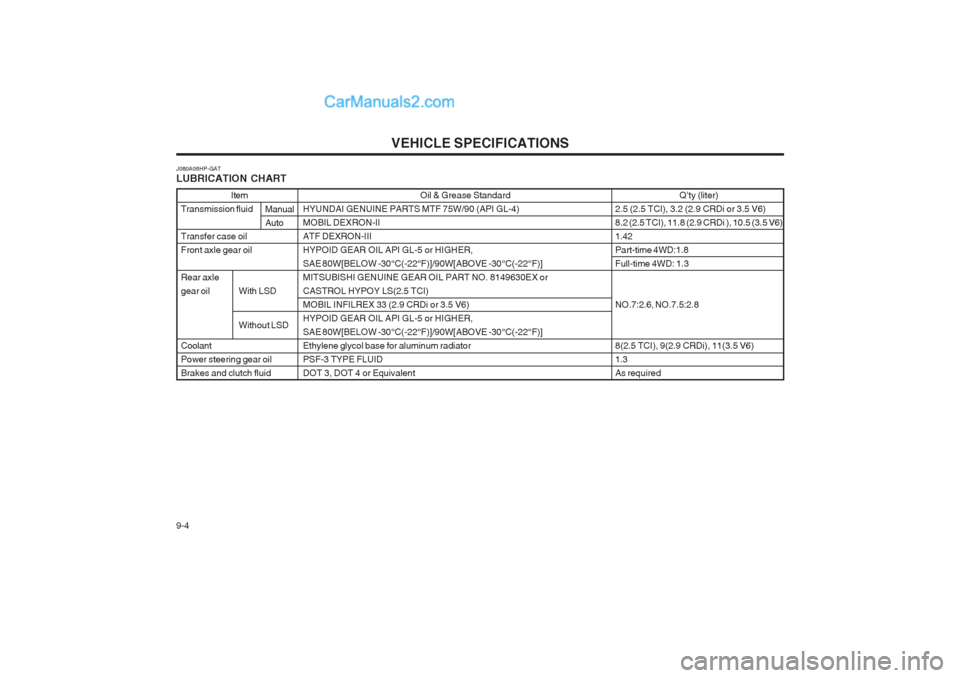

9-4 Oil & Grease Standard
HYUNDAI GENUINE PARTS MTF 75W/90 (API GL-4) MOBIL DEXRON-IIATF DEXRON-IIIHYPOID GEAR OIL API GL-5 or HIGHER,SAE 80W[BELOW -30°C(-22°F)]/90W[ABOVE -30°C(-22°F)]MITSUBISHI GENUINE GEAR OIL PART NO. 8149630EX orCASTROL HYPOY LS(2.5 TCI)MOBIL INFILREX 33 (2.9 CRDi or 3.5 V6)HYPOID GEAR OIL API GL-5 or HIGHER,SAE 80W[BELOW -30°C(-22°F)]/90W[ABOVE -30°C(-22°F)]Ethylene glycol base for aluminum radiatorPSF-3 TYPE FLUIDDOT 3, DOT 4 or Equivalent
Q’ty (liter)
2.5 (2.5 TCI), 3.2 (2.9 CRDi or 3.5 V6) 8.2 (2.5 TCI), 11.8 (2.9 CRDi ), 10.5 (3.5 V6)1.42Part-time 4WD:1.8Full-time 4WD: 1.3 NO.7:2.6, NO.7.5:2.88(2.5 TCI), 9(2.9 CRDi), 11(3.5 V6) 1.3As required
Item
Transmission fluid Transfer case oil Front axle gear oil Rear axle gear oil Coolant Power steering gear oilBrakes and clutch fluid
Manual Auto
With LSD Without LSD
J080A06HP-GAT LUBRICATION CHART

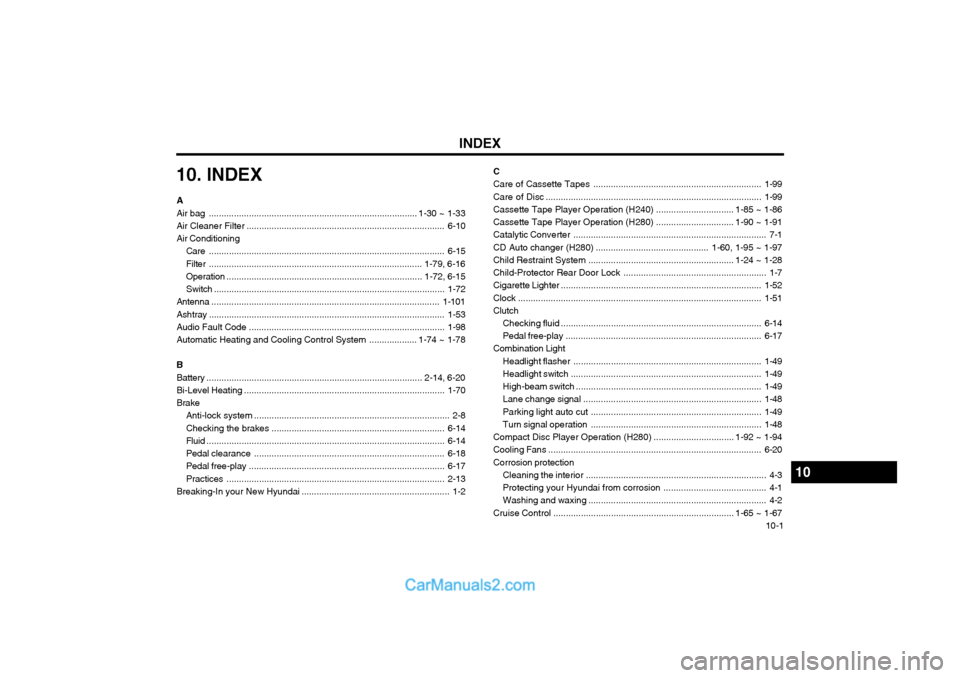

INDEX 10-1
A
Air bag ...................................................................................
1-30 ~ 1-33
Air Cleaner Filter ............................................................................... 6-10
Air Conditioning Care .............................................................................................. 6-15
Filter ..................................................................................... 1-79, 6-16
Operation .............................................................................. 1-72, 6-15
Switch ............................................................................................ 1-72
Antenna ........................................................................................... 1-101
Ashtray .............................................................................................. 1-53
Audio Fault Code .............................................................................. 1-98
Automatic Heating and Cooling Control System ...................1-74 ~ 1-78
BBattery ...................................................................................... 2-14, 6-20
Bi-Level Heating ................................................................................ 1-70
Brake Anti-lock system .............................................................................. 2-8
Checking the brakes ..................................................................... 6-14
Fluid ............................................................................................... 6-14
Pedal clearance ............................................................................ 6-18
Pedal free-play .............................................................................. 6-17
Practices ....................................................................................... 2-13
Breaking-In your New Hyundai ........................................................... 1-2 C Care of Cassette
Tapes ................................................................... 1-99
Care of Disc ...................................................................................... 1-99
Cassette Tape Player Operation (H240) ............................... 1-85 ~ 1-86
Cassette Tape Player Operation (H280) ............................... 1-90 ~ 1-91
Catalytic Converter ............................................................................. 7-1
CD Auto changer (H280) ............................................. 1-60, 1-95 ~ 1-97
Child Restraint System .......................................................... 1-24 ~ 1-28
Child-Protector Rear Door Lock ......................................................... 1-7
Cigarette Lighter ................................................................................ 1-52
Clock ................................................................................................. 1-51
Clutch
Checking fluid ................................................................................ 6-14
Pedal free-play .............................................................................. 6-17
Combination Light
Headlight flasher ........................................................................... 1-49
Headlight switch ............................................................................ 1-49
High-beam switch .......................................................................... 1-49
Lane change signal ....................................................................... 1-48
Parking light auto cut .................................................................... 1-49
Turn signal operation .................................................................... 1-48
Compact Disc Player Operation (H280) ................................ 1-92 ~ 1-94
Cooling Fans ..................................................................................... 6-20
Corrosion protection Cleaning the interior ........................................................................ 4-3
Protecting your Hyundai from corrosion ................ ......................... 4-1
Washing and waxing ....................................................................... 4-2
Cruise Control ........................................................................ 1-65 ~ 1-67
10. INDEX
10

INDEX

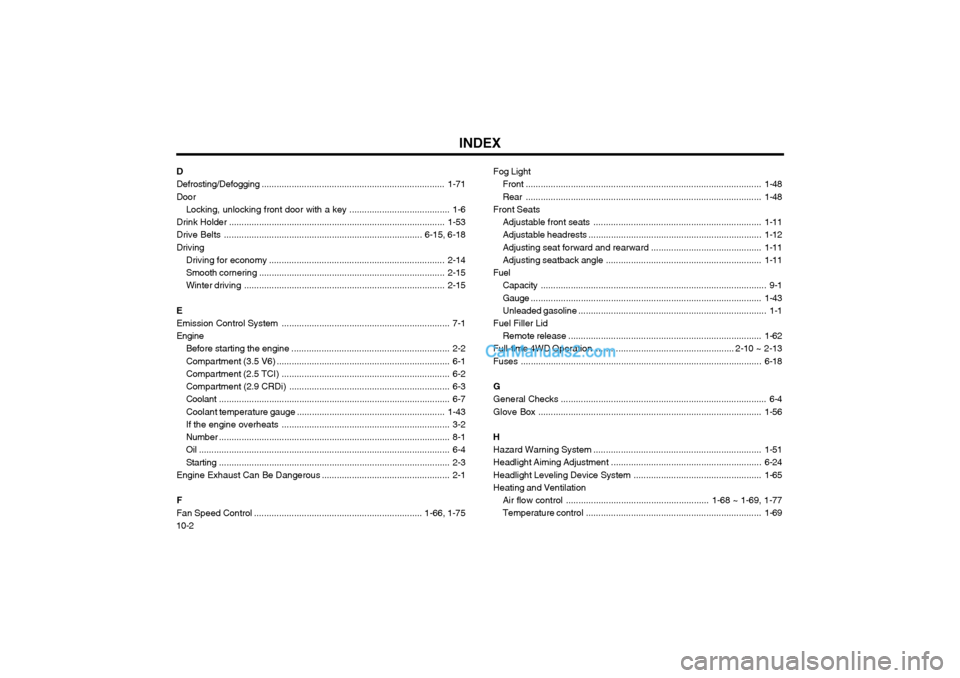

10-2 D Defrosting/Defogging
......................................................................... 1-71
Door Locking, unlocking front door with a key ........................................ 1-6
Drink Holder ...................................................................................... 1-53
Drive Belts ............................................................................... 6-15, 6-18
Driving Driving for economy ...................................................................... 2-14
Smooth cornering .......................................................................... 2-15
Winter driving ................................................................................ 2-15
E Emission Control System ................................................................... 7-1
Engine
Before starting the engine ............................................................... 2-2Compartment (3.5 V6) ..................................................................... 6-1
Compartment (2.5 TCI) ................................................................... 6-2
Compartment (2.9 CRDi) ................................................................ 6-3
Coolant ............................................................................................ 6-7
Coolant temperature gauge ........................................................... 1-43
If the engine overheats ................................................................... 3-2
Number ............................................................................................ 8-1
Oil .................................................................................................... 6-4Starting ............................................................................................ 2-3
Engine Exhaust Can Be Dangerous ................................................... 2-1
FFan Speed Con trol ................................................................... 1-66, 1-75Fog Light
Front .............................................................................................. 1-48
Rear .............................................................................................. 1-48
Front Seats
Adjustable front seats ................................................................... 1-11
Adjustable headrests ..................................................................... 1-12
Adjusting seat forward and rearward ............................................1-11
Adjusting seatback angle .............................................................. 1-11
Fuel Capacity .......................................................................................... 9-1
Gauge ............................................................................................ 1-43
Unleaded gasoline ........................................................................... 1-1
Fuel Filler Lid Remote release ............................................................................. 1-62
Full-time 4WD Operation .................... ................................... 2-10 ~ 2-13
Fuses ................................................................................................ 6-18
G General Checks .................................................................................. 6-4
Glove Box ......................................................................................... 1-56
H Hazard Warning System ................................................................... 1-51
Headlight Aiming Adjustment ............................................................ 6-24
Headlight Leveling Device System ................................................... 1-65
Heating and Ventilation
Air flow control ......................................................... 1-68 ~ 1-69, 1-77
Temperature control ...................................................................... 1-69

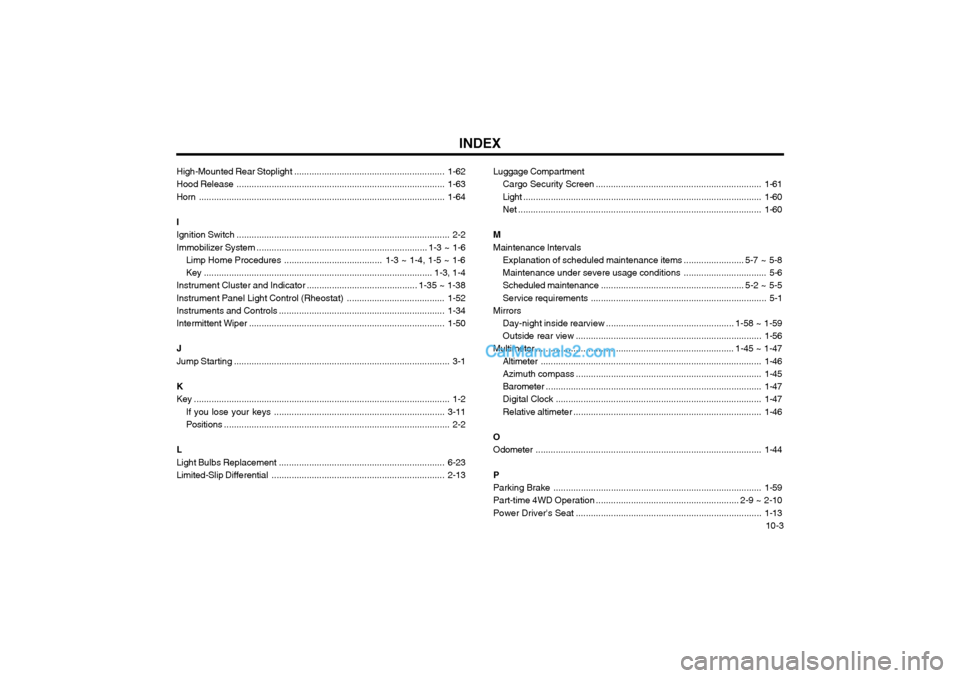

INDEX 10-3
High-Mounted Rear Stoplight ............................................................
1-62
Hood Release ................................................................................... 1-63
Horn .................................................................................................. 1-64
I Ignition Switch ..................................................................................... 2-2
Immobilizer System .................................................................... 1-3 ~ 1-6
Limp Home Procedures ....................................... 1-3 ~ 1-4, 1-5 ~ 1-6
Key ........................................................................................... 1-3, 1-4
Instrument Cluster and Indicator ............................................ 1-35 ~ 1-38
Instrument Panel Light Control (Rheostat) .......................................1-52
Instruments and Controls ................ ..................................................1-34
Intermittent Wiper .............................................................................. 1-50
J Jump Starting ...................................................................................... 3-1
K
Key ...................................................................................................... 1-2 If you lose your keys .................................................................... 3-11
Positions .......................................................................................... 2-2
L
Light Bulbs Replacement ................ ..................................................6-23
Limited-Slip Differential ..................................................................... 2-13Luggage Compartment
Cargo Security Screen .................................................................. 1-61
Light ............................................................................................... 1-60
Net ................................................................................................. 1-60
MMaintenance Intervals Explanation of scheduled maintenance items ........................ 5-7 ~ 5-8
Maintenance under severe usage conditions ................................. 5-6
Scheduled maintenance ......................................................... 5-2 ~ 5-5
Service requirements ...................................................................... 5-1
Mirrors
Day-night inside rearview ................................................... 1-58 ~ 1-59
Outside rear view .......................................................................... 1-56
Multimeter ............................................................................... 1-45 ~ 1-47
Altimeter ........................................................................................ 1-46
Azimuth compass .......................................................................... 1-45
Barometer ...................................................................................... 1-47
Digital Clock .................................................................................. 1-47
Relative altimeter ........................................................................... 1-46
O Odometer .......................................................................................... 1-44
P Parking Brake ................................................................................... 1-59
Part-time 4WD Operation ......................................................... 2-9 ~ 2-10
Power Driver's Seat .......................................................................... 1-13
