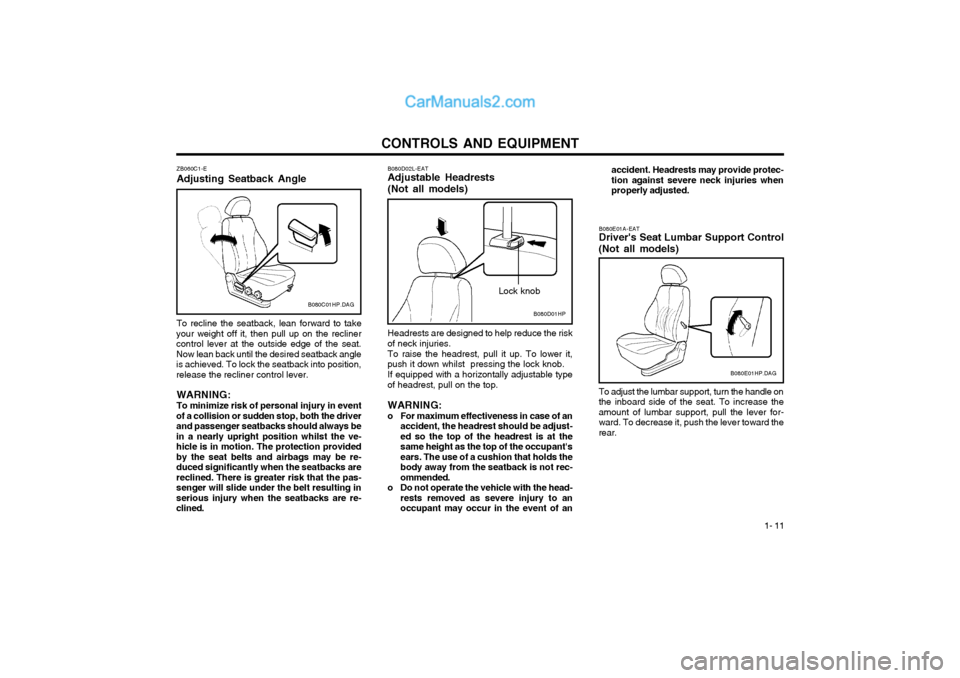

CONTROLS AND EQUIPMENT1- 11
To recline the seatback, lean forward to take
your weight off it, then pull up on the recliner control lever at the outside edge of the seat.Now lean back until the desired seatback angleis achieved. To lock the seatback into position,release the recliner control lever.
WARNING: To minimize risk of personal injury in event
of a collision or sudden stop, both the driver and passenger seatbacks should always bein a nearly upright position whilst the ve-hicle is in motion. The protection providedby the seat belts and airbags may be re-duced significantly when the seatbacks arereclined. There is greater risk that the pas-senger will slide under the belt resulting inserious injury when the seatbacks are re-clined. ZB060C1-E Adjusting Seatback Angle
B080C01HP.DAG
To adjust the lumbar support, turn the handle on the inboard side of the seat. To increase theamount of lumbar support, pull the lever for-ward. To decrease it, push the lever toward therear.
B080D02L-EAT Adjustable Headrests (Not all models) Headrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower it,
push it down whilst pressing the lock knob.
If equipped with a horizontally adjustable type
of headrest, pull on the top.
WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjust- ed so the top of the headrest is at thesame height as the top of the occupant'sears. The use of a cushion that holds thebody away from the seatback is not rec-ommended.
o Do not operate the vehicle with the head- rests removed as severe injury to anoccupant may occur in the event of an B080E01A-EAT Driver's Seat Lumbar Support Control
(Not all models)
B080E01HP.DAG
B080D01HP
Lock knob accident. Headrests may provide protec- tion against severe neck injuries whenproperly adjusted.

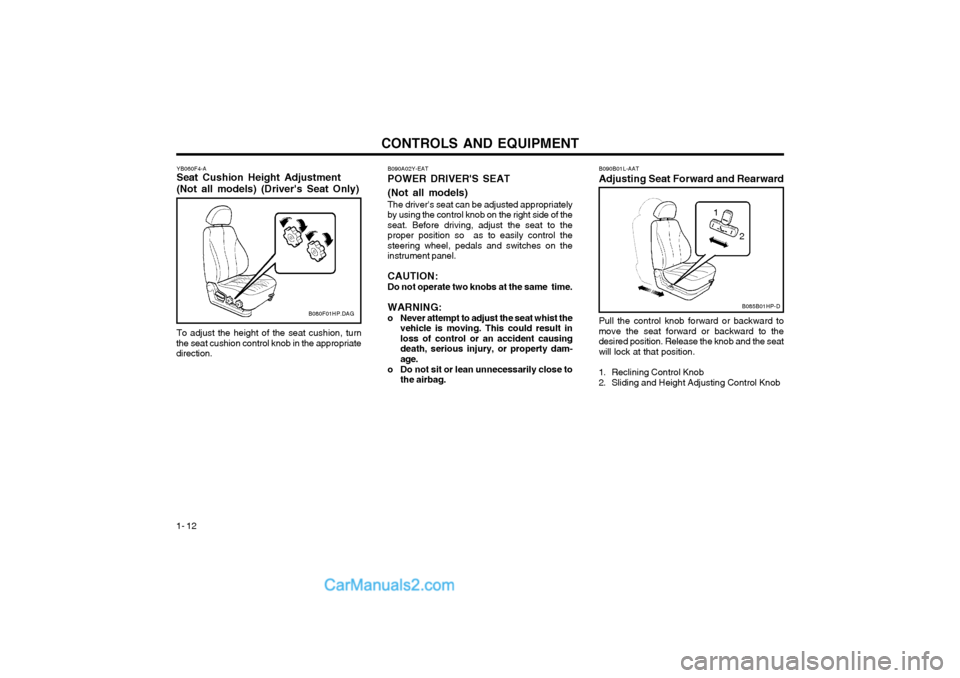

CONTROLS AND EQUIPMENT
1- 12
YB060F4-A Seat Cushion Height Adjustment (Not all models) (Driver's Seat Only)
B080F01HP.DAG
To adjust the height of the seat cushion, turn
the seat cushion control knob in the appropriate direction. B090B01L-AAT Adjusting Seat Forward and RearwardPull the control knob forward or backward to move the seat forward or backward to thedesired position. Release the knob and the seatwill lock at that position.
1. Reclining Control Knob
2. Sliding and Height Adjusting Control Knob
B085B01HP-D
1
2
B090A02Y-EAT POWER DRIVER'S SEAT (Not all models) The driver's seat can be adjusted appropriately by using the control knob on the right side of theseat. Before driving, adjust the seat to theproper position so as to easily control thesteering wheel, pedals and switches on theinstrument panel. CAUTION:
Do not operate two knobs at the same time.
WARNING:
o Never attempt to adjust the seat whist the vehicle is moving. This could result in loss of control or an accident causingdeath, serious injury, or property dam-age.
o Do not sit or lean unnecessarily close to the airbag.

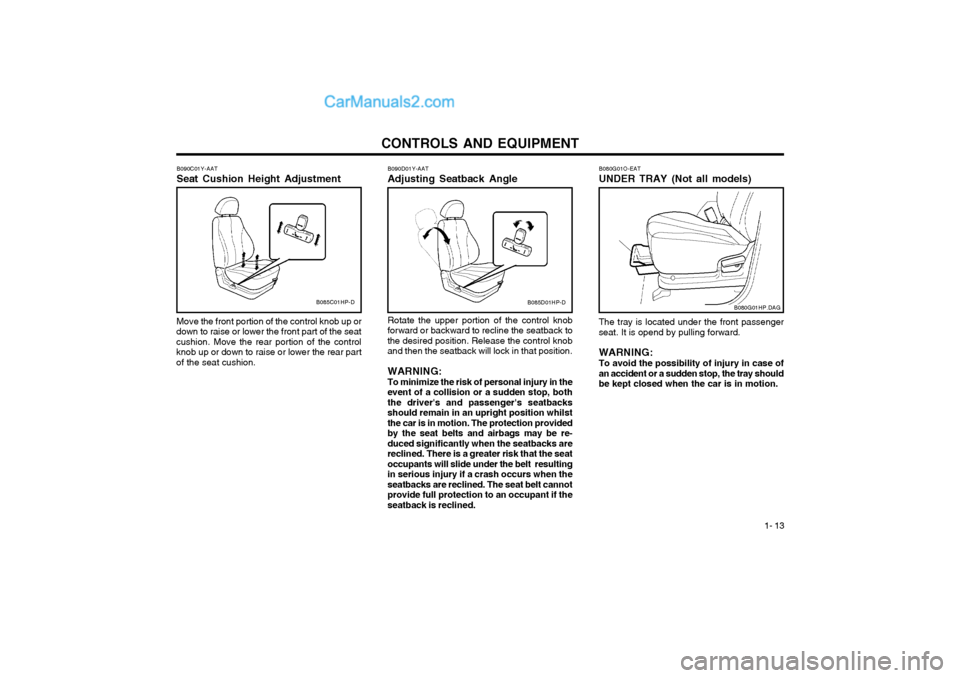

CONTROLS AND EQUIPMENT1- 13
B090C01Y-AAT Seat Cushion Height Adjustment Move the front portion of the control knob up or
down to raise or lower the front part of the seat cushion. Move the rear portion of the controlknob up or down to raise or lower the rear partof the seat cushion.
B085C01HP-D B080G01O-EAT UNDER TRAY (Not all models)B080G01HP.DAG
The tray is located under the front passenger seat. It is opend by pulling forward. WARNING: To avoid the possibility of injury in case of an accident or a sudden stop, the tray shouldbe kept closed when the car is in motion.B085D01HP-D
B090D01Y-AAT Adjusting Seatback Angle Rotate the upper portion of the control knob
forward or backward to recline the seatback to the desired position. Release the control knoband then the seatback will lock in that position.
WARNING: To minimize the risk of personal injury in the
event of a collision or a sudden stop, both the driver's and passenger's seatbacksshould remain in an upright position whilstthe car is in motion. The protection providedby the seat belts and airbags may be re-duced significantly when the seatbacks arereclined. There is a greater risk that the seatoccupants will slide under the belt resultingin serious injury if a crash occurs when theseatbacks are reclined. The seat belt cannotprovide full protection to an occupant if theseatback is reclined.

CONTROLS AND EQUIPMENT
1- 14

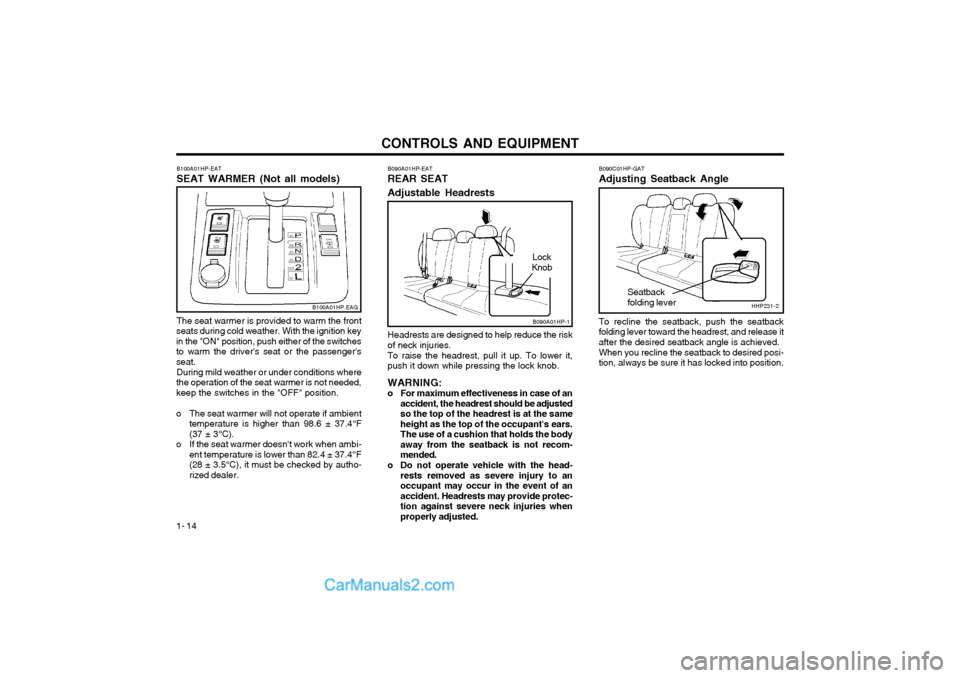

B100A01HP-EAT SEAT WARMER (Not all models) The seat warmer is provided to warm the front
seats during cold weather. With the ignition key in the "ON" position, push either of the switchesto warm the driver's seat or the passenger'sseat.
During mild weather or under conditions where
the operation of the seat warmer is not needed,keep the switches in the "OFF" position.
o The seat warmer will not operate if ambient temperature is higher than 98.6 ± 37.4°F (37 ± 3°C).
o If the seat warmer doesn't work when ambi- ent temperature is lower than 82.4 ± 37.4°F(28 ± 3.5°C), it must be checked by autho-rized dealer.
B100A01HP.EAGHHP231-2
B090A01HP-EAT REAR SEAT Adjustable Headrests Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressing the lock knob. WARNING:
o For maximum effectiveness in case of an accident, the headrest should be adjusted so the top of the headrest is at the sameheight as the top of the occupant's ears.
The use of a cushion that holds the bodyaway from the seatback is not recom-mended.
o Do not operate vehicle with the head- rests removed as severe injury to anoccupant may occur in the event of anaccident. Headrests may provide protec-tion against severe neck injuries whenproperly adjusted. B090C01HP-GAT Adjusting Seatback Angle To recline the seatback, push the seatback folding lever toward the headrest, and release itafter the desired seatback angle is achieved. When you recline the seatback to desired posi- tion, always be sure it has locked into position.
Seatback folding lever
B090A01HP-1
Lock
Knob

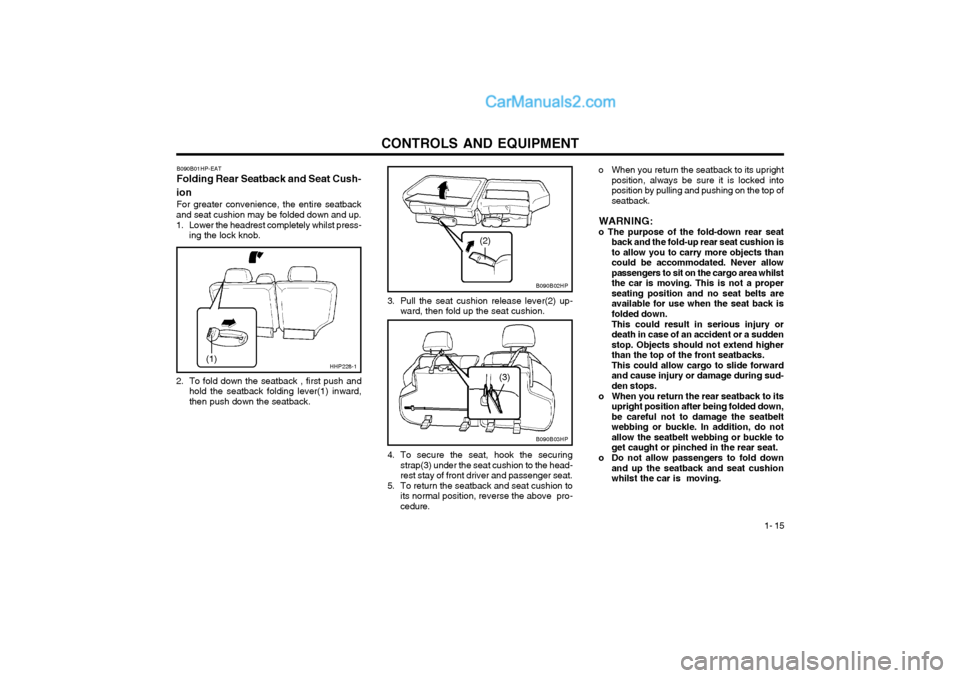

CONTROLS AND EQUIPMENT1- 15
o When you return the seatback to its uprightposition, always be sure it is locked into position by pulling and pushing on the top ofseatback.
WARNING:
o The purpose of the fold-down rear seat back and the fold-up rear seat cushion isto allow you to carry more objects thancould be accommodated. Never allowpassengers to sit on the cargo area whilstthe car is moving. This is not a properseating position and no seat belts areavailable for use when the seat back isfolded down. This could result in serious injury or death in case of an accident or a suddenstop. Objects should not extend higherthan the top of the front seatbacks.This could allow cargo to slide forwardand cause injury or damage during sud-den stops.
o When you return the rear seatback to its upright position after being folded down,be careful not to damage the seatbeltwebbing or buckle. In addition, do notallow the seatbelt webbing or buckle toget caught or pinched in the rear seat.
o Do not allow passengers to fold down and up the seatback and seat cushionwhilst the car is moving.
3. Pull the seat cushion release lever(2) up-ward, then fold up the seat cushion.
B090B02HP
(2)
B090B03HP
(3)
4. To secure the seat, hook the securing strap(3) under the seat cushion to the head- rest stay of front driver and passenger seat.
5. To return the seatback and seat cushion to its normal position, reverse the above pro-cedure.
B090B01HP-EAT Folding Rear Seatback and Seat Cush-
ion For greater convenience, the entire seatback
and seat cushion may be folded down and up.
1. Lower the headrest completely whilst press- ing the lock knob.
2. To fold down the seatback , first push and hold the seatback folding lever(1) inward, then push down the seatback.
HHP228-1(1)

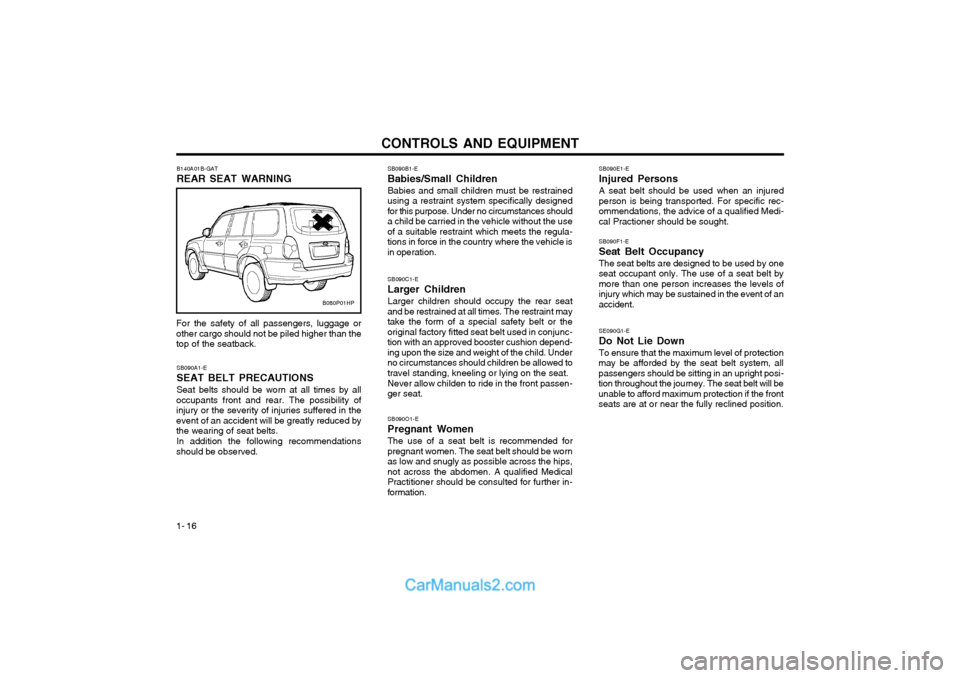

CONTROLS AND EQUIPMENT
1- 16 SB090F1-E Seat Belt OccupancyThe seat belts are designed to be used by one seat occupant only. The use of a seat belt bymore than one person increases the levels ofinjury which may be sustained in the event of anaccident.
SB090E1-E Injured PersonsA seat belt should be used when an injured person is being transported. For specific rec-ommendations, the advice of a qualified Medi-cal Practioner should be sought. SE090G1-E Do Not Lie DownTo ensure that the maximum level of protection
may be afforded by the seat belt system, all passengers should be sitting in an upright posi-tion throughout the journey. The seat belt will beunable to afford maximum protection if the frontseats are at or near the fully reclined position.
SB090C1-E Larger ChildrenLarger children should occupy the rear seat
and be restrained at all times. The restraint may take the form of a special safety belt or theoriginal factory fitted seat belt used in conjunc-tion with an approved booster cushion depend-ing upon the size and weight of the child. Underno circumstances should children be allowed totravel standing, kneeling or lying on the seat.
Never allow childen to ride in the front passen-
ger seat.
SB090A1-E SEAT BELT PRECAUTIONS Seat belts should be worn at all times by all
occupants front and rear. The possibility of injury or the severity of injuries suffered in theevent of an accident will be greatly reduced bythe wearing of seat belts.
In addition the following recommendations
should be observed. SB090B1-E
Babies/Small Children
Babies and small children must be restrained
using a restraint system specifically designedfor this purpose. Under no circumstances shoulda child be carried in the vehicle without the useof a suitable restraint which meets the regula-tions in force in the country where the vehicle isin operation.
B140A01B-GAT REAR SEAT WARNING
B080P01HP
For the safety of all passengers, luggage or other cargo should not be piled higher than thetop of the seatback.
SB090O1-E Pregnant WomenThe use of a seat belt is recommended for
pregnant women. The seat belt should be worn as low and snugly as possible across the hips,not across the abdomen. A qualified MedicalPractitioner should be consulted for further in-formation.

CONTROLS AND EQUIPMENT1- 17
You can adjust the height of the shoulder belt
anchor to one of the 4 positions. If the height of the adjusting seat belt is too near
your neck, you will not be getting the most effective protection. The shoulder portion shouldbe adjusted so that it lies across your chest andmidway over your shoulder nearest the doorand not your neck.
To adjust the height of the seat belt anchor,
lower or raise the height adjuster into an appro-priate position. To raise the height adjuster, pullit up. To lower it, push it down whilst pressingthe height adjuster button.
Release the button to lock the anchor into
position. Try sliding the release button to makesure that it has locked into the position.
SB090J1-E Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts
become dirty, they can be cleaned using a mild soap solution and warm water. Bleach, dye,strong detergents or abrasives should not beused since the fabric may become damagedand weakened.
SB090K1-E Replacement of Seat BeltsThe entire seat belt assembly or assemblies
should be replaced if the vehicle has been involved in an accident even if no damage isevident. Additional questions concerning seatbelt operation should be directed to a HyundaiDealer. B170A04A-EAT HEIGHT ADJUSTABLE FRONT SEAT
SHOULDER BELT (Not all models)
B170A01HP.DAG
SB090H1-E CARE OF SEAT BELTSSeat belt assemblies must never be disas-
sembled or modified in any way. In addition, care should be exercised to ensure that the beltassemblies do not become damaged by beingtrapped in seat mechanisms, door shuts etc.
SB090I-E Periodic InspectionIt is recommended that all seat belts be inspect- ed periodically for wear or damage of any kind.Parts of the system that are damaged shouldbe replaced as soon as possible. Under nocircumstances must any part of the seat beltassemblies be dismantled or repaired.
WARNING:
o The height adjuster must be in the locked position when the vehicle is moving.
o The misadjustment of height of the shoul- der belt could reduce the effectiveness of the seat belt in a crash.
SB090P1-E SEAT BELTS (3-Point Type) To Fasten The Seat Belt
B180A01L-D
The seat belts are fastened by pulling the belt
buckle towards the seat belt stalk and inserting the metal tongue of the buckle into the stalk.The buckle should be firmly pressed into thestalk until locked which will be indicated by anaudible "click". The length of the seat belt webbing will be
automatically adjusted by the seat belt mecha-nism to allow the wearer maximum freedom of

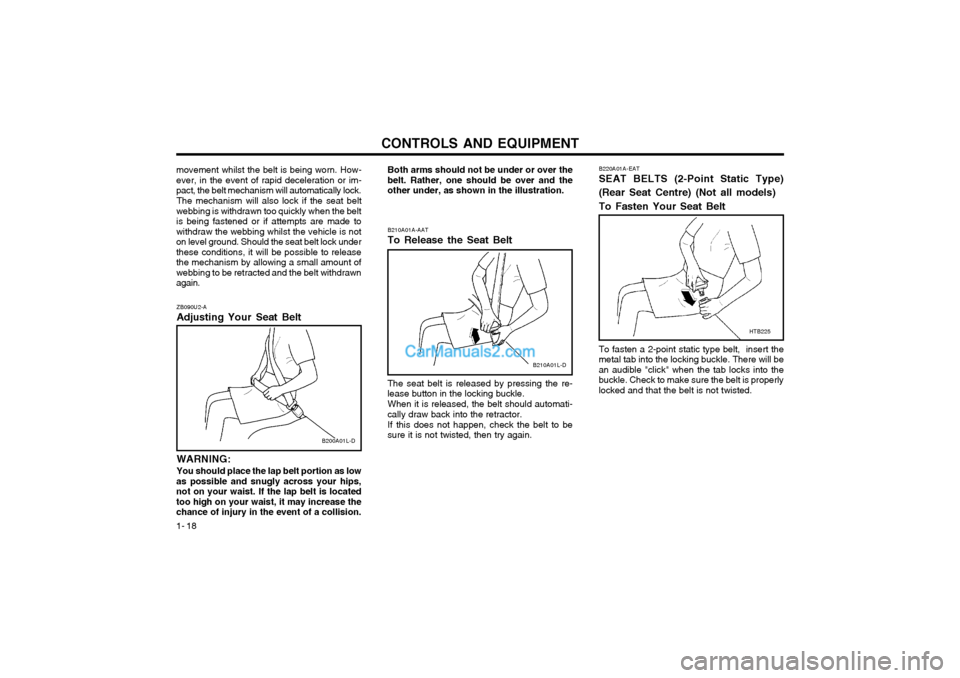

CONTROLS AND EQUIPMENT
1- 18
B220A01A-EAT SEAT BELTS (2-Point Static Type) (Rear Seat Centre) (Not all models) To Fasten Your Seat Belt To fasten a 2-point static type belt, insert the metal tab into the locking buckle. There will bean audible "click" when the tab locks into thebuckle. Check to make sure the belt is properlylocked and that the belt is not twisted. HTB225
B210A01A-AAT To Release the Seat Belt The seat belt is released by pressing the re-
lease button in the locking buckle.
When it is released, the belt should automati-
cally draw back into the retractor.
If this does not happen, check the belt to be
sure it is not twisted, then try again.
B210A01L-D
ZB090U2-A Adjusting Your Seat Belt WARNING: You should place the lap belt portion as low
as possible and snugly across your hips, not on your waist. If the lap belt is locatedtoo high on your waist, it may increase thechance of injury in the event of a collision.
B200A01L-D
movement whilst the belt is being worn. How- ever, in the event of rapid deceleration or im-pact, the belt mechanism will automatically lock.
The mechanism will also lock if the seat belt
webbing is withdrawn too quickly when the beltis being fastened or if attempts are made towithdraw the webbing whilst the vehicle is noton level ground. Should the seat belt lock underthese conditions, it will be possible to releasethe mechanism by allowing a small amount ofwebbing to be retracted and the belt withdrawnagain. Both arms should not be under or over thebelt. Rather, one should be over and theother under, as shown in the illustration.

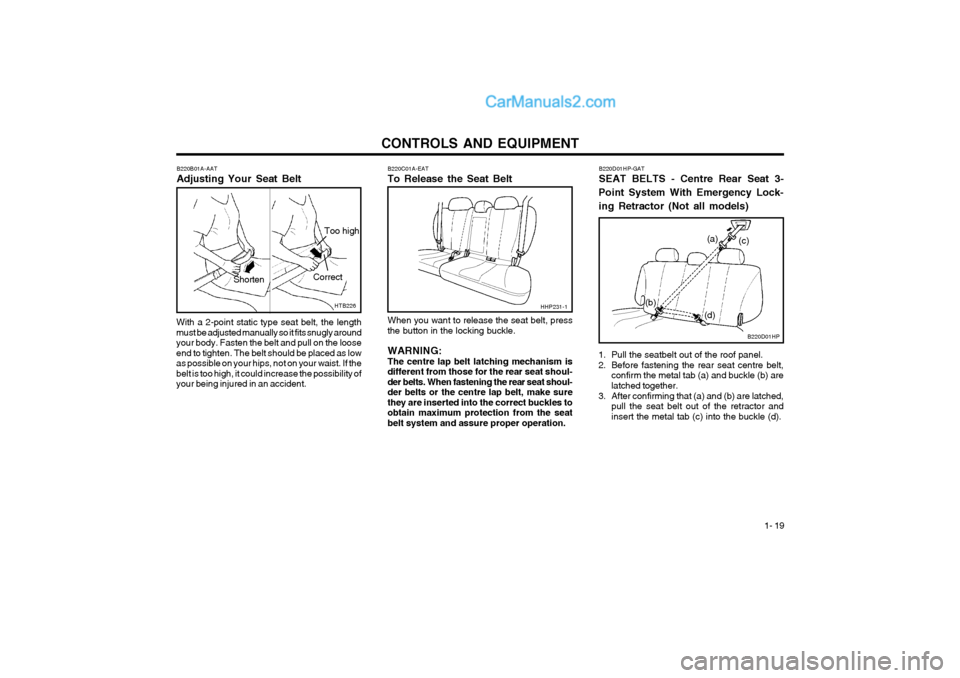

CONTROLS AND EQUIPMENT1- 19
B220C01A-EAT To Release the Seat Belt When you want to release the seat belt, press
the button in the locking buckle.
WARNING: The centre lap belt latching mechanism is
different from those for the rear seat shoul-der belts. When fastening the rear seat shoul-der belts or the centre lap belt, make surethey are inserted into the correct buckles toobtain maximum protection from the seatbelt system and assure proper operation.
HHP231-1
B220B01A-AAT Adjusting Your Seat BeltHTB226
With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly aroundyour body. Fasten the belt and pull on the looseend to tighten. The belt should be placed as lowas possible on your hips, not on your waist. If thebelt is too high, it could increase the possibility ofyour being injured in an accident. Correct
Shorten Too high
B220D01HP-GAT SEAT BELTS - Centre Rear Seat 3-
Point System With Emergency Lock- ing Retractor (Not all models)
1. Pull the seatbelt out of the roof panel.
2. Before fastening the rear seat centre belt, confirm the metal tab (a) and buckle (b) are latched together.
3. After confirming that (a) and (b) are latched, pull the seat belt out of the retractor andinsert the metal tab (c) into the buckle (d).
B220D01HP
(a)
(b) (c)
(d)

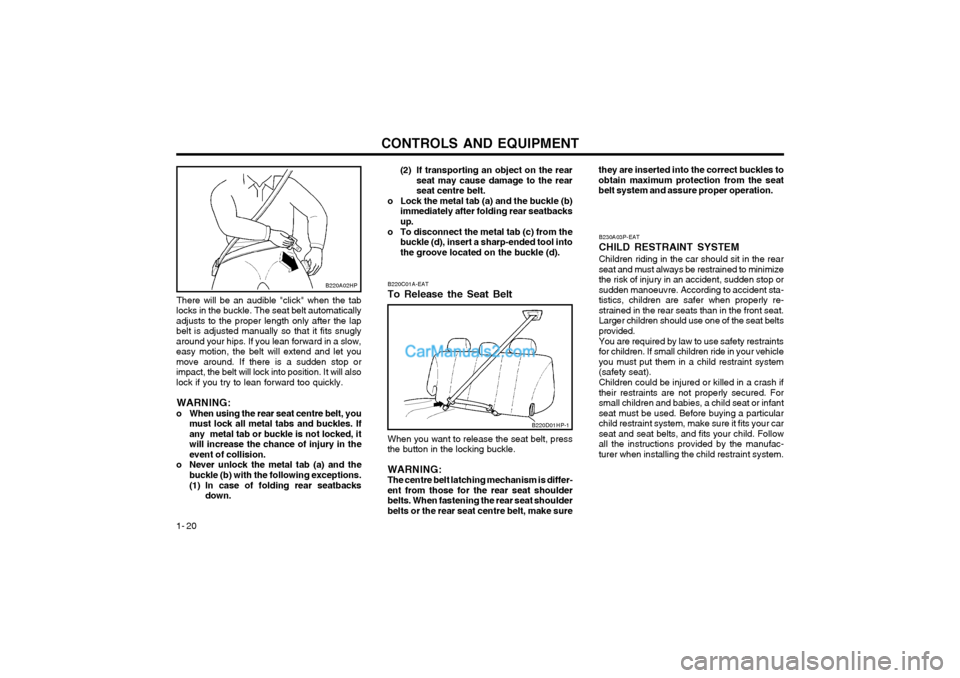

CONTROLS AND EQUIPMENT
1- 20 B230A03P-EAT CHILD RESTRAINT SYSTEMChildren riding in the car should sit in the rear seat and must always be restrained to minimizethe risk of injury in an accident, sudden stop orsudden manoeuvre. According to accident sta-tistics, children are safer when properly re-strained in the rear seats than in the front seat.Larger children should use one of the seat beltsprovided. You are required by law to use safety restraints for children. If small children ride in your vehicleyou must put them in a child restraint system(safety seat). Children could be injured or killed in a crash if their restraints are not properly secured. Forsmall children and babies, a child seat or infantseat must be used. Before buying a particularchild restraint system, make sure it fits your carseat and seat belts, and fits your child. Followall the instructions provided by the manufac-turer when installing the child restraint system.
There will be an audible "click" when the tab
locks in the buckle. The seat belt automaticallyadjusts to the proper length only after the lapbelt is adjusted manually so that it fits snuglyaround your hips. If you lean forward in a slow,easy motion, the belt will extend and let youmove around. If there is a sudden stop orimpact, the belt will lock into position. It will alsolock if you try to lean forward too quickly.
WARNING:
o When using the rear seat centre belt, you must lock all metal tabs and buckles. Ifany metal tab or buckle is not locked, itwill increase the chance of injury in theevent of collision.
o Never unlock the metal tab (a) and the buckle (b) with the following exceptions.
(1) In case of folding rear seatbacks down.
B220A02HP (2) If transporting an object on the rear
seat may cause damage to the rear seat centre belt.
o Lock the metal tab (a) and the buckle (b) immediately after folding rear seatbacksup.
o To disconnect the metal tab (c) from the buckle (d), insert a sharp-ended tool intothe groove located on the buckle (d).
B220C01A-EAT To Release the Seat Belt When you want to release the seat belt, press
the button in the locking buckle. WARNING: The centre belt latching mechanism is differ-ent from those for the rear seat shoulderbelts. When fastening the rear seat shoulderbelts or the rear seat centre belt, make sure
B220D01HP-1 they are inserted into the correct buckles to obtain maximum protection from the seatbelt system and assure proper operation.
