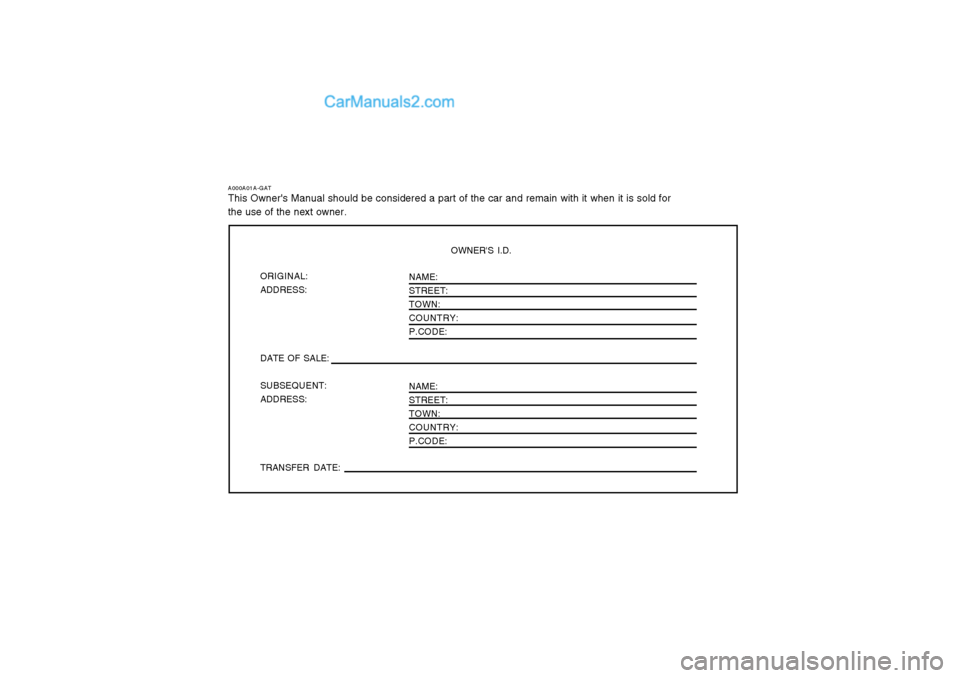

A000A01A-GAT This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner.OWNER'S I.D.
ORIGINAL:ADDRESS: DATE OF SALE: SUBSEQUENT: ADDRESS: TRANSFER DATE: NAME: STREET:TOWN:COUNTRY:P.CODE: NAME: STREET:TOWN:COUNTRY:P.CODE:
Page 2 of 361

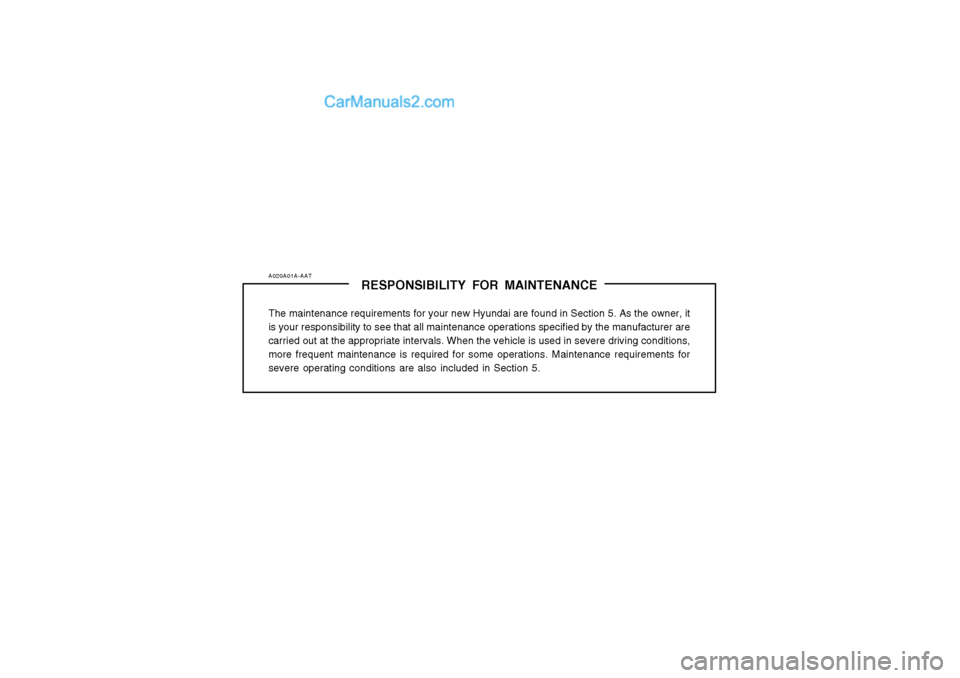

A020A01A-AATRESPONSIBILITY FOR MAINTENANCE
The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer arecarried out at the appropriate intervals. When the vehicle is used in severe driving conditions,more frequent maintenance is required for some operations. Maintenance requirements forsevere operating conditions are also included in Section 5.
Page 3 of 361

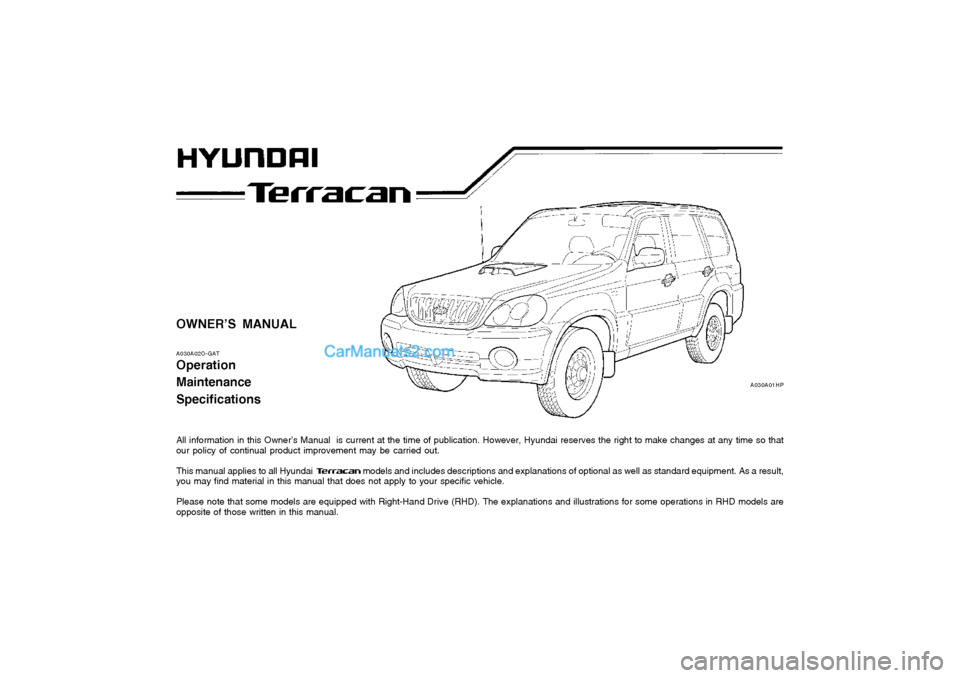

OWNER’S MANUAL A030A02O-GAT Operation MaintenanceSpecifications
All information in this Owner’s Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out.
This manual applies to all Hyundai models and includes descriptions and explanations of optional as well as standard equipment. As a result, you may find material in this manual that does not apply to your specific vehicle.
Please note that some models are equipped with Right-Hand Drive (RHD). The explanations and illustrations for some operations in RHD models are opposite of those written in this manual.
A030A01HP
Page 4 of 361
A050A04A-AATHYUNDAI MOTOR COMPANY
Note: Because future owners will also need the information included in this manual, if you sell this Hyundai,
please leave the manual in the vehicle for their use. Thank you. CAUTION: Severe engine and transmission damage may result from the use of poor quality fuels and lubricants that do not meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 9-3 in the Vehicle Specifications section of the Owner'sManual. Copyright 2003 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor Company.
A040A01A-GAT
FOREWORD
Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who drive Hyundai. The advanced engineering and high-quality construction of each Hyundai we build is something of which we’re very proud. Your Owner’s Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car. The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai dealer. Hyundai dealers are prepared to provide high-quality service, maintenance andany other assistance that may be required.
Page 5 of 361

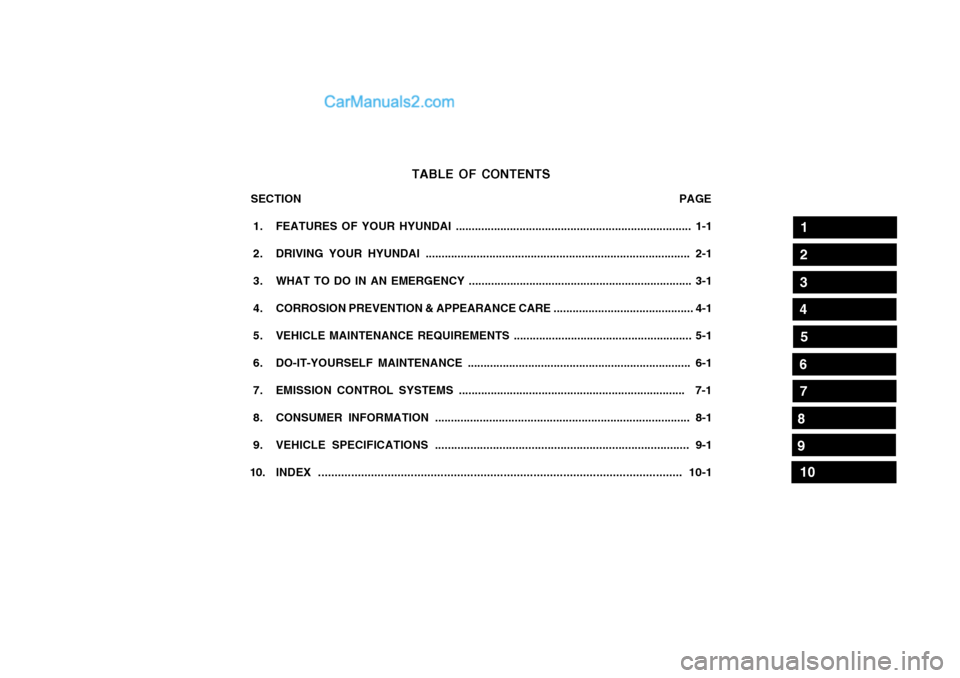

TABLE OF CONTENTS
SECTION PAGE
1. FEATURES OF YOUR HYUNDAI .......................................................................... 1-1
2. DRIVING YOUR HYUNDAI ................................................................................... 2-1
3. WHAT TO DO IN AN EMERGENCY ...................................................................... 3-1
4. CORROSION PREVENTION & APPEARANCE CARE ............................................ 4-1
5. VEHICLE MAINTENANCE REQUIREMENTS ........................................................ 5-1
6. DO-IT-YOURSELF MAINTENANCE ...................................................................... 6-1
7. EMISSION CONTROL SYSTEMS ....................................................................... 7-1
8. CONSUMER INFORMATION ................................................................................ 8-1
9. VEHICLE SPECIFICATIONS ............................................................................... 9-1
10. INDEX .............................................................................................................. 10-1
1
2
3
4
5
6
7
10
8 9
Page 6 of 361

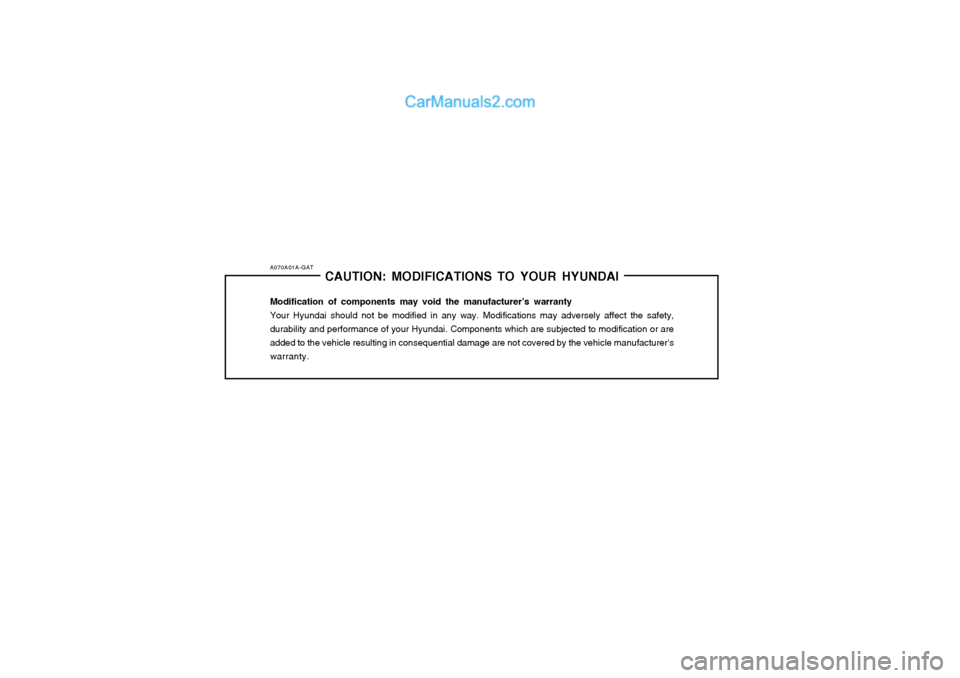

A070A01A-GATCAUTION: MODIFICATIONS TO YOUR HYUNDAI
Modification of components may void the manufacturer’s warranty Your Hyundai should not be modified in any way. Modifications may adversely affect the safety,durability and performance of your Hyundai. Components which are subjected to modification or areadded to the vehicle resulting in consequential damage are not covered by the vehicle manufacturer'swarranty.
Page 7 of 361

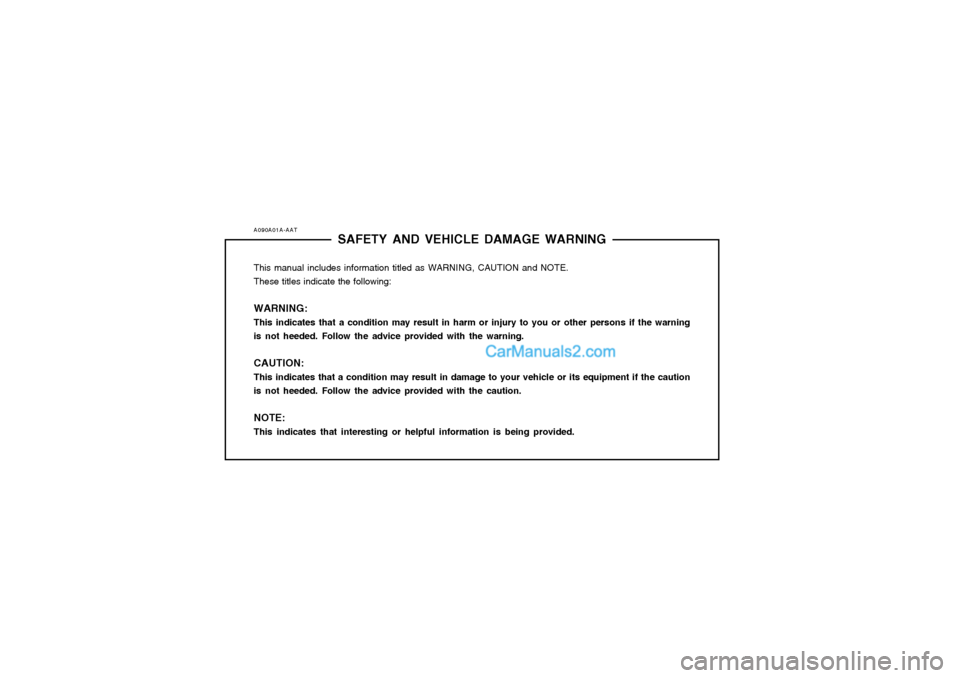

A090A01A-AATSAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following: WARNING: This indicates that a condition may result in harm or injury to you or other persons if the warningis not heeded. Follow the advice provided with the warning. CAUTION: This indicates that a condition may result in damage to your vehicle or its equipment if the cautionis not heeded. Follow the advice provided with the caution. NOTE: This indicates that interesting or helpful information is being provided.
Page 8 of 361
A100A01LA100A02LA100A04L
A100A03L

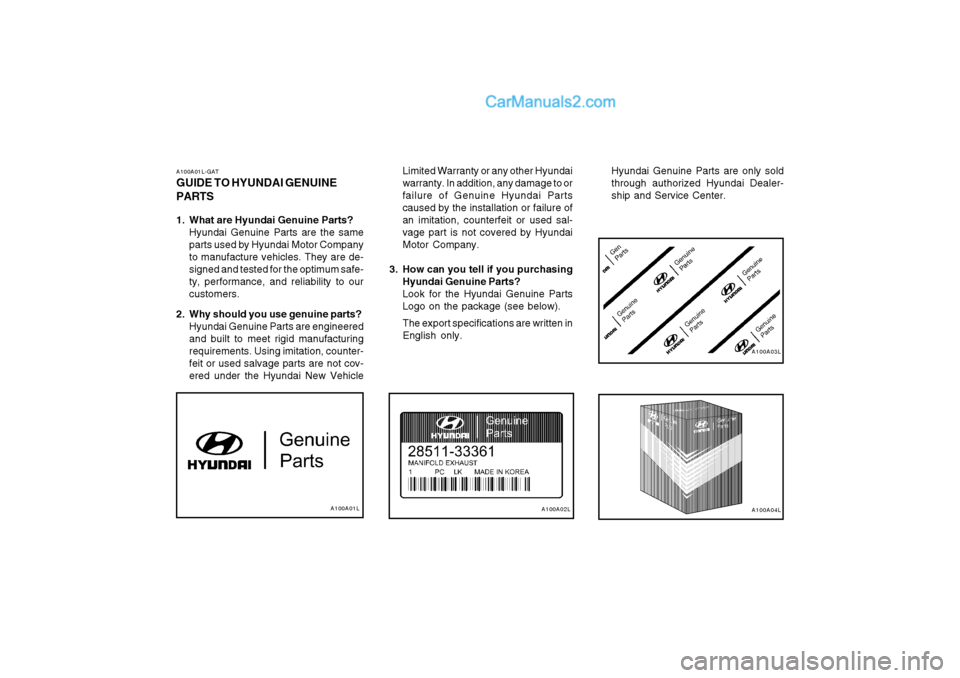

A100A01L-GAT GUIDE TO HYUNDAI GENUINE PARTS
1. What are Hyundai Genuine Parts?
Hyundai Genuine Parts are the same parts used by Hyundai Motor Companyto manufacture vehicles. They are de-signed and tested for the optimum safe-ty, performance, and reliability to ourcustomers.
2. Why should you use genuine parts? Hyundai Genuine Parts are engineeredand built to meet rigid manufacturingrequirements. Using imitation, counter-feit or used salvage parts are not cov-ered under the Hyundai New Vehicle Limited Warranty or any other Hyundaiwarranty. In addition, any damage to orfailure of Genuine Hyundai Partscaused by the installation or failure ofan imitation, counterfeit or used sal-vage part is not covered by HyundaiMotor Company.
3. How can you tell if you purchasing Hyundai Genuine Parts?Look for the Hyundai Genuine PartsLogo on the package (see below). The export specifications are written in English only. Hyundai Genuine Parts are only soldthrough authorized Hyundai Dealer-ship and Service Center.
Page 9 of 361
FEATURES OF YOUR HYUNDAI 1- 1
1. FEATURES OF
YOUR HYUNDAI

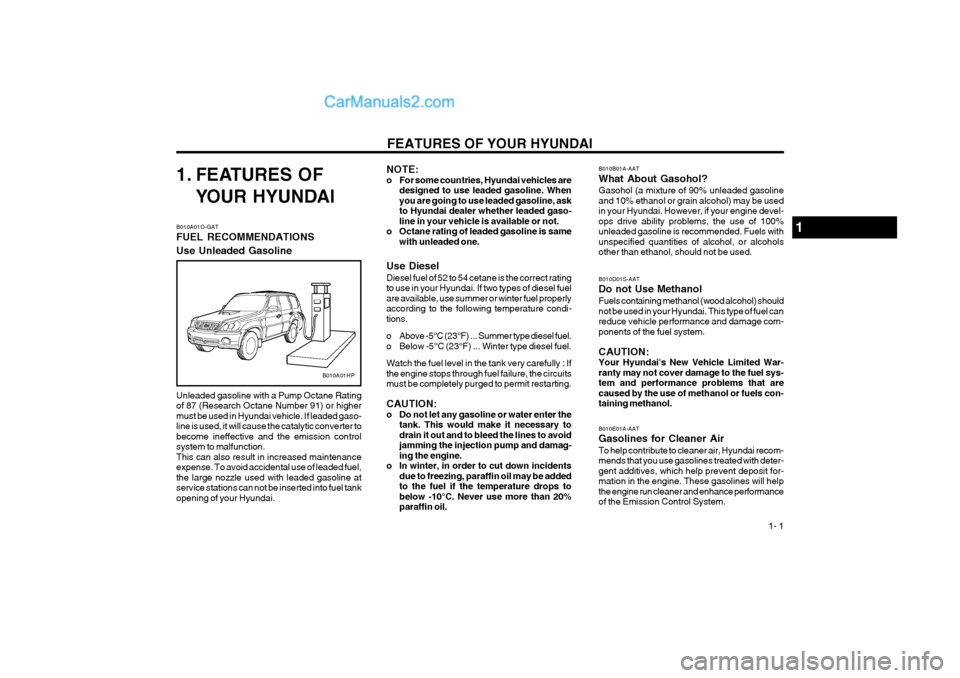

B010A01O-GAT FUEL RECOMMENDATIONS Use Unleaded Gasoline Unleaded gasoline with a Pump Octane Rating of 87 (Research Octane Number 91) or highermust be used in Hyundai vehicle. If leaded gaso-line is used, it will cause the catalytic converter tobecome ineffective and the emission controlsystem to malfunction.This can also result in increased maintenanceexpense. To avoid accidental use of leaded fuel,the large nozzle used with leaded gasoline atservice stations can not be inserted into fuel tankopening of your Hyundai. NOTE:
o For some countries, Hyundai vehicles are
designed to use leaded gasoline. Whenyou are going to use leaded gasoline, askto Hyundai dealer whether leaded gaso-line in your vehicle is available or not.
o Octane rating of leaded gasoline is same with unleaded one. B010B01A-AAT What About Gasohol?Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be usedin your Hyundai. However, if your engine devel-ops drive ability problems, the use of 100%unleaded gasoline is recommended. Fuels withunspecified quantities of alcohol, or alcoholsother than ethanol, should not be used. B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood alcohol) should
not be used in your Hyundai. This type of fuel canreduce vehicle performance and damage com-ponents of the fuel system. CAUTION: Your Hyundai's New Vehicle Limited War-ranty may not cover damage to the fuel sys-tem and performance problems that arecaused by the use of methanol or fuels con-taining methanol.
B010A01HP
B010E01A-AAT Gasolines for Cleaner AirTo help contribute to cleaner air, Hyundai recom- mends that you use gasolines treated with deter-gent additives, which help prevent deposit for-mation in the engine. These gasolines will helpthe engine run cleaner and enhance performanceof the Emission Control System.
Use Diesel Diesel fuel of 52 to 54 cetane is the correct rating to use in your Hyundai. If two types of diesel fuelare available, use summer or winter fuel properly
according to the following temperature condi-tions.
o Above -5°C (23°F) ... Summer type diesel fuel.
o Below -5°C (23°F) ... Winter type diesel fuel. Watch the fuel level in the tank very carefully : If the engine stops through fuel failure, the circuitsmust be completely purged to permit restarting. CAUTION:
o Do not let any gasoline or water enter the
tank. This would make it necessary todrain it out and to bleed the lines to avoidjamming the injection pump and damag-ing the engine.
o In winter, in order to cut down incidents due to freezing, paraffin oil may be addedto the fuel if the temperature drops tobelow -10°C. Never use more than 20%paraffin oil.
1
Page 10 of 361
FEATURES OF YOUR HYUNDAI

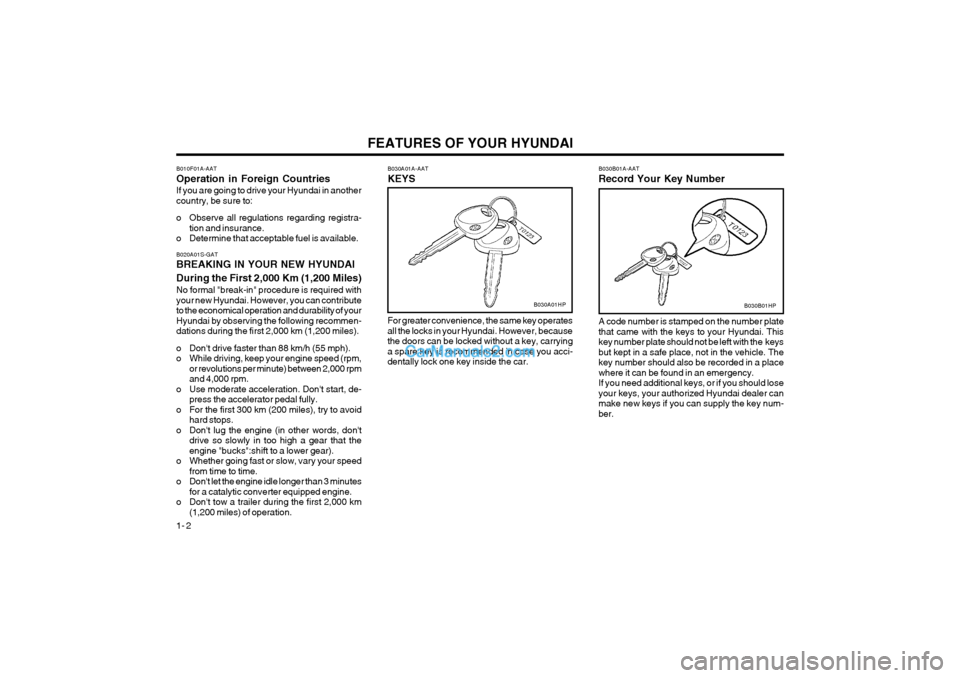

1- 2 B030A01A-AAT KEYS
B030B01HP
B030B01A-AAT Record Your Key Number
B030A01HP
A code number is stamped on the number plate that came with the keys to your Hyundai. Thiskey number plate should not be left with the keysbut kept in a safe place, not in the vehicle. Thekey number should also be recorded in a placewhere it can be found in an emergency.If you need additional keys, or if you should loseyour keys, your authorized Hyundai dealer canmake new keys if you can supply the key num-ber.
For greater convenience, the same key operatesall the locks in your Hyundai. However, becausethe doors can be locked without a key, carryinga spare key is recommended in case you acci-dentally lock one key inside the car.
B010F01A-AAT Operation in Foreign CountriesIf you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding registra-
tion and insurance.
o Determine that acceptable fuel is available. B020A01S-GAT BREAKING IN YOUR NEW HYUNDAI During the First 2,000 Km (1,200 Miles) No formal "break-in" procedure is required with your new Hyundai. However, you can contributeto the economical operation and durability of yourHyundai by observing the following recommen-dations during the first 2,000 km (1,200 miles).
o Don't drive faster than 88 km/h (55 mph).
o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpmand 4,000 rpm.
o Use moderate acceleration. Don't start, de- press the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too high a gear that theengine "bucks":shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.
o Don't let the engine idle longer than 3 minutes for a catalytic converter equipped engine.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.
