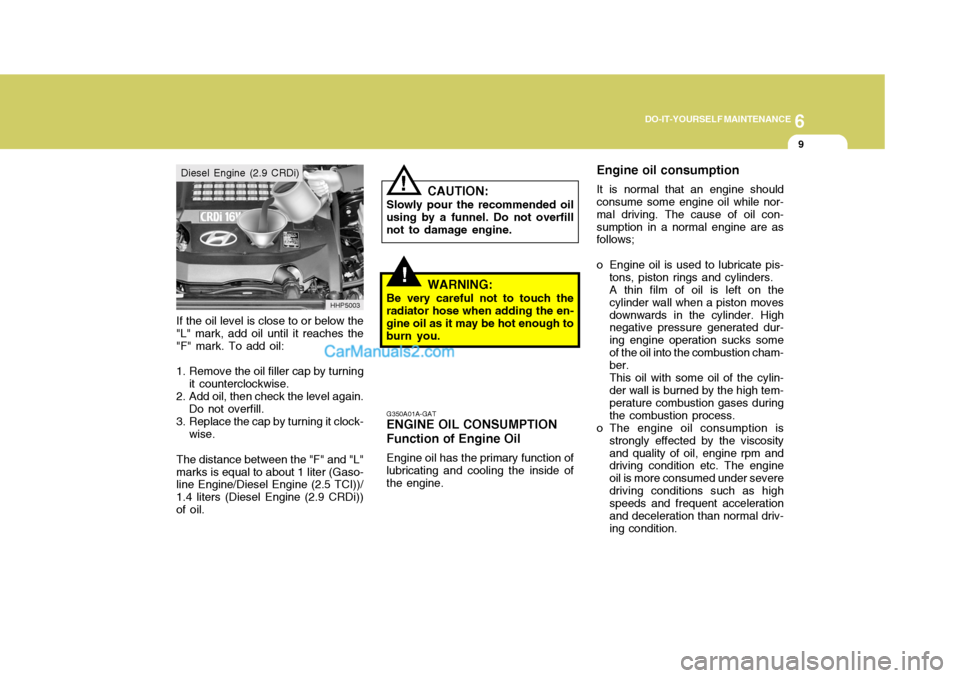

Page 231 of 539

Hyundai Terracan 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
9
If the oil level is close to or below the "L" mark, add oil until it reaches the "F" mark. To add oil:
1. Remove the oil filler cap by turning it counterclockwise.
2. Ad

Page 232 of 539

Hyundai Terracan 2005  Owners Manual 6 DO-IT-YOURSELF MAINTENANCE
10CHANGING THE ENGINE OIL AND FILTER
!
The engine oil and filter should be changed at those intervals specified in the maintenance schedule in Sec- tion 5. If the car is b

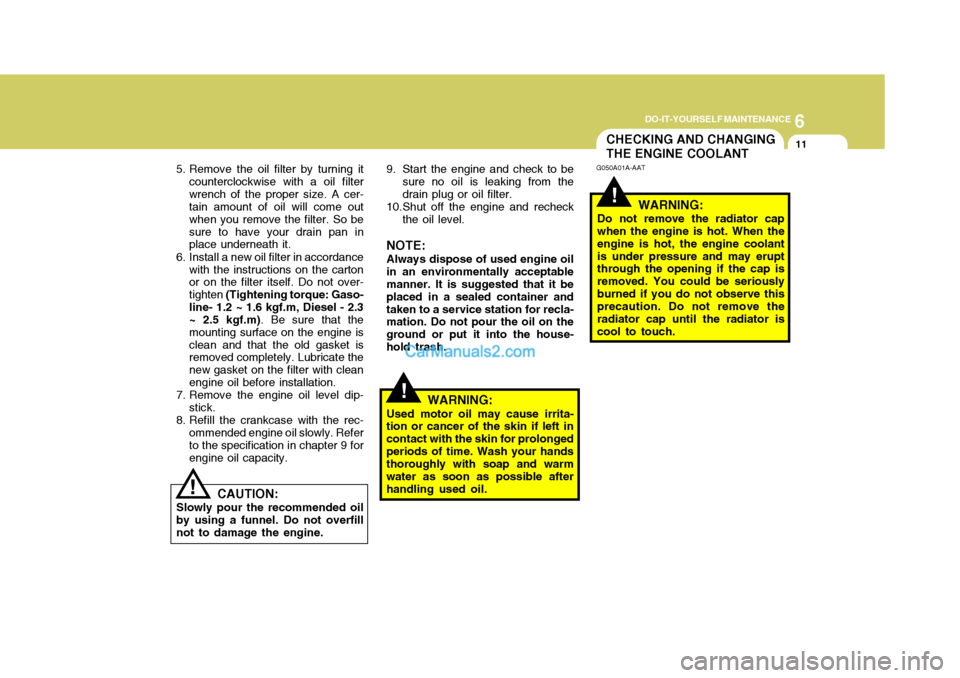

Page 233 of 539

Hyundai Terracan 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
11CHECKING AND CHANGING THE ENGINE COOLANT
!
G050A01A-AAT
WARNING:
Do not remove the radiator cap when the engine is hot. When the engine is hot, the engine coolantis unde

Page 234 of 539

Hyundai Terracan 2005  Owners Manual 6 DO-IT-YOURSELF MAINTENANCE
12
!
Ambient
temperature
 °C (  °F) -15 (5)
-25 (-13) -35 (-31) -45 (-49) Engine Coolant concentration
Water
65%60% 50% 40%
Antifreeze solution 35% 40% 50% 60%
G050C01A-

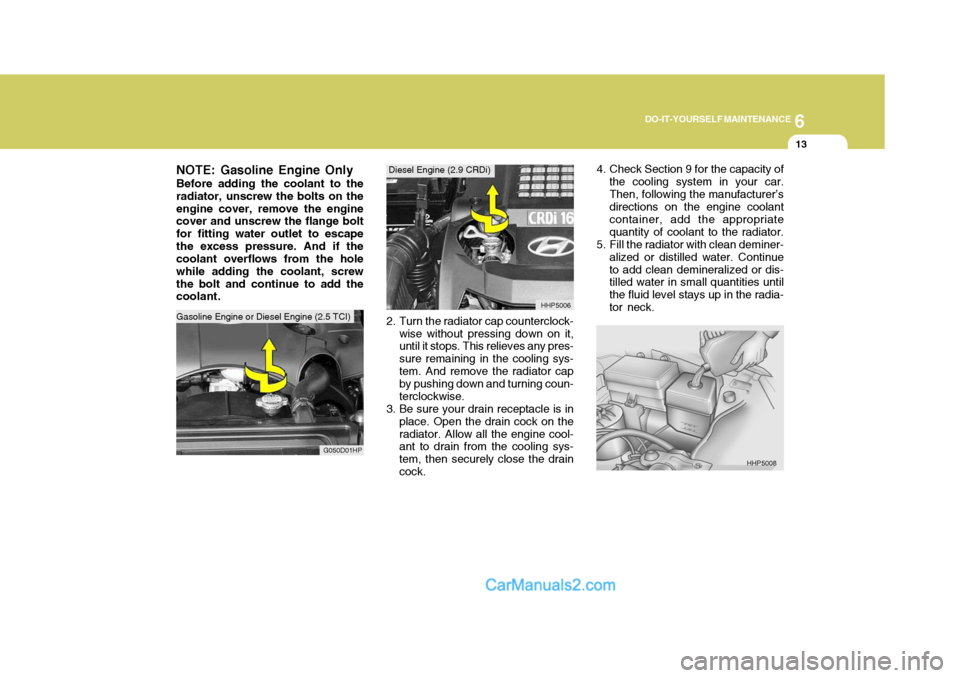

Page 235 of 539

Hyundai Terracan 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
13
NOTE: Gasoline Engine Only Before adding the coolant to the radiator, unscrew the bolts on theengine cover, remove the engine cover and unscrew the flange bolt for fitt

Page 236 of 539

Hyundai Terracan 2005  Owners Manual 6 DO-IT-YOURSELF MAINTENANCE
14SPARK PLUGS
!
G060A01HP-GAT
(Gasoline Engine Only)
Your engine was originally equipped
with platinum-tipped spark plugs.
Platinum-tipped spark plugs will last
longer tha

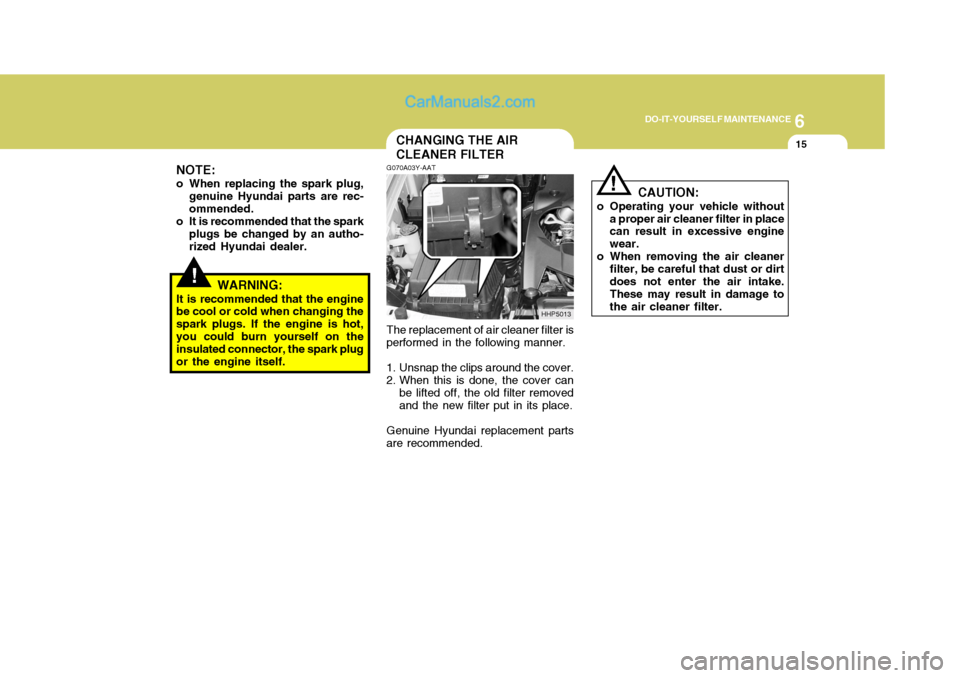

Page 237 of 539

Hyundai Terracan 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
15CHANGING THE AIR CLEANER FILTER
!
NOTE:
o When replacing the spark plug, genuine Hyundai parts are rec- ommended.
o It is recommended that the spark
plugs be changed by

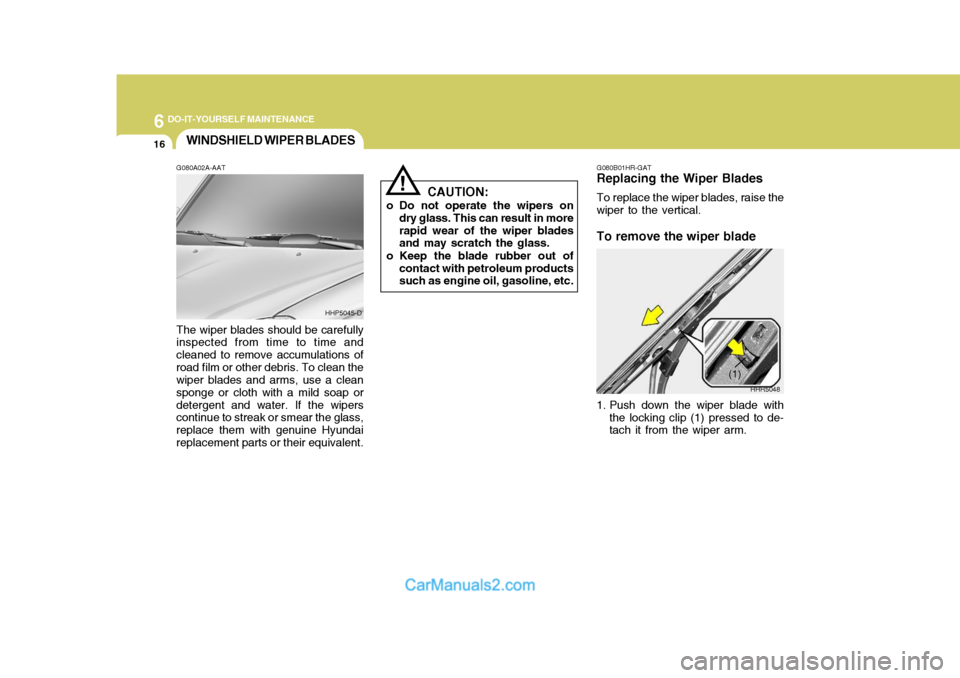

Page 238 of 539

Hyundai Terracan 2005  Owners Manual 6 DO-IT-YOURSELF MAINTENANCE
16WINDSHIELD WIPER BLADES
!
G080A02A-AAT The wiper blades should be carefully inspected from time to time and cleaned to remove accumulations ofroad film or other debris.

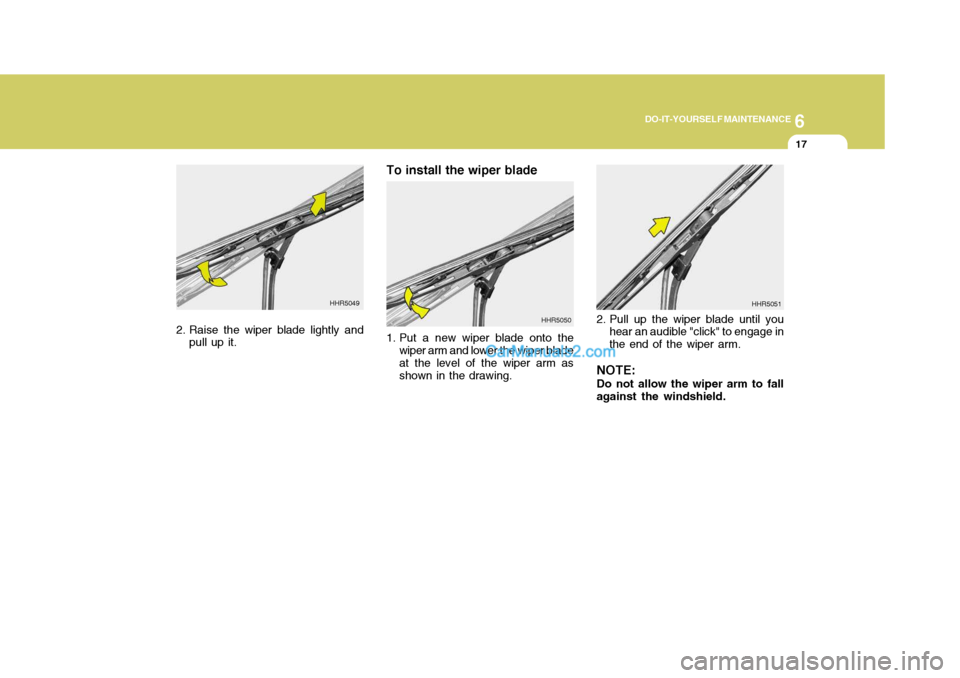

Page 239 of 539

Hyundai Terracan 2005  Owners Manual 6
DO-IT-YOURSELF MAINTENANCE
17
2. Raise the wiper blade lightly and
pull up it. To install the wiper blade
1. Put a new wiper blade onto the
wiper arm and lower the wiper blade at the level of the w

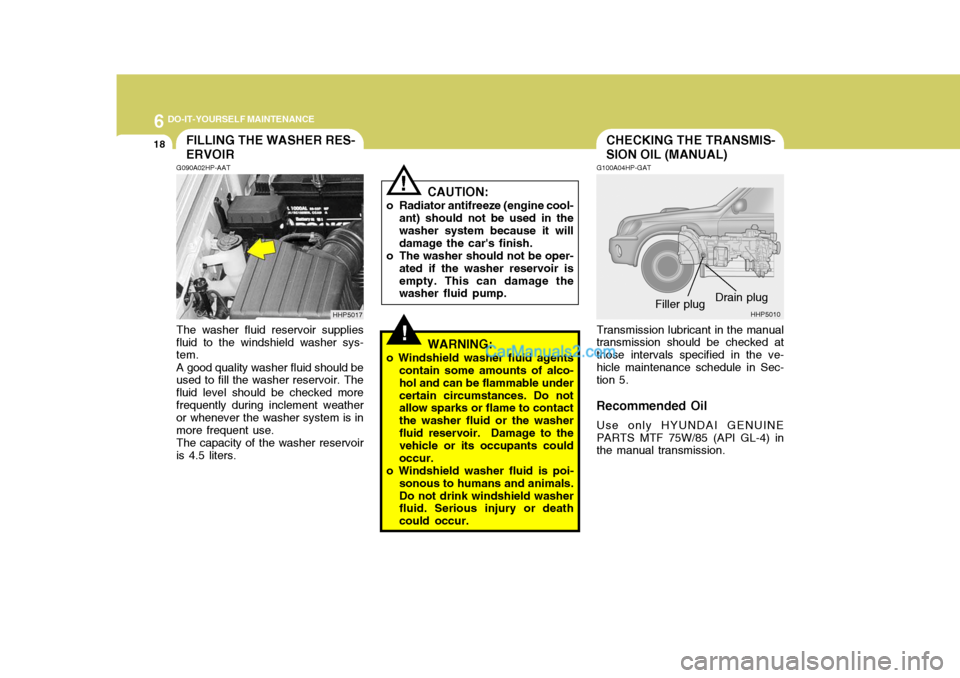

Page 240 of 539

Hyundai Terracan 2005  Owners Manual 6 DO-IT-YOURSELF MAINTENANCE
18
!
CHECKING THE TRANSMIS- SION OIL (MANUAL)FILLING THE WASHER RES- ERVOIR
CAUTION:
o Radiator antifreeze (engine cool- ant) should not be used in the washer system becau
