Hyundai Terracan 2005 Workshop Manual

1
FEATURES OF YOUR HYUNDAI
37

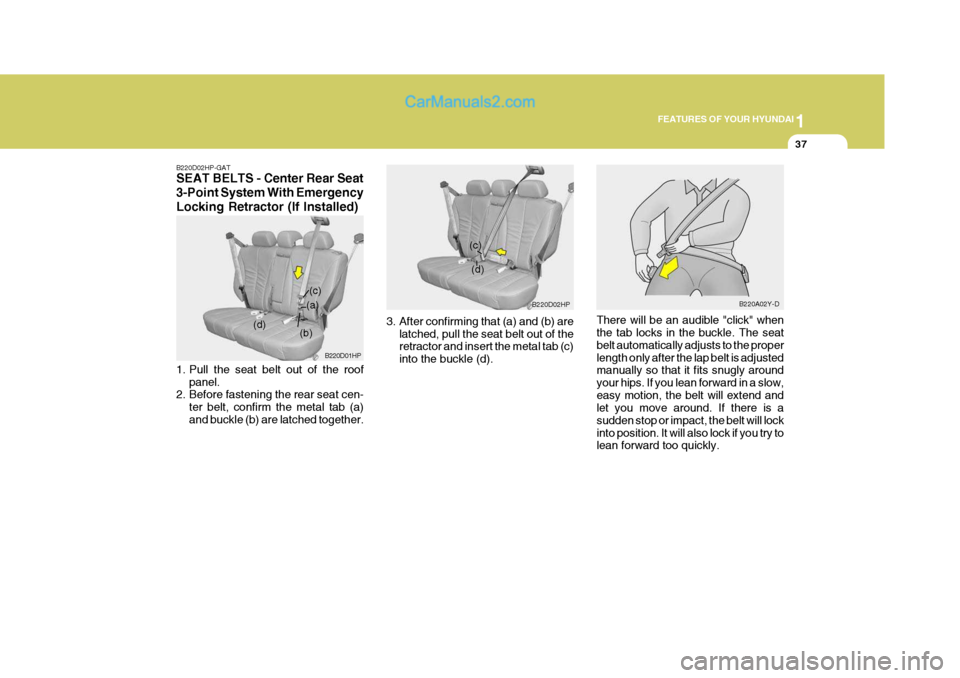

B220D02HP-GAT SEAT BELTS - Center Rear Seat 3-Point System With EmergencyLocking Retractor (If Installed)
1. Pull the seat belt out of the roof
panel.
2. Before fastening the rear seat cen-
ter belt, confirm the metal tab (a) and buckle (b) are latched together. 3. After confirming that (a) and (b) are
latched, pull the seat belt out of the retractor and insert the metal tab (c) into the buckle (d).
B220D01HP B220D02HP
There will be an audible "click" when the tab locks in the buckle. The seat belt automatically adjusts to the properlength only after the lap belt is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow,easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lockinto position. It will also lock if you try to lean forward too quickly. B220A02Y-D
(a)
(b) (c)
(d) (c)
(d)

1FEATURES OF YOUR HYUNDAI
38
!WARNING:
o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in-crease the chance of injury in the event of collision.
o Never unlock the metal tab (a)
and the buckle (b) with the fol-lowing exceptions.
(1) In case of folding rear seatbacks down.
(2) If transporting an object on
the rear seat may cause dam- age to the rear seat center belt.
o Lock the metal tab (a) and the buckle (b) immediately after fold-ing rear seatbacks up. o To disconnect the metal tab (a)
from the buckle (b), insert a sharp-ended tool into the groove lo- cated on the buckle (b). B220D03HP
o In case of unlocking metal tab (a)and the buckle (b), place metal (a) in the seat belt clip not to make noise while driving. B220D04HP
(a)
(b)

1
FEATURES OF YOUR HYUNDAI
39CHILD RESTRAINT SYSTEM
!

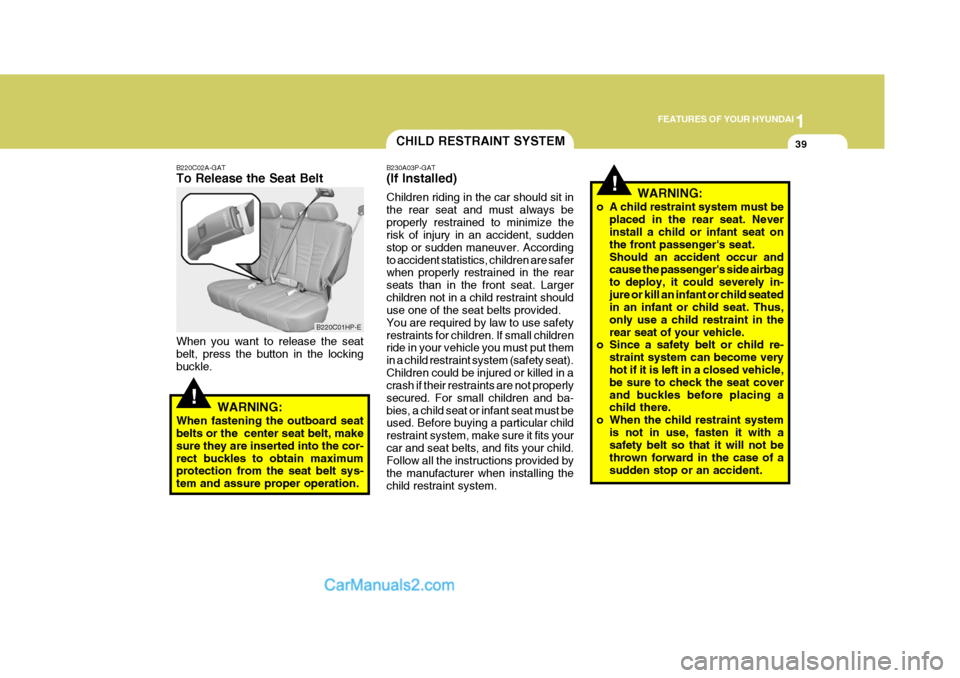

B220C02A-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle.
WARNING:
When fastening the outboard seat belts or the center seat belt, make sure they are inserted into the cor-rect buckles to obtain maximum protection from the seat belt sys- tem and assure proper operation. B230A03P-GAT (If Installed) Children riding in the car should sit in the rear seat and must always beproperly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. Accordingto accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Largerchildren not in a child restraint should use one of the seat belts provided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Children could be injured or killed in a crash if their restraints are not properly secured. For small children and ba-bies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits yourcar and seat belts, and fits your child. Follow all the instructions provided by the manufacturer when installing thechild restraint system.
B220C01HP-E
!WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger's side airbag to deploy, it could severely in-jure or kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in therear seat of your vehicle.
o Since a safety belt or child re-
straint system can become very hot if it is left in a closed vehicle, be sure to check the seat coverand buckles before placing a child there.
o When the child restraint system is not in use, fasten it with asafety belt so that it will not be thrown forward in the case of asudden stop or an accident.

1FEATURES OF YOUR HYUNDAI
40

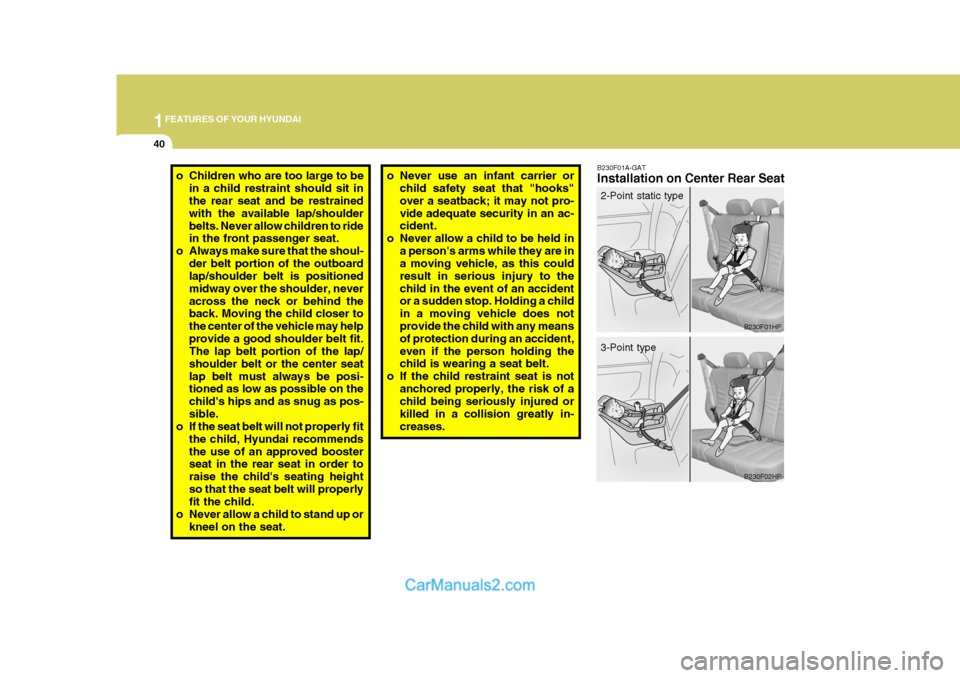

B230F01A-GAT Installation on Center Rear Seato Never use an infant carrier or
child safety seat that "hooks" over a seatback; it may not pro-vide adequate security in an ac- cident.
o Never allow a child to be held in
a person's arms while they are ina moving vehicle, as this could result in serious injury to thechild in the event of an accident or a sudden stop. Holding a child in a moving vehicle does notprovide the child with any means of protection during an accident, even if the person holding the child is wearing a seat belt.
o If the child restraint seat is not
anchored properly, the risk of achild being seriously injured or killed in a collision greatly in-creases. B230F01HP
B230F02HP
2-Point static type 3-Point typeo Children who are too large to be
in a child restraint should sit in the rear seat and be restrained with the available lap/shoulderbelts. Never allow children to ride in the front passenger seat.
o Always make sure that the shoul- der belt portion of the outboardlap/shoulder belt is positioned midway over the shoulder, neveracross the neck or behind the back. Moving the child closer to the center of the vehicle may helpprovide a good shoulder belt fit. The lap belt portion of the lap/ shoulder belt or the center seatlap belt must always be posi- tioned as low as possible on the child's hips and as snug as pos-sible.
o If the seat belt will not properly fit
the child, Hyundai recommendsthe use of an approved booster seat in the rear seat in order to raise the child's seating heightso that the seat belt will properly fit the child.
o Never allow a child to stand up or kneel on the seat.

1
FEATURES OF YOUR HYUNDAI
41
!

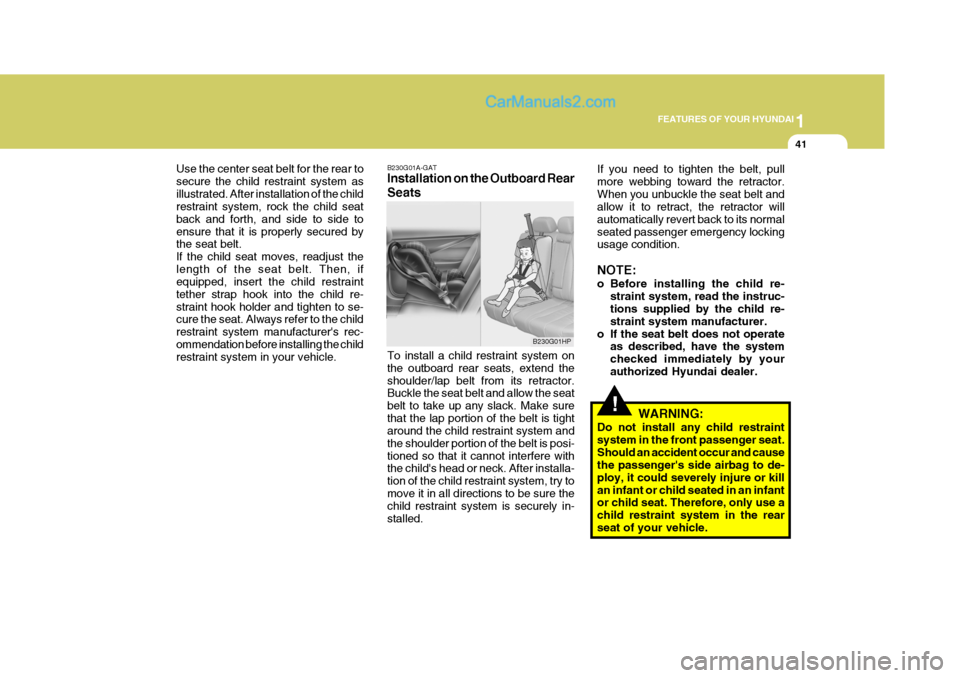

Use the center seat belt for the rear to secure the child restraint system asillustrated. After installation of the child restraint system, rock the child seat back and forth, and side to side toensure that it is properly secured by the seat belt. If the child seat moves, readjust thelength of the seat belt. Then, if equipped, insert the child restraint tether strap hook into the child re-straint hook holder and tighten to se- cure the seat. Always refer to the child restraint system manufacturer's rec-ommendation before installing the child restraint system in your vehicle. B230G01A-GAT Installation on the Outboard Rear Seats To install a child restraint system on the outboard rear seats, extend theshoulder/lap belt from its retractor. Buckle the seat belt and allow the seat belt to take up any slack. Make surethat the lap portion of the belt is tight around the child restraint system and the shoulder portion of the belt is posi-tioned so that it cannot interfere with the child's head or neck. After installa- tion of the child restraint system, try tomove it in all directions to be sure the child restraint system is securely in- stalled.If you need to tighten the belt, pullmore webbing toward the retractor.When you unbuckle the seat belt and allow it to retract, the retractor will automatically revert back to its normalseated passenger emergency locking usage condition. NOTE:
o Before installing the child re-
straint system, read the instruc- tions supplied by the child re- straint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by yourauthorized Hyundai dealer.
WARNING:
Do not install any child restraintsystem in the front passenger seat.Should an accident occur and cause the passenger's side airbag to de- ploy, it could severely injure or killan infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rearseat of your vehicle.
B230G01HP

1FEATURES OF YOUR HYUNDAI
42

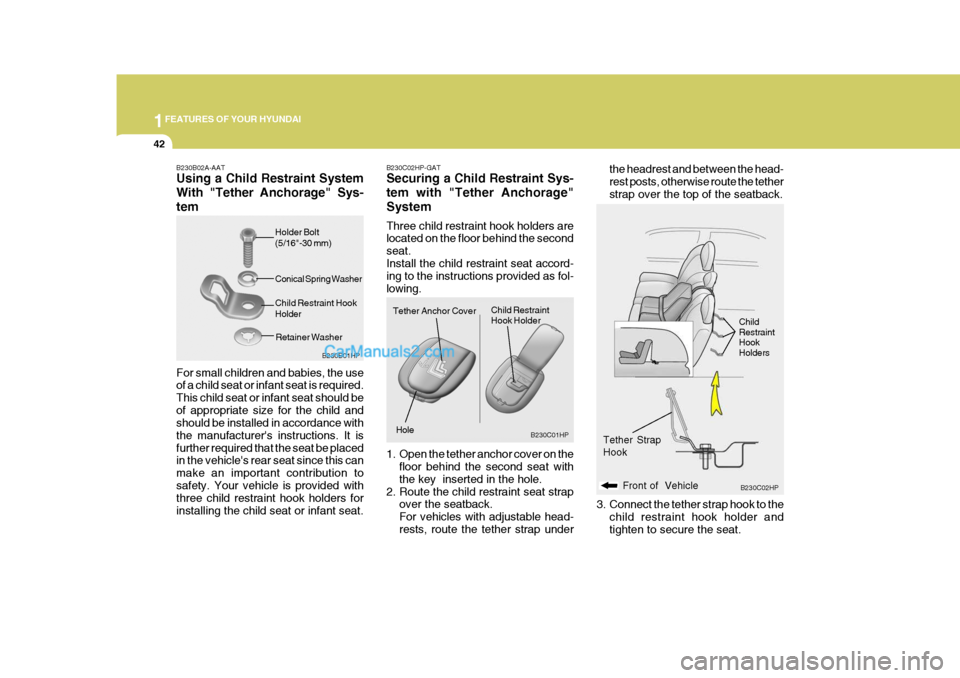

B230C02HP-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System Three child restraint hook holders are located on the floor behind the second seat.Install the child restraint seat accord- ing to the instructions provided as fol- lowing.
1. Open the tether anchor cover on the
floor behind the second seat with the key inserted in the hole.
2. Route the child restraint seat strap over the seatback.For vehicles with adjustable head-rests, route the tether strap under B230C01HP
B230C02HP
B230B02A-AAT Using a Child Restraint System With "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should beof appropriate size for the child and should be installed in accordance with the manufacturer's instructions. It isfurther required that the seat be placed in the vehicle's rear seat since this can make an important contribution tosafety. Your vehicle is provided with three child restraint hook holders for installing the child seat or infant seat.
B230B01HP the headrest and between the head-rest posts, otherwise route the tetherstrap over the top of the seatback.
Holder Bolt (5/16"-30 mm) Conical Spring Washer Child Restraint Hook Holder
Tether Anchor Cover
Child Restraint Hook Holder
3. Connect the tether strap hook to the
child restraint hook holder and tighten to secure the seat. Front of Vehicle
Child RestraintHookHolders
Tether Strap Hook
Retainer Washer
Hole

1
FEATURES OF YOUR HYUNDAI
43

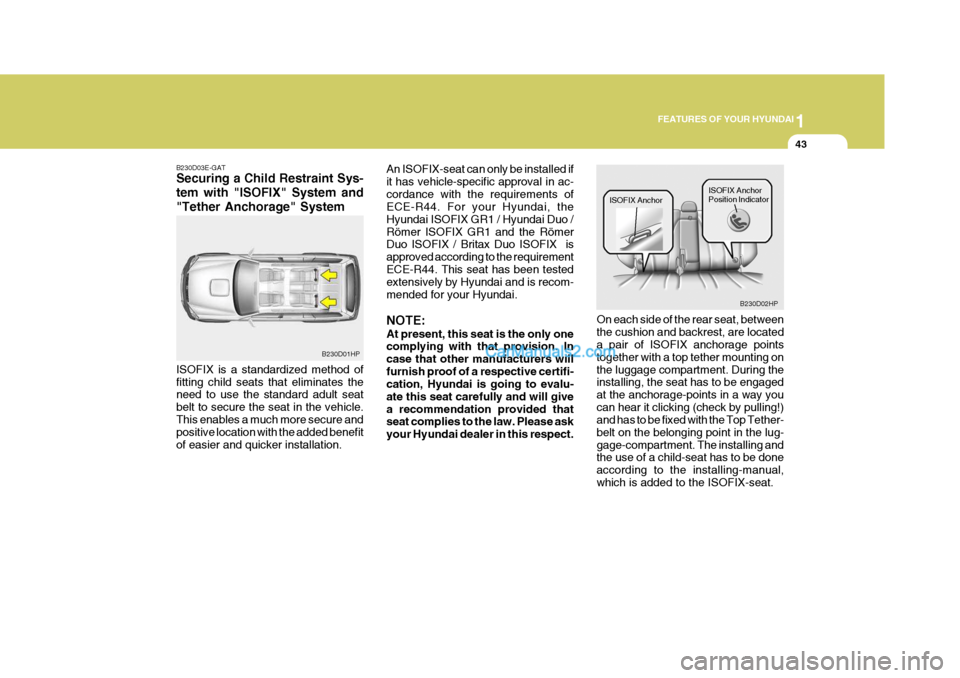

B230D03E-GAT Securing a Child Restraint Sys- tem with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardized method of fitting child seats that eliminates the need to use the standard adult seat belt to secure the seat in the vehicle.This enables a much more secure and positive location with the added benefit of easier and quicker installation. An ISOFIX-seat can only be installed ifit has vehicle-specific approval in ac-cordance with the requirements of ECE-R44. For your Hyundai, the Hyundai ISOFIX GR1 / Hyundai Duo /Römer ISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX is approved according to the requirementECE-R44. This seat has been tested extensively by Hyundai and is recom- mended for your Hyundai. NOTE: At present, this seat is the only one complying with that provision. In case that other manufacturers willfurnish proof of a respective certifi- cation, Hyundai is going to evalu- ate this seat carefully and will givea recommendation provided that seat complies to the law. Please ask your Hyundai dealer in this respect.
B230D01HP
On each side of the rear seat, betweenthe cushion and backrest, are located a pair of ISOFIX anchorage points together with a top tether mounting onthe luggage compartment. During the installing, the seat has to be engaged at the anchorage-points in a way youcan hear it clicking (check by pulling!) and has to be fixed with the Top Tether- belt on the belonging point in the lug-gage-compartment. The installing and the use of a child-seat has to be done according to the installing-manual,which is added to the ISOFIX-seat.ISOFIX Anchor
B230D02HP
ISOFIX Anchor Position Indicator

1FEATURES OF YOUR HYUNDAI
44
!

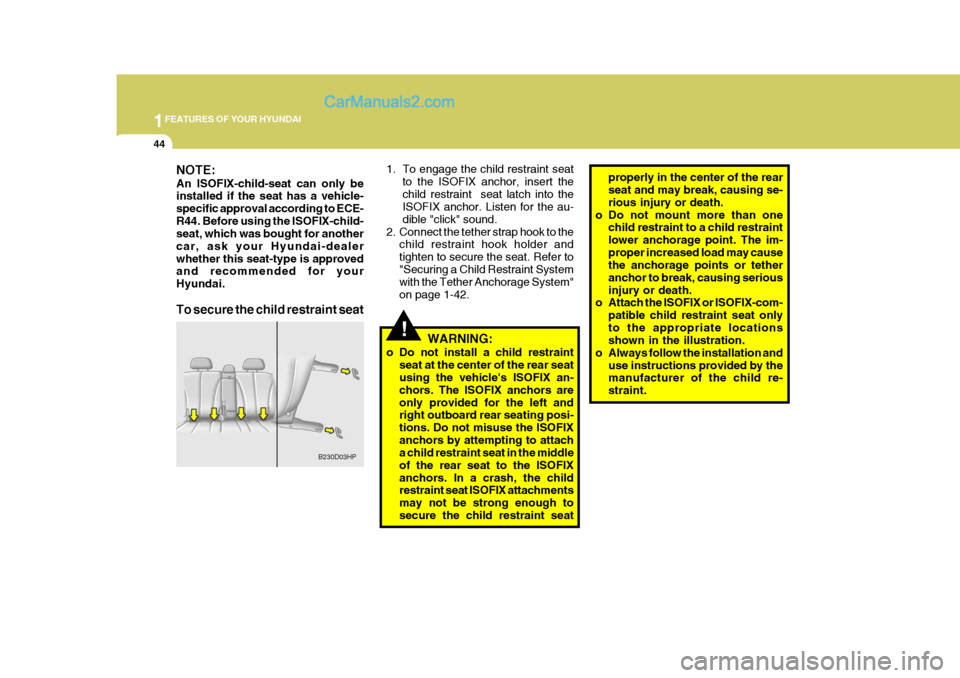

1. To engage the child restraint seat
to the ISOFIX anchor, insert the child restraint seat latch into the ISOFIX anchor. Listen for the au- dible "click" sound.
2. Connect the tether strap hook to the child restraint hook holder andtighten to secure the seat. Refer to"Securing a Child Restraint System with the Tether Anchorage System" on page 1-42.
WARNING:
o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX an- chors. The ISOFIX anchors areonly provided for the left and right outboard rear seating posi- tions. Do not misuse the ISOFIXanchors by attempting to attach a child restraint seat in the middle of the rear seat to the ISOFIXanchors. In a crash, the child restraint seat ISOFIX attachments may not be strong enough tosecure the child restraint seat properly in the center of the rear seat and may break, causing se- rious injury or death.
o Do not mount more than one child restraint to a child restraintlower anchorage point. The im-proper increased load may cause the anchorage points or tether anchor to break, causing seriousinjury or death.
o Attach the ISOFIX or ISOFIX-com-
patible child restraint seat onlyto the appropriate locations shown in the illustration.
o Always follow the installation and use instructions provided by themanufacturer of the child re- straint.
NOTE: An ISOFIX-child-seat can only be installed if the seat has a vehicle- specific approval according to ECE-R44. Before using the ISOFIX-child- seat, which was bought for another car, ask your Hyundai-dealerwhether this seat-type is approved and recommended for your Hyundai. To secure the child restraint seat
B230D03HP

1
FEATURES OF YOUR HYUNDAI
45

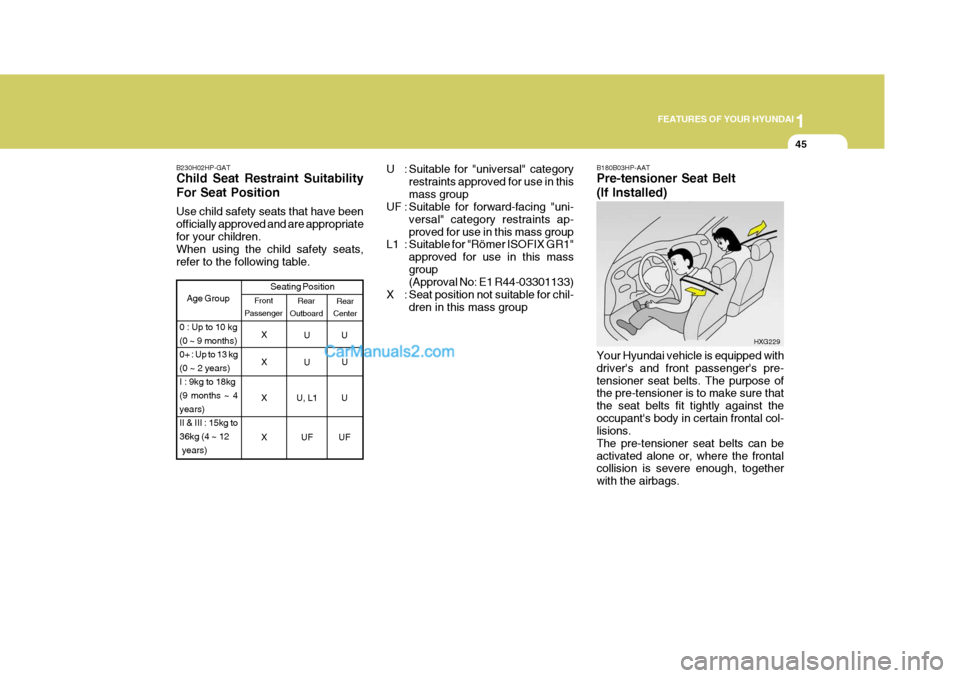

B230H02HP-GAT Child Seat Restraint Suitability For Seat Position Use child safety seats that have been officially approved and are appropriatefor your children. When using the child safety seats, refer to the following table.
Rear
Center
Age Group Seating Position
UU
X UU
Rear
Outboard
Front
Passenger
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~ 4years)II & III : 15kg to36kg (4 ~ 12 years) X
X U, L1 U XU
FUF
U : Suitable for "universal" category
restraints approved for use in this mass group
UF : Suitable for forward-facing "uni-
versal" category restraints ap-proved for use in this mass group
L1 : Suitable for "Römer ISOFIX GR1"
approved for use in this massgroup (Approval No: E1 R44-03301133)
X : Seat position not suitable for chil- dren in this mass group B180B03HP-AAT Pre-tensioner Seat Belt (If Installed) Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against theoccupant's body in certain frontal col- lisions. The pre-tensioner seat belts can beactivated alone or, where the frontal collision is severe enough, together with the airbags.
HXG229

1FEATURES OF YOUR HYUNDAI
46
!

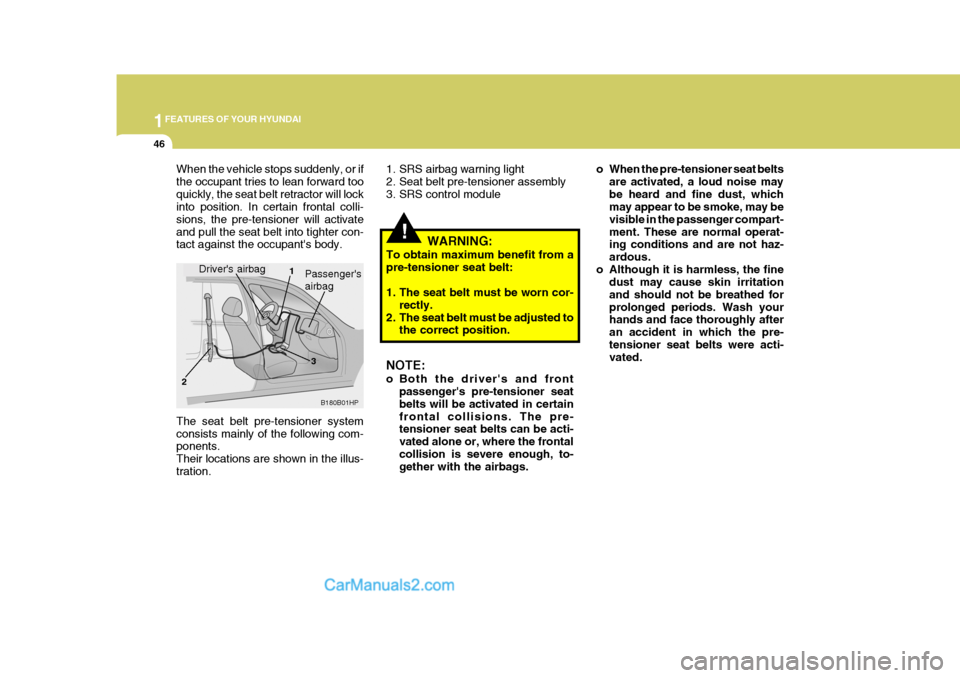

1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module o When the pre-tensioner seat belts
are activated, a loud noise maybe heard and fine dust, which may appear to be smoke, may be visible in the passenger compart-ment. These are normal operat- ing conditions and are not haz- ardous.
o Although it is harmless, the fine dust may cause skin irritationand should not be breathed forprolonged periods. Wash your hands and face thoroughly after an accident in which the pre-tensioner seat belts were acti- vated.
WARNING:
To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn cor- rectly.
2. The seat belt must be adjusted to the correct position.
NOTE:
o Both the driver's and front passenger's pre-tensioner seat belts will be activated in certainfrontal collisions. The pre- tensioner seat belts can be acti- vated alone or, where the frontalcollision is severe enough, to- gether with the airbags.
When the vehicle stops suddenly, or if the occupant tries to lean forward tooquickly, the seat belt retractor will lock into position. In certain frontal colli- sions, the pre-tensioner will activateand pull the seat belt into tighter con- tact against the occupant's body.
B180B01HP
The seat belt pre-tensioner system consists mainly of the following com- ponents. Their locations are shown in the illus-tration.
Driver's airbag1
2 3Passenger's airbag
