8CONSUMER INFORMATION
2ENGINE NUMBERVEHICLE IDENTIFICATION NUMBER (VIN)
I010B01S-GAT

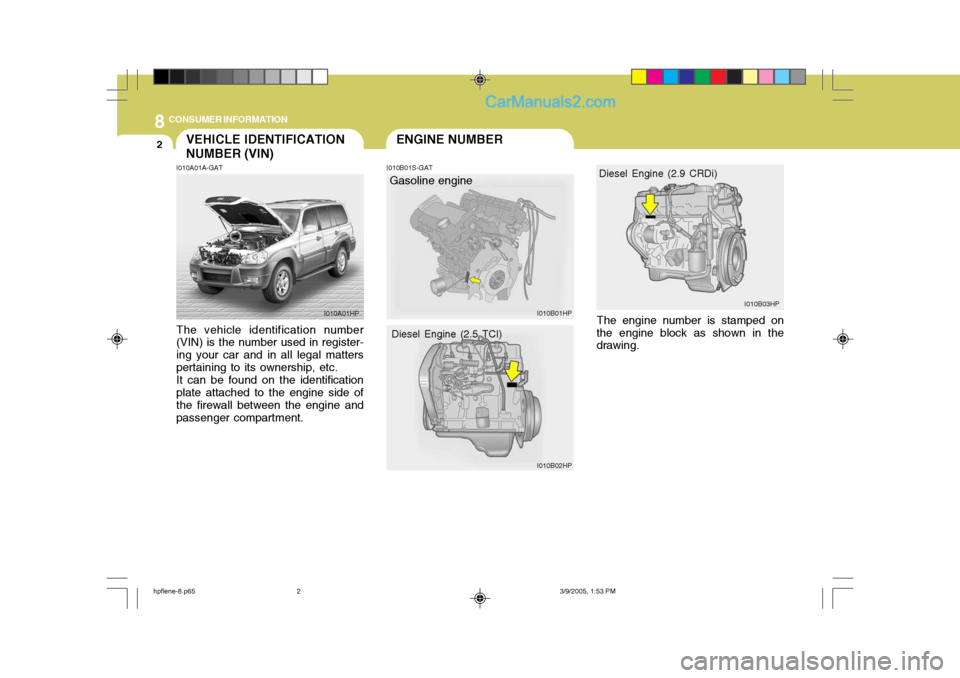

I010A01A-GAT The vehicle identification number (VIN) is the number used in register- ing your car and in all legal matterspertaining to its ownership, etc.It can be found on the identificationplate attached to the engine side of the firewall between the engine and passenger compartment. The engine number is stamped on
the engine block as shown in the drawing.
Gasoline engine
Diesel Engine (2.9 CRDi)
I010A01HP I010B01HP I010B02HPI010B03HP
Diesel Engine (2.5 TCI)
hpflene-8.p65 3/9/2005, 1:53 PM
2

8
CONSUMER INFORMATION
3TIRE
I020A01A-AAT
TIRE INFORMATION
The tires supplied on your new

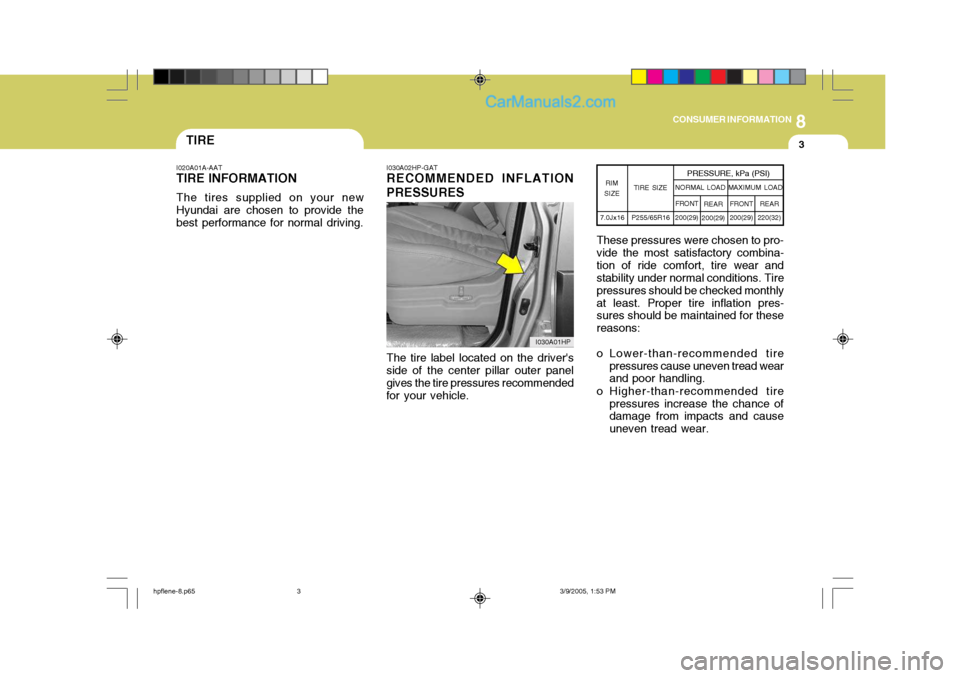

Hyundai are chosen to provide the best performance for normal driving. I030A02HP-GAT RECOMMENDED INFLATION PRESSURES
The tire label located on the driver's
side of the center pillar outer panel gives the tire pressures recommended for your vehicle. 7.0Jx16
TIRE SIZE
RIM
SIZE PRESSURE, kPa (PSI)
P255/65R16 REAR
200(29) FRONT
200(29)
NORMAL LOAD MAXIMUM LOAD
REAR
220(32)
FRONT
200(29)
These pressures were chosen to pro- vide the most satisfactory combina-tion of ride comfort, tire wear and stability under normal conditions. Tire pressures should be checked monthlyat least. Proper tire inflation pres- sures should be maintained for these reasons:
o Lower-than-recommended tire pressures cause uneven tread wear and poor handling.
o Higher-than-recommended tire pressures increase the chance ofdamage from impacts and cause uneven tread wear.
I030A01HP
hpflene-8.p65
3/9/2005, 1:53 PM
3

8CONSUMER INFORMATION
4
!

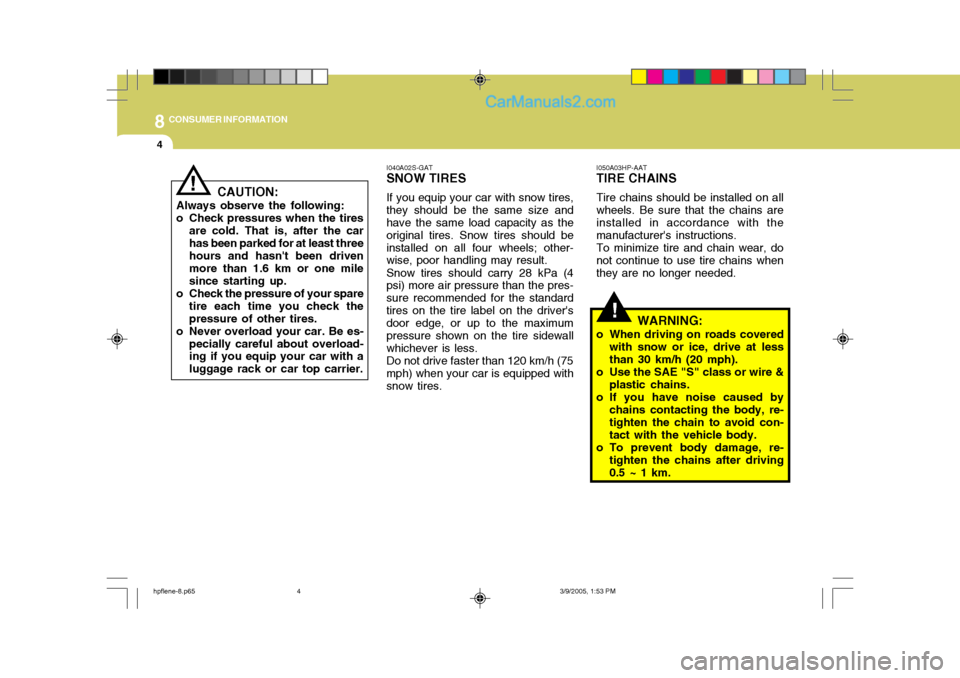

I050A03HP-AAT TIRE CHAINS Tire chains should be installed on all wheels. Be sure that the chains are installed in accordance with the manufacturer's instructions.To minimize tire and chain wear, donot continue to use tire chains whenthey are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at less than 30 km/h (20 mph).
o Use the SAE "S" class or wire & plastic chains.
o If you have noise caused by chains contacting the body, re-tighten the chain to avoid con- tact with the vehicle body.
o To prevent body damage, re- tighten the chains after driving0.5 ~ 1 km.
I040A02S-GAT SNOW TIRES If you equip your car with snow tires, they should be the same size and have the same load capacity as the original tires. Snow tires should beinstalled on all four wheels; other- wise, poor handling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pres- sure recommended for the standardtires on the tire label on the driver's door edge, or up to the maximum pressure shown on the tire sidewallwhichever is less.Do not drive faster than 120 km/h (75mph) when your car is equipped withsnow tires.
CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the carhas been parked for at least three hours and hasn't been driven more than 1.6 km or one milesince starting up.
o Check the pressure of your spare tire each time you check thepressure of other tires.
o Never overload your car. Be es-
pecially careful about overload- ing if you equip your car with a luggage rack or car top carrier.
!
hpflene-8.p65 3/9/2005, 1:53 PM
4

8
CONSUMER INFORMATION
5
!
I060A01HP-GAT TIRE ROTATION
Tires should be rotated every 5,000
km (3,000 miles). If you notice that tires are wearing unevenly between rotations, have the car checked by aHyundai dealer so the cause may be corrected.
After rotating, adjust the tire pres-
sures and be sure to check wheel nut torque. I060A01HP
Spare tire WARNING:
Do not mix bias-ply and radial-ply
tires under any circumstances. This may cause dangerous handling characteristics that may cause death, serious injury, or propertydamage.
I070A01A-AAT TIRE BALANCING A tire that is out of balance may affect handling and tire wear. The tires on your Hyundai were balanced before the car was delivered but may needbalancing again during the years you own the car. Whenever a tire is dismounted for repair, it should be rebalanced before being reinstalled on the car. I080A01A-AAT TIRE TRACTION Tire traction can be reduced if you drive on worn tires, tires that are improperly inflated or on slippery road surfaces. Tires should be replacedwhen tread wear indicators appear. To reduce the possibility of losing control, slow down whenever there israin, snow or ice on the road.
hpflene-8.p65
3/9/2005, 1:53 PM
5

8CONSUMER INFORMATION
6
!WARNING:
o Driving on worn-out tires is dan- gerous! Worn-out tires can cause loss of braking effective-ness, steering control and trac- tion. When replacing tires, never mix radial and bias-ply tires onthe same car. If you replace ra- dial tires with bias-ply tires, they must be installed in sets of four.
o Your vehicle is equipped with tires designed to provide for saferide and handling capability.Do not use a size and type oftire and wheel that is different from the one that was originally installed on your vehicle. It canaffect the safety and perfor- mance of your vehicle, which could lead to handling failure orrollover and serious injury.When replacing the tires, be sureto equip all four tires with thetire and wheel of the same size, type, tread, brand and load-car- rying capacity. If you neverthe-less decide to equip your ve-
I090A01HP-GAT WHEN TO REPLACE TIRES
1.6 mm (0.06 in.)

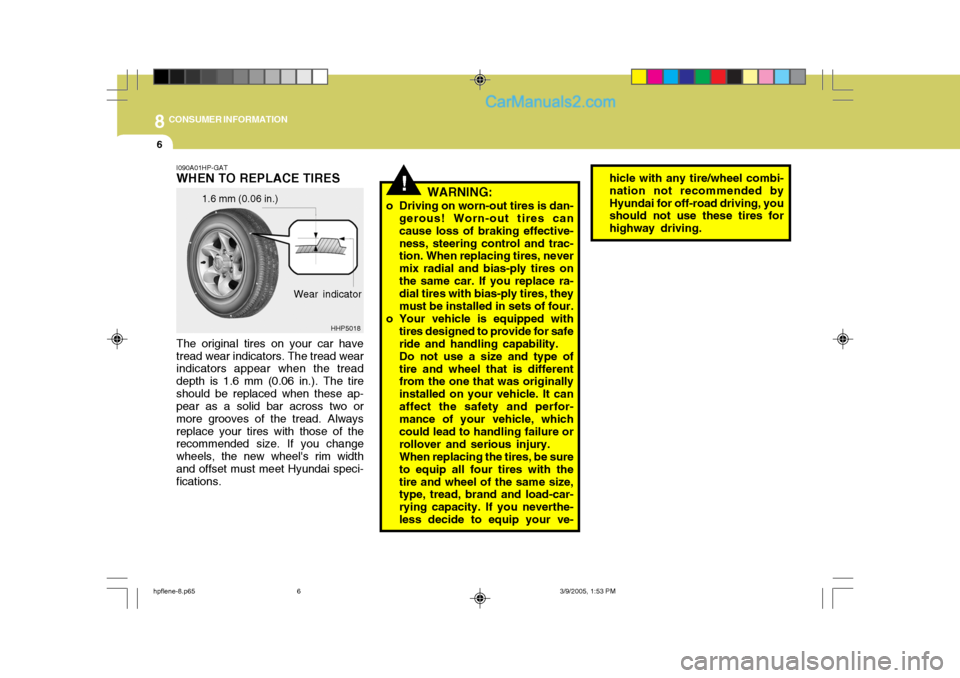

The original tires on your car have tread wear indicators. The tread wear indicators appear when the tread depth is 1.6 mm (0.06 in.). The tireshould be replaced when these ap- pear as a solid bar across two or more grooves of the tread. Alwaysreplace your tires with those of the recommended size. If you change wheels, the new wheel's rim widthand offset must meet Hyundai speci- fications. Wear indicator
HHP5018 hicle with any tire/wheel combi- nation not recommended byHyundai for off-road driving, you should not use these tires for highway driving.
hpflene-8.p65
3/9/2005, 1:53 PM
6

8
CONSUMER INFORMATION
7SPARE TIRE AND TOOLS

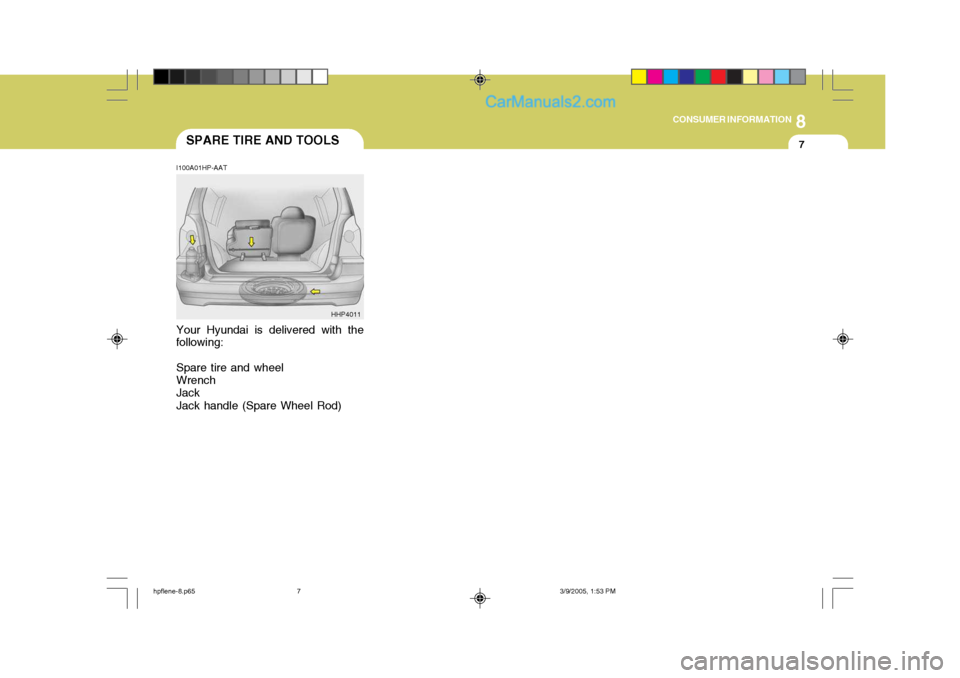

I100A01HP-AAT Your Hyundai is delivered with the
following:
Spare tire and wheel Wrench Jack Jack handle (Spare Wheel Rod) HHP4011
hpflene-8.p65
3/9/2005, 1:53 PM
7

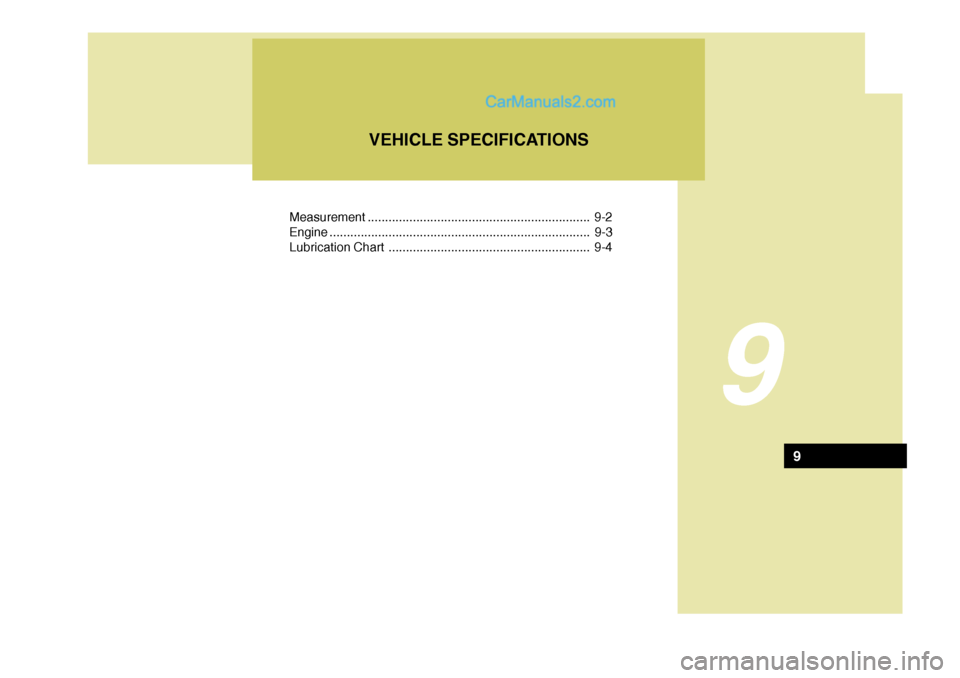

Measurement................................................................ 9-2
Engine ........................................................................... 9-3
Lubrication Chart .......................................................... 9-4
9
VEHICLE SPECIFICATIONS
9

9 VEHICLE SPECIFICATIONS
2

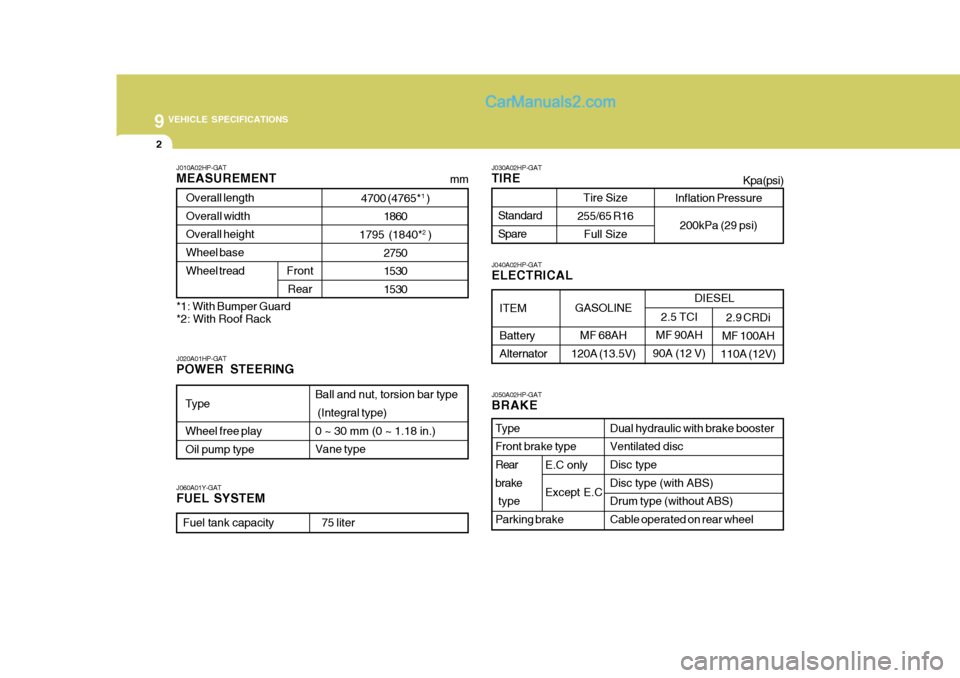

J010A02HP-GAT MEASUREMENT
4700 (4765* 1
)
1860
1795 (1840* 2
)
2750 15301530
Overall length Overall width Overall heightWheel base Wheel tread
Front
Rear
Type Wheel free play Oil pump type Ball and nut, torsion bar type (Integral type) 0 ~ 30 mm (0 ~ 1.18 in.)Vane type
J060A01Y-GAT FUEL SYSTEM
J020A01HP-GAT POWER STEERING J030A02HP-GAT TIRE
Standard Spare
J050A02HP-GAT BRAKE Dual hydraulic with brake booster Ventilated disc Disc type Disc type (with ABS)Drum type (without ABS) Cable operated on rear wheel
Type Front brake type Rear brake type Parking brake
ITEM Battery Alternator
J040A02HP-GAT ELECTRICAL
mm
Fuel tank capacity 75 liter
2.5 TCI
MF 90AH
90A (12 V)
Tire Size
255/65 R16 Full Size Kpa(psi)
2.9 CRDi
MF 100AH
110A (12V)GASOLINE
MF 68AH
120A (13.5V)DIESEL
E.C only Except E.C*1: With Bumper Guard *2: With Roof Rack Inflation Pressure
200kPa (29 psi)

9
VEHICLE SPECIFICATIONS
3
2.9 CRDi
4-Cyl., In-line DOHC
97.1 x 98 mm (3.82 x 3.86 in.) 2902cc
16.5
Auto lash Auto lash
800 ± 100
Automatically Adjusted

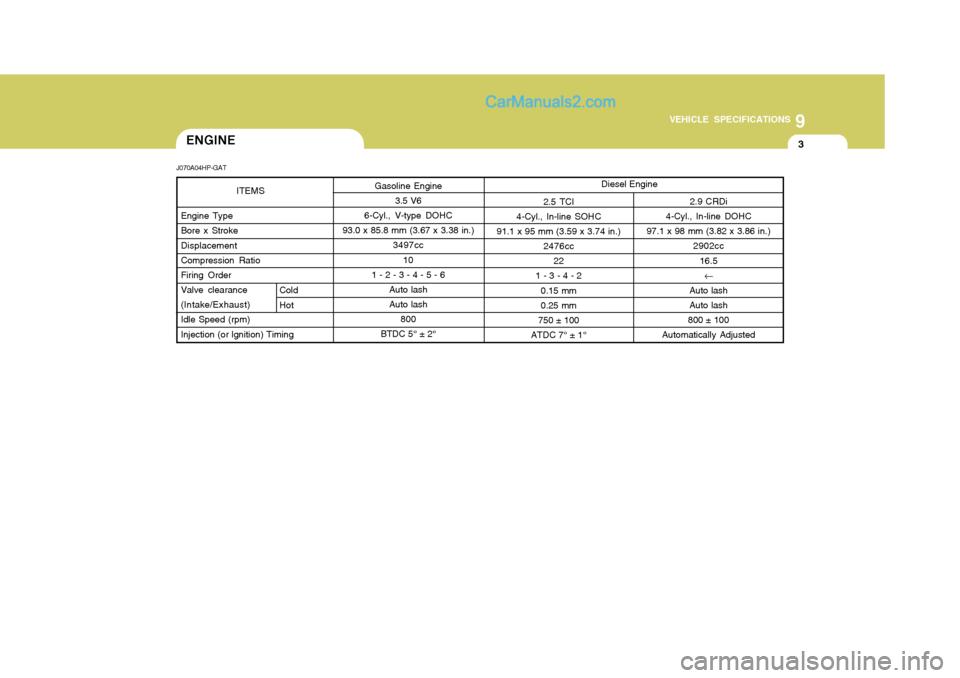

Engine Type Bore x Stroke Displacement Compression RatioFiring Order Valve clearance (Intake/Exhaust)Idle Speed (rpm) Injection (or lgnition) Timing Gasoline Engine
3.5 V6
6-Cyl., V-type DOHC
93.0 x 85.8 mm (3.67 x 3.38 in.) 3497cc
10
1 - 2 - 3 - 4 - 5 - 6 Auto lashAuto lash
800
BTDC 5° ± 2°ENGINE
J070A04HP-GAT
Cold Hot
ITEMS2.5 TCI
4-Cyl., In-line SOHC
91.1 x 95 mm (3.59 x 3.74 in.)
2476cc22
1 - 3 - 4 - 2
0.15 mm 0.25 mm
750 ± 100
ATDC 7° ± 1° Diesel Engine

9 VEHICLE SPECIFICATIONS
4
Oil & Grease Standard
API SJ, SL or ABOVE, SAE 5W-20, 5W-30
ILSAC GF-3 or ABOVE SAE 10W-30 [ABOVE -18°C(-0.4°F)] SAE 15W-40 [ABOVE -13°C(8.6°F)]SAE 20W-50 [ABOVE -7°C(19.4°F)]
API CF-4 or ABOVE, SAE #30 [ABOVE 0°C(32°F)]
ACEA B2 or B3 SAE 20W-40 [ABOVE -10°C(14°F)] SAE 15W-40 [ABOVE -15°C(5°F)]SAE 10W-30 [-20°C ~ 40°C (-4°F ~ 104°F)]SAE 5W-30 [-25°C ~10°C (-13°F ~ 50°F)]SAE 0W-30 [BELOW 10°C(50°F)] *1
API CF-4 or ABOVE, SAE 15W-40 [ABOVE -15°C (5°F)]
ACEA B4 or ABOVE SAE 10W-30 [-20°C ~ 40°C(-4°F ~ 104°F)] SAE 5W-30 [-25°C~40°C (-13°F~104°F)] SAE 0W-30 [BELOW 10°C(50°F)] *1
*1. Restricted by driving condition and dealing areaNormal driving conditionSevere driving condition

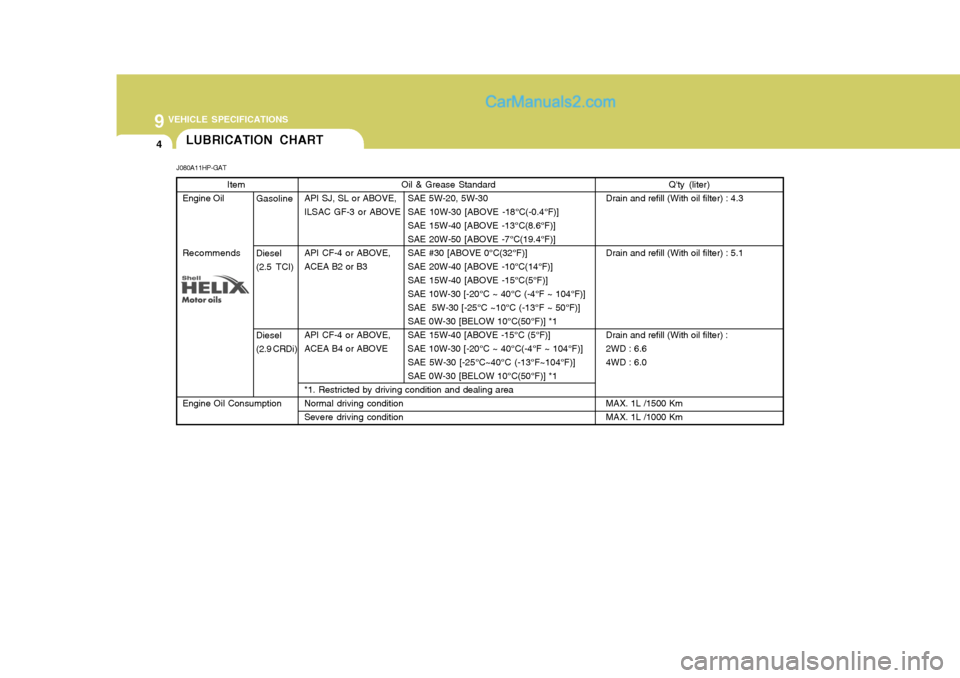

LUBRICATION CHART
J080A11HP-GAT Item
Engine Oil Recommends Engine Oil Consumption
Q'ty (liter)
Drain and refill (With oil filter) : 4.3 Drain and refill (With oil filter) : 5.1 Drain and refill (With oil filter) : 2WD : 6.64WD : 6.0 MAX. 1L /1500 Km MAX. 1L /1000 Km
Gasoline Diesel (2.5 TCI) Diesel (2.9 CRDi)
