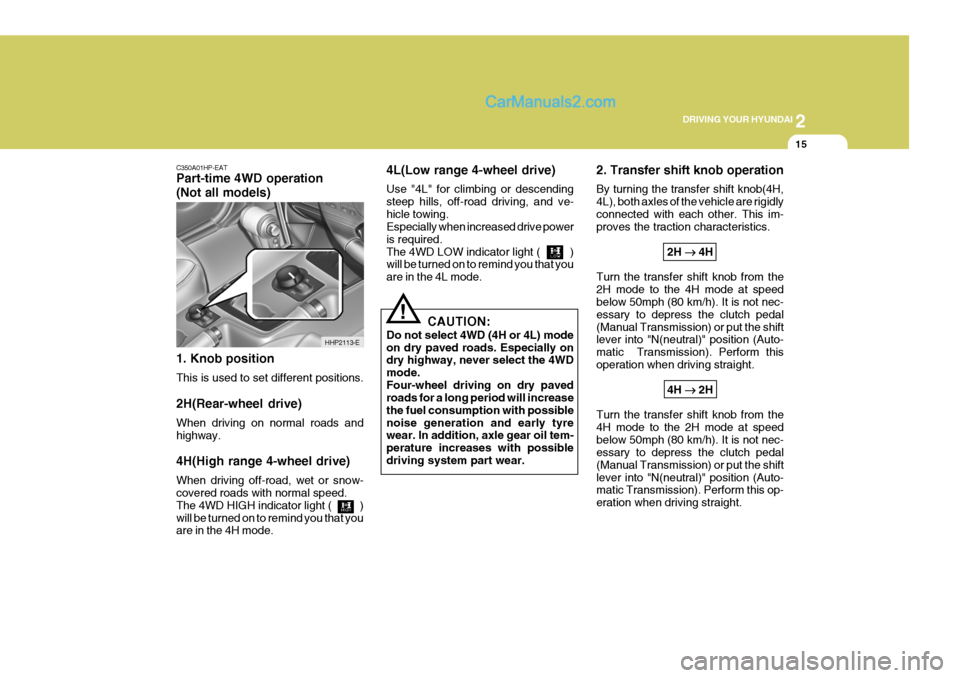

Page 431 of 539

Hyundai Terracan 2006  Owners Manual 2
DRIVING YOUR HYUNDAI
15
C350A01HP-EAT Part-time 4WD operation (Not all models) 1. Knob position This is used to set different positions. 2H(Rear-wheel drive) When driving on normal roads and highway

Page 432 of 539

Hyundai Terracan 2006  Owners Manual 2 DRIVING YOUR HYUNDAI
16
4H ��
��
�  4L
1. Stop the vehicle.
2. Depress the clutch pedal (Manual Transmission) or put the shift leverinto "N (neutral)" position (AutomaticTransmission).
3. Select th

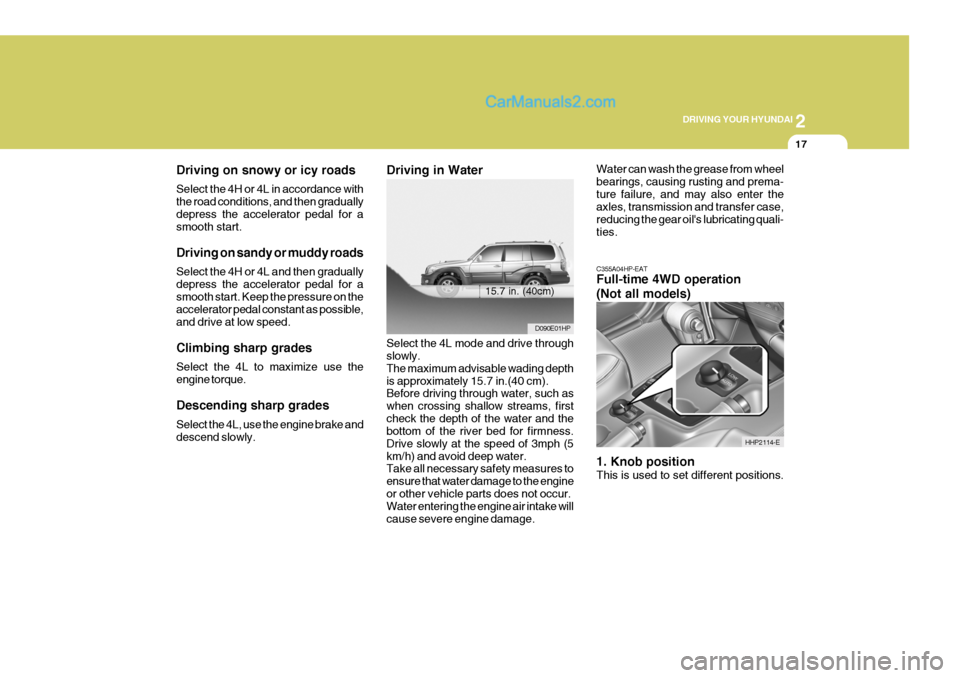

Page 433 of 539

Hyundai Terracan 2006  Owners Manual 2
DRIVING YOUR HYUNDAI
17
C355A04HP-EAT Full-time 4WD operation (Not all models) 1. Knob position This is used to set different positions.
15.7 in. (40cm) D090E01HP
HHP2114-E
Driving on snowy or icy r

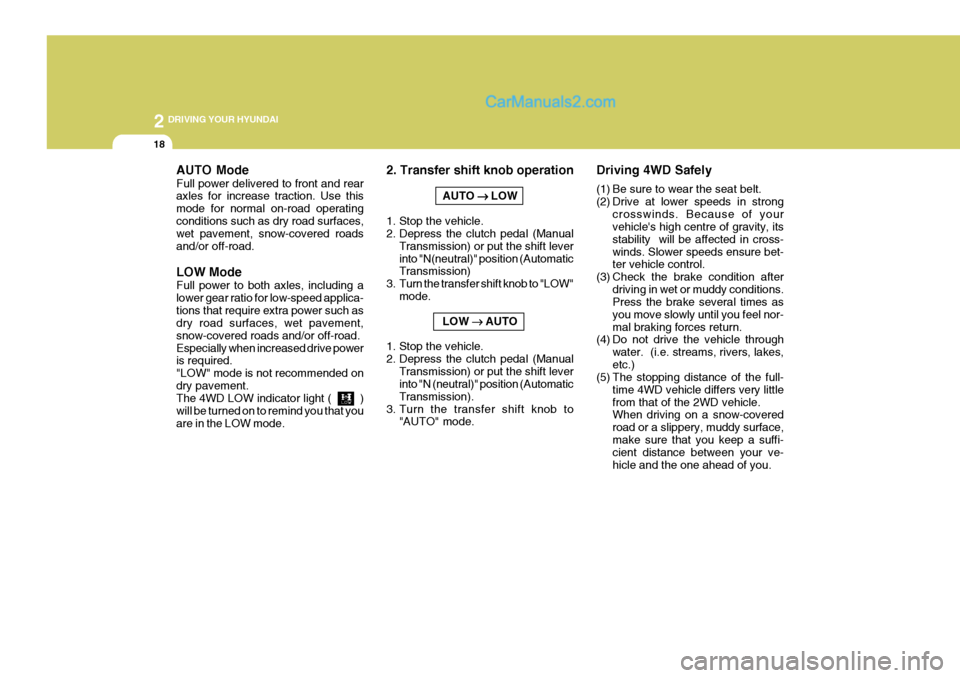

Page 434 of 539

Hyundai Terracan 2006  Owners Manual 2 DRIVING YOUR HYUNDAI
18
2. Transfer shift knob operationAUTO ��
��
�  LOW
1. Stop the vehicle.
2. Depress the clutch pedal (Manual Transmission) or put the shift lever into "N(neutral)" position (A

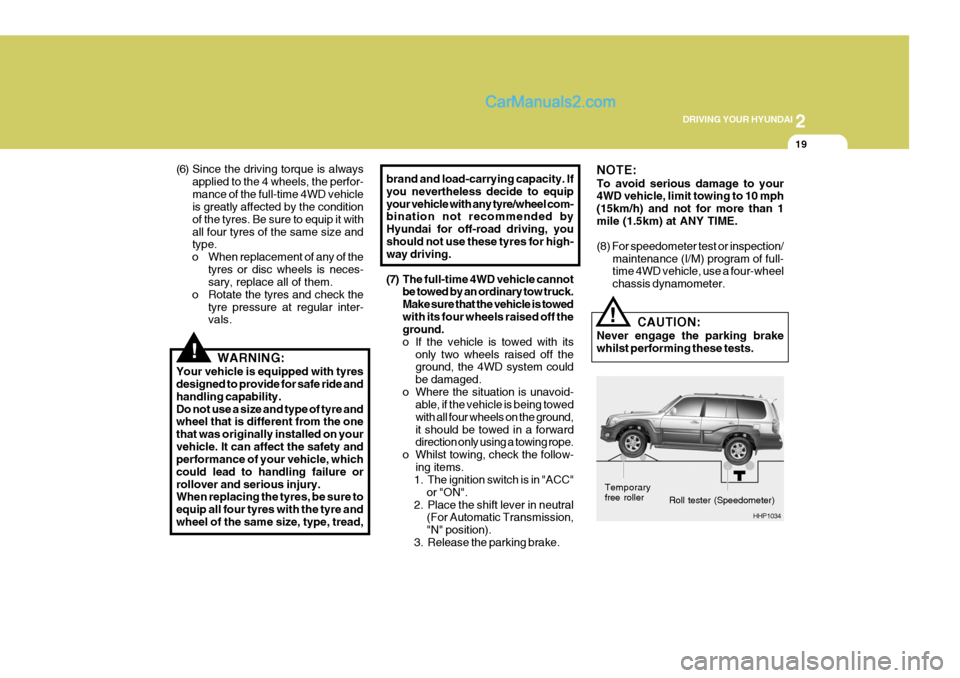

Page 435 of 539

Hyundai Terracan 2006  Owners Manual 2
DRIVING YOUR HYUNDAI
19
!
(6) Since the driving torque is always
applied to the 4 wheels, the perfor- mance of the full-time 4WD vehicle is greatly affected by the condition of the tyres. Be sure to

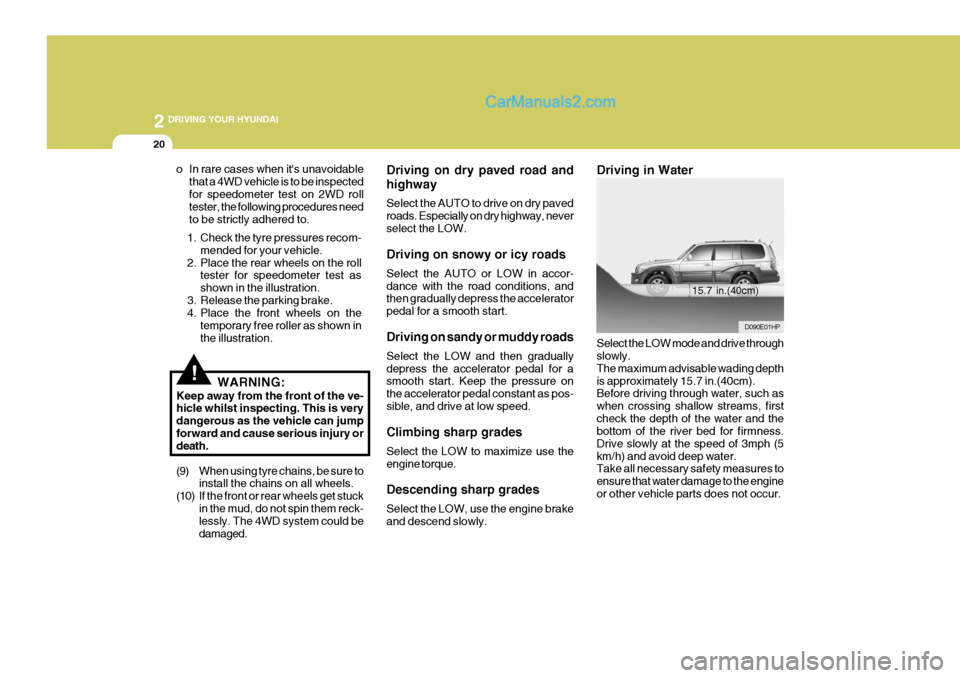

Page 436 of 539

Hyundai Terracan 2006  Owners Manual 2 DRIVING YOUR HYUNDAI
20
!
Driving in Water Select the LOW mode and drive through slowly. The maximum advisable wading depthis approximately 15.7 in.(40cm). Before driving through water, such as when

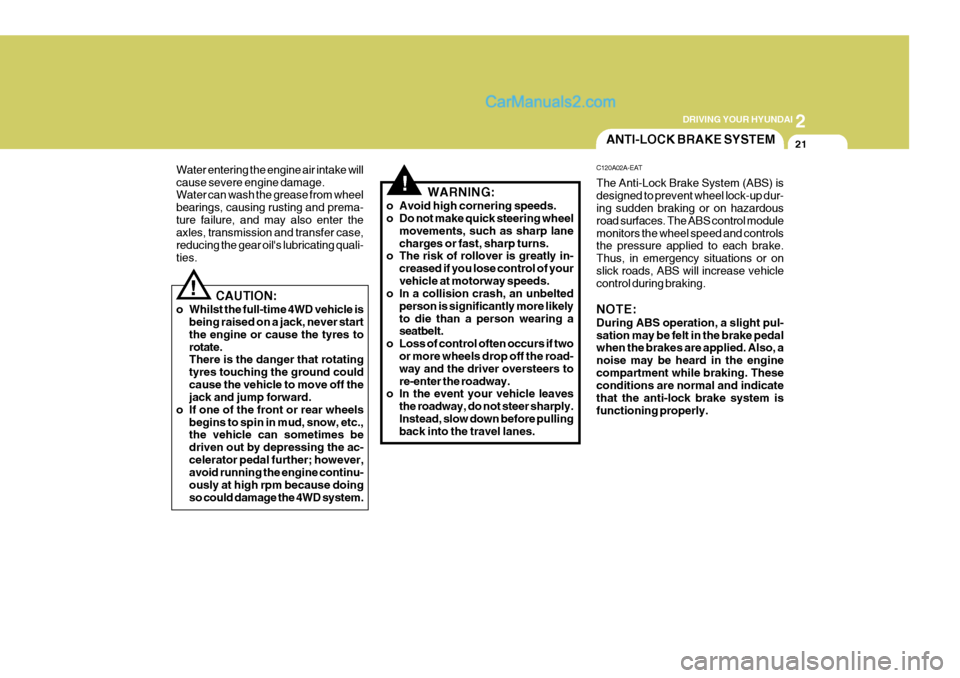

Page 437 of 539

Hyundai Terracan 2006  Owners Manual 2
DRIVING YOUR HYUNDAI
21
!
Water entering the engine air intake will cause severe engine damage. Water can wash the grease from wheel bearings, causing rusting and prema-ture failure, and may also en

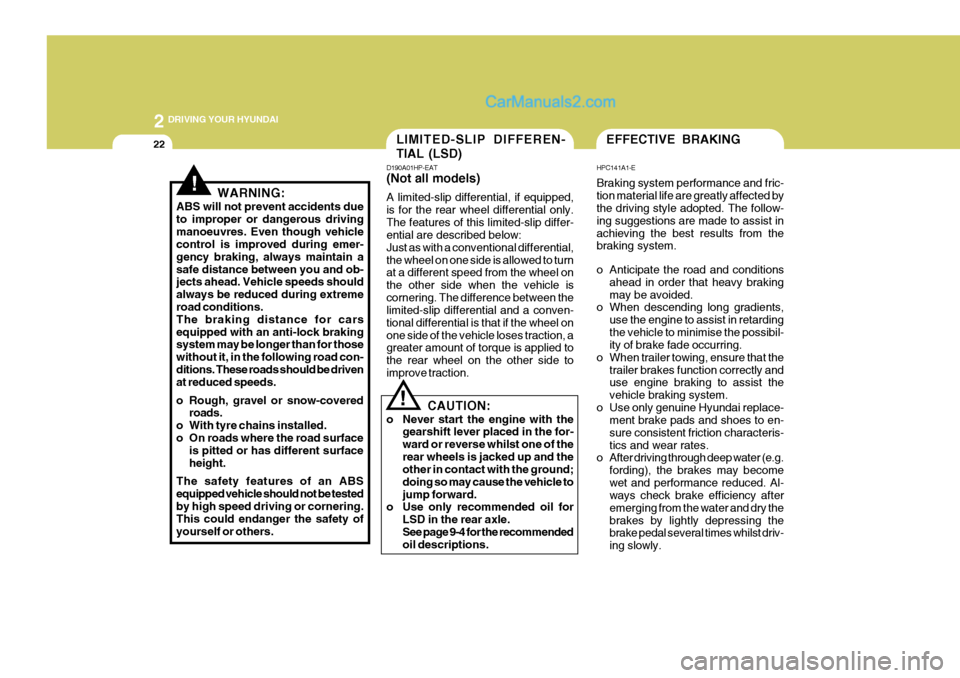

Page 438 of 539

Hyundai Terracan 2006  Owners Manual 2 DRIVING YOUR HYUNDAI
22
!
EFFECTIVE BRAKING
HPC141A1-E Braking system performance and fric- tion material life are greatly affected by the driving style adopted. The follow- ing suggestions are made

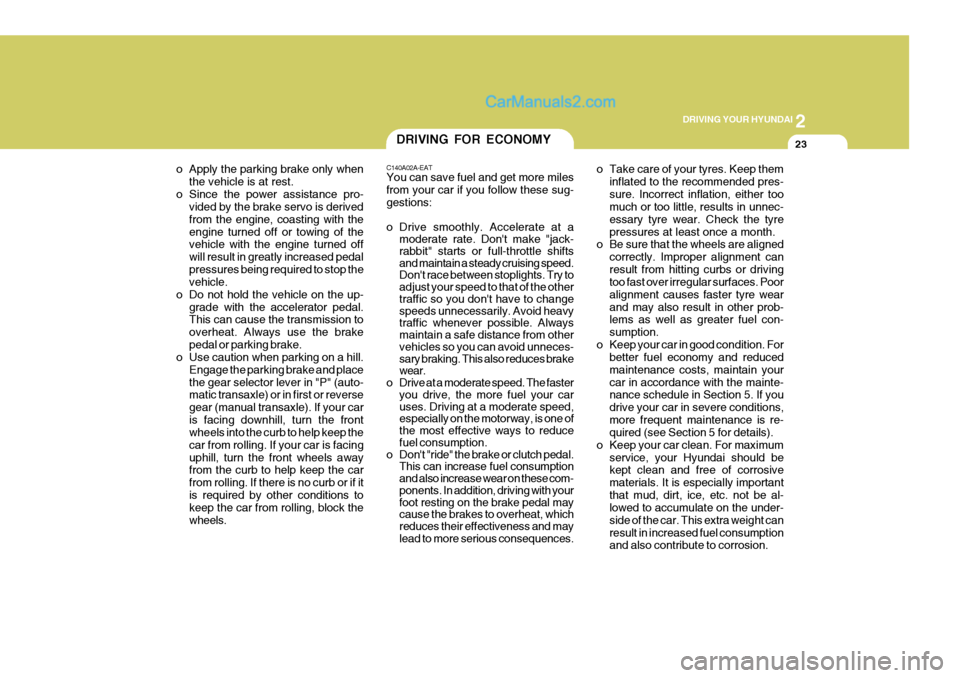

Page 439 of 539

Hyundai Terracan 2006  Owners Manual 2
DRIVING YOUR HYUNDAI
23
o Apply the parking brake only when the vehicle is at rest.
o Since the power assistance pro- vided by the brake servo is derived from the engine, coasting with theengine tur

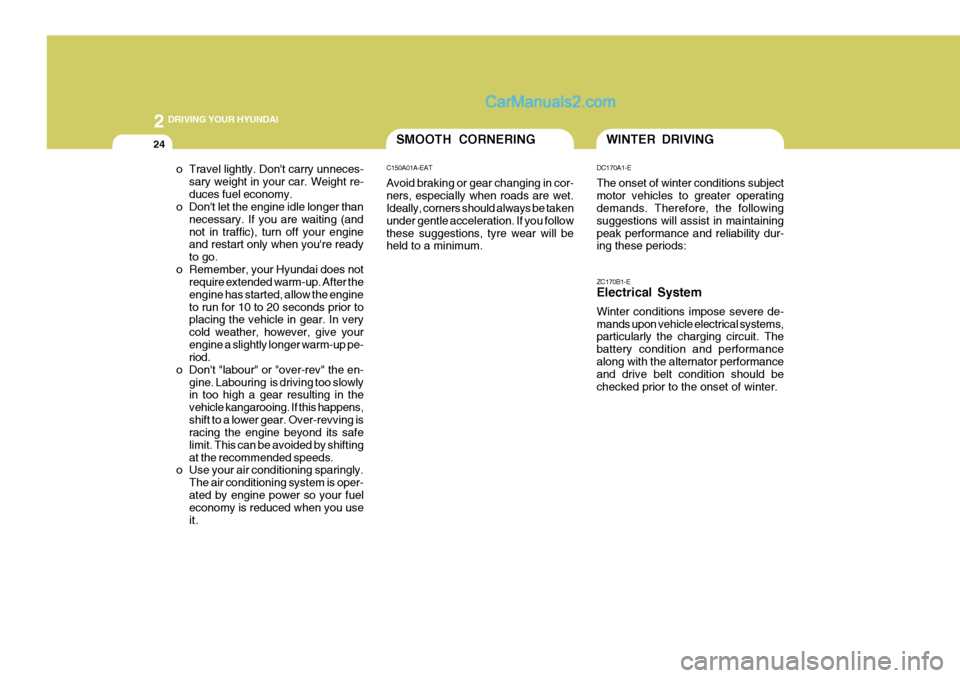

Page 440 of 539

Hyundai Terracan 2006  Owners Manual 2 DRIVING YOUR HYUNDAI
24
ZC170B1-E Electrical System Winter conditions impose severe de- mands upon vehicle electrical systems, particularly the charging circuit. The battery condition and performanc
