2-21
Safety system of your vehicle
2
Whilst the engine is running, push
either of the switches to warm the dri-
ver's seat or front passenger's seat.During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
• Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows :
• Automatic temperature control The seat warmer starts to auto-
matically control the seat tempera-
ture in order to prevent low-tem-
perature burns after being manual-
ly turned ON.
If HIGH temperature is manually
selected again, the temperature
will be controlled automatically. • When pressing the switch for more
than 1.5 seconds with the seat
warmer operating, the seat warmer
will turn OFF.
• The seat warmer defaults to the OFF position whenever the ignition
switch is placed to the ON position.
Information
With the seat warmer switch in the
ON position, the heating system in the
seat turns off or on automatically
depending on the seat temperature.
i
OTLE035075R
OTLE035076R
■ Type A
■Type B
OFF HIGH ( )
LOW ( ) MIDDLE ( )
→→
→
→
OFF HIGH ( )
LOW ( ) MIDDLE ( )
→→
→
→
30 MIN
60 MIN
TLe UK 2.qxp 6/12/2018 2:05 PM Page 21
Page 42 of 685
2-22
Safety system of your vehicle

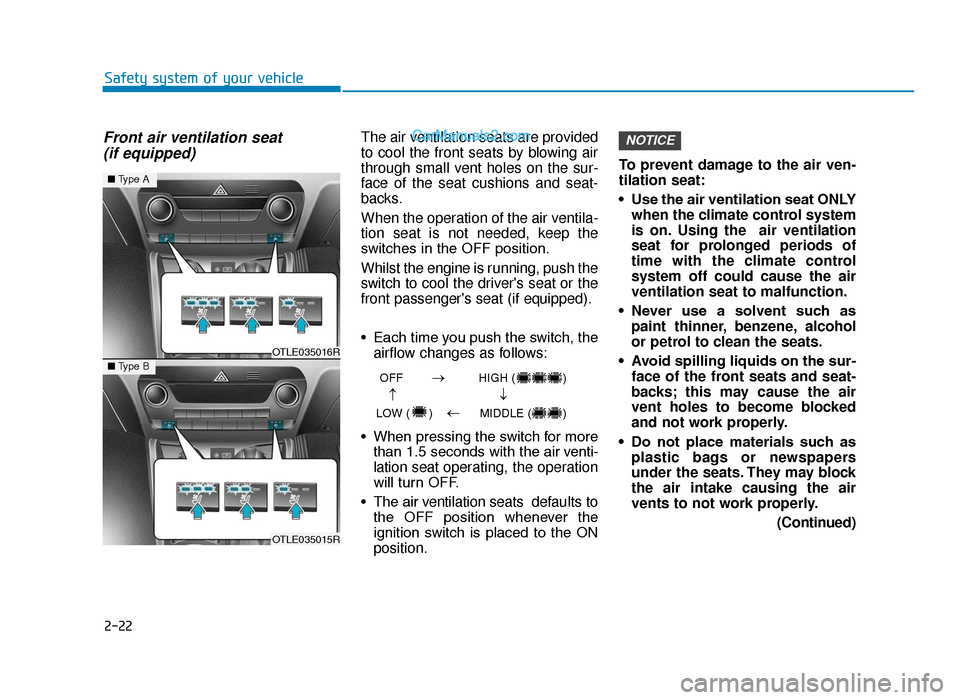

Front air ventilation seat (if equipped)The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the sur-
face of the seat cushions and seat-
backs.
When the operation of the air ventila-
tion seat is not needed, keep the
switches in the OFF position.
Whilst the engine is running, push the
switch to cool the driver's seat or the
front passenger's seat (if equipped).
• Each time you push the switch, the
airflow changes as follows:
• When pressing the switch for more than 1.5 seconds with the air venti-
lation seat operating, the operation
will turn OFF.
• The air v entilation seats def aults to
the OFF position whenever the
ignition switch is placed to the ON
position. To prevent damage to the air ven-
tilation seat:
• Use the air ventilation seat ONLY
when the climate control system
is on. Using the air ventilation
seat for prolonged periods of
time with the climate control
system off could cause the air
ventilation seat to malfunction.
• Never use a solvent such as paint thinner, benzene, alcohol
or petrol to clean the seats.
• Avoid spilling liquids on the sur- face of the front seats and seat-
backs; this may cause the air
vent holes to become blocked
and not work properly.
• Do not place materials such as plastic bags or newspapers
under the seats. They may block
the air intake causing the air
vents to not work properly.
(Continued)NOTICE
OTLE035016R
OTLE035015R
■Type A
■Type BOFF HIGH ( )
LOW ( ) MIDDLE ( )
→→
→
→
TLe UK 2.qxp 6/12/2018 2:05 PM Page 22
Page 43 of 685
2-23
Safety system of your vehicle
2
(Continued)
• Do not change the seat covers. Itmay damage the air ventilation
seat.
• If the air vents do not operate, restart the vehicle. If there is no
change, we recommend that you
have your vehicle inspected by a

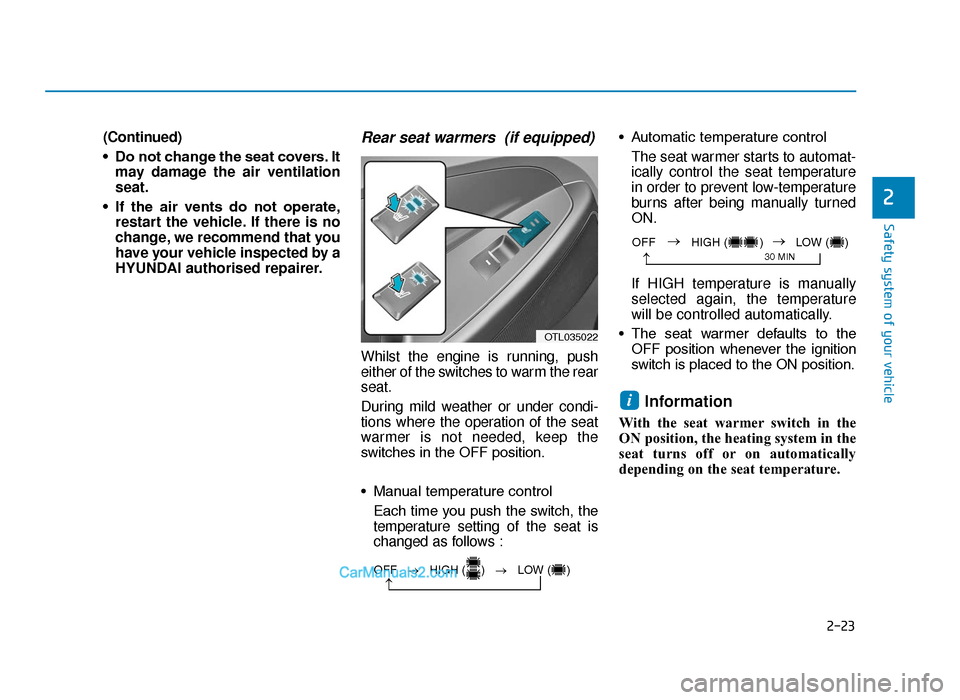

HYUNDAI authorised repairer.Rear seat warmers (if equipped)
Whilst the engine is running, push
either of the switches to warm the rear
seat.
During mild weather or under condi-
tions where the operation of the seat
warmer is not needed, keep the
switches in the OFF position.
• Manual temperature control
Each time you push the switch, the
temperature setting of the seat is
changed as follows : • Automatic temperature control
The seat warmer starts to automat-
ically control the seat temperature
in order to prevent low-temperature
burns after being manually turned
ON.
If HIGH temperature is manually
selected again, the temperature
will be controlled automatically.
• The seat warmer defaults to the OFF position whenever the ignition
switch is placed to the ON position.
Information
With the seat warmer switch in the
ON position, the heating system in the
seat turns off or on automatically
depending on the seat temperature.
i
OTL035022
OFF →HIGH ( ) → LOW ( )
→
→
30 MINOFF HIGH ( ) LOW ( )→→
TLe UK 2.qxp 6/12/2018 2:05 PM Page 23
Page 44 of 685
2-24
Safety system of your vehicle

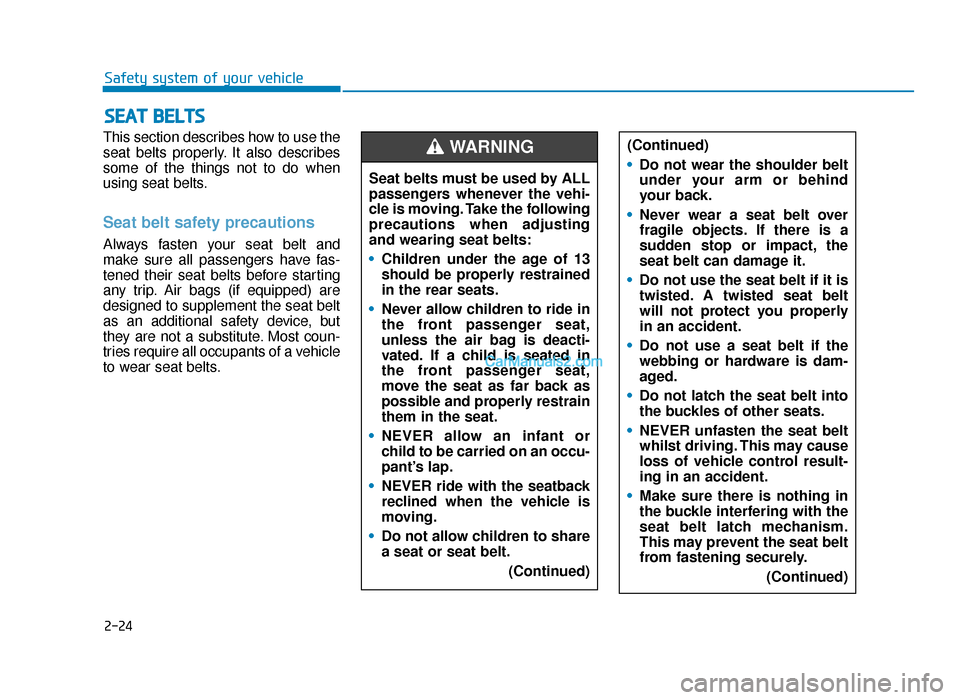

This section describes how to use the
seat belts properly. It also describes
some of the things not to do when
using seat belts.
Seat belt safety precautions
Always fasten your seat belt and
make sure all passengers have fas-
tened their seat belts before starting
any trip. Air bags (if equipped) are
designed to supplement the seat belt
as an additional safety device, but
they are not a substitute. Most coun-
tries require all occupants of a vehicle
to wear seat belts.
SEAT BELTS
Seat belts must be used by ALL
passengers whenever the vehi-
cle is moving. Take the following
precautions when adjusting
and wearing seat belts:
• Children under the age of 13
should be properly restrained
in the rear seats.
• Never allow children to ride in
the front passenger seat,
unless the air bag is deacti-
vated. If a child is seated in
the front passenger seat,
move the seat as far back as
possible and properly restrain
them in the seat.
• NEVER allow an infant or
child to be carried on an occu-
pant’s lap.
• NEVER ride with the seatback
reclined when the vehicle is
moving.
• Do not allow children to share
a seat or seat belt.
(Continued)
WARNING (Continued)
•Do not wear the shoulder belt
under your arm or behind
your back.
• Never wear a seat belt over
fragile objects. If there is a
sudden stop or impact, the
seat belt can damage it.
• Do not use the seat belt if it is
twisted. A twisted seat belt
will not protect you properly
in an accident.
• Do not use a seat belt if the
webbing or hardware is dam-
aged.
• Do not latch the seat belt into
the buckles of other seats.
• NEVER unfasten the seat belt
whilst driving. This may cause
loss of vehicle control result-
ing in an accident.
• Make sure there is nothing in
the buckle interfering with the
seat belt latch mechanism.
This may prevent the seat belt
from fastening securely.
(Continued)
TLe UK 2.qxp 6/12/2018 2:05 PM Page 24
Page 45 of 685
2-25
2
Seat belt warning light
Seat belt warning
Driver’s seat belt warning
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time
you turn the ignition switch ON
regardless of belt fastening.
If the driver’s seat belt is unfastened
after the ignition switch is ON, the
seat belt warning light illuminates
until the belt is fastened.
Damaged seat belts and seat
belt assemblies will not operate
properly. Always replace:
•
Frayed, contaminated, or
damaged webbing.
• Damaged hardware.
• The entire seat belt assembly
after it has been worn in an
accident, even if damage to
webbing or assembly is not
apparent.
WARNING (Continued)
•No modifications or additions
should be made by the user
which will either prevent the
seat belt adjusting devices
from operating to remove
slack, or prevent the seat belt
assembly from being adjusted
to remove slack.
OTLE035100R
■
For driver in instrument cluster
Safety system of your vehicle
TLe UK 2.qxp 6/12/2018 2:05 PM Page 25
Page 46 of 685
2-26
If you continue not to fasten the seat
belt and you drive over 5 mph
(9km/h), the illuminated warning light
will start to blink until you drive under
4 mph (6km/h). (if equipped)
If you continue not to fasten the seat
belt and you drive over 12 mph
(20km/h) the seat belt warning chime
will sound for approximately 100 sec-
onds and the corresponding warning
light will blink. (if equipped)
Front passenger’s seat belt warning
As a reminder to the front passenger,
the front passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the ignition switch ON regardless of
belt fastening.
If the front passenger’s seat belt is
not fastened when the ignition switch
is turned ON or if it is disconnected
after the ignition switch is turned ON,
the corresponding seat belt warning
light will illuminate until the belt is
fastened.If you continue not to fasten the seat
belt and you drive over 5 mph
(9km/h), the illuminated warning light
will start to blink until you drive under
4 mph (6km/h).
If you continue not to fasten the seat
belt and you drive over 12 mph
(20km/h) the seat belt warning chime
will sound for approximately 100 sec-
onds and the corresponding warning
light will blink.
Safety system of your vehicle
Riding in an improper position
adversely affects the front pas-
senger's seat belt warning sys-
tem. It is important for the driver
to instruct the passenger to
properly be seated as instructed
in this manual.
WARNING
OTLE035082R
TLe UK 2.qxp 6/12/2018 2:06 PM Page 26
Page 47 of 685
2-27
Safety system of your vehicle
Information
• You can find the front passenger’sseat belt warning light on the centre
fascia panel.
• Although the front passenger seat is not occupied, the seat belt warning
light will blink or illuminate for 6
seconds.
• The front passenger's seat belt warning may operate when luggage
is placed on the front passenger seat.
Rear passenger’s seat belt warning
If the ignition switch is turned ON
(engine is not running) when the rear
passenger's lap/shoulder belt is not
fastened, the corresponding seat
belt warning light will illuminate until
the belt is fastened.
And then, the rear corresponding
seat belt warning light will illuminate
for approximately 35 seconds, if any
of following occurs;
- You start the engine when the rear belt is not fastened.
- You drive over 5 mph (9km/h) when the rear belt is not fastened.
- The rear belt is disconnected when driving under 12 mph (20km/h). If the rear seat belt is fastened, the
warning light will turn off immediate-
l y.
If the rear seat belt is disconnected
when you drive over the 12 mph
(20km/h), the corresponding seat
belt warning light will blink and warn-
ing chime will sound for 35 seconds.
But, if the rear passenger's
lap/shoulder belt is/are connected
and disconnected twice within 9 sec-
onds after the belt is fastened, the
corresponding seat belt warning light
will not operate.
i
2
OTLE035083R
TLe UK 2.qxp 6/12/2018 2:06 PM Page 27
Page 48 of 685
2-28
Safety system of your vehicle

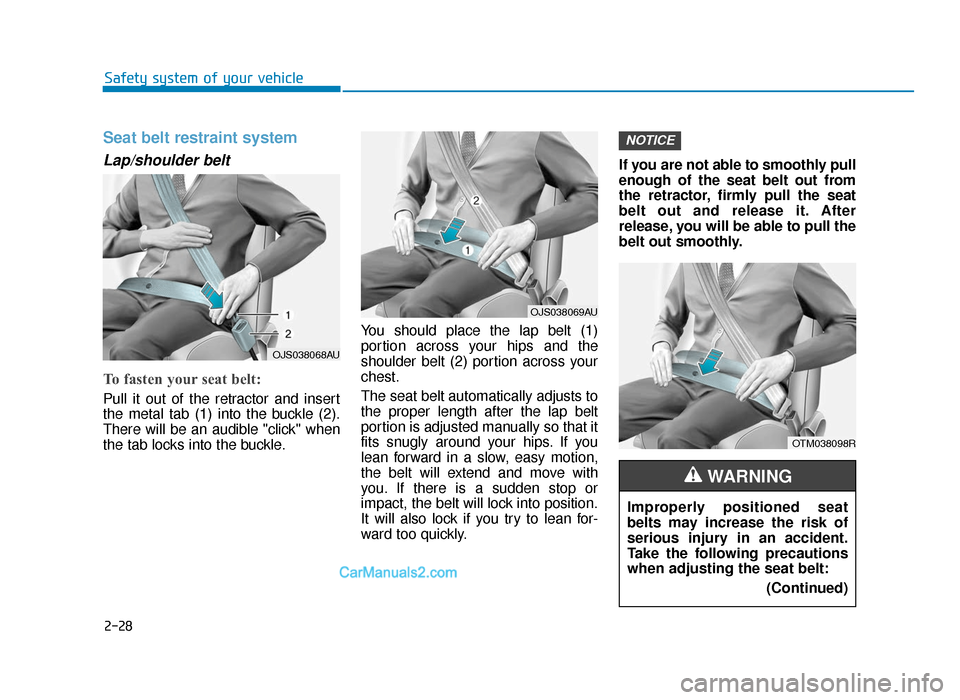

Seat belt restraint system
Lap/shoulder belt
To fasten your seat belt:
Pull it out of the retractor and insert
the metal tab (1) into the buckle (2).
There will be an audible "click" when
the tab locks into the buckle.You should place the lap belt (1)
portion across your hips and the
shoulder belt (2) portion across your
chest.
The seat belt automatically adjusts to
the proper length after the lap belt
portion is adjusted manually so that it
fits snugly around your hips. If you
lean forward in a slow, easy motion,
the belt will extend and move with
you. If there is a sudden stop or
impact, the belt will lock into position.
It will also lock if you try to lean for-
ward too quickly.If you are not able to smoothly pull
enough of the seat belt out from
the retractor, firmly pull the seat
belt out and release it. After
release, you will be able to pull the
belt out smoothly.
NOTICE
OJS038068AU
OTM038098R
Improperly positioned seat
belts may increase the risk of
serious injury in an accident.
Take the following precautions
when adjusting the seat belt:
(Continued)
WARNING
OJS038069AU
TLe UK 2.qxp 6/12/2018 2:06 PM Page 28
Page 49 of 685
2-29
Safety system of your vehicle
2

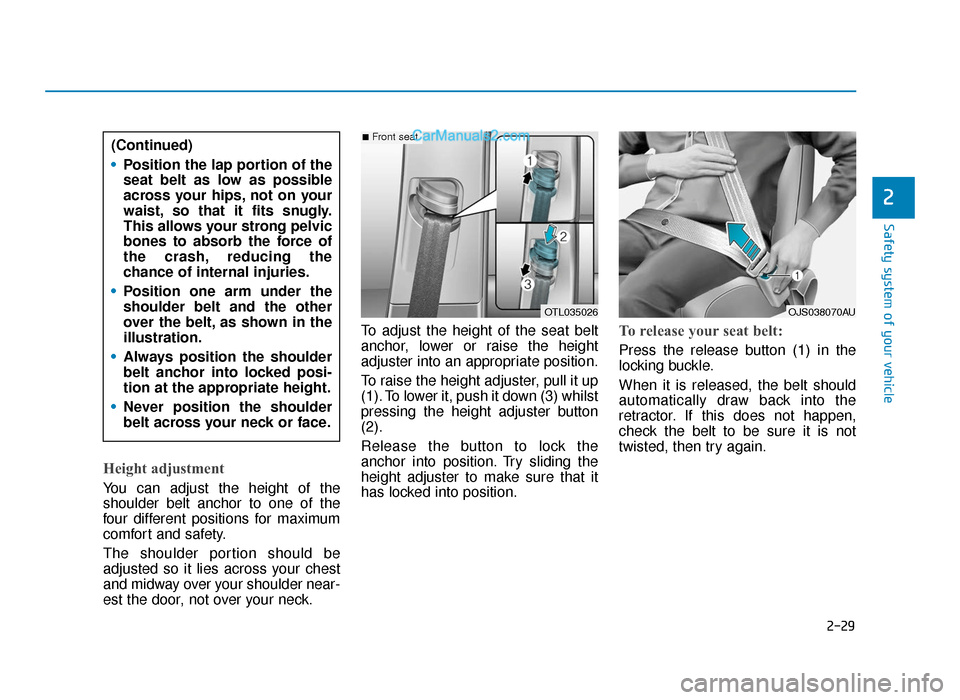

Height adjustment
You can adjust the height of the
shoulder belt anchor to one of the
four different positions for maximum
comfort and safety.
The shoulder portion should be
adjusted so it lies across your chest
and midway over your shoulder near-
est the door, not over your neck.To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) whilst
pressing the height adjuster button
(2).
Release the button to lock the
anchor into position. Try sliding the
height adjuster to make sure that it
has locked into position.
To release your seat belt:
Press the release button (1) in the
locking buckle.
When it is released, the belt should
automatically draw back into the
retractor. If this does not happen,
check the belt to be sure it is not
twisted, then try again.
OTL035026
■Front seat(Continued)
•
Position the lap portion of the
seat belt as low as possible
across your hips, not on your
waist, so that it fits snugly.
This allows your strong pelvic
bones to absorb the force of
the crash, reducing the
chance of internal injuries.
• Position one arm under the
shoulder belt and the other
over the belt, as shown in the
illustration.
• Always position the shoulder
belt anchor into locked posi-
tion at the appropriate height.
• Never position the shoulder
belt across your neck or face.
OJS038070AU
TLe UK 2.qxp 6/12/2018 2:06 PM Page 29
Page 50 of 685
2-30
Safety system of your vehicle

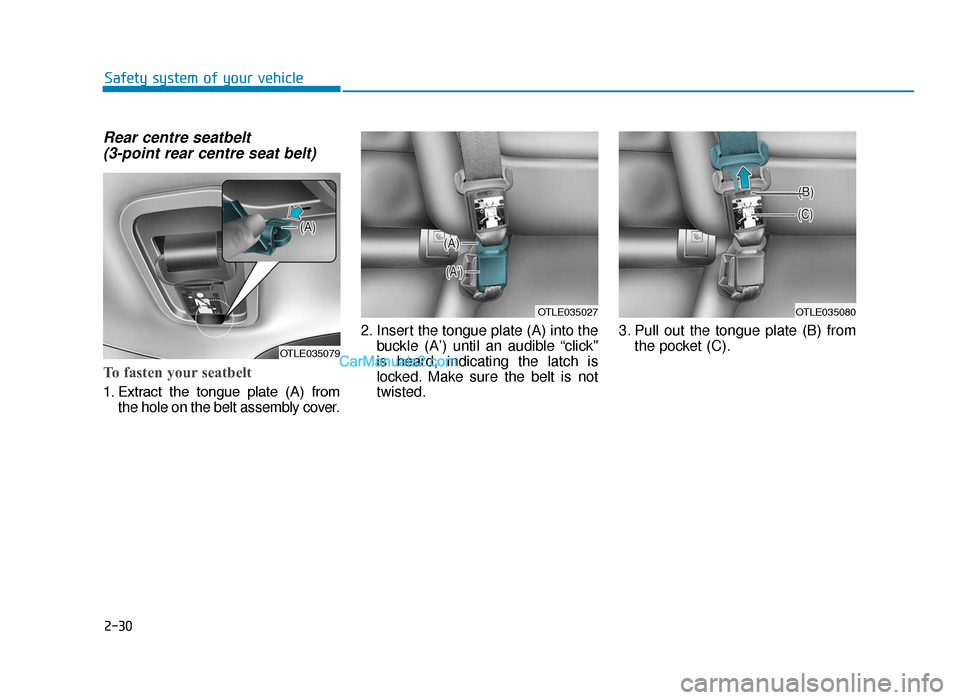

Rear centre seatbelt (3-point rear centre seat belt)
To fasten your seatbelt
1. Extract the tongue plate (A) from
the hole on the belt assembly cover. 2. Insert the tongue plate (A) into the
buckle (A’) until an audible “click"
is heard, indicating the latch is
locked. Make sure the belt is not
twisted. 3. Pull out the tongue plate (B) from
the pocket (C).
OTLE035079
OTLE035027OTLE035080
TLe UK 2.qxp 6/12/2018 2:06 PM Page 30
