DTC P0127 IAT SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P0127 IAT SENSORPFP:22630
Component DescriptionABS006NG
The intake air temperature sensor is built into mass air flow sensor.
The sensor detects intake air temperature and transmits a signal to
the ECM.
The temperature sensing unit uses a thermistor which is sensitive to
the change in temperature. Electrical resistance of the thermistor
decreases in response to the temperature rise.

*: This data is reference value and is measured between ECM terminal 34 (Intake air
temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicABS006NH
DTC Confirmation ProcedureABS006NI
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
CAUTION:
Always drive vehicle at a safe speed.
TESTING CONDITION:
This test may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road
test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Wait until engine coolant temperature is less than 90°C (194°F)
a. Turn ignition switch ON.
PBIB1604E
Intake air temperature
°C (°F)Voltage* V Resistance kΩ
25 (77) 3.32 1.94 - 2.06
80 (176) 1.23 0.295 - 0.349
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0127
0127Intake air temperature
too highRationally incorrect voltage from the sensor is
sent to ECM, compared with the voltage signal
from engine coolant temperature sensor.

Harness or connectors
(The sensor circuit is open or shorted)

Intake air temperature sensor

DTC P0127 IAT SENSOR
EC-201
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
b. Select “DATA MONITOR” mode with CONSULT-II.
c. Check the engine coolant temperature.
d. If the engine coolant temperature is not less than 90°C (194°F),
turn ignition switch OFF and cool down engine.

Perform the following steps before engine coolant tempera-
ture is above 90°C (194°F).
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine.
5. Hold vehicle speed at more than 70 km/h (43 MPH) for 100 con-
secutive seconds.
6. If 1st trip DTC is detected, go to EC-201, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureABS006NJ
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-141, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2. CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to EC-202, "
Component Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Replace mass air flow sensor (with intake air temperature sensor).
3. CHECK INTERMITTENT INCIDENT
Refer to EC-135, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
Refer to EC-182, "
Wiring Diagram" .
>>INSPECTION END
SEF189Y
PBIB2195E

EC-202
[VQ35DE]
DTC P0127 IAT SENSOR
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS006NK
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between intake air temperature sensor termi-
nals 5 and 6 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature
sensor).
Removal and InstallationABS006NL
MASS AIR FLOW SENSOR
Refer to EM-17, "AIR CLEANER AND AIR DUCT" .
Intake air temperature °C (°F) Resistance kΩ
25 (77) 1.94 - 2.06
PBIB1604E
SEF012P

DTC P0128 THERMOSTAT FUNCTION
EC-203
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P0128 THERMOSTAT FUNCTIONPFP:21200
On Board Diagnosis LogicABS006NM
Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long
enough.
This is due to a leak in the seal or the thermostat stuck open.
DTC Confirmation ProcedureABS006NN
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:

For best results, perform at ambient temperature of –10°C (14°F) or higher.

For best results, perform at engine coolant temperature of –10°C (14°F) to 60°C (140°F).
WITH CONSULT-II
1. Replace thermostat with new one. Refer to CO-26, "WATER INLET AND THERMOSTAT ASSEMBLY" .
Use only a genuine NISSAN thermostat as a replacement. If an incorrect thermostat is used, the MIL may
come on.
2. Turn ignition switch ON.
3. Select “COOLAN TEMP/S” in “DATA MONITOR” mode with
CONSULT-II.
4. Check that the “COOLAN TEMP/S” is above 60°C (140°F).
If it is below 60°C (140°F), go to following step.
If it is above 60°C (140°F), cool down the engine to less than
60°C (140°F), then retry from step 1.
5. Drive vehicle for 10 consecutive minutes under the following
conditions.
If 1st trip DTC is detected, go to EC-203, "
Diagnostic Procedure"
.
WITH GST
1. Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureABS006NO
1. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-204, "
Component Inspection" .
OK or NG
OK >>INSPECTION END
NG >> Replace engine coolant temperature sensor.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0128
0128Thermostat functionThe engine coolant temperature does not
reach to specified temperature even though
the engine has run long enough.

Thermostat

Leakage from sealing portion of thermo-
stat

Engine coolant temperature sensor
VHCL SPEED SE 80 - 120 km/h (50 - 75 MPH)
SEF176Y

EC-204
[VQ35DE]
DTC P0128 THERMOSTAT FUNCTION
Revision: 2004 November 2004 FX35/FX45
Component InspectionABS00D1K
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.

*: This data is reference value and is measured between ECM terminal 73
(Engine coolant temperature sensor) and ground.
2. If NG, replace engine coolant temperature sensor.
Removal and InstallationABS006NQ
ENGINE COOLANT TEMPERATURE SENSOR
Refer to CO-26, "WATER INLET AND THERMOSTAT ASSEMBLY" .
PBIB2005E
Engine coolant
temperature°C (°F)Voltage* V Resistance kΩ
20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P

DTC P0132, P0152 HO2S1
EC-205
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P0132, P0152 HO2S1PFP:22690
Component DescriptionABS006NR
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1 to 0V.
CONSULT-II Reference Value in Data Monitor ModeABS006NS
Specification data are reference values.
On Board Diagnosis LogicABS006NT
To judge the malfunction, the diagnosis checks that the heated oxy-
gen sensor 1 output is not inordinately high.
SEF463R
SEF288D
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 (B1)
HO2S1 (B2)

Engine: After warming up Maintaining engine speed at 2,000 rpm0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)
HO2S1 MNTR (B2)LEAN ←→ RICH
Changes more than 5 times dur-
ing 10 seconds.
SEF301UA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0132
0132
(Bank 1)
Heated oxygen sensor
1 circuit high voltageAn excessively high voltage from the sensor is
sent to ECM.

Harness or connectors
(The sensor circuit is open or shorted)

Heated oxygen sensor 1 P0152
0152
(Bank 2)

EC-206
[VQ35DE]
DTC P0132, P0152 HO2S1
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS006NU
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. Restart engine and let it idle for 2 minutes.
6. If 1st trip DTC is detected, go to EC-210, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF174Y

DTC P0132, P0152 HO2S1
EC-207
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS006NV
BANK 1
TBWM0290E

EC-208
[VQ35DE]
DTC P0132, P0152 HO2S1
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
35 BRHeated oxygen sensor 1
(bank 1)[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm0 - Approximately 1.0V
(Periodically change)
78 B/RSensor ground
(Heated oxygen sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V

DTC P0132, P0152 HO2S1
EC-209
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

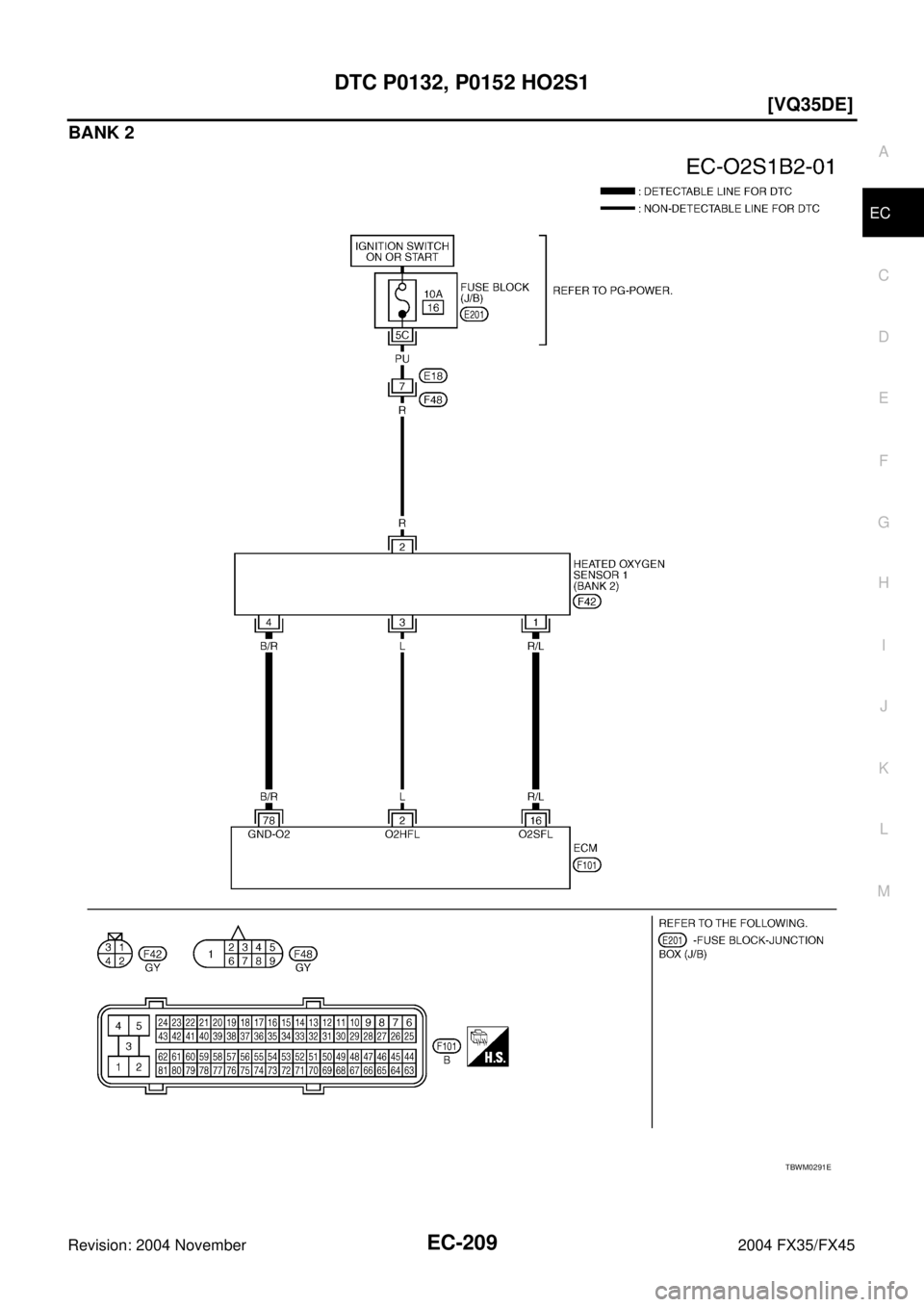

BANK 2
TBWM0291E
