AV-136
NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
Confirmation/Adjustment ModeAKS00BN5
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system off.
3. While pressing the “MUTE/II ” button, turn the volume control
dial clockwise or counterclockwise for 30 clicks or more. (When
the self-diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “PREV” button.
4. The initial trouble diagnosis screen will be shown, and items
“Self-Diagnosis (DCU)”, “Self-Diagnosis (NAVI)”,“Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
5. When “Confirmation/Adjustment” is selected on the initial trouble
diagnosis screen, the operation will enter the CONFIRMATION/
ADJUSTMENT mode. In this mode, check and adjustment of
each item will become possible.
6. The initial trouble diagnosis screen will be shown, and items
“Display Diagnosis”, “Vehicle Signals”, “Auto Climate Control”
and “Navigation” will become selective.
7. Select each switch on “CONFIRMATION/ADJUSTMENT”
screen to display the relevant diagnosis screen.
DISPLAY DIAGNOSIS
SKIA4971E
SKIA4207E
SKIA4220E
SKIA4602E

NAVIGATION SYSTEM
AV-141
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
NAVIGATION
1. The initial trouble diagnosis screen will be shown, and items
“Display Longitude & Latitude”,“Speed Calibration”,“Angle
Adjustment” and “Initialize Location” will become selective.
2. Select each switch on “NAVIGATION” screen to display the rele-
vant diagnosis screen.
GPS ROM
malfunction
GPS RAM
malfunctionContents of ROM (or RAM) in GPS substrate are malfunctioning.

Location detection accuracy of the navigation
system will deteriorate, depending on the error
area in the memory, because GPS cannot
make correct positioning.
(Location correction using GPS is not per-
formed.)

Perform self-diagnosis.

When the NAVI control unit is judged normal by self-diagnosis,
the symptom may be intermittent, caused by strong radio inter-
ference.
GPS RTC
malfunctionClock IC in GPS substrate is malfunctioning.

Correct time may not be displayed.

After the power is turned on, the system
always takes some time until GPS positioning
becomes possible. (The GPS receiver starts
positioning without re-collecting the whole sat-
ellite information when it judged the data
stored in the receiver is correct.)

Correct time of error occurrence may not be
stored in the ″History of Errors″.

Perform self-diagnosis.

When the NAVI control unit is judged normal by self-diagnosis,
the symptom may be intermittent, caused by strong radio inter-
ference.
GPS antenna
disconnectedMalfunctioning connection between GPS substrate in NAVI control
unit and GPS antenna.

Navigation location detection performance
has deteriorated.
(Location correction using GPS is not per-
formed.)

GPS receiving status remains gray.

Perform self-diagnosis.

When connection between NAVI control unit and GPS antenna
is judged normal by self-diagnosis, the symptom may be inter-
mittent, caused by impact or vibration.
Low voltage
of GPSThe power voltage supplied to the GPS circuit board has
decreased.

Navigation location detection performance
has deteriorated.
(Location correction using GPS is not per-
formed.)

GPS receiving status remains gray.

Perform self-diagnosis.

When connection between NAVI control unit and GPS antenna
is judged normal by self-diagnosis, the symptom may be inter-
mittent, caused by impact or vibration.
DVD-ROM
Malfunction
DVD-ROM
Read error
DVD-ROM
Response
ErrorMalfunctioning NAVI control unit -
Dedicated map DVD-ROM is in the system, but the data cannot be
read.

The map of a particular location cannot be dis-
played.

Specific guidance information cannot be dis-
played.

Map display is slow.

Guidance information display is slow.

System has been affected by vibration.

Is map DVD-ROM damaged, warped, or dirty?
–If damaged or warped, the map DVD-ROM is malfunctioning.
–If dirty, wipe the DVD-ROM clean with a soft cloth.

Perform self-diagnosis.

When NAVI control unit is judged normal by self-diagnosis, the
symptom is judged intermittent, caused by vibration. Error itemPossible causes
Example of symptom
Action/symptom
SKIA4576E

NAVIGATION SYSTEM
AV-143
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Can Diag Support MonitorAKS007J3
OPERATION PROCEDURE
1. Start the engine.
2. Turn the audio system off.
3. While pressing the “MUTE/II ” button, turn the volume control
dial clockwise or counterclockwise for 30 clicks or more. (When
the self-diagnosis mode is started, a short beep will be heard.)

Shifting from current screen to previous screen is performed
by pressing “PREV” button.
4. The initial trouble diagnosis screen will be shown, and items
“Self-Diagnosis (DCU)”, “Self-Diagnosis (NAVI)”, “Confirmation/
Adjustment” and “CAN DIAG SUPPORT MONITOR” will
become selective.
5. Select “CAN DIAG SUPPORT MONITOR”.
6. Display status of CAN communication.
NOTE:
Counter shows the status of CAN communication.
SKIA4971E
SKIA4207E
Item ContentError counter
(Reference value)
CANCOMM OK/NG 0-50
CAN_CIRC_1 OK/UNKWN 0-50
CAN_CIRC_2 OK/UNKWN 0-50
CAN_CIRC_3 OK/UNKWN 0-50
CAN_CIRC_4 OK/UNKWN 0-50
CAN_CIRC_5 OK/UNKWN 0-50
CAN_CIRC_6 OK/UNKWN 0-50
CAN_CIRC_7 OK/UNKWN 0-50
CAN_CIRC_8 OK/UNKWN 0-50
CAN_CIRC_9 OK/UNKWN 0-50
SKIA4288E

BL-8
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
SQUEAK AND RATTLE TROUBLE DIAGNOSISPFP:00000
Work FlowAIS004LE
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to BL-12, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

BRAKE PEDAL
BR-7
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2004 November 2004 FX35/FX45
ADJUSTMENT
1. Loosen stop lamp switch and ASCD cancel switch (or brake
switch) by turning it counterclockwise by 45°.
2. Loosen lock nut (A) on input rod, then rotate input rod to set
pedal to the specified height, and tighten lock nut (A).
CAUTION:
Make sure the threaded end of input rod stays inside clevis.
3. With pedal pulled and held by hand, press stop lamp switch and
ASCD cancel switch (or brake switch) until its threaded end con-
tacts stopper rubber.
4. With the threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) contacting stopper rubber, rotate switch
clockwise by 45° to secure.
CAUTION:
Make sure that the clearance (C) between stopper rubber
and threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) is within the standard.
5. Check pedal play.
CAUTION:
Make sure that stop lamps go off when pedal is released.
6. Start engine to check brake pedal depressed height.
Removal and InstallationAFS001MU
COMPONENT PARTS LOCATION
Lock nut (A) :
Refer to BR-16, "
Removal and Installation"
SFIA0160E
SFIA1940E

BRAKE PIPING AND HOSE
BR-11
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2004 November 2004 FX35/FX45
BRAKE PIPING AND HOSEPFP:46210
Hydraulic CircuitAFS001MY
CAUTION:

All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.

Make sure there is no interference with other parts when turning steering both clockwise and
counterclockwise.

The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble
the parts. Replace applicable part with a new one, if necessary.

Be careful not to splash brake fluid on painted areas; it way cause paint damage. If brake fluid is
splashed on painted areas, wash it away with water immediately.

Do not bend or twist brake hose sharply, or strongly pull it.

When removing components, cover connections so that no dirt, dust, or other foreign matter gets
in.

Refill with new brake fluid “ DOT 3 ”

Do not reuse drained brake fluid.
Removal and Installation of Front Brake Piping and Brake Hose AFS001MZ
REMOVAL
1. Drain brake fluid. Refer to BR-9, "Drain and Refill" .
2. Using a flare nut wrench, remove brake tube from brake hose.
3. Remove union bolt and remove brake hose from caliper assembly.
4. Remove lock plate and remove brake hose from the vehicle.
INSTALLATION
1. Install brake hose by aligning with the protrusion on caliper
assembly, and tighten union bolt to the specified torque.
NOTE:
Do not reuse copper washer.
2. Install brake hose to brake tube, partially tighten flare nut as far
as possible by hand, then secure it to bracket with lock plate.
3. Using a flare nut wrench, tighten flare nut to the specified
torque.
4. Refill brake fluid and bleed air. Refer to BR-10, "
Bleeding Brake
System" .
SFIA1941E
SFIA1204E

WATER PUMP
CO-23
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
7. Remove timing chain tensioner (primary) with the following pro-
cedure.
a. Pull the lever down and release plunger stopper tab.

Plunger stopper tab can be pushed up to release (coaxial
structure with lever).
b. Insert stopper pin into the tensioner body hole to hold lever and
keep the plunger stopper tab released.
NOTE:
An Allen wrench [2.5 mm (0.098 in)] is used for a stopper pin as
an example.
c. Insert plunger into the tensioner body by pressing timing chain
slack guide.
d. Keep slack guide pressed and hold plunger in by pushing stopper pin deeper through lever and into the
tensioner body hole.
e. Turn crankshaft pulley approximately 20° clockwise so that tim-
ing chain on the timing chain tensioner (primary) side is loose.
f. Remove mounting bolts and timing chain tensioner (primary).
CAUTION:
Be careful not to drop mounting bolts inside chain case.
8. Remove three water pump fixing bolts. Secure a gap between
water pump gear and timing chain, by turning crankshaft pulley
counterclockwise until timing chain looseness on water pump
sprocket becomes maximum.
PBIC2112E
PBIC0848E
PBIC2113E
PBIC1193E

CO-24
[VQ35DE]
WATER PUMP
Revision: 2004 November 2004 FX35/FX45
9. Screw M8 bolts [pitch: 1.25 mm (0.049 in) length: approx. 50
mm (1.97 in)] into water pumps upper and lower mounting bolt
holes until they reach timing chain case. Then, alternately
tighten each bolt for a half turn, and pull out water pump.
CAUTION:

Pull straight out while preventing vane from contacting
socket in installation area.

Remove water pump without causing sprocket to contact
timing chain.
10. Remove M8 bolts and O-rings from water pump.
CAUTION:
Do not disassembly water pump.
INSPECTION AFTER REMOVAL

Check for badly rusted or corroded water pump body assembly.

Check for rough operation due to excessive end play.

If anything is found, replace water pump.
INSTALLATION
1. Install new O-rings to water pump.

Apply engine oil and engine coolant to O-rings as shown in
the figure.

Locate O-ring with white paint mark to engine front side.
2. Install water pump.
CAUTION:
Do not allow cylinder block to nip O-rings when install
water pump.

Make sure timing chain and water pump sprocket are
engaged.

Insert water pump by tightening mounting bolts alternately
and evenly.
3. Install timing chain tensioner (primary) as the following:
a. Remove dust and foreign material completely from backside of chain tensioner and from installation area
of rear timing chain case.
b. Turn crankshaft pulley clockwise so that timing chain on the timing chain tensioner (primary) side is loose.

Apply engine oil should be applied to the oil hole and tensioner, when installing timing chain
tensioner.
JLC357B
SLC943A
PBIC1397E
PBIC1058E

DI-2Revision: 2004 November 2004 FX35/FX45Schematic ............................................................... 39
Wiring Diagram — WARN — .................................. 40
Oil Pressure Warning Lamp Stays Off (Ignition
Switch ON) ............................................................. 48
Oil Pressure Warning Lamp Does Not Turn Off (Oil
Pressure Is Normal) ................................................ 49
Component Inspection ............................................ 50
OIL PRESSURE SWITCH ................................... 50
A/T INDICATOR ........................................................ 51
Wiring Diagram — AT/IND — ................................. 51
A/T Indicator Is Malfunction .................................... 53
WARNING CHIME ..................................................... 55
Component Parts and Harness Connector Location ... 55
System Description ................................................. 55
FUNCTION .......................................................... 55
IGNITION KEY WARNING CHIME (WITHOUT
INTELLIGENT KEY) ............................................ 56
IGNITION KEY WARNING CHIME (WITH INTEL-
LIGENT KEY) ...................................................... 56
LIGHT WARNING CHIME ................................... 57
SEAT BELT WARNING CHIME ........................... 57
CAN Communication System Description .............. 57
CAN Communication Unit ....................................... 57
Schematic ............................................................... 58
Wiring Diagram — CHIME — ................................. 59
Terminals and Reference Value for BCM ................ 62
Terminals and Reference Value for Unified Meter
and A/C Amp. ......................................................... 63
Terminals and Reference Value for Combination
Meter ...................................................................... 64
How to Proceed With Trouble Diagnosis ................ 64
Preliminary Check .................................................. 65
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 65
CONSULT-II Function ............................................. 66
DIAGNOSTIC ITEMS DESCRIPTION ................. 66
CONSULT-II BASIC OPERATION PROCEDURE
... 66
DATA MONITOR .................................................. 67
ACTIVE TEST ..................................................... 67
SELF-DIAGNOSTIC RESULTS ........................... 67
All Warnings Are Not Operated .............................. 68
Key Warning Chime and Light Warning Chime Does
Not Operate (Seat Belt Warning Chime Does Oper-ate) .......................................................................... 69
Key Warning Chime Does Not Operate (Without
Intelligent Key) ........................................................ 70
Key Warning Chime Does Not Operate (With Intel-
ligent Key, When Mechanical Key Is Used) ............ 72
Key Warning Chime Does Not Operate (With Intel-
l i g e n t K e y , W h e n I n t e l l i g e n t K e y I s C a r r i e d W i t h T h e
Driver) ..................................................................... 74
Light Warning Chime Does Not Operate ................. 76
Seat Belt Warning Chime Does Not Operate .......... 77
CLOCK ...................................................................... 79
Wiring Diagram — CLOCK — ................................. 79
Removal and Installation of Clock ........................... 80
REMOVAL ............................................................ 80
INSTALLATION .................................................... 80
REAR VIEW MONITOR ............................................. 81
System Description ................................................. 81
POWER SUPPLY AND GROUND ....................... 81
AV COMMUNICATION LINE ............................... 81
REAR VIEW CAMERA OPERATION .................. 81
Component Parts and Harness Connector Location ... 82
Schematic ............................................................... 83
Wiring Diagram — R/VIEW — ................................ 84
Terminals and Reference Value for Rear View Cam-
era Control Unit ....................................................... 87
CONSULT-II Function ............................................. 87
CONSULT-II BASIC OPERATION ....................... 87
WORK SUPPORT ............................................... 88
DATA MONITOR .................................................. 89
Side Distance Guideline Correction ........................ 89
SIDE DISTANCE GUIDELINE CORRECTION
PROCEDURE ...................................................... 89
Power Supply and Ground Circuit Inspection ......... 91
Rear View Is Not Displayed With The A/T Selector
Lever In R-position .................................................. 92
The Rear View Image Is Distorted .......................... 96
Removal and Installation of Rear View Camera Con-
trol Unit .................................................................... 97
REMOVAL ............................................................ 97
INSTALLATION .................................................... 97
Removal and Installation of Rear View Camera ..... 97
REMOVAL ............................................................ 97
INSTALLATION .................................................... 98

CLOCK
DI-79
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
CLOCKPFP:25820

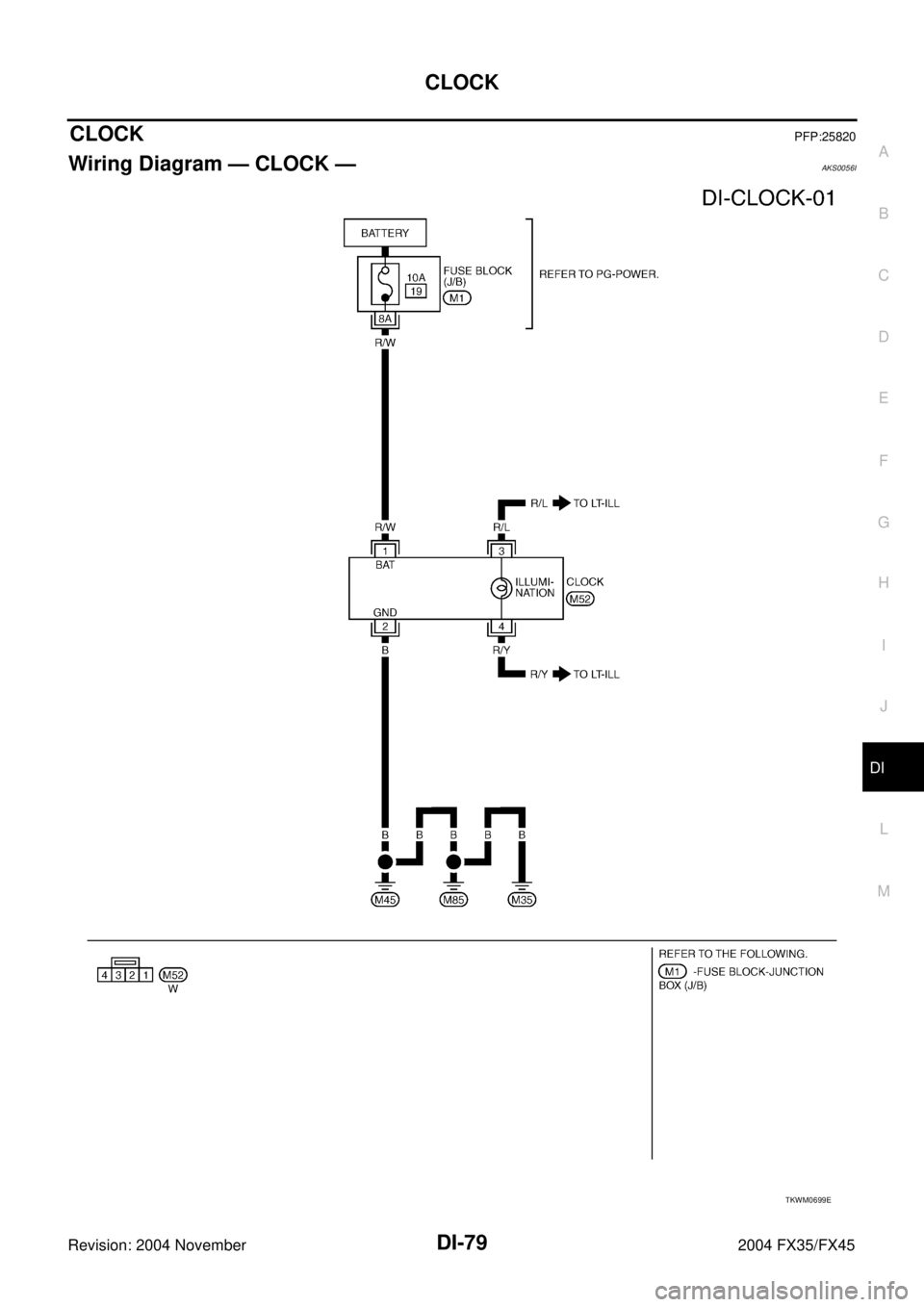

Wiring Diagram — CLOCK —AKS0056I
TKWM0699E
