warning INFINITI FX35 2004 Service Manual

CAN COMMUNICATION
LAN-19
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Tire pressure data
signalRT
ABS warning lamp
signalRRT
VDC OFF indicator
lamp signalRRT
SLIP indicator lamp
signalRT
Brake warning lamp
signalRT
System setting signalTR R
RT T
AWD warning lamp
signalTR
Distance to empty
signalRT
Parking brake switch
signalRRT
Door lock/unlock
request signalTR
Door lock/unlock sta-
tus signalRT
Starter permission
signalTR
Back door open
request signalTR
Power window open
request signalTR
Alarm request signal T R
Key warning signal T R
ICC sensor signal R T
ICC warning lamp
signalTR
ICC system display
signalTR
Current gear posi-
tion signalTR R
Steering switch sig-
nalTR
ASCD operation sig-
nalTR
ASCD OD cancel
request signalTR
ICC OD cancel
request signalRR T Signals ECM TCMDis-
play
con-
trol
unitLow
tire
pres-
sure
warn-
ing
con-
trol
unitAW D
con-
trol
unitICC
unitIntel-
ligent
Key
unitBCMSteer-
ing
angle
sen-
sorUni-
fied
meter
and
A/C
amp.ICC
sen-
sorABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R

LAN-104
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
Case 8
Check low tire pressure warning control unit circuit. Refer to LAN-120, "Low Tire Pressure Warning Control
Unit Circuit Check" .
PKIA7971E
SKIA6591E

LAN-120
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector
F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and display con-
trol unit.
Display Control Unit Circuit CheckAKS00C0M
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of display control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display control unit connector.
2. Check resistance between display control unit harness connec-
tor M76 terminals 25 (L) and 26 (R).
OK or NG
OK >> Replace display control unit.
NG >> Repair harness between display control unit and har-
ness connector M82.
Low Tire Pressure Warning Control Unit Circuit CheckAKS00C0N
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of low tire pressure warning control unit for damage, bend and loose con-
nection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.3 (L) - 8 (R) : Approx. 54 - 66Ω
SKIA6866E
25 (L) - 26 (R) : Approx. 54 - 66Ω
SKIA6884E

CAN SYSTEM (TYPE 3)
LAN-121
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect low tire pressure warning control unit connector.
2. Check resistance between low tire pressure warning control unit
harness connector M74 terminals 9 (L) and 21 (R).
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair harness between low tire pressure warning con-
trol unit and harness connector M82.
ICC Unit Circuit CheckAKS00C0O
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC unit for damage, bend and loose connection (unit side and harness
side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between ICC unit harness connector M88 ter-
minals 14 (L) and 5 (R).
OK or NG
OK >> Replace ICC unit.
NG >> Repair harness between ICC unit and harness connec-
tor M82.
Intelligent Key Unit Circuit CheckAKS00C0P
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of Intelligent Key unit for damage, bend and loose connection (unit side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.9 (L) - 21 (R) : Approx. 54 - 66Ω
SKIA6885E
14 (L) - 5 (R) : Approx. 54 - 66Ω
SKIA6886E

CAN SYSTEM (TYPE 3)
LAN-127
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
CAN Communication Circuit CheckAKS00C0Y
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display control unit
–Low tire pressure warning control unit
–ICC unit
–Intelligent Key unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ICC sensor
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.

LAN-128
[CAN]
CAN SYSTEM (TYPE 3)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display control unit connector
–Low tire pressure warning control unit connector
–ICC unit connector
–Intelligent Key unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display control unit

Harness between data link connector and low tire pressure warning control unit

Harness between data link connector and ICC unit

Harness between data link connector and Intelligent Key unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41 6 (L) - 14 (R) : Continuity should not exist.
SKIA6868E

CAN SYSTEM (TYPE 3)
LAN-129
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display control unit

Harness between data link connector and low tire pressure warning control unit

Harness between data link connector and ICC unit

Harness between data link connector and Intelligent Key unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector F44
terminals 3 (L) and 8 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector F44 ter-
minals 3 (L), 8 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102. 6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
SKIA6874E
3 (L) - 8 (R) : Continuity should not exist.
SKIA6866E
3 (L) - Ground : Continuity should not exist.
8 (R) - Ground : Continuity should not exist.
SKIA6875E

CAN SYSTEM (TYPE 6)
LAN-223
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

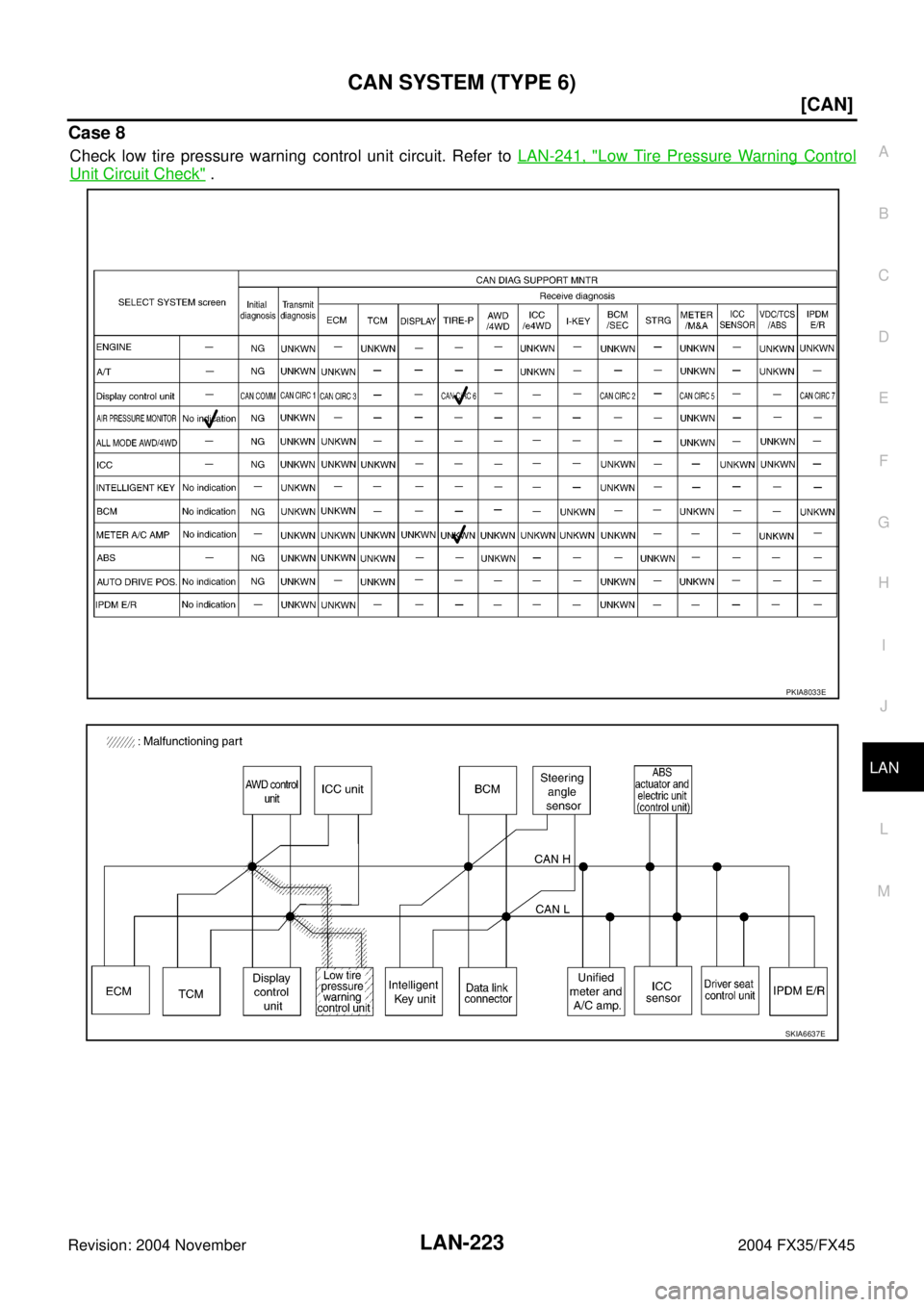

Case 8
Check low tire pressure warning control unit circuit. Refer to LAN-241, "Low Tire Pressure Warning Control
Unit Circuit Check" .
PKIA8033E
SKIA6637E

CAN SYSTEM (TYPE 6)
LAN-241
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector
F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and display con-
trol unit.
Display Control Unit Circuit CheckAKS00C2K
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of display control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display control unit connector.
2. Check resistance between display control unit harness connec-
tor M76 terminals 25 (L) and 26 (R).
OK or NG
OK >> Replace display control unit.
NG >> Repair harness between display control unit and har-
ness connector M82.
Low Tire Pressure Warning Control Unit Circuit CheckAKS00C2L
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of low tire pressure warning control unit for damage, bend and loose con-
nection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.3 (L) - 8 (R) : Approx. 54 - 66Ω
SKIA6866E
25 (L) - 26 (R) : Approx. 54 - 66Ω
SKIA6884E

LAN-242
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect low tire pressure warning control unit connector.
2. Check resistance between low tire pressure warning control unit
harness connector M74 terminals 9 (L) and 21 (R).
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair harness between low tire pressure warning con-
trol unit and harness connector M82.
AWD Control Unit Circuit CheckAKS00C2M
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of AWD control unit for damage, bend and loose connection (control unit
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect AWD control unit connector.
2. Check resistance between AWD control unit harness connector
M92 terminals 8 (L) and 16 (R).
OK or NG
OK >> Replace AWD control unit.
NG >> Repair harness between AWD control unit and harness
connector M82.
ICC Unit Circuit CheckAKS00C2N
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC unit for damage, bend and loose connection (unit side and harness
side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.9 (L) - 21 (R) : Approx. 54 - 66Ω
SKIA6885E
8 (L) - 16 (R) : Approx. 54 - 66Ω
SKIA6889E
