INFINITI FX35 2004 Service Manual

PG-76
JOINT CONNECTOR (J/C)
Revision: 2004 November 2004 FX35/FX45

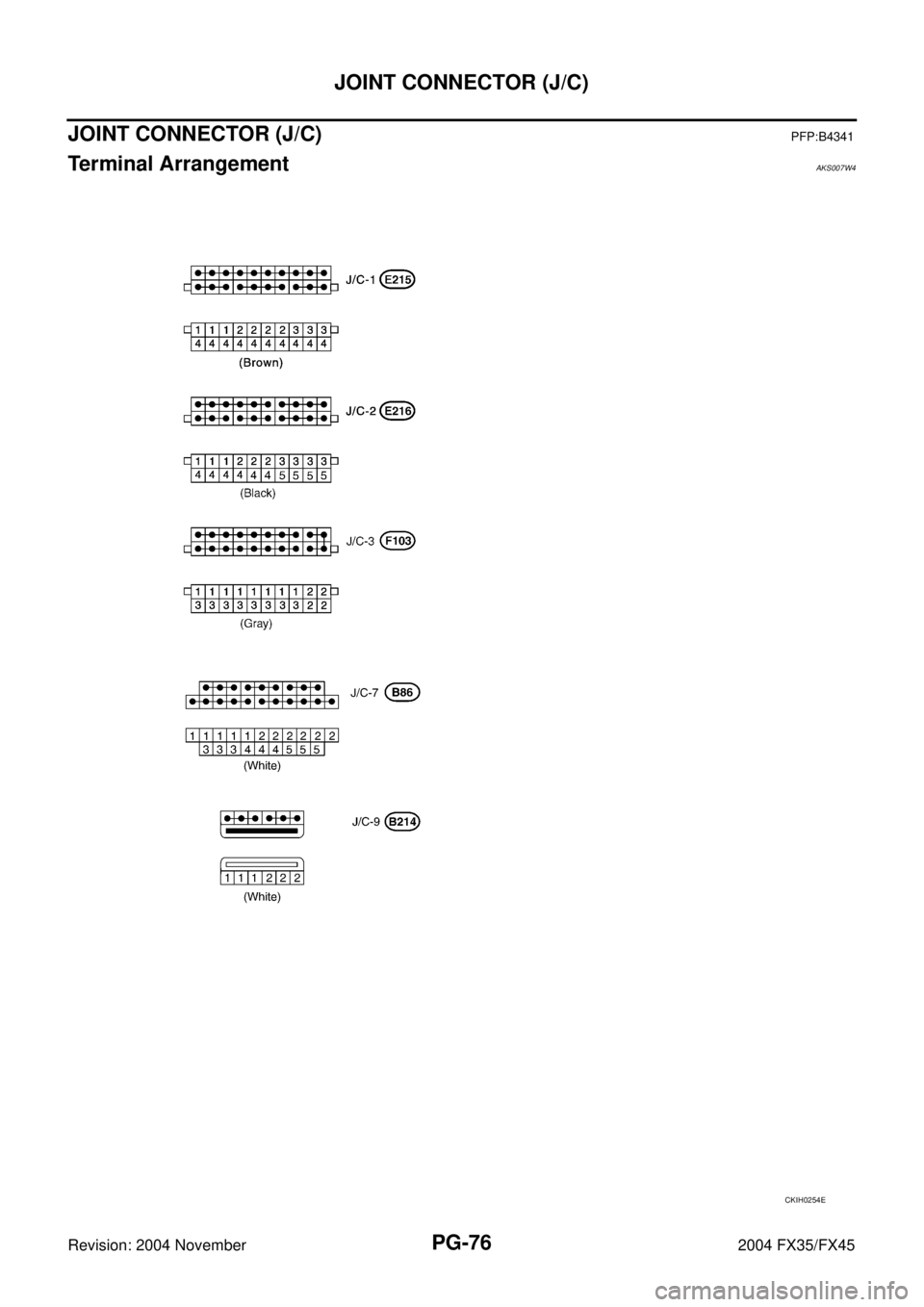

JOINT CONNECTOR (J/C)PFP:B4341
Terminal ArrangementAKS007W4
CKIH0254E

ELECTRICAL UNITS
PG-77
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45

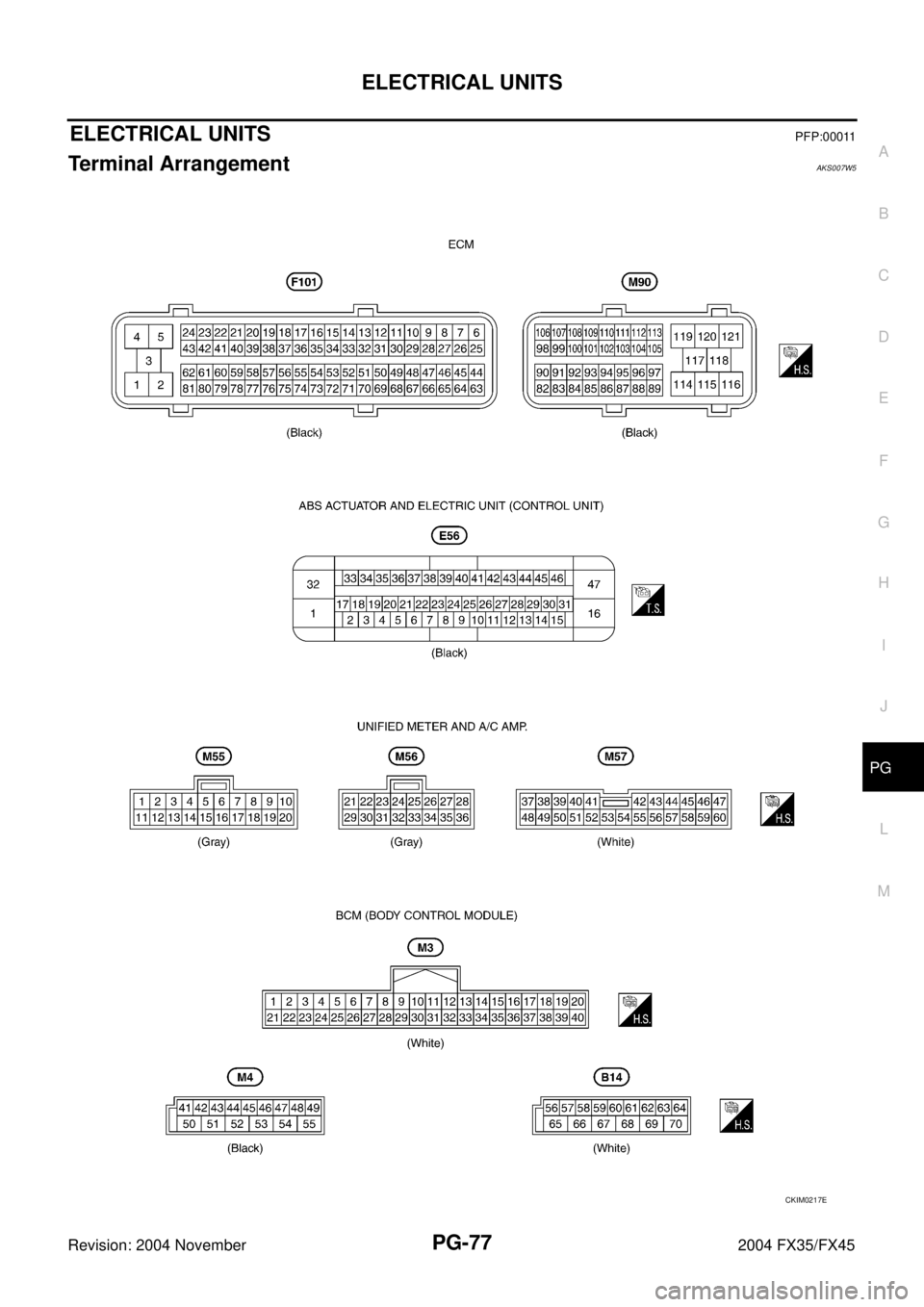

ELECTRICAL UNITS PFP:00011
Terminal Arrangement AKS007W5
CKIM0217E

PG-78

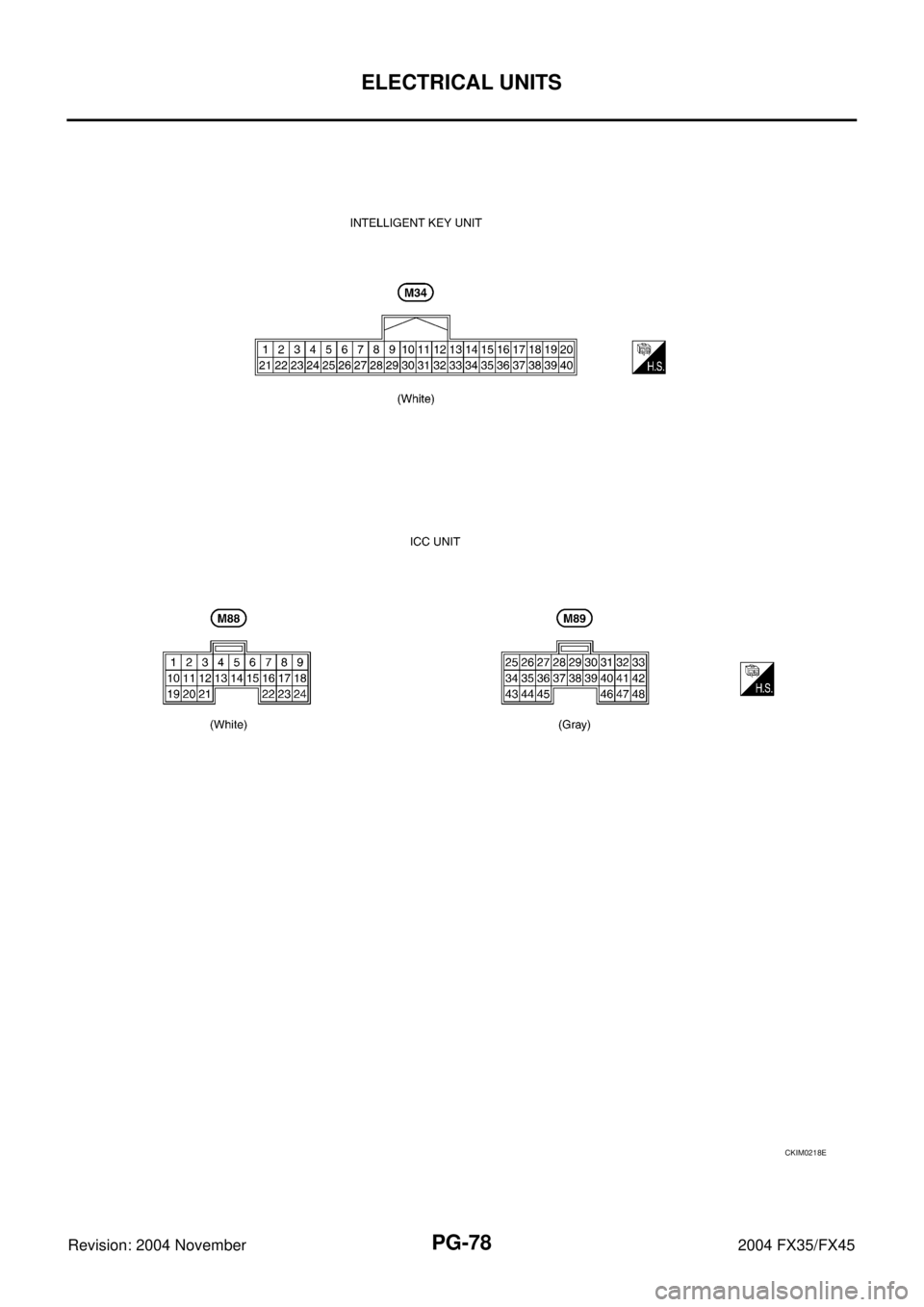

ELECTRICAL UNITS
Revision: 2004 November 2004 FX35/FX45
CKIM0218E

SMJ (SUPER MULTIPLE JUNCTION)
PG-79
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45

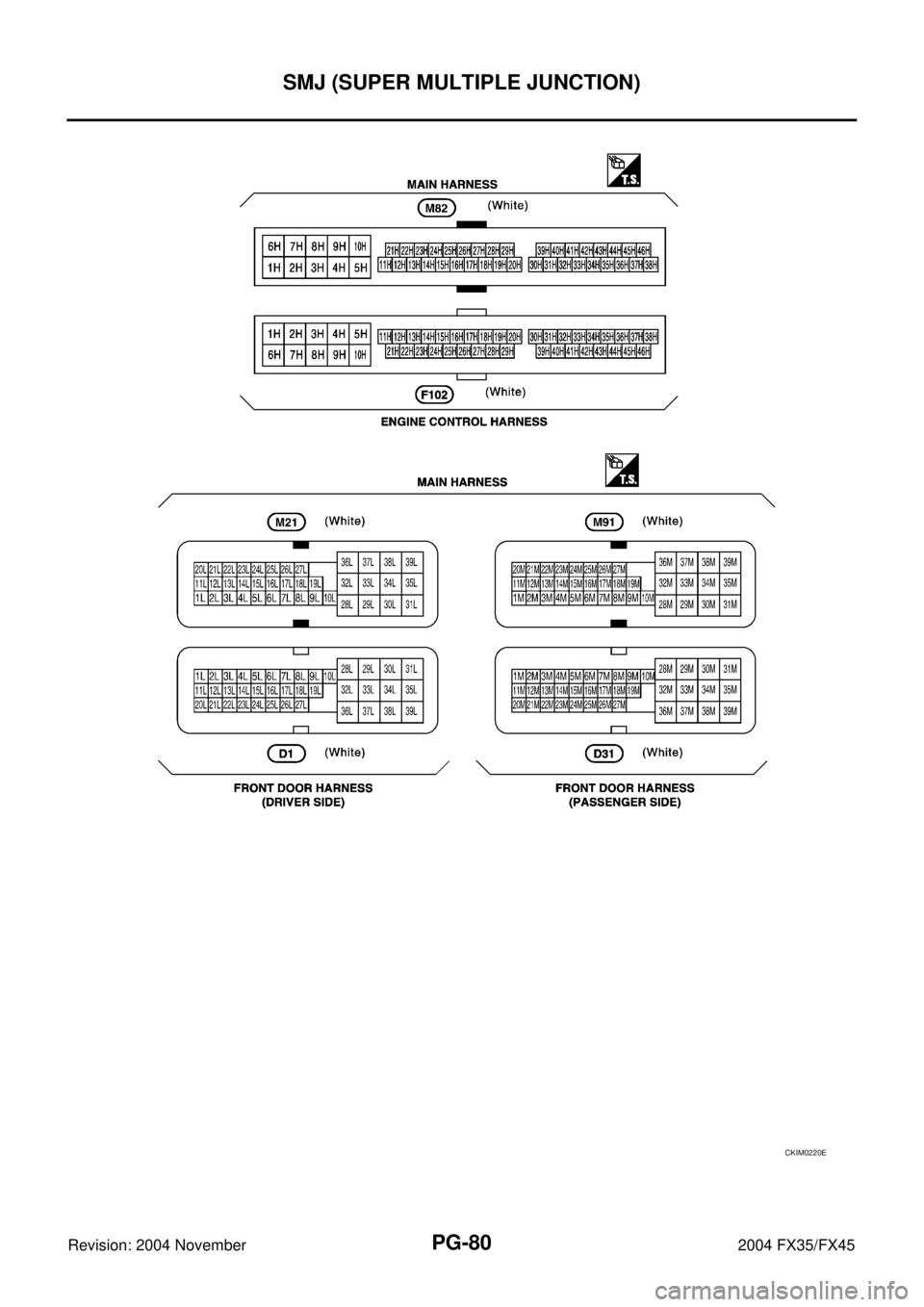

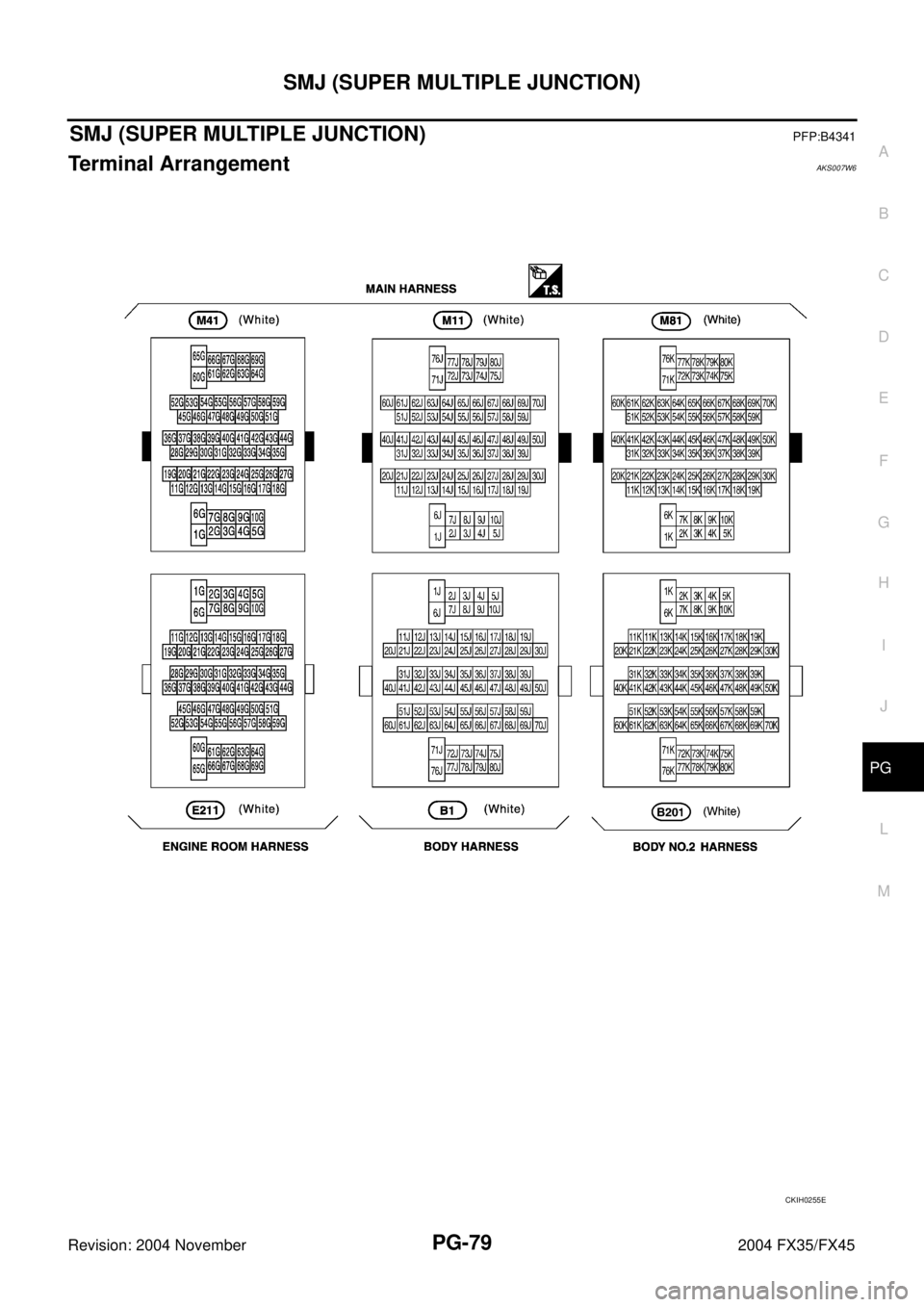

SMJ (SUPER MULTIPLE JUNCTION)PFP:B4341
Terminal ArrangementAKS007W6
CKIH0255E

PG-80
SMJ (SUPER MULTIPLE JUNCTION)
Revision: 2004 November 2004 FX35/FX45
CKIM0220E

STANDARDIZED RELAY
PG-81
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45

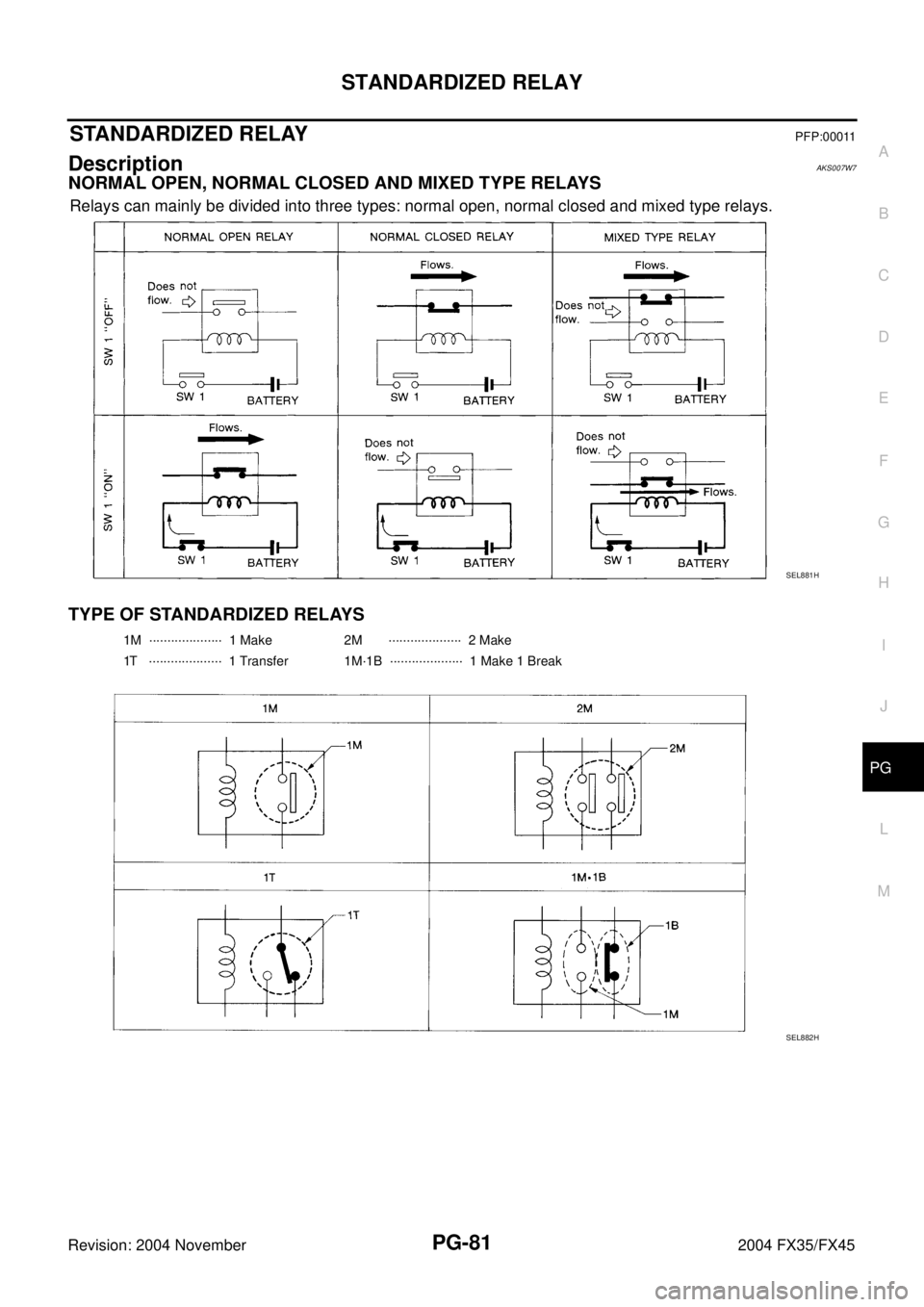

STANDARDIZED RELAY PFP:00011
Description AKS007W7
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H

PG-82

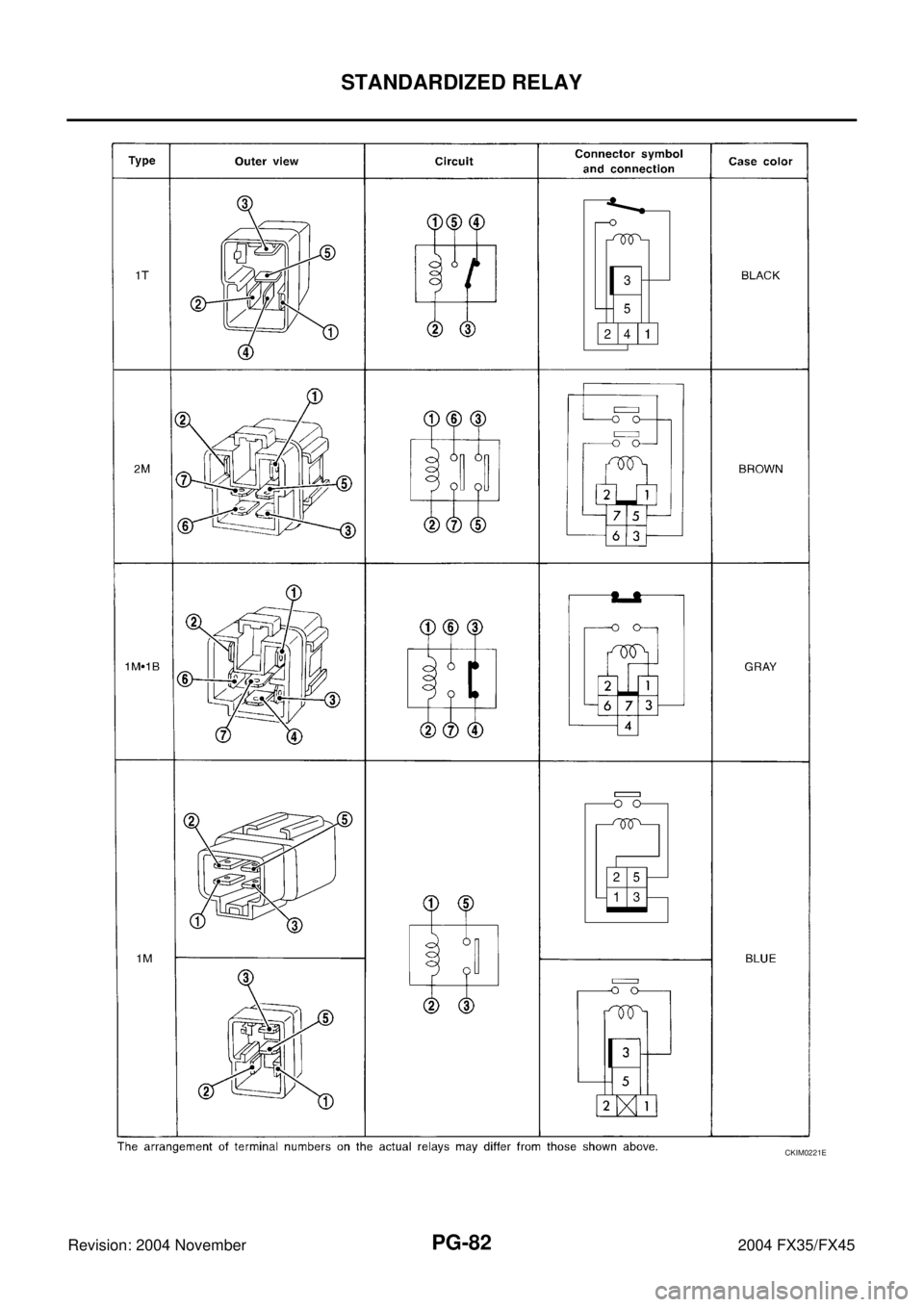

STANDARDIZED RELAY
Revision: 2004 November 2004 FX35/FX45
CKIM0221E

FUSE BLOCK - JUNCTION BOX (J/B)
PG-83
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
FUSE BLOCK - JUNCTION BOX (J/B)PFP:24350
Terminal ArrangementAKS007W8
CKIM0222E

PG-84
FUSE, FUSIBLE LINK AND RELAY BOX
Revision: 2004 November 2004 FX35/FX45
FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
Terminal ArrangementAKS007W9
CKIM0223E

PR-1
PROPELLER SHAFT
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION PR
A
B
PR
Revision: 2004 November 2004 FX35/FX45
PROPELLER SHAFT
PREPARATION ........................................................... 2
Special Service Tools ............................................... 2
Commercial Service Tools ........................................ 2
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 3
NVH Troubleshooting Chart ..................................... 3
FRONT PROPELLER SHAFT .................................... 4
On-Vehicle Service ................................................... 4
PROPELLER SHAFT VIBRATION ........................ 4
APPEARANCE CHECKING .................................. 4
Removal and Installation .......................................... 4
REMOVAL ............................................................. 4
INSPECTION ........................................................ 5
INSTALLATION ..................................................... 5
REAR PROPELLER SHAFT ...................................... 6
Service Information .................................................. 6
On-Vehicle Service ................................................... 6
PROPELLER SHAFT VIBRATION ........................ 6APPEARANCE AND NOISE INSPECTION .......... 6
Removal and Installation .......................................... 7
REMOVAL ............................................................. 8
INSPECTION ........................................................ 8
INSTALLATION ................................................... 10
Disassembly and Assembly .................................... 11
DISASSEMBLY ................................................... 11
ASSEMBLY ......................................................... 12
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 14
General Specifications ............................................ 14
2WD MODEL ....................................................... 14
AWD MODEL ...................................................... 14
Front Propeller Shaft .............................................. 14
JOURNAL AXIAL PLAY ....................................... 14
PROPELLER SHAFT RUNOUT LIMIT ................ 14
Rear Propeller Shaft ............................................... 14
JOURNAL AXIAL PLAY ....................................... 14
PROPELLER SHAFT RUNOUT LIMIT ................ 14
