Then key cylinder switch operation signal (lock) is supplied

to BCM terminal 22

through power window main switch terminal 14.
When the door is unlocked with key cylinder switch, ground is supplied

to power window main switch terminal 6

through key cylinder switch terminal 6 and 5

through grounds M35, M45 and M85.
Then key cylinder switch operation signal (unlock) is supplied

to BCM terminal 22

through power window main switch terminal 14.
BCM is connected to power window main switch and front power window switch (passenger side) as serial
link.
When the front door switch (driver side) is ON (door is OPEN), ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1

through front door switch (driver side) case ground.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied

to BCM terminal 12

through front door switch (passenger side) terminal 1

through front door switch (passenger side) case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied

to BCM terminal 63

through front door switch LH terminal 1

through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied

to BCM terminal 13

through front door switch RH terminal 1

through rear door switch RH case ground.
When the back door switch is ON (door is OPEN), ground is supplied

to BCM terminal 58

through back door closure motor (door switch) terminal 7 and 8

through grounds B15 and B45.
OUTLINE
Functions Available by Operating the Door Lock and Unlock Switches on Driver's Door and
Passenger's Door

Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors and
fuel lid lock actuator are locked.

Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors
and fuel lid lock actuator are unlocked.
Functions Available by Operating the Key Cylinder Switch on Driver's

Interlocked with the locking operation of door key cylinder, door lock actuators of all doors and fuel lid lock
actuator are locked.
Select Unlock Operation

When door key cylinder is unlocked, door lock actuator driver side and fuel lid lock actuator are unlocked.

When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door
lock actuators on all doors are unlocked.
Select unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK
SUPPORT”. Refer to BL-40, "
Work Support" .
Select unlock operation mode can be changed also on the display.
Refer toAV- 5 8 , "
SETTING SCREEN" . (without navigation system)

POWER DOOR LOCK SYSTEM
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
Refer to AV- 9 5 , "Vehicle Electronic Systems" . (with navigation system)
Key Reminder Door System
When door lock and unlock switch is operated to lock doors with ignition key put in key cylinder and any door
open, all door lock actuators are locked and then unlocked.
Key reminder door mode can be changed using “WORK SUPPORT” mode in “ANTI-LOCK OUT SET”.
Refer to BL-40, "
Work Support" .
CAN Communication System DescriptionAIS004LQ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAIS004RP
Refer to LAN-6, "CAN Communication Unit" .

BL-26
POWER DOOR LOCK SYSTEM
Revision: 2004 November 2004 FX35/FX45
Schematic (With Intelligent Key)AIS004LR
TIWH0085E

POWER DOOR LOCK SYSTEM
BL-27
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram -D/LOCK- (With Intelligent Key)AIS004LS

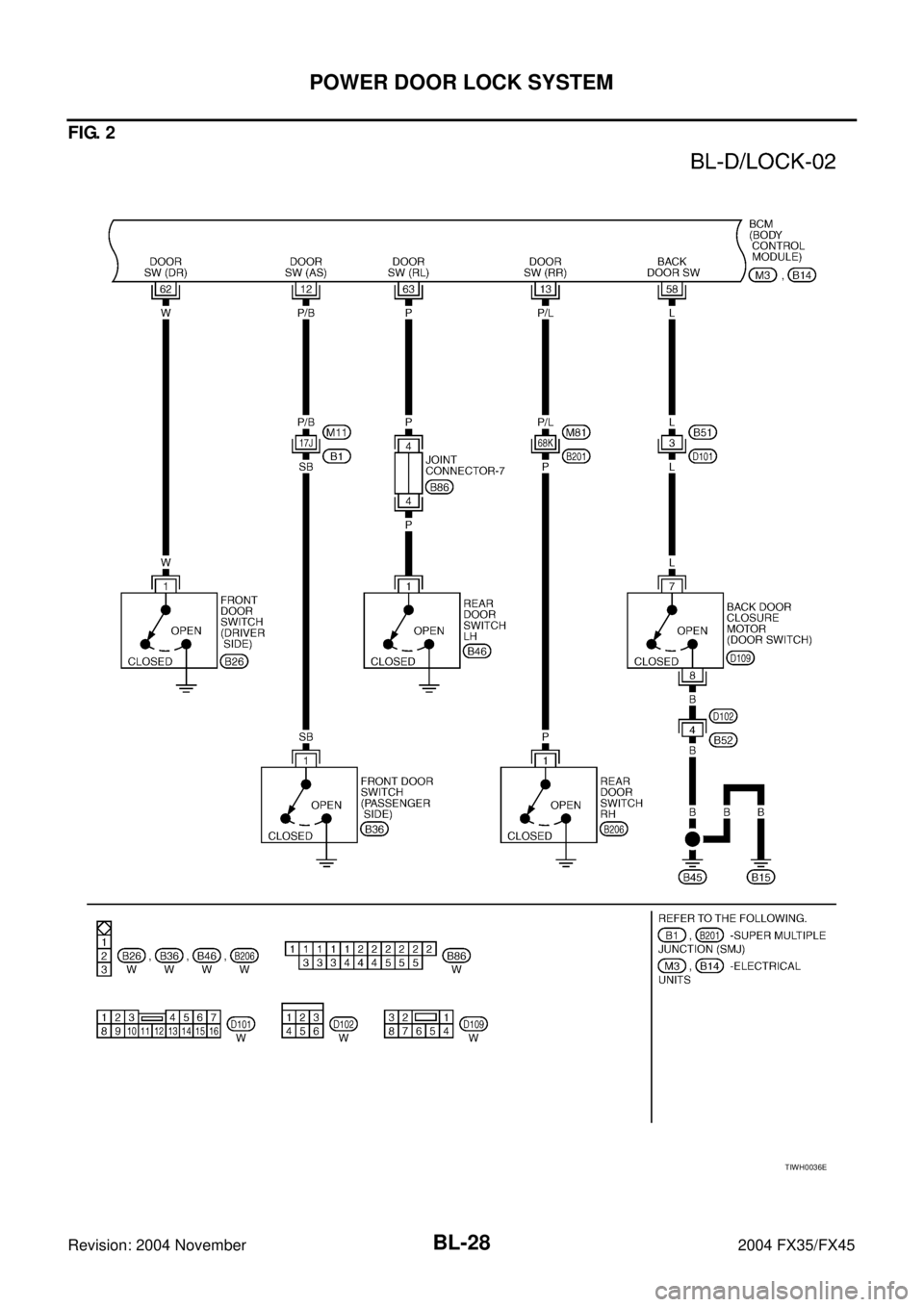

FIG. 1
TIWM0421E

BL-28
POWER DOOR LOCK SYSTEM
Revision: 2004 November 2004 FX35/FX45
FIG. 2
TIWH0036E

POWER DOOR LOCK SYSTEM
BL-29
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45

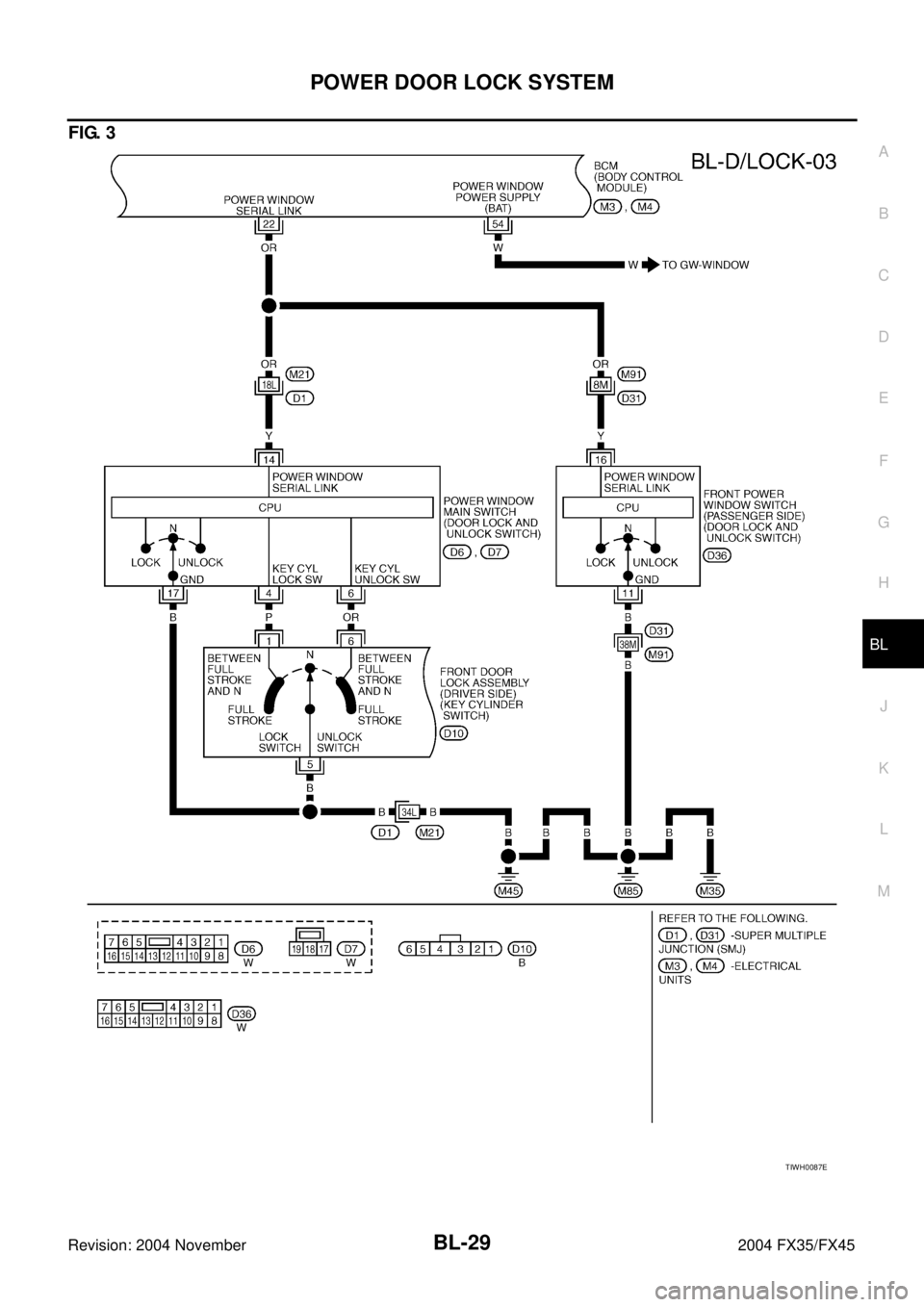

FIG. 3
TIWH0087E

BL-30
POWER DOOR LOCK SYSTEM
Revision: 2004 November 2004 FX35/FX45

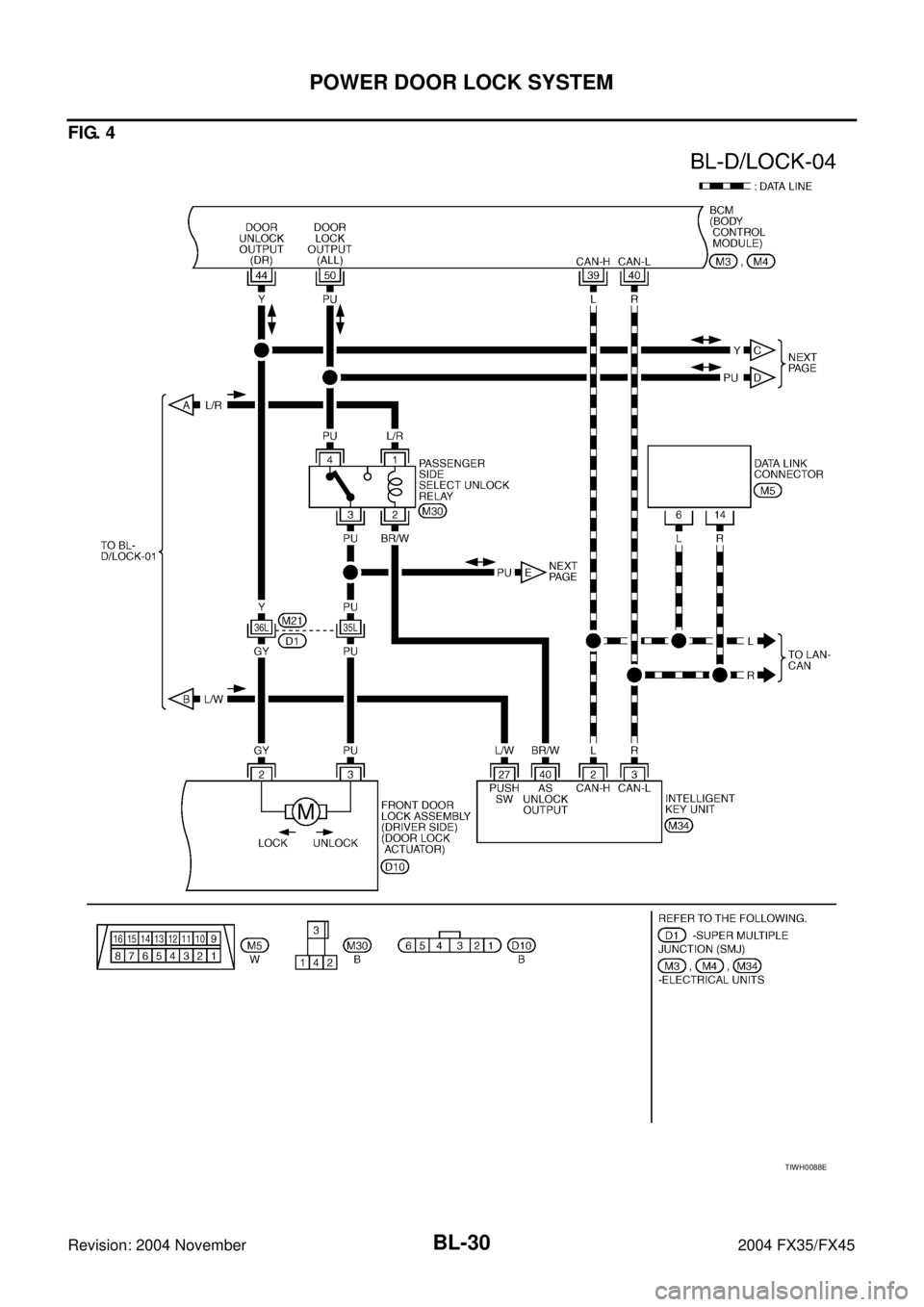

FIG. 4
TIWH0088E

POWER DOOR LOCK SYSTEM
BL-31
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45

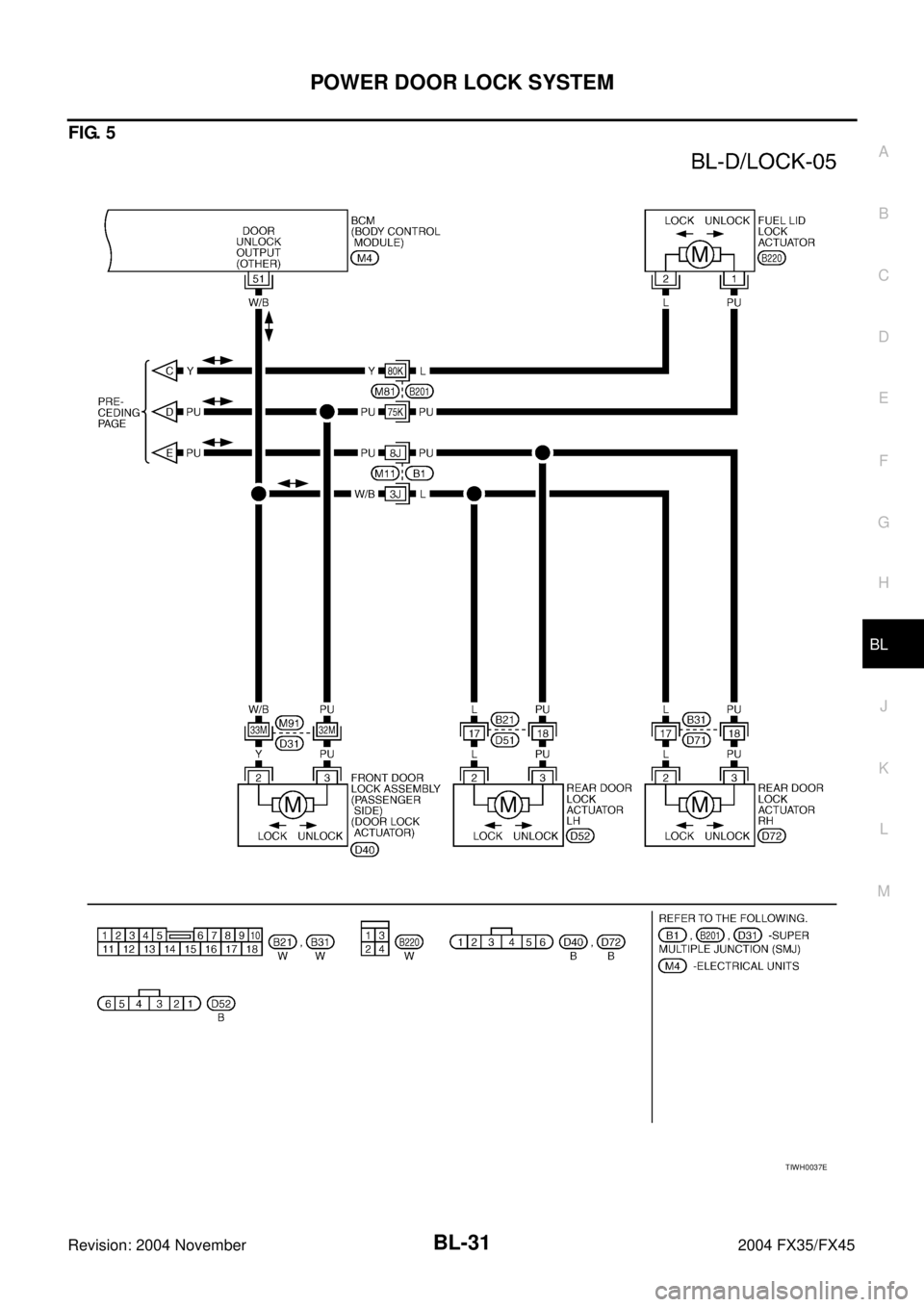

FIG. 5
TIWH0037E

BL-32
POWER DOOR LOCK SYSTEM
Revision: 2004 November 2004 FX35/FX45
Schematic (Without Intelligent Key)AIS004LT
TIWM0321E

POWER DOOR LOCK SYSTEM
BL-33
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram -D/LOCK- (Without Intelligent Key)AIS004LU
FIG. 6
TIWM0322E
