ENGINE ASSEMBLY
EM-113
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Separation Work
1. Install engine slingers into front of right bank cylinder head and
rear of left bank cylinder head.
2. Remove power steering oil pump from engine side. Refer to PS-
31, "POWER STEERING OIL PUMP" .
3. Remove engine mounting insulator under side nut with power
tool.
4. Lift with hoist and separate engine and transmission assembly
from suspension member.
CAUTION:

Before and during this lifting, always check if any harnesses are left connected.

Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
5. Remove alternator. Refer to SC-23, "
CHARGING SYSTEM" .
6. Remove starter motor. Refer to SC-10, "
STARTING SYSTEM" .
7. Separate engine from transmission assembly. Refer to AT- 2 6 6 , "
TRANSMISSION ASSEMBLY" .
8. Remove engine mounting insulator and bracket with power tool.
INSTALLATION
Note to the following, and install in the reverse order of removal.

For a location with a positioning pin, insert it securely into hole of
mating part.

For a part with a specified installation orientation, refer to com-
ponent figure in EM-110, "
2WD MODEL" .

When installing engine mounting bracket on cylinder block,
tighten two upper bolts (shown as A in figure) first. Then tighten
two lower bolts (shown as B in figure). (LH and RH sides)

Tighten rear member mounting bolts in numerical order shown
in figure.
INSPECTION AFTER INSTALLATION

Before starting engine, check the levels of engine coolant, engine oil and working fluid. If less than
required quantity, fill to the specified level.

Use procedure below to check for fuel leakage.
–Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of engine coolant, engine oil, working fluid,
fuel and exhaust gas.Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
SBIA0474E
PBIC1134E
KBIA1019E

PRECAUTIONS
EM-159
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectABS00DAO
NOTE:

This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precautions for Drain Engine CoolantABS006HV
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingABS006HW

Before starting work, make sure no fire or spark producing items are in the work area.

Release fuel pressure before disconnecting and disassembly.

After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyABS006HX

When instructed to use special service tools, use specified tools. Always be careful to work safely, avoid
forceful or uninstructed operations.

Exercise maximum care to avoid damage to mating or sliding surfaces.

Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.

Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.

When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be
used where noted in the step.
Precautions for Inspection, Repair and ReplacementABS006HY
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationABS006HZ

Use torque wrench to tighten bolts or nuts to specification.

GI-4
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectAAS000OH
NOTE:

This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).

Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.

Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
General PrecautionsAAS000EY

Do not operate the engine for an extended period of time without
proper exhaust ventilation.
Keep the work area well ventilated and free of any inflammable
materials. Special care should be taken when handling any
inflammable or poisonous materials, such as gasoline, refriger-
ant gas, etc. When working in a pit or other enclosed area, be
sure to properly ventilate the area before working with hazard-
ous materials.
Do not smoke while working on the vehicle.

Before jacking up the vehicle, apply wheel chocks or other tire
blocks to the wheels to prevent the vehicle from moving. After
jacking up the vehicle, support the vehicle weight with safety
stands at the points designated for proper lifting before working
on the vehicle.
These operations should be done on a level surface.

When removing a heavy component such as the engine or tran-
saxle/transmission, be careful not to lose your balance and drop
them. Also, do not allow them to strike adjacent parts, especially
the brake tubes and master cylinder.
SGI285
SGI231

IDX-6
ALPHABETICAL INDEX
M
M/ANT - Wiring diagram .................................... AV-50
MAFS - Wiring diagram ..... EC-168, EC-175, EC-825,
EC-832
, EC-1066
Magnet clutch ................................. ATC-84, ATC-143
MAIN - Wiring diagram ...................... EC-136, EC-785
Maintenance (engine)(VQ35DE) ...................... MA-14
Major overhaul (Final drive) ............................ RFD-14
Major overhaul (Transfer) .................................. TF-45
Mass air flow sensor (MAFS) ............ EC-165, EC-173,
EC-822
, EC-830, EC-1064
Meter ..................................................................... DI-4
METER - Wiring diagram ...................................... DI-9
MIL data link connectors circuit ....... EC-641, EC-1318
MIL/DL - Wiring diagram .................. EC-641, EC-1318
Mirror, door ..................................................... GW-113
Mirror, out side ................................................ GW-113
Misfire ................................................ EC-291, EC-949
Mode door control linkage adjustment ............. ATC-72
Mode door motor ............................ ATC-70, ATC-130
Molding - See Exterior ................... EI-26, EI-30, EI-33
Multiport fuel injection (MFI) system .... EC-32, EC-679
Multiport fuel injection precautions ....................... GI-7
N
NATS - Wiring diagram .................................... BL-209
NAVI - Wiring diagram ..................................... AV-107
Navigation system ............................................. AV-88
Nissan torque demand (NTD) control system .. EC-682
NVH troubleshooting (EM) .............................. EM-166
NVH troubleshooting (EM)(VQ35DE) ............... EM-13
NVH troubleshooting (Transfer) ........................... TF-7
NVIS (Nissan vehicle immobilizer system) precautions
GI-3
O
O2H1B1 - Wiring diagram .................. EC-151
, EC-808
O2H1B2 - Wiring diagram .................. EC-153, EC-810
O2H2B1 - Wiring diagram .................. EC-159, EC-816
O2H2B2 - Wiring diagram .................. EC-161, EC-818
O2S1B1 - Wiring diagram .. EC-207, EC-217, EC-229,
EC-865
, EC-875, EC-887
O2S1B2 - Wiring diagram .. EC-209, EC-219, EC-231,
EC-867
, EC-877, EC-889
O2S2B1 - Wiring diagram .. EC-238, EC-248, EC-449,
EC-460
, EC-896, EC-906, EC-1119, EC-1130
O2S2B2 - Wiring diagram .. EC-240, EC-250, EC-451,
EC-462
, EC-898, EC-908, EC-1121, EC-1132
Oil cooler (engine)(VQ35DE) ............................. LU-14
Oil filter(VK45DE) .............................................. LU-28
Oil filter(VQ35DE) .............................................. LU-10
Oil pan (engine)(VK45DE) .............................. EM-181
Oil pan (engine)(VQ35DE) ................................ EM-30
Oil pressure (engine)(VK45DE) ......................... LU-25
Oil pressure (engine)(VQ35DE) ........................... LU-8
Oil pressure relief valve (engine)(VQ35DE) ........ LU-6
Oil pump (A/T) ................................................. AT-303
Oil pump (engine)(VK45DE) .............................. LU-31
Oil pump (engine)(VQ35DE) .............................. LU-17
Oil pump regulator valve (engine)(VK45DE) ...... LU-31
Oil pump regulator valve (engine)(VQ35DE) ..... LU-17
Oil seal replacement (engine)(VK45DE) ......... EM-221
Oil seal replacement (engine)(VQ35DE) .......... EM-94
Oil seal replacement (front of final drive) FFD-7, RFD-7
Oil seal replacement (side of final drive) FFD-9, RFD-9
ORVR (On-board Refueling Vapor Recovery) EC-650,
EC-1327
Out side mirror ............................................... GW-113
Overheat ........................................................ EC-1142
P
P/SCKT - Wiring diagram ................................ WW-54
Park/Neutral position switch ........... EC-545, EC-1211
Park/neutral position switch (A/T) .................... AT-112
Parking brake control ........................................... PB-3
PCV (positive crankcase ventilation) EC-655, EC-1332
Personal lamp ..................................... LT-151, LT-184
PGC/V - Wiring diagram .... EC-337, EC-496, EC-992,
EC-1162
PHSB1 - Wiring diagram .................................. EC-309
PHSB2 - Wiring diagram .................................. EC-311
Pilot bushing replacement - See Pilot
converter(VQ35DE) ........................................ EM-121
Piston assembly(VK45DE) ............................. EM-250
Piston assembly(VQ35DE) ............................. EM-131
Piston pin inspection(VK45DE) ....................... EM-256
Piston pin inspection(VQ35DE) ...................... EM-136
Piston ring inspection(VK45DE) ..................... EM-257
Piston ring inspection(VQ35DE) ..................... EM-137
Piston to bore clearance(VK45DE) ................. EM-260
Piston to bore clearance(VQ35DE) ................ EM-140
PNP/SW - Wiring diagram .............. EC-547, EC-1213
POS - Wiring diagram ....................... EC-303, EC-961
POWER - Wiring diagram ................................... PG-4
Power door mirror .............................................. BL-22
Power seat ......................................................... SE-93
Power socket ................................................... WW-54
Power steering fluid level ........................ PS-8, MA-36
Power steering gear ........................................... PS-19
Power steering hydraulic pressure .................... PS-31
Power steering oil pump .................................... PS-31
Power steering system bleeding .......................... PS-8
Power supply routing .......................................... PG-3
Power window .................................................. GW-15
PRE/SE - Wiring diagram EC-354, EC-360, EC-1009,
EC-1016
Precations for Leak detection dye .................. ATC-16
Precautions (General) ........................................... GI-4
Pressure switch 1 .............................. AT-158, AT-178
Pressure switch 2 ............................................ AT-170
Pressure switch 3 .............................. AT-154, AT-180
Pressure switch 5 .............................. AT-162, AT-182
Pressure switch 6 .............................. AT-166, AT-184
Pressure test (A/T) ............................................. AT-52

IP-14

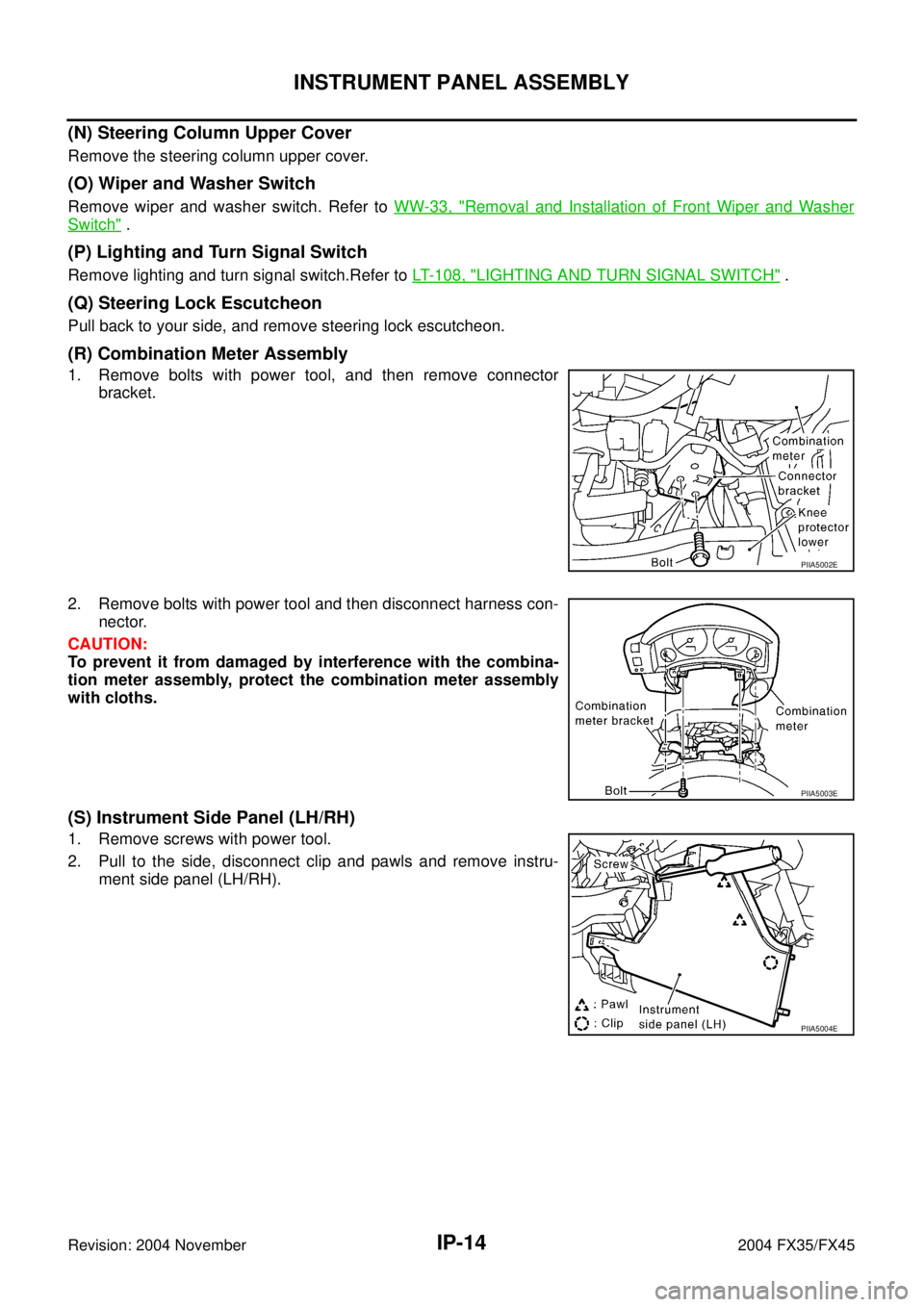

INSTRUMENT PANEL ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
(N) Steering Column Upper Cover
Remove the steering column upper cover.
(O) Wiper and Washer Switch
Remove wiper and washer switch. Refer to WW-33, "Removal and Installation of Front Wiper and Washer
Switch" .
(P) Lighting and Turn Signal Switch
Remove lighting and turn signal switch.Refer to LT- 1 0 8 , "LIGHTING AND TURN SIGNAL SWITCH" .
(Q) Steering Lock Escutcheon
Pull back to your side, and remove steering lock escutcheon.
(R) Combination Meter Assembly
1. Remove bolts with power tool, and then remove connector
bracket.
2. Remove bolts with power tool and then disconnect harness con-
nector.
CAUTION:
To prevent it from damaged by interference with the combina-
tion meter assembly, protect the combination meter assembly
with cloths.
(S) Instrument Side Panel (LH/RH)
1. Remove screws with power tool.
2. Pull to the side, disconnect clip and pawls and remove instru-
ment side panel (LH/RH).
PIIA5002E
PIIA5003E
PIIA5004E

LAN-12
[CAN]
CAN COMMUNICATION
Revision: 2004 November 2004 FX35/FX45
VDC OFF indicator lamp
signalRRT
SLIP indicator lamp sig-
nalRT
Brake warning lamp sig-
nalRT
System setting signalTR R
RT T
Distance to empty signal R T
Parking brake switch sig-
nalRT
Door lock/unlock request
signalTR
Door lock/unlock status
signalRT
Starter permission signal T R
Back door open request
signalTR
Power window open
request signalTR
Alarm request signal T R
Key warning signal T R
ICC sensor signal R T
ICC warning lamp signal T R
ICC system display sig-
nalTR
Current gear position sig-
nalTR R
Steering switch signal T R
ASCD operation signal T R
ASCD OD cancel
request signalTR
ICC OD cancel request
signalRR T
A/T CHECK indicator
lamp signalTR
A/T position indicator
lamp signalTR
A/T shift schedule
change demand signalRT
Manual mode signal R T
Not manual mode signal R TSignals ECM TCMDis-
play
con-
trol
unitLow
tire
pres-
sure
warn-
ing
con-
trol
unitICC
unitIntelli-
gent
Key
unitBCMSte er-
ing
angle
sen-
sorUni-
fied
meter
and
A/C
amp.ICC
sen-
sorABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R

CAN COMMUNICATION
LAN-19
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Tire pressure data
signalRT
ABS warning lamp
signalRRT
VDC OFF indicator
lamp signalRRT
SLIP indicator lamp
signalRT
Brake warning lamp
signalRT
System setting signalTR R
RT T
AWD warning lamp
signalTR
Distance to empty
signalRT
Parking brake switch
signalRRT
Door lock/unlock
request signalTR
Door lock/unlock sta-
tus signalRT
Starter permission
signalTR
Back door open
request signalTR
Power window open
request signalTR
Alarm request signal T R
Key warning signal T R
ICC sensor signal R T
ICC warning lamp
signalTR
ICC system display
signalTR
Current gear posi-
tion signalTR R
Steering switch sig-
nalTR
ASCD operation sig-
nalTR
ASCD OD cancel
request signalTR
ICC OD cancel
request signalRR T Signals ECM TCMDis-
play
con-
trol
unitLow
tire
pres-
sure
warn-
ing
con-
trol
unitAW D
con-
trol
unitICC
unitIntel-
ligent
Key
unitBCMSteer-
ing
angle
sen-
sorUni-
fied
meter
and
A/C
amp.ICC
sen-
sorABS
actu-
ator
and
elec-
tric
unit
(con-
trol
unit)Driver
seat
con-
trol
unitIPDM
E/R

HARNESS
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram Codes (Cell Codes) AKS007X0
Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.
Code Section Wiring Diagram Name
A/C ATC Air Conditioner
APPS1 EC Accelerator Pedal Position Sensor
APPS2 EC Accelerator Pedal Position Sensor
APPS3 EC Accelerator Pedal Position Sensor
ASC/BS EC Automatic Speed Control Device (ASCD) Brake Switch
ASC/SW EC Automatic Speed Control Device (ASCD) Steering Switch
ASCBOF EC Automatic Speed Control Device (ASCD) Brake Switch
ASCIND EC Automatic Speed Control Device (ASCD) Indicator
AT/IND DI A/T Indicator Lamp
AUDIO AV Audio
AUT/DP SE Automatic Drive Positioner
AUTO/L LT Automatic Light System
AWD TF AWD Control System
B/CLOS BL Back Door Closure System
BACK/L LT Back-Up Lamp
BRK/SW EC Brake Switch
CAN AT CAN Communication Line
CAN EC CAN Communication Line
CAN LAN CAN System
CHARGE SC Charging System
CHIME DI Warning Chime
CIGAR WW Cigarette Lighter
CLOCK DI Clock
COMBSW LT Combination Switch
COMM AV Audio Visual Communication Line
COMPASS DI Compass
COOL/F EC Cooling Fan Control
D/LOCK BL Power Door Lock
DEF GW Rear Window Defogger
DTRL LT Headlamp - With Daytime Light System
ECM/PW EC ECM Power Supply For Back-Up
ECTS EC Engine Coolant Temperature Sensor
ETC1 EC Electric Throttle Control Function
ETC2 EC Electric Throttle Control Motor Relay
ETC3 EC Electric Throttle Control Motor
F/FOG LT Front Fog Lamp
F/PUMP EC Fuel Pump
FTS AT A/T Fluid Temperature Sensor Circuit
FTTS EC Fuel Tank Temperature Sensor
FUELB1 EC Fuel Injection System Function (Bank 1)
FUELB2 EC Fuel Injection System Function (Bank 2)

PG-68
HARNESS
Revision: 2004 November 2004 FX35/FX45
H/AIM LT Headlamp Aiming Control System
H/LAMP LT Headlamp
HORN WW Horn
HSEAT SE Heated Seat
I/KEY BL Intelligent Key System
I/MIRR GW Inside Mirror (Auto Anti-Dazzling Mirror)
IATS EC Intake Air Temperature Sensor
ICC ACS Intelligent Cruise Control System
ICC/BS EC ICC Brake Switch
ICC/SW EC ICC Steering Switch
ICCBOF EC ICC Brake Switch
IGNSYS EC Ignition System
ILL LT Illumination
INF/D AV Vehicle Information and Integrated Switch System
INJECT EC Injector
IVCB1 EC Intake Valve Timing Control Solenoid Valve Bank 1
IVCB2 EC Intake Valve Timing Control Solenoid Valve Bank 2
IVCSB1 EC Intake Valve Timing Control Position Sensor Bank 1
IVCSB2 EC Intake Valve Timing Control Position Sensor Bank 2
IVTB1 EC Intake Valve Timing Control System (Bank 1)
IVTB2 EC Intake Valve Timing Control System (Bank 2)
KEYLES BL Remote Keyless Entry System
KS EC Knock Sensor
M/ANT AV Manual Antenna
MAFS EC Mass Air Flow Sensor
MAIN EC Main Power Supply And Ground Circuit
MES AV Mobile Entertainment System
METER DI Speedometer, Tachometer, Temp., And Fuel Gauges
MIL/DL EC Mil&Data Link Connectors
MIRROR GW Power Door Mirror
MMSW AT Manual Mode Switch
NATS BL Nissan Anti - Theft System
NAVI AV Navigation System
NONDTC AT Non-Detective Items
O2H1B1 EC Heated Oxygen Sensor 1 Heater Bank 1
O2H1B2 EC Heated Oxygen Sensor 1 Heater Bank 2
O2H2B1 EC Heated Oxygen Sensor 2 Heater Bank 1
O2H2B2 EC Heated Oxygen Sensor 2 Heater Bank 2
O2S1B1 EC Heated Oxygen Sensor 1 Bank 1
O2S1B2 EC Heated Oxygen Sensor 1 Bank 2
O2S2B1 EC Heated Oxygen Sensor 2 Bank 1
O2S2B2 EC Heated Oxygen Sensor 2 Bank 2
P/SCKT WW Power Socket
PGC/V EC Evap Canister Purge Volume Control Solenoid Valve Code Section Wiring Diagram Name

HARNESS
PG-69
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
PHASE EC Camshaft Position Sensor (PHASE)
PHSB1 EC Camshaft Position Sensor (PHASE) (Bank1)
PHSB2 EC Camshaft Position Sensor (PHASE) (Bank2)
PNP/SW AT Park / Neutral Position Switch
PNP/SW EC Park / Neutral Position Switch
POS EC Crankshaft Position Sensor (CKPS) (POS)
POWER AT Transmission Control Module Power Supply
POWER PG Power Supply Routing
PRE/SE EC Evap Control System Pressure Sensor
PS/SEN EC Power Steering Pressure Sensor
R/VIEW DI Rear View Camera Control System
ROOM/L LT Interior Room Lamp
RP/SEN EC Refrigerant Pressure Sensor
SEAT SE Power Seat
SEN/PW EC Sensor Power Supply
SHIFT AT A/T Shift Lock System
SROOF RF Sunroof
SRS SRS Supplemental Restraint System
START SC Starting System
STOP/L LT Stop Lamp
STSIG AT Start Signal Circuit
T/WARN WT Low Tire Pressure Warning System
TAIL/L LT Parking, License and Tail Lamps
TPS1 EC Throttle Position Sensor (Sensor 1)
TPS2 EC Throttle Position Sensor (Sensor 2)
TPS3 EC Throttle Position Sensor
TRNSCV BL Homelink Universal Transceiver
TURN LT Turn Signal and Hazard Warning Lamp
VDC BRC Vehicle Dynamics Control System
VEHSEC BL Vehicle Security System
VENT/V EC Evap Canister Vent Control Valve
VIAS/V EC VIAS Control Solenoid Valve
VSSA/T AT Vehicle Speed Sensor A/T (Revolution Sensor)
WARN DI Warning Lamps
WINDOW GW Power Window
WIP/R WW Rear Wiper and Washer
WIPER WW Front Wiper and Washer Code Section Wiring Diagram Name
