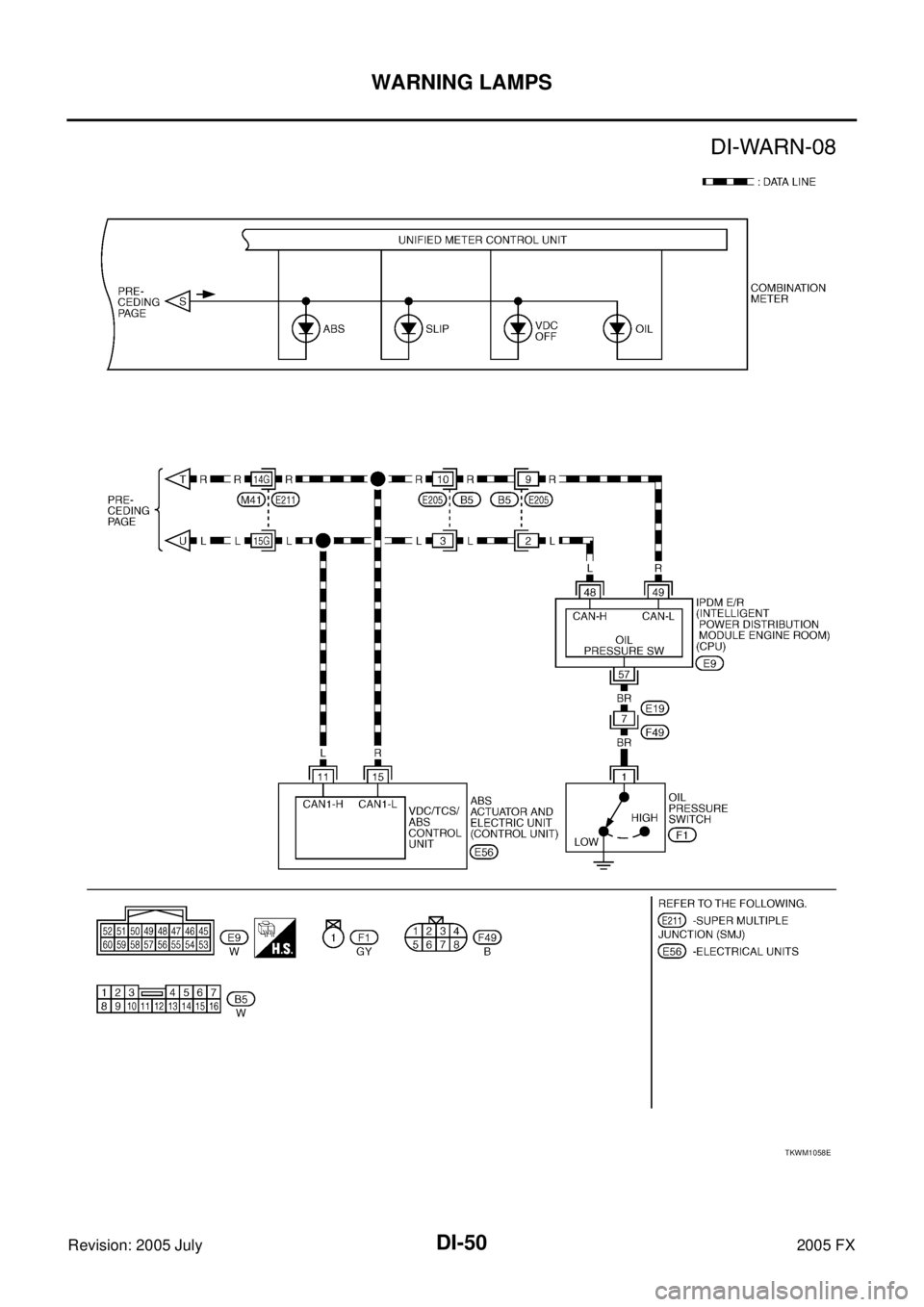

Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)AKS005NF
1. CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.
Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp. Refer to
DI-31, "
CONSULT-II Function (METER A/C AMP)" .
Self-diagnostic results content
No malfunction detected>> GO TO 2.
Malfunction detected>> Go to DI-17, "
Symptom Chart 2" in “COMBINATION METER”.
2. CHECK IPDM E/R OUTPUT SIGNAL
Activate IPDM E/R auto active test. Refer to PG-24, "
Auto Active Test" .
Does oil pressure warning lamp is blinking?
YES >> GO TO 5.
NO >> GO TO 3.
3. CHECK BCM INPUT SIGNAL
Select “DATA MONITOR” of “SIGNAL BUFFER”. Refer to BCS-13,
"CONSULT-II Function (BCM)" . Operate ignition switch with “OIL
PRESS SW” of “DATA MONITOR” and check operate status.
OK or NG
OK >> GO TO 4.
NG >> Replace IPDM E/R. Refer to PG-30, "
Removal and
Installation of IPDM E/R" .
4. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
Select “METER A/C AMP” on CONSULT-II. Operate ignition switch
with “OIL W/L” of “DATA MONITOR” and check operation status.
OK or NG
OK >> Replace combination meter.
NG >> Replace BCM. Refer to BCS-16, "
Removal and Installa-
tion of BCM" .
“OIL PRESS SW”
When ignition switch is in ON
position (Engine stopped) : ON
When engine running : OFF
SKIA8709E
“OIL W/L”
When ignition switch is in ON
position (Engine stopped) : ON
When engine running : OFF
PKIA2064E

DI-52
WARNING LAMPS
Revision: 2005 July 2005 FX
5. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and oil pressure switch connector.
3. Check continuity between IPDM E/R harness connector E9 ter- minal 57 (BR) and oil pressure switch harness connector F1 ter-
minal 1 (BR).
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK OIL PRESSURE SWITCH
Check oil pressure switch. Refer to DI-53, "
OIL PRESSURE SWITCH" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and Installation of IPDM E/R" .
NG >> Replace oil pressure switch.
Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)AKS005NG
NOTE:
For oil pressure inspection, refer to LU-8, "
OIL PRESSURE CHECK" (VQ35DE) or LU-25, "OIL PRESSURE
CHECK" (VK45DE)
1. CHECK IPDM E/R OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect oil pressure switch connector.
3. Turn ignition switch ON.
4. Check voltage between oil pressure switch harness connector F1 terminal 1 (BR) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK OIL PRESSURE SWITCH
1. Turn ignition switch OFF.
2. Check oil pressure switch. Refer to DI-53, "
OIL PRESSURE SWITCH" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and Installation of IPDM E/R" .
NG >> Replace oil pressure switch. 57 (BR) – 1 (BR) : Continuity should exist.
PKIB3572E
1 (BR) – Ground : Approx. 12 V
PKIB3573E

WARNING LAMPS DI-53
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
3. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter- minal 57 (BR) and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
Component InspectionAKS005NH
OIL PRESSURE SWITCH
Check continuity between oil pressure switch and ground. 57 (BR) – Ground : Continuity should not exist.
SKIA5013E
Condition
Oil pressure kPa (kg/cm2 , psi) Continuity
Engine stopped Less than 29 (0.3, 4) Yes Engine running More than 29 (0.3, 4) No
ELF0044D

DI-54
A/T INDICATOR
Revision: 2005 July 2005 FX
A/T INDICATORPFP:24814

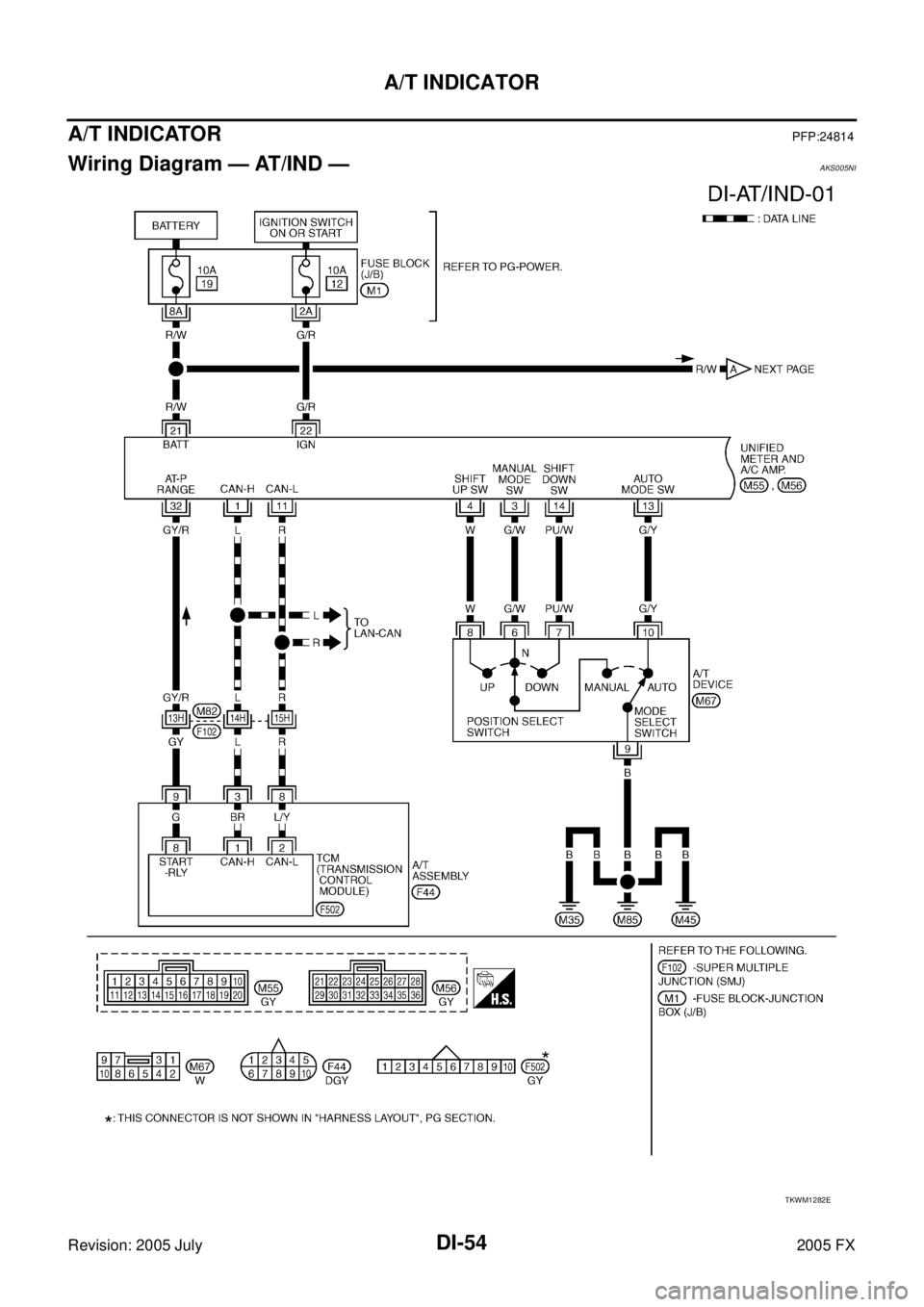

Wiring Diagram — AT/IND —AKS005NI
TKWM1282E

A/T INDICATOR DI-55
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

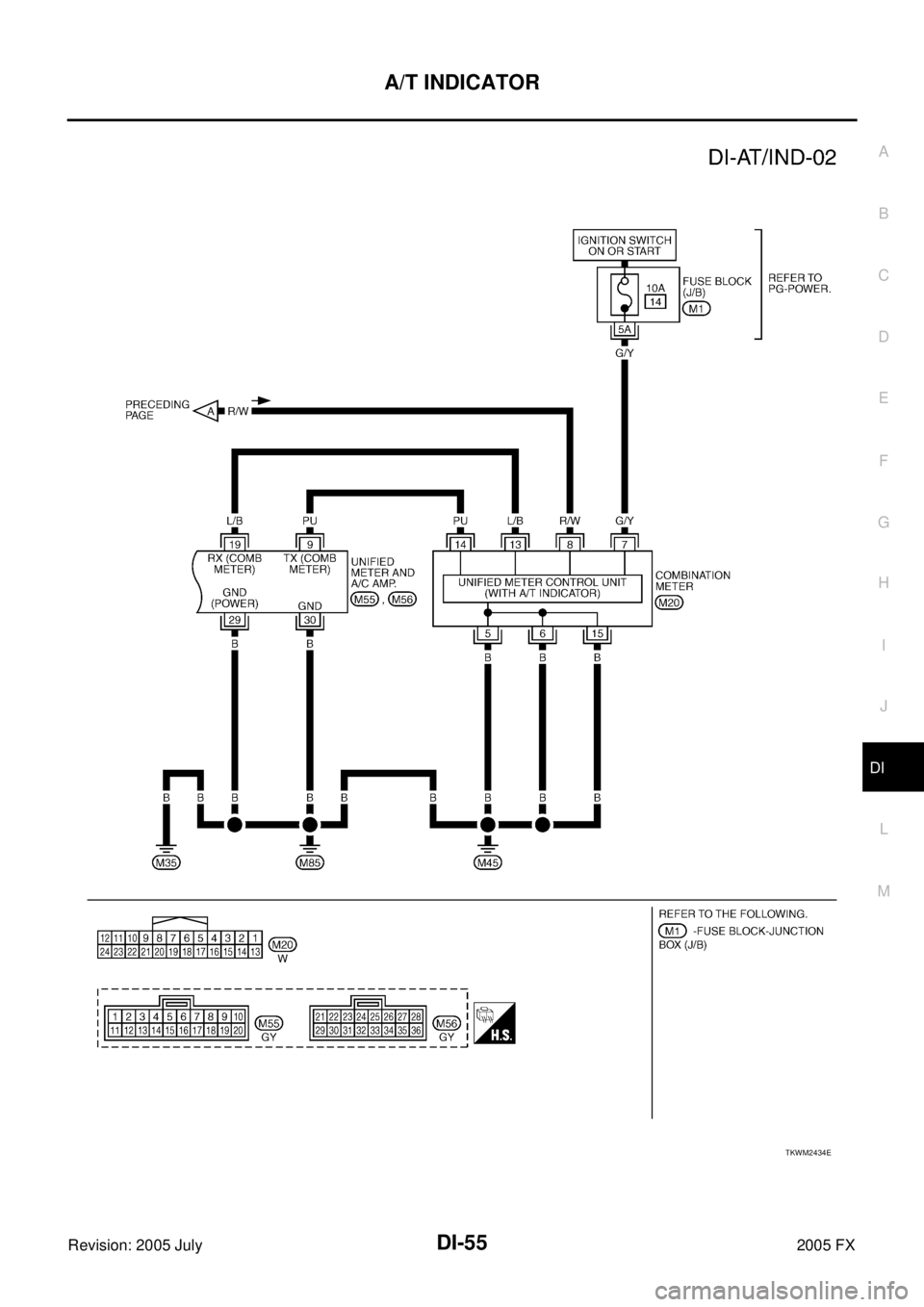

TKWM2434E

DI-56
A/T INDICATOR
Revision: 2005 July 2005 FX
A/T Indicator Is MalfunctionAKS005NJ
1. CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-14, "
OPERA-
TION PROCEDURE" .
Are all segments displayed?
YES >> GO TO 2.
NO >> Replace combination meter.
2. CHECK SELF-DIAGNOSIS RESULTS OF UNIFIED METER AND A/C AMP.
Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp. Refer to
DI-31, "
CONSULT-II Function (METER A/C AMP)" .
Self-diagnostic results content
No malfunction detected>> GO TO 3.
Malfunction detected>> Go to DI-17, "
Symptom Chart 2" in “COMBINATION METER”.
3. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Connect CONSULT-II and start engine.
2. Use “DATA MONITOR” of “METER A/C AMP” on CONSULT-II. Confirm each indication on the monitor when operating the shift
lever.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 4.
4. CHECK A/T DEVICE
Perform A/T device inspection. Refer to AT- 1 7 0 , "
DTC P1815 MANUAL MODE SWITCH" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace applicable parts.
EL-3828D
CONSULT-II display Switch operation Operation
status
AT - M I N D Manual mode range ON
Except for manual mode range OFF
AT - M G E A R Manual mode range (shift- up or down) 5 - 1
Except for manual mode range 1
P RANGE IND P range position ON
Except for P range position OFF
R RANGE IND R range position ON
Except for R range position OFF
N RANGE IND N range position ON
Except for N range position OFF
D RANGE IND D range position ON
Except for D range position OFF
SKIA6259E

A/T INDICATOR DI-57
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
5. CHECK TCM
Check TCM input/output signal. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
OK or NG
OK >> Replace unified meter and A/C amp. Refer to DI-37, "Removal and Installation of Unified Meter
and A/C Amp." .
NG >> Check applicable part, and repair or replace corresponding parts.

DI-58
WARNING CHIME
Revision: 2005 July 2005 FX
WARNING CHIMEPFP:24814
System DescriptionAKS005NL
FUNCTION
Power is supplied at all times

through 50A fusible link (letter M , located in the fuse and fusible link block)

to BCM terminal 55,

through 15A fuse [No. 22, located in the fuse block (J/B)]

to key switch and ignition knob switch terminal 3 (with Intelligent Key)

to key switch terminal 2 (without Intelligent Key), and

to BCM terminal 42,

through 10A fuse [No. 38, located in the fuse and fusible link block (with Intelligent Key)]

to key switch and ignition knob switch terminal 1,

through 10A fuse [No. 19, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 21, and

to combination meter terminal 8.
When ignition switch is in ON or START position, power is supplied

through 15A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 12, located in the fuse block (J/B)]

to unified meter and A/C amp. terminal 22,

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminal 7.
Ground is supplied

to BCM terminals 49 and 52,

to unified meter and A/C amp. terminals 29 and 30, and

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85.
NOTE:
When ignition key warning chime, light warning chime, and seat belt warning chime should be performed at
the same time, the priorities for each chime are the following.
1. Seat belt warning chime
2. Light warning chime
3. Ignition key warning chime
IGNITION KEY WARNING CHIME (WITHOUT INTELLIGENT KEY)
With the key inserted into the ignition switch, and the ignition switch OFF or ACC, when driver's door is
opened, the warning chime will sound.
Power is supplied

through key switch terminal 1

to BCM terminal 37.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to unified meter and A/C amp.
with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.

WARNING CHIME DI-59
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
IGNITION KEY WARNING CHIME (WITH INTELLIGENT KEY)
When Mechanical Key Is Used
With the key inserted into the ignition switch, and the ignition switch LOCK or ACC, when driver's door is
opened, the warning chime will sound.
Power is supplied

through key switch and ignition knob switch terminal 4

to BCM terminal 37.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to unified meter and A/C amp.
with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
When Intelligent Key Is Carried With The Driver
When the ignition knob is in LOCK (push switch ON) or ACC, when driver's door is opened, the warning chime
will sound.
Power is supplied

through key switch and ignition knob switch terminal 2

to Intelligent Key unit terminal 27.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM sends front door switch signal to Intelligent Key unit with CAN communication line.
Intelligent Key unit detects ignition knob return is forgotten, and sends key warning signal to unified meter and
A/C amp. with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination
meter with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
LIGHT WARNING CHIME
With the key removed from the ignition switch or when the ignition knob is in LOCK (push switch OFF) [with
Intelligent Key], the driver's door is opened, and the lighting switch is in ON position, the warning chime will
sound. [Except when headlamp battery saver control operates (for 5 minutes after ignition switch is turned to
OFF or ACC position) and headlamps do not illuminate.]
Signal is supplied

from combination switch (lighting switch) terminals 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10

to BCM terminals 2, 3, 4, 5, 6, 32, 33, 34, 35 and 36.
NOTE:
BCM detected lighting switch in 1st or 2nd position, refer to BCS-3, "
COMBINATION SWITCH READING
FUNCTION" .
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects headlamps are illuminated, and sends light warning signal to unified meter and A/C amp. with
CAN communication line. Unified meter and A/C amp. sends light warning signal to combination meter with
communication line between unified meter and A/C amp. and combination meter.
When combination meter receives light warning signal, it sounds warning chime.
SEAT BELT WARNING CHIME
With ignition switch turned ON and seat belt unfastened [seat belt buckle switch (driver side) ON], warning
chime will sound for approximately 6 seconds.
Ground is supplied
