INFINITI FX35 2006 Service Manual

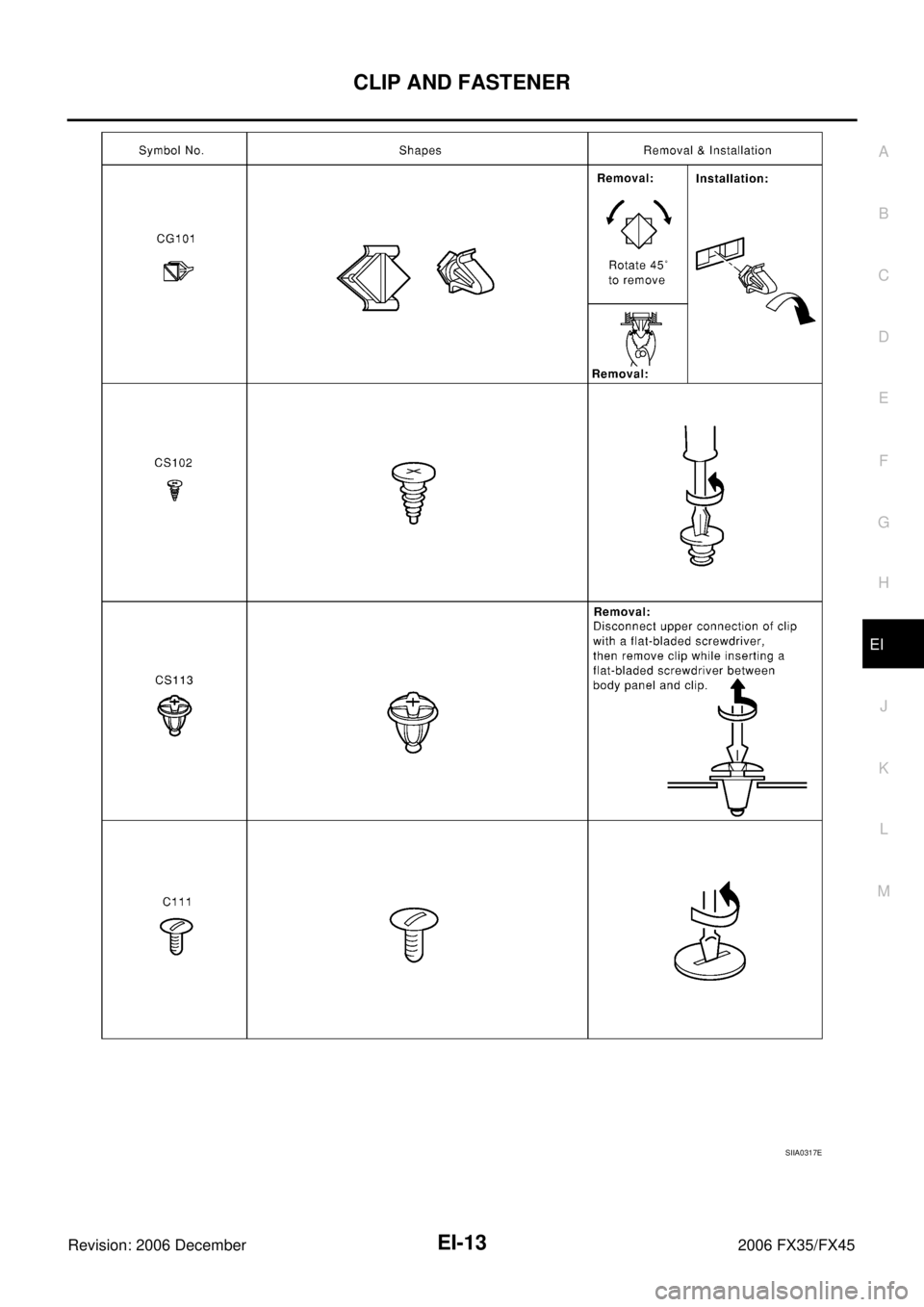

CLIP AND FASTENER EI-13
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45
SIIA0317E

EI-14
FRONT BUMPER
Revision: 2006 December 2006 FX35/FX45
FRONT BUMPERPFP:F2022
Removal and InstallationNIS001TO
PIIA4330E

FRONT BUMPER EI-15
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45

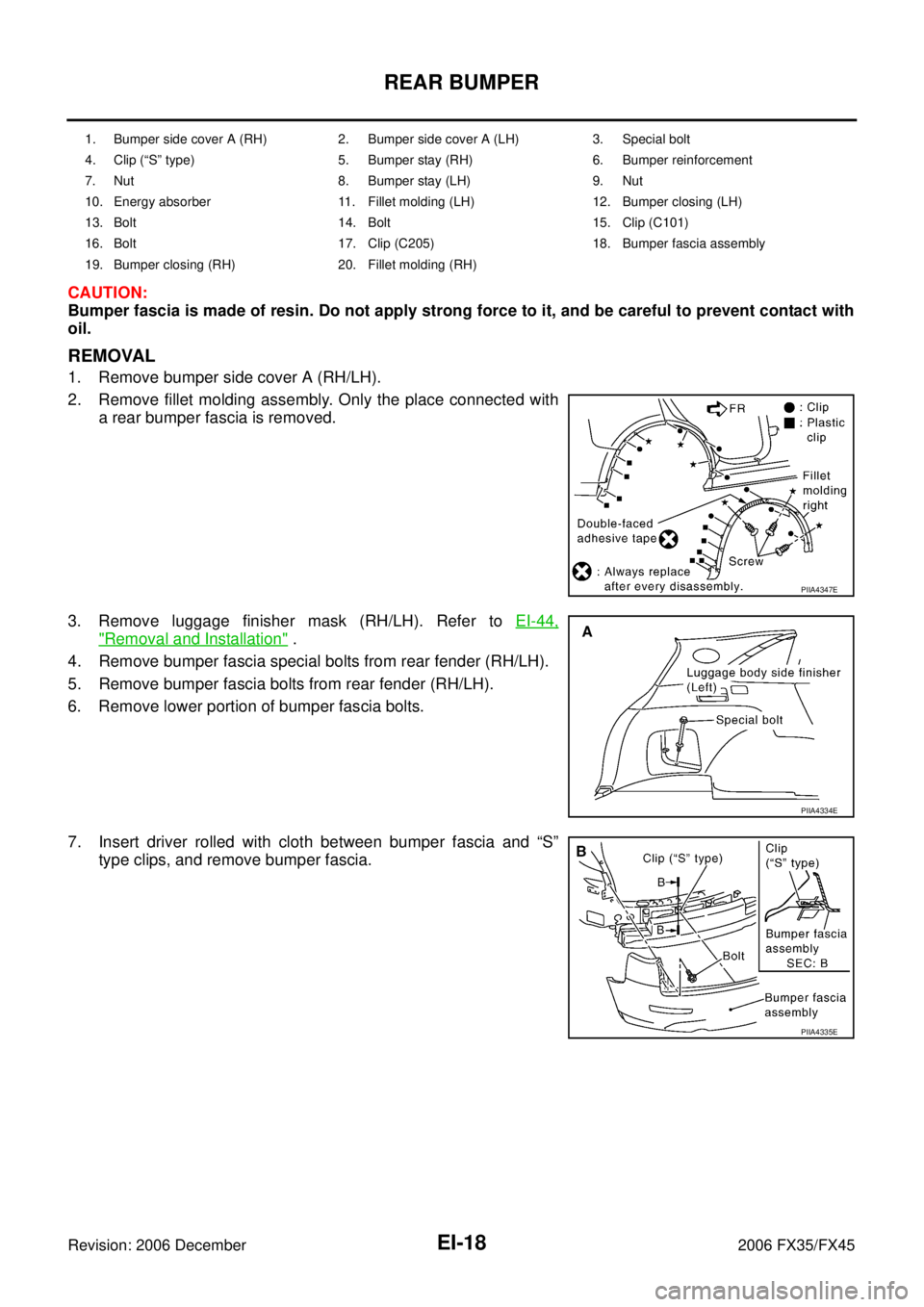

CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
REMOVAL
1. Remove front grille. Refer to EI-22, "Removal and Installation" .
2. Remove front fillet molding assembly. Only the place connected with a front bumper fascia is removed.
3. Remove bolts and clips of front undercover.
4. Remove screws and clips of right/left fender protectors on front side. Refer to EI-24, "
Removal and Installation" .
5. Remove bolts of right/left fender.
6. Insert driver rolled with cloth between bumper fascia and “S” type clips, and remove bumper fascia.
7. Disconnect harness connector of fog lamps.
8. Remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
9. Remove bumper energy absorber.
10. Remove bolts and nuts of bumper reinforcement, and remove bumper reinforcement. Remove bolts and nuts with power tool.
11. Remove ICC sensor with bracket. Refer to Refer to ACS-75, "
REMOVAL AND INSTALLATION" .

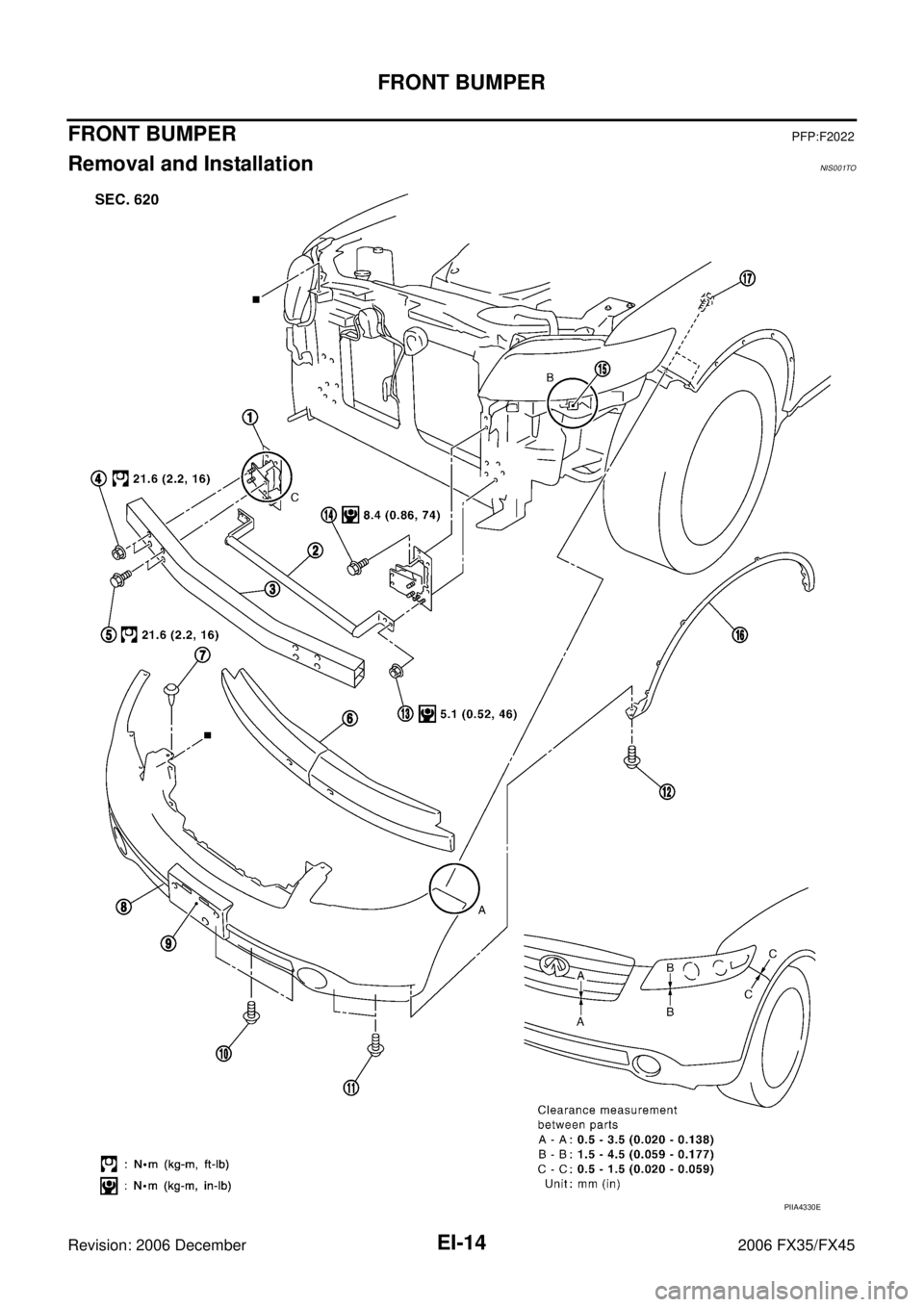

1. Bumper stay 2. Front bumper guard bar 3. Bumper reinforcement
4. Nut 5. Bolt 6. Energy absorber
7. Clip (C205) 8. Bumper fascia assembly 9. Number plate holder
10. Bolt 11. Bolt 12. Bolt
13. Nut 14. Bolt 15. Clip (“S” type)
16. Fillet molding 17. Bolt
PIIA4350E
PIIA4338E
PIIA4331E

EI-16
FRONT BUMPER
Revision: 2006 December 2006 FX35/FX45

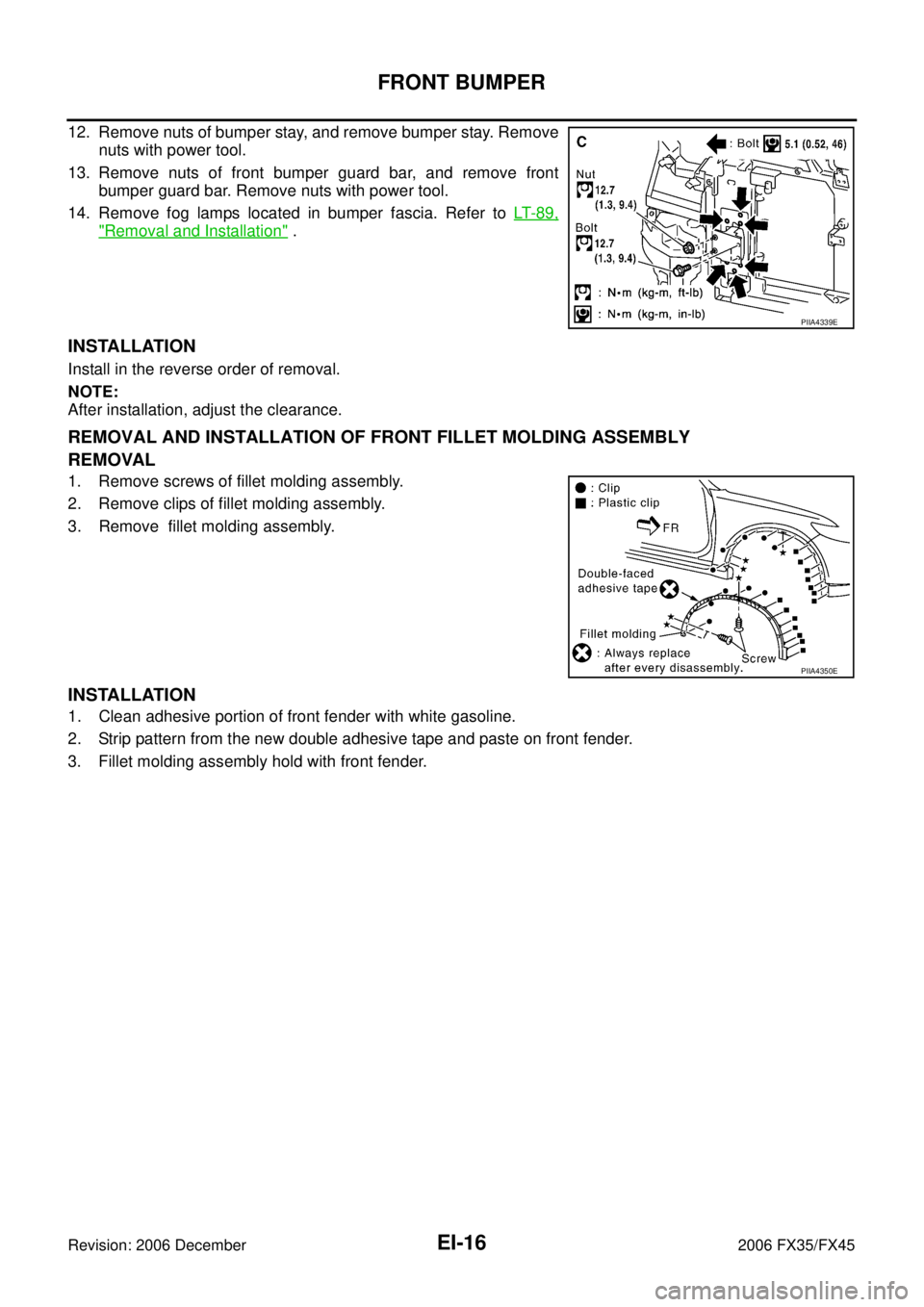

12. Remove nuts of bumper stay, and remove bumper stay. Remove nuts with power tool.
13. Remove nuts of front bumper guard bar, and remove front bumper guard bar. Remove nuts with power tool.
14. Remove fog lamps located in bumper fascia. Refer to LT- 8 9 ,
"Removal and Installation" .
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installation, adjust the clearance.
REMOVAL AND INSTALLATION OF FRONT FILLET MOLDING ASSEMBLY
REMOVAL
1. Remove screws of fillet molding assembly.
2. Remove clips of fillet molding assembly.
3. Remove fillet molding assembly.
INSTALLATION
1. Clean adhesive portion of front fender with white gasoline.
2. Strip pattern from the new double adhesive tape and paste on front fender.
3. Fillet molding assembly hold with front fender.
PIIA4339E
PIIA4350E

REAR BUMPER EI-17
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45
REAR BUMPERPFP:H5022
Removal and InstallationNIS001TP
PIIA4333E

EI-18
REAR BUMPER
Revision: 2006 December 2006 FX35/FX45
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
REMOVAL
1. Remove bumper side cover A (RH/LH).
2. Remove fillet molding assembly. Only the place connected with a rear bumper fascia is removed.
3. Remove luggage finisher mask (RH/LH). Refer to EI-44,
"Removal and Installation" .
4. Remove bumper fascia special bolts from rear fender (RH/LH).
5. Remove bumper fascia bolts from rear fender (RH/LH).
6. Remove lower portion of bumper fascia bolts.
7. Insert driver rolled with cloth between bumper fascia and “S” type clips, and remove bumper fascia.

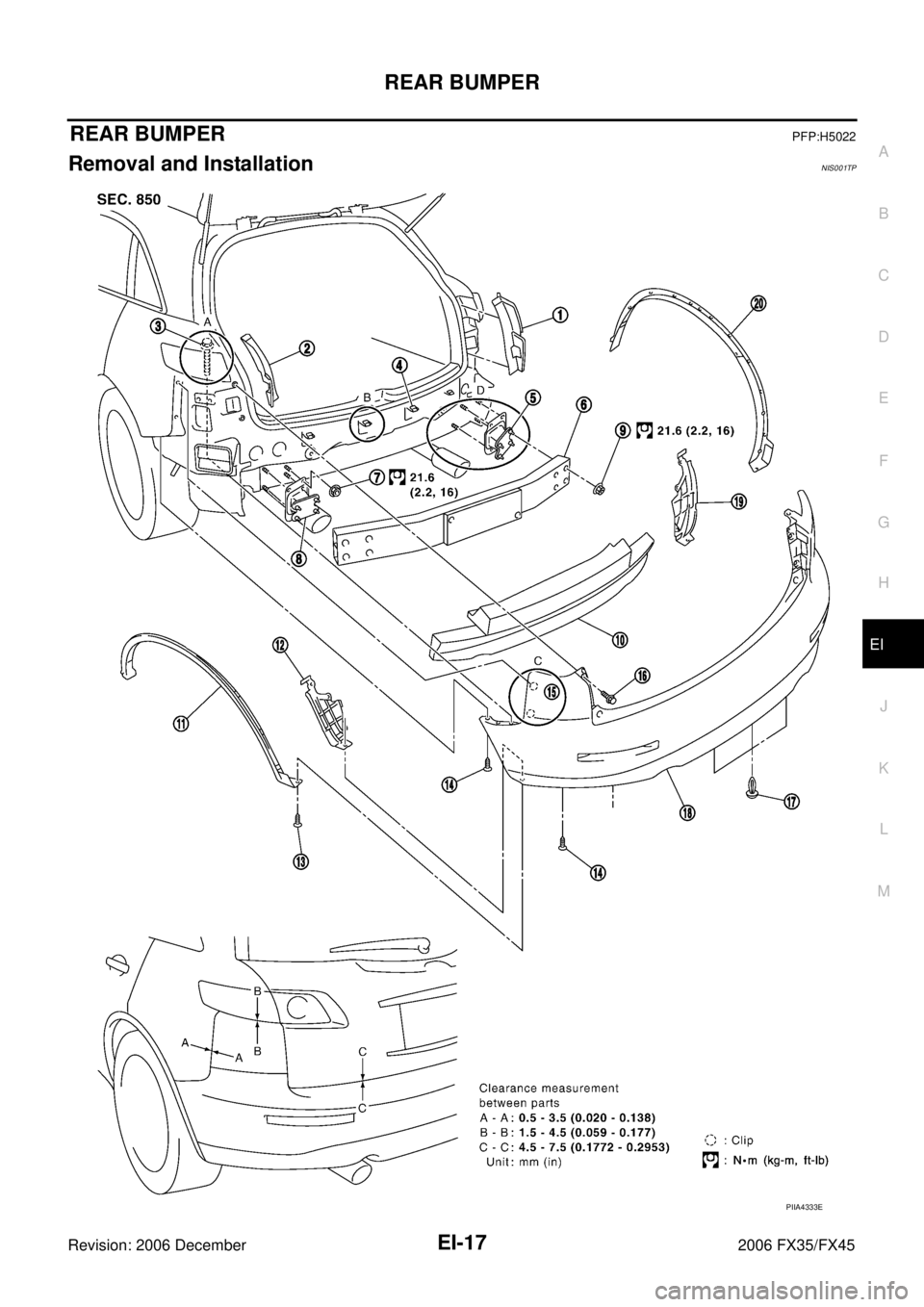

1. Bumper side cover A (RH) 2. Bumper side cover A (LH) 3. Special bolt
4. Clip (“S” type) 5. Bumper stay (RH) 6. Bumper reinforcement
7. Nut 8. Bumper stay (LH) 9. Nut
10. Energy absorber 11. Fillet molding (LH) 12. Bumper closing (LH)
13. Bolt 14. Bolt 15. Clip (C101)
16. Bolt 17. Clip (C205) 18. Bumper fascia assembly
19. Bumper closing (RH) 20. Fillet molding (RH)
PIIA4347E
PIIA4334E
PIIA4335E

REAR BUMPER EI-19
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45

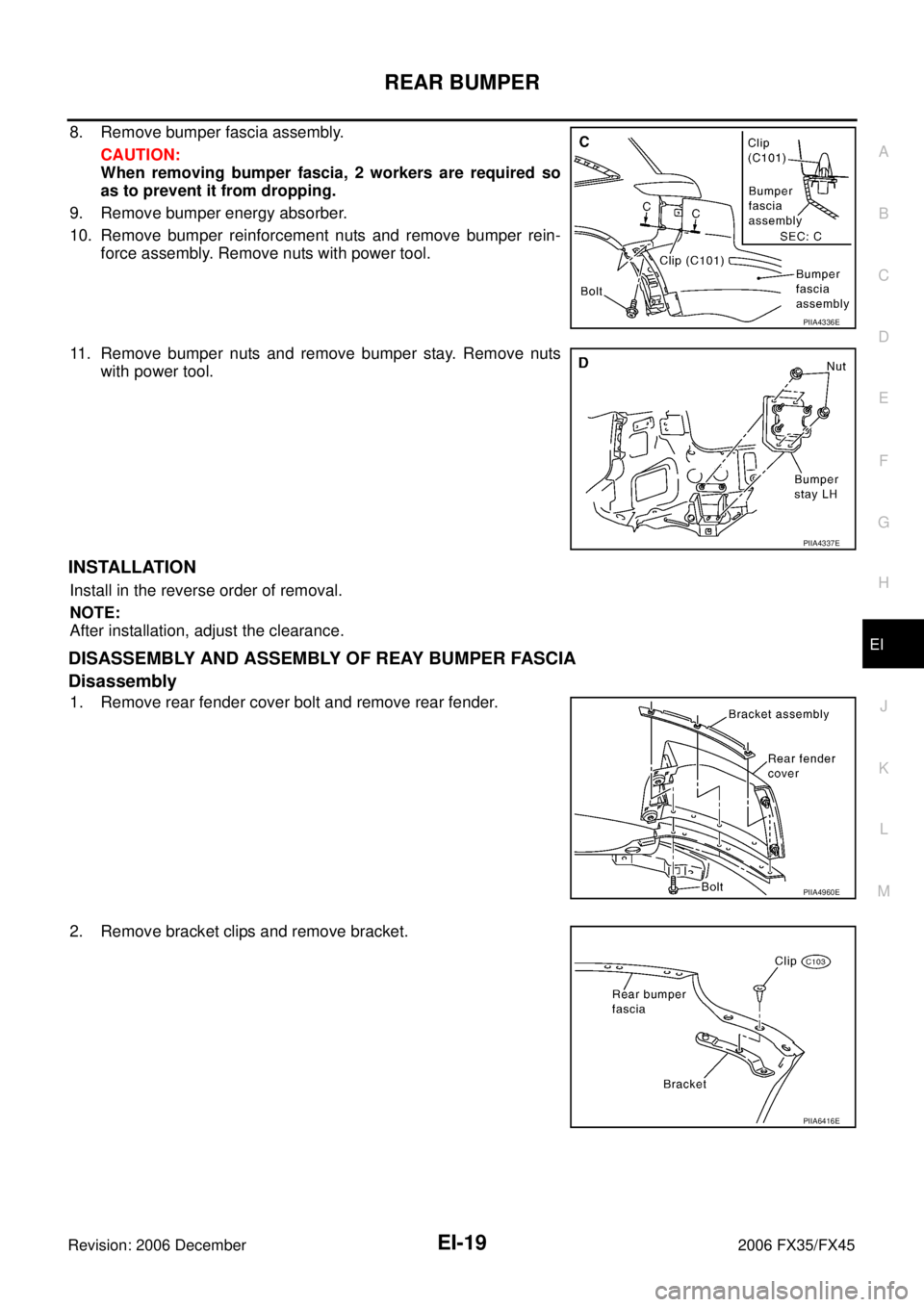

8. Remove bumper fascia assembly. CAUTION:
When removing bumper fascia, 2 workers are required so
as to prevent it from dropping.
9. Remove bumper energy absorber.
10. Remove bumper reinforcement nuts and remove bumper rein- force assembly. Remove nuts with power tool.
11. Remove bumper nuts and remove bumper stay. Remove nuts with power tool.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installation, adjust the clearance.
DISASSEMBLY AND ASSEMBLY OF REAY BUMPER FASCIA
Disassembly
1. Remove rear fender cover bolt and remove rear fender.
2. Remove bracket clips and remove bracket.
PIIA4336E
PIIA4337E
PIIA4960E
PIIA6416E

EI-20
REAR BUMPER
Revision: 2006 December 2006 FX35/FX45

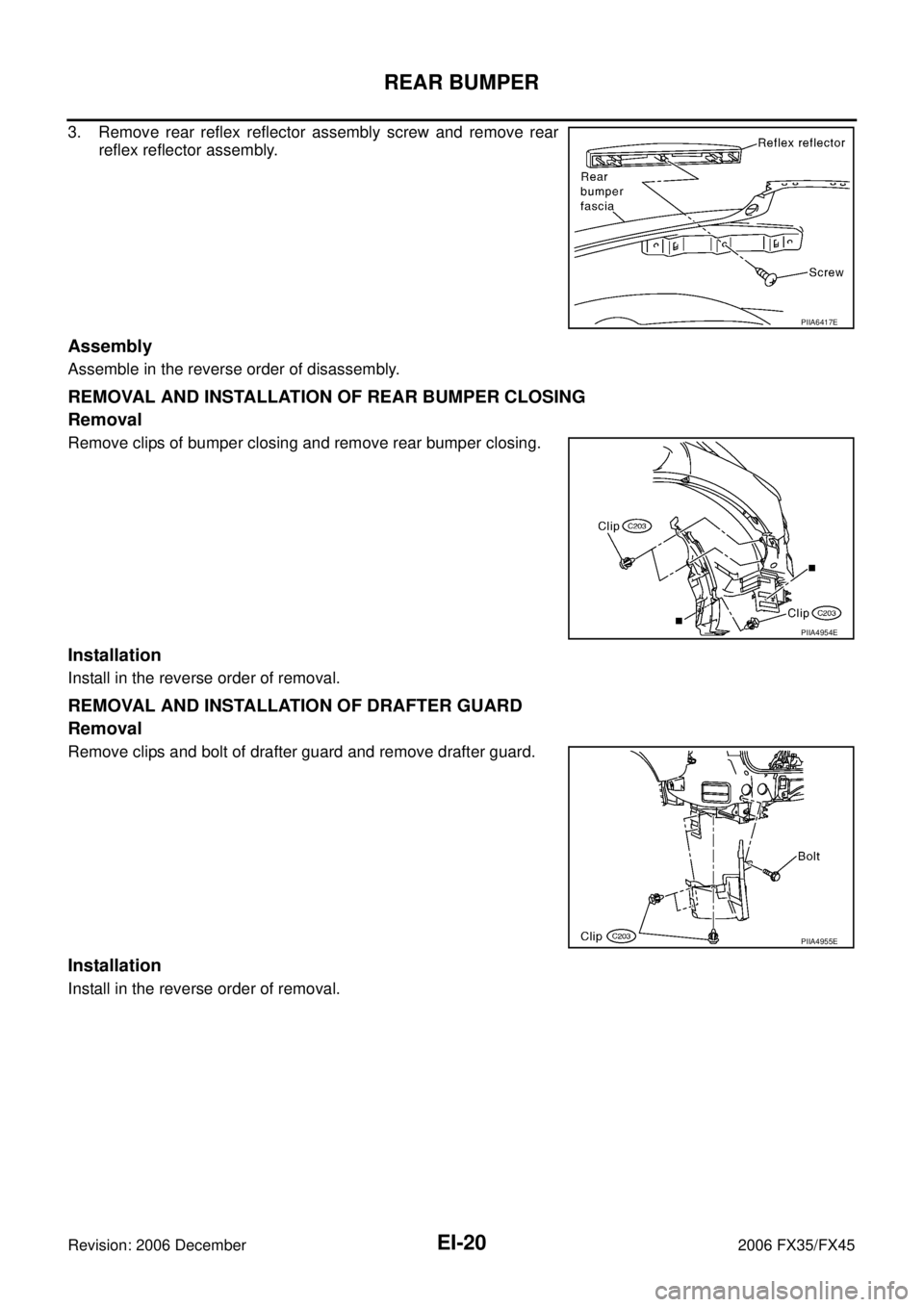

3. Remove rear reflex reflector assembly screw and remove rear reflex reflector assembly.
Assembly
Assemble in the reverse order of disassembly.
REMOVAL AND INSTALLATION OF REAR BUMPER CLOSING
Removal
Remove clips of bumper closing and remove rear bumper closing.
Installation
Install in the reverse order of removal.
REMOVAL AND INSTALLATION OF DRAFTER GUARD
Removal
Remove clips and bolt of drafter guard and remove drafter guard.
Installation
Install in the reverse order of removal.
PIIA6417E
PIIA4954E
PIIA4955E

REAR BUMPER EI-21
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45
REMOVAL AND INSTALLATION OF REAR FILLET MOLDING ASSEMBLY
Removal
1. Remove bolts of fillet molding assembly.
2. Remove clips of fillet molding assembly.
3. Remove fillet molding assembly.
Installation
1. Clean adhesive portion of rear fender with white gasoline.
2. Strip pattern from the new double adhesive tape and paste on rear fender.
3. Fillet molding assembly hold with rear fender.
PIIA4347E

EI-22
FRONT GRILLE
Revision: 2006 December 2006 FX35/FX45
FRONT GRILLEPFP:62310
Removal and InstallationNIS001TQ
CAUTION:
Apply protection tape around outer circumference of front grille (bumper fascia side).
REMOVAL
1. Remove turn fastener of grille.
2. Remove clips on upper side of grille.
3. Pull out grille pawls, and remove grille assembly.
INSTALLATION
Install in the reverse order of removal.

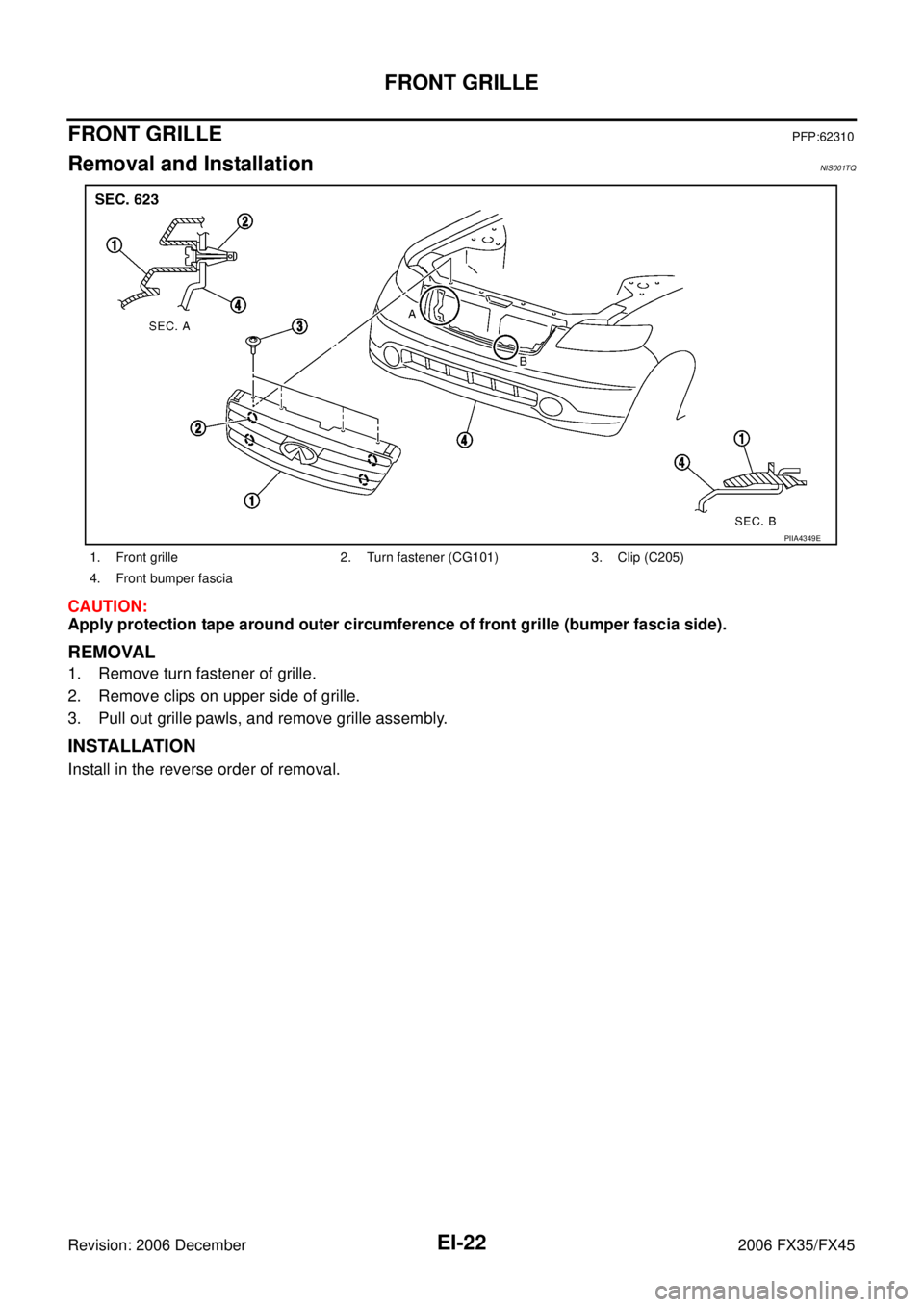

1. Front grille 2. Turn fastener (CG101) 3. Clip (C205)
4. Front bumper fascia
PIIA4349E
