INFINITI FX35 2006 Service Manual

COWL TOP EI-23
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45
COWL TOPPFP:66100
Removal and InstallationNIS001TR
REMOVAL
1. Remove clips of hood ledge cover and remove hood ledge cover.
2. Remove wiper arms (RH/LH). Refer to WW-33, "
Removal and Installation of Front Wiper Arms, Adjust-
ment of Wiper Arms Stop Location" .
3. Remove cowl top seal rubber.
4. Remove clips of cowl top cover (RH) and remove cowl top cover (RH).
5. Remove clips, cap and bolts and remove cowl top cover (LH).
6. Remove washer hose from cowl top cover.
INSTALLATION
Install in the reverse order of removal.
CAUTION:

When installing cowl top cover, make sure that blind clips are securely fitted in panel holes on
body, and then press them in.

After installing, perform adjustment of wiper arms. Refer to WW-33, "Removal and Installation of
Front Wiper Arms, Adjustment of Wiper Arms Stop Location" .
1. Cowl top cover (RH) 2. Clip (C205) 3. Hood ledge cover (RH)
4. Cowl top seal rubber 5. Hood ledge cover (LH) 6. Bolt
7. Cap 8. Cowl top cover (LH)
PIIA4946E

EI-24
FENDER PROTECTOR
Revision: 2006 December 2006 FX35/FX45
FENDER PROTECTORPFP:63840
Removal and InstallationNIS001TS
REMOVAL
1. Remove bolts of fender protector front.
2. Remove clips of fender protector front.
3. Remove fender protector front.
4. Remove bolt of fender protector rear.
5. Remove clips of fender protector rear.
6. Remove fender protector rear.
INSTALLATION
Install in the reverse order of removal.
PIIA4326E
1. Fender protector front 2. Clip (C103) 3. Screw
4. Bolt 5. Fender protector rear 6. Clip

DOOR OUTSIDE MOLDING EI-25
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45

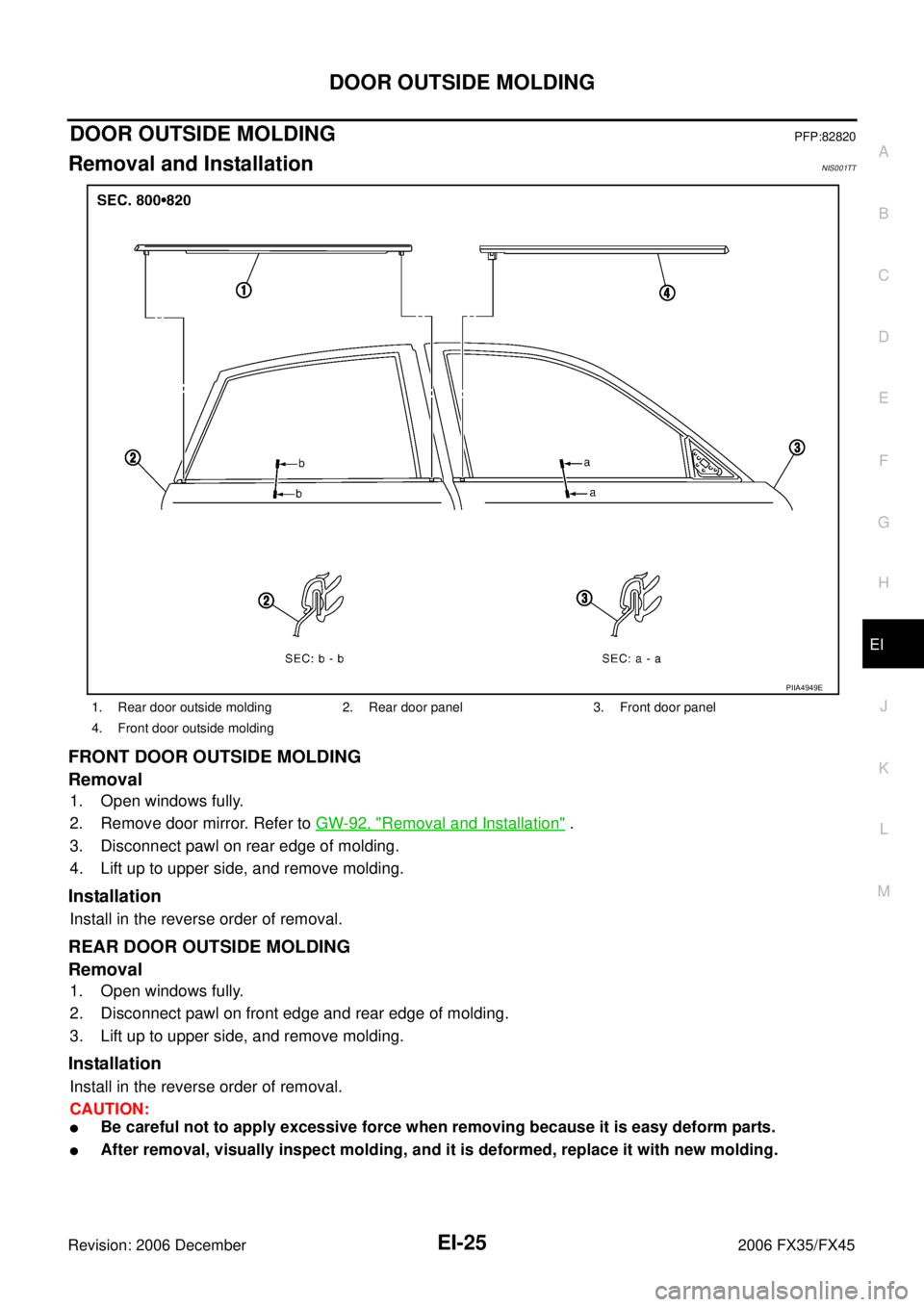

DOOR OUTSIDE MOLDING PFP:82820
Removal and InstallationNIS001TT
FRONT DOOR OUTSIDE MOLDING
Removal
1. Open windows fully.
2. Remove door mirror. Refer to GW-92, "
Removal and Installation" .
3. Disconnect pawl on rear edge of molding.
4. Lift up to upper side, and remove molding.
Installation
Install in the reverse order of removal.
REAR DOOR OUTSIDE MOLDING
Removal
1. Open windows fully.
2. Disconnect pawl on front edge and rear edge of molding.
3. Lift up to upper side, and remove molding.
Installation
Install in the reverse order of removal.
CAUTION:

Be careful not to apply excessive force when removing because it is easy deform parts.

After removal, visually inspect molding, and it is deformed, replace it with new molding.
1. Rear door outside molding 2. Rear door panel 3. Front door panel
4. Front door outside molding
PIIA4949E

EI-26
DOOR OUTSIDE LOWER MOLDING
Revision: 2006 December 2006 FX35/FX45
DOOR OUTSIDE LOWER MOLDINGPFP:82877
Removal and InstallationNIS001TU
FRONT AND REAR DOOR OUTSIDE LOWER MOLDING
Removal
Remove clips, then remove door outside lower molding with double-faced adhesive tape.
Installation
1. Clean adhesive portion of front and rear door with white gasoline.
2. Strip pattern from the new door outside lower molding and paste on door.
CAUTION:

Do not let air between contact surfaces when installing.

To secure contact, do not wash vehicle within 24 hours after installation.
1. Rear door outside lower molding 2. Front door outside lower molding 3. Clip (with lower molding)
4. Grommet 5. Door panel 6. Double-faced adhesive tape
PIIA4348E

DOOR PARTING SEAL EI-27
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45

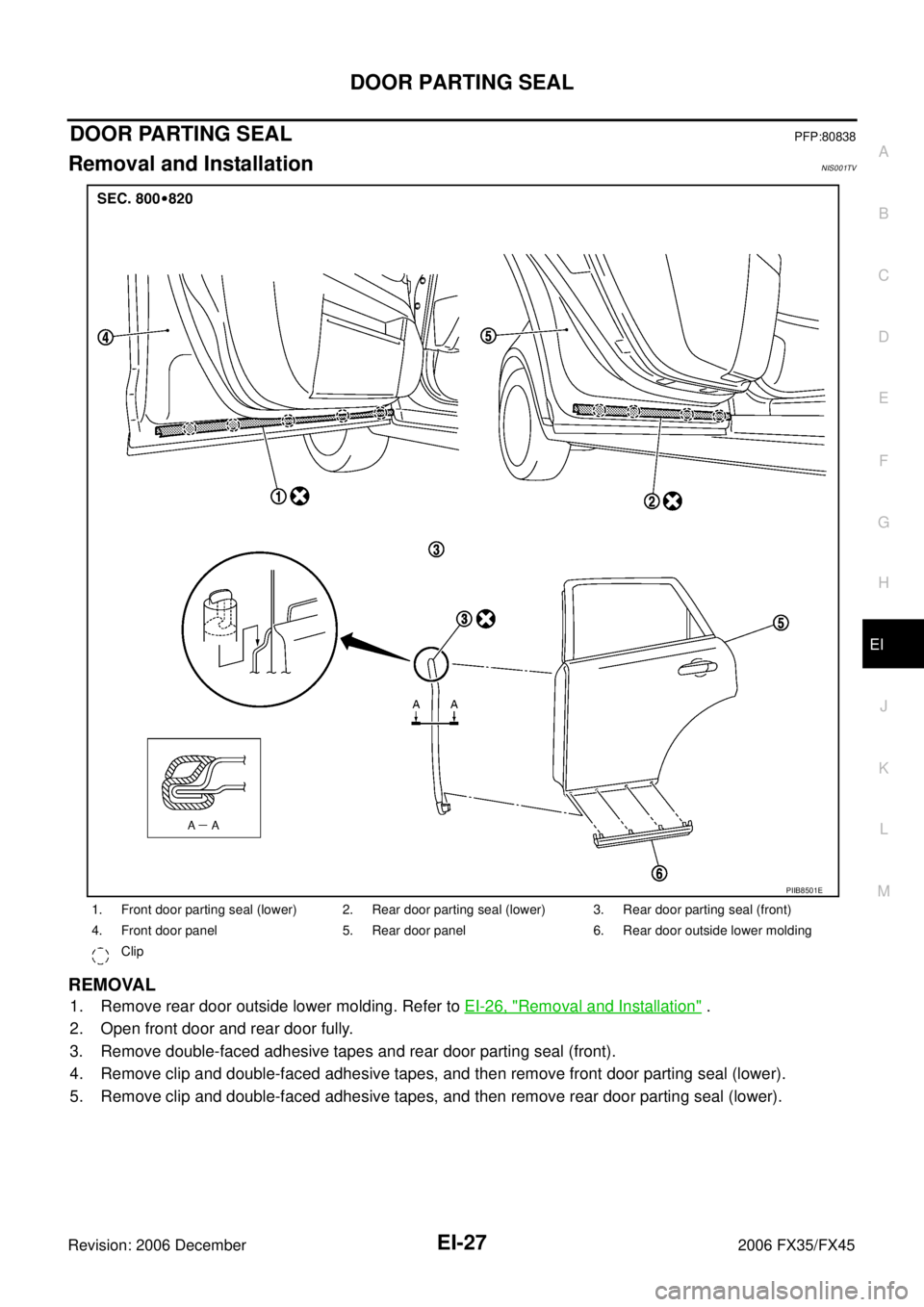

DOOR PARTING SEALPFP:80838
Removal and InstallationNIS001TV
REMOVAL
1. Remove rear door outside lower molding. Refer to EI-26, "Removal and Installation" .
2. Open front door and rear door fully.
3. Remove double-faced adhesive tapes and rear door parting seal (front).
4. Remove clip and double-faced adhesive tapes, and then remove front door parting seal (lower).
5. Remove clip and double-faced adhesive tapes, and then remove rear door parting seal (lower).
1. Front door parting seal (lower) 2. Rear door parting seal (lower) 3. Rear door parting seal (front)
4. Front door panel 5. Rear door panel 6. Rear door outside lower molding Clip
PIIB8501E

EI-28
DOOR PARTING SEAL
Revision: 2006 December 2006 FX35/FX45
INSTALLATION
1. Clean adhesive portion of rear door with white gasoline.
2. Strip pattern from the new rear door parting seal and paste on rear door panel.
3. Install rear door parting seal to rear door hem flange.
4. Install rear door outside lower molding. Refer to EI-26, "
Removal and Installation" .
CAUTION:
Rear door parting seal is not reusable. always use new rear door parting seal.

CENTER MUD GUARD EI-29
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45
CENTER MUD GUARDPFP:76850
Removal and InstallationNIS001TW
REMOVAL
1. Remove bolts center mud-guard lower portion.
2. Remove screws center mud-guard front and rear portion.
3. Insert driver rolled with cloth or tapes between guard and body side sill, then pull it back to your side.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.
1. Center mud-guard 2. Grommet 3. Clip
4. Bolt 5. Screw
PIIA4328E

EI-30
WINDSHIELD MOLDING
Revision: 2006 December 2006 FX35/FX45

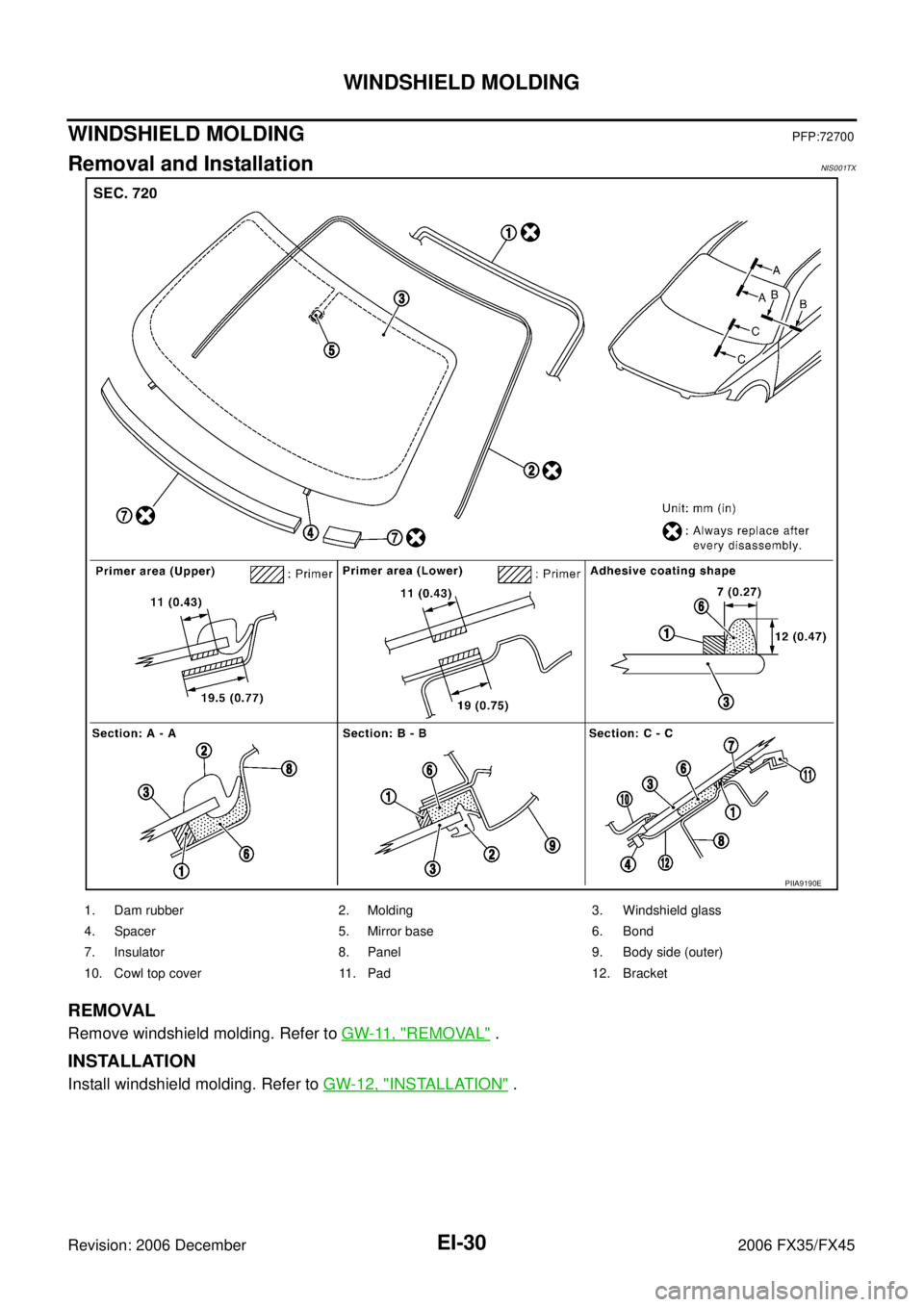

WINDSHIELD MOLDINGPFP:72700
Removal and InstallationNIS001TX
REMOVAL
Remove windshield molding. Refer to GW-11, "REMOVAL" .
INSTALLATION
Install windshield molding. Refer to GW-12, "INSTALLATION" .
PIIA9190E
1. Dam rubber 2. Molding 3. Windshield glass
4. Spacer 5. Mirror base 6. Bond
7. Insulator 8. Panel 9. Body side (outer)
10. Cowl top cover 11. Pad 12. Bracket

BACK DOOR WINDOW MOLDING EI-31
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45

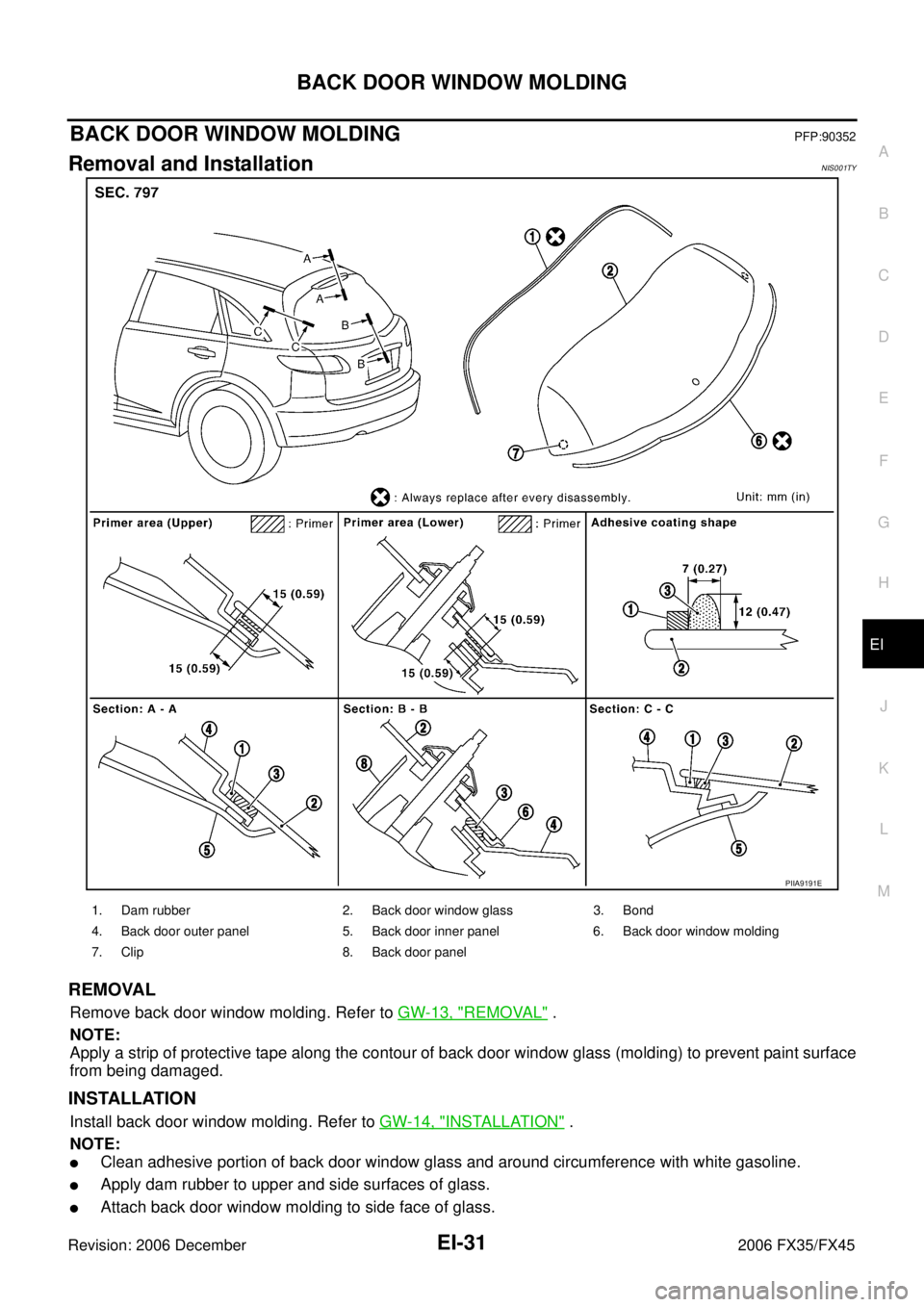

BACK DOOR WINDOW MOLDINGPFP:90352
Removal and InstallationNIS001TY
REMOVAL
Remove back door window molding. Refer to GW-13, "REMOVAL" .
NOTE:
Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface
from being damaged.
INSTALLATION
Install back door window molding. Refer to GW-14, "INSTALLATION" .
NOTE:

Clean adhesive portion of back door window glass and around circumference with white gasoline.

Apply dam rubber to upper and side surfaces of glass.

Attach back door window molding to side face of glass.
PIIA9191E
1. Dam rubber 2. Back door window glass 3. Bond
4. Back door outer panel 5. Back door inner panel 6. Back door window molding
7. Clip 8. Back door panel

EI-32
BACK DOOR WINDOW MOLDING
Revision: 2006 December 2006 FX35/FX45

Back door window molding should not overlap on the surface of back door window glass.
