INFINITI FX35 2006 Service Manual

CAN SYSTEM (TYPE 6) LAN-181
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

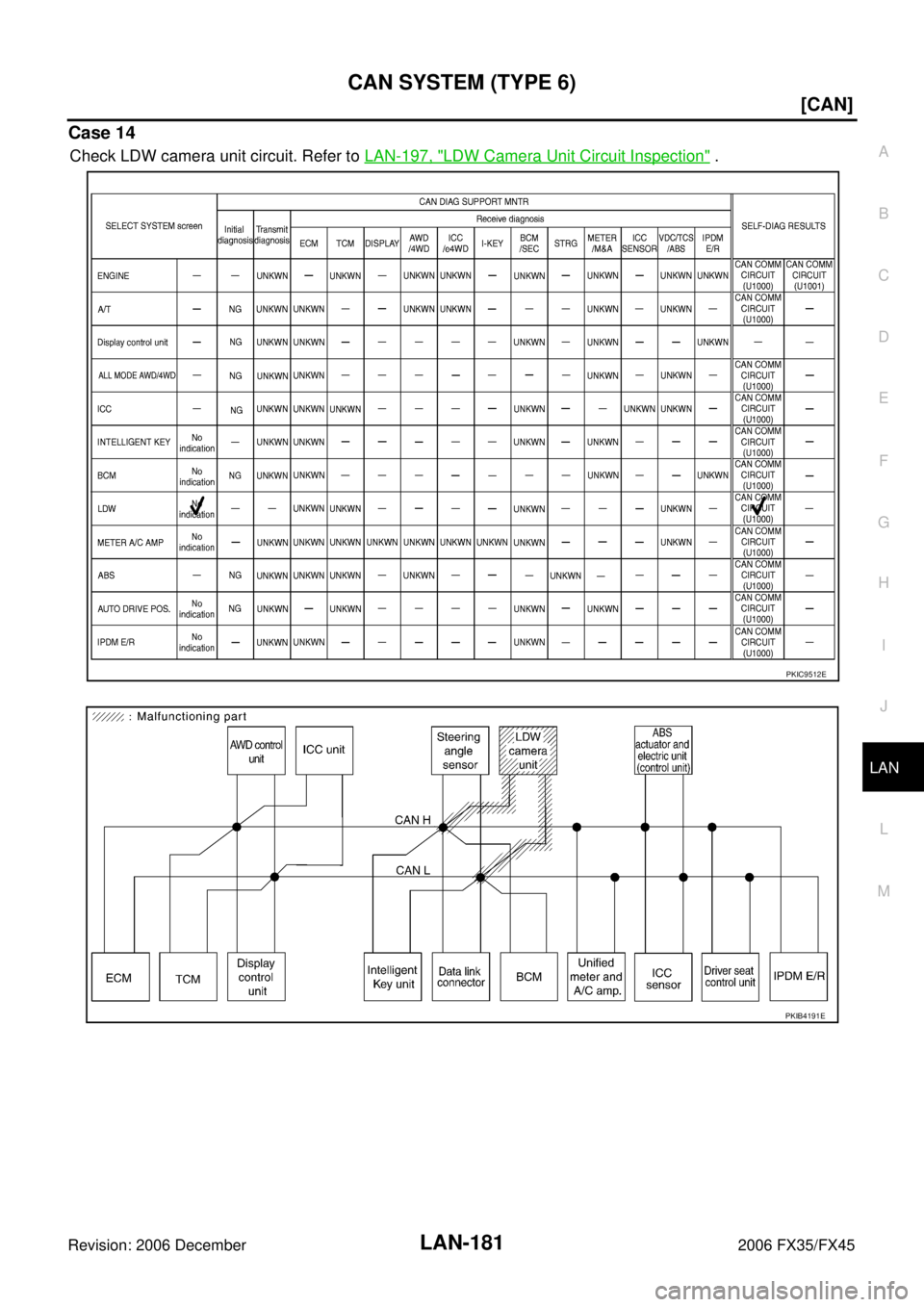

Case 14
Check LDW camera unit circuit. Refer to LAN-197, "LDW Camera Unit Circuit Inspection" .
PKIC9512E
PKIB4191E

LAN-182
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 December 2006 FX35/FX45

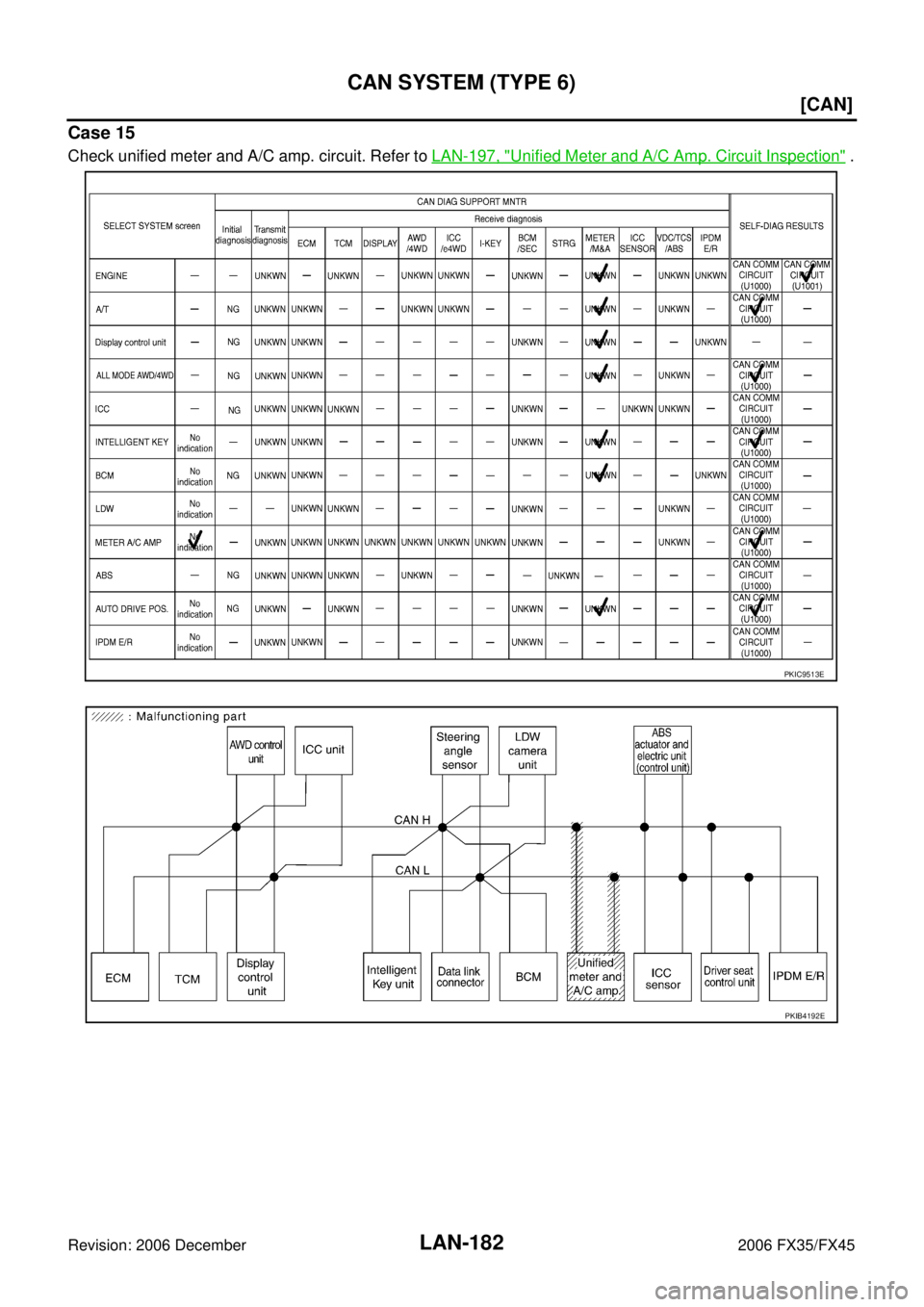

Case 15
Check unified meter and A/C amp. circuit. Refer to LAN-197, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIC9513E
PKIB4192E

CAN SYSTEM (TYPE 6) LAN-183
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 16
Check ICC sensor circuit. Refer to LAN-198, "ICC Sensor Circuit Inspection" .
PKIC9514E
PKIB4193E

LAN-184
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 December 2006 FX35/FX45

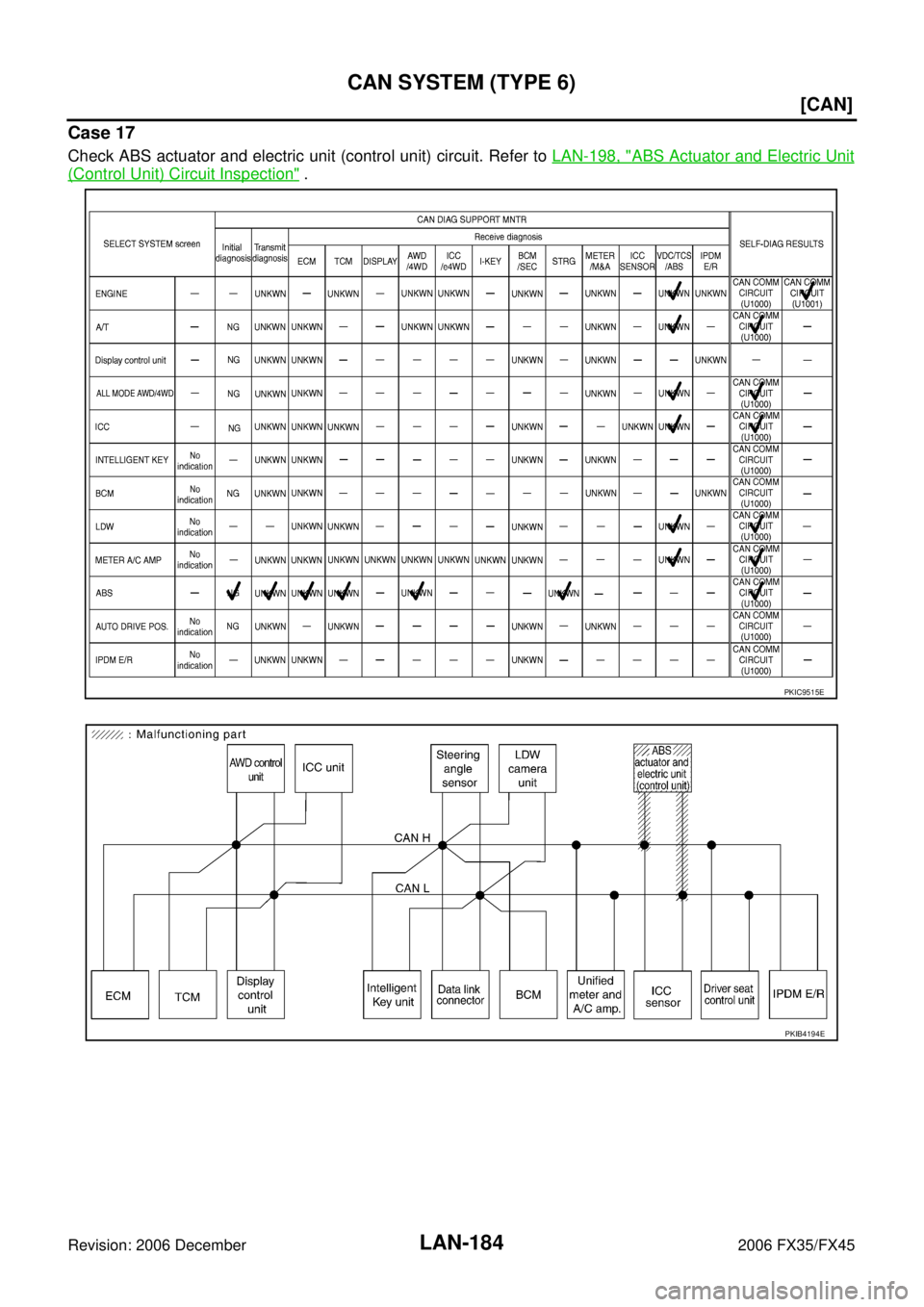

Case 17
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-198, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIC9515E
PKIB4194E

CAN SYSTEM (TYPE 6) LAN-185
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

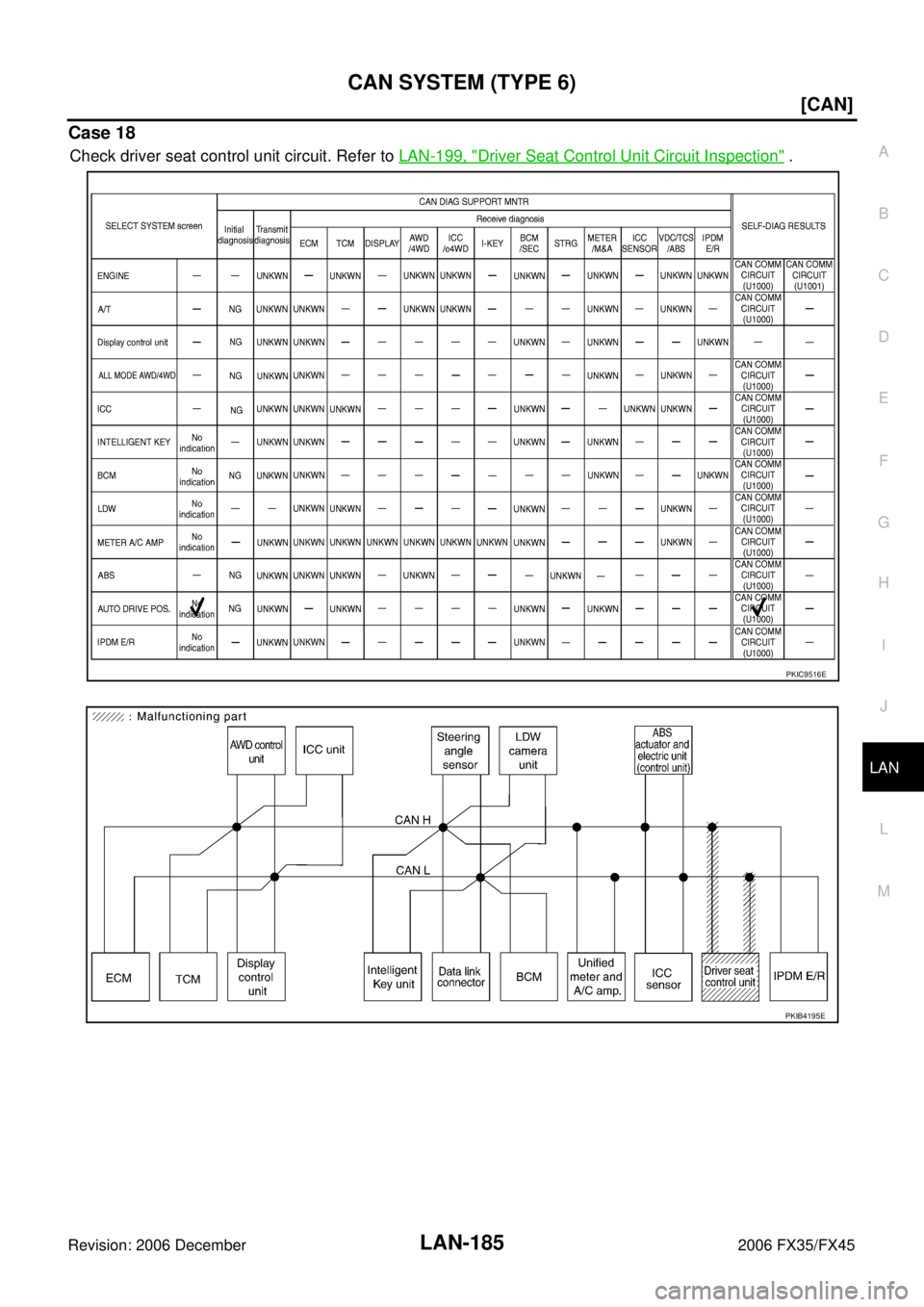

Case 18
Check driver seat control unit circuit. Refer to LAN-199, "Driver Seat Control Unit Circuit Inspection" .
PKIC9516E
PKIB4195E

LAN-186
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 December 2006 FX35/FX45

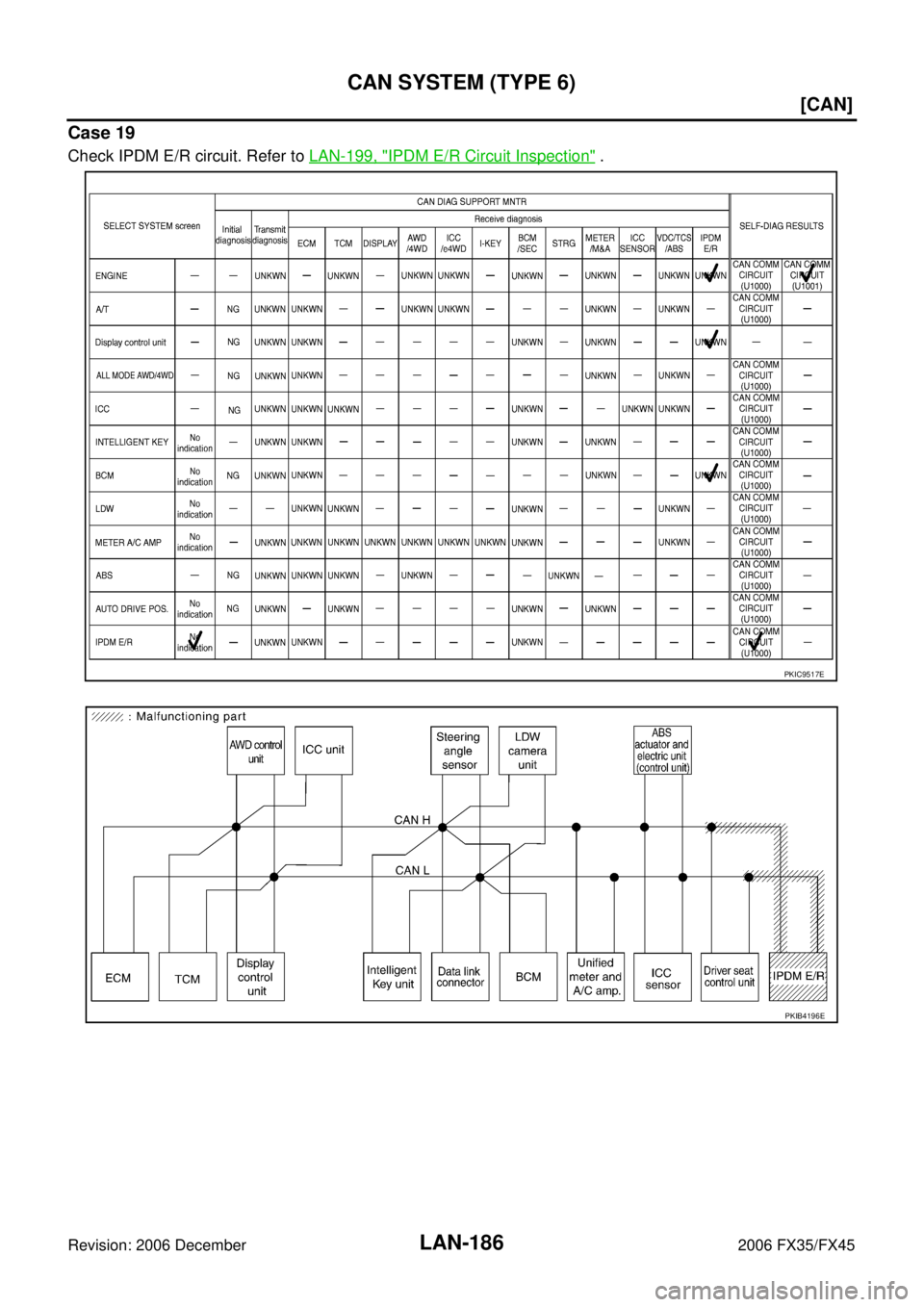

Case 19
Check IPDM E/R circuit. Refer to LAN-199, "IPDM E/R Circuit Inspection" .
PKIC9517E
PKIB4196E

CAN SYSTEM (TYPE 6) LAN-187
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

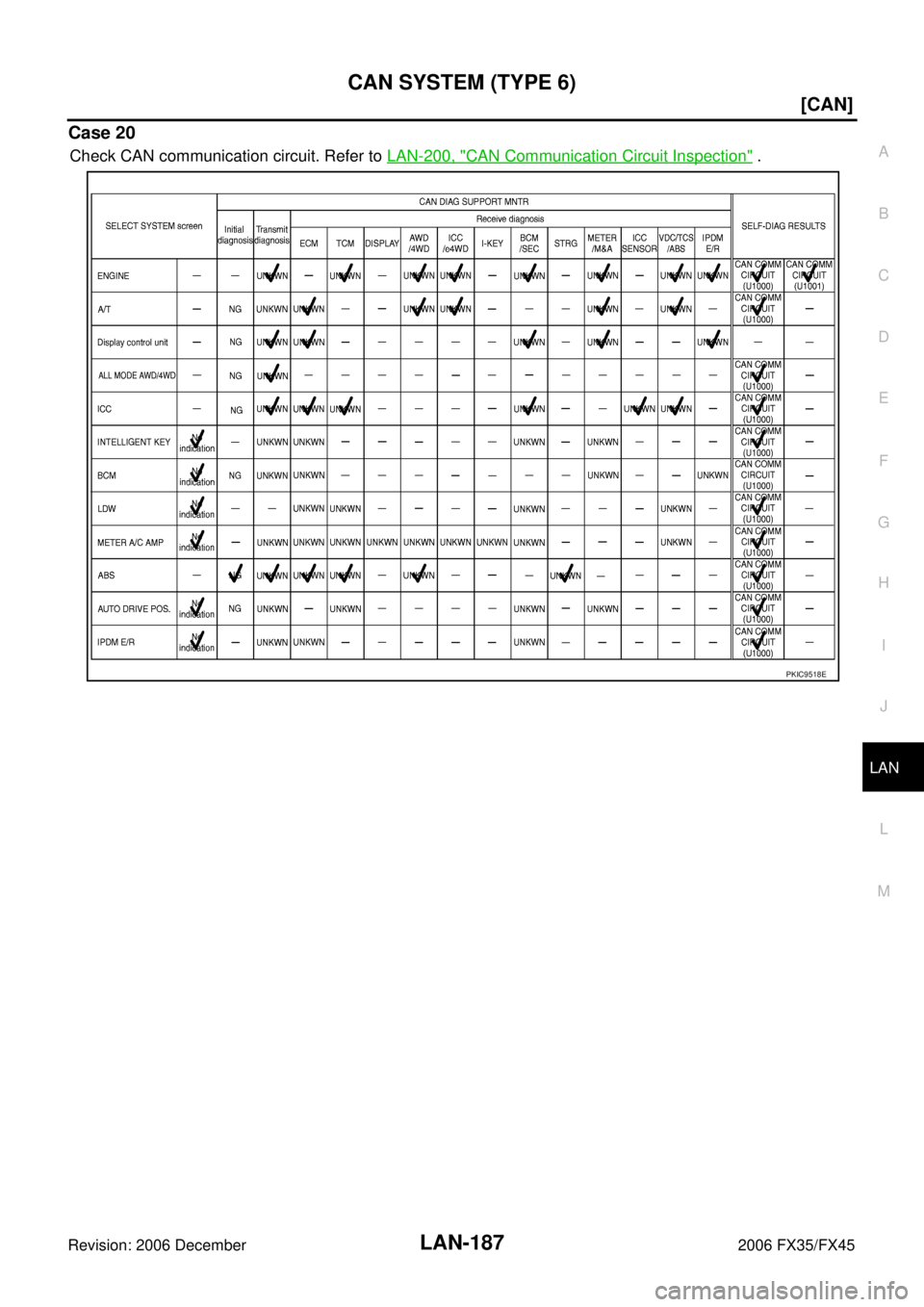

Case 20
Check CAN communication circuit. Refer to LAN-200, "CAN Communication Circuit Inspection" .
PKIC9518E

LAN-188
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 December 2006 FX35/FX45
Case 21
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9519E

CAN SYSTEM (TYPE 6) LAN-189
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 22
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9520E

LAN-190
[CAN]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2006 December 2006 FX35/FX45
TROUBLE DIAGNOSIS FOR SYSTEMPFP:00000
Inspection Between TCM and Data Link Connector CircuitNKS0038T
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector and data link con- nector.
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-5, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between Data Link Connector and Unified Meter and A/C Amp. Cir-
cuit
NKS0038U
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect ECM connector and unified meter and A/C amp. connector.
4. Check continuity between data link connector and unified meter and A/C amp. harness connector.
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-5, "
TROUBLE DIAGNOSES WORK FLOW" .
NG >> Repair harness.
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric
Unit (Control Unit) Circuit
NKS0038V
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and harness side).
–Harness connector M41
–Harness connector E211
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Harness con- nector Terminal Data link con-
nector Terminal Continuity
M82 14H
M5 6Yes
15H 14 Yes
SKIA6861E
Data link con- nector Terminal Unified meter
and A/C amp. connector Terminal Continuity
M5 6
M55 1Yes
14 11 Yes
SKIA6862E
