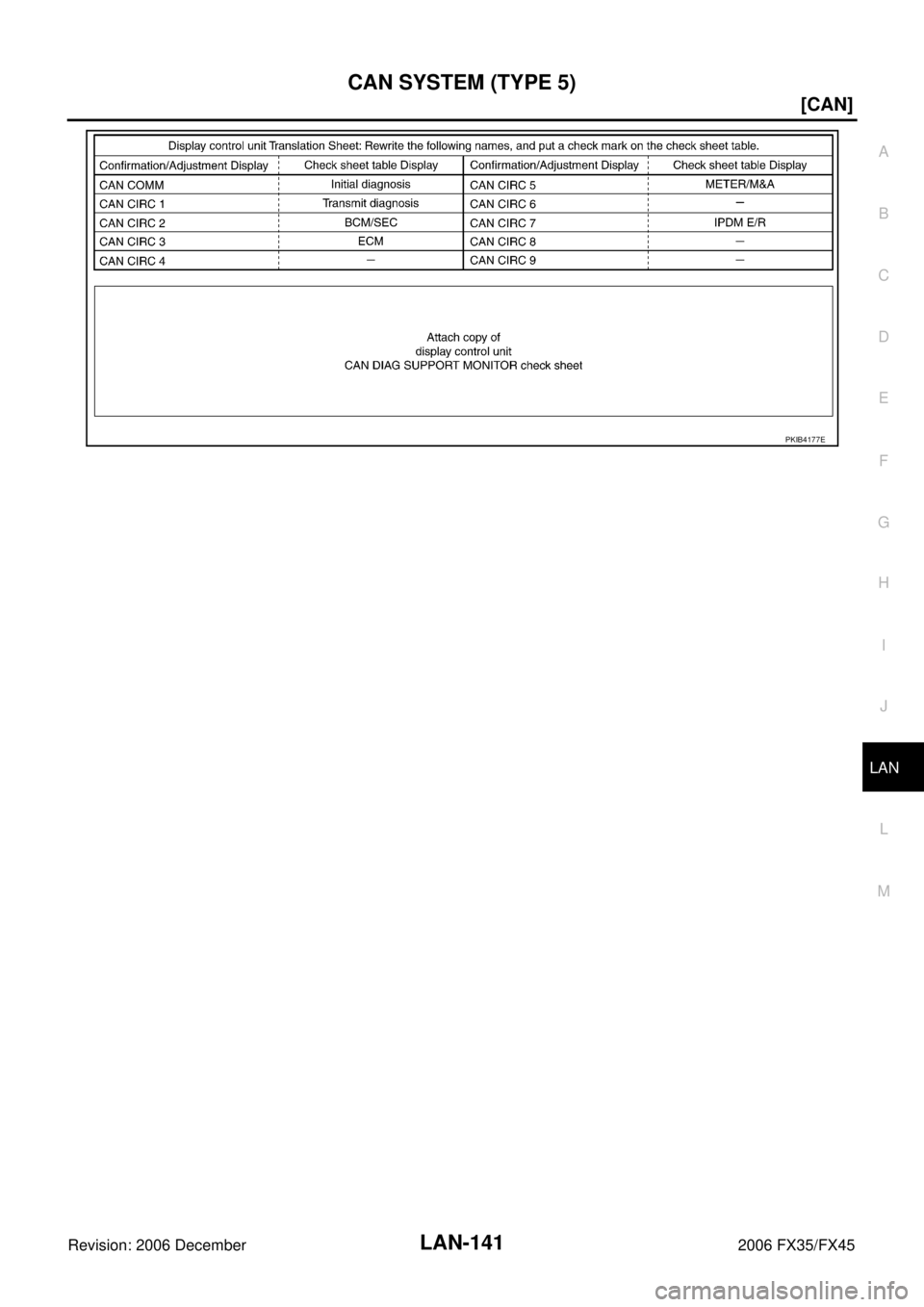

CAN SYSTEM (TYPE 5) LAN-141
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
PKIB4177E

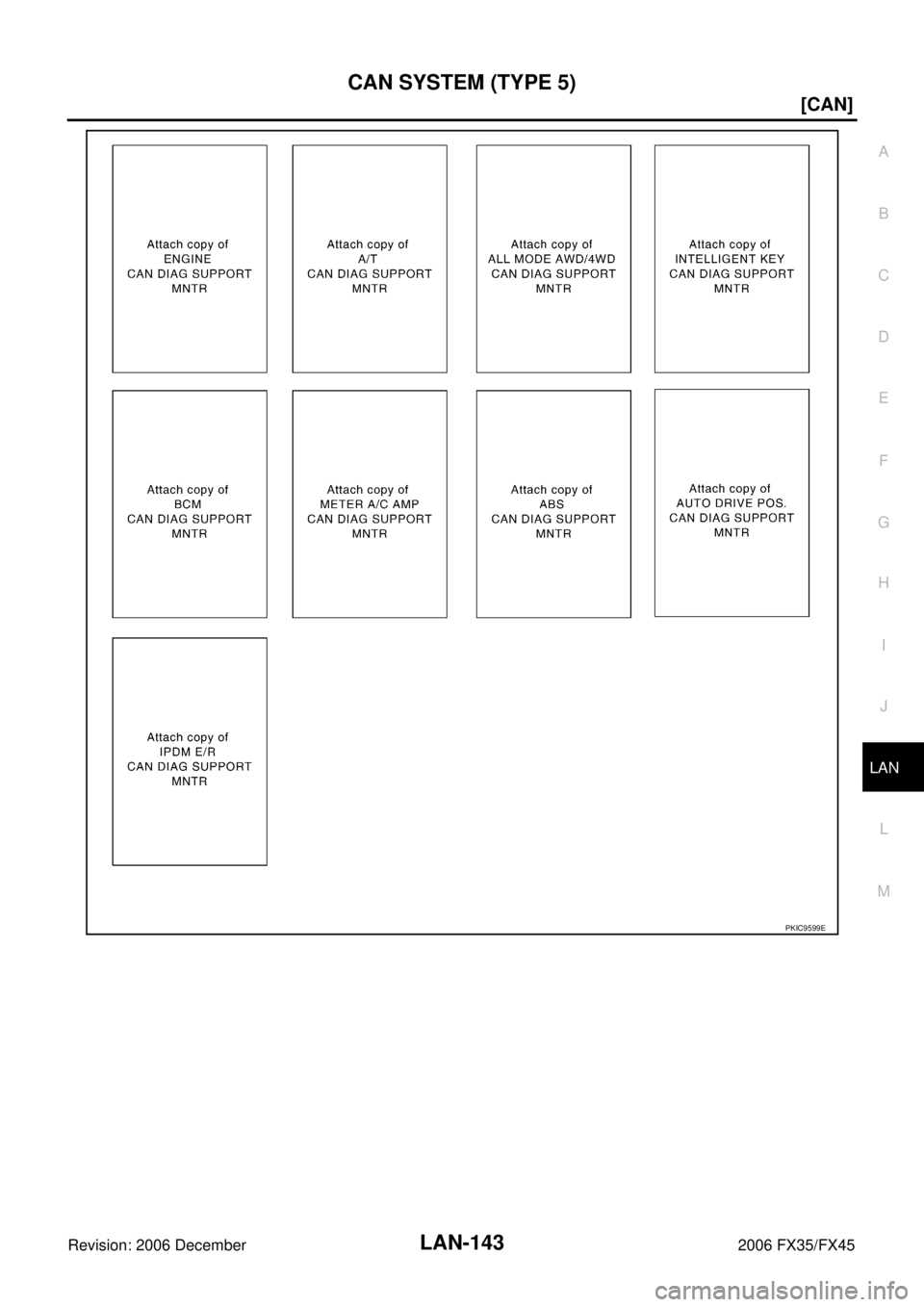

Page 3502 of 4462
LAN-142
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45
PKIC9598E

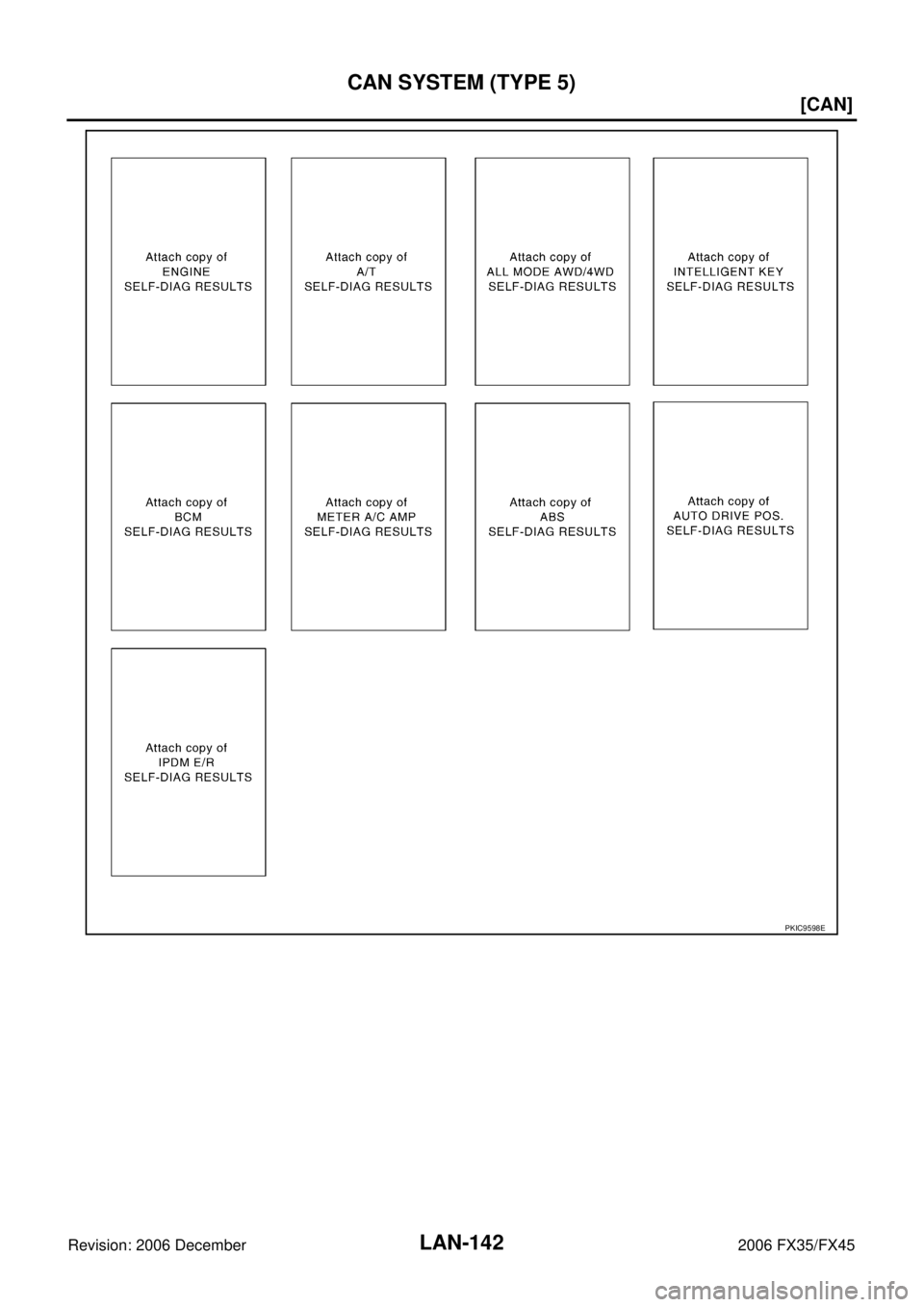

Page 3503 of 4462
CAN SYSTEM (TYPE 5) LAN-143
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
PKIC9599E
Page 3504 of 4462
LAN-144
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

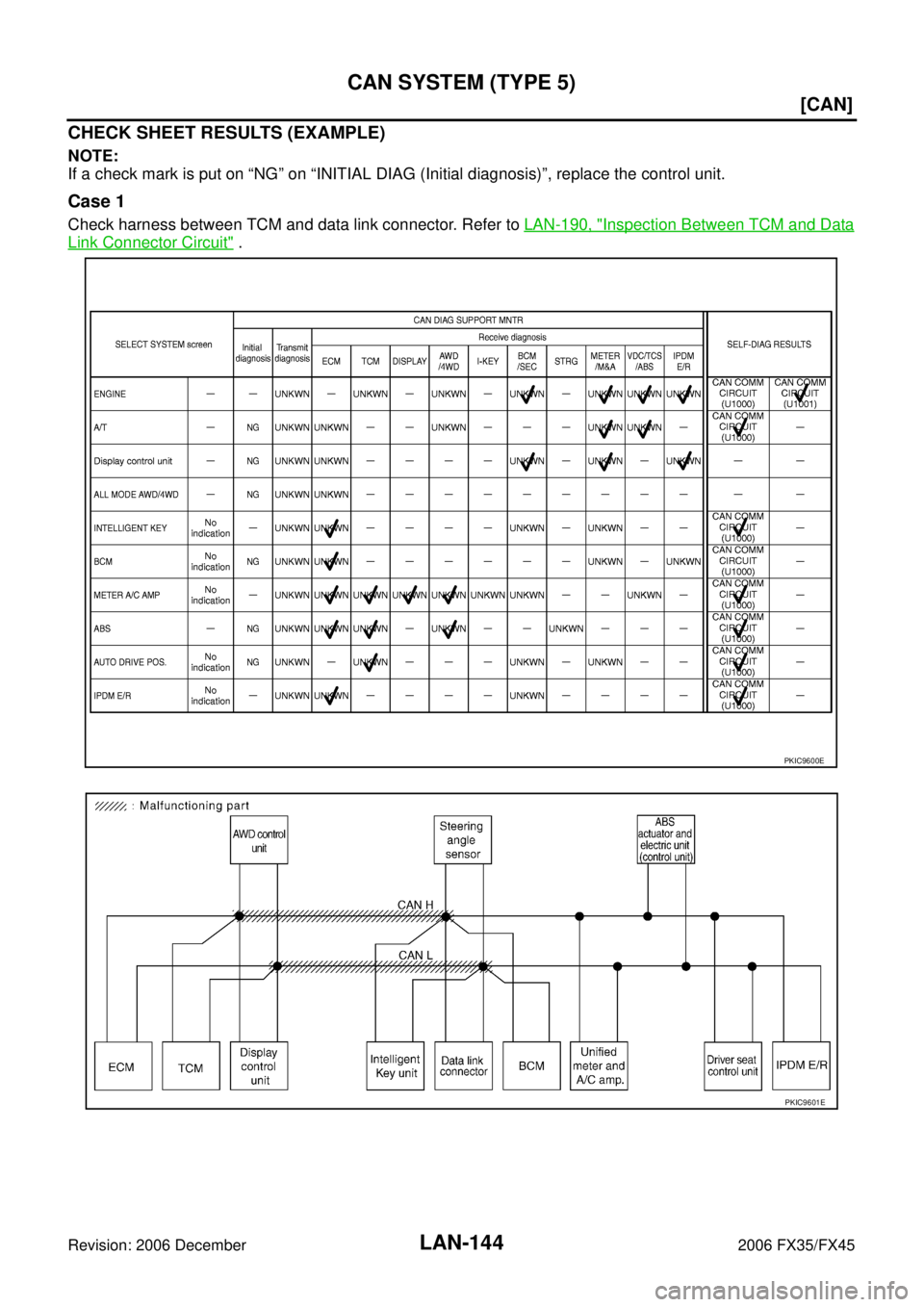

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-190, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIC9600E
PKIC9601E
Page 3505 of 4462
CAN SYSTEM (TYPE 5) LAN-145
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

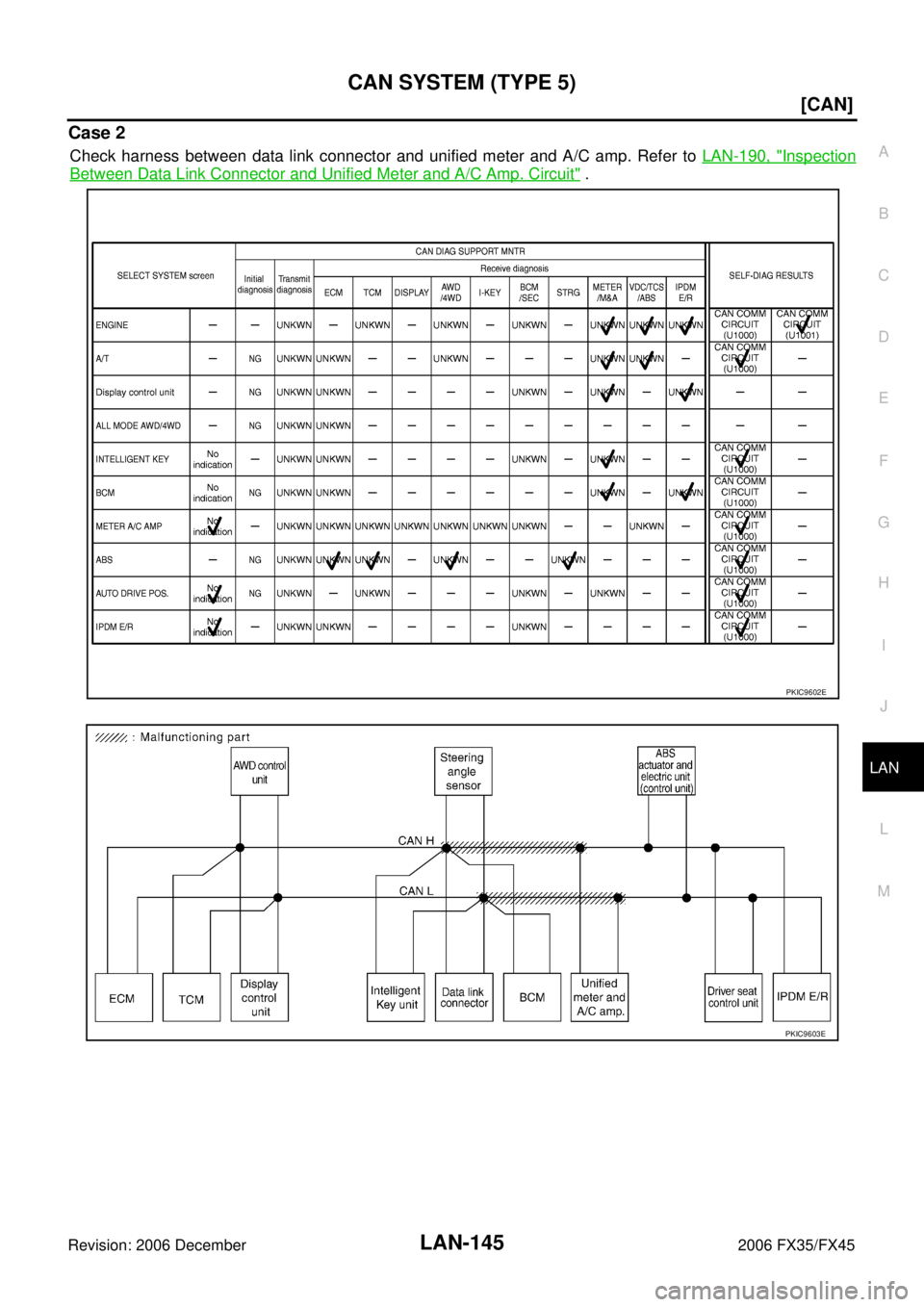

Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-190, "Inspection
Between Data Link Connector and Unified Meter and A/C Amp. Circuit" .
PKIC9602E
PKIC9603E
Page 3506 of 4462
LAN-146
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

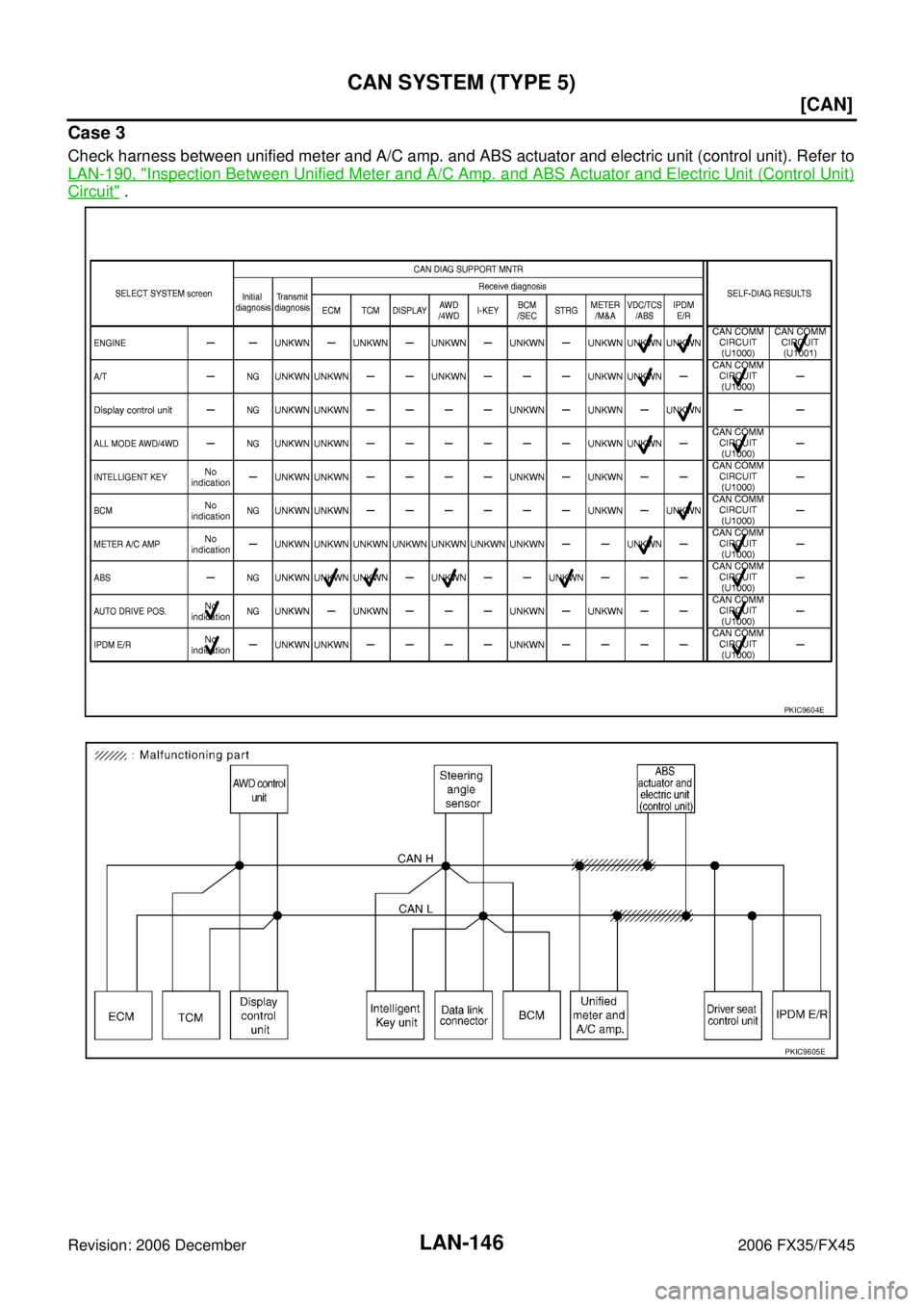

Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-190, "
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control Unit)
Circuit" .
PKIC9604E
PKIC9605E
Page 3507 of 4462
CAN SYSTEM (TYPE 5) LAN-147
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

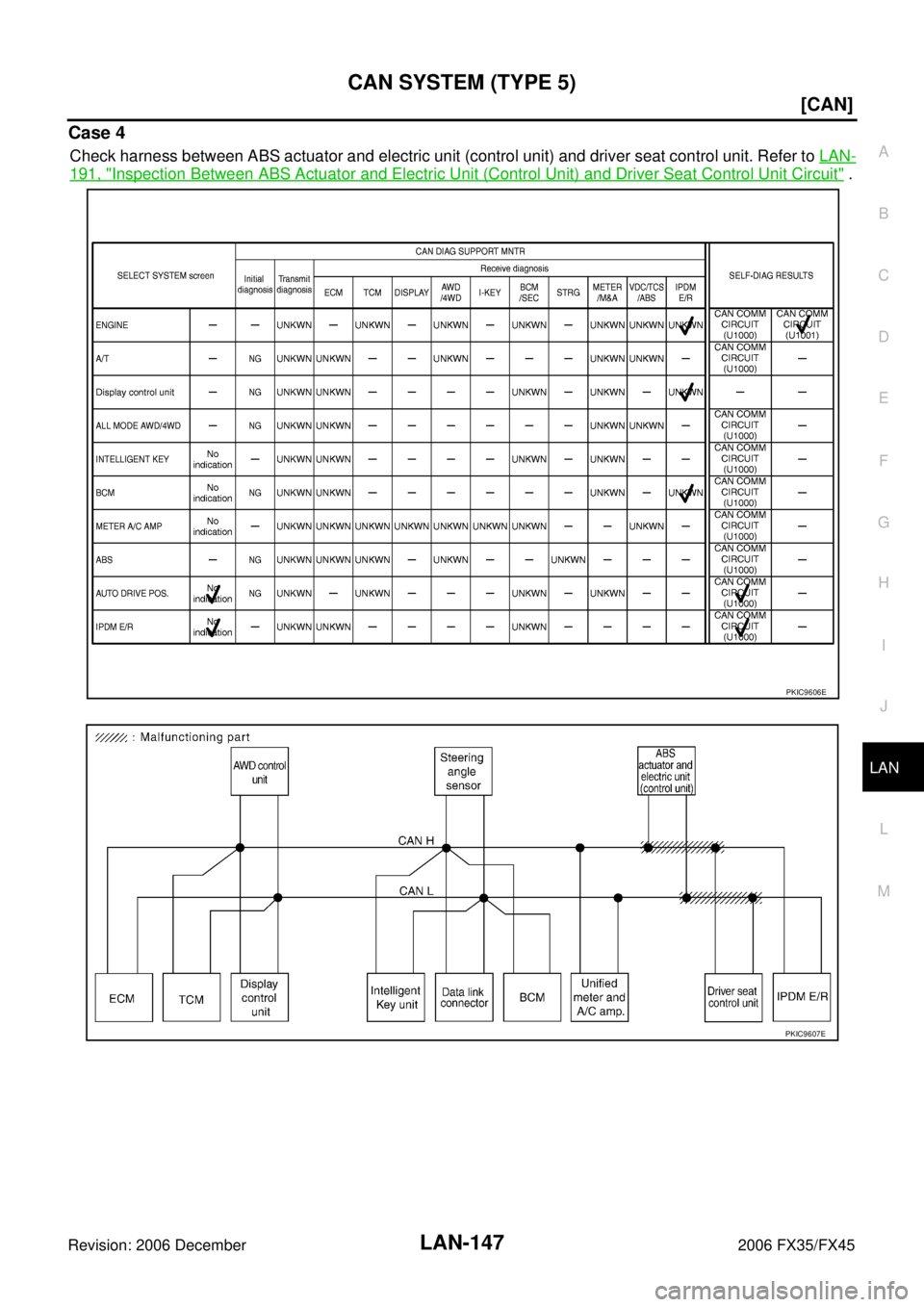

Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
191, "Inspection Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit Circuit" .
PKIC9606E
PKIC9607E
Page 3508 of 4462
LAN-148
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

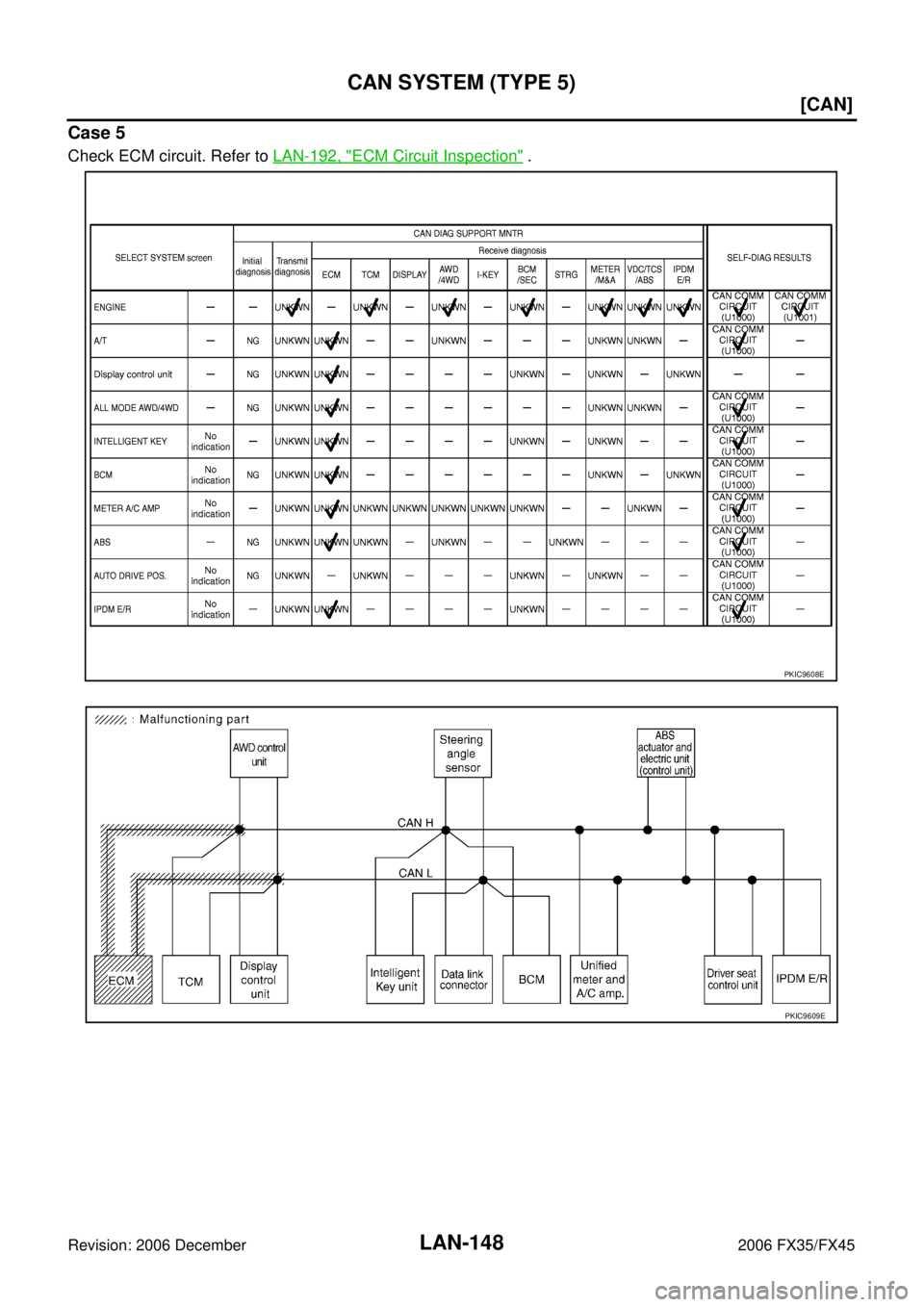

Case 5
Check ECM circuit. Refer to LAN-192, "ECM Circuit Inspection" .
PKIC9608E
PKIC9609E
Page 3509 of 4462
CAN SYSTEM (TYPE 5) LAN-149
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

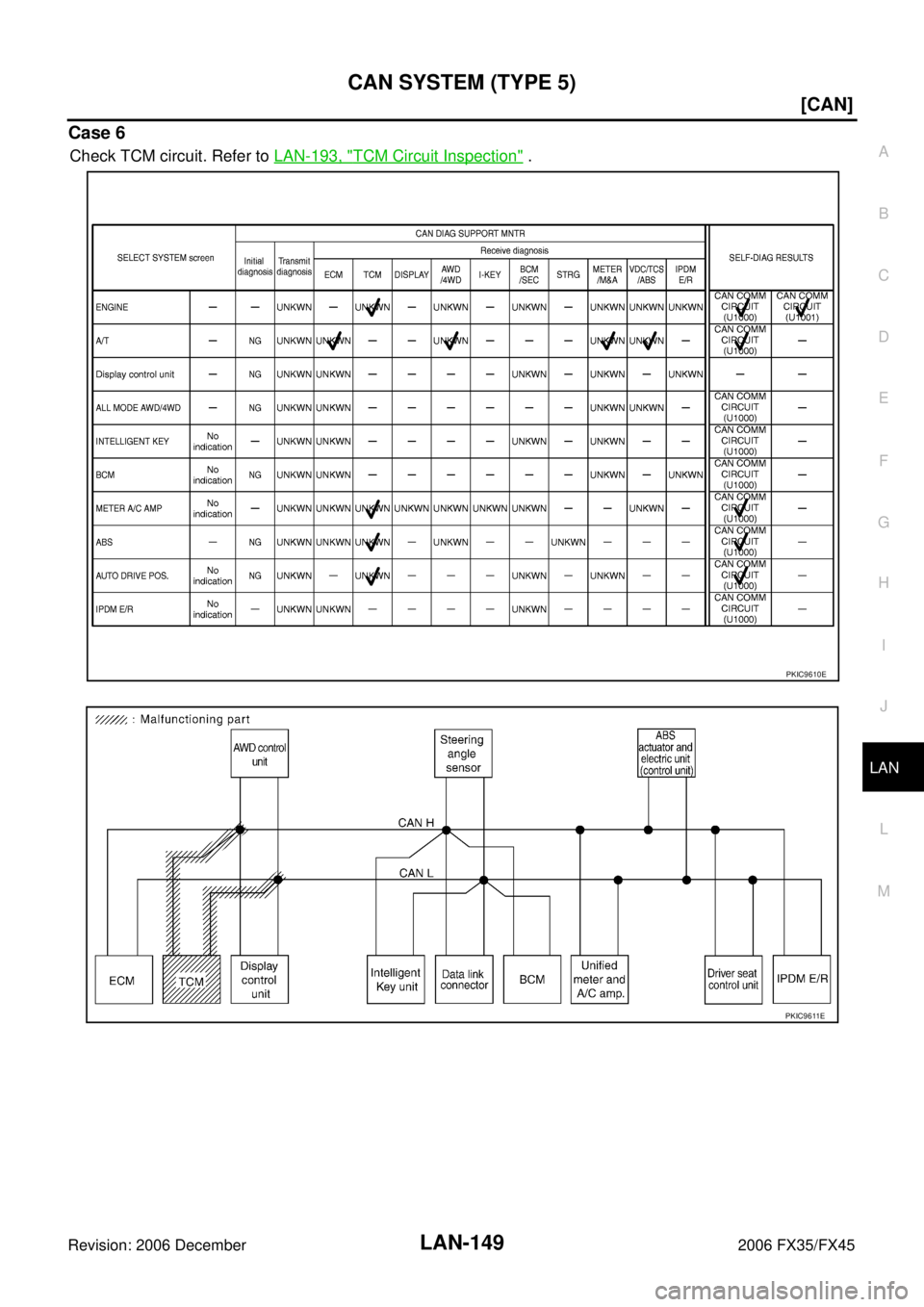

Case 6
Check TCM circuit. Refer to LAN-193, "TCM Circuit Inspection" .
PKIC9610E
PKIC9611E
Page 3510 of 4462
LAN-150
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

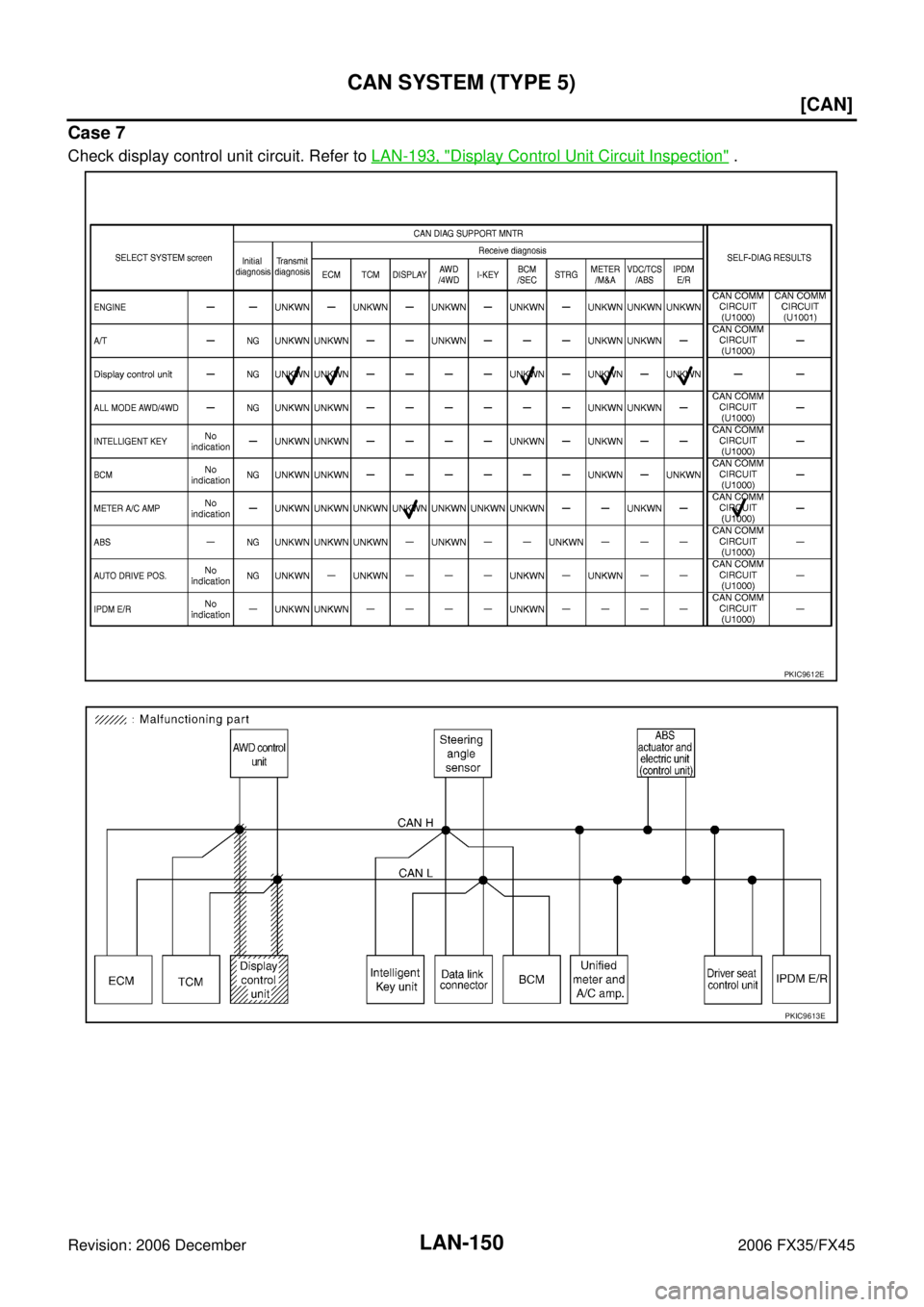

Case 7
Check display control unit circuit. Refer to LAN-193, "Display Control Unit Circuit Inspection" .
PKIC9612E
PKIC9613E
