CAN SYSTEM (TYPE 5) LAN-151
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

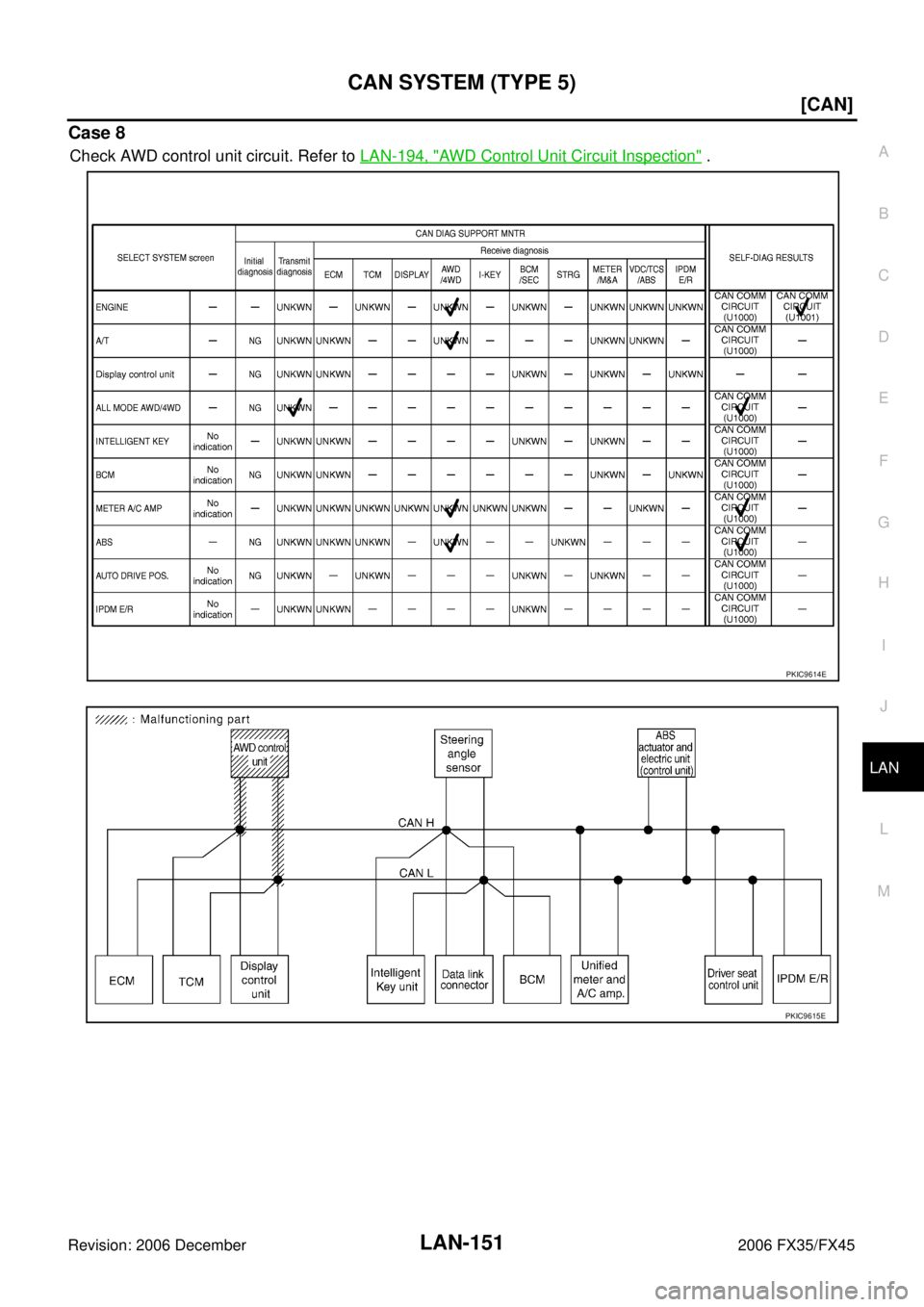

Case 8
Check AWD control unit circuit. Refer to LAN-194, "AWD Control Unit Circuit Inspection" .
PKIC9614E
PKIC9615E
Page 3512 of 4462
LAN-152
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

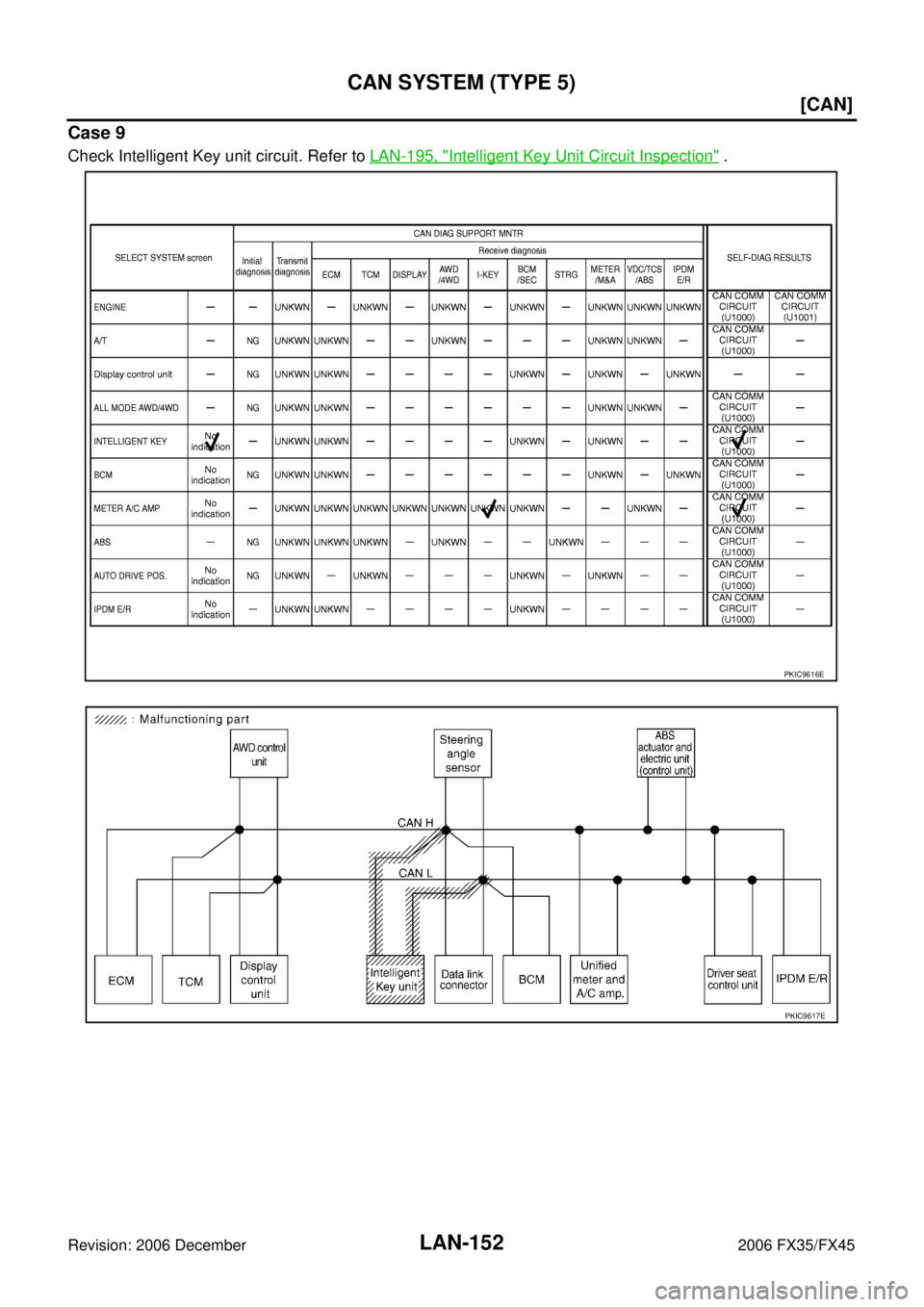

Case 9
Check Intelligent Key unit circuit. Refer to LAN-195, "Intelligent Key Unit Circuit Inspection" .
PKIC9616E
PKIC9617E
Page 3513 of 4462
CAN SYSTEM (TYPE 5) LAN-153
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

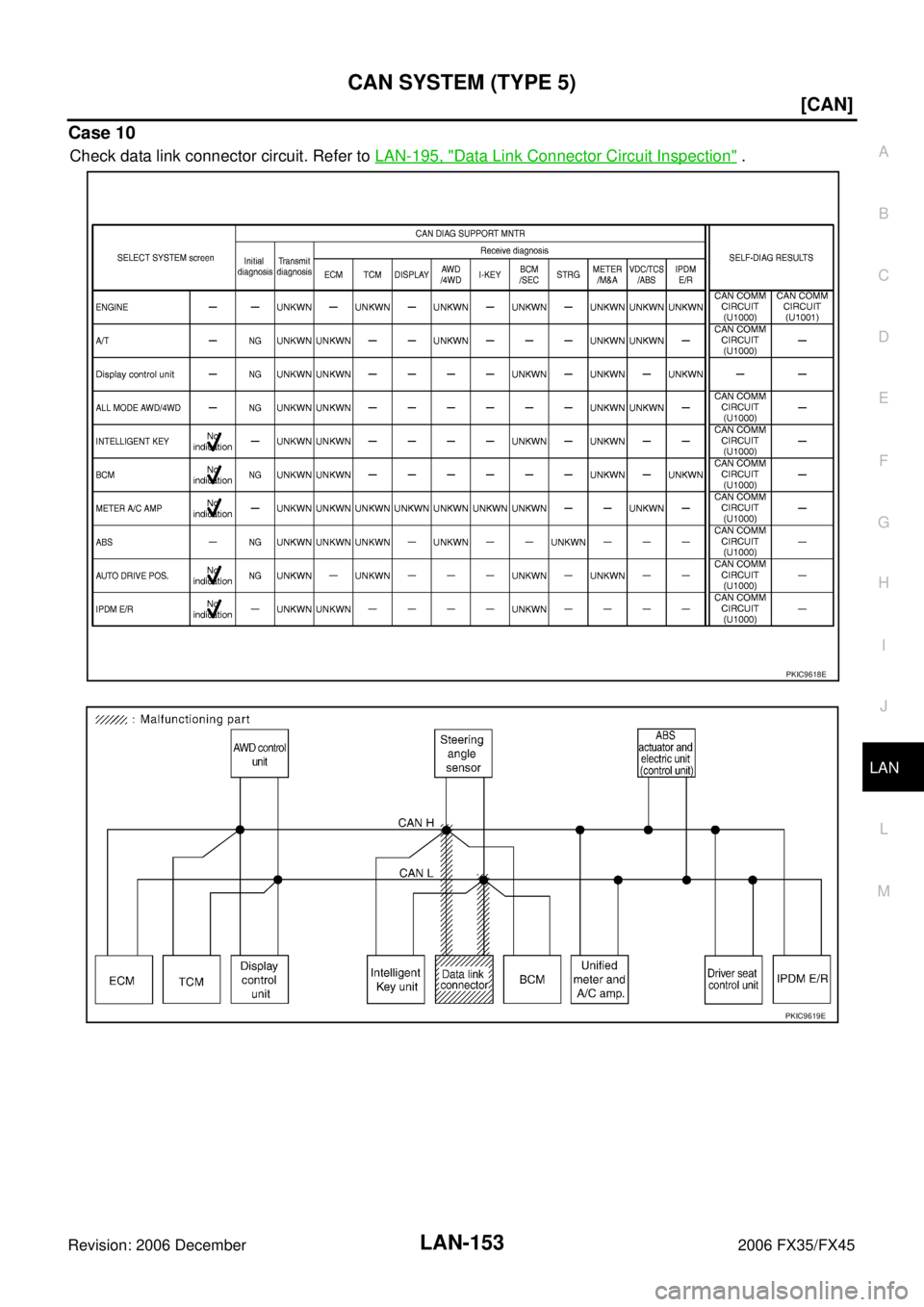

Case 10
Check data link connector circuit. Refer to LAN-195, "Data Link Connector Circuit Inspection" .
PKIC9618E
PKIC9619E
Page 3514 of 4462
LAN-154
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

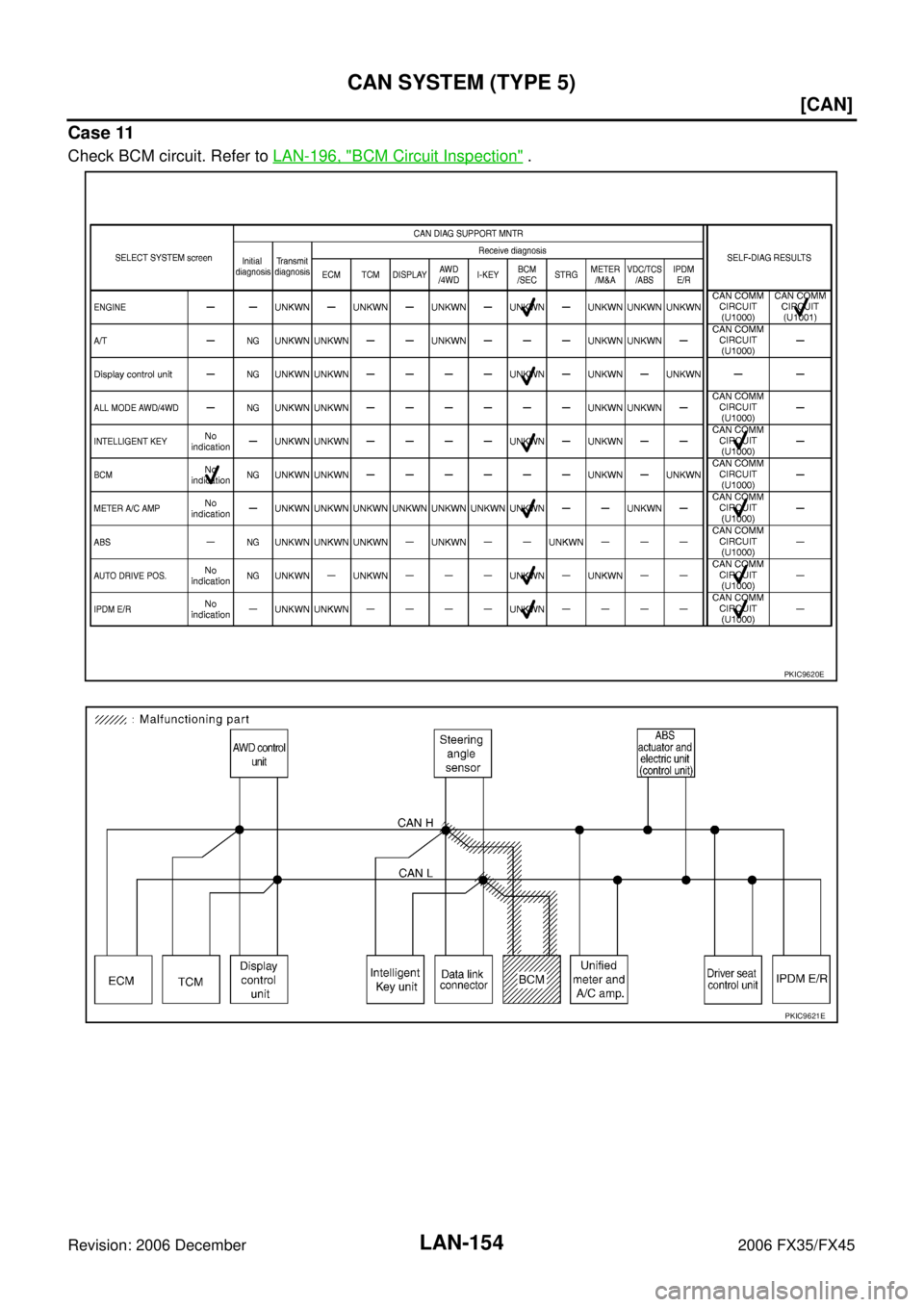

Case 11
Check BCM circuit. Refer to LAN-196, "BCM Circuit Inspection" .
PKIC9620E
PKIC9621E
Page 3515 of 4462
CAN SYSTEM (TYPE 5) LAN-155
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 12
Check steering angle sensor circuit. Refer to LAN-196, "Steering Angle Sensor Circuit Inspection" .
PKIC9622E
PKIC9623E
Page 3516 of 4462
LAN-156
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

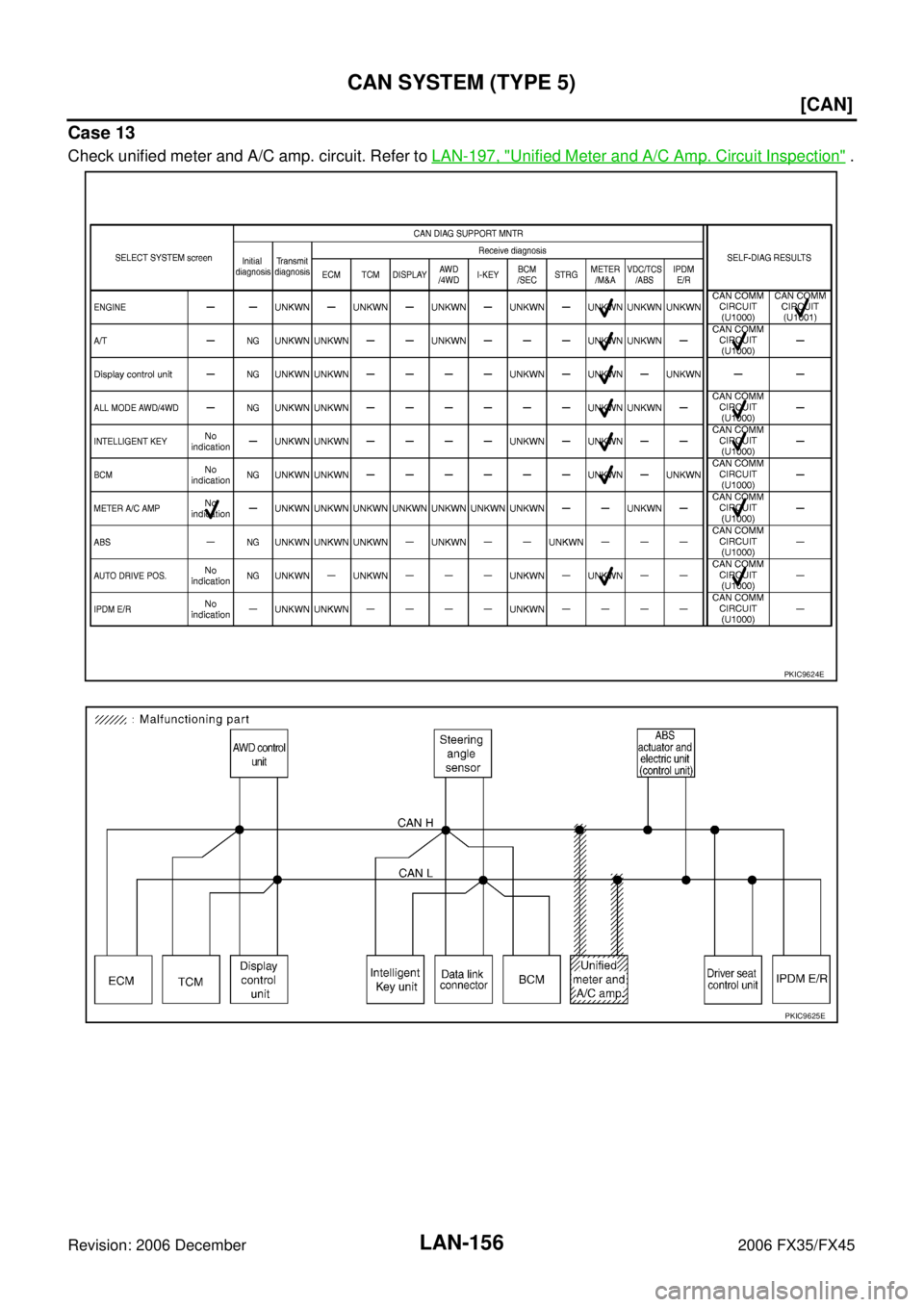

Case 13
Check unified meter and A/C amp. circuit. Refer to LAN-197, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIC9624E
PKIC9625E
Page 3517 of 4462
CAN SYSTEM (TYPE 5) LAN-157
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 14
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-198, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIC9626E
PKIC9627E
Page 3518 of 4462
LAN-158
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

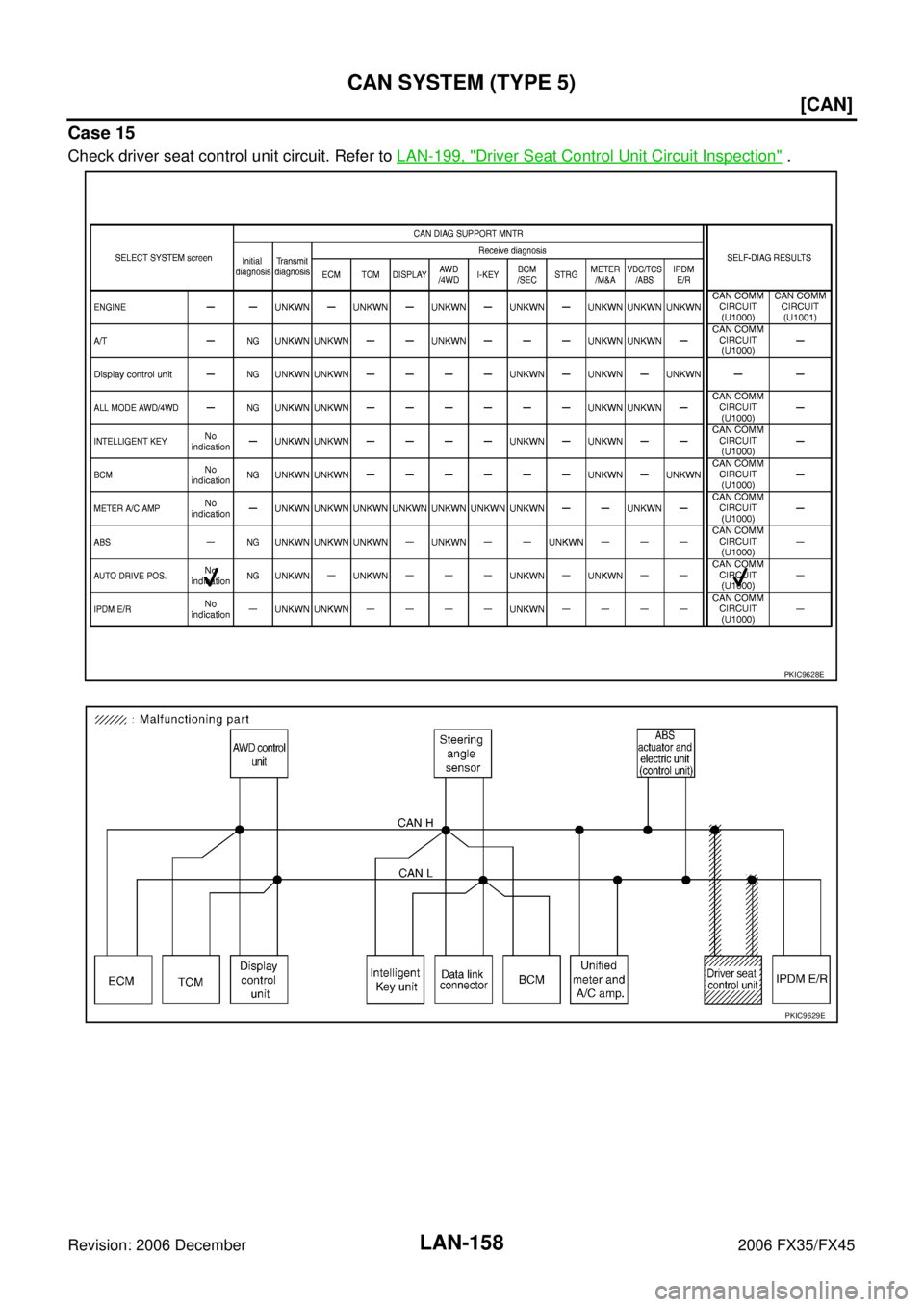

Case 15
Check driver seat control unit circuit. Refer to LAN-199, "Driver Seat Control Unit Circuit Inspection" .
PKIC9628E
PKIC9629E
Page 3519 of 4462
CAN SYSTEM (TYPE 5) LAN-159
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

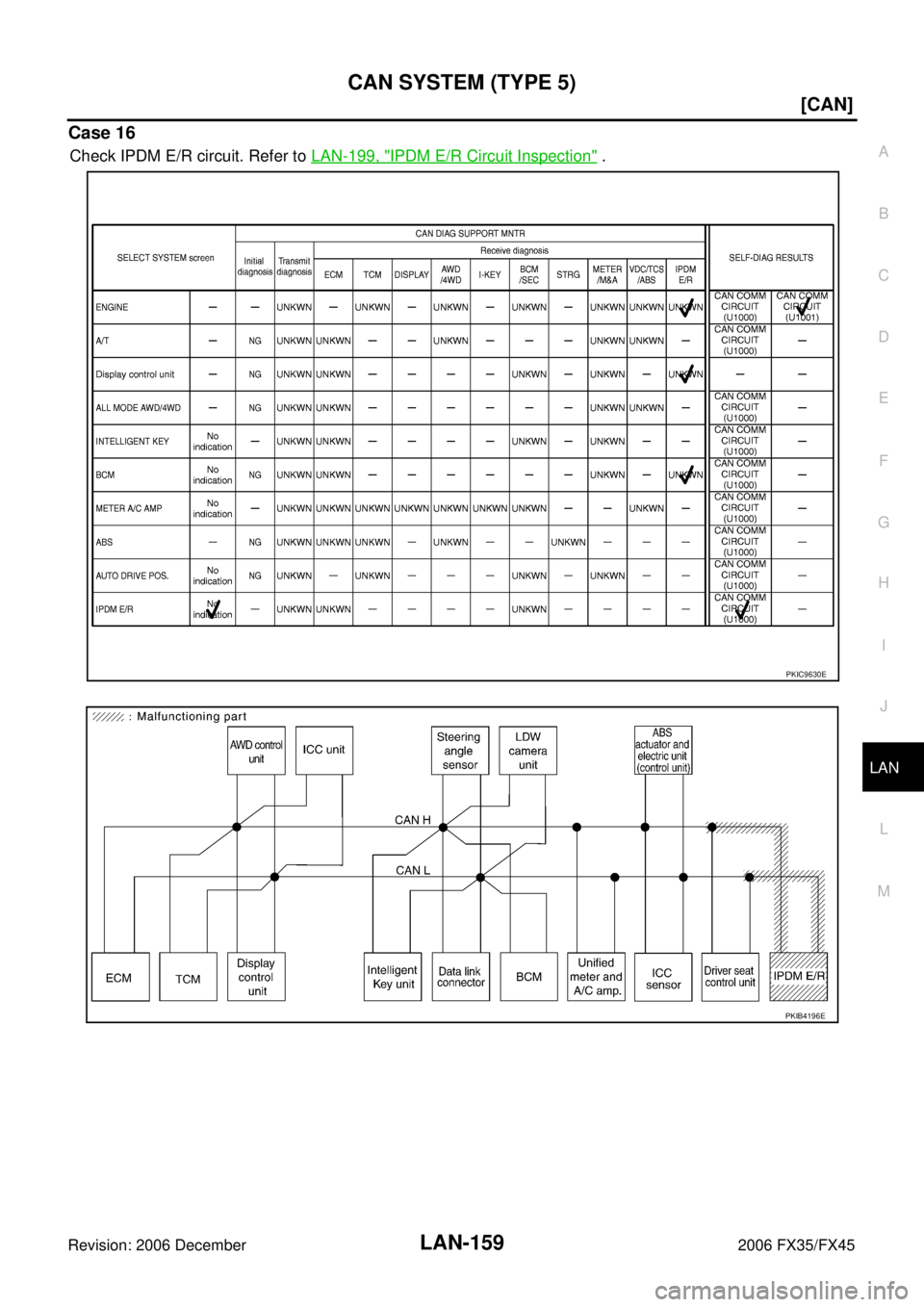

Case 16
Check IPDM E/R circuit. Refer to LAN-199, "IPDM E/R Circuit Inspection" .
PKIC9630E
PKIB4196E
Page 3520 of 4462
LAN-160
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45

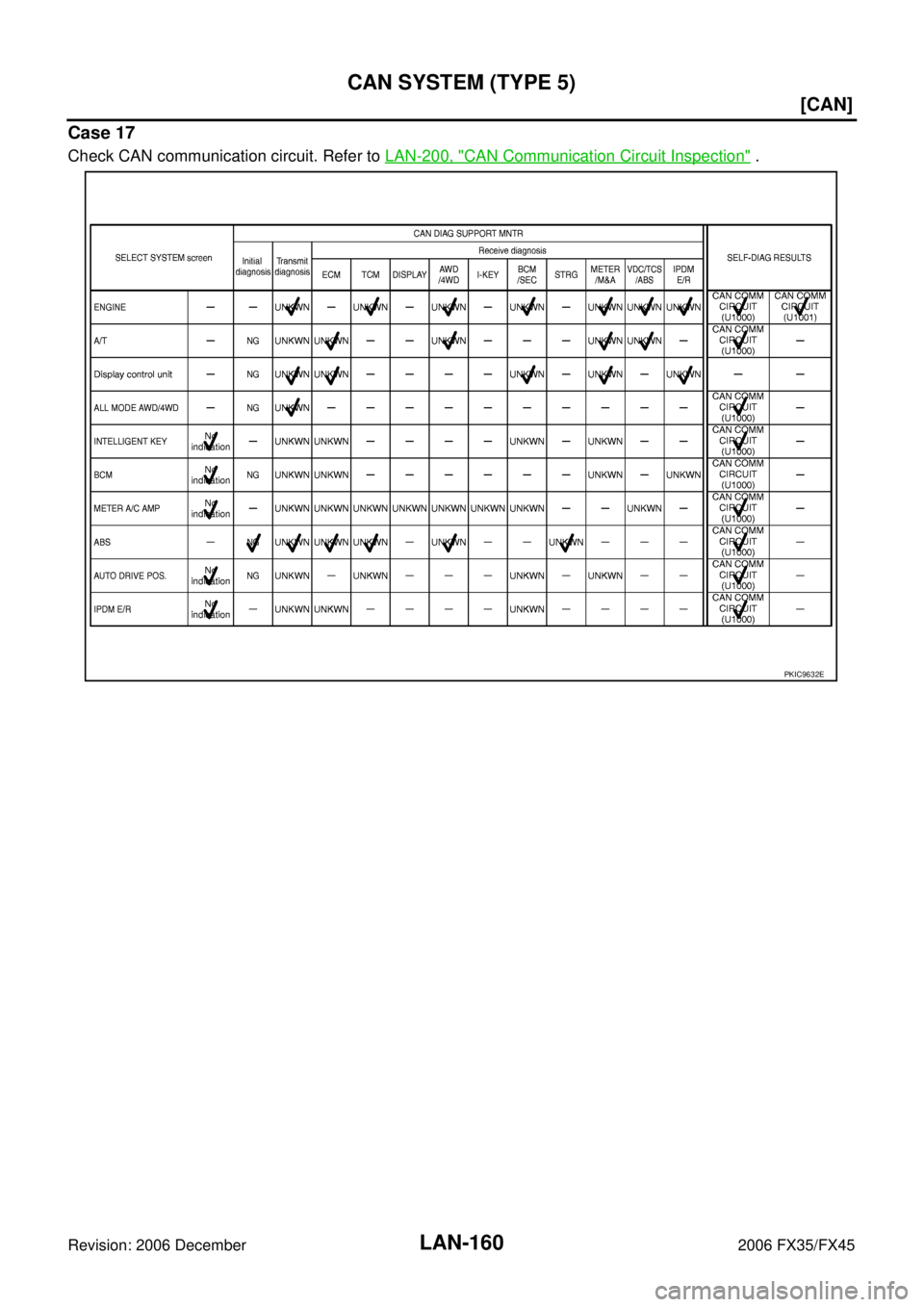

Case 17
Check CAN communication circuit. Refer to LAN-200, "CAN Communication Circuit Inspection" .
PKIC9632E
