CAN SYSTEM (TYPE 5) LAN-161
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
Case 18
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9633E
Page 3522 of 4462
LAN-162
[CAN]
CAN SYSTEM (TYPE 5)
Revision: 2006 December 2006 FX35/FX45
Case 19
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-201, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC9634E
Page 3523 of 4462
CAN SYSTEM (TYPE 6) LAN-163
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45
CAN SYSTEM (TYPE 6)PFP:23710
Component Parts and Harness Connector LocationNKS003N1
Refer to LAN-27, "Component Parts and Harness Connector Location"
SchematicNKS003N2
Refer to LAN-28, "Schematic"
Wiring Diagram — CAN —NKS003N3
Refer to LAN-29, "Wiring Diagram — CAN —"
Page 3524 of 4462
LAN-164
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 December 2006 FX35/FX45

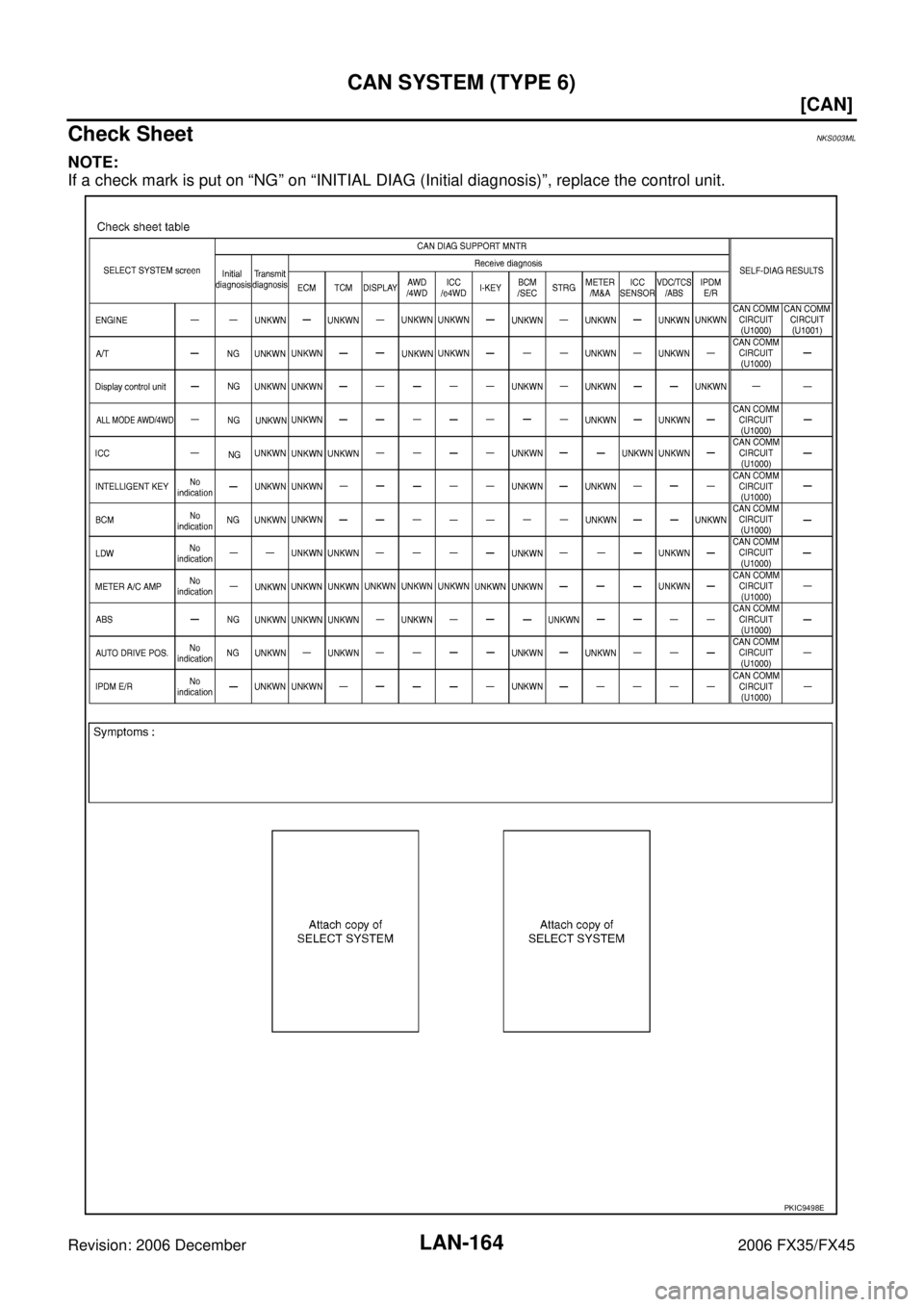

Check SheetNKS003ML
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC9498E
Page 3525 of 4462
CAN SYSTEM (TYPE 6) LAN-165
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

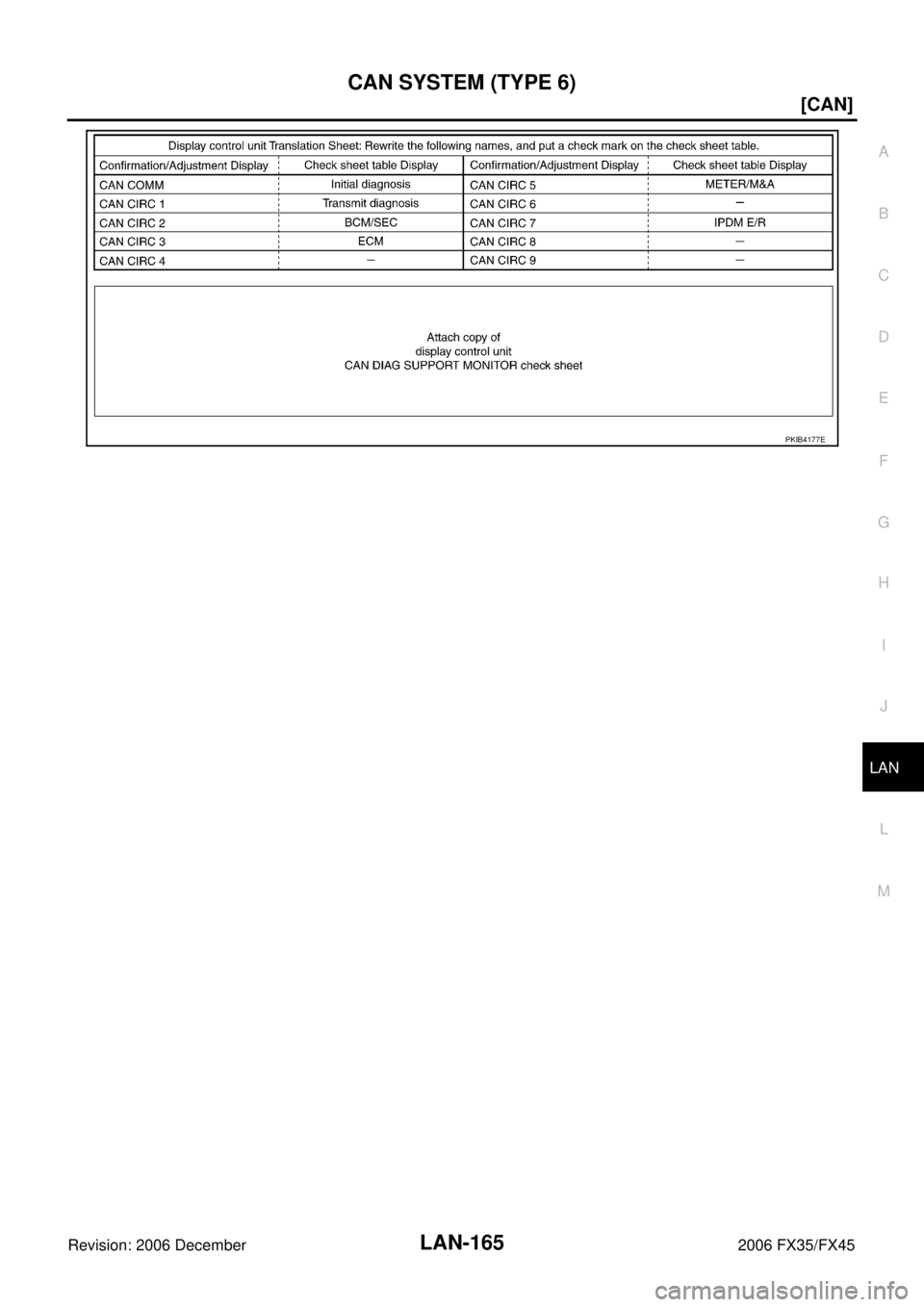

PKIB4177E
Page 3526 of 4462
LAN-166
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 December 2006 FX35/FX45
PKIB4172E
Page 3527 of 4462
CAN SYSTEM (TYPE 6) LAN-167
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

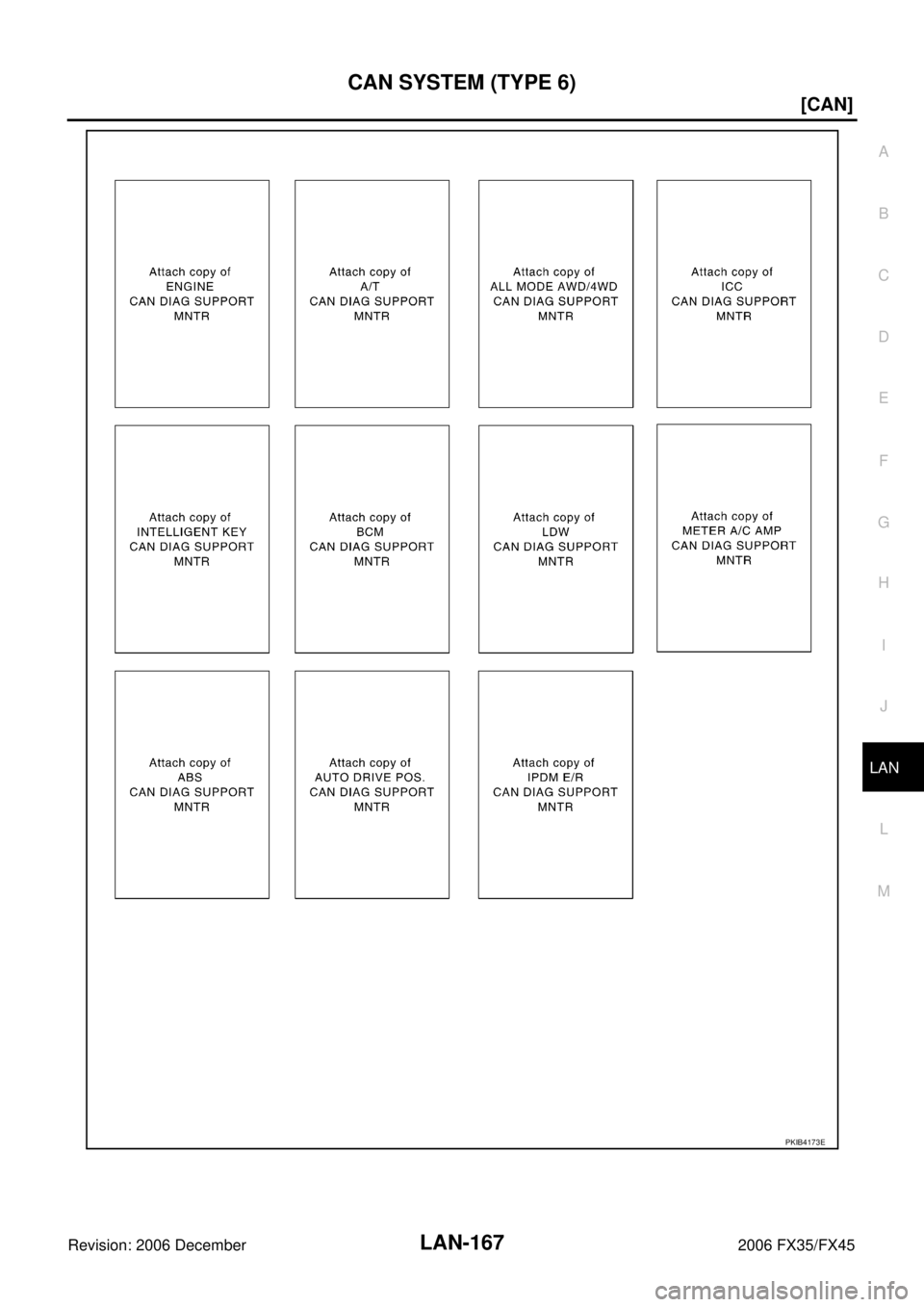

PKIB4173E
Page 3528 of 4462
LAN-168
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 December 2006 FX35/FX45

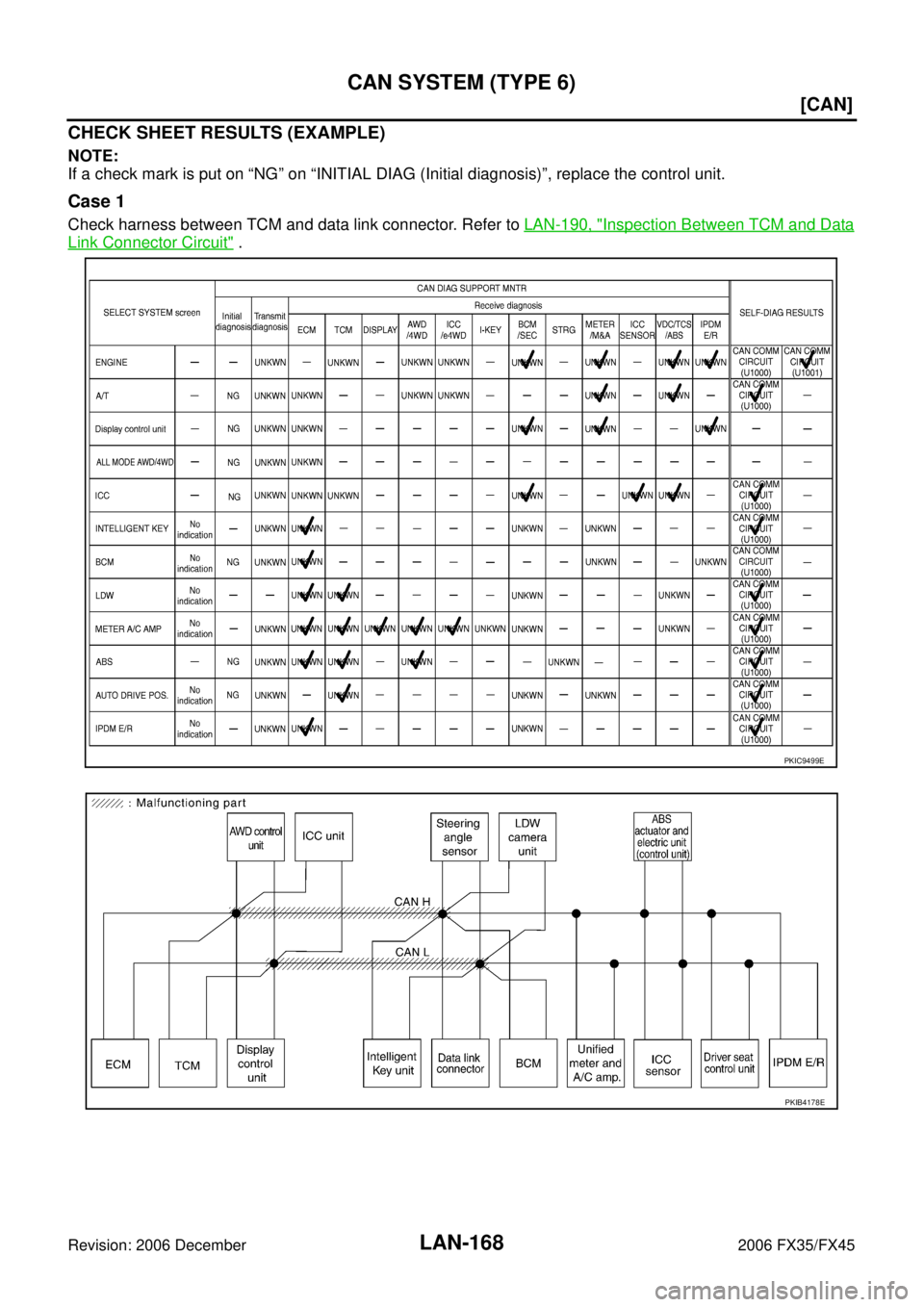

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-190, "Inspection Between TCM and Data
Link Connector Circuit" .
PKIC9499E
PKIB4178E
Page 3529 of 4462
CAN SYSTEM (TYPE 6) LAN-169
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 December 2006 FX35/FX45

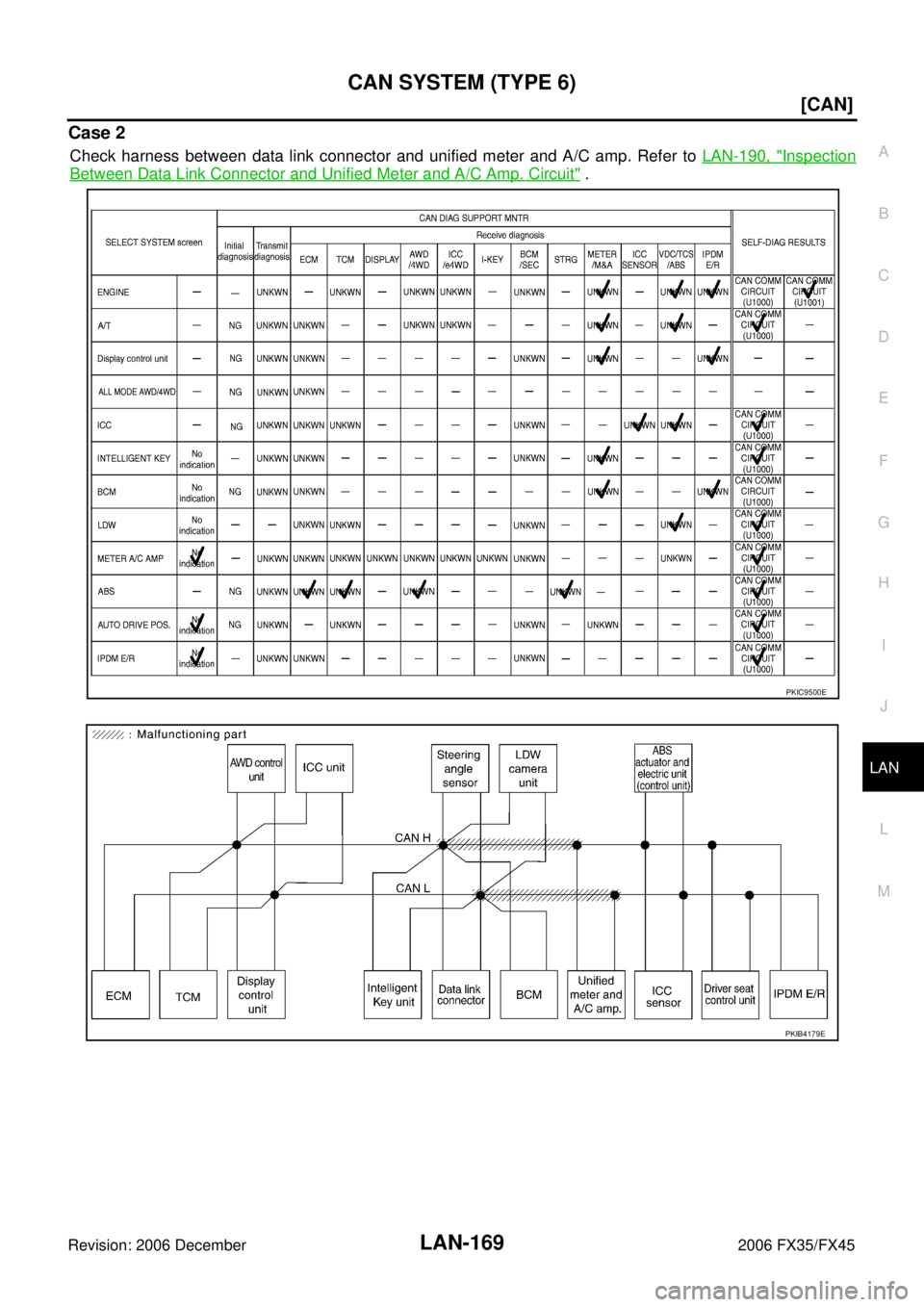

Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-190, "Inspection
Between Data Link Connector and Unified Meter and A/C Amp. Circuit" .
PKIC9500E
PKIB4179E
Page 3530 of 4462
LAN-170
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2006 December 2006 FX35/FX45

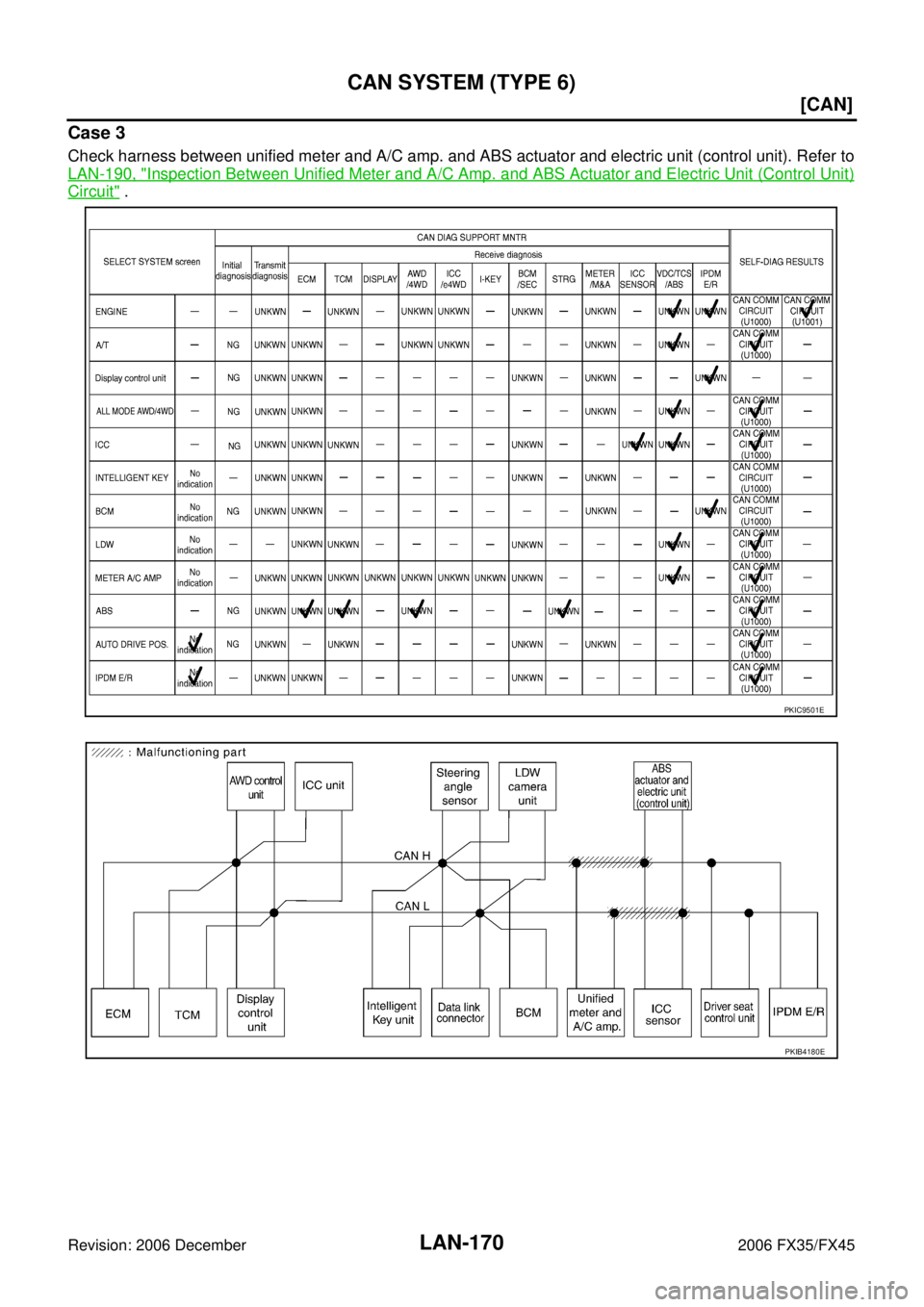

Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-190, "
Inspection Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control Unit)
Circuit" .
PKIC9501E
PKIB4180E
