INFINITI FX35 2007 Service Manual

DTC P0643 SENSOR POWER SUPPLY EC-1155
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
3. CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4. CHECK COMPONENTS
Check the following.

EVAP control system pressure sensor (Refer to EC-1101, "Component Inspection" .)

Refrigerant pressure sensor (Refer to AT C - 8 9 , "COMPONENT INSPECTION" .)

Power steering pressure sensor (Refer to EC-1143, "Component Inspection" .)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
5. CHECK APP SENSOR
Refer to EC-1263, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-745, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-745, "
Throttle Valve Closed Position Learning" .
4. Perform EC-745, "
Idle Air Volume Learning" .
>> INSPECTION END
7. CHECK INTERMITTENT INCIDENT
Refer to EC-812, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 6 EC-1152
48 EVAP control system pressure sensor terminal 3EC-1098
49 Refrigerant pressure sensor terminal 1EC-1346
68 PSP sensor terminal 1 EC-1140

EC-1156
[VK45DE]
DTC P0850 PNP SWITCH
Revision: 2006 July 2007 FX35/FX45
DTC P0850 PNP SWITCHPFP:23006
Component DescriptionNBS004EW
When the selector lever position is P or N, park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.
CONSULT-II Reference Value in Data Monitor ModeNBS004EX
Specification data are reference values.
On Board Diagnosis LogicNBS004EY
DTC Confirmation ProcedureNBS004EZ
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON- SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-1159, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec- onds.
6. If 1st trip DTC is detected, go to EC-1159, "
Diagnostic Procedure" .
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW

Ignition switch: ON Selector lever: P or N ON
Selector lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0850
0850 Park/neutral position
switch The signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving.

Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]

Park/neutral position (PNP) switch

Unified meter and A/C amp.

TCM
Position (Selector lever) Known-good signal
N or P position ON
Except above position OFF
SEF212Y
ENG SPEED 1,200 - 6,375 rpm
COOLAN TEMP/S More than 70 °C (158 °F)
B/FUEL SCHDL 2.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
SEF213Y

DTC P0850 PNP SWITCH EC-1157
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Overall Function CheckNBS004F0
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH GST
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.
3. If NG, go to EC-1159, "
Diagnostic Procedure" .
Position (Selector lever) Voltage (Known-good data)
P or N position Approx. 0V
Except above position BATTERY VOLTAGE
(11 - 14V)
MBIB0043E

EC-1158
[VK45DE]
DTC P0850 PNP SWITCH
Revision: 2006 July 2007 FX35/FX45

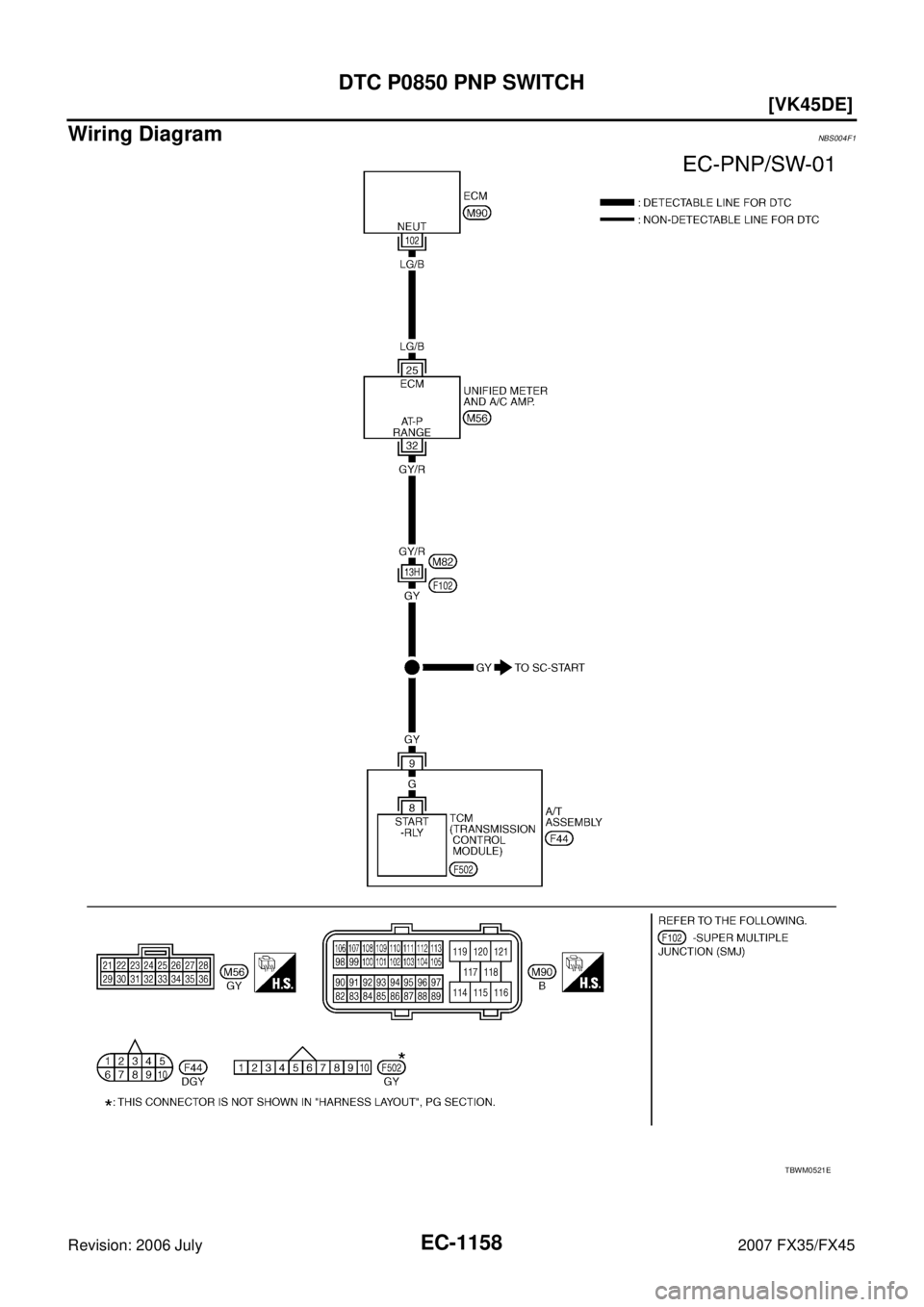

Wiring DiagramNBS004F1
TBWM0521E

DTC P0850 PNP SWITCH EC-1159
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS004F2
1. CHECK DTC WITH TCM
Refer to AT- 4 0 , "
OBD-II Diagnostic Trouble Code (DTC)" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK STARTING SYSTEM
Turn ignition switch OFF, then turn it to START.
Does starter motor operate?
Ye s o r N o
Ye s > > G O T O 3 .
No >> Refer to SC-11, "
STARTING SYSTEM" .
3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector.
3. Disconnect “unified meter and A/C amp.” harness connector.
4. Check harness continuity between A/T assembly terminal 9 and “unified meter and A/C amp.” terminal 32. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F102, M82

Harness for open or short between A/T assembly and “unified meter and A/C amp.”
>> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
102 LG/B PNP switch [Ignition switch: ON]

Selector lever: P or N
Approximately 0V
[Ignition switch: ON]

Selector lever: Except above BATTERY VOLTAGE
(11 - 14V)
Continuity should exist.

EC-1160
[VK45DE]
DTC P0850 PNP SWITCH
Revision: 2006 July 2007 FX35/FX45
5. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and “unified meter and A/C amp.” terminal 25. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-III
1. Check harness continuity between A/T assembly terminal 9 and TCM terminal 8. Refer to AT- 1 0 7 , "
DTC P0615 START SIGNAL CIRCUIT" .
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-812, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
8. REPLACE “UNIFIED METER AND A/C AMP.”
Refer to DI-28, "
UNIFIED METER AND A/C AMP" .
>> INSPECTION END
Continuity should exist.
Continuity should exist.

DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1161
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1140, P1145 IVT CONTROL POSITION SENSORPFP:23731
Component DescriptionNBS004B9
Intake valve timing control position sensors are located in the front of
cylinder heads in both bank 1 and bank 2.
This sensor uses a Hall IC.
The cam position is determined by the intake camshaft sprocket con-
cave (in four places). The ECM provides feedback to the intake valve
timing control for appropriate target valve open-close timing accord-
ing to drive conditions based on detected cam position.
CONSULT-II Reference Value in Data Monitor ModeNBS004BA
Specification data are reference values.
On Board Diagnosis LogicNBS004BB
DTC Confirmation ProcedureNBS004BC
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 seconds.
4. If 1st trip DTC is detected, go to EC-1166, "
Diagnostic Proce-
dure" .
SEF359Z
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)
INT/V TIM (B2)

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
−5° - 5 °CA
2,000 rpm Approx. 0 ° - 20 °CA
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1140
11 4 0
(Bank 1)
Intake valve timing control
position sensor circuit An excessively high or low voltage from the
sensor is sent to ECM.

Harness or connectors
(Intake valve timing control position
sensor circuit is open or shorted)

Intake valve timing control position
sensor

Crankshaft position sensor (POS)

Camshaft position sensor (PHASE)

Accumulation of debris to the signal
pick-up portion of the camshaft
sprocket
P1145
11 4 5
(Bank 2)
ENG SPEED More than idle speed
Selector lever P or N position
SEF058Y

EC-1162
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2006 July 2007 FX35/FX45
WITH GST
Follow the procedure “WITH CONSULT-II” above.

DTC P1140, P1145 IVT CONTROL POSITION SENSOR EC-1163
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Wiring DiagramNBS004BD
BANK 1
TBWM1347E

EC-1164
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
72 BR Intake valve timing control
position sensor (Bank 1) [Engine is running]

Warm-up condition

Idle speed
0 - 1.0V
[Engine is running]

Engine speed: 2,000rpm 0 - 1.0V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB2046E
