Precautions for Air Conditioning NAS00067
Use an approved refrigerant recovery unit any time the air conditioning system must be discharged. Refer to
ATC/MTC section “HFC-134a (R-134a) Service Procedure”, “REFRIGERANT LINES” for specific instructions.

GI-10
HOW TO USE THIS MANUAL
Revision: 2006 July 2007 FX35/FX45
HOW TO USE THIS MANUALPFP:00008
Description NAS00068
This volume explains “Removal, Disassembly, Installation, Inspection and Adjustment” and “Trouble Diag-
noses”.
Te r m sNAS00069

The captions WARNING and CAUTION warn you of steps that must be followed to prevent personal
injury and/or damage to some part of the vehicle.
WARNING indicates the possibility of personal injury if instructions are not followed.
CAUTION indicates the possibility of component damage if instructions are not followed.
BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information.
Standard value:Tolerance at inspection and adjustment.
Limit value:The maximum or minimum limit value that should not be exceeded at inspection and adjust-
ment.
UnitsNAS0006A

The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit),
and alternatively expressed in the metric system and in the yard/pound system.
Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about
the standard tightening torque.
“Example”
Range
Standard
ContentsNAS0006B

ALPHABETICAL INDEX is provided at the end of this manual so that you can rapidly find the item and
page you are searching for.

A QUICK REFERENCE INDEX , a black tab (e.g. ) is provided on the first page. You can quickly find
the first page of each section by matching it to the section's black tab.

THE CONTENTS are listed on the first page of each section.

THE TITLE is indicated on the upper portion of each page and shows the part or system.

THE PAGE NUMBER of each section consists of two or three letters which designate the particular sec-
tion and a number (e.g. “BR-5”).

THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks
of work and hidden or tricky steps which are not shown in the previous large illustrations.
Assembly, inspection and adjustment procedures for the complicated units such as the automatic tran-
saxle or transmission, etc. are presented in a step-by-step format where necessary. Outer Socket Lock Nut : 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb)
Drive Shaft Installation Bolt : 44.3 N·m (4.5 kg-m, 33 ft-lb)

HOW TO USE THIS MANUAL GI-11
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
ComponentsNAS0006C

THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques,
lubrication points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information neces-
sary to perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the
appropriate PARTS CATALOG .
Components shown in an illustration may be identified by a circled number. When this style of illustration
is used, the text description of the components will follow the illustration.
SYMBOLS
1. Union bolt 2. Copper washer 3. Brake hose
4. Cap 5. Bleed valve 6. Sliding pin bolt
7. Piston seal 8. Piston 9. Piston boot
10. Cylinder body 11. Sliding pin 12. Torque member mounting bolt
13. Washer 14. Sliding pin boot 15. Bushing
16. Torque member 17. Inner shim cover 18. Inner shim
19. Inner pad 20. Pad retainer 21. Pad wear sensor
22. Outer pad 23. Outer shim 24. Outer shim cover 1: PBC (Poly Butyl Cuprysil) grease
or silicone-based grease 2: Rubber grease : Brake fluid
Refer to GI section for additional symbol definitions.
SFIA2959E
SAIA0749E

GI-12
HOW TO USE THIS MANUAL
Revision: 2006 July 2007 FX35/FX45
How to Follow Trouble DiagnosesNAS0006D
DESCRIPTION
NOTICE:
Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following
instructions before diagnosing.
1. Before performing trouble diagnoses, read the “Preliminary Check”, the “Symptom Chart” or the
“Work Flow”.
2. After repairs, re-check that the problem has been completely eliminated.
3. Refer to Component Parts and Harness Connector Location for the Systems described in each
section for identification/location of components and harness connectors.
4. Refer to the Circuit Diagram for quick pinpoint check.
If you need to check circuit continuity between harness connectors in more detail, such as when a
sub-harness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG
section for identification of harness connectors.
5. When checking circuit continuity, ignition switch should be OFF.
6. Before checking voltage at connectors, check battery voltage.
7. After accomplishing the Diagnostic Procedures and Electrical Components Inspection, make sure
that all harness connectors are reconnected as they were.
HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES
1. Work and diagnostic procedure
Start to diagnose a problem using procedures indicated in enclosed test groups.
2. Questions and required results
Questions and required results are indicated in bold type in test group.
The meaning of are as follows:
SAIA0256E

HOW TO USE THIS MANUAL GI-13
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
3.Symbol used in illustration
Symbols included in illustrations refer to measurements or procedures. Before diagnosing a problem,
familiarize yourself with each symbol. Refer to "Connector Symbols" in GI Section and "KEY TO SYM-
BOLS SIGNIFYING MEASUREMENTS OR PROCEDURES" below.
4. Action items
Next action for each test group is indicated based on result of each question. Test group number is shown
in the left upper portion of each test group.
HARNESS WIRE COLOR AND CONNECTOR NUMBER INDICATION
There are two types of harness wire color and connector number indication.
TYPE 1: Harness Wire Color and Connector Number are Shown in Illustration

Letter designations next to test meter probe indicate harness
wire color.

Connector numbers in a single circle (e.g. M33) indicate har-
ness connectors.

Connector numbers in a double circle (e.g. F211) indicate com-
ponent connectors. a. Battery voltage
→ 11 - 14V or approximately 12V
b. Voltage : Approximately 0V → Less than 1V
AGI070

GI-14
HOW TO USE THIS MANUAL
Revision: 2006 July 2007 FX35/FX45
TYPE 2: Harness Wire Color and Connector Number are Shown in Text

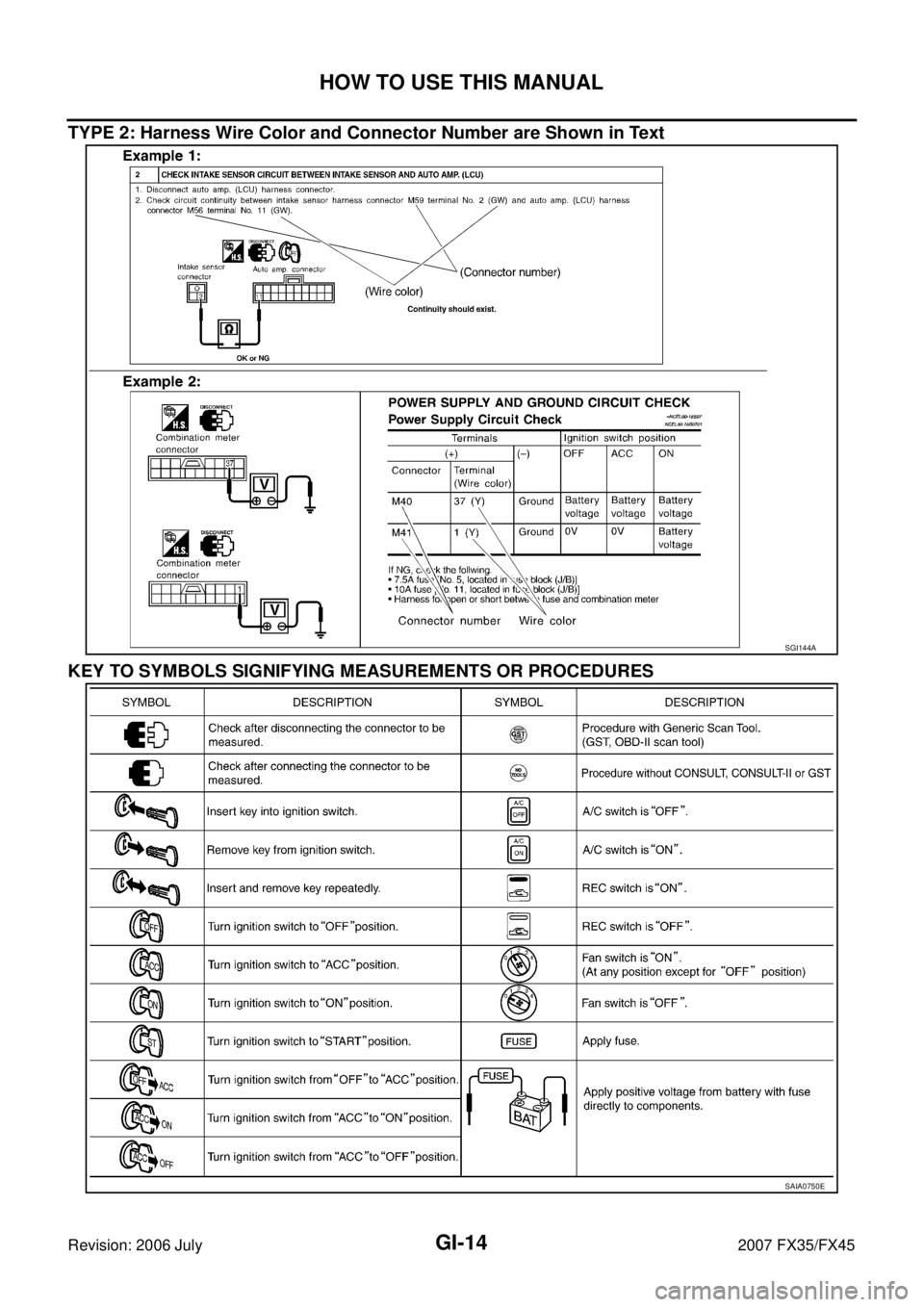

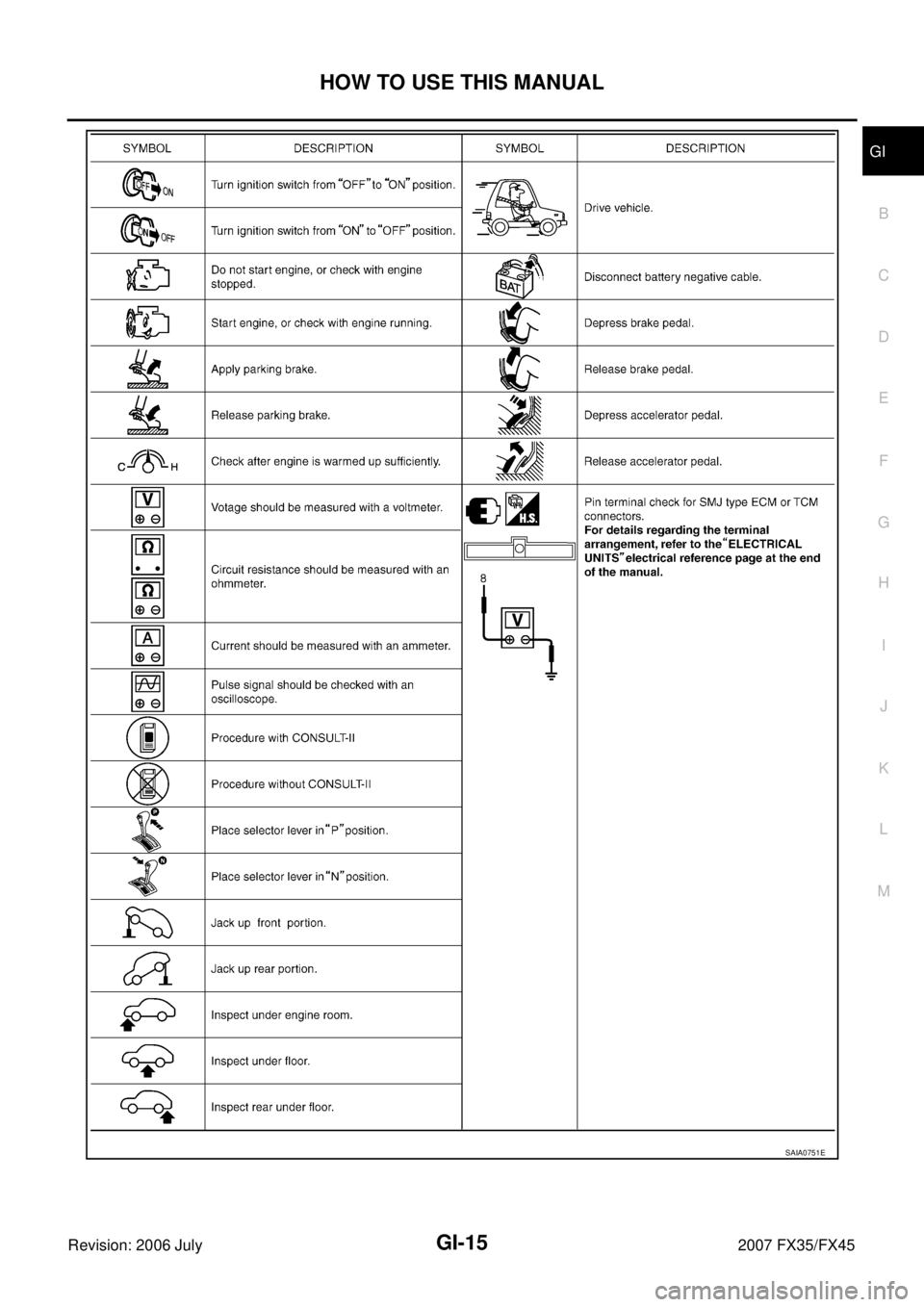

KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES
SGI144A
SAIA0750E

HOW TO USE THIS MANUAL GI-15
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
SAIA0751E

GI-16
HOW TO USE THIS MANUAL
Revision: 2006 July 2007 FX35/FX45
How to Read Wiring DiagramsNAS0006E
CONNECTOR SYMBOLS
Most of connector symbols in wiring diagrams are shown from the terminal side.

Connector symbols shown from the terminal side are enclosed
by a single line and followed by the direction mark.

Connector symbols shown from the harness side are enclosed
by a double line and followed by the direction mark.

Certain systems and components, especially those related to
OBD, may use a new style slide-locking type harness connector.
For description and how to disconnect, refer to PG section,
“Description”, “HARNESS CONNECTOR”.

Male and female terminals
Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.
SAIA0257E
SGI363

HOW TO USE THIS MANUAL GI-17
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45

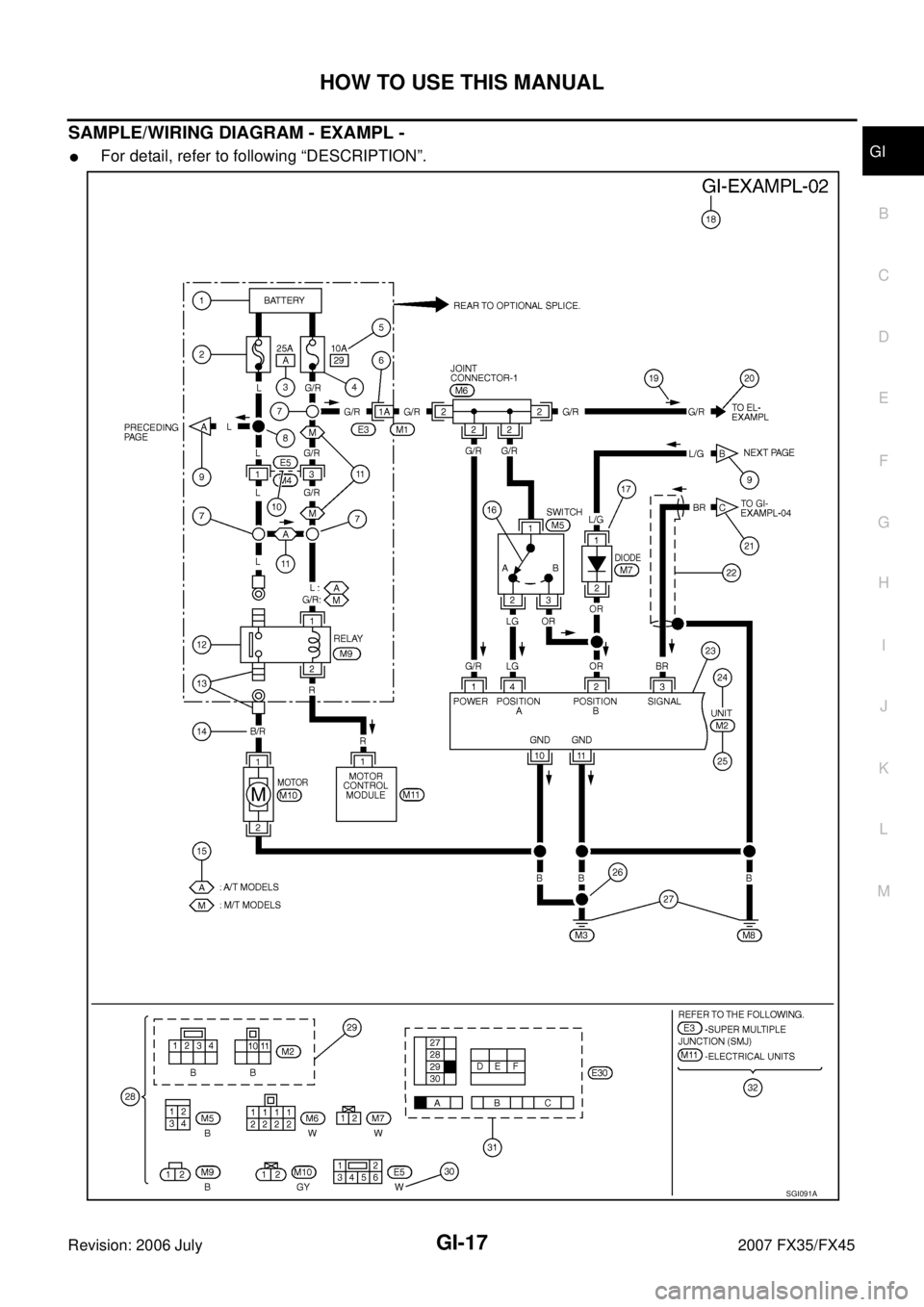

SAMPLE/WIRING DIAGRAM - EXAMPL -

For detail, refer to following “DESCRIPTION”.
SGI091A

GI-18
HOW TO USE THIS MANUAL
Revision: 2006 July 2007 FX35/FX45
Optional Splice
DESCRIPTION
SGI942
Num-
ber Item Description
1 Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).
2 Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.
3 Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.
4Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.
5 Current rating

This shows the current rating of the fusible link or fuse.
6 Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section, SMJ (SUPER MULTIPLE JUNCTION).
7 Optional splice

The open circle shows that the splice is optional depending on vehicle application.
8 Splice

The shaded circle shows that the splice is always on the vehicle.
9 Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.
10 Common connector

The dotted lines between terminals show that these terminals are part of the same connector.
11 Option abbreviation

This shows that the circuit is optional depending on vehicle application.
12 Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.
13 Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.
