INFINITI FX35 2007 Service Manual

IDENTIFICATION INFORMATION GI-49
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
IDENTIFICATION INFORMATIONPFP:00010
Model Variation NAS0006X
Prefix and suffix designations:
Body Grade Transmission Engine Axle Destination
USA CANADA
Wagon Base RE5R05A
(5A/T) VQ35DE
2-wheel drive TLJALTN-EUA —
All-wheel drive TLJNLTN-EUA TLJNLTN-ENA
VK45DE All-wheel drive TPHNLTN-EUA TPHNLTN-ENA
PAIA0100E

GI-50
IDENTIFICATION INFORMATION
Revision: 2006 July 2007 FX35/FX45

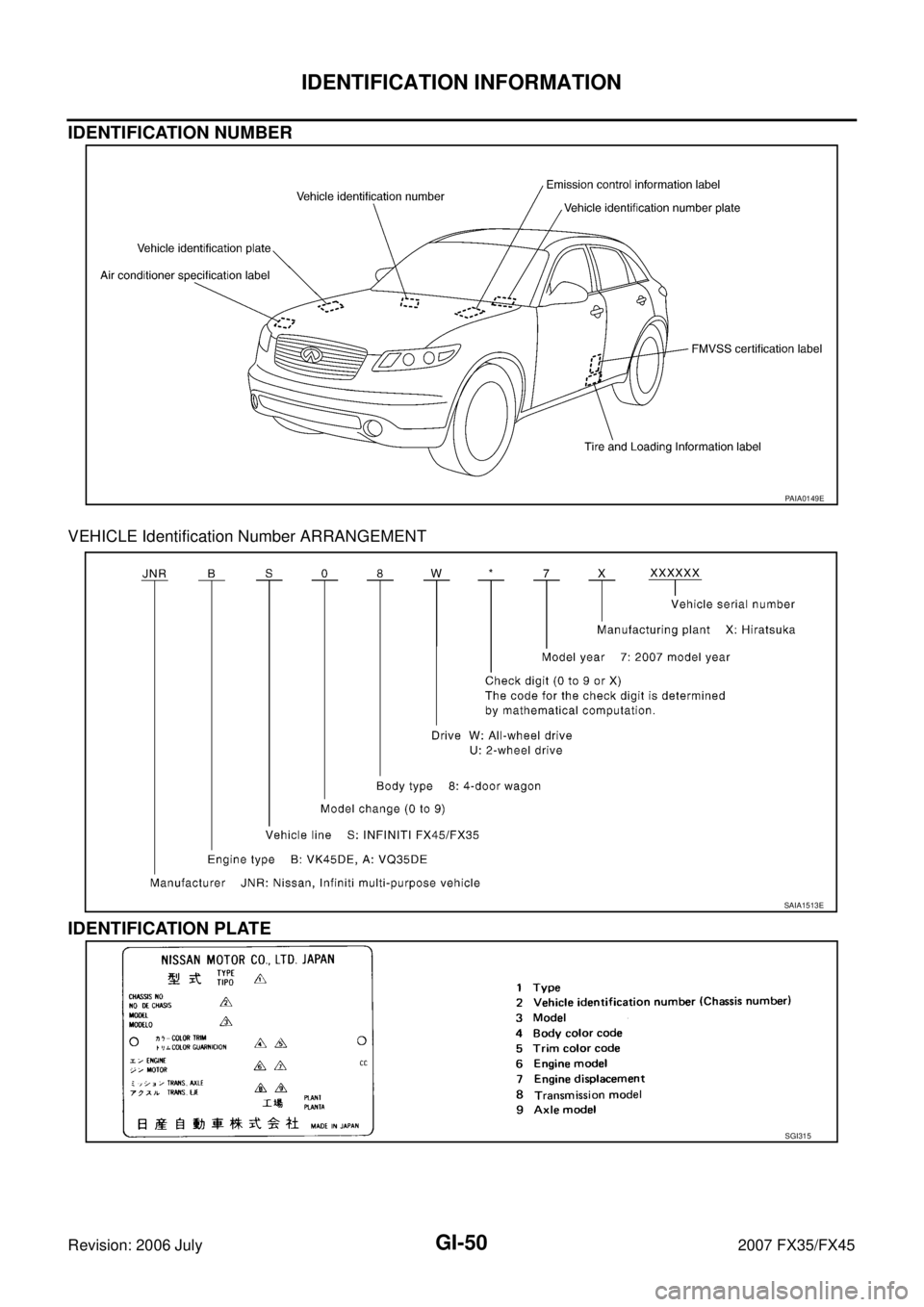

IDENTIFICATION NUMBER
VEHICLE Identification Number ARRANGEMENT
IDENTIFICATION PLATE
PAIA0149E
SAIA1513E
SGI315

IDENTIFICATION INFORMATION GI-51
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
ENGINE SERIAL NUMBER
AUTOMATIC TRANSMISSION NUMBER
Dimensions NAS0006Y
Unit: mm (in)
Wheels & Tires NAS0006Z
PAIA0110E
PA I A 0 111 E
PAIA0054E
Overall length 4,803 (189.1)
Overall width 1,925 (75.8)
Overall height 1,672.6 (65.9)
Front tread 1,592 (62.7)
Rear tread 1,642 (64.6)
Wheelbase 2,850 (112.2)
Application Conventional Spare
Road wheel/offset mm (in) 18 X 8JJ Aluminum/40 (1.57)
20 X 8JJ Aluminum/40 (1.57) T175/90D18 110M
Tire size P265/60R18 109V
P265/50R20 106V

GI-52
TERMINOLOGY
Revision: 2006 July 2007 FX35/FX45
TERMINOLOGYPFP:00011
SAE J1930 Terminology List NAS00070
All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.
NEW TERM NEW ACRONYM /
ABBREVIATION OLD TERM
Air cleaner ACL Air cleaner
Barometric pressure BARO ***
Barometric pressure sensor-BCDD BAROS-BCDD BCDD
Camshaft position CMP ***
Camshaft position sensor CMPS Crank angle sensor
Canister *** Canister
Carburetor CARB Carburetor
Charge air cooler CAC Intercooler
Closed loop CL Closed loop
Closed throttle position switch CTP switch Idle switch
Clutch pedal position switch CPP switch Clutch switch
Continuous fuel injection system CFI system ***
Continuous trap oxidizer system CTOX system ***
Crankshaft position CKP ***
Crankshaft position sensor CKPS ***
Data link connector DLC ***
Data link connector for CONSULT-II DLC for CONSULT-II Diagnostic connector for CONSULT-II
Diagnostic test mode DTM Diagnostic mode
Diagnostic test mode selector DTM selector Diagnostic mode selector
Diagnostic test mode I DTM I Mode I
Diagnostic test mode II DTM II Mode II
Diagnostic trouble code DTC Malfunction code
Direct fuel injection system DFI system ***
Distributor ignition system DI system Ignition timing control
Early fuel evaporation-mixture heater EFE-mixture heater Mixture heater
Early fuel evaporation system EFE system Mixture heater control
Electrically erasable programmable read
only memory EEPROM ***
Electronic ignition system EI system Ignition timing control
Engine control EC ***
Engine control module ECM ECCS control unit
Engine coolant temperature ECT Engine temperature
Engine coolant temperature sensor ECTS Engine temperature sensor
Engine modification EM ***
Engine speed RPM Engine speed
Erasable programmable read only memory EPROM ***
Evaporative emission canister EVAP canister Canister
Evaporative emission system EVAP system Canister control solenoid valve
Exhaust gas recirculation valve EGR valve EGR valve

TERMINOLOGY GI-53
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
Exhaust gas recirculation control-BPT
valve EGRC-BPT valve BPT valve
Exhaust gas recirculation control-solenoid
valve EGRC-solenoid valve EGR control solenoid valve
Exhaust gas recirculation temperature sen-
sor EGRT sensor Exhaust gas temperature sensor
EGR temperature sensor
Flash electrically erasable programmable
read only memory FEEPROM ***
Flash erasable programmable read only
memory FEPROM ***
Flexible fuel sensor FFS ***
Flexible fuel system FF system ***
Fuel pressure regulator *** Pressure regulator
Fuel pressure regulator control solenoid
valve *** PRVR control solenoid valve
Fuel trim FT ***
Heated Oxygen sensor HO2S Exhaust gas sensor
Idle air control system IAC system Idle speed control
Idle air control valve-air regulator IACV-air regulator Air regulator
Idle air control valve-auxiliary air control
valve IACV-AAC valve Auxiliary air control (AAC) valve
Idle air control valve-FICD solenoid valve IACV-FICD solenoid valve FICD solenoid valve
Idle air control valve-idle up control sole-
noid valve IACV-idle up control solenoid valve Idle up control solenoid valve
Idle speed control-FI pot ISC-FI pot FI pot
Idle speed control system ISC system ***
Ignition control IC ***
Ignition control module ICM ***
Indirect fuel injection system IFI system ***
Intake air IA Air
Intake air temperature sensor IAT sensor Air temperature sensor
Knock *** Detonation
Knock sensor KS Detonation sensor
Malfunction indicator lamp MIL Check engine light
Manifold absolute pressure MAP ***
Manifold absolute pressure sensor MAPS ***
Manifold differential pressure MDP ***
Manifold differential pressure sensor MDPS ***
Manifold surface temperature MST ***
Manifold surface temperature sensor MSTS ***
Manifold vacuum zone MVZ ***
Manifold vacuum zone sensor MVZS ***
Mass air flow sensor MAFS Air flow meter
Mixture control solenoid valve MC solenoid valve Air-fuel ratio control solenoid valve
Multiport fuel injection System MFI system Fuel injection control NEW TERM
NEW ACRONYM /
ABBREVIATION OLD TERM

GI-54
TERMINOLOGY
Revision: 2006 July 2007 FX35/FX45
Nonvolatile random access memory NVRAM ***
On board diagnostic system OBD system Self-diagnosis
Open loop OL Open loop
Oxidation catalyst OC Catalyst
Oxidation catalytic converter system OC system ***
Oxygen sensor O2S Exhaust gas sensor
Park position switch *** Park switch
Park/neutral position switch PNP switch Park/neutral switch
Inhibitor switch
Neutral position switch
Periodic trap oxidizer system PTOX system ***
Positive crankcase ventilation PCV Positive crankcase ventilation
Positive crankcase ventilation valve PCV valve PCV valve
Powertrain control module PCM ***
Programmable read only memory PROM ***
Pulsed secondary air injection control sole-
noid valve PAIRC solenoid valve AIV control solenoid valve
Pulsed secondary air injection system PAIR system Air induction valve (AIV) control
Pulsed secondary air injection valve PAIR valve Air induction valve
Random access memory RAM ***
Read only memory ROM ***
Scan tool ST ***
Secondary air injection pump AIR pump ***
Secondary air injection system AIR system ***
Sequential multiport fuel injection system SFI system Sequential fuel injection
Service reminder indicator SRI ***
Simultaneous multiport fuel injection sys-
tem *** Simultaneous fuel injection
Smoke puff limiter system SPL system ***
Supercharger SC ***
Supercharger bypass SCB ***
System readiness test SRT ***
Thermal vacuum valve TVV Thermal vacuum valve
Three way catalyst TWC Catalyst
Three way catalytic converter system TWC system ***
Three way + oxidation catalyst TWC + OC Catalyst
Three way + oxidation catalytic converter
system TWC + OC system ***
Throttle body TB Throttle chamber
SPI body
Throttle body fuel injection system TBI system Fuel injection control
Throttle position TP Throttle position
Throttle position sensor TPS Throttle sensor
Throttle position switch TP switch Throttle switch
Torque converter clutch solenoid valve TCC solenoid valve Lock-up cancel solenoid
Lock-up solenoid
NEW TERM
NEW ACRONYM /
ABBREVIATION OLD TERM

TERMINOLOGY GI-55
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
***: Not applicable Transmission control module TCM A/T control unit
Turbocharger TC Turbocharger
Vehicle speed sensor VSS Vehicle speed sensor
Volume air flow sensor VAFS Air flow meter
Warm up oxidation catalyst WU-OC Catalyst
Warm up oxidation catalytic converter sys-
tem WU-OC system ***
Warm up three way catalyst WU-TWC Catalyst
Warm up three way catalytic converter sys-
tem WU-TWC system ***
Wide open throttle position switch WOTP switch Full switch NEW TERM
NEW ACRONYM /
ABBREVIATION OLD TERM

GI-56
TERMINOLOGY
Revision: 2006 July 2007 FX35/FX45

GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION
A
B
GW
Revision: 2006 July 2007 FX35/FX45
GLASSES, WINDOW SYSTEM & MIRRORS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Procedures without Cowl Top Cover ..... 3
Handling for Adhesive and Primer ...................... ..... 3
PREPARATION ...................................................... ..... 4
Special Service Tools .......................................... ..... 4
Commercial Service Tools ................................... ..... 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ........................................................... ..... 5
CUSTOMER INTERVIEW ................................ ..... 5
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 6
CHECK RELATED SERVICE BULLETINS ...... ..... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 6
REPAIR THE CAUSE ...................................... ..... 6
CONFIRM THE REPAIR .................................. ..... 7
Generic Squeak and Rattle Troubleshooting ...... ..... 7
INSTRUMENT PANEL ..................................... ..... 7
CENTER CONSOLE ........................................ ..... 7
DOORS ............................................................ ..... 7
TRUNK ............................................................. ..... 8
SUNROOF/HEADLINING ................................ ..... 8
SEATS .............................................................. ..... 8
UNDERHOOD .................................................. ..... 8
Diagnostic Worksheet ......................................... ..... 9
WINDSHIELD GLASS ........................................... ....11
Removal and Installation ..................................... .... 11
REMOVAL ........................................................ .... 11
INSTALLATION ................................................ ... 12
BACK DOOR WINDOW GLASS ........................... ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 14
POWER WINDOW SYSTEM ................................. ... 15
Component Parts and Harness Connector Location ... 15
System Description ............................................. ... 16
MANUAL OPERATION .................................... ... 16
AUTO OPERATION ......................................... ... 18 POWER WINDOW SERIAL LINK ....................
... 19
POWER WINDOW LOCK ................................ ... 19
RETAINED POWER OPERATION ................... ... 19
ANTI-PINCH SYSTEM ..................................... ... 19
POWER WINDOW CONTROL BY THE KEY
CYLINDER SWITCH ........................................ ... 19
CAN Communication System Description ........... ... 20
CAN Communication Unit .................................... ... 20
Schematic ............................................................ ... 21
Wiring Diagram — WINDOW — .......................... ... 22
Terminal and Reference Value for BCM .............. ... 26
Terminal and Reference Value for Power Window
Main Switch ......................................................... ... 27
Terminal and Reference Value for Front Power Win-
dow Switch (Passenger Side) .............................. ... 28
CONSULT-II Function (BCM) .............................. ... 29
CONSULT-II START PROCEDURE ................. ... 29
ACTIVE TEST .................................................. ... 29
WORK SUPPORT ............................................ ... 29
DATE MONITOR .............................................. ... 29
Work Flow ............................................................ ... 30
Trouble Diagnosis Symptom Chart ...................... ... 30
Check BCM Power Supply and Ground Circuit ... ... 32
Check Power Window Main Switch Power Supply
Circuit .................................................................. ... 33
Check Front Power Window Switch (Passenger
Side) Power Supply and Ground Circuit .............. ... 34
Check Front Power Window Motor (Driver Side) Cir-
cuit ....................................................................... ... 35
Check Front Power Window Motor (Passenger
Side) Circuit ......................................................... ... 36
Check rear Power Window Motor (LH) Circuit ..... ... 36
Check Rear Power Window Motor (RH) Circuit ... ... 39
Check Limit Switch Circuit (Driver Side) .............. ... 41
Check Limit Switch Circuit (Passenger Side) ...... ... 43
Check Encoder Circuit (Driver Side) .................... ... 44
Check Encoder Circuit (Passenger Side) ............ ... 46
Check Door Switch .............................................. ... 49
Check Front Door Key Cylinder Switch ............... ... 51

GW-2Revision: 2006 July 2007 FX35/FX45
Check Power Window Serial Link (Passenger Side)
... 53
Check Power Window Lock Switch ..................... ... 55
SIDE WINDOW GLASS ......................................... ... 56
Removal and Installation ..................................... ... 56
REMOVAL ........................................................ ... 56
INSTALLATION ................................................. ... 57
FRONT DOOR GLASS AND REGULATOR .......... ... 58
Removal and Installation ..................................... ... 58
DOOR GLASS .................................................. ... 58
REGULATOR ASSEMBLY ............................... ... 59
Disassembly and assembly ................................. ... 60
REGULATOR ASSEMBLY ............................... ... 60
Inspection after Installation .................................. ... 60
SETTING OF LIMIT SWITCH ........................... ... 60
FITTING INSPECTION ..................................... ... 60
REAR DOOR GLASS AND REGULATOR ............ ... 62
Removal and Installation ..................................... ... 62
DOOR GLASS .................................................. ... 62
REGULATOR ASSEMBLY ............................... ... 63
Disassembly and assembly ................................. ... 64
REGULATOR ASSEMBLY ............................... ... 64
Fitting Inspection ................................................. ... 64
INSIDE MIRROR .................................................... ... 65
Wiring Diagram — I/MIRR — ............................... ... 65
Removal and Installation ..................................... ... 66
REMOVAL ........................................................ ... 66
INSTALLATION ................................................. ... 66
COMPASS ........................................................ ... 66
REAR WINDOW DEFOGGER ............................... ... 67
Component Parts and Harness Connector Location ... 67
System Description .............................................. ... 67
CAN Communication System Description ........... ... 68
CAN Communication Unit .................................... ... 68
Schematic ............................................................ ... 69
Wiring Diagram — DEF — .................................. ... 70
Terminal and Reference Value for BCM .............. ... 74
Terminal and Reference Value for IPDM E/R ...... ... 74 CONSULT-II Function (BCM) ...............................
... 75
CONSULT-II START PROCEDURE .................. ... 75
DATA MONITOR ............................................... ... 75
ACTIVE TEST ................................................... ... 75
CONSULT-II Function (IPDM E/R) ....................... ... 75
CONSULT-II START PROCEDURE .................. ... 75
DATA MONITOR ............................................... ... 75
ACTIVE TEST ................................................... ... 75
Work Flow ............................................................ ... 76
Trouble Diagnoses Symptom Chart ..................... ... 76
Check BCM Power Supply and Ground Circuit ... ... 77
Check Rear Window Defogger Switch Circuit ...... ... 78
Check rear Window Defogger Power Supply Circuit ... 79
Check Rear Window Defogger Circuit ................. ... 81
Check Door Mirror Defogger Power Supply Circuit ... 82
Check Driver Side Door Mirror Defogger Circuit .. ... 84
Check Passenger Side Door Mirror Defogger Circuit ... 85
Check Rear Window Defogger Signal ................. ... 85
Check Filament .................................................... ... 87
Filament Repair .................................................... ... 87
REPAIR EQUIPMENT ...................................... ... 87
REPAIRING PROCEDURE .............................. ... 88
DOOR MIRROR ...................................................... ... 89
Wiring Diagram — MIRROR — (Without Electric
Foldable Door Mirror) ........................................... ... 89
Schematic (With Electric Foldable Door Mirror) ... ... 91
Wiring Diagram — MIRROR — (With Electric Fold-
able Door Mirror) .................................................. ... 92
Trouble Diagnosis ................................................ ... 97
Removal and Installation ...................................... ... 98
REMOVAL ......................................................... ... 98
INSTALLATION ................................................. ... 98
Disassembly and Assembly ................................. ... 98
DISASSEMBLY ................................................. ... 98
ASSEMBLY ....................................................... ... 99
