INFINITI FX35 2007 Service Manual
Manufacturer: INFINITI, Model Year: 2007, Model line: FX35, Model: INFINITI FX35 2007Pages: 4366, PDF Size: 55.42 MB

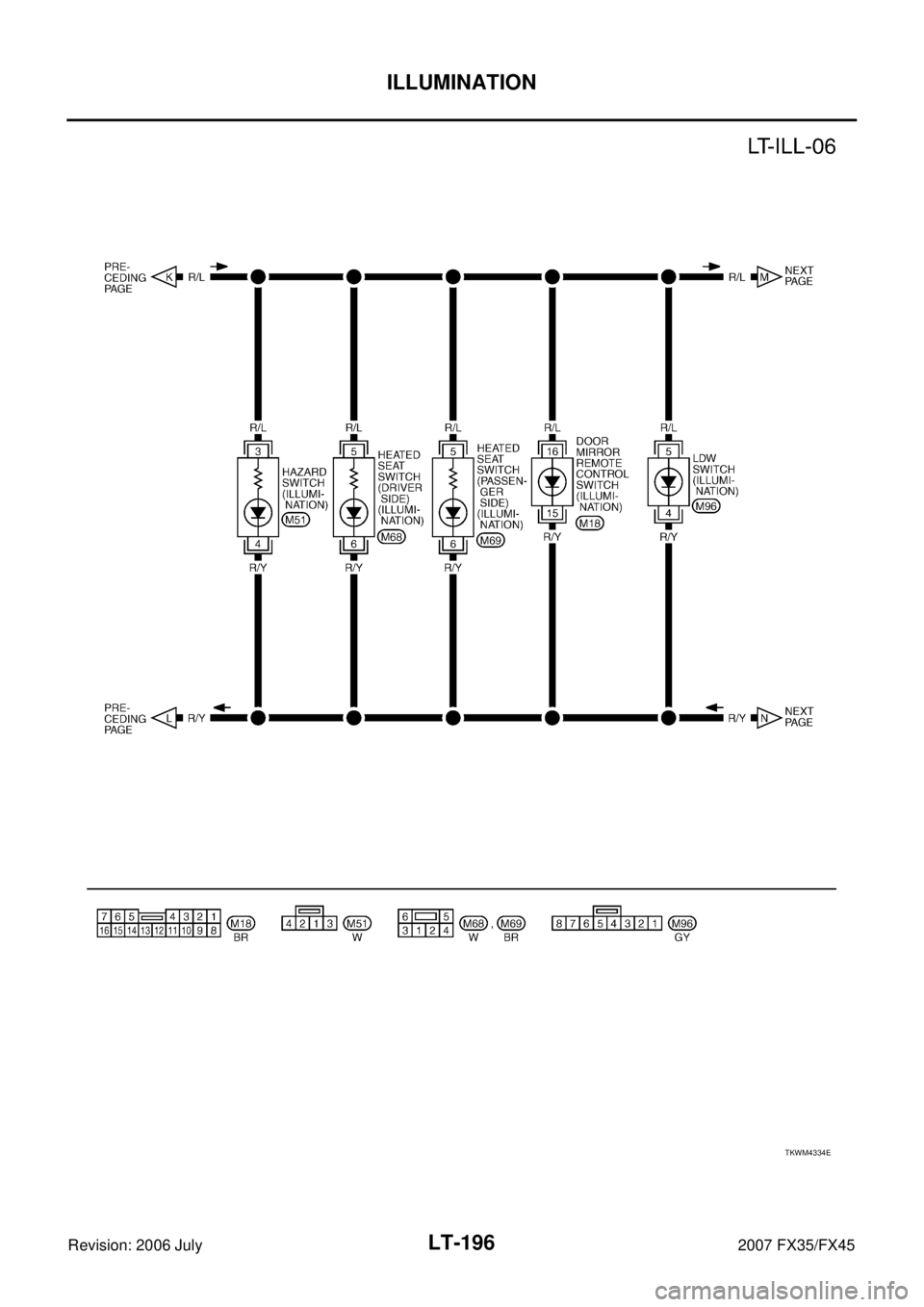

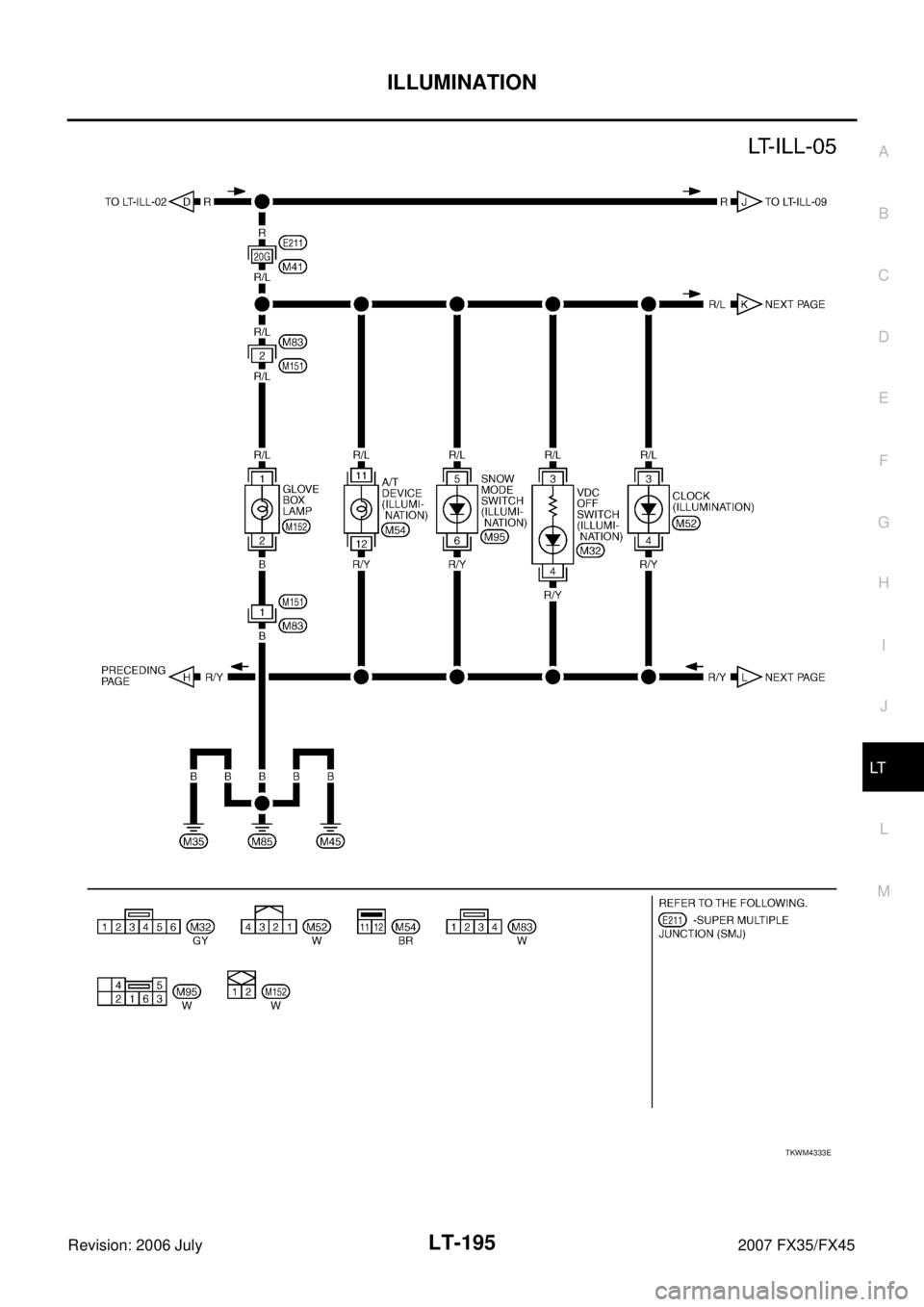

Page 3651 of 4366
ILLUMINATION LT-195
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
TKWM4333E

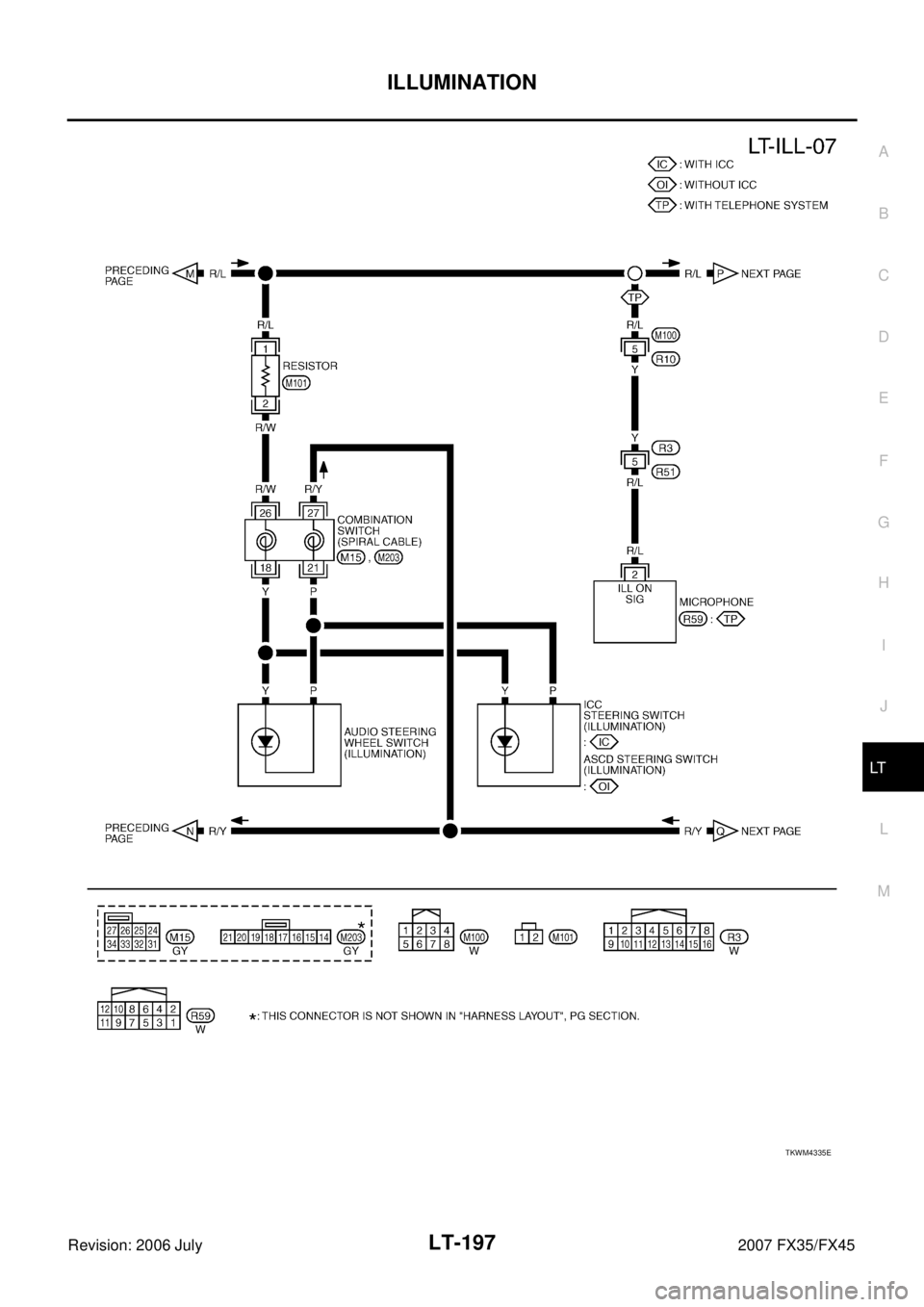

Page 3652 of 4366
LT-196
ILLUMINATION
Revision: 2006 July 2007 FX35/FX45
TKWM4334E

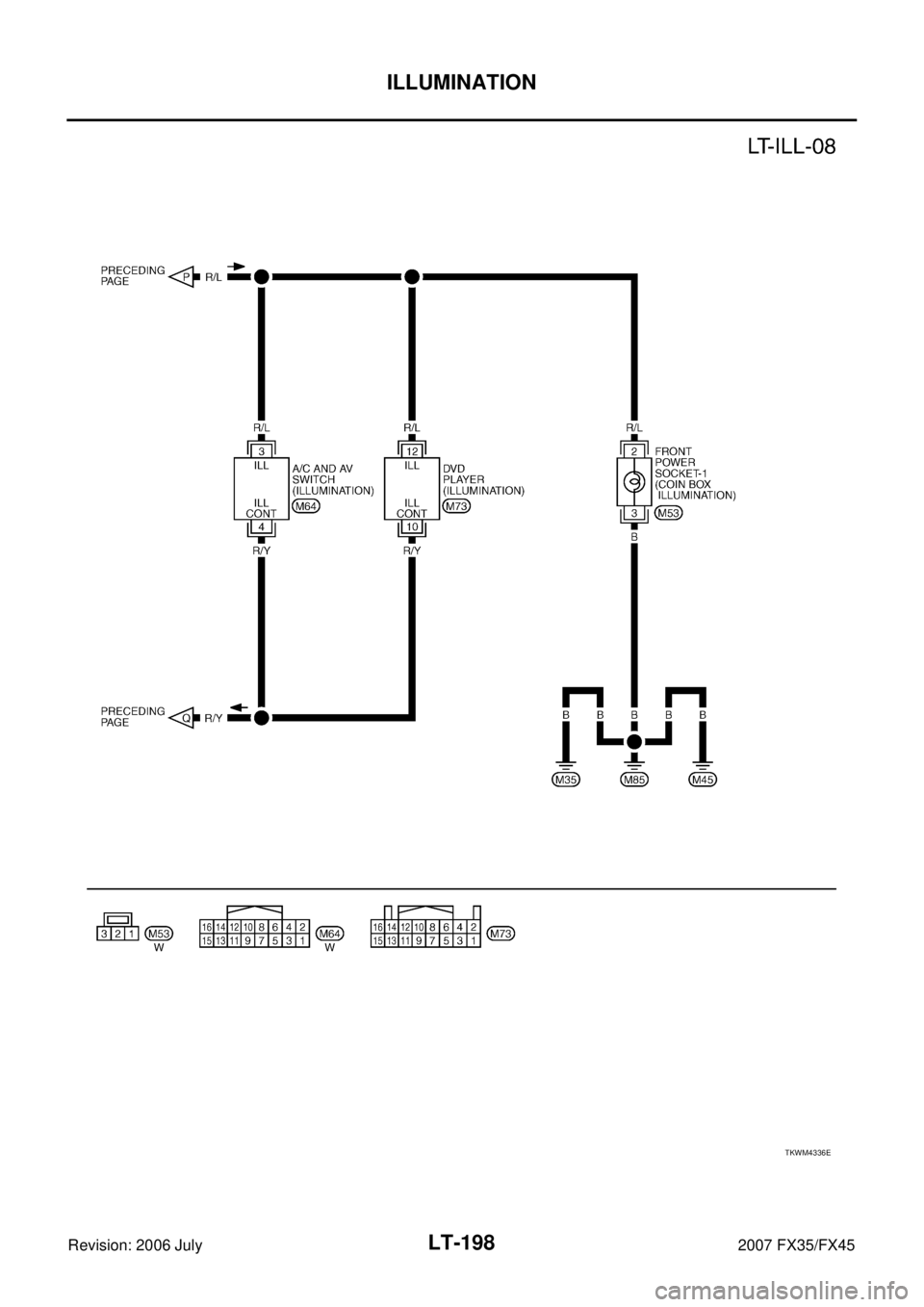

Page 3653 of 4366
ILLUMINATION LT-197
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
TKWM4335E

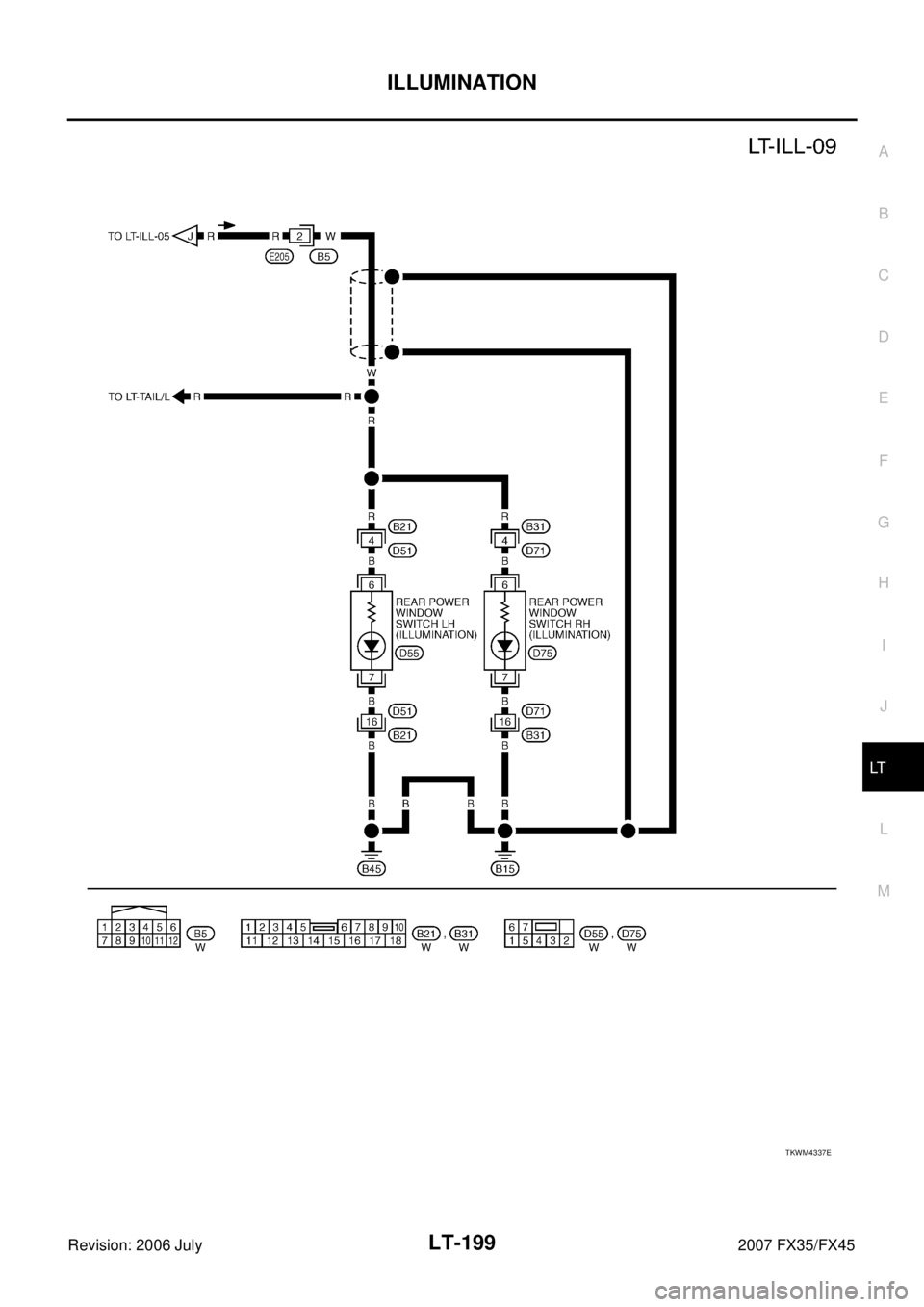

Page 3654 of 4366
LT-198
ILLUMINATION
Revision: 2006 July 2007 FX35/FX45
TKWM4336E
Page 3655 of 4366
ILLUMINATION LT-199
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
TKWM4337E
Page 3656 of 4366
LT-200
ILLUMINATION
Revision: 2006 July 2007 FX35/FX45
Bulb ReplacementNKS003N7
GLOVE BOX LAMP
1. Remove instrument passenger lower panel. Refer to IP-18, "INSTRUMENT PASSENGER LOWER
PA N E L" .
2. Turn bulb socket left to release lock and remove it.
3. Installation is the reverse order of removal.
A/T DEVICE ILLUMINATION
1. Remove A/T console finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Turn bulb socket left to release lock and remove it.
3. Installation is the reverse order of removal.
COIN BOX ILLUMINATION
1. Remove instrument clock finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Turn bulb socket left to release lock and remove it.
3. Installation is the reverse order of removal.
Removal and InstallationNKS002Z7
ILLUMINATION CONTROL SWITCH
Refer to DI-27, "Removal and Installation of Odo/Trip Meter and Illumination Control Switch" .
Glove box lamp : 12 V - 1.4 W
PKIB3636E
A/T device illumination : 12 V - 1.4 W
PKIC9699E
Coin box illumination : 12 V - 1.4 W
PKIC9698E
Page 3657 of 4366
BULB SPECIFICATIONS LT-201
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
BULB SPECIFICATIONSPFP:26297
HeadlampNKS002Z8
Exterior LampNKS002Z9
Interior Lamp/IlluminationNKS002ZA
Item Wattage (W)
High/Low (Xenon type) 35 (D2S)
Item Wattage (W)
Front combination lamp Front turn signal lamp 21 (amber)
Daytime/Parking lamp 21/5
Front side marker lamp 3.8
Rear combination lamp Stop/Tail lamp and Rear Turn signal lamp LED
Rear side marker lamp 3.8
Front fog lamp 35 (H8)
Back-up lamp 18
License plate lamp 5
High-mounted stop lamp (back door mount) LED
Item Wattage (W)
Map lamp 8
Interior room lamp 10
Personal lamp 8
Luggage room lamp 8
Step lamp 5
Glove box lamp 1.4
Vanity mirror lamp 1.32
Ignition key hole illumination 0.8
A/T device illumination lamp 1.4
Coin box illumination lamp 1.4
Page 3658 of 4366
LT-202
BULB SPECIFICATIONS
Revision: 2006 July 2007 FX35/FX45
Page 3659 of 4366
LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D E
F
G H
I
J
K L
M
SECTION
A
LU
Revision: 2006 July 2007 FX35/FX45
ENGINE LUBRICATION SYSTEM
VQ35DE
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket ............................. ..... 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ...................................................... ..... 4
Special Service Tools .......................................... ..... 4
Commercial Service Tools ................................... ..... 4
LUBRICATION SYSTEM ....................................... ..... 5
Lubrication Circuit ............................................... ..... 5
System Chart ...................................................... ..... 6
ENGINE OIL .......................................................... ..... 7
Inspection ............................................................ ..... 7
ENGINE OIL LEVEL ........................................ ..... 7
ENGINE OIL APPEARANCE ........................... ..... 7
ENGINE OIL LEAKAGE ................................... ..... 7
OIL PRESSURE CHECK ................................. ..... 8
Changing Engine Oil ........................................... ..... 9
OIL FILTER ............................................................ ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 10
INSTALLATION ................................................ ... 10
INSPECTION AFTER INSTALLATION ............ ... 10
OIL FILTER BRACKET (AWD) .............................. ... 12
Components ........................................................ ... 12
Removal and Installation ..................................... ... 12
REMOVAL ........................................................ ... 12
INSTALLATION ................................................ ... 12
INSPECTION AFTER INSTALLATION ............ ... 13
OIL COOLER ......................................................... ... 14
Components ........................................................ ... 14
Removal and Installation ..................................... ... 15
REMOVAL ........................................................ ... 15
INSPECTION AFTER REMOVAL .................... ... 16
INSTALLATION ................................................ ... 16
INSPECTION AFTER INSTALLATION ............ ... 16
OIL PUMP .............................................................. ... 17
Components ........................................................ ... 17
Removal and Installation ..................................... ... 17 REMOVAL ........................................................
... 17
INSTALLATION ................................................ ... 17
INSPECTION AFTER INSTALLATION ............. ... 17
Disassembly and Assembly ................................. ... 17
DISASSEMBLY ................................................ ... 17
INSPECTION AFTER DISASSEMBLY ............. ... 18
ASSEMBLY ...................................................... ... 19
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 20
Standard and Limit ............................................... ... 20
ENGINE OIL PRESSURE ................................ ... 20
ENGINE OIL CAPACITY (APPROXIMATE) ..... ... 20
OIL PUMP ........................................................ ... 20
REGULATOR VALVE ....................................... ... 20
VK45DE
PRECAUTIONS ..................................................... ... 21
Precautions for Liquid Gasket ............................. ... 21
LIQUID GASKET APPLICATION PROCEDURE ... 21
PREPARATION ...................................................... ... 22
Special Service Tools .......................................... ... 22
Commercial Service Tools ................................... ... 22
LUBRICATION SYSTEM ....................................... ... 23
Lubrication Circuit ................................................ ... 23
System Chart ....................................................... ... 24
ENGINE OIL ........................................................... ... 25
Inspection ............................................................ ... 25
ENGINE OIL LEVEL ......................................... ... 25
ENGINE OIL APPEARANCE ........................... ... 25
ENGINE OIL LEAKAGE ................................... ... 25
OIL PRESSURE CHECK ................................. ... 25
Changing Engine Oil ............................................ ... 27
OIL FILTER ............................................................ ... 28
Removal and Installation ..................................... ... 28
REMOVAL ........................................................ ... 28
INSTALLATION ................................................ ... 28
INSPECTION AFTER INSTALLATION ............. ... 28
Page 3660 of 4366
LU-2Revision: 2006 July 2007 FX35/FX45
OIL COOLER .........................................................
... 29
Components ........................................................ ... 29
Removal and Installation ..................................... ... 29
REMOVAL ........................................................ ... 29
INSPECTION AFTER REMOVAL ..................... ... 30
INSTALLATION ................................................. ... 30
INSPECTION AFTER INSTALLATION ............. ... 30
OIL PUMP .............................................................. ... 31
Components ........................................................ ... 31
Removal and Installation ..................................... ... 31
REMOVAL ........................................................ ... 31
INSTALLATION ................................................. ... 31 INSPECTION AFTER INSTALLATION .............
... 32
Disassembly and Assembly ................................. ... 32
DISASSEMBLY ................................................. ... 32
INSPECTION AFTER DISASSEMBLY ............. ... 32
ASSEMBLY ....................................................... ... 33
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 34
Standard and Limit ............................................... ... 34
OIL PRESSURE ............................................... ... 34
ENGINE OIL CAPACITY (APPROXIMATE) ..... ... 34
OIL PUMP ......................................................... ... 34
REGULATOR VALVE ........................................ ... 34
