[VQ35DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS003IV
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.

Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating use) to remove adhering moisture, grease and foreign materials.
3. Apply liquid gasket to the liquid gasket application surface. Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .

Within five minutes of liquid gasket application, install the mating component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten after mounting bolts and nuts the installation.

After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.

LU-4
[VQ35DE]
PREPARATION
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNBS003IW
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNBS003IX
Tool number
(Kent-Moore No.)
Tool name Description
ST25051001
(J25695-1)
Oil pressure gauge Measuring oil pressure
Maximum measuring range: 2,452 kPa (25
kg-cm
2 , 356 psi)
ST25052000
(J25695-2)
Hose Adapting oil pressure gauge to oil pan (upper)
KV10115801
(J38956)
Oil filter wrench Removing and installing oil filter
a: 64.3 mm (2.531 in)
NT050
S-NT559
S-NT375
Tool name Description
Power tools Loosening nuts and bolts
Deep socket Removing and installing oil pressure switch
a: 26 mm (1.02 in)
PBIC0190E
PBIC2072E

LUBRICATION SYSTEM LU-5
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
LUBRICATION SYSTEMPFP:15010

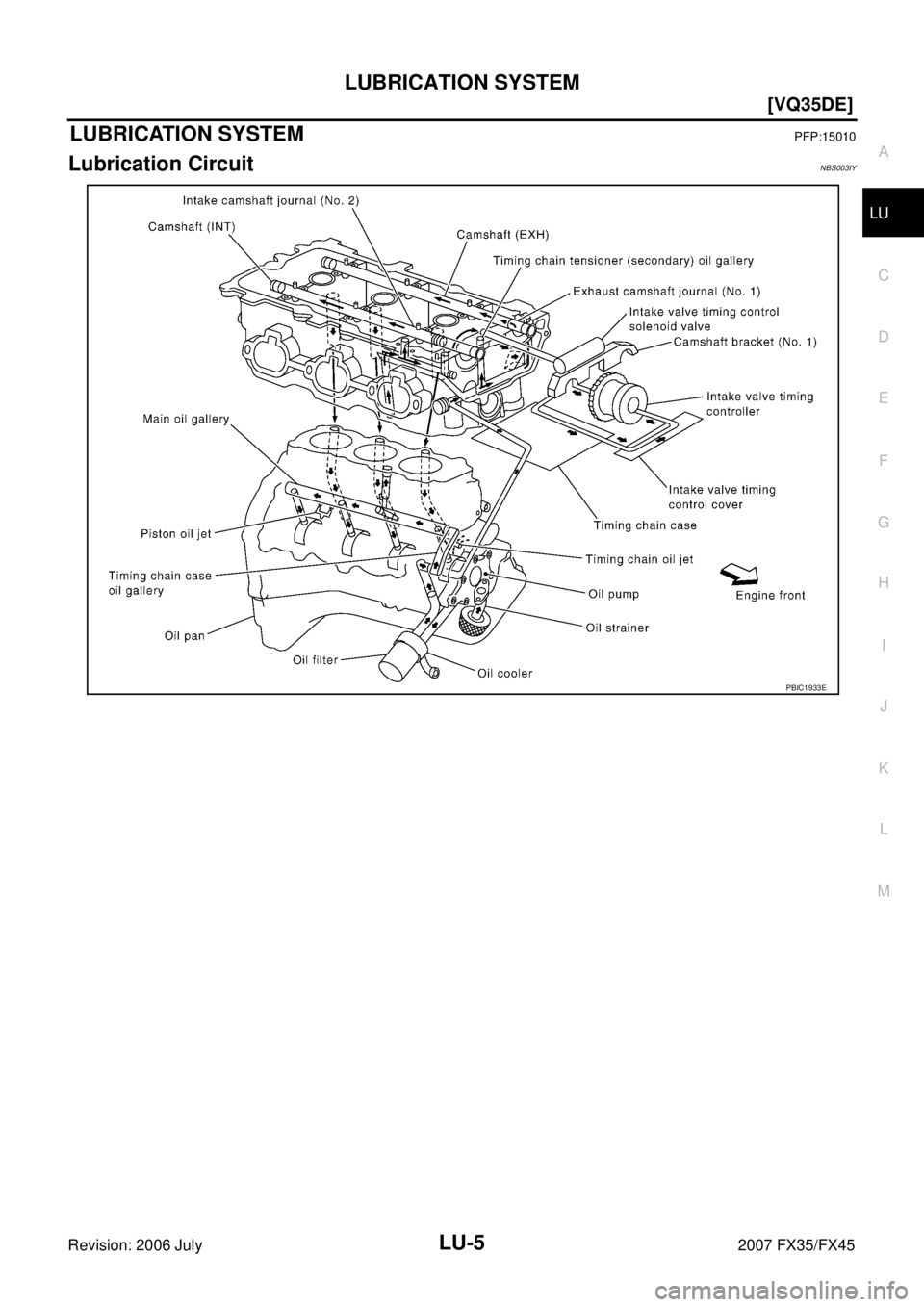

Lubrication CircuitNBS003IY
PBIC1933E

LU-6
[VQ35DE]
LUBRICATION SYSTEM
Revision: 2006 July 2007 FX35/FX45

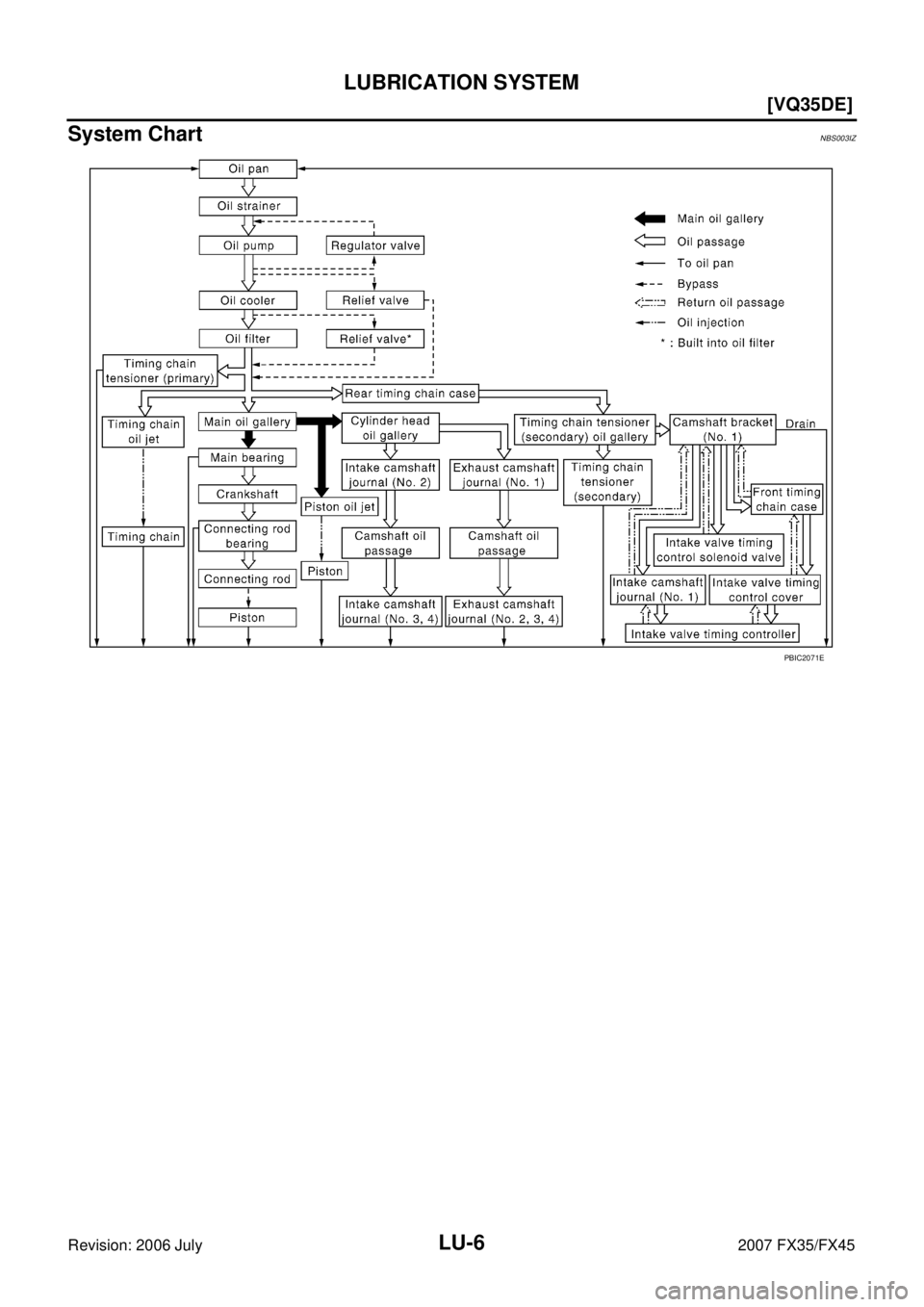

System ChartNBS003IZ
PBIC2071E

ENGINE OIL LU-7
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
ENGINE OILPFP:KLA92
InspectionNBS003J0
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 10 minutes before checking.
1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and make sure the engine oil level is within the range shown in the figure.
3. If it is out of range, adjust it.
NOTE:
When checking the engine oil level, insert oil level gauge with its
tip aligned with oil level gauge guide on cylinder head. (In figure,
air cleaner case and air duct are removed.)
ENGINE OIL APPEARANCE

Check engine oil for white turbidity or heavy contamination.

If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Repair or replace damaged parts.
ENGINE OIL LEAKAGE
Check for engine oil leakage around the following areas:

Oil pans (lower and upper)

Oil pan drain plug

Oil pressure switch

Oil filter

Oil filter bracket (AWD models)

Oil cooler

Water pump cover

Chain tensioner cover

Intake valve timing control cover and intake valve timing control solenoid valve

Mating surface between cylinder head and rocker cover

Mating surface between front timing chain case and rear timing chain case

Mating surface between rear timing chain case and cylinder head

Mating surface between rear timing chain case and cylinder block.

Mating surface between rear timing chain case and oil pan (upper)

Mating surface between cylinder block and cylinder head
PBIC3101E
KBIA1343E

LU-8
[VQ35DE]
ENGINE OIL
Revision: 2006 July 2007 FX35/FX45

Crankshaft oil seals (front and rear)

Camshaft position sensor (PHASE)
OIL PRESSURE CHECK
WARNING:

Be careful not to get burn yourself, as engine oil may be hot.

Oil pressure check should be done in “Parking position”.
1. Check the engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" .
2. Remove front engine undercover with power tool.
3. Disconnect harness connector at oil pressure sensor, and remove oil pressure sensor using deep socket (commercial ser-
vice tool).
CAUTION:
Do not drop or shock oil pressure switch.
4. Install the oil pressure gauge (SST) and hose (SST).
5. Start the engine and warm it up to normal operating temperature.
6. Check the engine oil pressure with engine running under no-load. NOTE:
When the engine oil temperature is low, the engine oil pressure becomes high.
Engine oil pressure [Engine oil temperature at 80 °C (176 °F)]
If difference is extreme, check engine oil passage and oil pump for engine oil leaks.
7. After the inspections, install oil pressure switch as follows:
SBIA0452E
SBIA0453E
SLC926
Engine speed (rpm) Approximate discharge pressure [kPa (kg/cm2 , psi)]
Idle speed More than 98 (1.0, 14) 2,000 More than 294 (3.0, 43)

ENGINE OIL LU-9
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
a. Remove old liquid gasket adhering to oil pressure switch and the mating surface.
b. Apply liquid gasket and tighten oil pressure switch to the specification. Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
c. After warming up engine, make sure there is no leakage of engine oil with running engine.
Changing Engine OilNBS003J1
WARNING:

Be careful not to get burn yourself, as engine oil may be hot.

Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Remove front engine undercover with power tool.
2. Warm up the engine, and check for engine oil leakage from engine components. Refer to LU-7, "
ENGINE
OIL LEAKAGE" .
3. Stop the engine and wait for 10 minutes.
4. Loosen oil filler cap and then remove drain plug.
5. Drain engine oil.
6. Install drain plug with new washer. Refer to EM-30, "
OIL PAN AND OIL STRAINER" .
CAUTION:
Be sure to clean drain plug and install with new washer.
7. Refill with new engine oil. Engine oil specification and viscosity:
Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Engine oil capacity (Approximate):
Unit: (US qt, lmp qt)
CAUTION:

When filling engine oil, do not pull out oil level gauge.

The refill capacity depends on the engine oil temperature and drain time. Use these specifica-
tions for reference only.

Always use oil level gauge to determine the proper amount of engine oil in engine.
8. Warm up the engine and check area around drain plug and oil filter for engine oil leakage.
9. Stop the engine and wait for 10 minutes.
10. Check the engine oil level. Refer to LU-7, "
ENGINE OIL LEVEL" .
Oil pressure switch:
: 14.8 N·m (1.5 kg-m, 11 ft-lb)
Oil pan drain plug: : 34.3 N·m (3.5 kg-m, 25 ft-lb)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul) 5.4 (5-3/4, 4-3/4)

LU-10
[VQ35DE]
OIL FILTER
Revision: 2006 July 2007 FX35/FX45
OIL FILTERPFP:15208
Removal and InstallationNBS003J2
REMOVAL
1. Remove front engine undercover with power tool.
2. Using oil filter wrench (SST), remove oil filter. CAUTION:

Oil filter is provided with relief valve. Use Genuine Nissan
Oil Filter or equivalent.

Be careful not to get burned when engine and engine oil
may be hot.

When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adheres to engine
and vehicle.
INSTALLATION
1. Remove foreign materials adhering to oil filter installation surface.
2. Apply engine oil to the oil seal contact surface of new oil filter.
3. Screw oil filter manually until it touches the installation surface, then tighten it by 2/3 turn. Or tighten to the specification.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-7, "ENGINE OIL" .
2. Start the engine, and check there is no leak of engine oil.
SBIA0454E
SBIA0455E
SMA010
Oil filter:
: 17.7 N·m (1.8 kg-m, 13 ft-lb)
SMA229B

OIL FILTER LU-11
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level, and adjust the level. Refer to LU-7, "
ENGINE OIL" .

LU-12
[VQ35DE]
OIL FILTER BRACKET (AWD)
Revision: 2006 July 2007 FX35/FX45
OIL FILTER BRACKET (AWD)PFP:15238
ComponentsNBS003J3
Removal and InstallationNBS003J4
REMOVAL
WARNING:
Be careful not to get burn yourself, as engine oil may be hot.
1. Remove front engine undercover with power tool.
2. Using the oil filter wrench [SST: KV10115801 (J38956)], remove oil filter. Refer to LU-10, "
OIL FILTER" .
CAUTION:
Do not spill engine oil on drive belt.
3. Remove oil cooler connector bolt, and then oil cooler with water hoses connected.
4. Disconnect oil temperature sensor and oil pressure switch harness connectors.
5. Remove oil filter bracket from oil pan (upper).
6. Remove oil temperature sensor and oil pressure switch from oil filter bracket.
INSTALLATION
Note the following, and install in the reverse order of removal.

Install oil pressure switch and oil temperature sensor as follows:
–Remove old liquid gasket adhering to oil pressure switch and oil filter bracket.
–Apply liquid gasket and install oil pressure switch, and then oil temperature sensor with a new washer.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .

Align cutout on oil cooler with protrusion on oil filter bracket. Refer to LU-16, "INSTALLATION" .
1. Oil filter 2. Connector bolt 3. Oil cooler
4. O-ring 5. Relief valve 6. Oil filter bracket
7. Gasket 8. Oil pressure switch 9. Oil temperature sensor
10. Washer 11. Oil pan (upper)
SBIA0593E
