INFINITI FX35 2007 Service Manual

REAR FINAL DRIVE ASSEMBLY RFD-21
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 July 2007 FX35/FX45

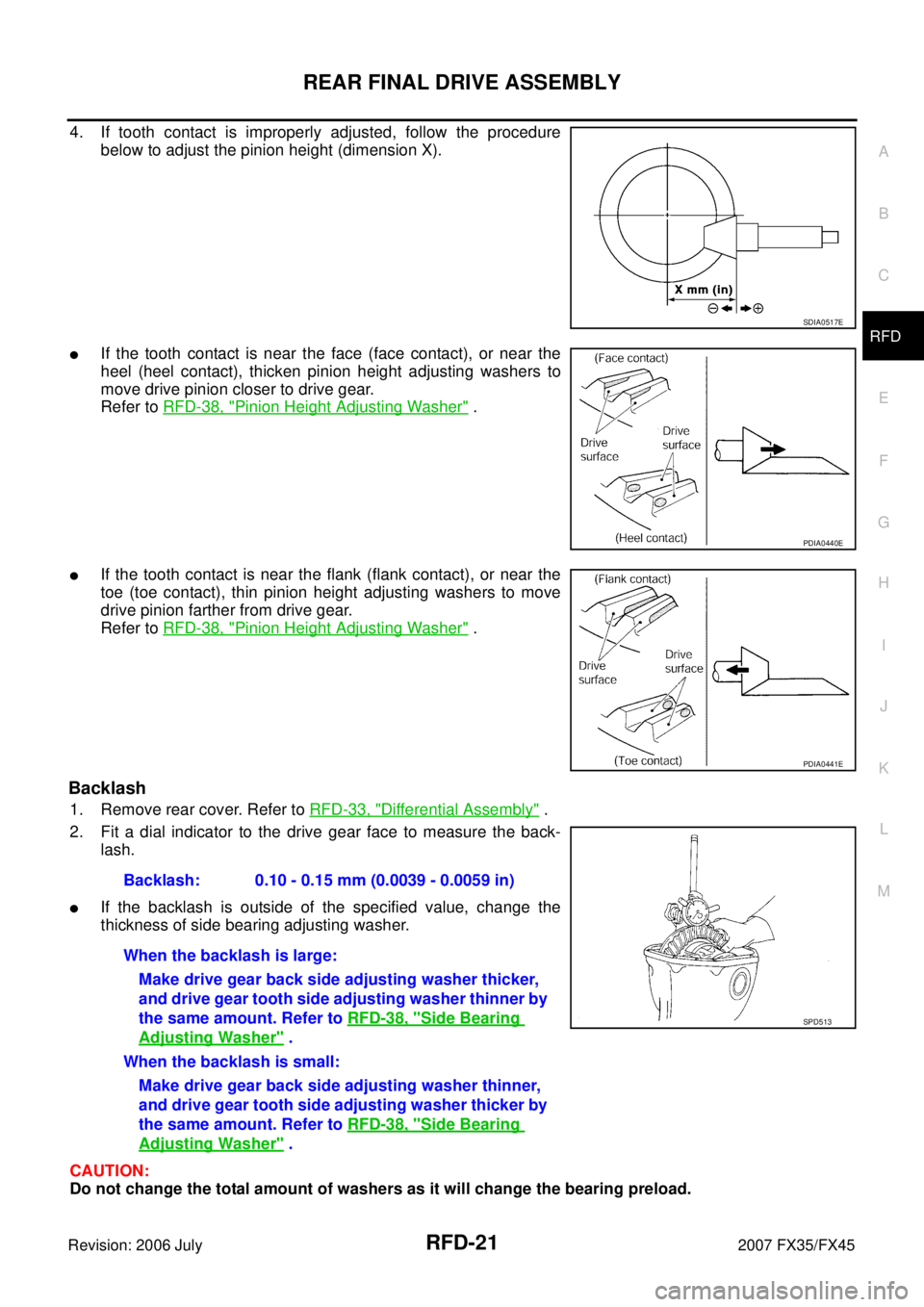

4. If tooth contact is improperly adjusted, follow the procedure
below to adjust the pinion height (dimension X).

If the tooth contact is near the face (face contact), or near the
heel (heel contact), thicken pinion height adjusting washers to
move drive pinion closer to drive gear.
Refer to RFD-38, "
Pinion Height Adjusting Washer" .

If the tooth contact is near the flank (flank contact), or near the
toe (toe contact), thin pinion height adjusting washers to move
drive pinion farther from drive gear.
Refer to RFD-38, "
Pinion Height Adjusting Washer" .
Backlash
1. Remove rear cover. Refer to RFD-33, "Differential Assembly" .
2. Fit a dial indicator to the drive gear face to measure the back- lash.

If the backlash is outside of the specified value, change the
thickness of side bearing adjusting washer.
CAUTION:
Do not change the total amount of washers as it will change the bearing preload.
SDIA0517E
PDIA0440E
PDIA0441E
Backlash: 0.10 - 0.15 mm (0.0039 - 0.0059 in)
When the backlash is large: Make drive gear back side adjusting washer thicker,
and drive gear tooth side adjusting washer thinner by
the same amount. Refer to RFD-38, "
Side Bearing
Adjusting Washer" .
When the backlash is small: Make drive gear back side adjusting washer thinner,
and drive gear tooth side adjusting washer thicker by
the same amount. Refer to RFD-38, "
Side Bearing
Adjusting Washer" .
SPD513

RFD-22
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
Companion Flange Runout
1. Fit a test indicator to the inner side of companion flange (socket
diameter).
2. Rotate companion flange to check for runout.
3. If the runout value is outside the runout limit, follow the proce- dure below to adjust.
a. Check for runout while changing the phase between companion flange and drive pinion by 90 ° step, and search for the position
where the runout is the minimum.
b. If the runout value is still outside of the limit after the phase has been changed, possible cause will be an assembly malfunction of drive pinion and pinion bearing and
malfunction of pinion bearing. Check for these items and repair if necessary.
c. If the runout value is still outside of the limit after the check and repair, replace companion flange.
DISASSEMBLY
Differential Assembly
1. Drain gear oil, if necessary.
2. Remove side flange.
3. Remove rear cover mounting bolts.
4. Remove rear cover to insert the seal cutter between gear carrier and rear cover.
CAUTION:

Be careful not to damage the mating surface.

Do not insert flat-bladed screwdriver, this way damage
the mating surface.
5. Using two 45 mm (1.77 in) spacers, mount carrier on the attach- ment.
6. For proper reinstallation, paint matching marks on one side of the bearing cap.
CAUTION:

For matching marks, use paint. Do not damage bearing
caps and gear carrier.

Bearing caps are line-board during manufacture. The
matching marks are used to reinstall them in their origi-
nal positions. Runout limit: 0.08 mm (0.0031 in)
PDIA0490E
Tool number A: KV10111100 (J-37228)
PDIA0756J
Tool number A: KV38100800 (J-25604-01)
PDIA0757J
SDIA1795E

REAR FINAL DRIVE ASSEMBLY RFD-23
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 July 2007 FX35/FX45
7. Remove bearing caps.
8. Lift differential case assembly out with a suitable tool.

Keep side bearing outer races together with inner race. Do
not mix them up.
Also, keep side bearing adjusting washers together with bear-
ings.
9. Remove side bearing inner race. To prevent damage to bearing, engage puller jaws in groove
().
CAUTION:

To prevent damage to the side bearing and drive gear,
place copper plates between these parts and vise.

It is not necessary to remove side bearing inner race
except it is replaced.
S-PD343
PDIA0547E
SPD527
Tool number A: ST33051001 (J-22888-20)
B: ST33061000 (J-8107-2)
PDIA0758J

RFD-24
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
10. For proper reinstallation, paint matching marks on one differen-
tial case assembly.
CAUTION:
For matching marks, use paint. Do not damage differential
case and drive gear.
11. Remove drive gear mounting bolts.
12. Tap drive gear off differential case assembly with a soft hammer. CAUTION:
Tap evenly all around to keep drive gear from bending.
13. Remove lock pin of pinion mate shaft with a punch from drive gear side.
14. Remove pinion mate shaft.
15. Turn pinion mate gear, then remove pinion mate gear, pinion mate thrust washer, side gear and side gear thrust washer from
differential case.
Drive Pinion Assembly
1. Remove differential assembly. Refer to RFD-33, "Differential Assembly" .
PDIA0496E
PDIA0759J
SDIA0031J
SDIA0032J

REAR FINAL DRIVE ASSEMBLY RFD-25
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 July 2007 FX35/FX45

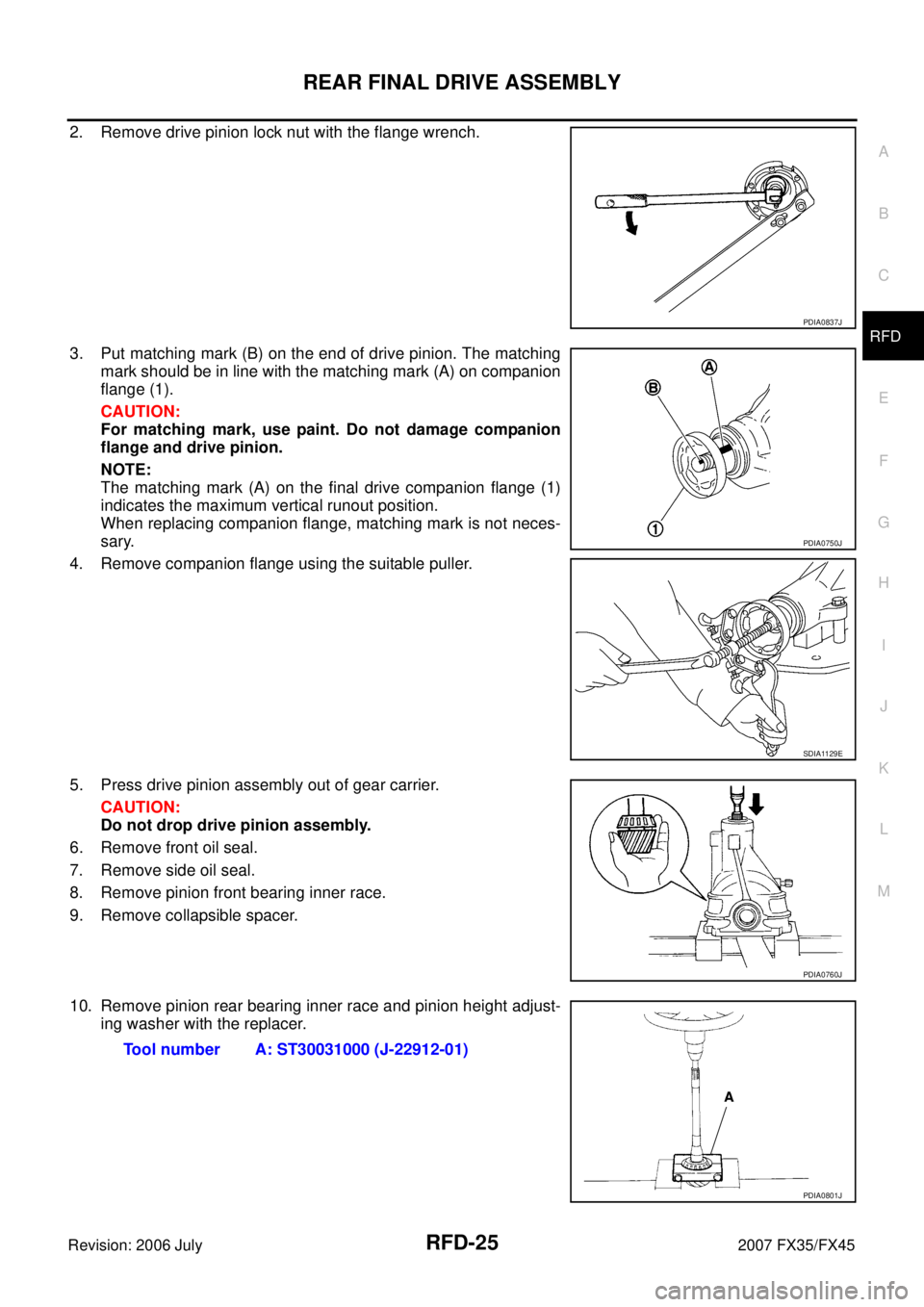

2. Remove drive pinion lock nut with the flange wrench.
3. Put matching mark (B) on the end of drive pinion. The matching
mark should be in line with the matching mark (A) on companion
flange (1).
CAUTION:
For matching mark, use paint. Do not damage companion
flange and drive pinion.
NOTE:
The matching mark (A) on the final drive companion flange (1)
indicates the maximum vertical runout position.
When replacing companion flange, matching mark is not neces-
sary.
4. Remove companion flange using the suitable puller.
5. Press drive pinion assembly out of gear carrier. CAUTION:
Do not drop drive pinion assembly.
6. Remove front oil seal.
7. Remove side oil seal.
8. Remove pinion front bearing inner race.
9. Remove collapsible spacer.
10. Remove pinion rear bearing inner race and pinion height adjust- ing washer with the replacer.
PDIA0837J
PDIA0750J
SDIA1129E
PDIA0760J
Tool number A: ST30031000 (J-22912-01)
PDIA0801J

RFD-26
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
11. Tap pinion front/rear bearing outer races uniformly a brass rod or
equivalent to removed.
CAUTION:
Be careful not to damage gear carrier.
INSPECTION AFTER DISASSEMBLY
Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.
ADJUSTMENT AND SELECTION OF ADJUSTING WASHERS
Differential Side Gear Clearance

Assemble the differential parts if they are disassembled. Refer to RFD-33, "Differential Assembly" .
1. Place differential case straight up so that side gear to be mea- sured comes upward.
SDIA0817E
Content Conditions and Measures
Hypoid gear

If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-
essary.

If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new
drive gear and drive pinion as a set.
Bearing

If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing
is observed, replace as a bearing assembly (as a new set).
Side gear and Pinion mate
gear

If any cracks or damage on the surface of the tooth is found, replace.

If any worn or chipped mark on the contact sides of the thrust washer is found, replace.
Side gear thrust washer and
pinion mate thrust washer

If it is chipped (by friction), damaged, or unusually worn, replace.
Oil seal

Whenever disassembled, replace.

If wear, deterioration of adherence (sealing force lips), or damage is detected on the lips, replace
them.
Differential case

If any wear or crack on the contact sides of the differential case is found, replace.
Companion flange

If any chipped mark (about 0.1 mm, 0.004 in) or other damage on the contact sides of the lips of the
companion flange is found, replace.
PDIA0460E

REAR FINAL DRIVE ASSEMBLY RFD-27
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 July 2007 FX35/FX45

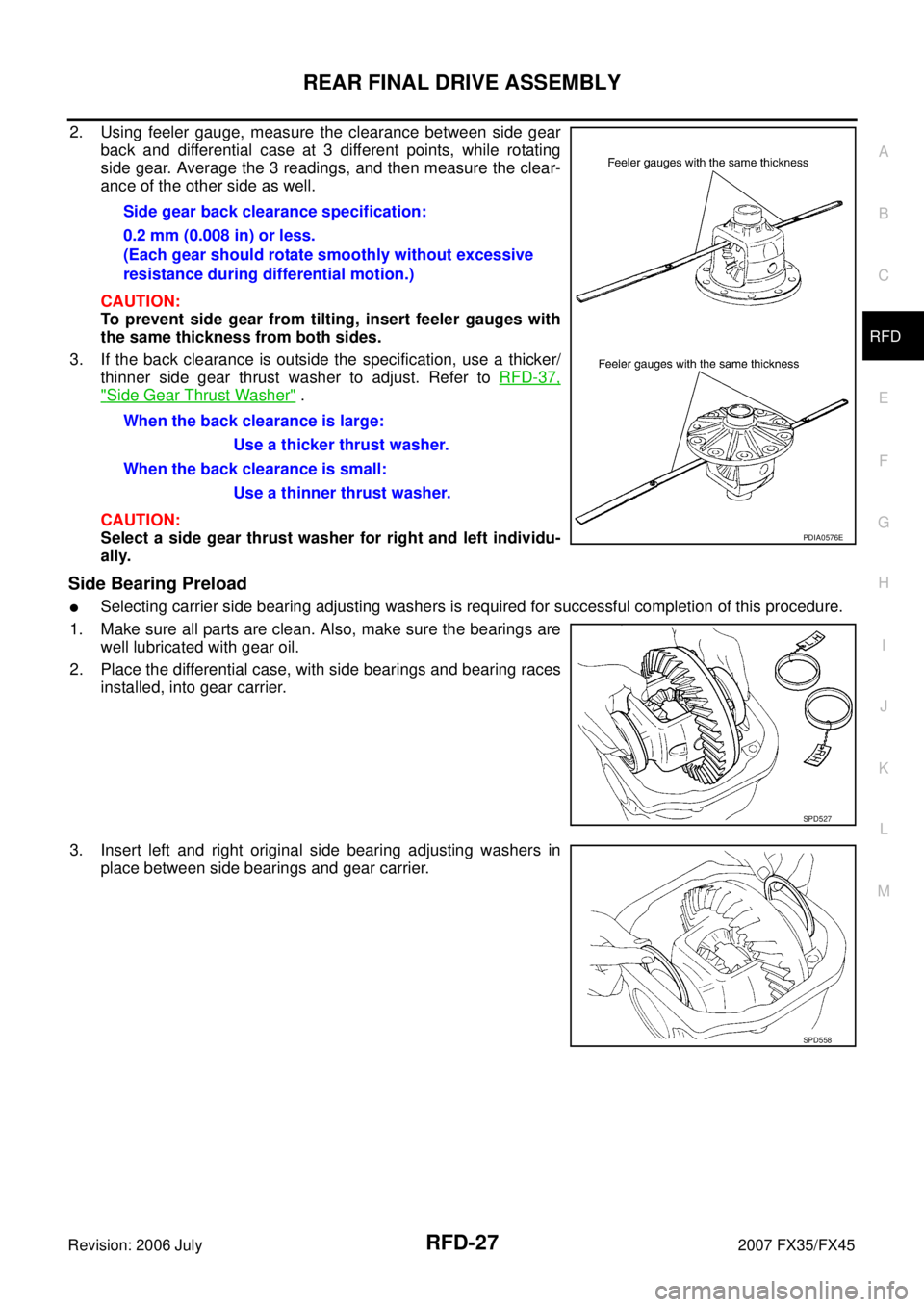

2. Using feeler gauge, measure the clearance between side gear
back and differential case at 3 different points, while rotating
side gear. Average the 3 readings, and then measure the clear-
ance of the other side as well.
CAUTION:
To prevent side gear from tilting, insert feeler gauges with
the same thickness from both sides.
3. If the back clearance is outside the specification, use a thicker/ thinner side gear thrust washer to adjust. Refer to RFD-37,
"Side Gear Thrust Washer" .
CAUTION:
Select a side gear thrust washer for right and left individu-
ally.
Side Bearing Preload

Selecting carrier side bearing adjusting washers is required for successful completion of this procedure.
1. Make sure all parts are clean. Also, make sure the bearings are well lubricated with gear oil.
2. Place the differential case, with side bearings and bearing races installed, into gear carrier.
3. Insert left and right original side bearing adjusting washers in place between side bearings and gear carrier. Side gear back clearance specification:
0.2 mm (0.008 in) or less.
(Each gear should rotate smoothly without excessive
resistance during differential motion.)
When the back clearance is large: Use a thicker thrust washer.
When the back clearance is small: Use a thinner thrust washer.
PDIA0576E
SPD527
SPD558

RFD-28
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
4. Install bearing caps in their correct locations and tighten bearing
cap mounting bolts to the specified torque. Refer to RFD-18,
"COMPONENTS" .
5. Turn the carrier several times to seat the bearings.
6. Measure the turning torque of the carrier at the drive gear mounting bolts with a spring gauge.
7. If the turning torque is outside the specification, use a thicker/ thinner side bearing adjusting washer to adjust. Refer to RFD-
38, "Side Bearing Adjusting Washer" .
CAUTION:
Select a side bearing adjusting washer for right and left
individually.
8. Record the total amount of washer thickness required for the correct carrier side bearing preload.
Pinion Gear Height
1. Make sure all parts are clean and that the bearings are well lubricated.
2. Assemble the pinion gear bearings into the differential shim selector tool.
SDIA1795E
Tool number : — (J-8129)
Specification:
34.2 - 39.2 N (3.5 - 4.0 kg, 7.7 - 8.8 lb) of pulling force at
the drive gear bolt
SPD194A
If the turning torque is less than the specified range:
Use a thicker thrust washer.
If the turning torque is greater than the specification: Use a thinner thrust washer.
SPD772
Tool number : — (J-34309)
SPD769

REAR FINAL DRIVE ASSEMBLY RFD-29
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 July 2007 FX35/FX45

Pinion front bearing; make sure the J-34309-3 pinion front
bearing seat is secured tightly against the J-34309-2 gauge
anvil. Then turn the pinion front bearing pilot, J-34309-5, to
secure the bearing in its proper position.

Pinion rear bearing; the pinion rear bearing pilot, J-34309-8,
is used to center the pinion rear bearing only. The pinion rear
bearing locking seat, J-34309-4, is used to lock the bearing to
the assembly.

Installation of J-34309-9 and J-34309-16; place a suitable
2.5 mm (0.098 in) thick plain washer between J-34309-9 and
J-34309-16. Both surfaces of J-34309-9 and J-34309-16 must
be parallel with a clearance of 2.5 mm (0.098 in).
3. Install the pinion rear bearing inner race into gear carrier. Then place the pinion preload shim selector tool, J-34309-1, gauge
screw assembly.
4. Assemble the pinion front bearing inner race and the J-34309-2 gauge anvil. Assemble them together with the J-34309-1 gauge
screw in gear carrier. Make sure that the pinion height gauge
plate, J-34309-16, will turn a full 360 degrees. Tighten the two
sections together by hand.
5. Turn the assembly several times to seat the bearings.
6. Measure the turning torque at the end of the J-34309-2 gauge anvil using preload gauge.
SPD197A
SPD893
SPD199A
SPD770
Tool number : ST3127S000 (J-25765- A)
Turning torque specification: 1.0 - 1.3 N·m (0.11 - 0.13 kg-m, 9 - 11 in-lb)
PDIA0566E

RFD-30
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
7. Place the J-34309-11 “R200A” pinion height adapter onto the
gauge plate and tighten it by hand.
CAUTION:
Make sure all machined surfaces are clean.
8. Position the side bearing discs, J-25269-4, and arbor firmly into the side bearing bores. Install the bearing caps and tighten bear-
ing cap mounting bolts to the specified torque. Refer to RFD-18,
"COMPONENTS" .
9. Select the correct standard pinion height adjusting washer thick- ness. Select by using a standard gauge of 3 mm (0.12 in) and
your J-34309-101 feeler gauge. Measure the distance between
the J-34309-11 pinion height adapter including the standard
gauge and the arbor.
10. Write down exact measurement (the value of feeler gauge).
11. Correct the pinion height washer size by referring to the “pinion head number”.
There are two numbers painted on the drive pinion. The first
one refers to the drive pinion and drive gear as a matched
set. This number should be the same as the number on the
drive gear. The second number is the “pinion head height
number”. It refers to the ideal pinion height from standard
for quietest operation. Use the following chart to determine
the correct pinion height washer.
SPD208A
SPD211A
SPD204A
SPD775
SPD542
