12. Select the correct pinion height adjusting washer. Refer to RFD-38, "Pinion Height Adjusting Washer" .
13. Remove the J-34309 differential shim selector tool from the final drive housing. Then disassemble to retrieve the pinion bearings.
ASSEMBLY
Drive Pinion Assembly

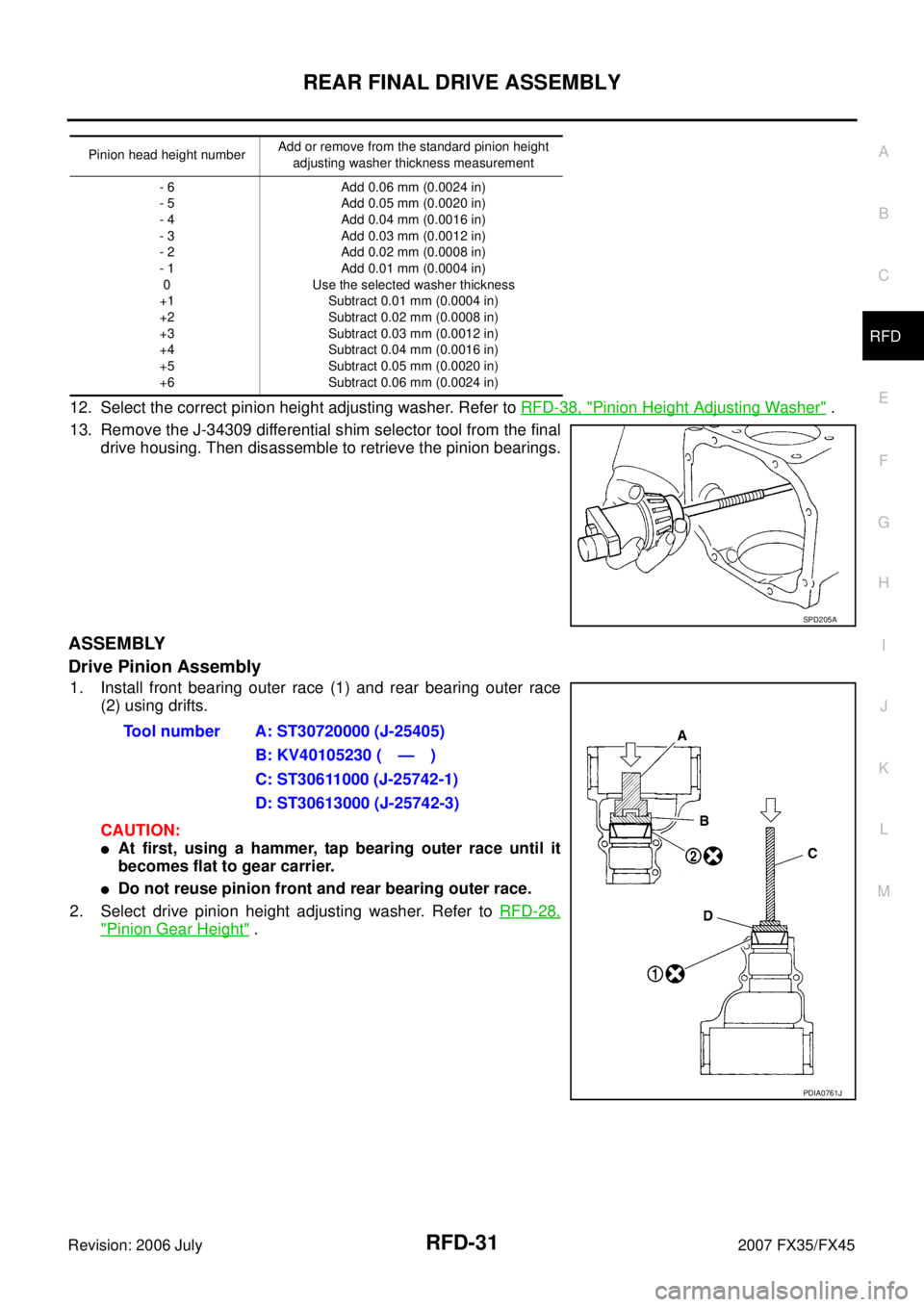

1. Install front bearing outer race (1) and rear bearing outer race (2) using drifts.
CAUTION:

At first, using a hammer, tap bearing outer race until it
becomes flat to gear carrier.

Do not reuse pinion front and rear bearing outer race.
2. Select drive pinion height adjusting washer. Refer to RFD-28,
"Pinion Gear Height" .
Pinion head height number Add or remove from the standard pinion height
adjusting washer thickness measurement
- 6
- 5
- 4
- 3
- 2
- 1
0
+1
+2
+3
+4
+5
+6 Add 0.06 mm (0.0024 in)
Add 0.05 mm (0.0020 in)
Add 0.04 mm (0.0016 in)
Add 0.03 mm (0.0012 in)
Add 0.02 mm (0.0008 in)
Add 0.01 mm (0.0004 in)
Use the selected washer thickness Subtract 0.01 mm (0.0004 in)
Subtract 0.02 mm (0.0008 in)
Subtract 0.03 mm (0.0012 in)
Subtract 0.04 mm (0.0016 in)
Subtract 0.05 mm (0.0020 in)
Subtract 0.06 mm (0.0024 in)
SPD205A
Tool number A: ST30720000 (J-25405)
B: KV40105230 ( — )
C: ST30611000 (J-25742-1)
D: ST30613000 (J-25742-3)
PDIA0761J

RFD-32
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45

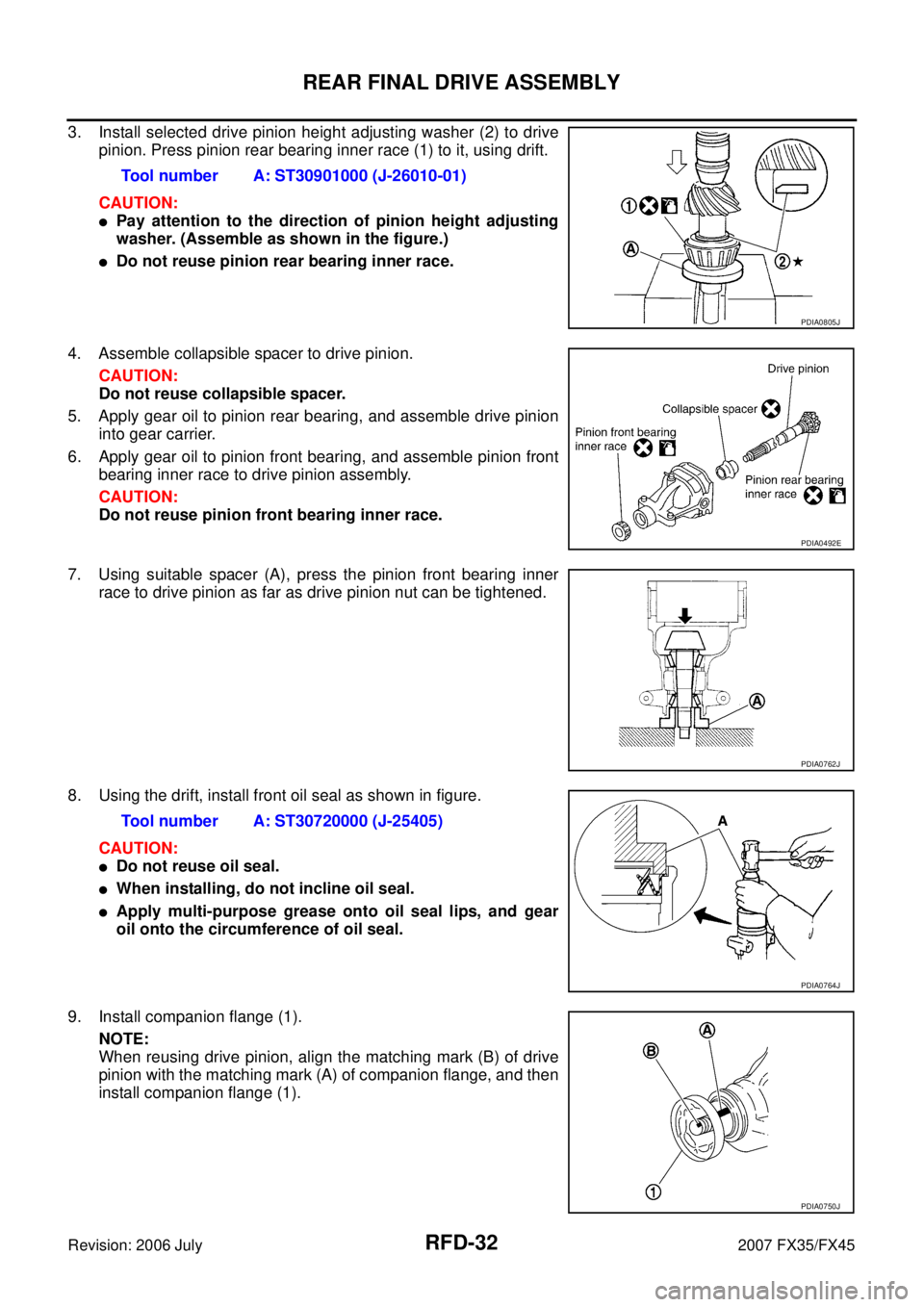

3. Install selected drive pinion height adjusting washer (2) to drive
pinion. Press pinion rear bearing inner race (1) to it, using drift.
CAUTION:

Pay attention to the direction of pinion height adjusting
washer. (Assemble as shown in the figure.)

Do not reuse pinion rear bearing inner race.
4. Assemble collapsible spacer to drive pinion. CAUTION:
Do not reuse collapsible spacer.
5. Apply gear oil to pinion rear bearing, and assemble drive pinion into gear carrier.
6. Apply gear oil to pinion front bearing, and assemble pinion front bearing inner race to drive pinion assembly.
CAUTION:
Do not reuse pinion front bearing inner race.
7. Using suitable spacer (A), press the pinion front bearing inner race to drive pinion as far as drive pinion nut can be tightened.
8. Using the drift, install front oil seal as shown in figure. CAUTION:

Do not reuse oil seal.

When installing, do not incline oil seal.

Apply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of oil seal.
9. Install companion flange (1). NOTE:
When reusing drive pinion, align the matching mark (B) of drive
pinion with the matching mark (A) of companion flange, and then
install companion flange (1). Tool number A: ST30901000 (J-26010-01)
PDIA0805J
PDIA0492E
PDIA0762J
Tool number A: ST30720000 (J-25405)
PDIA0764J
PDIA0750J

REAR FINAL DRIVE ASSEMBLY RFD-33
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 July 2007 FX35/FX45
10. Apply anti-corrosion oil to the thread and seat of drive pinion
lock nut, and temporarily tighten drive pinion lock nut to drive
pinion.
CAUTION:
Do not reuse drive pinion lock nut.
11. Adjust to the drive pinion lock nut tightening torque and pinion bearing preload torque.
CAUTION:

Adjust to the lower limit of the drive pinion lock nut tight-
ening torque first.

If the preload torque exceeds the specified value, replace
collapsible spacer and tighten it again to adjust. Do not
loosen drive pinion lock nut to adjust the preload torque.

After adjustment, rotate drive pinion back and forth 2 to 3
times to check for unusual noise, rotation malfunction,
and other malfunctions.
12. Install differential case assembly. Refer to RFD-33, "
Differential Assembly" .
CAUTION:
Do not install rear cover yet.
13. Check and adjust drive gear runout, tooth contact, drive gear to drive pinion backlash, and companion flange runout. Refer to RFD-19, "
Drive Gear Runout" , RFD-20, "Tooth Contact" , RFD-21, "Backlash" ,
RFD-22, "
Companion Flange Runout" .
Recheck above items. Readjust the above description, if necessary.
14. Check total preload torque. Refer to RFD-19, "
Total Preload Torque" .
15. Install rear cover. Refer to RFD-33, "
Differential Assembly" .
Differential Assembly
1. Install side gear thrust washers with the same thickness as the
ones installed prior to disassembly or reinstall the old ones on
the side gears. Tool number A: ST3127S000 (J-25765-A)
Drive pinion lock nut tightening torque: 147 - 323 N·m (15 - 32 kg-m, 109 - 238 ft-lb)
Drive pinion bearing preload: 2.65 - 3.23 N·m (0.27 - 0.32 kg-m, 24 - 28 in-lb)
PDIA0765J
SDIA0193J

RFD-34
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45

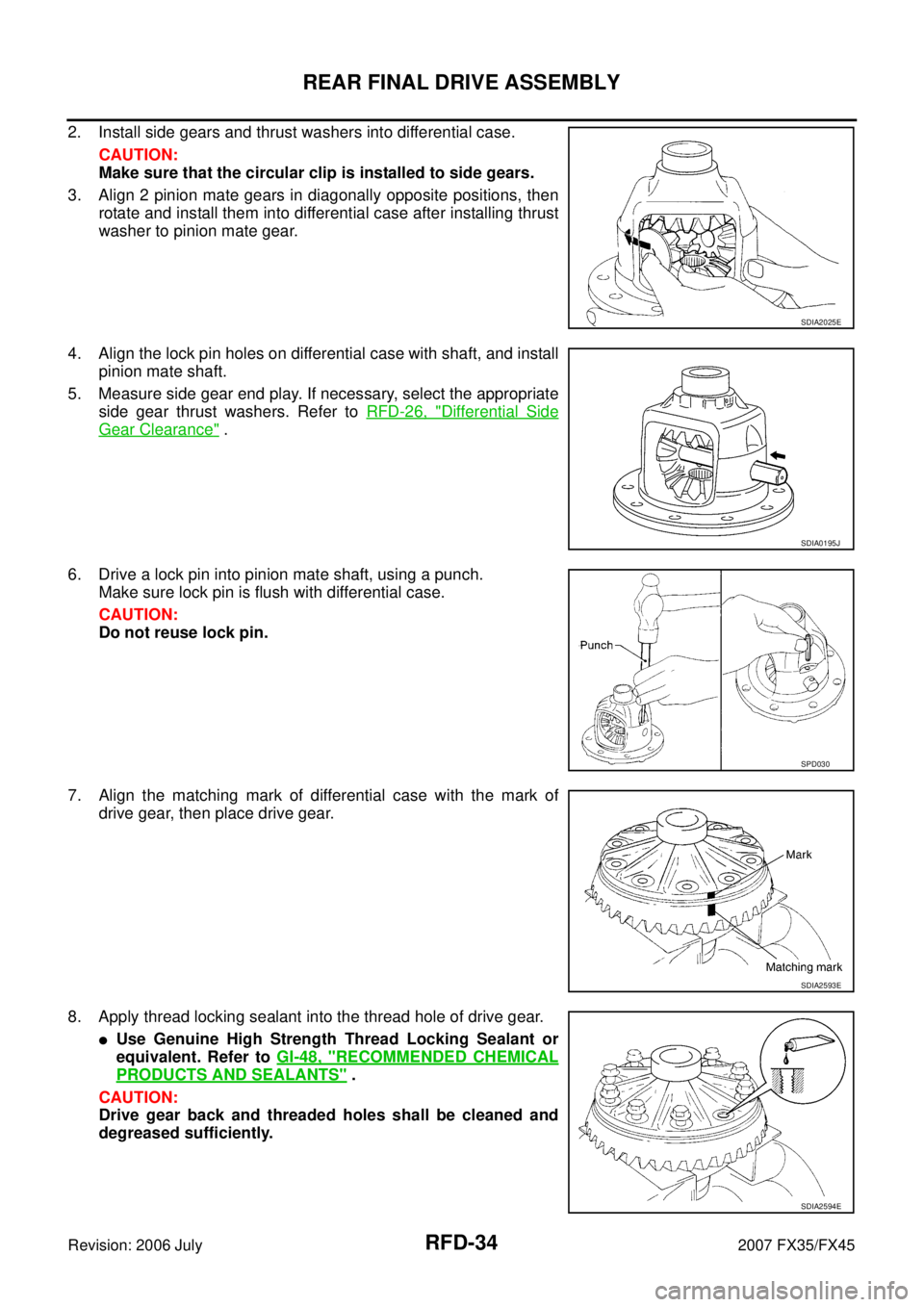

2. Install side gears and thrust washers into differential case.
CAUTION:
Make sure that the circular clip is installed to side gears.
3. Align 2 pinion mate gears in diagonally opposite positions, then rotate and install them into differential case after installing thrust
washer to pinion mate gear.
4. Align the lock pin holes on differential case with shaft, and install pinion mate shaft.
5. Measure side gear end play. If necessary, select the appropriate side gear thrust washers. Refer to RFD-26, "
Differential Side
Gear Clearance" .
6. Drive a lock pin into pinion mate shaft, using a punch. Make sure lock pin is flush with differential case.
CAUTION:
Do not reuse lock pin.
7. Align the matching mark of differential case with the mark of drive gear, then place drive gear.
8. Apply thread locking sealant into the thread hole of drive gear.

Use Genuine High Strength Thread Locking Sealant or
equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
CAUTION:
Drive gear back and threaded holes shall be cleaned and
degreased sufficiently.
SDIA2025E
SDIA0195J
SPD030
SDIA2593E
SDIA2594E

REAR FINAL DRIVE ASSEMBLY RFD-35
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 July 2007 FX35/FX45
9. Install drive gear on the mounting bolts, and then tighten to the
specified torque. Refer to RFD-18, "
COMPONENTS" .
CAUTION:

Tighten bolts in a crisscross fashion.

After tightening the bolts to the specified torque, tighten
the bolts additionally by turning the bolts 31 to 36
degrees.
10. Press side bearing inner races to differential case, using the drift and the base.
CAUTION:
Do not reuse side bearing inner race.
11. Install differential case assembly with side bearing outer races into gear carrier.
12. Measure side bearing preload. If necessary, select the appropri- ate side bearing adjusting washers. Refer to RFD-27, "
Side
Bearing Preload" .
13. Insert selected left and right side bearing adjusting washers in place between side bearings and gear carrier.
14. Align matching marks on bearing cap with that on gear carrier.
15. Install bearing caps and tighten bearing cap mounting bolts to the specified torque. Refer to RFD-18, "
COMPONENTS" .
SDIA0247J
Tool number A: KV38100300 (J-25523)
B: ST33061000 (J-8107-2)
SPD353
SPD527
SPD558
SDIA1795E

RFD-36
REAR FINAL DRIVE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
16. Using the drift, drive side oil seals until it becomes flush with the
case end.
CAUTION:

Do not reuse oil seal.

When installing, do not incline oil seal.

Apply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of oil seal.
17. Check and adjust drive gear runout, tooth contact, drive gear to drive pinion backlash, and total preload torque. Refer to RFD-
19, "Drive Gear Runout" , RFD-20, "Tooth Contact" , RFD-21,
"Backlash" , RFD-19, "Total Preload Torque" .
Recheck above items. Readjust the above description, if necessary.
18. Apply sealant to mating surface of rear cover.

Use Genuine Silicone RTV or equivalent. Refer to GI-48,
"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS" .
CAUTION:
Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.
19. Install rear cover on gear carrier and tighten mounting bolts with the specified torque. Refer to RFD-18, "
COMPONENTS" .
20. Install side flange with the following procedure.
a. Attach the protector to side oil seal.
b. After the side flange is inserted and the serrated part of side gear has engaged the serrated part of flange, remove the pro-
tector.
c. Put a suitable drift on the center of side flange, then drive it until sound changes.
NOTE:
When installation is completed, driving sound of the side flange
turns into a sound which seems to affect the whole final drive.
d. Confirm that the dimension of the side flange installation (Mea- surement A) in the figure comes into the following. Tool number : KV38100200 (J-26233)
SPD560
PDIA0961E
Tool number : KV38107900 (J-39352)
SDIA0822E
Measurement A: 326 - 328 mm (12.83 - 12.91 in)
SDIA1039E

SERVICE DATA AND SPECIFICATIONS (SDS) RFD-37
C E F
G H
I
J
K L
M A
B
RFD
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsNDS000BS
Inspection and AdjustmentNDS000BT
DRIVE GEAR RUNOUT
Unit: mm (in)
DIFFERENTIAL SIDE GEAR CLEARANCE
Unit: mm (in)
PRELOAD TORQUE
Unit: N·m (kg-m, in-lb)
BACKLASH
Unit: mm (in)
COMPANION FLANGE RUNOUT
Unit: mm (in)
SELECTIVE PARTS
Side Gear Thrust Washer
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information. Applied model
VQ35DE VK45DE
2WD AWD
Final drive model R200
Gear ratio 3.357 3.692
Number of teeth (Drive gear/Drive pinion) 47/14 48/13
Oil capacity (Approx.) (US pt, lmp pt) 1.4 (3, 2-1/2)
Number of pinion gears 2
Drive pinion adjustment spacer type Collapsible
Item Runout limit
Drive gear back face 0.05 (0.0020)
Item Specification
Side gear backlash (Clearance between side gear and differential
case) 0.2 (0.008) or less
(Each gear should rotate smoothly without excessive resistance during differential motion.)
Item Specification
Pinion bearing (P
1 ) 2.65 - 3.23 (0.27 - 0.32, 24 - 28)
Side bearing (P
2 ) 0.20 - 0.52 (0.02 - 0.05, 2 - 4)
Side bearing to pinion bearing (Total preload)
(Total preload = P
1 + P2 ) 2.85 - 3.75 (0.29 - 0.38, 26 - 33)
Item Specification
Drive gear to drive pinion gear 0.10 - 0.15 (0.0039 - 0.0059)
Item Runout limit
Inner side of the companion flange 0.08 (0.0031)
Thickness Part number* Thickness Part number*
0.75 (0.0295)
0.78 (0.0307)
0.81 (0.0319)
0.84 (0.0331) 38424 EC000
38424 EC001
38424 EC002
38424 EC003 0.87 (0.0343)
0.90 (0.0350)
0.93 (0.0366) 38424 EC004
38424 EC005
38424 EC006

RFD-38
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 July 2007 FX35/FX45
Pinion Height Adjusting Washer
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Side Bearing Adjusting Washer
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information. Thickness Part number* Thickness Part number*
3.05 (0.1201)
3.08 (0.1213) 3.11 (0.1224)
3.14 (0.1236) 38154 0C000
38154 0C001
38154 0C002
38154 0C003 3.17 (0.1248)
3.20 (0.1260)
3.23 (0.1272)
3.26 (0.1283) 38154 0C004
38154 0C005
38154 0C006
38154 0C007
Thickness Part number* Thickness Part number*
2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)
2.15 (0.0846)
2.20 (0.0866)
2.25 (0.0886)
2.30 (0.0906) 38453 N3100
38453 N3101
38453 N3102
38453 N3103
38453 N3104
38453 N3105
38453 N3106 2.35 (0.0925)
2.40 (0.0945)
2.45 (0.0965)
2.50 (0.0984)
2.55 (0.1004)
2.60 (0.1024)
2.65 (0.1043) 38453 N3107
38453 N3108
38453 N3109
38453 N3110 38453 N3111
38453 N3112
38453 N3113

RSU-1
REAR SUSPENSION
E SUSPENSION
CONTENTS
C
D
F
G H
I
J
K L
M
SECTION
A
B
RSU
Revision: 2006 July 2007 FX35/FX45
REAR SUSPENSION
PRECAUTIONS .......................................................... 2
Cautions .............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 4
NVH Troubleshooting Chart ................................ ..... 4
REAR SUSPENSION ASSEMBLY ........................ ..... 5
On-Vehicle Inspection and Service ..................... ..... 5
INSPECTION OF BALL JOINT END PLAY ..... ..... 5
SHOCK ABSORBER INSPECTION ................ ..... 5
Wheel Alignment Inspection ................................ ..... 5
DESCRIPTION ................................................. ..... 5
PRELIMINARY INSPECTION .......................... ..... 5
GENERAL INFORMATION AND RECOMMEN-
DATIONS ......................................................... ..... 5
THE ALIGNMENT PROCESS ......................... ..... 6
CAMBER INSPECTION ................................... ..... 6
TOE-IN ............................................................. ..... 6
Removal and installation ..................................... ..... 7
COMPONENTS ............................................... ..... 7
REMOVAL ........................................................ ..... 8
INSTALLATION ................................................ ..... 8
SHOCK ABSORBER ............................................. ..... 9
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSPECTION AFTER REMOVAL .................... ..... 9
INSTALLATION ................................................ ..... 9
Disassembly and Assembly ................................ ..... 9
DISASSEMBLY ................................................ ..... 9
INSPECTION AFTER DISASSEMBLY ............ ... 10
ASSEMBLY ...................................................... ... 10 SUSPENSION ARM ...............................................
... 11
Removal and Installation ..................................... ... 11
REMOVAL ........................................................ ... 11
INSPECTION AFTER REMOVAL .................... ... 11
INSTALLATION ................................................ ... 12
RADIUS ROD ......................................................... ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSPECTION AFTER REMOVAL .................... ... 13
INSTALLATION ................................................ ... 13
FRONT LOWER LINK ........................................... ... 14
Removal and Installation ..................................... ... 14
REMOVAL ........................................................ ... 14
INSPECTION AFTER REMOVAL .................... ... 14
INSTALLATION ................................................ ... 14
REAR LOWER LINK & COIL SPRING .................. ... 15
Removal and Installation ..................................... ... 15
REMOVAL ........................................................ ... 15
INSPECTION AFTER REMOVAL .................... ... 15
INSTALLATION ................................................ ... 15
STABILIZER BAR .................................................. ... 16
Removal and Installation ..................................... ... 16
REMOVAL ........................................................ ... 16
INSPECTION AFTER REMOVAL .................... ... 16
INSTALLATION ................................................ ... 16
REAR SUSPENSION MEMBER ............................ ... 17
Removal and Installation ..................................... ... 17
REMOVAL ........................................................ ... 17
INSPECTION AFTER REMOVAL .................... ... 17
INSTALLATION ................................................ ... 17
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 18
Wheel Alignment (Unladen*) ............................... ... 18
Ball Joint .............................................................. ... 18
Wheelarch Height (Unladen*) .............................. ... 18

RSU-2
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
PRECAUTIONSPFP:00001
CautionsNES000G0

When installing rubber bushings, final tightening must be carried out under unladen conditions with tires
on level ground. Oil will shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

Unladen conditions means that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and
mats are in designated positions.

After servicing suspension parts, be sure to check wheel alignment.

Caulking nuts are not reusable. Always use new ones when installing. Since new caulking nuts are pre-
oiled, tighten as they are.
