INFINITI FX35 2007 Service Manual

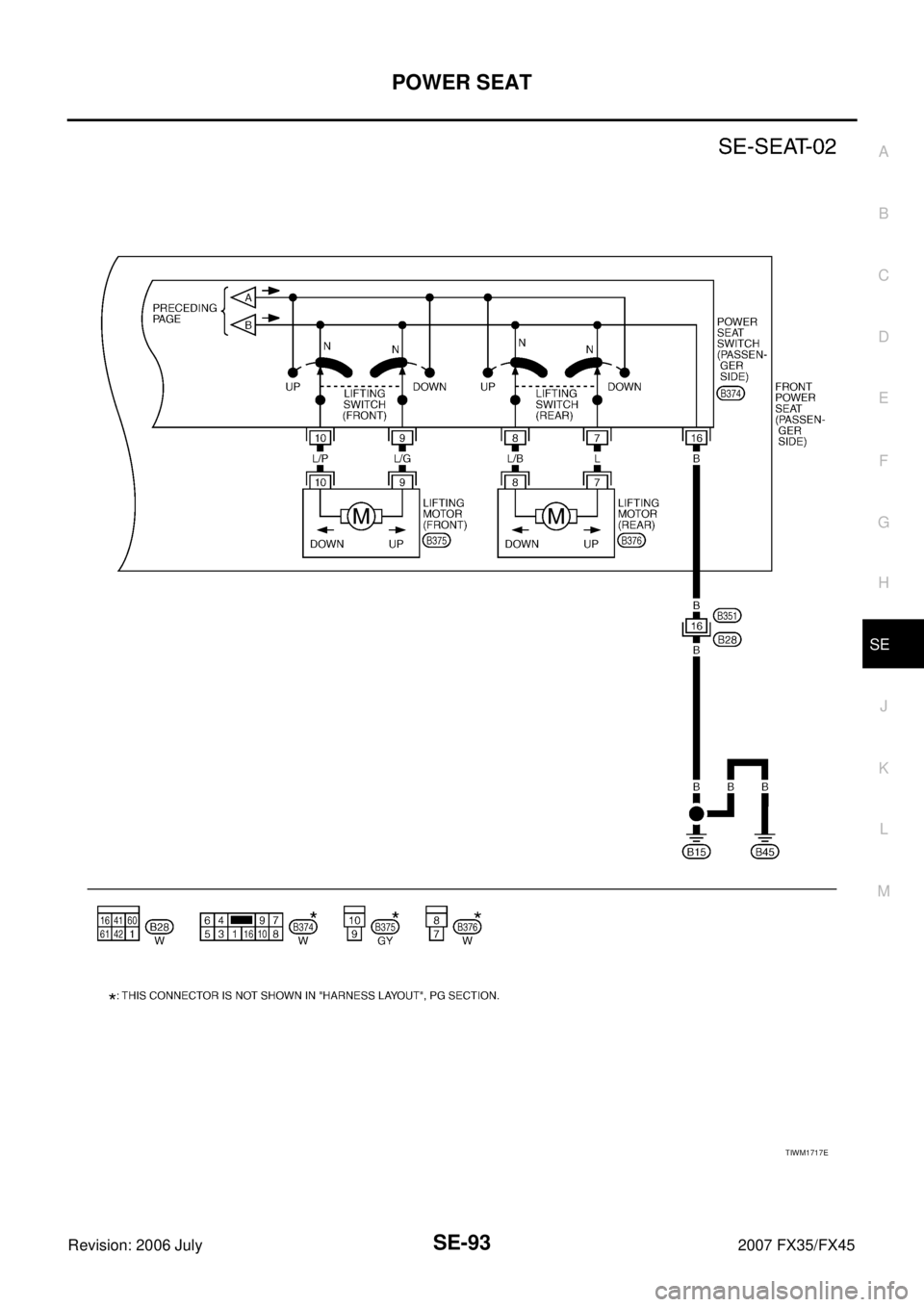

POWER SEAT SE-93
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
TIWM1717E

SE-94
HEATED SEAT
Revision: 2006 July 2007 FX35/FX45
HEATED SEATPFP:87335

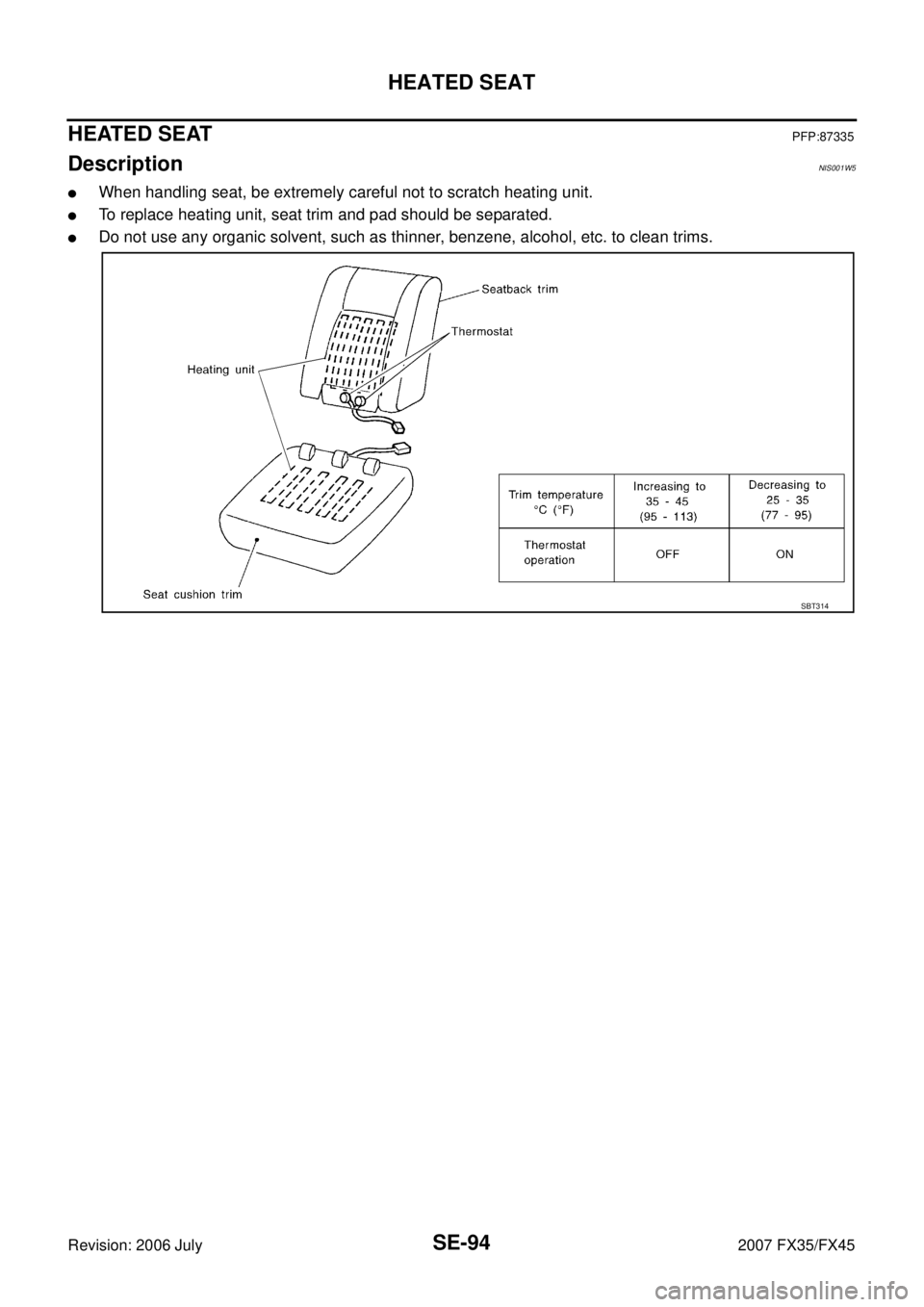

DescriptionNIS001W5

When handling seat, be extremely careful not to scratch heating unit.

To replace heating unit, seat trim and pad should be separated.

Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trims.
SBT314

HEATED SEAT SE-95
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45

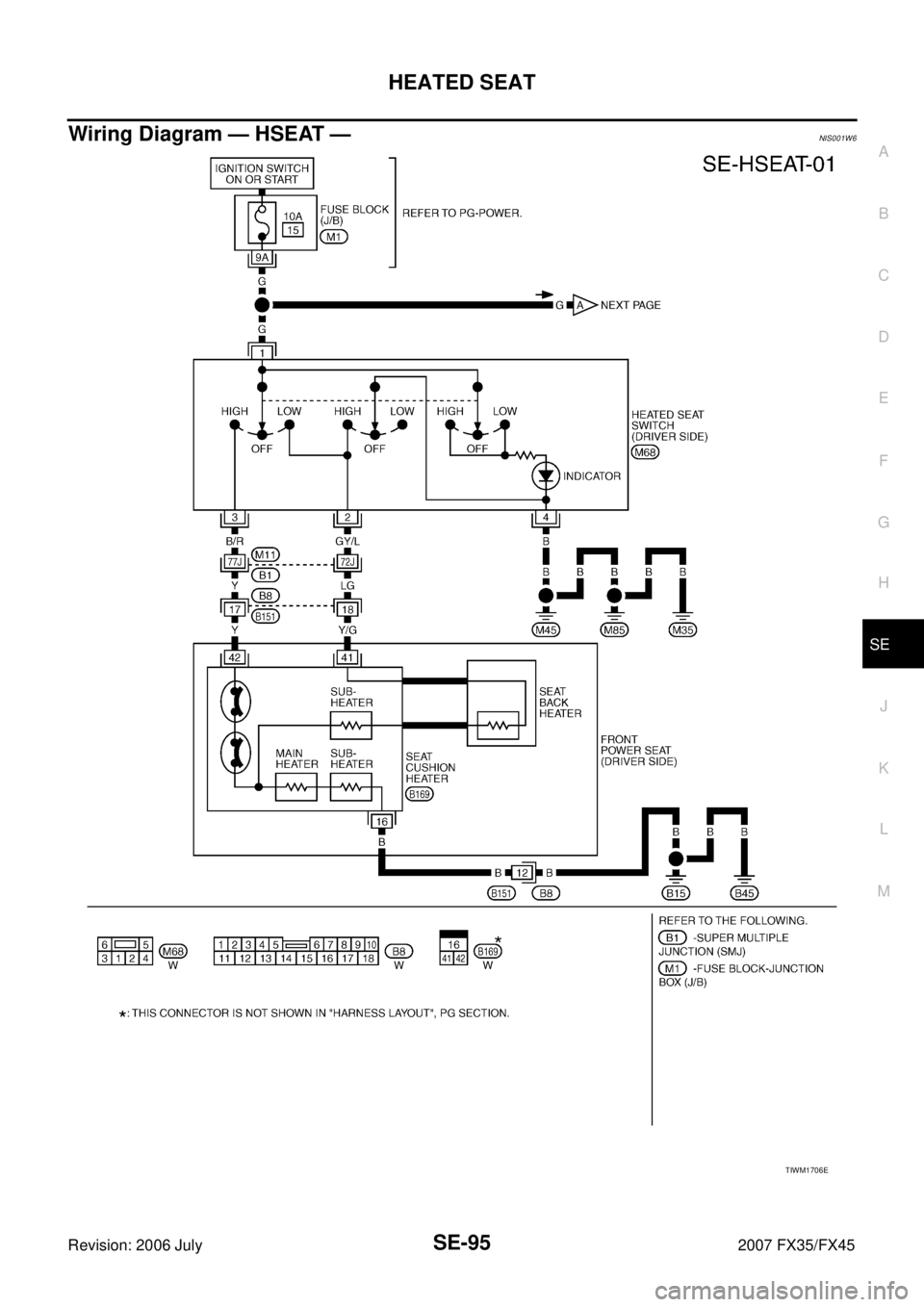

Wiring Diagram — HSEAT —NIS001W6
TIWM1706E

SE-96
HEATED SEAT
Revision: 2006 July 2007 FX35/FX45

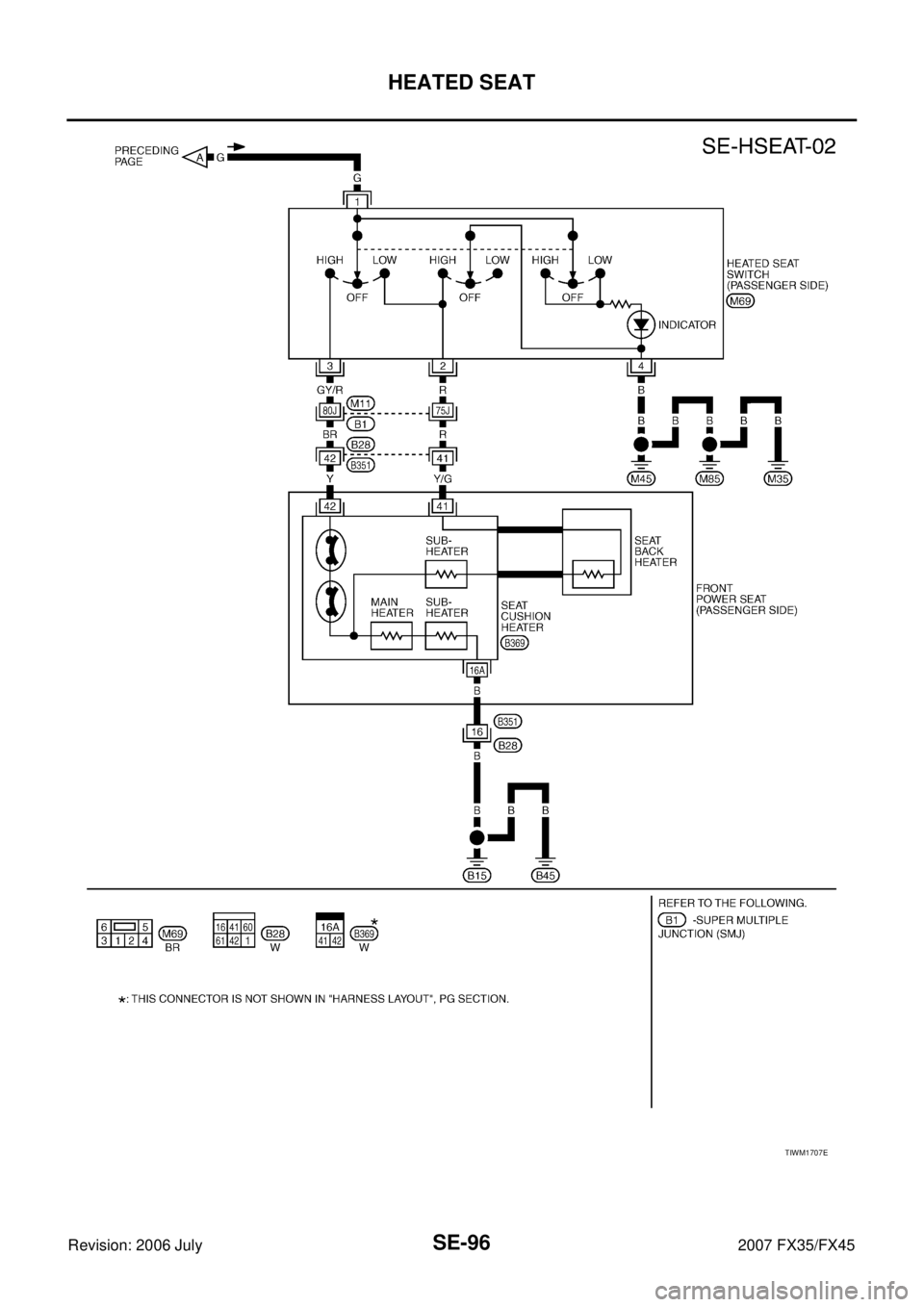

TIWM1707E

FRONT SEAT SE-97
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
FRONT SEATPFP:87000
Removal and InstallationNIS001W7
CAUTION:
Do not disassembly the component parts of only front passenger seat in the dotted lines shown in the
figure below.

SE-98
FRONT SEAT
Revision: 2006 July 2007 FX35/FX45
1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback pad 5. Seatback trim 6. Seat cushion inner finisher
7. Screw 8. Seat cushion trim 9. Seat cushion pad
PIIB8524E

FRONT SEAT SE-99
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
REMOVAL
When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
CAUTION:

Before removing the front seat, turn ignition switch OFF, disconnect both battery cables and wait
at least 3 minutes.

When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.

Do not drop, tilt, or bump the side air bag module installing in the seat. Always handle it with care.
1. Remove the seat cushion outer finisher cover.
2. Remove the front seat belt anchor bolt. Refer to SB-4, "
Removal
and Installation of Front Seat Belt" .
CAUTION:
Set the front and rear cushion lifter to the down position.
3. Remove the screw.
4. Remove the seat cushion forward finisher lid.
5. Remove the seat cushion forward finisher.
6. Remove the seat slide and lifter switch knob (1) and seat reclin- ing switch knob (2).
10. Seatback garnish 11. Nut 12. Side air bag module
13. Clip (C101) 14. Inner cloth stay 15. Lumber support device
16. Bolt 17. Seatback frame 18. Reclining device assembly
19. Seat cushion frame 20. Seat harness assembly 21. Seat adjust assembly
22. Clip (C103) 23. Seat adjust assembly cover 24. Seat cushion outer finisher
25. Seat cushion outer finisher cover 26. Lumber support switch assembly 27. Seat reclining switch knob
28. Seat slide and lifter switch knob 29. Seat control switch 30. Seat cushion forward finisher
31. Seat cushion forward finisher lid
PIIA6040E
PIIB8525E

SE-100
FRONT SEAT
Revision: 2006 July 2007 FX35/FX45
7. Remove the seat cushion outer finisher.
8. Remove the seat control switch assembly.
9. Remove the lumber support switch assembly.
10. Remove the front and rear leg cover (LH and RH). NOTE:

Slide the seat backward, and disconnect the front tabs on the
front leg cover. Then move the cover toward the rear of the
vehicle, and pull up to remove.

Slide the seat forward, then disengage the tabs on the front
LH and RH of the rear leg cover and tabs engaged into the
rail. Then pull the cover toward the rear of the vehicle.
11. Slide the seat until the body mounting bolts are visible and a tool can be inserted. NOTE:
When disassembling the driver seat after removal, set the front and rear cushion lifter to the top position.
12. Disconnect both battery cables.
13. Remove the harness connector for the side air bag module.
14. Remove the power seat harness connector and vehicle harness fixing clip.
15. Remove the front seat. NOTE:
When removing and installing, using waste, protect the parts from damage where it may interfere with oth-
ers.
PIIB8526E
1. Screw 2. Seat cushion forward finisher 3. Seat cushion outer finisher
4. Clip(C101) 5. Seat control switch
PIIA4984E

FRONT SEAT SE-101
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
Install in the reverse order of removal.
NOTE:
Be sure to insert the rear end tab of the rear leg cover under the rail.

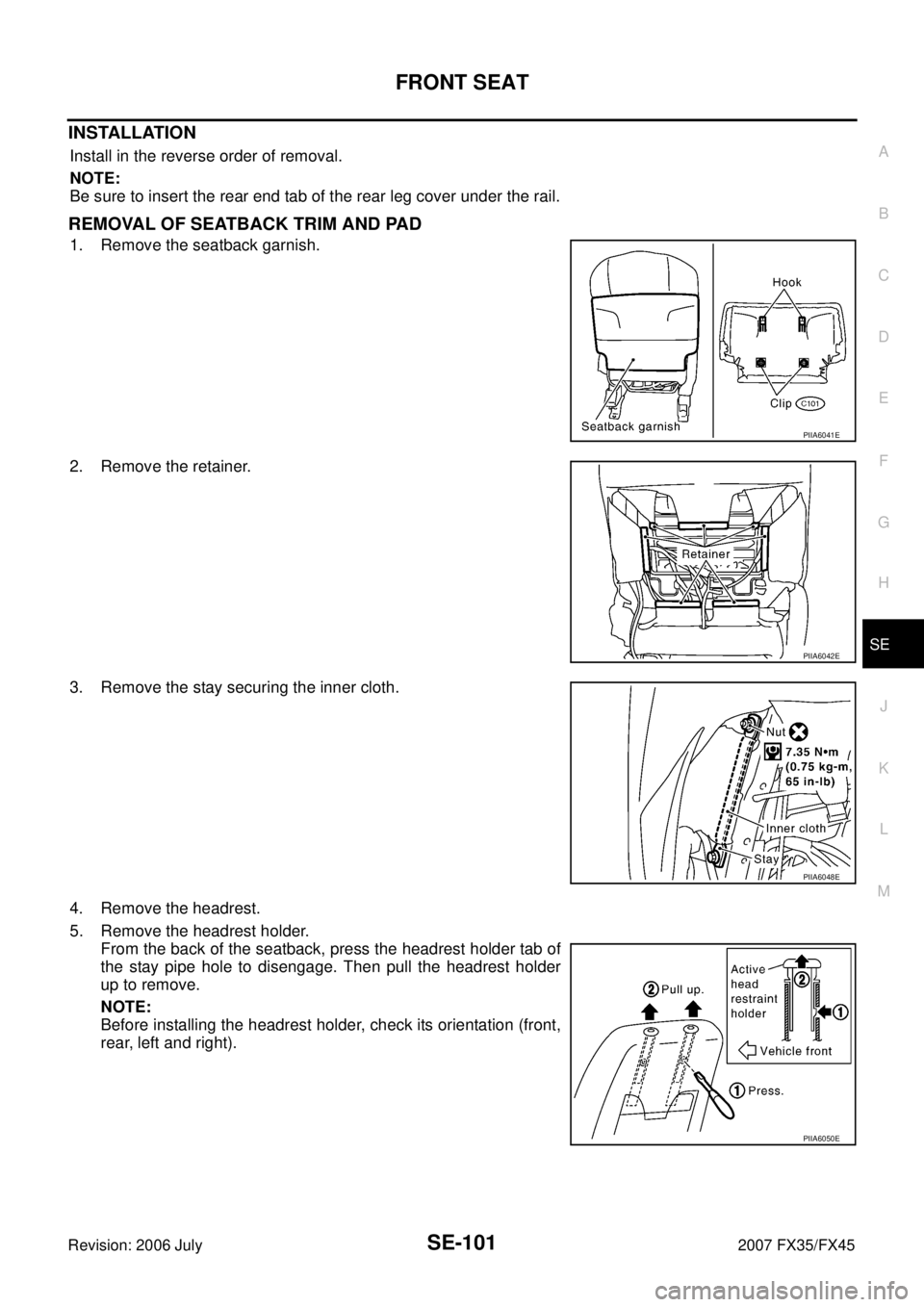

REMOVAL OF SEATBACK TRIM AND PAD
1. Remove the seatback garnish.
2. Remove the retainer.
3. Remove the stay securing the inner cloth.
4. Remove the headrest.
5. Remove the headrest holder. From the back of the seatback, press the headrest holder tab of
the stay pipe hole to disengage. Then pull the headrest holder
up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front,
rear, left and right).
PIIA6041E
PIIA6042E
PIIA6048E
PIIA6050E

SE-102
FRONT SEAT
Revision: 2006 July 2007 FX35/FX45
6. Remove the heated seat connector.
7. After removing the seatback trim and pad, remove the hog rings to separate the trim, pad, and seatback
heater unit.
INSTALLATION OF SEATBACK TRIM AND PAD
Install in the reverse order of removal.
REMOVAL OF SEAT CUSHION TRIM AND PAD
CAUTION:
Do not disassemble the component parts of only front passenger seat in the dotted lines shown in the
figure. Refer to SE-97
.
1. Remove the seat cushion inner finisher.
2. Remove the velcro and retainer.
3. Remove the seat harness connector.
4. Remove the seatback frame.
5. Remove the reclining device assembly.
PIIA6049E
PIIA6052E
PIIA6053E
PIIA6054E
