sensor INFINITI FX35 2008 Service Manual

TROUBLE DIAGNOSISATC-43
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P

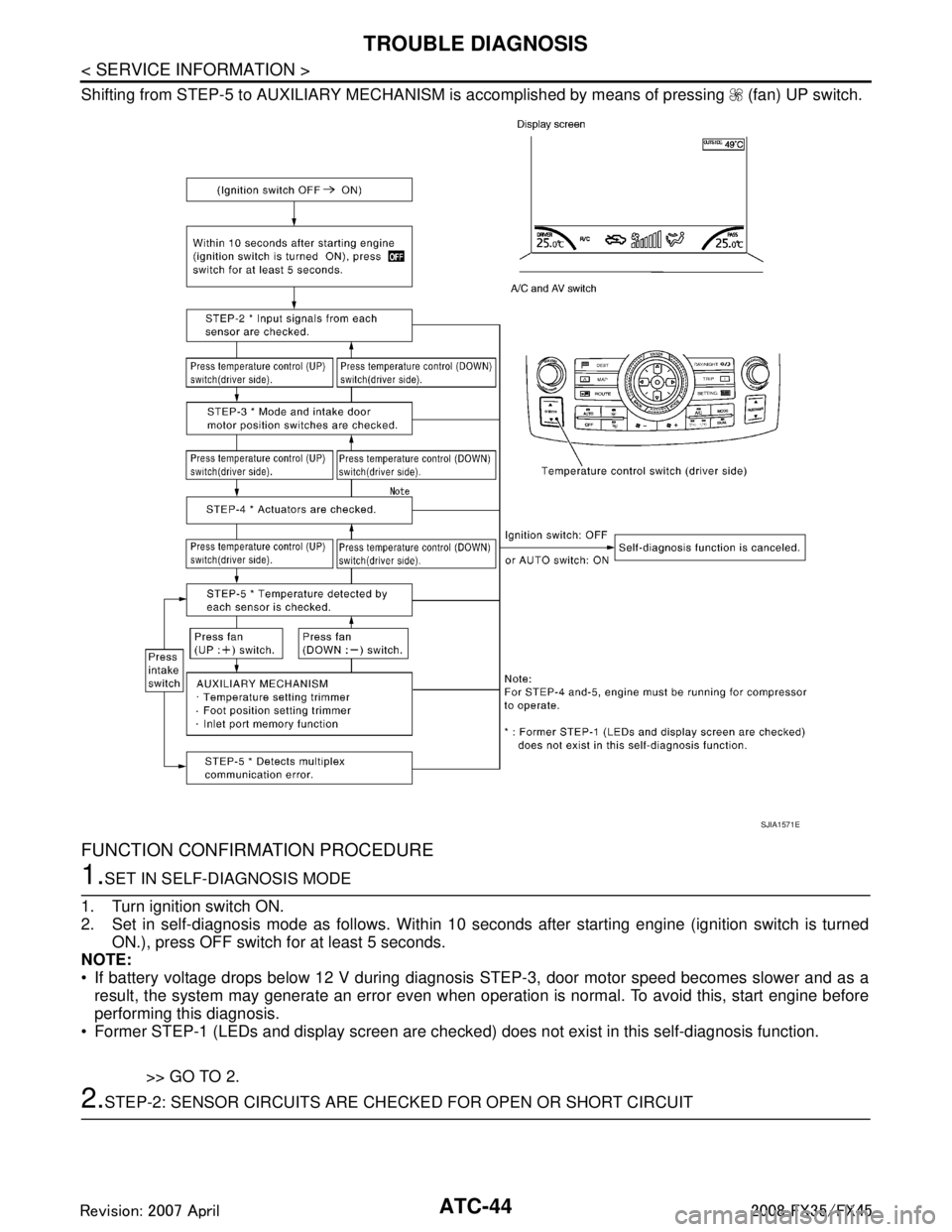

Self-Diagnosis FunctionINFOID:0000000001328181
DESCRIPTION
The self-diagnosis system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from norma l control to the self-diagnosis system is accomplished by
starting the engine (turning the ignition switch ON) and pr essing OFF switch for at least 5 seconds. The OFF
switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system
will be canceled by either pressing AUTO switch or turn ing the ignition switch OFF. Shifting from one step is
accomplished by means of pressi ng temperature control switch (driver side), as required.
43 G/B A/C LAN signal ON —
45 PU/WECV (Electric Control Valve)
signal ONSelf-diagnosis. STEP-4
(Code No. 45)
46 L/W Power supply for IGN2 ON — Battery voltage
49 W/G Sensor ground ON — Approx. 0
50 LG Sunload sensor — — —
53 G Blower motor control signal ON Blower speed: 1st speed (man-
ual)
54 Y/R Power supply for each door
motor ON — Battery voltage
57 BR/Y Blower motor ON signal ON A/C switch: ON
(Blower motor operates.)
Approx. 0
OFF switch: ON
(A/C system: OFF)
Te r m i n a l
No. Wire
color ItemIgnition
switch Condition Vol tag e
(V)
SJIA1453J
SJIA1607E
SJIA1454J
SJIA1474J
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-44
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
Shifting from STEP-5 to AUXILIARY MECHANISM is accomplished by means of pressing (fan) UP switch.
FUNCTION CONFIRMATION PROCEDURE
1.SET IN SELF-DIAGNOSIS MODE
1. Turn ignition switch ON.
2. Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned ON.), press OFF switch for at least 5 seconds.
NOTE:
 If battery voltage drops below 12 V during diagnosis STEP-3, door motor speed becomes slower and as a
result, the system may generate an error even when operation is normal. To avoid this, start engine before
performing this diagnosis.
 Former STEP-1 (LEDs and display screen are checked) does not exist in this self-diagnosis function.
>> GO TO 2.
2.STEP-2: SENSOR CIRCUITS ARE CHECK ED FOR OPEN OR SHORT CIRCUIT
SJIA1571E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-46
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
Refer to the following chart and check discharge air flow, air temper-
ature, blower motor duty ratio and compressor operation.
Checks must be made visually, by listening the sound, or by touching air outlets with hand, etc. for improper
operation.
*1: FOOT position during automatic control. Refer to "AUXILIARY MECHANISM: FOOT POSITION SETTING
TRIMMER".
OK or NG
OK >> GO TO 8.
NG >>  Air outlet does not change.
Go to Mode Door Motor Circuit. Refer to ATC-57, "
Mode Door Motor Circuit".
 Intake door does not change. Go to Intake Door Motor Circuit. Refer to ATC-62, "
Intake Door Motor Circuit".
 Discharge air temperature does not change. Go to Air Mix Door Motor Circuit. Refer to ATC-59, "
Air Mix Door Motor Circuit".
 Blower motor operation is malfunctioning.
Go to Blower Motor Circuit. Refer to ATC-64, "
Blower Motor Circuit".
 Magnet clutch does not engage. Go to Magnet Clutch Circuit. Refer to ATC-69, "
Magnet Clutch Circuit".
8.STEP-5: TEMPERATURE OF EACH SENSOR IS CHECKED
1. Press temperature control (UP) switch (driver side).
2. Code No. 51 appears on the display.
>> GO TO 9.
9.CHECK AMBIENT SENSOR
Press (DEF) switch one time. Temperature detected by ambient
sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 10.
NG >> Go to Ambient Sensor Circuit. Refer to ATC-86, "
Ambi-
ent Sensor Circuit".
SJIA0302E
Code No. 414243444546
Mode door position VENT B/L 1 B/L 2
FOOT
*1D/F DEF
Intake door position REC REC 20% FRE FRE FRE FRE
Air mix door position FULL COLD FULL COLD FULL HOT FULL HOT FULL HOT FULL HOT
Blower motor duty ratio 37% 91% 65% 65% 65% 91%
Compressor ON ON OFF OFF ON ON
Electronic control valve
(ECV) duty ratio 100% 100% 0% 0% 50% 100%
PJIA0151E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISATC-47
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
10.CHECK IN-VEHICLE SENSOR
Press (DEF) switch for the second time. Temperature detected
by in-vehicle sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 11.
NG >> Go to In-vehicle Sensor Circuit. Refer to ATC-88, "
In-
vehicle Sensor Circuit".
11 .CHECK INTAKE SENSOR
Press (DEF) switch for the third time. Temperature detected by
intake sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 12.
NG >> Go to Intake Sensor Circuit. Refer to ATC-94, "
Intake
Sensor Circuit".
12.CHECK CAN COMMUNICATION ERROR
1. Press intake switch.
2. CAN communication error between the unified meter and A/C amp. and the display control unit can be detected as self-diag-
nosis results. (If plural errors occur, the display of each error will
blink twice for 0.5 second intervals.)
OK or NG
OK >> 1. Turn ignition switch OFF or AUTO switch ON. 2. INSPECTION END
NG >> Go to CAN communication. Refer to BCS-11, "
CON-
SULT-III Function (BCM)".
 Unified meter and A/C amp. - Display control unit
13.CHECK MALFUNCTIONING SENSOR AND DOOR MOTOR
Refer to the following chart for malfunctioning code No.
(If two or more sensors and door motors malfuncti on, corresponding code Nos. indicates 1 second each.)
*1: Perform self-diagnosis STEP-2 under sunshine.
PJIA0152E
PJIA0153E
SJIA1611E
Code No. Malfunctioning sensor and door motor (Including circuits) Reference page 21 / −21 Ambient sensor ATC-86, "
Ambient Sensor Circuit"
22 / −22 In-vehicle sensor AT C - 8 8 , "In-vehicle Sensor Circuit"
24 / −24 Intake sensor AT C - 9 4 , "Intake Sensor Circuit"
25 / −25
Sunload sensor*1AT C - 9 1 , "Sunload Sensor Circuit"
26 / −26 Air mix door motor PBR (Driver side)
AT C - 6 2 , "Air Mix Door Motor PBR Circuit"27 / −27 Air mix door motor PBR (Passenger side)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-48
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise code No. 25 will indicate
despite that sunload sensor is functioning properly.
>> INSPECTION END
14.CHECK MALFUNCTIONING DOOR MOTOR POSITION SWITCH
Mode and/or intake door motor PBR(s) is/are malfunctioning.
(If two or more mode or intake door motors malfunc tion, corresponding code Nos. indicates 1 second each.)
*1: If mode door motor harness c onnector is disconnected, the following display pattern will appear.
31 →32 →33 →34 →35 →36 →Return to 31
*2: If intake door motor harness connector is disconnected, the following display pattern will appear.
37 →38 →39 →Return to 37
*3: FOOT position during automatic control. Refer to "AUXILIARY MECHANISM: FOOT POSITION SETTING
TRIMMER".
>> INSPECTION END
AUXILIARY MECHANISM: TEMPERATURE SETTING TRIMMER
The trimmer compensates for differences in range of ±3 °C ( ±6 °F) between temperature setting (displayed dig-
itally) and temperature felt by customer.
Operating procedures for this trimmer are as follows:1. Begin self-diagnosis STEP-5 mode. Refer to "Self-diagnosis Function".
2. Press (fan) UP switch to set system in auxiliary mode.
3. Display shows “61” in auxiliary mechanism. It ta kes approximately 3 seconds to enable setting operation.
SJIA1781E
Code No. *1 *2Mode or intake door position Reference page
31 VENT
Mode door motorAT C - 5 7 , "
Mode Door Motor Circuit"
32 B/L 1
33 B/L 2
34
FOOT
*3
35 D/F
36 DEF
37 FRE
Intake door motorATC-62, "
Intake Door Motor Circuit"38 20% FRE
39 REC
SJIA1782E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-52
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
If all operational checks are OK (symptom cannot be duplicated), go to Incident Simulation Tests in GI-25,
"How to Perform Efficient Diagnosis for an Electrical Incident" and perform tests as outlined to simulate driving
conditions environment. If symptom appears, refer to ATC-32, "
How to Perform Trouble Diagnosis for Quick
and Accurate Repair" and perform applicable trouble diagnosis procedures.
Power Supply and Ground Circuit for Auto AmpINFOID:0000000001328183
SYMPTOM: A/C system does not activate.
INSPECTION FLOW
COMPONENT DESCRIPTION
Unified Meter and A/C Amp. (Automatic Amplifier)
The unified meter and A/C amp. has a built-in microcomputer which
processes information sent from various sensors needed for air con-
ditioner operation. The air mix door motor, mode door motor, intake
door motor, blower motor and compressor are then controlled.
When the various switches and temperature control switch are oper-
ated, data is input to the unified meter and A/C amp. from the display
control unit using CAN communication.
Self-diagnosis functions are also built into unified meter and A/C
amp. to provide quick check of malfunctions in the auto air condi-
tioner system.
Potentio Temperature Control (PTC)
*1 "DIAGNOSIS PROCEDURE FOR A/
C SYSTEM" *2
AT C - 5 0 , "Operational Check"*3AV- 7 9 , "Unable to Operate System
with A/C and AV Switch" (Without
navigation system) or AV- 1 2 7 , "
Un-
able to Operate System with A/C and
AV S w i t c h" (With navigation system)
SJIA1582E
SJIA1566E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-58
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
SYSTEM DESCRIPTION
Component Parts
Mode door control system components are:
 Unified meter and A/C amp.
 Mode door motor (LCU)
 A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)
 In-vehicle sensor
 Ambient sensor
 Sunload sensor
 Intake sensor
System Operation
The unified meter and A/C amp. receives data from each of the sensors. The unified meter and A/C amp.
sends air mix door, mode door and intake door opening angle data to the air mix door motor LCUs, mode door
motor LCU and intake door motor LCU.
The air mix door motors, mode door motor and intake door motor read their respective signals according to the
address signal. Opening angle indication signals received from the unified meter and A/C amp. and each of
the motor position sensors are compared by the LCUs in each door motor with the existing decision and open-
ing angles. Subsequently, HOT/COLD, DEF/VENT and FRE/ REC operation is selected. The new selection
data are returned to the unified meter and A/C amp.
Mode Door Control Specification
*1 ATC-29, "Discharge Air Flow"*2AT C - 5 0 , "Operational Check"*3ATC-43, "Self-Diagnosis Function",
see No. 4 to 6.
*4 ATC-86, "
Ambient Sensor Circuit"*5AT C - 8 8 , "In-vehicle Sensor Circuit"*6ATC-91, "Sunload Sensor Circuit"
*7 ATC-94, "Intake Sensor Circuit"*8AT C - 5 9 , "Air Mix Door Motor Circuit"*9ATC-43, "Self-Diagnosis Function",
see No. 13.
*10 ATC-54, "
LAN System Circuit"*11AT C - 11 3*12ATC-32, "How to Perform Trouble Di-
agnosis for Quick and Accurate Re-
pair"
SJIA1585E
RJIA1778E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-60
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
SYSTEM DESCRIPTION
Component Parts
Air mix door control system components are:
 Unified meter and A/C amp.
 Air mix door motor (LCU)
 A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)
 In-vehicle sensor
 Ambient sensor
*1AT C - 4 3 , "Self-Diagnosis Function",
see No. 4 to 6. *2
AT C - 8 6 , "Ambient Sensor Circuit"*3 AT C - 8 8 , "In-vehicle Sensor Circuit"
*4AT C - 9 1 , "Sunload Sensor Circuit"*5AT C - 6 2 , "Air Mix Door Motor PBR
Circuit"
*6 AT C - 4 3 , "Self-Diagnosis Function",
see No. 13.
*7 AT C - 5 4 , "
LAN System Circuit".*8 AT C - 5 0 , "Operational Check"*9AT C - 3 2 , "How to Perform Trouble
Diagnosis for Quick and Accurate
Repair"
*10AT C - 9 4 , "Intake Sensor Circuit"
SJIA1586E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISATC-61
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
 Sunload sensor
 Intake sensor
System Operation
The unified meter and A/C amp. receives data from each of the sensors. The unified meter and A/C amp.
sends air mix door, mode door and intake door motor opening angle data to the air mix door motor LCUs,
mode door motor LCU and intake door motor LCU.
The air mix door motors, mode door motor and intake door motor read their respective signals according to the
address signal. Opening angle indication signals receiv ed from the unified meter and A/C amp. and each of
the motor position sensors are compared by the LCUs in each door motor with the existing decision and open-
ing angles. Subsequently, HOT/COLD, DEF/VENT and FRE/REC operation is selected. The new selection
data are returned to the unified meter and A/C amp.
Air Mix Door Control Specification
COMPONENT DESCRIPTION
Air Mix Door Motor
The air mix door motors are attached to the heater & cooling unit
assembly. It rotates so that the air mix door is opened or closed to a
position set by the unified meter and A/C amp. Motor rotation is then
conveyed through a shaft and the air mix door position feedback is
then sent to the unified meter and A/C amp. by PBR built-in air mix
door motor.
RJIA1781E
RJIA1782E
RJIA0893E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISATC-63
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
SYSTEM DESCRIPTION
Component Parts
Intake door control system components are: Unified meter and A/C amp.
 Intake door motor (LCU)
 A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)
 In-vehicle sensor
 Ambient sensor
 Sunload sensor
*1 AT C - 5 0 , "Operational Check"*2AT C - 4 3 , "Self-Diagnosis Function",
see No. 4 to 6. *3
AT C - 8 6 , "Ambient Sensor Circuit"
*4 AT C - 8 8 , "In-vehicle Sensor Circuit"*5AT C - 9 1 , "Sunload Sensor Circuit"*6 AT C - 9 4 , "Intake Sensor Circuit"
*7 AT C - 5 9 , "Air Mix Door Motor Circuit"*8AT C - 3 2 , "How to Perform Trouble
Diagnosis for Quick and Accurate
Repair"
*9 AT C - 4 3 , "Self-Diagnosis Function",
see No. 13.
*10 AT C - 5 4 , "
LAN System Circuit"*11AT C - 1 0 6
SJIA1807E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
