 Intake sensor
System Operation
The intake door control determines intake door position based on the ambient temperature, the intake air tem-
perature and the in-vehicle temperature. When the DEF, or OFF switches are pressed or A/C switch is OFF,
the unified meter and A/C amp. sets the intake door at the FRE position.
Intake Door Control Specification
COMPONENT DESCRIPTION
Intake Door Motor
The intake door motor is attached to the blower unit. It rotates so that
air is drawn from inlets set by the unified meter and A/C amp. Motor
rotation is conveyed to a lever which activates the intake door.
DIAGNOSIS PROCEDURE FOR INTAKE DOOR MOTOR
SYMPTOM: Intake door motor does not operate normally.
Perform diagnosis procedure. Refer to ATC-54, "
LAN System Circuit".
Blower Motor CircuitINFOID:0000000001328189
SYMPTOM: Blower motor operation is malfunctioning.

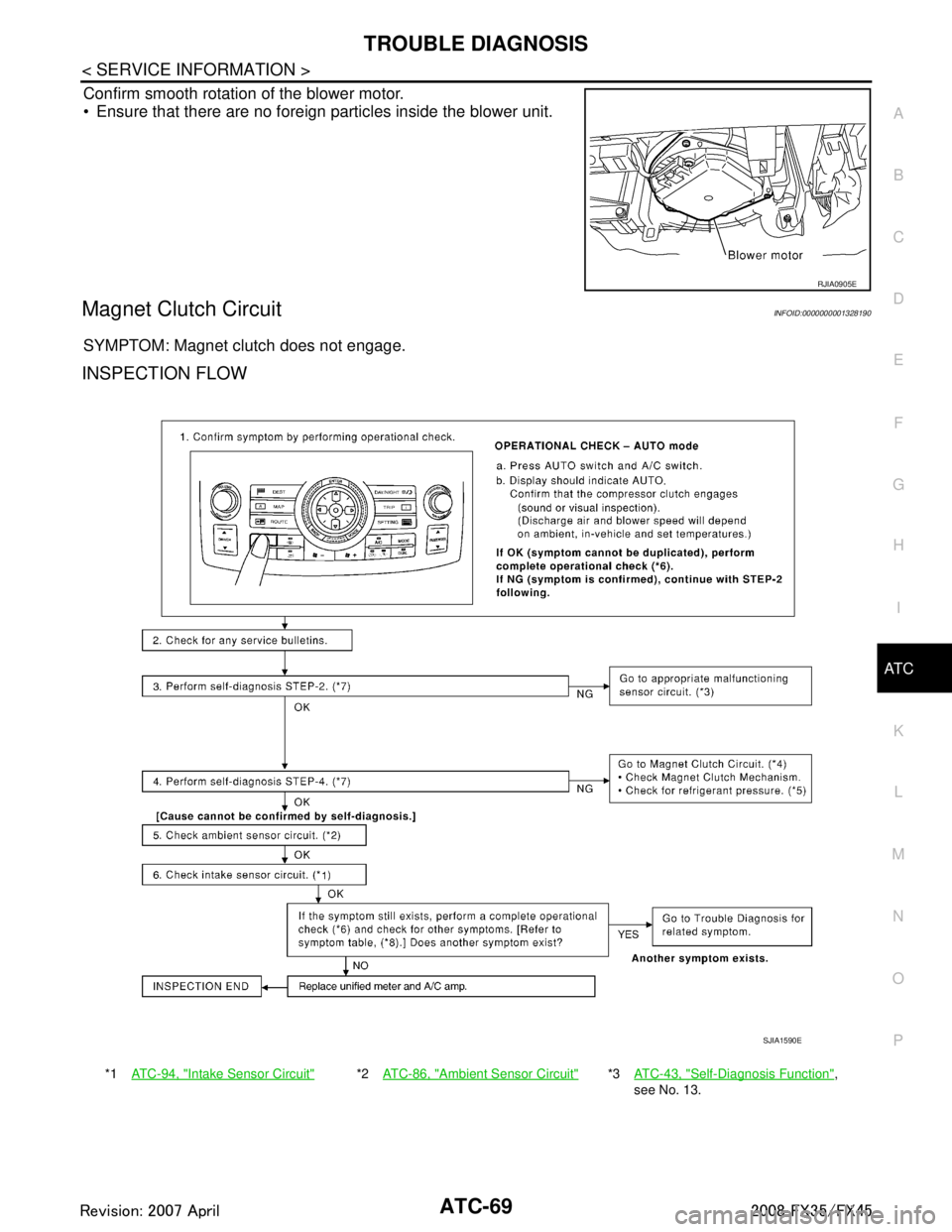

INSPECTION FLOW
SJIA1588E
RJIA1787E
RJIA0897E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISATC-65
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
SYSTEM DESCRIPTION
Component Parts
Fan speed control system components are:
 Unified meter and A/C amp.
 A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)
 In-vehicle sensor
 Ambient sensor
 Sunload sensor
*1 AT C - 5 0 , "Operational Check"*2AT C - 4 3 , "Self-Diagnosis Function",
see No. 4. *3
AT C - 4 3 , "Self-Diagnosis Function",
see No. 6.
*4 AT C - 8 6 , "
Ambient Sensor Circuit"*5AT C - 8 8 , "In-vehicle Sensor Circuit"*6 AT C - 9 1 , "Sunload Sensor Circuit"
*7AT C - 9 4 , "Intake Sensor Circuit"*8AT C - 3 2 , "How to Perform Trouble Di-
agnosis for Quick and Accurate Re-
pair"
*9 AT C - 4 3 , "Self-Diagnosis Function",
see No. 13.
*10 "DIAGNOSIS PROCEDURE FOR BLOWER MOTOR" *11
EC-193
(VQ35DE) or EC-779
(VK45DE)
SJIA1808E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-66
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
 Intake sensor
System Operation
Automatic Mode
In the automatic mode, the blower motor speed is calculated by the unified meter and A/C amp. based on the
input from the PBR, in-vehicle sensor, sunl oad sensor, intake sensor and ambient sensor.
When the air flow is increased, the duty ratio of the blower fan motor’s drive signal is changed at 8%/sec. to
prevent a sudden increase in air flow.
In addition to manual air flow control and the usual automat ic air flow control, starting air flow control, low
water temperature starting control and high passenger co mpartment temperature starting control are avail-
able.
Starting Fan Speed Control
Start up from COLD SOAK Condition (Automatic mode)
In a cold start up condition where the engine coolant temperature is below 56 °C (133 °F), the blower will not
operate for a short period of time (up to 150 seconds ). The exact start delay time varies depending on the
ambient and engine coolant temperature.
In the most extreme case (very low ambient) the blower starting delay will be 150 seconds as described
above. After this delay, the blower will operate at lo w speed until the engine coolant temperature rises above
56 °C (133 °F), and then the blower speed will increase to the objective speed.
Start up from usual or HOT SOAK Condition (Automatic mode)
The blower will begin operation momentarily after the AU TO switch is pressed. The blower speed will gradu-
ally rise to the objective speed over a time period of 3 seconds or less (actual time depends on the objective
blower speed).
Blower Speed Compensation
Sunload
When the in-vehicle temperature and the set temperature are very close, the blower will be operating at low
speed. The low speed will vary depending on the sunload. Du ring conditions of low or no sunload, the blower
speed is at duty ratio 25%. During high sunload conditi ons, the unified meter and A/C amp. raise the blower
speed (duty ratio 49%).
Fan Speed Control Specification
RJIA1995E
RJIA1996E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISATC-69
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
Confirm smooth rotation of the blower motor.
 Ensure that there are no foreign particles inside the blower unit.
Magnet Clutch CircuitINFOID:0000000001328190
SYMPTOM: Magnet clutch does not engage.
INSPECTION FLOW
RJIA0905E
*1 AT C - 9 4 , "Intake Sensor Circuit"*2AT C - 8 6 , "Ambient Sensor Circuit"*3 AT C - 4 3 , "Self-Diagnosis Function",
see No. 13.
SJIA1590E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-70
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
SYSTEM DESCRIPTION
Unified meter and A/C amp. controls compressor operation by ambient temperature, intake air temperature
and signal from ECM.
Low Temperature Protection Control
Unified meter and A/C amp. will turn the compressor ON or OFF as determined by a signal detected by ambi-
ent sensor and intake sensor.
When ambient temperature is higher than −2 °C (28 °F), the compres-
sor turns ON. The compressor turns OFF when ambient temperature
is lower than −5 °C (23 °F).
When intake air temperature is higher than 1 °C (34 °F), the compres-
sor turns ON. The compressor turns OFF when intake air tempera-
ture is lower than −5 °C (23 °F).
DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH
SYMPTOM: Magnet clutch does not engage when A/C switch is ON.
1.CHECK AMBIENT SENSOR AND INTAKE SENSOR CIRCUIT
Check ambient sensor and intake sensor. Refer to ATC-43, "
Self-Diagnosis Function", see No. 9 and 11.
*4 "DIAGNOSIS PROCEDURE FOR
MAGNET CLUTCH" *5
AT C - 7 5 , "Insufficient Cooling"*6AT C - 5 0 , "Operational Check"
*7AT C - 4 3 , "Self-Diagnosis Function",
see No. 4 to 6. *8
AT C - 3 2 , "How to Perform Trouble Di-
agnosis for Quick and Accurate Re-
pair"
RHA094GB
SJIA0267E
SJIA1608E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISATC-71
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
OK or NG
OK >> GO TO 2.
NG >>  Malfunctioning ambient sensor: Refer to ATC-86, "
Ambient Sensor Circuit".
 Malfunctioning intake sensor: Refer to ATC-94, "
Intake Sensor Circuit".
2.PERFORM IPDM E/R AUTO ACTIVE TEST
Perform “IPDM E/R auto active test”. Refer to PG-20, "
Auto Active Test".
Does the magnet clutch operate?
YES >>  WITH CONSULT-III: GO TO 5  WITHOUT CONSULT-III: GO TO 6.
NO >> Check 10A fuse (No. 79, located in IPDM E/R). Refer to PG-23, "
IPDM E/R Terminal Arrange-
ment", and GO TO 3.
3.CHECK CIRCUIT CONTINUITY BETWEEN IPDM E/R AND COMPRESSOR
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and compressor connector.
3. Check continuity between IPDM E/R harness connector E8 ter- minal 33 and compressor harness connector F2 terminal 1.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4.CHECK MAGNET CLUTCH CIRCUIT
Check for operation sound when applying battery voltage direct cur-
rent to terminal.
OK or NG
OK >> 1. Replace IPDM E/R. 2. Go to self-diagnosis procedure ATC-43, "
Self-Diag-
nosis Function" and perform self-diagnosis STEP-4.
Confirm that magnet clutch operation normal.
NG >> 1. Replace magnet clutch.
2. Go to self-diagnosis procedure ATC-43, "
Self-Diag-
nosis Function" and perform self-diagnosis STEP-4.
Confirm that magnet clutch operation normal.
5.CHECK BCM INPUT (COMPRESSOR ON) SIGNAL
Check compressor ON/OFF signal in “Data monitor”. Refer to ATC-32, "
CONSULT-III Function".
OK or NG
OK >> GO TO 8.
NG >> GO TO 6.
6.CHECK CIRCUIT CONTINUITY BETWEEN BC M AND UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Disconnect BCM connector and unified meter and A/C amp. connector.
33 – 1 : Continui ty should exist.
RJIA2004E
RJIA2005E
A/C SW ON : AIR COND SW ON
A/C SW OFF : AIR COND SW OFF
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-72
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
3. Check continuity between BCM harness connector M3 terminal27 and unified meter and A/C amp. harness connector M57 ter-
minal 42.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7.CHECK VOLTAGE FOR UNIFIED METER AND A/C AMP. (COMPRESSOR ON SIGNAL)
1. Reconnect BCM connector and unified meter and A/C amp. connector.
2. Turn ignition switch ON.
3. Check voltage between unified meter and A/C amp. harness connector M57 terminal 42 and ground using an oscilloscope.
OK or NG
OK >> GO TO 8.
NG-1 >> If the voltage is approx. 5 V when A/C switch is ON: Replace unified meter and A/C amp.
NG-2 >> If the voltage is approx. 0 V w hen A/C switch is OFF: Replace BCM.
8.CHECK REFRIGERANT PRESSURE SENSOR
WITH CONSULT-III
1. Start the engine.
2. Check voltage of refrigerant pressure sensor in “Data monitor”. Refer to EC-127, "
CONSULT-III Reference
Value in Data Monitor Mode" (VQ35DE) or EC-705, "CONSULT-III Reference Value in Data Monitor
Mode" (VK45DE).
WITHOUT CONSULT-III
1. Start the engine. 27 – 42 : Continuity should exist.
RJIA2006E
RJIA2007E
Te r m i n a l s
Condition Voltage
(+)
(− )
Unified meter
and A/C amp.
connector Te r m i n a l
No.
M57 42 Ground A/C switch: ON
(Blower motor operates.)
Approx. 0 V
OFF switch: ON
(A/C system: OFF)
SJIA1423J
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-74
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
OK or NG
OK >> GO TO 12.
NG-1 >> If the voltage is approx. 5 V when blower motor is ON: Replace unified meter and A/C amp.
NG-2 >> If the voltage is approx. 0 V when blower motor is OFF: Replace BCM.
12.CHECK CAN COMMUNICATION
Check CAN communication. Refer to BCS-13, "
U1000 CAN Communication Circuit".
BCM – ECM
 ECM – IPDM E/R
 ECM – Unified meter and A/C amp.
OK or NG
OK >> Replace ECM
NG >> Repair or replace malfunctioning part(s).
COMPONENT INSPECTION
Refrigerant Pressure Sensor
The refrigerant pressure sensor is attached to the condenser.
Make sure that the A/C refrigerant pressure and the sensor output
voltage are within the specified r ange as shown in the A/C operating
condition figure. Refer to EC-581
(VQ35DE) or EC-1177 (VK45DE).
Te r m i n a l s
Condition Voltage
(+)
(− )
Unified meter
and A/C amp.
connector Te r m i n a l N o .
M57 57 Ground A/C switch: ON
(Blower motor operates.)
Approx. 0 V
OFF switch: ON
(A/C system: OFF)
SJIA1474J
RJIA2011E
RJIA2954E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-80
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
Low-pressure Side Sometimes Becomes Negative
Low-pressure Side Becomes Negative
Gauge indication Refrigerant cycle Probable cause Corrective action
Both high- and low-pressure sides
are too low.  There is a big temperature
difference between liquid
tank outlet and inlet. Outlet
temperature is extremely
low.
 Liquid tank inlet and expan-
sion valve are frosted. Liquid tank inside is slightly
clogged.
 Replace liquid tank.
 Check lubricant for contami-
nation.
 Temperature of expansion valve inlet is extremely low
as compared with areas
near liquid tank.
 Expansion valve inlet is frosted.
 Temperature difference oc- curs somewhere in high-
pressure side. High-pressure pipe located be-
tween liquid tank and expan-
sion valve is clogged.
 Check and repair malfunc-
tioning parts.
 Check lubricant for contami- nation.
Expansion valve and liquid
tank are warm or slightly cool
when touched. Low refrigerant charge.
↓
Leaking fittings or compo-
nents.
Check refrigerant for leaks.
Refer to
ATC-138, "
Checking
of Refrigerant Leaks".
There is a big temperature dif-
ference between expansion
valve inlet and outlet while the
valve itself is frosted. Expansion valve closes a little
compared with the specifica-
tion.
↓
1. Improper expansion
valve adjustment.
2. Malfunctioning expansion
valve.
3. Outlet and inlet may be clogged.  Remove foreign particles by
using compressed air.
 Replace expansion valve.
 Check lubricant for contami-
nation.
An area of the low-pressure
pipe is colder than areas near
the evaporator outlet. Low-pressure pipe is clogged
or crushed.  Check and repair malfunc-
tioning parts.
 Check lubricant for contami- nation.
Air flow volume is not enough
or is too low. Evaporator is frozen.  Check intake sensor circuit.
Refer to AT C - 9 4 , "
Intake
Sensor Circuit".
 Replace compressor.
 Repair evaporator fins.
 Replace evaporator.
Refer to AT C - 6 4 , "
Blower
Motor Circuit".
AC353A
Gauge indication Refrigerant cycle Probable cause Corrective action
Low-pressure side sometimes be-
comes negative.  Air conditioning system does
not function and does not cy-
clically cool the compart-
ment air.
 The system constantly func- tions for a certain period of
time after compressor is
stopped and restarted. Refrigerant does not discharge
cyclically.
↓
Moisture is frozen at expan-
sion valve outlet and inlet.
↓
Water is mixed with refrigerant.
 Drain water from refrigerant
or replace refrigerant.
 Replace liquid tank.
AC354A
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-86
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
Ambient Sensor Circuit
INFOID:0000000001328196
COMPONENT DESCRIPTION
Ambient Sensor
The ambient sensor is attached on the hood lock stay. It detects
ambient temperature and converts it into a resistance value which is
then input into the unified meter and A/C amp.
AMBIENT TEMPERATURE INPUT PROCESS
The unified meter and A/C amp. includes a processing circ uit for the ambient sensor input. However, when the
temperature detected by the ambient sensor increases quickly, the processing circuit retards the unified meter
and A/C amp. function. It only allows the unified mete r and A/C amp. to recognize an ambient temperature
increase of 0.33 °C (0.6 °F) per 100 seconds.
As an example, consider stopping fo r a few minutes after high speed driving. Although the actual ambient tem-
perature has not changed, the temperature detected by t he ambient sensor will increase. This is because the
heat from the engine compartment can radiate to the front grille area, location of the ambient sensor.
DIAGNOSIS PROCEDURE FOR AMBIENT SENSOR
*1AT C - 5 2 , "Power Supply and Ground
Circuit for Auto Amp"
*2AT C - 5 0 , "Operational Check"*3AT C - 4 3 , "Self-Diagnosis Function"
SJIA1595E
RJIA2016E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
