INFINITI FX35 2008 Service Manual

TROUBLE DIAGNOSISEC-701
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
INT/V SOL (B1) %  The control value of the intake valve timing con-
trol solenoid valve (determined by ECM accord-
ing to the input signals) is indicated.
 The advance angle becomes larger as the value increases.
INT/V SOL (B2) %
VIAS S/V-1
[ON/OFF]
ON/OFF The control condition of the VIAS control sole-
noid valve (determined by ECM according to the
input signals) is indicated.
 OFF: VIAS control solenoid valve is not operat-
ing.
ON: VIAS control solenoid valve is operating.
AIR COND RLY
[ON/OFF] ON/OFF The air conditioner relay control condition (de-
termined by ECM according to the input signals)
is indicated.
FUEL PUMP RLY
[ON/OFF] ON/OFF Indicates the fuel pump relay control condition
determined by ECM according to the input sig-
nals.
VENT CONT/V
[ON/OFF] ON/OFF The control condition of the EVAP canister vent
control valve (determined by ECM according to
the input signals) is indicated.
ON: Closed
OFF: Open
THRTL RELAY
[ON/OFF] ON/OFF Indicates the throttle co
ntrol motor relay control
condition determined by the ECM according to
the input signals.
COOLING FAN HI/MID/OFF  The control condition of the cooling fan (deter-
mined by ECM according to the input signals) is
indicated.
HI: High speed operation
MID: Middle speed operation
OFF: Stop
HO2S2 HTR (B1)
[ON/OFF] ON/OFF
 Indicates [ON/OFF] condition of heated oxygen
sensor 2 heater determined by ECM according
to the input signals.
HO2S2 HTR (B2)
[ON/OFF] ON/OFF
I/P PULLY SPD rpm  Indicates the engine speed computed from the
turbine revolution sensor signal.
VEHICLE SPEED km/h or MPH  The vehicle speed computed from the vehicle
speed signal sent from TCM is displayed.
IDL A/V LEARN YET/CMPLT  Display the condition of idle air volume learning
YET: Idle air volume learning has not been per-
formed yet.
CMPLT: Idle air volume learning has already
been performed successfully.
TRVL AFTER MIL km or mile  Distance traveled while MIL is activated.
SNOW MODE SW ON/OFF  Indicates [ON/OFF] condition from the snow
mode switch signal.
A/F S1 HTR (B1) %  Air fuel ratio (A/F) sensor 1 heater control value computed by ECM according to the input sig-
nals.
 The current flow to the heater becomes larger as the value increases.
A/F S1 HTR (B2) %
AC PRESS SEN V
 The signal voltage from the refrigerant pressure
sensor is displayed.
VHCL SPEED SE km/h or mph  The vehicle speed computed from the vehicle
speed signal sent from combination meter is dis-
played.
Monitored item Unit Description Remarks
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-702
< SERVICE INFORMATION >[VK45DE]
TROUBLE DIAGNOSIS
NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
Test Item
SET VHCL SPD km/h or mph  The preset vehicle speed is displayed.
MAIN SW ON/OFF Indicates [ON/OFF] condition from MAIN switch
signal.
CANCEL SW ON/OFF  Indicates [ON/OFF] condition from CANCEL
switch signal.
RESUME/ACC SW ON/OFF  Indicates [ON/OFF] condition from RESUME/
ACCELERATE switch signal.
SET SW ON/OFF  Indicates [ON/OFF] condition from SET/COAST
switch signal.
BRAKE SW1 ON/OFF  Indicates [ON/OFF] condition from ASCD brake
switch signal.
BRAKE SW2 ON/OFF  Indicates [ON/OFF] condition of stop lamp
switch signal.
DIST SW ON/OFF  Indicates [ON/OFF] condition from DISTANCE
switch signal.
VHCL SPD CUT NON/CUT  Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the ASCD
set speed.
CUT: Vehicle speed increased to excessively
high compared with the ASCD set speed, and
ASCD operation is cut off.
LO SPEED CUT NON/CUT  Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the ASCD
set speed.
CUT: Vehicle speed decreased to excessively
low compared with the ASCD set speed, and
ASCD operation is cut off.
AT OD MONITOR ON/OFF  Indicates [ON/OFF] condition of A/T O/D ac-
cording to the input signal from the TCM.
AT OD CANCEL ON/OFF  Indicates [ON/OFF] condition of A/T O/D cancel
signal sent from the TCM.
CRUISE LAMP ON/OFF  Indicates [ON/
OFF] condition of CRUISE lamp
determined by the ECM according to the input
signals.
SET LAMP ON/OFF  Indicates [ON/OFF] condition of SET lamp de-
termined by the ECM according to the input sig-
nals.
A/F ADJ-B1 —  Indicates the correction factor stored in ECM. The factor is calculated from the difference be-
tween the target air/fuel ratio stored in ECM and
the air-fuel ratio calculated from air fuel ratio (A/
F) sensor 1 signal.
A/F ADJ-B2 — Monitored item Unit Description Remarks
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISEC-703
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
*: Leaving cooling fan OFF with CONSULT-III while engine is running may cause the engine to overheat.
DTC & SRT CONFIRMATION MODE
SRT STATUS Mode
For details, refer to
EC-633, "Emission-related Diagnostic Information".
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
DTC WORK SUPPORT Mode
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
FUEL INJEC-
TION  Engine: Return to the original
trouble condition
 Change the amount of fuel injec-
tion using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Harness and connectors
 Fuel injector
 A/F sensor 1
IGNITION TIM-
ING  Engine: Return to the original
trouble condition
 Timing light: Set
 Retard the ignition timing using
CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Perform Idle Air Volume Learning.
POWER BAL-
ANCE  Engine: After warming up, idle the
engine.
 A/C switch: OFF
Shift lever: N
 Cut off each fuel injector signal one at a time using CONSULT-III. Engine runs rough or dies.
 Harness and connectors
 Compression
 Fuel injector
 Power transistor
Spark plug
 Ignition coil
COOLING FAN*  Ignition switch: ON
 Turn the cooling fan “HI”, “MID”
and “OFF” using CONSULT-III. Cooling fan moves and stops.  Harness and connectors
 Cooling fan motor
IPDM E/R
ENG COOLANT
TEMP  Engine: Return to the original
trouble condition
 Change the engine coolant tem- perature using CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.  Harness and connectors
 Engine coolant temperature sen-
sor
 Fuel injector
FUEL PUMP RE-
LAY  Ignition switch: ON (Engine
stopped)
 Turn the fuel pump relay “ON” and “OFF” using CONSULT-III
and listen to operating sound. Fuel pump relay makes the operat-
ing sound.
 Harness and connectors
 Fuel pump relay
VIAS S/V-1  Ignition switch: ON
 Turn solenoid valve “ON” and
“OFF” with CONSULT-III and lis-
ten to operating sound. Solenoid valve makes an operating
sound.
 Harness and connectors
 Solenoid valve
PURG VOL
CONT/V  Engine: After warming up, run en-
gine at 1,500 rpm.
 Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-III. Engine speed changes according to
the opening percent.
 Harness and connectors
 Solenoid valve
FUEL/T TEMP
SEN  Change the fuel tank temperature using CONSULT-III.
VENT CON-
TROL/V  Ignition switch: ON (Engine
stopped)
 Turn solenoid valve “ON” and “OFF” with the CONSULT-III and
listen to operating sound. Solenoid valve makes an operating
sound.
 Harness and connectors
 Solenoid valve
V/T ASSIGN AN-
GLE
 Engine: Return to the original trouble condition
 Change intake valve timing using
CONSULT-III. If trouble symptom disappears, see
CHECK ITEM.
 Harness and connectors
 Intake valve timing control sole-
noid valve
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-704
< SERVICE INFORMATION >[VK45DE]
TROUBLE DIAGNOSIS
*: DTC P1442 and P1456 does not apply to S50 models but appears in DTC Work Support Mode screens.
Generic Scan Tool (GST) FunctionINFOID:0000000001326533
DESCRIPTION
Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has
8 different functions explained below.
ISO15765-4 is used as the protocol.
The name “GST” or “Generic Scan Tool” is used in this service man-
ual.
FUNCTION
Test mode Test item Corresponding DTC No. Reference page
EVAPORATIVE SYSTEM EVP SML LEAK P0442/P1442*
P0442
EC-926
P0455EC-973
EVP V/S LEAK P0456/P1456* P0456 EC-979
PURG VOL CN/V P1444 P0443EC-933
PURG FLOW P0441 P0441EC-921
A/F SEN1A/F SEN1 (B1) P1278/P1279 P0133
EC-822A/F SEN1 (B1) P1276 P0130EC-798
A/F SEN1 (B2) P1288/P1289 P0153EC-822
A/F SEN1 (B2) P1286 P0150EC-798
HO2S2HO2S2 (B1) P1146 P0138
EC-840
HO2S2 (B1) P1147 P0137EC-831
HO2S2 (B1) P0139 P0139EC-852
HO2S2 (B2) P1166 P0158EC-840
HO2S2 (B2) P1167 P0157EC-831
HO2S2 (B2) P0159 P0159EC-852
SEF139P
Diagnostic service Function
Service $01 READINESS TESTS This mode gains access to current emission-related data values, including analog inputs
and outputs, digital inputs and outputs, and system status information.
Service $02 (FREEZE DATA) This mode gains access to emission-related data value which were stored by ECM during
the freeze frame. For details, refer to
EC-633, "
Emission-related Diagnostic Information".
Service $03 DTCs This mode gains access to emission-related power train trouble codes which were stored
by ECM.
Service $04 CLEAR DIAG INFO This mode can clear all emission-related diagnostic information. This includes:
 Clear number of diagnostic trouble codes (Service $01)
 Clear diagnostic trouble codes (Service $03)
 Clear trouble code for freeze frame data (Service $01)
 Clear freeze frame data (Service $02)
 Reset status of system monitoring test (Service $01)
 Clear on board monitoring test results (Service $06 and $07)
Service $06 (ON BOARD TESTS) This mode accesses the results of on board diagnostic monitoring tests of specific compo-
nents/systems that are not continuously monitored.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISEC-705
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect “GST” to data link connector, which is located under LH
dash panel near the hood opener handle.
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are
shown.)
5. Perform each diagnostic mode according to each service proce- dure.
For further information, see th e GST Operation Manual of
the tool maker.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326534
Remarks:
Service $07 (ON BOARD TESTS) This mode enables the off board test drive to obtain test results for emission-related pow-
ertrain components/systems that are continuously monitored during normal driving condi-
tions.
Service $08 — This mode can close EVAP system in ignition switch ON position (Engine stopped). When
this mode is performed, EVAP canister vent control valve can be closed.
In the following conditions, this mode cannot function.
 Low ambient temperature
 Low battery voltage
 Engine running
 Ignition switch OFF
 Low fuel temperature
 Too much pressure is applied to EVAP system
Service $09 (CALIBRATION ID) This mode enables the off-board test device to request specific vehicle information such
as Vehicle Identification Number (VIN) and Calibration IDs.
Diagnostic service Function
PBIB1503E
SEF398S
SEF416S
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-706
< SERVICE INFORMATION >[VK45DE]
TROUBLE DIAGNOSIS
●
Specification data ar e reference values.
● Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly relate d to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in spite of the
ignition timing not being adjusted to the specification data. This IGN TIMING moni tors the data calculated by the ECM according to the signals
input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED  Run engine an d compare CONSULT-III value with the tachometer indication.Almost the same speed as
the tachometer indication.
MAS A/F SE-B1 See EC-709
.
B/FUEL SCHDL See EC-709
.
A/F ALPHA-B1
A/F ALPHA-B2 See
EC-709
.
COOLAN TEMP/S  Engine: After warming up More than 70 °C (158 °F)
A/F SEN1 (B1)
A/F SEN1 (B2)  Engine: After warming up Maintaining engine speed at 2,000 rpm Fluctuates around 1.5 V
HO2S2 (B1)
HO2S2 (B2)  Revving engine from idle to 3,000 rpm quickly after the following conditions
are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle for 1 minute under no load 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S2 MNTR (B1)
HO2S2 MNTR (B2)  Revving engine from idle to 3,000 rpm quickly after the following conditions
are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle for 1 minute under no load LEAN
←→ RICH
VHCL SPEED SE  Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication. Almost the same speed as
speedometer indication
BATTERY VOLT  Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1  Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2*  Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
TP SEN 1-B1
TP SEN 2-B1*  Ignition switch: ON
(Engine stopped)
 Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES  Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL  Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS  Ignition switch: ON
(Engine stopped) Accelerator pedal:
Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG  Engine: After warming up, idle the
engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)
ON
P/N POSI SW  Ignition switch: ON Selector lever: P or N ON
Selector lever: Except above OFF
PW/ST SIGNAL  Engine: After warming up, idle the
engine Steering wheel: Not being turned OFF
Steering wheel: Being turned ON
LOAD SIGNAL  Ignition switch: ON Rear window defogger switch: ON
and/or lighting switch: 2nd position
ON
Rear window defogger switch and lighting
switch: OFF OFF
IGNITION SW  Ignition switch: ON → OFF → ON ON → OFF → ON
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISEC-707
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
HEATER FAN SW
 Engine: After warming up, idle the
engine Heater fan switch: ON ON
Heater fan switch: OFF OFF
BRAKE SW  Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle 7
° - 17 ° BTDC
2,000 rpm 25 ° - 45 ° BTDC
CAL/LD VALUE  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
PURG VOL C/V  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle 0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2)  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle
−5 ° - 5 °CA
2,000 rpm Approx. 0 ° - 20 °CA
INT/V SOL (B1)
INT/V SOL (B2)  Engine: After warming up
 Selector lever: P or N
 Air conditioner switch: OFF
No load Idle 0% - 2%
2,000 rpm Approx. 25% - 50%
VIAS S/V-1  Selector lever: P or N
ON
 Engine speed: More than 5,000 rpm
 Selector lever: Except P or N
 Engine speed: Less than 5,000 rpm OFF
AIR COND RLY  Engine: After warming up, idle the
engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)
ON
FUEL PUMP RLY  For 1 seconds after turning ignition switch: ON
 Engine running or cranking
ON
 Except above OFF
VENT CONT/V  Ignition switch: ON OFF
THRTL RELAY  Ignition switch: ON ON
COOLING FAN  Engine: After warming up, idle the
engine
 Air conditioner switch: OFF Engine coolant temperature is 94
°C
(201 °F) or less
OFF
Engine coolant temperature is between
95 °C (203 °F) and 104 °C (219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
MONITOR ITEM CONDITION SPECIFICATION
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-708
< SERVICE INFORMATION >[VK45DE]
TROUBLE DIAGNOSIS
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they
differ from
ECM terminals voltage signal. HO2S2 HTR (B1)
HO2S2 HTR (B2)
 Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load ON
 Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD  Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as
the tachometer indication
VEHICLE SPEED  Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication. Almost the same speed as
the speedometer indication
TRVL AFTER MIL  Ignition switch: ON Vehicle has traveled after MIL has turned
ON.0 - 65,535 km
(0 - 40,723 miles)
SNOW MODE SW  Ignition switch: ON Snow mode switch: ON ON
Snow mode switch: OFF OFF
A/F S1 HTR (B1)
A/F S1 HTR (B2)  Engine: After warming up, idle the engine 0 - 100%
AC PRESS SEN  Engine: Idle
 Both air conditioner switch and blower fan switch: ON (Compressor operates)
1.0 - 4.0V
VHCL SPEED SE  Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication. Almost the same speed as
the speedometer indication
SET VHCL SPD  Engine: Running ASCD: Operating The preset vehicle speed is
displayed
MAIN SW  Ignition switch: ON MAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW  Ignition switch: ON CANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW  Ignition switch: ON RESUME/ACCELERATE switch:
Pressed
ON
RESUME/ACCELERATE switch: Re-
leased OFF
SET SW  Ignition switch: ON SET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1
(ICC/ASCD brake
switch)  Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)  Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DIST SW  Ignition switch: ON DISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
CRUISE LAMP  Ignition switch: ON MAIN switch: Pressed at the 1st time
→
at the 2nd time ON
→ OFF
SET LAMP  MAIN switch: ON
 When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89 MPH) ASCD: Operating ON
ASCD: Not operating OFF
MONITOR ITEM CONDITION SPECIFICATION
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSIS - SPECIFICATION VALUEEC-709
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
DescriptionINFOID:0000000001326536
The specification (SP) value indicates the tolerance of
the value that is displayed in “SPEC” of “DATA MONI-
TOR” mode with CONSULT-III during normal operation of the Engine Control System. When the value in
“SPEC” of “DATA MONITOR” mode is within the SP val ue, the Engine Control System is confirmed OK. When
the value in “SPEC” of “DATA MONITOR” mode is NOT within the SP value, the Engine Control System may
have one or more malfunctions.
The SP value is used to detect malfunctions that may af fect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
 B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board correc- tion)
 A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
 MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionINFOID:0000000001326537
 Vehicle driven distance: More than 5,000 km (3,107 miles)
 Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm
2, 14.25 - 15.12 psi)
 Atmospheric temperature: 20 - 30 °C (68 - 86 °F)
 Engine coolant temperature: 75 - 95 °C (167 - 203 °F)
 Transmission: Warmed-up
- After the engine is warmed up to normal operating temper ature, drive vehicle until “ATF TEMP SE 1” (A/T
fluid temperature sensor signal) indicates more than 60 °C (140 °F).
 Electrical load: Not applied
- Rear window defogger switch, air conditioner switch, li ghting switch are OFF. Steering wheel is straight
ahead.
 Engine speed: Idle
Inspection ProcedureINFOID:0000000001326538
NOTE:
Perform “SPEC” in “DATA MONITOR” mode in maximum scale display.
1. Perform EC-658, "
Basic Inspection".
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2” and “MAS A/F SE-B1” in “SPEC” of “DATA
MONITOR” mode with CONSULT-III.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-710, "
Diagnosis Procedure".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-710
< SERVICE INFORMATION >[VK45DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE

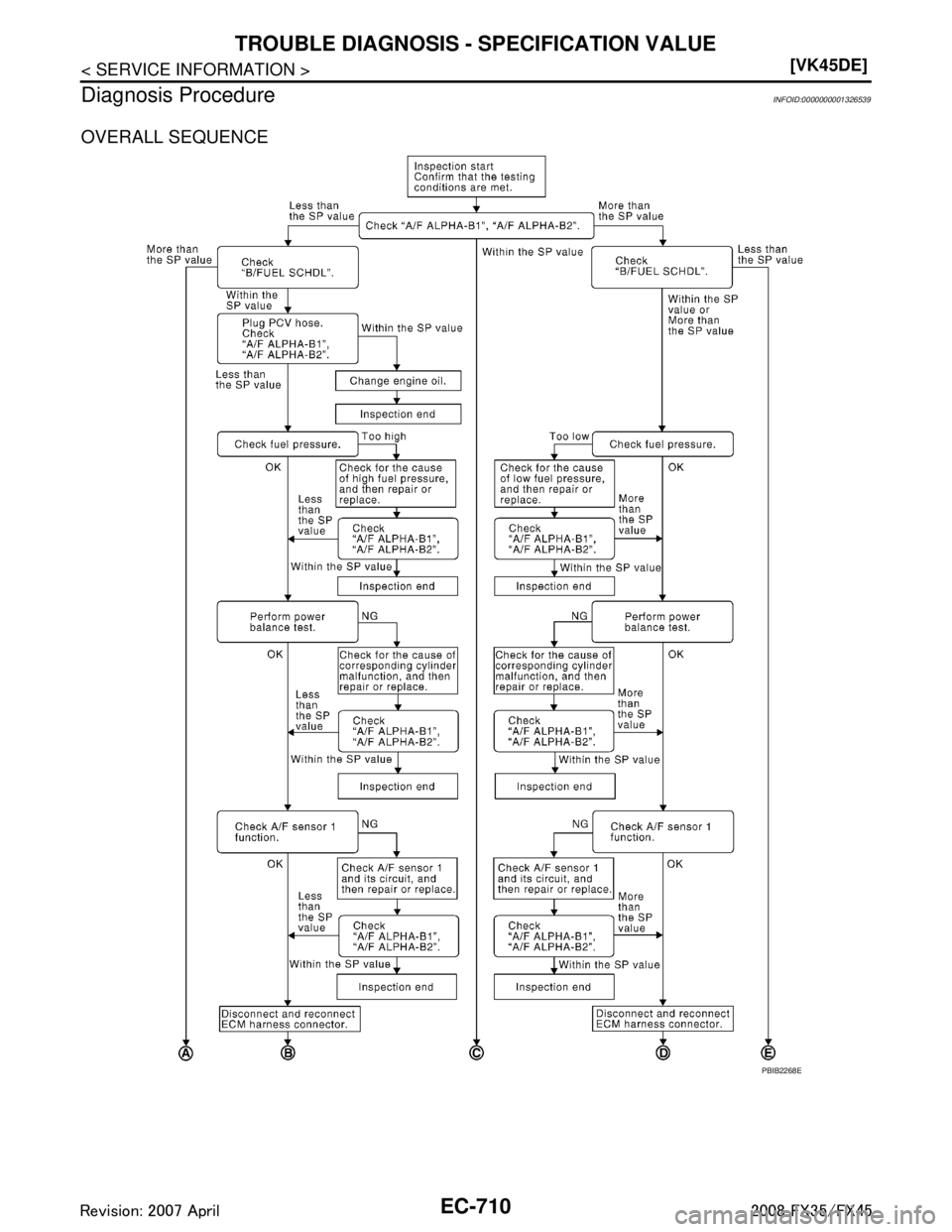

Diagnosis Procedure
INFOID:0000000001326539
OVERALL SEQUENCE
PBIB2268E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
