DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-741
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
2P A/F sensor 1 heater
(Bank 1) [Engine is running]

Warm-up condition
 Idle speed Approximately 5V
16 R A/F sensor 1 (Bank 1) [Engine is running]

Warm-up condition
 Idle speed Approximately 3.1V
35 G Approximately 2.6V
56 B Approximately 2.3V
75 OR Approximately 2.3V
PBIB1584E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-742
< SERVICE INFORMATION >[VK45DE]
DTC P0031, P0032,
P0051, P0052 A/F SENSOR 1 HEATER
BANK 2
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1372E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-743
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000001326567
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-723, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A /F) sensor 1 harness connector.
2. Turn ignition switch ON.
TER- MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
24 P A/F sensor 1 heater
(Bank 2) [Engine is running]

Warm-up condition
 Idle speed Approximately 5V
57 G A/F sensor 1 (Bank 2) [Engine is running]

Warm-up condition
 Idle speed Approximately 2.6V
58 L Approximately 2.3V
76 R Approximately 3.1V
77 OR Approximately 2.3V
PBIB1584E
PBIB2195E
: Vehicle front 1. A/F sensor 1 (Bank 2)
harness connector2. A/F sensor 1 (Bank 1)
harness connector
PBIB3246E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-744
< SERVICE INFORMATION >[VK45DE]
DTC P0031, P0032,
P0051, P0052 A/F SENSOR 1 HEATER
3. Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E19, F49
 IPDM E/R connector E7
 10A fuse
 Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
4.CHECK A/F SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following; ECM terminal 2 and A/F sensor 1 (Bank 1) terminal 4 or
ECM terminal 24 and A/F sensor 1 (Bank 2) terminal 4.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK A/F SENSOR 1 HEATER
Refer to EC-744, "
Component Inspection".
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning air fuel ratio sensor 1.
6.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
Component InspectionINFOID:0000000001326568
AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Voltage: Battery voltage
PBIB1683E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-745
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check resistance between terminals 3 and 4.
Check continuity between terminals
3 and 1, 2, 5, 6, terminals 4 and
1, 2, 5, 6.
If NG, replace the A/F sensor 1.
CAUTION:
 Discard any A/F sensor which has been dropped from a height of more than 0.5 m ( 19.7 in) onto a hard surface such
as a concrete floor; use a new one.
 Before installing new A/F sensor, clean exhaust system
threads using Heated Oxygen Sensor Thread Cleaner tool J-
43897-18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationINFOID:0000000001326569
AIR FUEL RATIO (A/F) SENSOR 1
Refer to EM-179.
Resistance: 2.3 - 4.3
Ω [at 25 °C (77 °F)]
Continuity should not exist.
PBIB1684E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-746
< SERVICE INFORMATION >[VK45DE]
DTC P0037, P
0038, P0057, P0058 HO2S2 HEATER
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
DescriptionINFOID:0000000001326570
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxy gen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.
OPERATION
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326571
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326572
DTC Confirmation ProcedureINFOID:0000000001326573
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Sensor Input signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Heated oxygen sensor 2
heater controlHeated oxygen sensor 2 heater
Engine coolant temperature sensor Engine coolant temperature
Mass air flow sensor Amount of intake air
Engine speed rpm Heated oxygen sensor 2 heater
Above 3,600 OFF
Below 3,600 rpm after the following conditions are met.
 Engine: After warming up
 Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle for 1 minute under no load ON
MONITOR ITEM CONDITION SPECIFICATION
HO2S2 HTR (B1)
HO2S2 HTR (B2)  Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load ON
 Engine speed: Above 3,600 rpm OFF
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P0037
0037
(Bank 1) Heated oxygen
sensor 2 heater
control circuit low The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)  Harness or connectors
(The heated oxygen sensor 2 heater circuit is
open or shorted.)
 Heated oxygen sensor 2 heater
P0057
0057
(Bank 2)
P0038
0038
(Bank 1)
Heated oxygen
sensor 2 heater
control circuit high The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)  Harness or connectors
(The heated oxygen sensor 2 heater circuit is
shorted.)
 Heated oxygen sensor 2 heater
P0058
0058
(Bank 2)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
EC-747
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Before performing the following procedure, confi
rm that battery voltage is between 10.5V and 16V at
idle.
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start the engine and keep the engine speed between 3,500 rpm and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-751, "
Diagnosis Procedure".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-748
< SERVICE INFORMATION >[VK45DE]
DTC P0037, P
0038, P0057, P0058 HO2S2 HEATER
Wiring Diagram
INFOID:0000000001326574
BANK 1
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1325E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
EC-749
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
6R Heated oxygen sensor 2
heater (Bank 1) [Engine is running]
 Engine speed: Below 3,600 rpm after the fol-
lowing conditions are met
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]
 Engine stopped
[Engine is running]
 Engine speed: Above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
55 W/R Heated oxygen sensor 2
(Bank 1) [Engine is running]
 Revving engine from idle to 3,000 rpm quick-
ly after the following conditions are met
- Engine: After warming up
- After keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle
for 1 minute under no load 0 - Approximately 1.0V
78 B/R Sensor ground
(Heated oxygen sensor 2) [Engine is running]

Warm-up condition
 Idle speed Approximately 0V
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-750
< SERVICE INFORMATION >[VK45DE]
DTC P0037, P
0038, P0057, P0058 HO2S2 HEATER

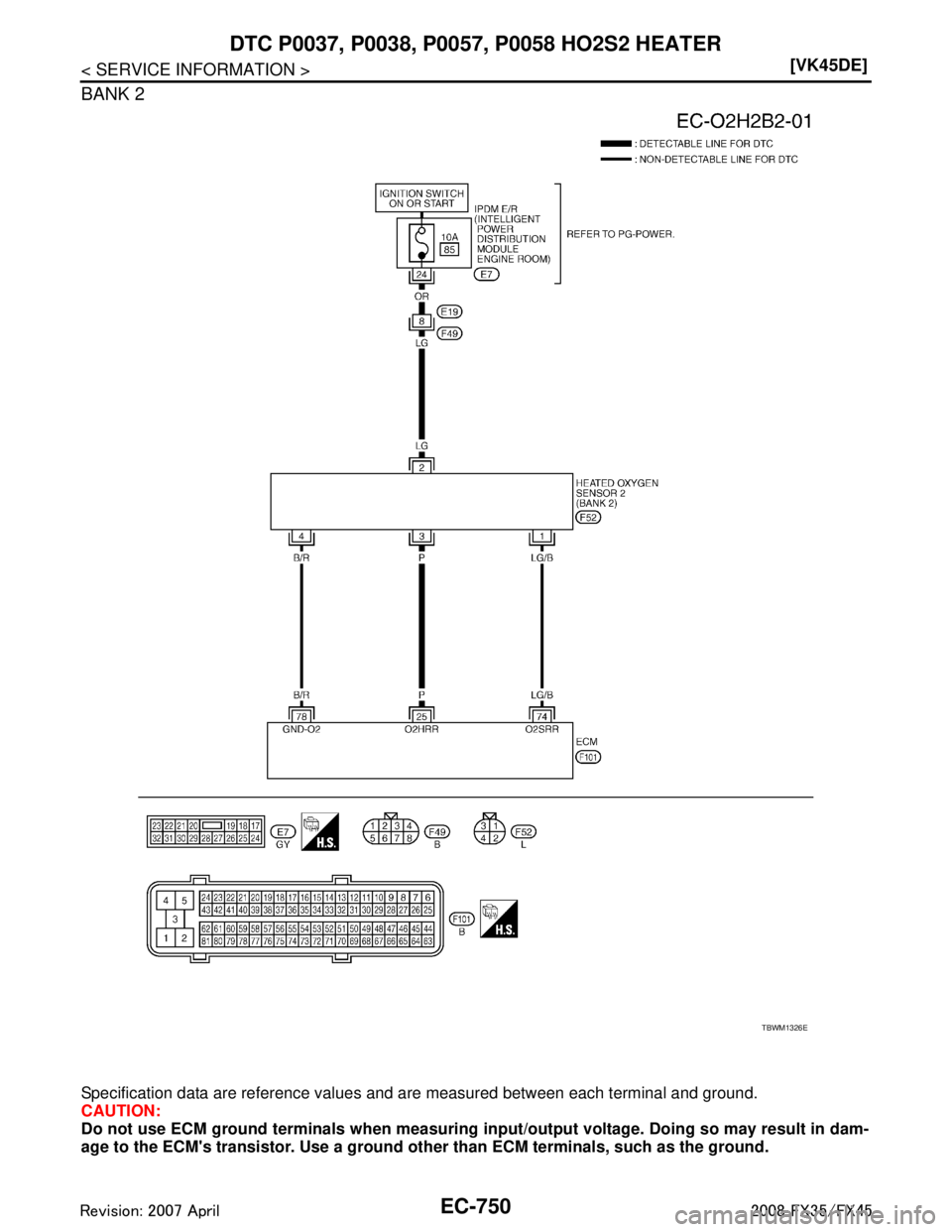

BANK 2
