INFINITI FX35 2008 Service Manual

ELECTRICAL UNITS LOCATIONPG-67
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

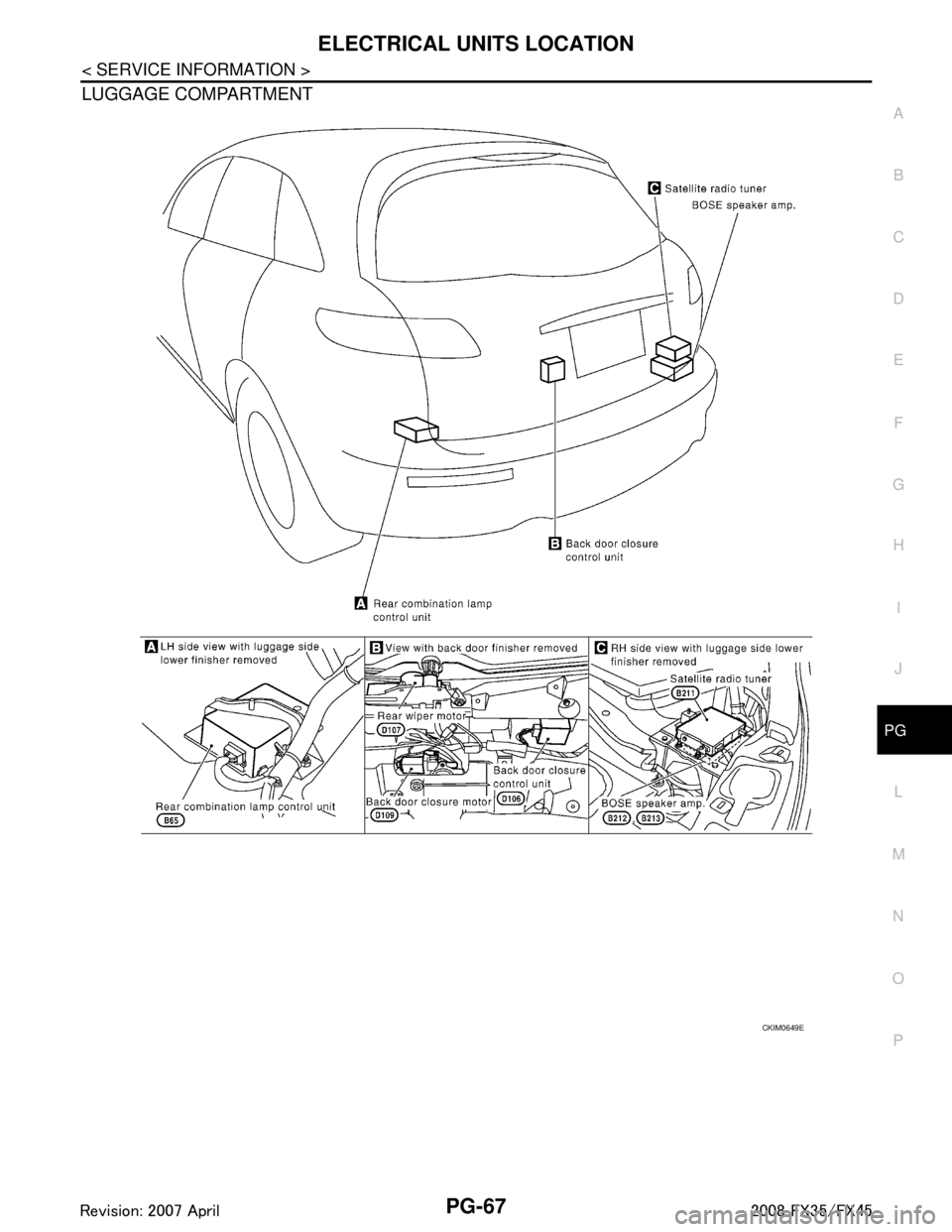

LUGGAGE COMPARTMENT
CKIM0649E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PG-68
< SERVICE INFORMATION >
HARNESS CONNECTOR
HARNESS CONNECTOR
DescriptionINFOID:0000000001328885
HARNESS CONNECTOR (TAB-LOCKING TYPE)
 The tab-locking type connectors help prevent accidental looseness or disconnection.
 The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure
below.
CAUTION:
Never pull the harness or wires wh en disconnecting the connector.
[Example]

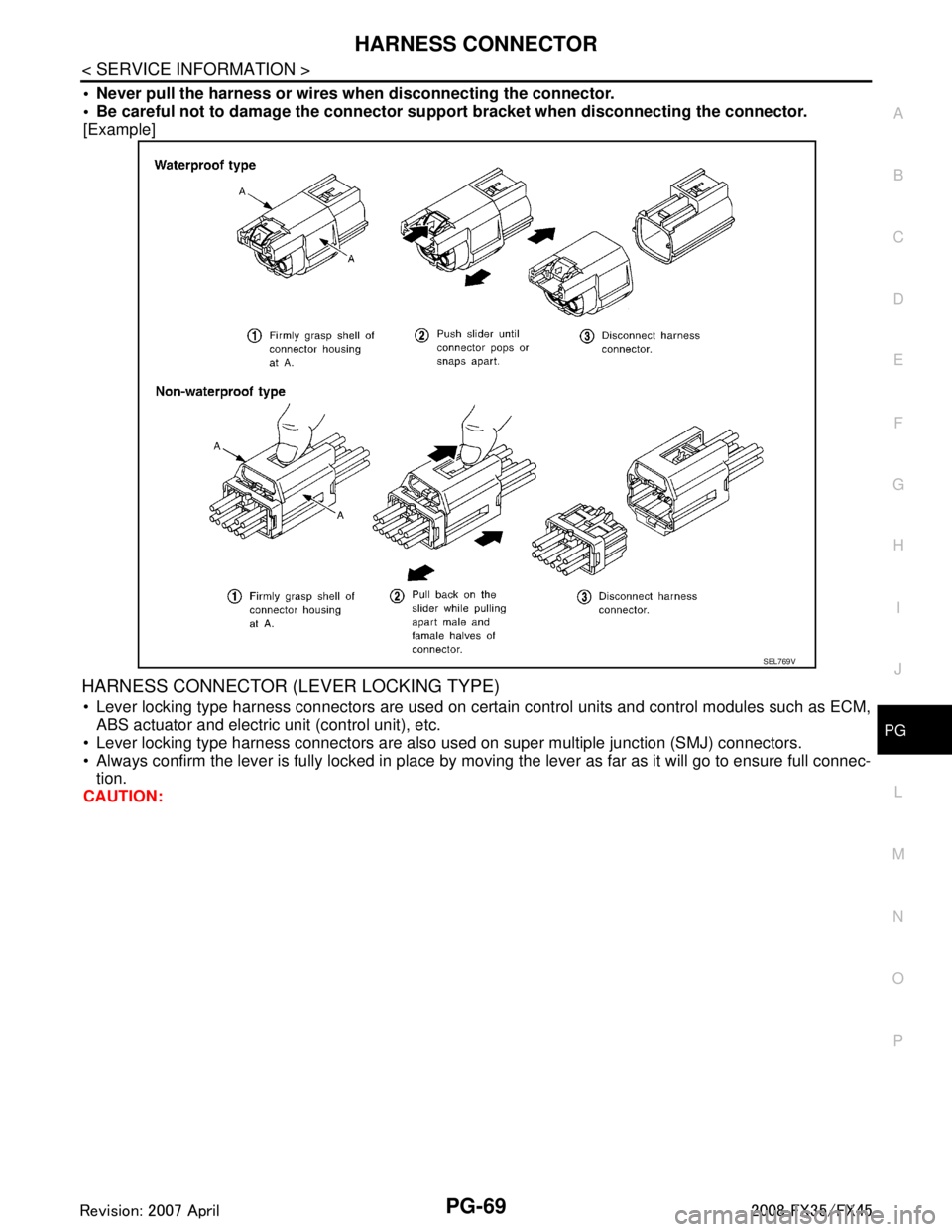

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
 A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
 The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-
tion.
 The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure below.
CAUTION:
SEL769DA
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

HARNESS CONNECTORPG-69
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
 Never pull the harness or wires when disconnecting the connector.
 Be careful not to damage the connector su pport bracket when disconnecting the connector.
[Example]
HARNESS CONNECTOR (LEVER LOCKING TYPE)
 Lever locking type harness connectors are used on cert ain control units and control modules such as ECM,
ABS actuator and electric unit (control unit), etc.
 Lever locking type harness connectors are also us ed on super multiple junction (SMJ) connectors.
 Always confirm the lever is fully locked in place by mo ving the lever as far as it will go to ensure full connec-
tion.
CAUTION:
SEL769V
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PG-70
< SERVICE INFORMATION >
HARNESS CONNECTOR

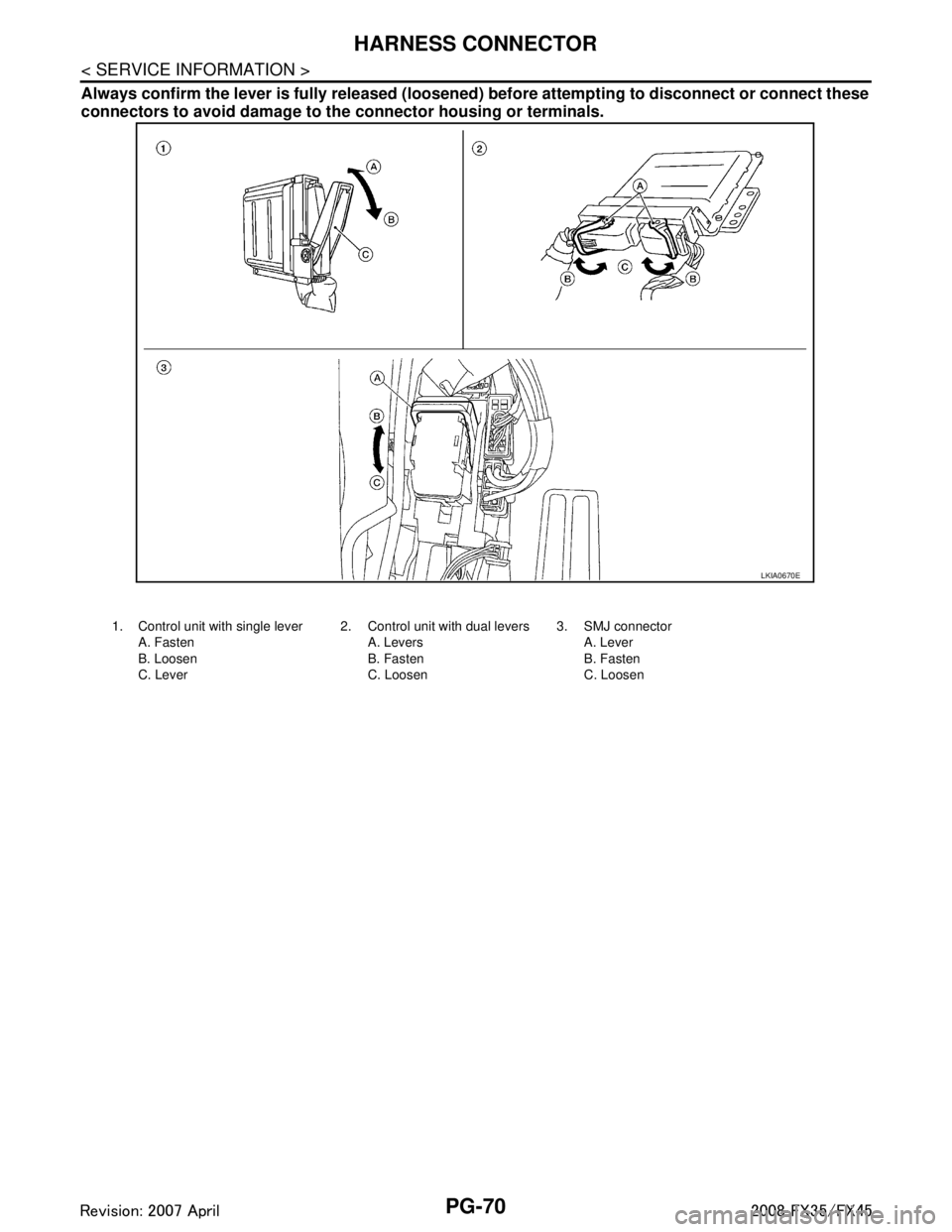

Always confirm the lever is fully released (loosened) before attempti ng to disconnect or connect these
connectors to avoid damage to th e connector housing or terminals.
LKIA0670E
1. Control unit with single lever
A. Fasten
B. Loosen
C. Lever 2. Control unit with dual levers
A. Levers
B. Fasten
C. Loosen 3. SMJ connector
A. Lever
B. Fasten
C. Loosen
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ELECTRICAL UNITSPG-71
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

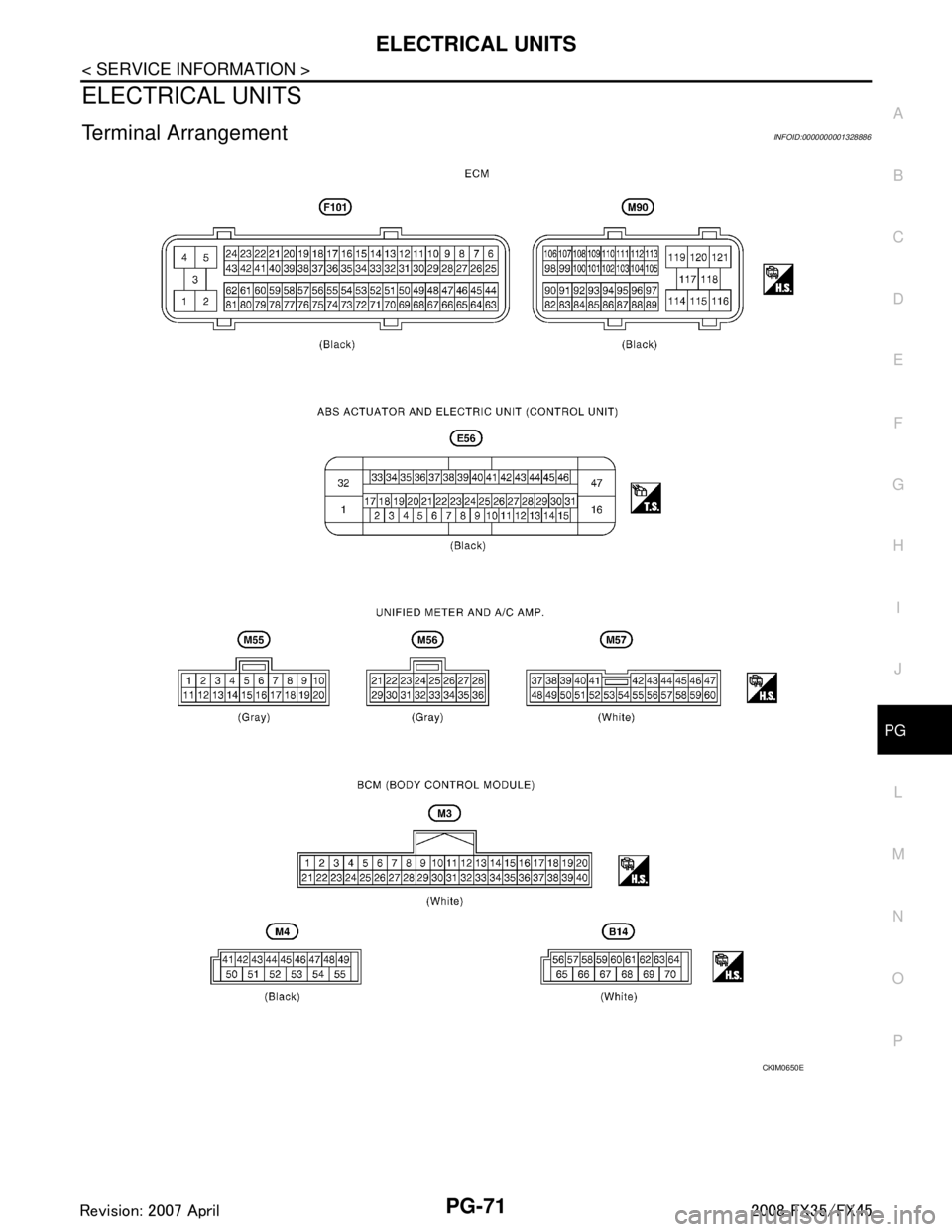

ELECTRICAL UNITS
Terminal ArrangementINFOID:0000000001328886
CKIM0650E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PG-72
< SERVICE INFORMATION >

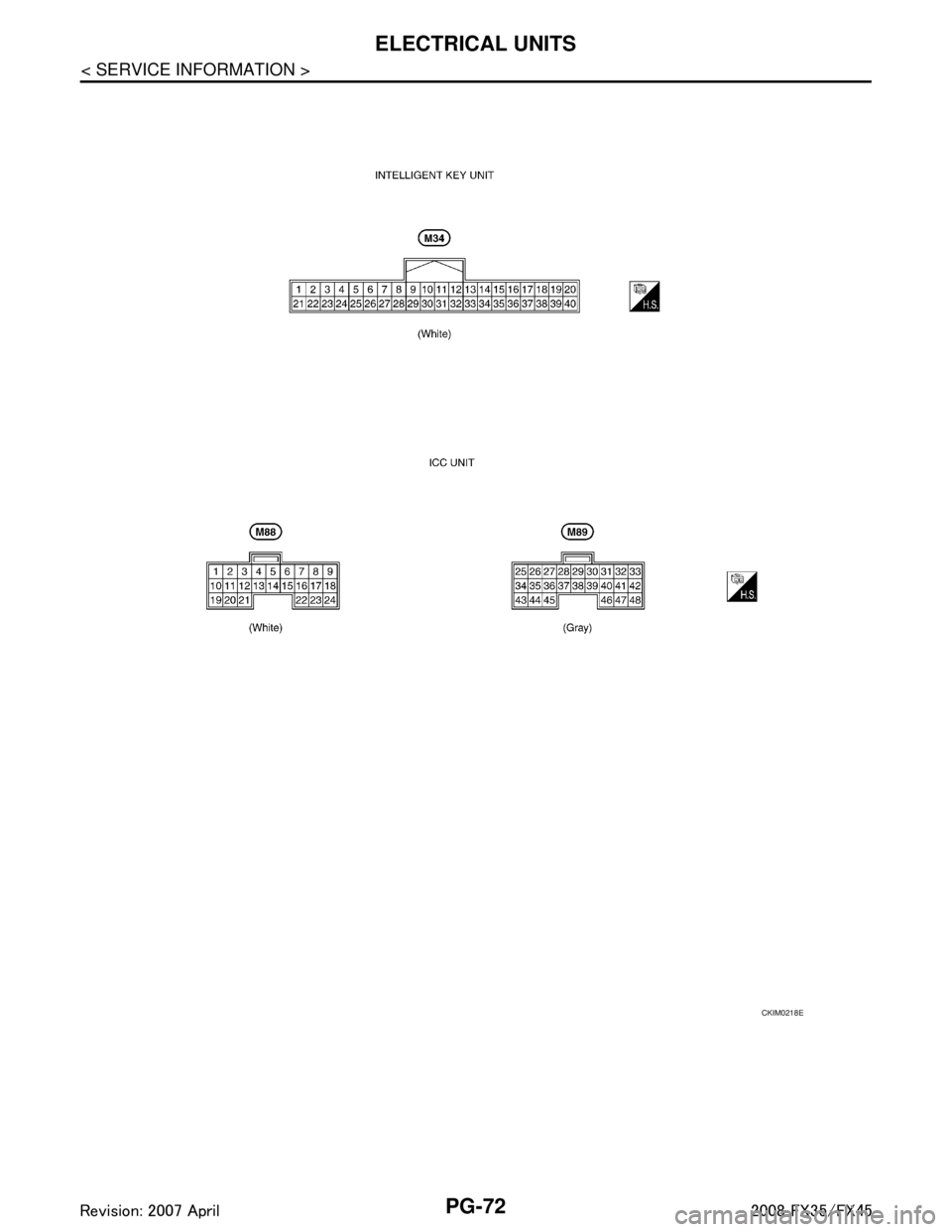

ELECTRICAL UNITS
CKIM0218E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SMJ (SUPER MULTIPLE JUNCTION)PG-73
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P

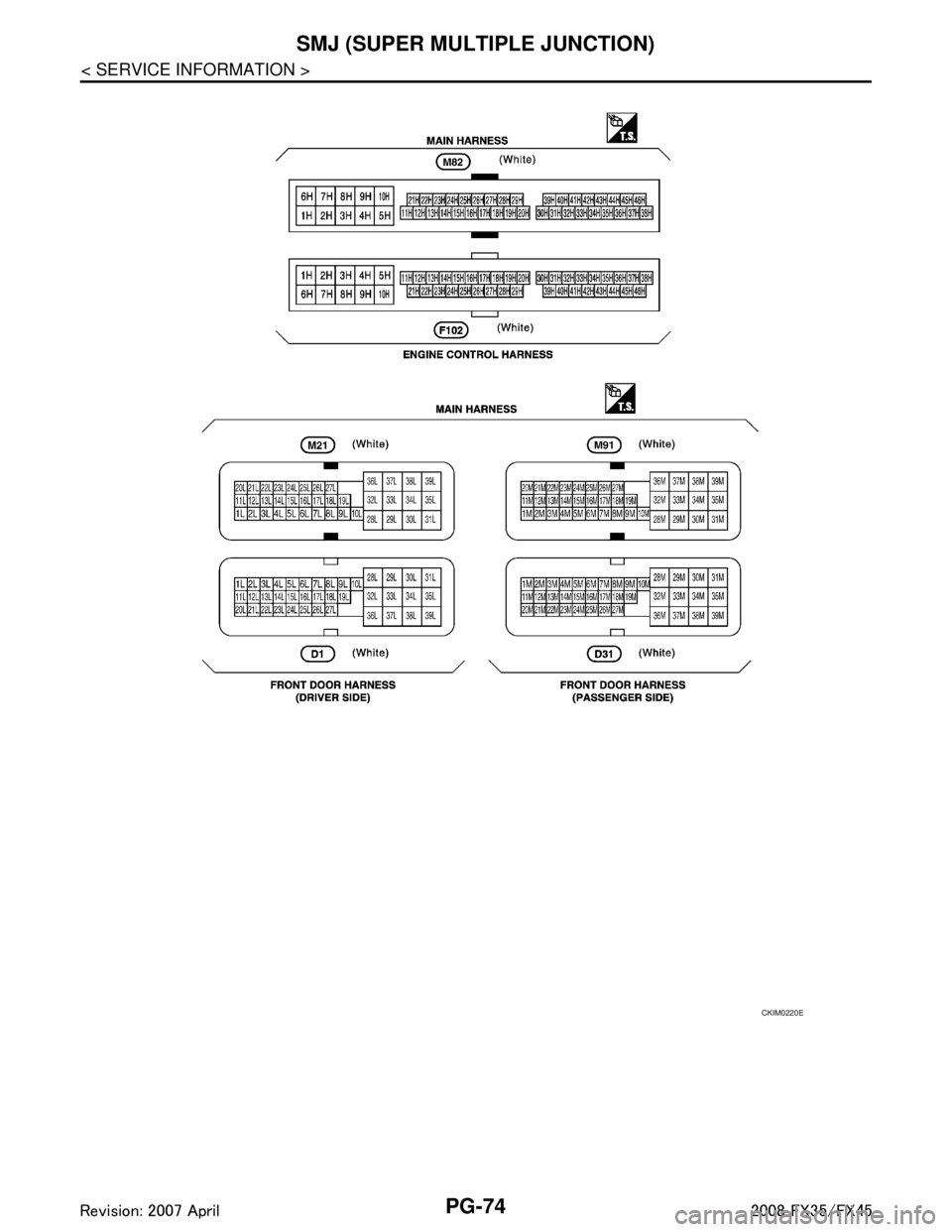

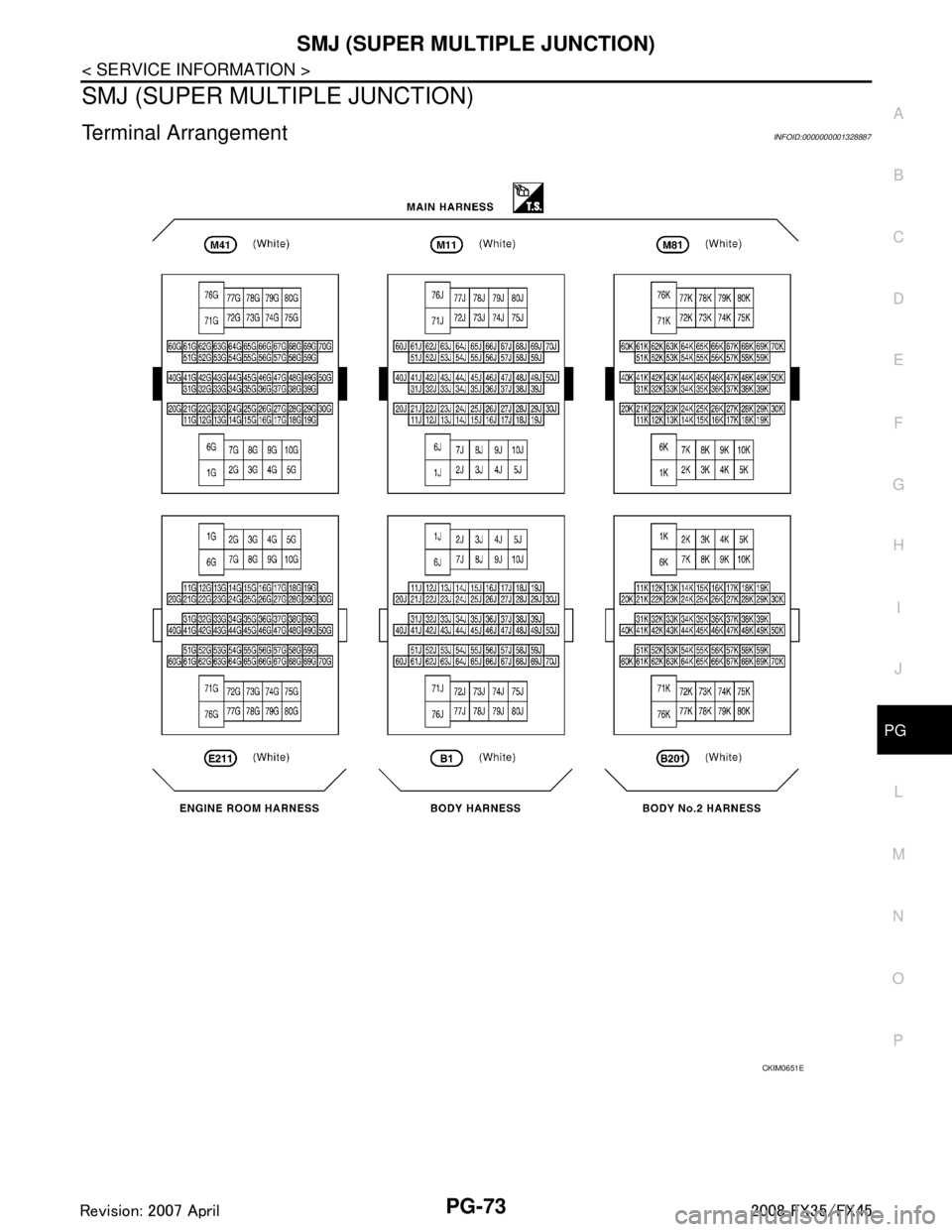

SMJ (SUPER MULTIPLE JUNCTION)
Terminal ArrangementINFOID:0000000001328887
CKIM0651E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PG-74
< SERVICE INFORMATION >
SMJ (SUPER MULTIPLE JUNCTION)
CKIM0220E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

STANDARDIZED RELAYPG-75
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
PG
N
O P
STANDARDIZED RELAY
DescriptionINFOID:0000000001328888
NORMAL OPEN, NORMAL CLOS ED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS
SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PG-76
< SERVICE INFORMATION >
STANDARDIZED RELAY
CKIM0221E
