DOOR PARTING SEAL
Component Parts LocationINFOID:0000000001328067
Removal and InstallationINFOID:0000000001529402
REMOVAL
1. Remove rear door outside lower molding. Refer to EI-26, "Removal and Installation".
2. Open front door and rear door fully.
3. Remove double-faced adhesive tapes and rear door parting seal (front).
4. Remove clip and double-faced adhesive tapes, and then remove front door parting seal (lower).
5. Remove clip and double-faced adhesive tapes, and then remove rear door parting seal (lower).
INSTALLATION
1. Clean adhesive portion of rear door with white gasoline.
2. Strip pattern from the new rear door parting seal and paste on rear door panel.
1. Front door parting seal (lower) 2. Rear door parting seal (lower) 3. Rear door parting seal (front)
4. Front door panel 5. Rear door panel 6. Rear door outside lower molding
: Clip
PIIB8501E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EI-28
< SERVICE INFORMATION >
DOOR PARTING SEAL
3. Install rear door parting seal to rear door hem flange.
4. Install rear door outside lower molding. Refer to EI-26, "
Removal and Installation".
CAUTION:
Rear door parting seal is not reusable. always use new rear door parting seal.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

CENTER MUD GUARDEI-29
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
CENTER MUD GUARD
Component Parts LocationINFOID:0000000001328068
Removal and InstallationINFOID:0000000001529403
REMOVAL
1. Remove bolts center mud-guard lower portion.
2. Remove screws center mud-guard front and rear portion.
3. Insert driver rolled with cloth or tapes between guard and body side sill, then pull it back to your side.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
When installing center mud guard, make sure that cl ips are securely fitted in panel holes on body, and
then press them in.

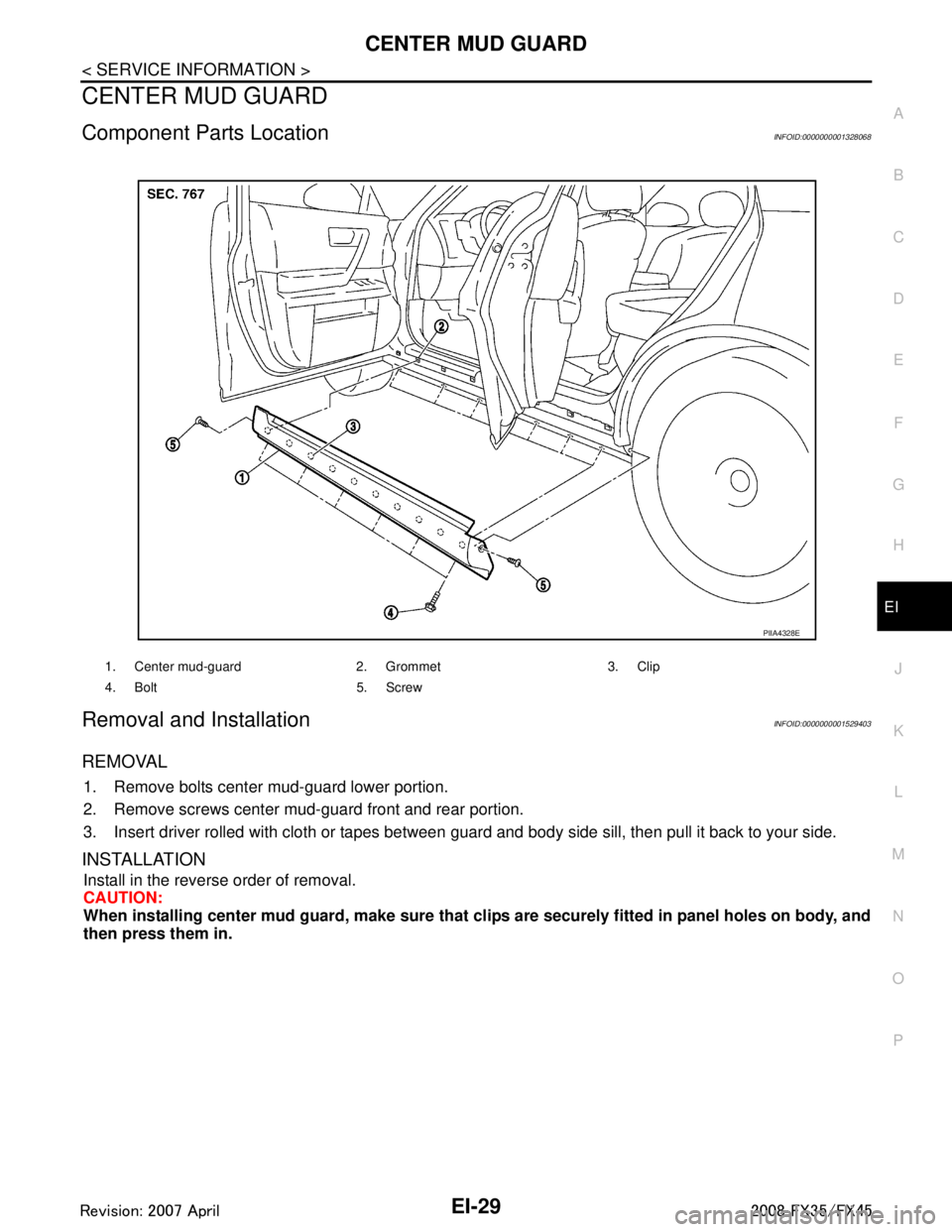

1. Center mud-guard 2. Grommet 3. Clip
4. Bolt 5. Screw
PIIA4328E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EI-30
< SERVICE INFORMATION >
WINDSHIELD MOLDING
WINDSHIELD MOLDING
Component Parts LocationINFOID:0000000001328069
Removal and InstallationINFOID:0000000001529404
REMOVAL
Remove windshield molding. Refer to GW-11, "Removal and Installation".
INSTALLATION
Install windshield molding. Refer to GW-11, "Removal and Installation".

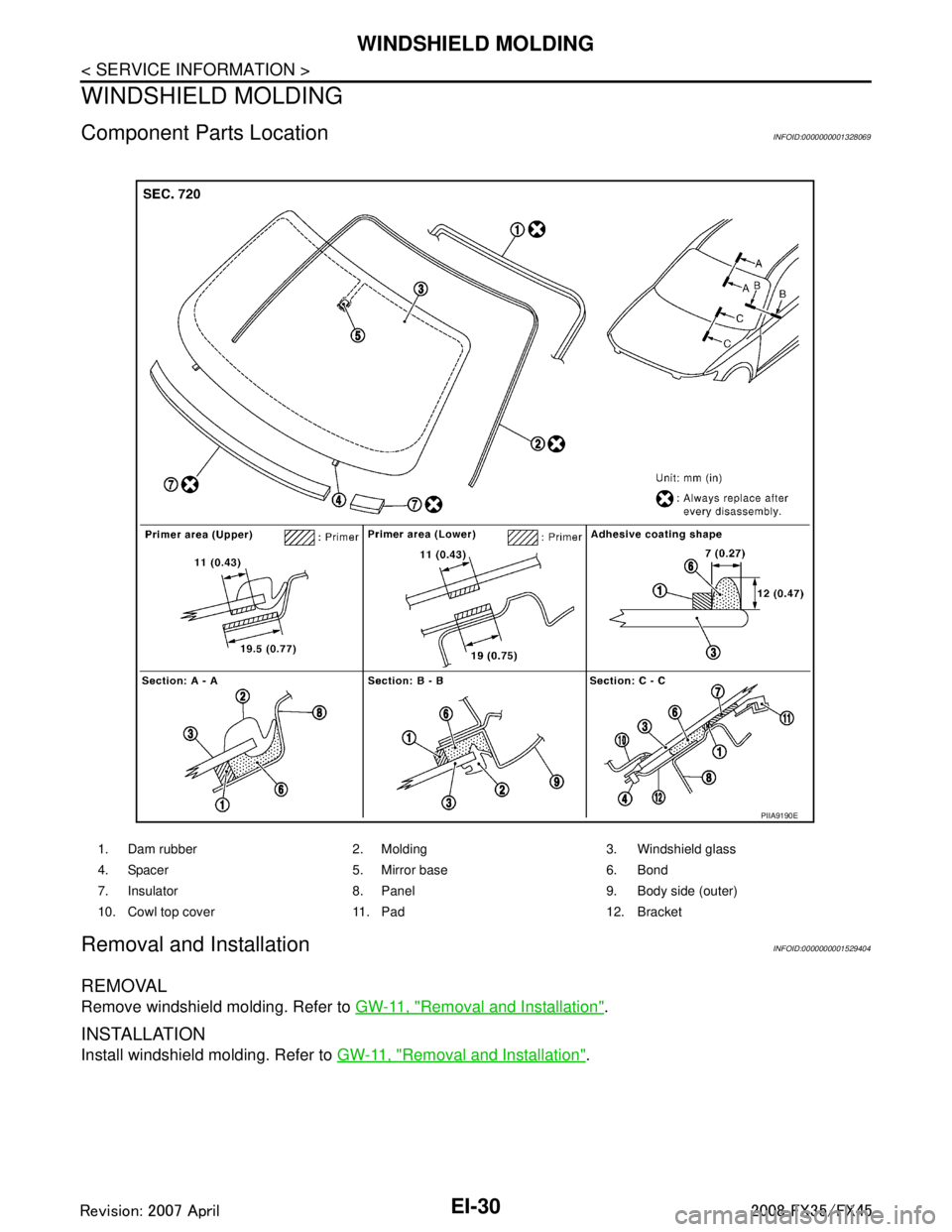

1. Dam rubber 2. Molding 3. Windshield glass
4. Spacer 5. Mirror base 6. Bond
7. Insulator 8. Panel 9. Body side (outer)
10. Cowl top cover 11. Pad 12. Bracket
PIIA9190E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BACK DOOR WINDOW MOLDINGEI-31
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
BACK DOOR WINDOW MOLDING
Component Parts LocationINFOID:0000000001328070
Removal and InstallationINFOID:0000000001529405
REMOVAL
Remove back door window molding. Refer to GW-13, "Removal and Installation".
NOTE:
Apply a strip of protective tape along the contour of ba ck door window glass (molding) to prevent paint surface
from being damaged.
INSTALLATION
Install back door window molding. Refer to GW-13, "Removal and Installation".
NOTE:
 Clean adhesive portion of back door window glass and around circumference with white gasoline.
 Apply dam rubber to upper and side surfaces of glass.
 Attach back door window molding to side face of glass.
 Back door window molding should not overlap on the surface of back door window glass.
1. Dam rubber 2. Back door window glass 3. Bond
4. Back door outer panel 5. Back door inner panel 6. Back door window molding
7. Clip 8. Back door panel
PIIA9191E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EI-32
< SERVICE INFORMATION >
ROOF SIDE MOLDING
ROOF SIDE MOLDING
Component Parts LocationINFOID:0000000001328071
Removal and InstallationINFOID:0000000001529406
REMOVAL
Disconnect molding from roof side clip and remove roof side molding.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
To install roof side molding, check if all clips are matched over holes of panel on vehicle, then push it.

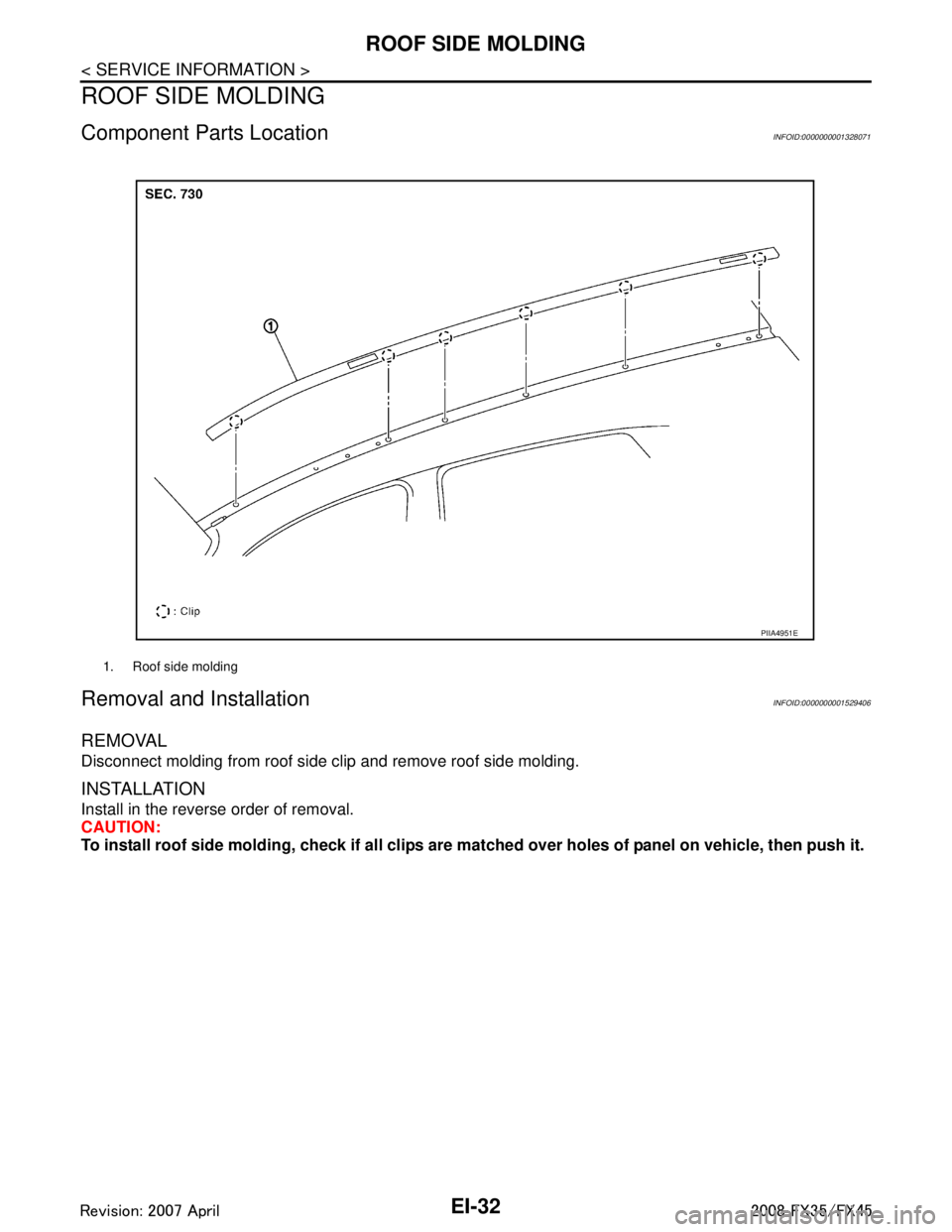

1. Roof side molding
PIIA4951E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ROOF RAILEI-33
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
ROOF RAIL
Component Parts LocationINFOID:0000000001328072
Removal and InstallationINFOID:0000000001529407
REMOVAL
1. Remove cover roof rail (front/rear).
2. Remove nuts of roof rail and remove roof rail assembly.
INSTALLATION
Install in the reverse order of removal.
REMOVAL AND INSTALLATION OF ROOF RAIL BRACKET
Removal
1. Remove roof rail assembly.
2. Remove roof side molding. Refer to EI-32, "
Removal and Installation".
3. Remove headlining. Refer to EI-44, "
Removal and Installation".
4. Remove nuts of roof rail bracket assembly and remove roof rail bracket assembly.
Installation
Install in the reverse order of removal.
CAUTION:
1. Cover roof rail (front) 2. Nut 3. Roof rail assembly
4. Rubber seal (front) 5. Roof side molding 6. Roof rail bracket assembly
7. Seal 8. Nut 9. Rubber seal (rear)
10. Cover roof rail (rear)
PIIA4948E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BACK DOOR FINISHEREI-35
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
BACK DOOR FINISHER
Component Parts LocationINFOID:0000000001328073
Removal and InstallationINFOID:0000000001529408
REMOVAL
1. Remove back door finisher inner. Refer to EI-47, "Removal and Installation".
2. Remove back door outside finisher upper nuts and back door outside finisher upper.
3. Remove back door outside finisher lower nuts and back door outside finisher lower.
INSTALLATION
Install in the reverse order of removal.

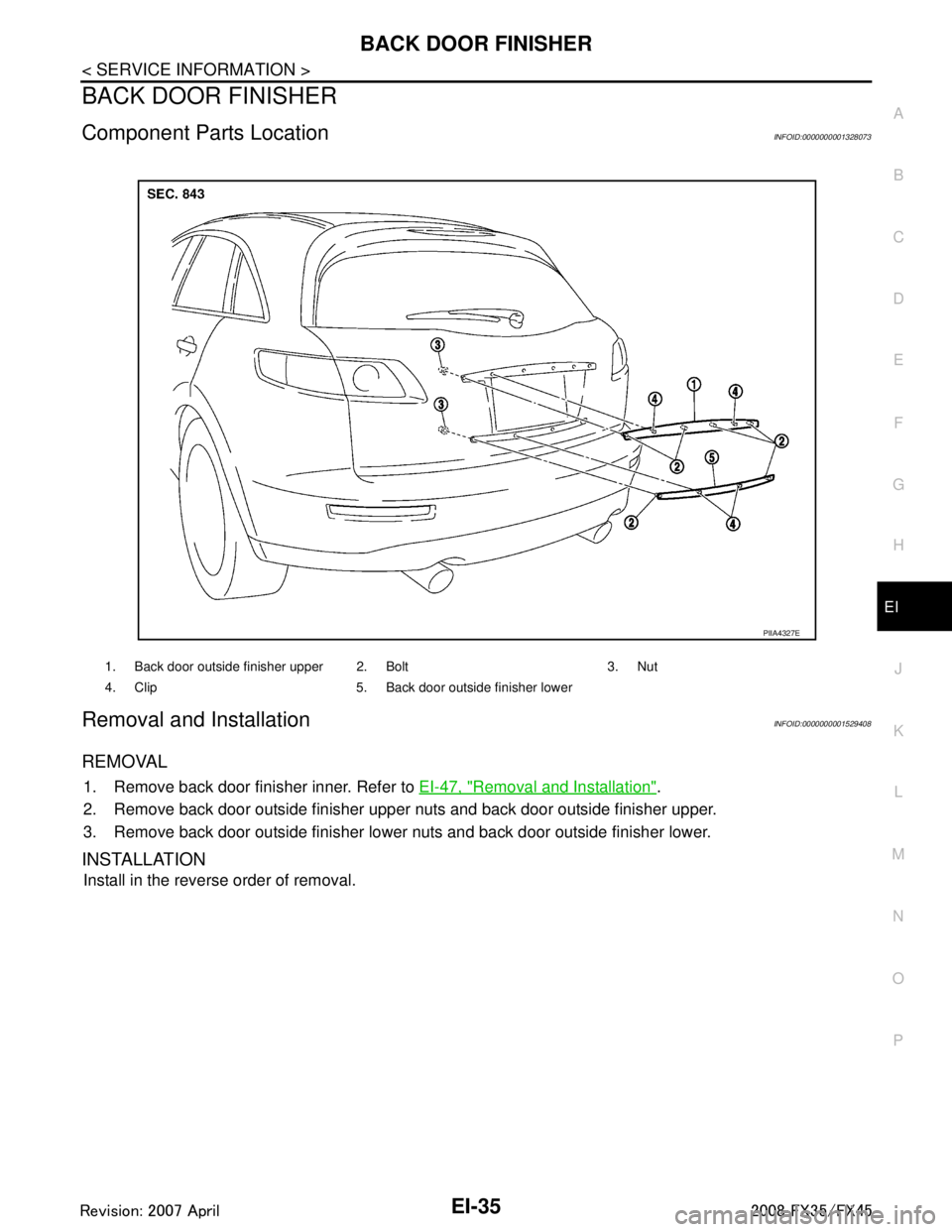

1. Back door outside finisher upper 2. Bolt 3. Nut
4. Clip 5. Back door outside finisher lower
PIIA4327E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EI-36
< SERVICE INFORMATION >
DOOR FINISHER
DOOR FINISHER
Component Parts LocationINFOID:0000000001328074
Removal and InstallationINFOID:0000000001529409
DOOR FINISHER (FRONT AND REAR)
Removal
1. Remove door finisher cap of inside handle portion and remove bolt.
2. Remove door grip cap and remove bolts of door grip portion.
1. Door finisher (front) 2. Clip (C101) 3. Bolt
4. Door grip cap 5. Door finisher cap 6. Door finisher (rear)
7. Seat memory switch finisher 8. Seat memory switch: Clip
: Pawl
: Metal clip
PIIB8502E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DOOR FINISHEREI-37
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
3. Insert screw driver rolled with cloth between panel on vehicle and clips (as indicated with arrow), and remove finisher.
4. Pull up door finisher, and remove electrical parts connectors.
5. Remove lock knob cable, inside handle cable and illumination harness connector (front door only) from backside of inside han-
dle assembly.
6. Remove the following parts after removing door finisher.  Inside handle
 Seat memory switch and seat memory switch finisher
 Power window switch
 Step lamp
Installation
Install in the reverse order of removal.
CAUTION:
To install finisher, check if all clips are matched over holes of panel on vehicle, then push it.
SIIA0810E
PIIA4959E
