TROUBLE DIAGNOSIS
3. Check continuity between each door motor harness connectorterminal 2 and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6.CHECK MOTOR OPERATION
1. Reconnect each door motor connector.
2. Turn ignition switch ON.
3. Confirm operation of each door motor.
OK or NG
OK >> (Return to operate normally.)  Poor contact in motor connector.
NG >> (Does not operate normally.) GO TO 7.
7.CHECK AIR MIX DOOR MOTOR AND INTAKE DOOR MOTOR OPERATION
1. Turn ignition switch OFF.
2. Disconnect mode, air mix (driver side, pass enger side), and intake door motor connectors.
3. Reconnect air mix (driver side, passenger side) and intake door motor connectors.
4. Turn ignition switch ON.
5. Confirm operation of air mix door motor (driver side, passenger side) and intake door motor.
OK or NG
OK >> [Air mix (driver side, passenger side) and intake door motors operate normally.]
 Replace mode door motor.
NG >> [Air mix (driver side, passenger side) and intake door motors does not operate normally.]
GO TO 8.
8.CHECK MODE DOOR MOTOR AND INTAKE DOOR MOTOR OPERATION
1. Turn ignition switch OFF.
2. Disconnect air mix door motor (driver side, passenger side) connectors.
3. Reconnect mode door motor connector.
4. Turn ignition switch ON.
5. Confirm operation of mode door motor and intake door motor.
OK or NG
OK >> (Mode and intake door motors operate normally.)  GO TO 10.
NG >> (Mode and intake door motors does not operate normally.) GO TO 9.
9.CHECK MODE DOOR MOTOR AND AIR MIX DOOR MOTOR OPERATION
1. Turn ignition switch OFF.
2. Disconnect intake door motor connector.
3. Reconnect air mix door motor (driver side, passenger side) connectors.
4. Turn ignition switch ON.
5. Confirm operation of mode door motor and air mix door motor (driver side, passenger side).
OK or NG
OK >> [Mode and air mix door motor (driver side, passenger side) operate normally.]  Replace intake door motor.
NG >> [Mode and air mix door motor (driver side, passenger side) does not operate normally.]
 Replace display and A/C auto amp.
10.CHECK AIR MIX DOOR MOTOR OPERATION 2 – Ground : Continuity should exist.
RJIA1990E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISATC-57
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
1. Turn ignition switch OFF.
2. Disconnect air mix door motor (driver side) connector.
3. Turn ignition switch ON.
4. Confirm operation of air mix door motor (passenger side).
OK or NG
OK >> [Air mix door motor (passenger side) operates normally.]  Replace air mix door motor (driver side).
NG >> [Air mix door motor (passenger side) does not operate normally.]  Replace air mix door motor (passenger side).
Mode Door Motor CircuitINFOID:0000000001328185
SYMPTOM
 Air outlet does not change.
 Mode door motor does not operate normally.

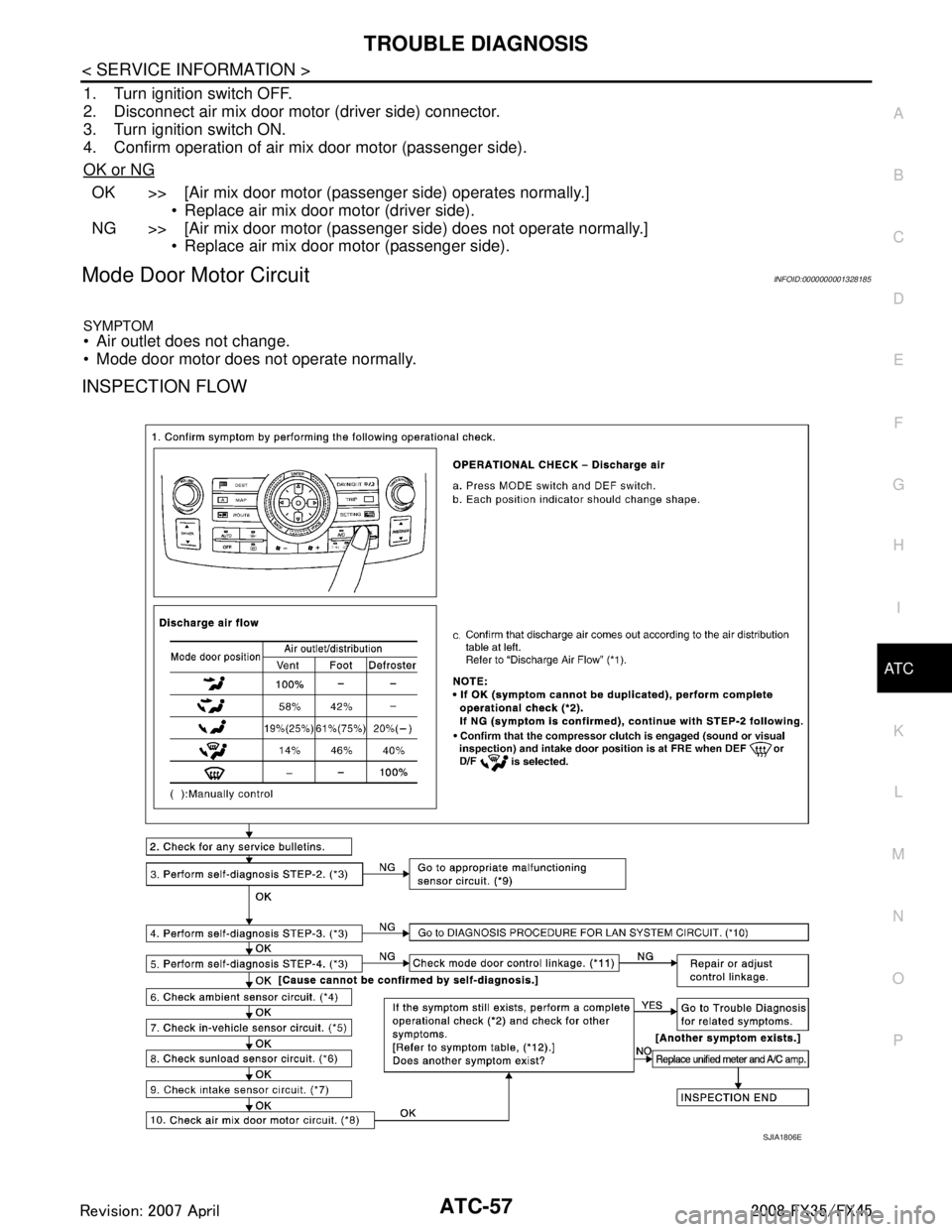

INSPECTION FLOW
