INFINITI FX35 2008 Service Manual

AV-154
< SERVICE INFORMATION >
INFINITI MOBILE ENTERTAINMENT SYSTEM
1. Turn ignition switch ACC.
2. Press “POWER” switch of DVD player and operate DVD player switch.
Dose the DVD player switches work?
YES >> Replace remote controller.
NO >> GO TO 2.
2.CHECK REMOTE CONTROLLER AND SENSOR
Check the inspection items below to diagnose the malfunction.
 Check that remote controller is facing to the sensor.
 Check that sensor does not have any seals or dirt that is interrupt-
ing signal.
 Check that the remote controller battery has run down.
OK or NG
OK >> GO TO 3.
NG >>  When operating, face remote controller to the sensor.  Remove seal or dirt that is interrupting signal.
 If the battery has run down, replace it with new one.
3.CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminal 30 and DVD display harness connector B61 terminal
14.
4. Check continuity between DVD player harness connector B19 terminal 30 (BR) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4.CHECK DATA (LCD – DVD) SIGNAL
1. Connect DVD display connector.
2. Turn ignition switch ACC.
3. Check the signal between DVD player harness connector B19 terminal 30 and ground.
OK or NG
OK >> Replace DVD player.
NG >> Replace DVD display.
No CD·DVD Sound from All SpeakersINFOID:0000000001328786
1.VERIFY THE PHENOMENON
1. Turn ignition switch ACC.
2. Turn on the radio, receive radio program, che ck that the sound is heard from all the speakers.
SKIA5855E
30 – 14 : Continuity should exist.
30 – Ground : Continuity should not exist.
SKIB0335E
30 – Ground:
SKIA7043ESKIA5832E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INFINITI MOBILE ENTERTAINMENT SYSTEMAV-155
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
OK or NG
OK >> GO TO 2.
NG >> Replace audio unit.
2.CHECK A/C AND AV SWITCH SELF-DIAGNOSIS
A/C and AV switch self-diagnosis. Check “REAR AV” switch. Refer to AV-78, "
A/C and AV Switch Self-Diagno-
sis Function".
OK or NG
OK >> GO TO 3.
NG >> Replace A/C and AV switch.
3.CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and audio unit connectors.
3. Check continuity between DVD player harness connector M73 terminals 1, 2, 3, 4 and audio unit harness connector M65 termi-
nals 37, 39, 43, 42.
4. Check continuity between DVD player harness connector M73 terminals 1, 2, 3, 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4.CHECK MES SOUND SIGNAL
1. Connect DVD player and audio unit connectors.
2. Turn ignition switch ACC and Press “POWER” switch of DVD player.
3. Check the signal between DVD player harness connector M73 terminals 1 and 2, 3 and 4 with CONSULT-III or oscilloscope.
OK or NG
OK >> Replace audio unit.
NG >> Replace DVD player.
Removal and Installation for DVD PlayerINFOID:0000000001328787
REMOVAL
1. Remove center console. Refer to IP-10.
2. Remove center console rear finisher. Refer to IP-11, "
Removal and Installation".
1 – 37 : Continuity should exist.
2 – 39 : Continuity should exist.
3 – 43 : Continuity should exist.
4 – 42 : Continuity should exist.
1, 2, 3, 4 – Ground : Co
ntinuity should not exist.
SKIA7034E
Te r m i n a l
Condition Reference value
(+) (–)
12
Play CD or DVD video.
34
SKIA7035E
SKIA8863J
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AV-156
< SERVICE INFORMATION >
INFINITI MOBILE ENTERTAINMENT SYSTEM
3. Remove screws (2) with power tool and remove DVD player.
4. Remove screws (4) with power tool and remove brackets.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation for DVD Display UnitINFOID:0000000001328788
REMOVAL
1. Insert cloth-covered driver into gaps between rear display coverand head lining, and remove rear display cover.
2. Press pawl on rear side and remove inner cover.
SKIA5810E
SKIA5811E
SKIA5812E
SKIA5813E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INFINITI MOBILE ENTERTAINMENT SYSTEMAV-157
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
3. Remove screws (4) with power tool.
4. Pull DVD display unit to downside, and remove rear display unit from mounting plate.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
Put metal clip hook in mounting plate, and press it securely.
SKIA5814E
SKIA5815E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AV-158
< SERVICE INFORMATION >
TELEPHONE
TELEPHONE
System DescriptionINFOID:0000000001328789
HANDS-FREE PHONE SYSTEM
 For Hands-free phone system operation information, refer to Owner's Manual.
 TEL adapter unit has Bluetooth module. It can perform wireless hands-free telephone calls using a cellularphone in vehicle compartment.
 5 or less cellular phones can be registered into the TEL adapter unit.
 Hands-free phone mode starts by transmitting switch signal to TEL adapter unit when pressing button.
 Hands-free phone mode ends by transmitting switch signal to TEL adapter unit when pressing button.
 When uttering to the microphone, microphone signal (audio signal) is transmitted from the microphone to the
TEL adapter unit and transmitted to the cellular phone with the Bluetooth
® communication.
 Audio sound is muted when turning audio ON while hands-free phone system works.
 Sound signal transmits to receiver's telephone through microphone unit, TEL adapter unit, and TEL antenna when sending voice.
 Sound signal outputs to front RH speakers through TEL antenna, TEL adapter unit, audio unit, and BOSE
speaker amp. when receiving voice.
SKIB8653E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TELEPHONEAV-159
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P

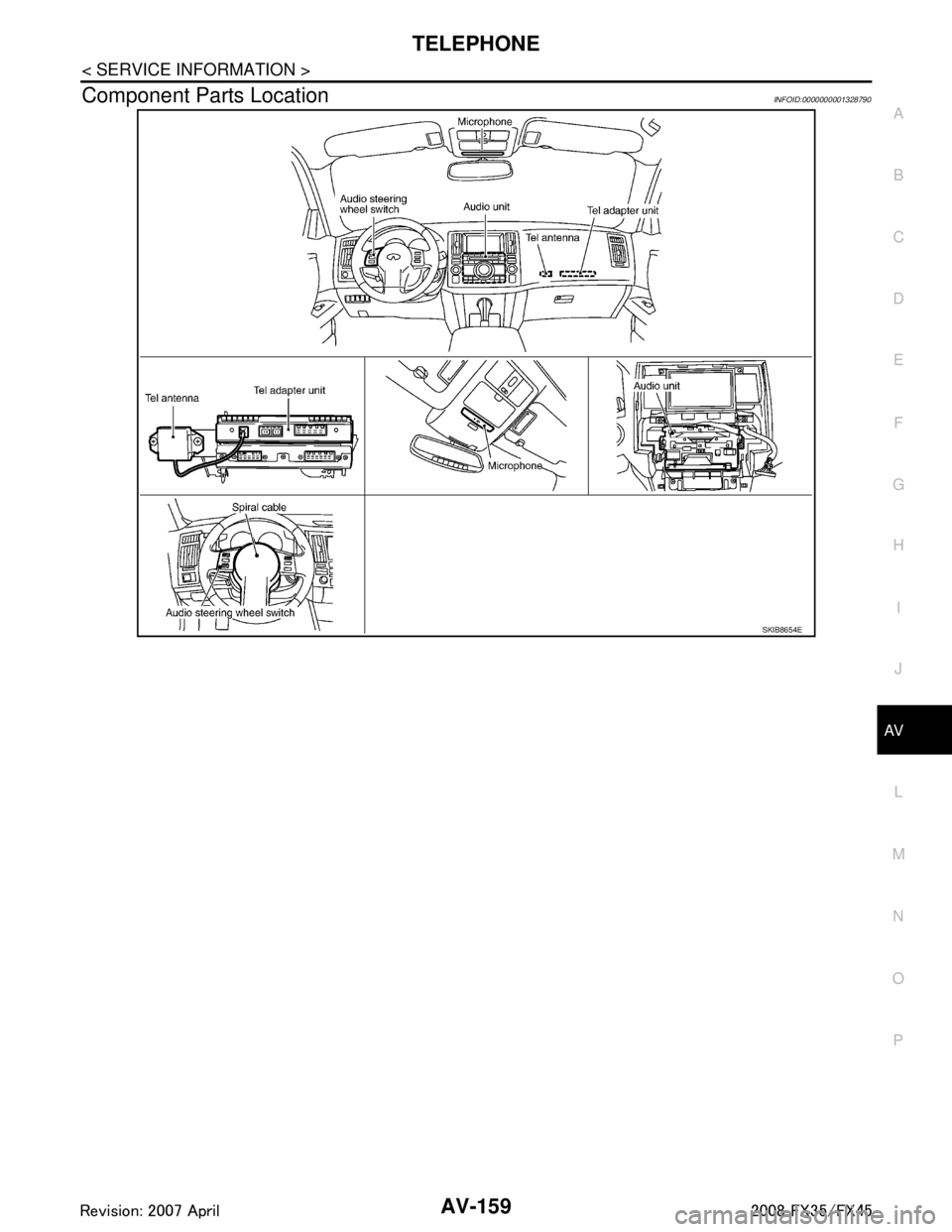

Component Parts LocationINFOID:0000000001328790
SKIB8654E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AV-160
< SERVICE INFORMATION >
TELEPHONE
Schematic
INFOID:0000000001328791
TKWM4432E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TELEPHONEAV-161
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
Wiring Diagram - H/PHON -INFOID:0000000001328792
TKWM4433E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AV-162
< SERVICE INFORMATION >
TELEPHONE

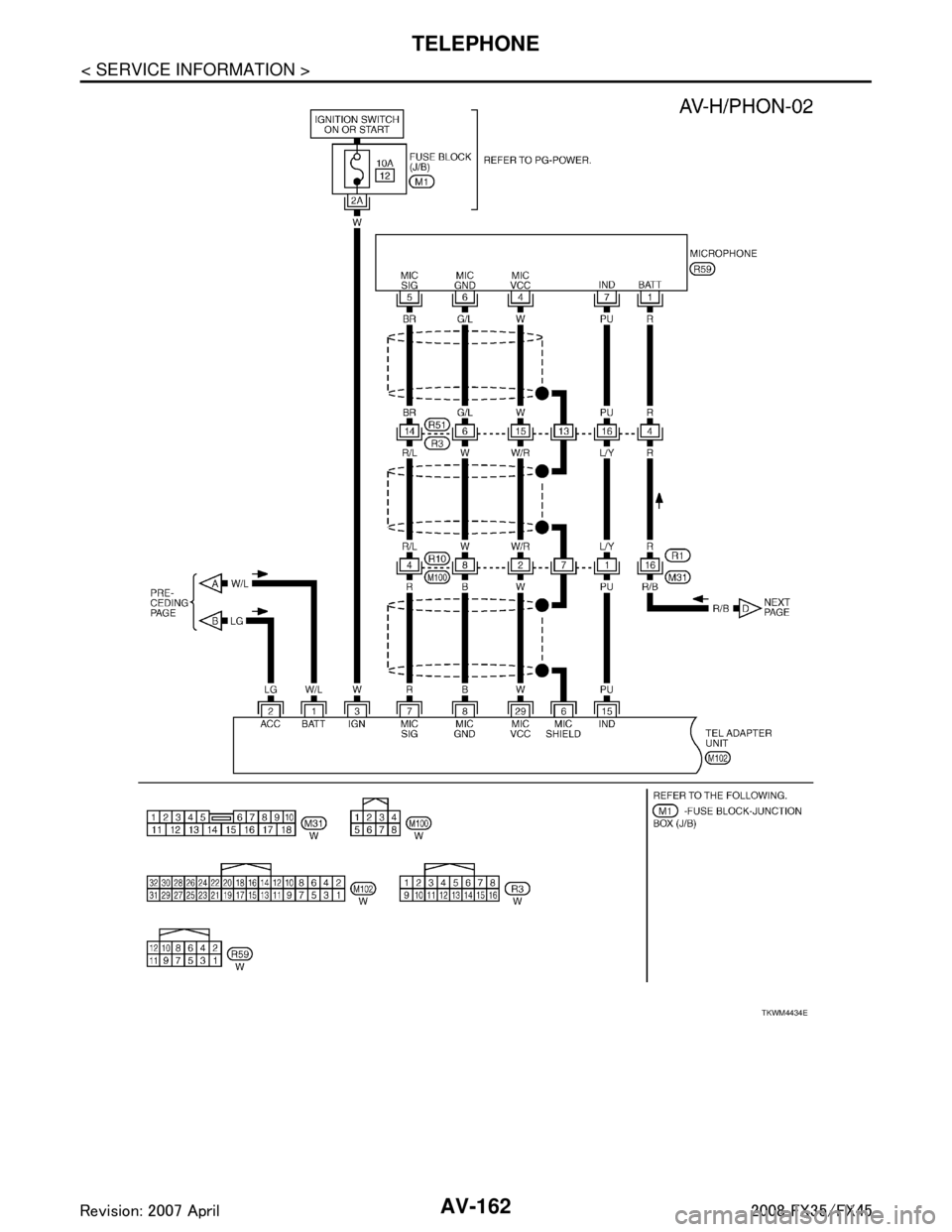

TKWM4434E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TELEPHONEAV-163
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P

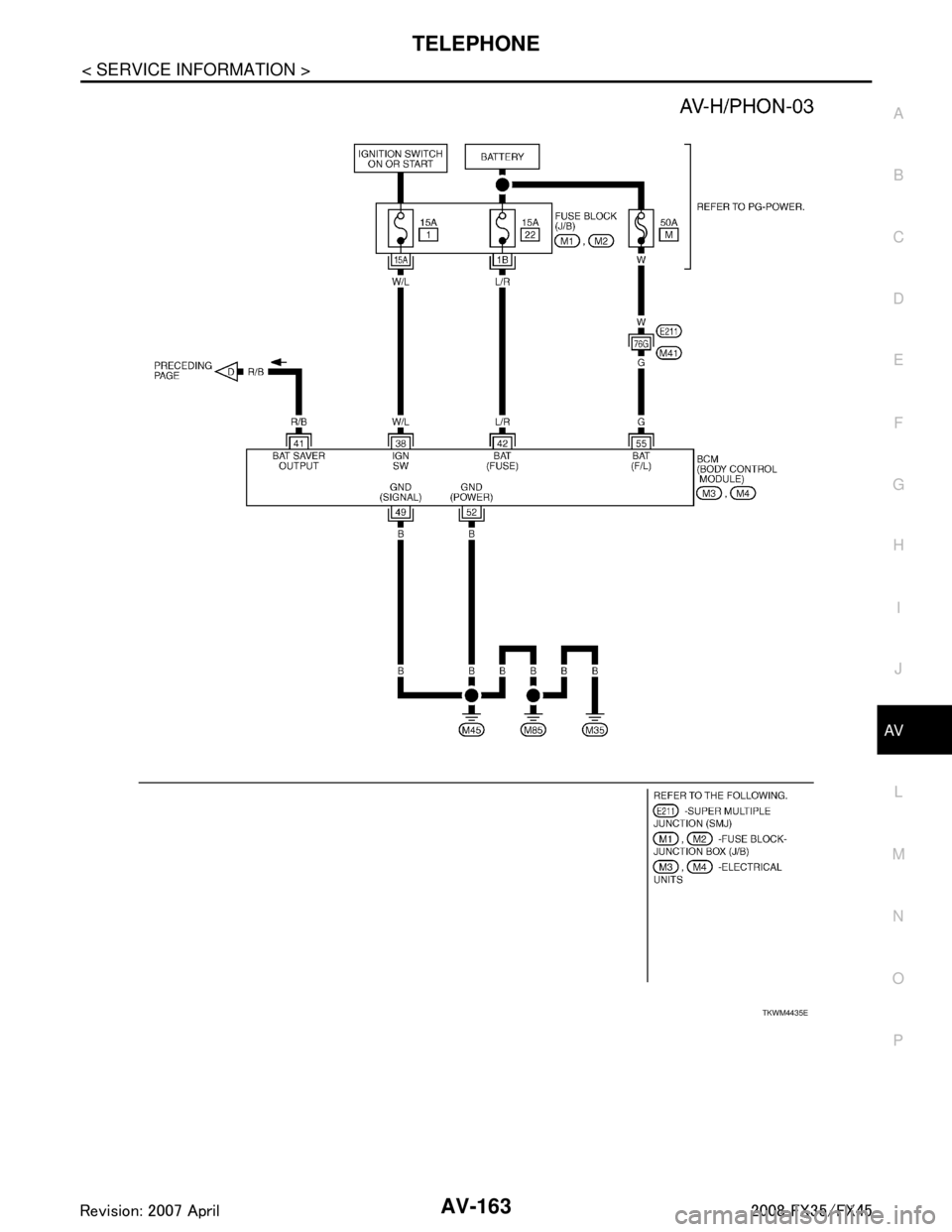

TKWM4435E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
