FRONT SEAT-MOUNTED SIDE-IMPACT
SUPPLEMENTAL AIR BAG AND
DOOR-MOUNTED CURTAIN SIDE-
IMPACT SUPPLEMENTAL AIR BAG
SYSTEMS
The side air bags are located in the outside of
the seatback of the front seats. The curtain air
bags are located in the upper side of the door
panel. These systems are designed to meet
voluntary guidelines to help reduce the risk of
injury to out-of-position occupants.However, all
of the information, cautions and warnings in this
manual still apply and must be followed. The
side air bags and curtain air bags are designed
to inflate in higher severity side collisions,
although they may inflate if the forces in an- other type of collision are similar to those of a
higher severity side impact. They are designed
to inflate on the side where the vehicle is
impacted. They may not inflate in certain side
collisions on the side where the vehicle is
impacted.
Vehicle damage (or lack of it) is not always an
indication of proper supplemental side air bag
and curtain side-impact air bag operation.
When side air bags and curtain air bags inflate,
a fairly loud noise may be heard, followed by
release of smoke. This smoke is not harmful
and does not indicate a fire. Care should be
taken not to inhale it, as it may cause irritation
and choking. Those with a history of a breathing
condition should get fresh air promptly.
Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
and pelvis of the front occupants. Curtain air
bags help to cushion the impact force to the
head of occupants in the front seating posi-
tions. They can help save lives and reduce
serious injuries. However, an inflating side air
bags and curtain air bags may cause abrasions
or other injuries. Side air bags and curtain air
bags do not provide restraint to the lower body.
The seat belts should be correctly worn and the
driver and passenger seated upright as far as
practical away from the side air bag. The side
air bags and curtain side air bags inflate quickly
in order to help protect the occupants. Because
of this, the force of the side air bags and curtain
air bags inflating can increase the risk of injury
if the occupant is too close to, or is against,
these air bag modules during inflation. The side
air bags and curtain air bags will deflate quickly
after the collision is over.
The side air bags and curtain air bags operate
only when the ignition switch is in the ON
position.
After pushing the ignition switch to the ON posi-
tion, the supplemental air bag warning light illu-
minates. The air bag warning light will turn off
after about 7 seconds if the systems are opera-
tional.
SSS0982
1-44Safety — Seats, seat belts and supplemental restraint system
—
—
12/14/09—tbrooks


WARNING
●Do not place any objects near the seatback
of the front seats. Also, do not place any
objects (an umbrella, bag, etc.) between the
front door finisher and the front seat. Such
objects may become dangerous projectiles
and cause injury if side air bag inflates.
● Right after inflation, several side air bags
and curtain air bag system components will
be hot. Do not touch them; you may severely
burn yourself.
● No unauthorized changes should be made to
any components or wiring of side air bag and
curtain air bags. This is to prevent accidental
inflation of the side air bag and curtain air
bag or damage to side air bag and curtain air
bag systems.
● Do not make unauthorized changes to your
vehicle’s electrical system, suspension sys-
tem, door panel and door trim, and side
panel. This could affect proper operation of
the side air bag and curtain air bag systems.
● Tampering with the side air bag system may
result in serious personal injury. For ex-
ample, do not change the front seats by plac-
ing material near the seatback or by install-
ing additional trim material, such as seat
covers, around the side air bags. ●
Work around and on the side air bag and
curtain air bag systems should be done by an
INFINITI retailer. Installation of electrical
equipment should also be done by an
INFINITI retailer. The Supplemental Re-
straint System (SRS) wiring harnesses*
should not be modified or disconnected. Un-
authorized electrical test equipment and
probing devices should not be used on the
side-impact air bag system.
* The SRS wiring harness connectors are yellow and orange for easy identification.
When selling your vehicle, we request that you
inform the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this Owner’s
Manual.
SEAT BELTS WITH PRETENSIONERS
(front seats)
WARNING
● The pretensioners cannot be reused after ac-
tivation. They must be replaced together
with the retractor and buckle as a unit. ●
If the vehicle becomes involved in a frontal
collision but a pretensioner is not activated,
be sure to have the pretensioner system
checked and, if necessary, replaced by an
INFINITI retailer.
● No unauthorized changes should be made to
any components or wiring of the pretension-
ers. This is to prevent damage to or acciden-
tal activation of the pretensioner system.
Tampering with the pretensioner system
may result in serious personal injury.
●
Work around and on the pretensioners should
be done by an INFINITI retailer. Installation of
electrical equipment should also be done by
an INFINITI retailer. Unauthorized electrical
test equipment and probing devices should
not be used on the pretensioner system.
● If you need to dispose of the pretensioner or
scrap the vehicle, contact an INFINITI re-
tailer. Correct pretensioner disposal proce-
dures are set forth in the appropriate
INFINITI Service Manual. Incorrect disposal
procedures could cause personal injury.
The pretensioner system activates in conjunc-
tion with the front air bag system. Working with
the seat belt retractors, it helps tighten the seat
belt when the vehicle becomes involved in
certain types of collisions, helping to restrain
front seat occupants.
Safety — Seats, seat belts and supplemental restraint system1-45
—
—
10/14/09—tbrooks


The pretensioner is encased with the seat belt
retractor. These seat belts are used the same
way as conventional seat belts.
When a pretensioner seat belt activates, smoke
is released and a loud noise may be heard. The
smoke is not harmful, and it does not indicate a
fire. Care should be taken not to inhale it as it
may cause irritation and choking. Those with a
history of a breathing condition should get
fresh air promptly.
After pretensioner activation, load limiters al-
low the seat belt to release webbing (if neces-
sary) to reduce forces against the chest.
If any abnormality occurs in the pretensioner
system, the supplemental air bag warning light
will not come on, will flash intermittently
or will turn on for 7 seconds and remain on after
the ignition switch has been pushed to the ON
position. In this case, the pretensioner system
may not function properly. They must be
checked and repaired. Take your vehicle to the
nearest INFINITI retailer.
When selling your vehicle, we request that you
inform the buyer about the seat belt pretension-
ers and guide the buyer to the appropriate
sections in this Owner’s Manual.
SUPPLEMENTAL AIR BAG WARNING
LABELS
Warning labels about the supplemental front-
impact air bag are placed in the vehicle as
shown in the illustration.
1SRS air bag
The warning labels1are located on the
surface of the sun visors.
SUPPLEMENTAL AIR BAG WARNING
LIGHT
The supplemental air bag warning light, dis-
playingin the instrument panel, moni-
tors the circuits of the supplemental front-
impact air bag, front seat-mounted side-impact
supplemental air bag, door-mounted curtain
side-impact supplemental air bag, and seat belt
pretensioner systems. The monitored circuits
include the Air bag Control Unit (ACU), satellite
sensors, crash zone sensor, occupant classifi-
cation system, front air bag modules, side air
bag modules, curtain air bag modules, preten-
sioner and all related wiring.
SSS1016SPA1097
1-46Safety — Seats, seat belts and supplemental restraint system
—
—
10/14/09—tbrooks


When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag and
pretensioner systems need servicing:
●The supplemental air bag warning light re-
mains on approximately 7 seconds after the
ignition switch is pushed to the ON position.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side
air bag, curtain air bag or pretensioner systems
may not operate properly. They must be
checked and repaired. Take your vehicle to the
nearest INFINITI retailer.
WARNING
If the supplemental air bag warning light is on, it
could mean that the front air bag, side air bag,
curtain air bag and/or pretensioner systems will
not operate in an accident. To help avoid injury to
yourself or others, have your vehicle checked by
a retailer as soon as possible.
REPAIR AND REPLACEMENT
PROCEDURE
The front air bags, side air bags, curtain air
bags and pretensioners are designed to acti-
vate on a one-time-only basis. As a reminder,
unless it is damaged, the supplemental air bag
warning light will remain illuminated after infla-
tion has occurred. Repair and replacement of
these systems should be done only by an
INFINITI retailer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags, pretensioners and related parts
should be pointed out to the person conducting
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
● Once a front air bag, side air bag, or curtain
air bag has inflated, the air bag module will
not function again and must be replaced.
Additionally, if any of the front air bags in-
flate, the activated pretensioner must also
be replaced. The air bag module and preten-
sioner system should be replaced by an
INFINITI retailer. The air bag module and pre-
tensioner system cannot be repaired. ●
The front air bag, side air bag, curtain air bag
and the pretensioner system should be in-
spected by an INFINITI retailer if there is any
damage to the front end or side portion of the
vehicle.
● If you need to dispose of the supplemental
air bag or pretensioner systems or scrap the
vehicle, contact an INFINITI retailer. Correct
supplemental air bag and seat belt preten-
sioner system disposal procedures are set
forth in the appropriate INFINITI Service
Manual. Incorrect disposal procedures could
cause personal injury.
Safety — Seats, seat belts and supplemental restraint system1-47
—
—
10/14/09—tbrooks


POP-UP ROLL BAR SYSTEM
The pop-up roll bars are designed to deploy
during rollover collisions. The pop-up roll bars
are located behind the rear seatback and de-
ploy when the Air bag Control Unit (ACU) judges
that the vehicle will overturn.
The pop-up roll bars, with proper seat belt
usage, help preserve occupant headroom in a
rollover collision and can help reduce the risk of
occupant injury.
WARNING
Failure to follow the warnings and instructions
in this section may result in serious injury or
death.
●The pop-up roll bars deploy upward at a high
speed when activated. Keep hands and other
body parts away from the pop-up roll bars.
● Never place objects (such as umbrellas or
accessories) near the pop-up roll bars, which
deploy from the top of rear seatback. Such
objects can become dangerous projectiles
when pop-up roll bars deploy.
● Tampering with the pop-up roll bars may
cause them to unintentionally deploy or op-
erate abnormally.
● Never open the pop-up roll bar covers or
modify or disassemble the pop-up roll bars.
● Do not sit, place a heavy object, or apply a
strong load on the pop-up roll bar cover.
Doing so could cause damage to the cover or
cause the pop-up roll bar to not operate
properly.
● Never allow anyone other than an INFINITI
retailer to retract or repair the pop-up roll
bars. Always contact an INFINITI retailer af-
ter pop-up roll bars deploy.
SSS0983
1-48Safety — Seats, seat belts and supplemental restraint system
—
—
10/14/09—tbrooks


Safety — Seats, seat belts and supplemental restraint system1-49

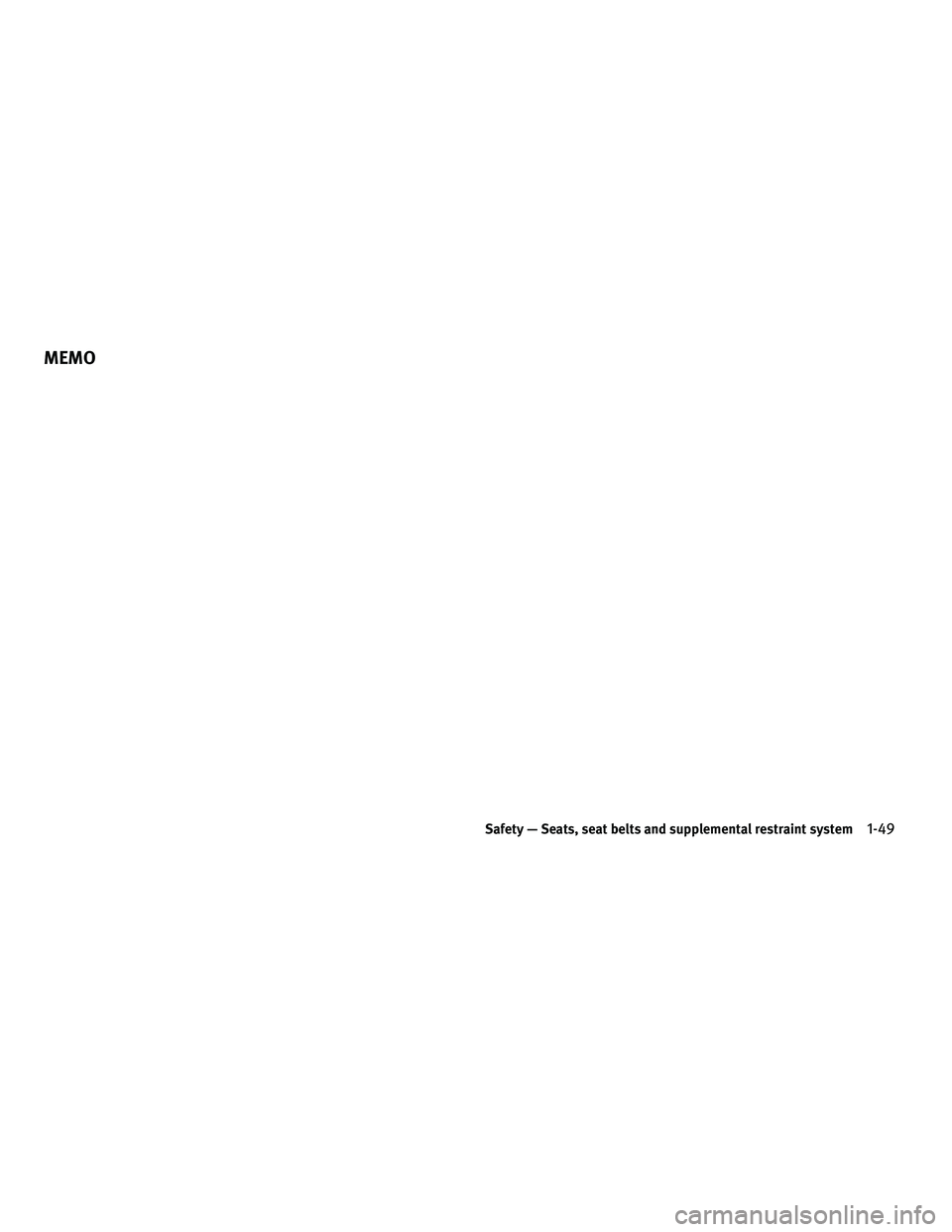

MEMO

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Warning/indicator lights and audible reminders ...... 2-8
Checking bulbs ................................ 2-8
Warning lights ................................. 2-9
Indicator lights ................................ 2-13
Audible reminders .............................. 2-15
Dot matrix liquid crystal display ....................2-15
Indicators for operation ........................ 2-18
Indicators for retractable hard top ..............2-20
Indicators for maintenance .....................2-21
Trip computer ................................. 2-22
Security systems ................................. 2-25
Vehicle security system ........................ 2-25
INFINITI Vehicle Immobilizer System ............2-26
Windshield wiper and washer switch ...............2-28
Rain-sensing auto wiper system
(if so equipped) ............................... 2-29Rear window and outside mirror defroster switch . . . 2-29
Headlight and turn signal switch
..................2-30
Xenon headlights ............................. 2-30
Headlight switch .............................. 2-30
Turn signal switch ............................. 2-34
Fog light switch ............................... 2-34
Hazard warning flasher switch .....................2-34
Horn ............................................ 2-35
Heated seats (if so equipped) .....................2-35
Climate controlled seats (if so equipped) ...........2-36
Vehicle Dynamic Control (VDC) OFF switch ..........2-37
Clock ............................................ 2-38
Adjusting the time ............................. 2-38
Power outlets .................................... 2-38
Cigarette lighter and ashtrays (if so equipped) ......2-39
Front ......................................... 2-39
Rear ......................................... 2-40
Storage ......................................... 2-40
Cup

holders .................................. 2-40
Glove box .................................... 2-42
Console box .................................. 2-42
Storage box (if so equipped) ...................2-43
Windows ........................................ 2-44
—
—
04/28/10—diane


Power windows............................... 2-44
Interior lights .................................... 2-47
Map lights .................................... 2-47
Interior light control switch ....................2-47
Vanity mirror lights ............................... 2-48
Trunk light ....................................... 2-48
HomeLink Universal Transceiver (if so equipped) . . . 2-49
Programming HomeLink ......................2-49Programming HomeLink
for Canadian
customers ..................................... 2-51
Operating the HomeLink Universal
Transceiver .................................... 2-51
Programming trouble-diagnosis ..................2-51
Clearing the programmed information ...........2-52
Reprogramming a single HomeLink button.....2-52
If your vehicle is stolen ........................ 2-52
—
—
04/28/10—diane


1. Vehicle Dynamic Control (VDC) OFF switch(P. 5-50)
2. Trunk lid release switch (P. 3-28)
3. Sonar system OFF switch (if so equipped) (P. 5-45) 4. Instrument brightness control switch
(P. 2-33)
5. TRIP/RESET switch for twin trip odometer (P. 2-5)
6. Headlight, fog light and turn signal switch (P. 2-30) 7. Paddle shifter (if so equipped) (P. 5-14)
8. Steering-wheel-mounted controls
(Left side)
— ENTER or tuning switch (P. 4-75)
— BACK switch (P. 4-75)
— TALK switch (P. 4-102)/
Phone switch (P. 4-78)
— Volume control switches (P. 4-75)
— Source select switch (P. 4-75)
9. Trip computer switch (P. 2-22)
10. Windshield wiper and washer switch (P. 2-28)
11. Steering-wheel-mounted controls (Right side)
— Cruise control switches (P. 5-18)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-20)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-9)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-34)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-34)
16. Steering wheel — Horn (P. 2-35)
— Driver supplemental air bag (P. 1-34)
SSI0595
COCKPIT
2-2Instruments and controls
—
—
10/16/09—tbrooks


1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-36)
5. Clock (P. 2-38)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-78)
— Audio system (P. 4-36) 7. Center display (P. 4-2)/
Navigation system* (if so equipped)
8. Hazard warning flasher switch (P. 2-34)
9. Front passenger supplemental air bag (P. 1-34)
10. Fuse box cover (P. 8-19)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-17)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-39) or Storage box
(if so equipped) (P. 2-43)
— Power outlet (if so equipped) (P. 2-38)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-17)
16. Heated seat switch (if so equipped) (P. 2-35) or Climate controlled seat
switch (if so equipped) (P. 2-36)
17. Retractable hard top operating switch (P. 3-18)
18. Rear window and outside mirror (if so equipped) defogger switch
(P. 2-29)
SSI0673
INSTRUMENT PANEL
Instruments and controls2-3
—
—
10/16/09—tbrooks
