19. Glove box lid release handle (P. 2-42)
20. Trunk release power cancel switch(P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-15)
6. Fuel gauge (P. 2-7)
The needle indicators in the speedometer, ta-
chometer, engine coolant temperature gauge
SIC4288
METERS AND GAUGES
2-4Instruments and controls
—
—
10/16/09—tbrooks


and fuel gauge may move slightly after the igni-
tion switch is pushed to the LOCK position. This
is not a malfunction.
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the dot matrix crystal display
when the ignition switch is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Speedometer
SIC4289
Odometer/twin trip odometer
SIC3259
Instruments and controls2-5
—
—
10/14/09—tbrooks


Changing the display
Pushing the TRIP A/B RESET switch
3at the
bottom left of the combination meter panel
changes the display as follows:
TRIP A →TRIP B →TRIP A
Resetting the trip odometer
Pushing the TRIP A/B RESET switch
3for more
than 1 second resets the trip odometer to zero.
Average fuel economy and distance to empty
information is also available. (See “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section
and “HOW TO USE STATUS BUTTON” in the “4.
Monitor, climate, audio, phone and voice rec-
ognition systems” section.)
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (RPM). Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red zone,
shift to a higher gear or reduce engine speed.
Operating the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
SIC4290SIC4291
2-6Instruments and controls
—
—
10/14/09—tbrooks


CAUTION
If the gauge indicates engine coolant tempera-
ture near the hot (H) end of the normal range,
reduce vehicle speed to decrease temperature.
If gauge is over the normal range, stop the
vehicle as soon as safely possible. If the engine
is overheated, continued operation of the ve-
hicle may seriously damage the engine. See “IF
YOUR VEHICLE OVERHEATS” in the “6. In case of
emergency” section for immediate action
required.
FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.
Refill the fuel tank before the gauge registers
“E” (Empty).
The low fuel warning
appears on the dot
matrix liquid crystal display when the fuel tank
is getting low. Refuel as soon as it is conve-
nient, preferably before the gauge reaches “E”. There will be a small reserve of fuel in the tank
when the fuel gauge needle reaches “E”.
The
indicates that the fuel-filler door is
located on the front passenger’s side of the
vehicle.
CAUTION
● If the vehicle runs out of fuel, themalfunction indicator light (MIL) may come
on. Refuel as soon as possible. After a few
driving trips, the
light should turn off.
If the light remains on after a few driving
trips, have the vehicle inspected by an
INFINITI retailer.
● For additional information, see “Malfunction
Indicator Light (MIL)” later in this section.
SIC4292
Instruments and controls2-7
—
—
10/14/09—tbrooks


Anti-lock Braking System (ABS) warn-
ing lightIntelligent Key warning lightFront passenger air bag status light
Low tire pressure warning lightHigh beam indicator light
Automatic transmission check warn-
ing lightMaster warning lightMalfunction Indicator Light (MIL)
Brake warning lightPreview Function warning light (or-
ange)*Security indicator light
Seat belt warning lightSlip indicator light
Charge warning lightSupplemental air bag warning lightLow beam indicator light
Engine oil pressure warning lightAutomatic transmission position indi-
cator light*Turn signal/hazard indicator lights
Intelligent Cruise Control (ICC) sys-
tem warning light (orange)*Front fog light indicator lightVehicle Dynamic Control (VDC) off
indicator light
*: if so equipped
CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,
,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer. Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-8Instruments and controls
—
—
10/22/09—tbrooks


WARNING LIGHTS
orAnti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indi-
cates the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by an INFINITI retailer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See “BRAKE SYSTEM” in the “5. Starting
and driving” section.)
Automatic transmission
check warning light (if so
equipped)
When the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If
the light comes on at any other time, it may
indicate the transmission is not functioning
properly. Have your INFINITI retailer check and
repair the transmission.
orBrake warning
light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light
When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. If brake fluid isnecessary, add fluid and have the system
checked by your INFINITI retailer. (See
“BRAKE AND CLUTCH FLUID” in the “8.
Maintenance and do-it-yourself” section.)
2. If the brake fluid level is correct, have the warning system checked by an INFINITI
retailer.
Anti-lock Braking System (ABS) warning indica-
tor
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by an INFINITI retailer promptly. (See
“Anti-lock Braking System (ABS) warning light”
earlier in this section.)
WARNING
●Your brake system may not be working prop-
erly if the warning light is on. Driving could
be dangerous. If you judge it to be safe, drive
carefully to the nearest service station for
repairs. Otherwise, have your vehicle towed
because driving it could be dangerous.
● Pressing the brake pedal with the engine
stopped and/or low brake fluid level may
increase your stopping distance and braking
will require greater pedal effort as well as
pedal travel.
● If the brake fluid level is below the minimum
or MIN mark on the brake fluid reservoir, do
not drive until the brake system has been
checked at an INFINITI retailer.
Instruments and controls2-9
—
—
10/14/09—tbrooks


Charge warning light
If the light comes on while the engine is run-
ning, it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see
an INFINITI retailer immediately.
CAUTION
Do not continue driving if the alternator belt is
loose, broken or missing.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop the
engineimmediately and call an INFINITI retailer
or other authorized repair shop.
The engine oil pressure warning light is not de-
signed to indicate a low oil level. Use the dip-
stick to check the oil level. (See “ENGINE OIL” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
CAUTION
Running the engine with the engine oil pres-
sure warning light on could cause serious dam-
age to the engine almost immediately. Such
damage is not covered by warranty. Turn off the
engine as soon as it is safe to do so.
Intelligent Cruise Control
(ICC) system warning light
(orange; if so equipped)
This light comes on if there is a malfunction in
the Intelligent Cruise Control (ICC) system.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Intelligent Key warning light
After the ignition switch is pushed to the ON
position, this light comes on for about 2 sec-
onds and then turns off.
This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases, con-
tact an INFINITI retailer for repair as soon as
possible.
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.
2-10Instruments and controls
—
—
10/14/09—tbrooks


Low tire pressure warning
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
When the low tire pressure warning light illumi-
nates, you should stop and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. The low tire pressure warning light does
not automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “6. In case
of emergency” section.
TPMS malfunction
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by an INFINITI
retailer.For additional information, see “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.
WARNING
●
If the light does not illuminate with the igni-
tion switch pushed ON, have the vehicle
checked by an INFINITI retailer as soon as
possible.
● If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible. ●
When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
CAUTION
● The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Instruments and controls2-11
—
—
10/14/09—tbrooks

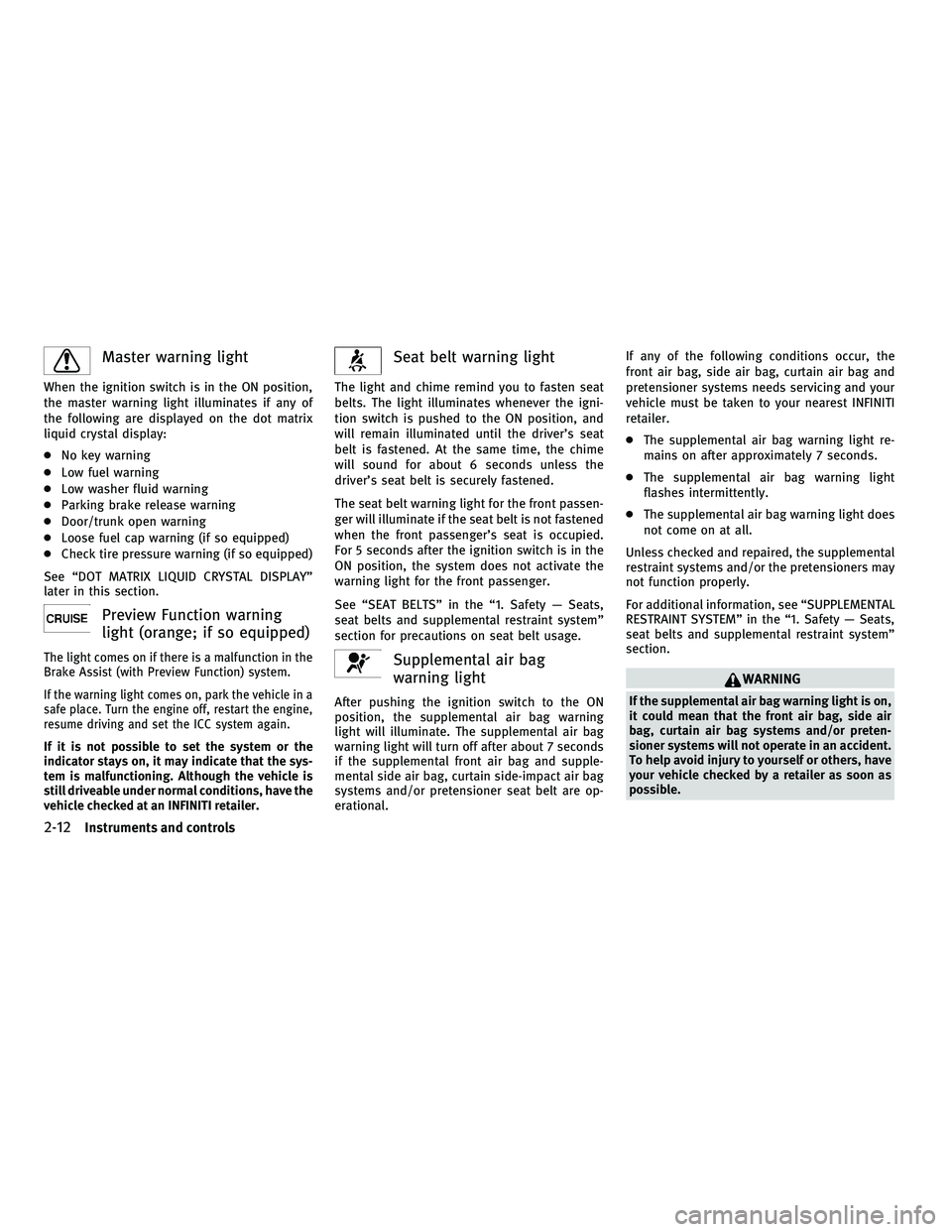

Master warning light
When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
●No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning
● Loose fuel cap warning (if so equipped)
● Check tire pressure warning (if so equipped)
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped)
The light comes on if there is a malfunction in the
Brake Assist (with Preview Function) system.
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and set the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Seat belt warning light
The light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion switch is pushed to the ON position, and
will remain illuminated until the driver’s seat
belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the
driver’s seat belt is securely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger’s seat is occupied.
For 5 seconds after the ignition switch is in the
ON position, the system does not activate the
warning light for the front passenger.
See “SEAT BELTS” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section for precautions on seat belt usage.
Supplemental air bag
warning light
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air bag
warning light will turn off after about 7 seconds
if the supplemental front air bag and supple-
mental side air bag, curtain side-impact air bag
systems and/or pretensioner seat belt are op-
erational. If any of the following conditions occur, the
front air bag, side air bag, curtain air bag and
pretensioner systems needs servicing and your
vehicle must be taken to your nearest INFINITI
retailer.
●
The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the supplemental
restraint systems and/or the pretensioners may
not function properly.
For additional information, see “SUPPLEMENTAL
RESTRAINT SYSTEM” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section.
WARNING
If the supplemental air bag warning light is on,
it could mean that the front air bag, side air
bag, curtain air bag systems and/or preten-
sioner systems will not operate in an accident.
To help avoid injury to yourself or others, have
your vehicle checked by a retailer as soon as
possible.
2-12Instruments and controls
—
—
04/28/10—pattie

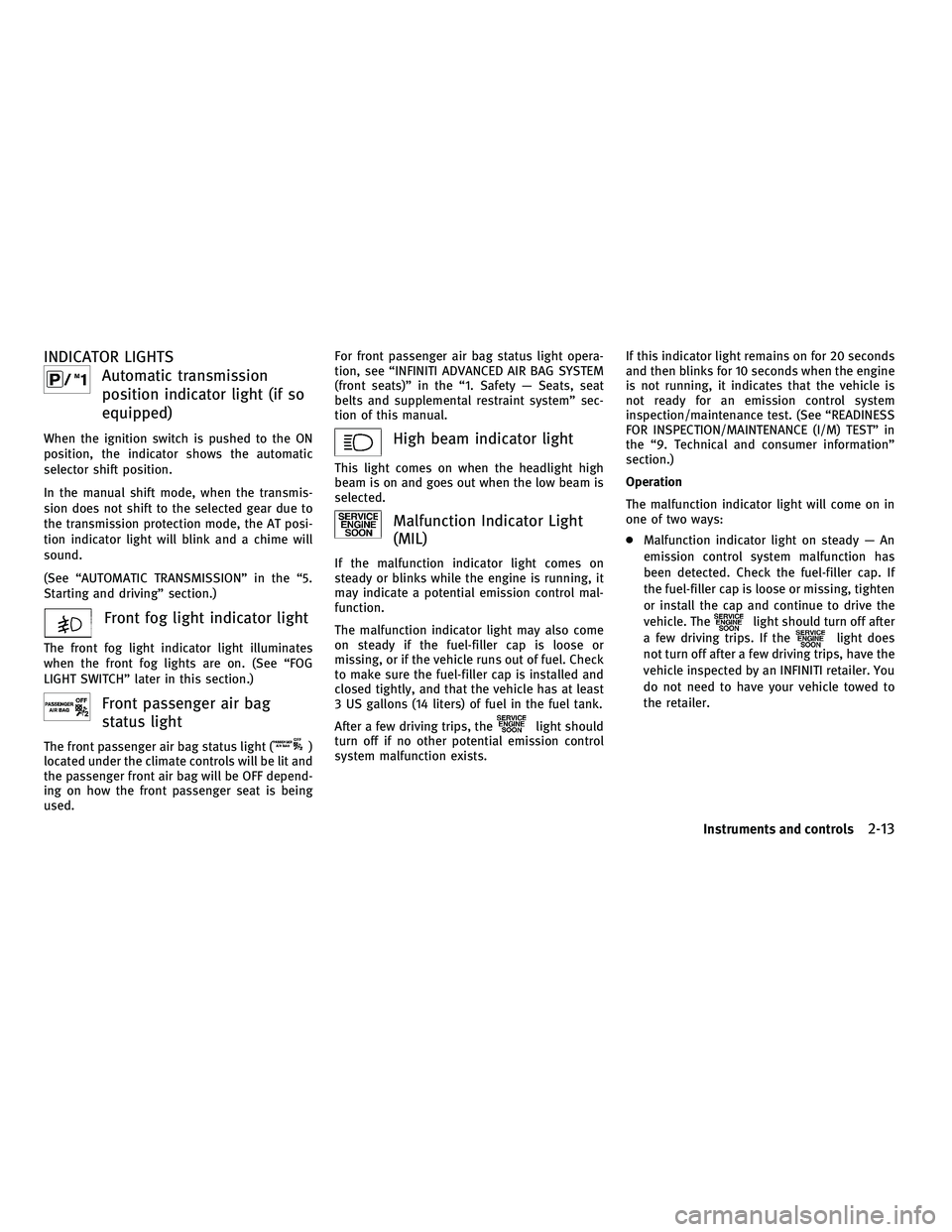

INDICATOR LIGHTS
Automatic transmission
position indicator light (if so
equipped)
When the ignition switch is pushed to the ON
position, the indicator shows the automatic
selector shift position.
In the manual shift mode, when the transmis-
sion does not shift to the selected gear due to
the transmission protection mode, the AT posi-
tion indicator light will blink and a chime will
sound.
(See “AUTOMATIC TRANSMISSION” in the “5.
Starting and driving” section.)
Front fog light indicator light
The front fog light indicator light illuminates
when the front fog lights are on. (See “FOG
LIGHT SWITCH” later in this section.)
Front passenger air bag
status light
The front passenger air bag status light ()
located under the climate controls will be lit and
the passenger front air bag will be OFF depend-
ing on how the front passenger seat is being
used. For front passenger air bag status light opera-
tion, see “INFINITI ADVANCED AIR BAG SYSTEM
(front seats)” in the “1. Safety — Seats, seat
belts and supplemental restraint system” sec-
tion of this manual.
High beam indicator light
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light
(MIL)
If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator light may also come
on steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least
3 US gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists. If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is
not ready for an emission control system
inspection/maintenance test. (See “READINESS
FOR INSPECTION/MAINTENANCE (I/M) TEST” in
the “9. Technical and consumer information”
section.)
Operation
The malfunction indicator light will come on in
one of two ways:
●
Malfunction indicator light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after
a few driving trips. If the
light does
not turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer. You
do not need to have your vehicle towed to
the retailer.
Instruments and controls2-13
—
—
10/14/09—tbrooks
