INFINITI G-CONVERTIBLE 2010 Owner's Guide

Small children
Children that are over 1 year old and weigh at
least 20 lb (9 kg) can be placed in a forward-
facing child restraint. Refer to the manufactur-
er’s instructions for minimum and maximum
weight and height recommendations. INFINITI
recommends that small children be placed in
child restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for in-
stallation and use.
Larger children
Children who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may not
fit properly if the child is less than 4 ft 9 in
(142.5 cm) tall and weighs between 40 lb (18 kg)
and 80 lb (36 kg). A booster seat should be
used to obtain proper seat belt fit.
INFINITI recommends that a child be placed in a
commercially available booster seat if the
shoulder belt in the child’s seating position fits
close to the face or neck or if the lap portion of
the seat belt goes across the abdomen. The
booster seat should raise the child so that the
shoulder belt is properly positioned across the
top, middle portion of the shoulder and the lapbelt is low on the hips. A booster seat can only
be used in seating positions that have a three-
point type seat belt. The booster seat should fit
the vehicle seat and have a label certifying that
it complies with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. Once the child has grown so the
shoulder belt is no longer on or near the face
and neck, use the shoulder belt without the
booster seat.
WARNING
Never let a child stand or kneel on any seat and
do not allow a child in the cargo areas while the
vehicle is moving. The child could be seriously
injured or killed in an accident or sudden stop.
PREGNANT WOMEN
INFINITI recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist, and
place the shoulder belt over your shoulder and
across your chest. Never run the lap/shoulder
belt over your abdominal area. Contact your
doctor for specific recommendations.
INJURED PERSONS
INFINITI recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.
PRE-CRASH SEAT BELTS (front seats)
(if so equipped)
The pre-crash seat belt tightens the seat belt to
help restrain front seat occupants under emer-
gency braking. This can help reduce the risk of
injury when a collision occurs.
Pre-crash seat belt will not be activated when:
●
the brake pedal is not depressed
● the seat belt is not fastened
● the selector lever is in the reverse position
● the vehicle speed is under 10 MPH (15 km/h)
Always wear your seat belt correctly and sit
upright and well back.
If the seat belt warning light blinks even if the
driver’s and front passenger’s seat belts are
fastened, it may indicate the pre-crash seat belt
system has a malfunction. Have your INFINITI
retailer check and repair the system.
1-14Safety — Seats, seat belts and supplemental restraint system
—
—
10/14/09—tbrooks


THREE-POINT TYPE SEAT BELT
WARNING
●Every person who drives or rides in this ve-
hicle should use a seat belt at all times.
● Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
● For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly.
Fastening the seat belts
1. Adjust the seat. (See “SEATS” earlier in this section.)
2. Slowly pull the seat belt out of the retrac- tor and insert the tongue into the buckle
until you hear and feel the latch engage.
●The retractor is designed to lock during a
sudden stop or on impact. A slow pulling mo-
tion permits the belt to move, and allows you
some freedom of movement in the seat.
● If the seat belt cannot be pulled from its fully
retracted position, firmly pull the belt and
release it. Then smoothly pull the belt out of
the retractor.
3. Position the lap belt portion low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure
the shoulder belt is routed over your
shoulder and across your chest.
The three-point type seat belts have two modes
of operation:
●Emergency Locking Retractor (ELR)
● Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom
SSS0292SSS0290
Safety — Seats, seat belts and supplemental restraint system1-15
—
—
10/14/09—tbrooks


of movement in the seat. The ELR locks the seat
belt when the vehicle slows down rapidly or
during impacts.
The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for
child restraint installation.
When the ALR mode is activated the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, see “CHILD RESTRAINTS” later in
this section.
The ALR mode should be used only for child
restraint installation. During normal seat belt
use by an occupant, the ALR mode should not be
activated. If it is activated it may cause uncom-
fortable seat belt tension.
WARNING
When fastening the seat belts, be certain that
seatbacks are completely secured in the
latched position. If they are not completely se-
cured, passengers may be injured in an acci-
dent or sudden stop.
Unfastening the seat belts
To unfasten the seat belt, push the button on
the buckle. The seat belt automatically retracts.
Checking seat belt operation
Seat belt retractors are designed to lock seat
belt movement by two separate methods:
●When the belt is pulled quickly from the
retractor.
● When the vehicle slows down rapidly. To increase your confidence in the seat belts,
check the operation as follows:
●
Grasp the shoulder belt and pull forward
quickly. The retractor should lock and re-
strict further belt movement.
If the retractor does not lock during this check
or if you have any question about seat belt
operation, see an INFINITI retailer.
SSS0326
1-16Safety — Seats, seat belts and supplemental restraint system
—
—
10/14/09—tbrooks


SEAT BELT GUIDE (front seats)
When the seat belt guide is used with the front
seat, the seat belt can easily be pulled out.
Release the seat belt guide, clip the seat belt
and install the seat belt guide again.
When using the seat belt guide, do not allow it
to twist.
WARNING
When using the seat belt guide, make sure that
the seat belt guide is securely installed to the
seat. Otherwise, the seat belt may slip and re-
sult in personal injury.
CAUTION
●When entering or exiting the rear seat, or
inserting or retrieving luggage with the seat-
back folded down, always release the seat
belt guide. Otherwise, the seat belt guide
may be damaged.
●
Do not fold the seat forward or pull it backward
by holding the seat belt guide in your hand.
Doing so may damage the seat belt guide.
SEAT BELT EXTENDERS
If, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender that is compatible
with the installed seat belts is available that
can be purchased. The extender adds approxi-
mately 8 in (200 mm) of length and may be
used for either the driver or front passenger
seating position. See an INFINITI Retailer for
assistance with purchasing an extender if an
extender is required.
WARNING
● Only INFINITI seat belt extenders, made by
the same company which made the original
equipment seat belts, should be used with
the INFINITI seat belts. ●
Adults and children who can use the stan-
dard seat belt should not use an extender.
Such unnecessary use could result in seri-
ous personal injury in the event of an
accident.
● Never use seat belt extenders to install child
restraints. If the child restraint is not se-
cured properly, the child could be seriously
injured in a collision or a sudden stop.
SEAT BELT MAINTENANCE
● To clean the seat belt webbing, apply a mild
soap solution or any solution recommended
for cleaning upholstery or carpets. Then,
wipe with a cloth and allow the seat belts to
dry in the shade. Do not allow the seat belts
to retract until they are completely dry.
● If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.
● Periodically check to see that the seat belt
and the metal components such as buckles,
tongues, retractors, flexible wires and an-
chors work properly. If loose parts, deterio-
ration, cuts or other damage on the webbing
is found, the entire seat belt assembly
should be replaced.SSS0980
Safety — Seats, seat belts and supplemental restraint system1-17
—
—
12/14/09—tbrooks


PRECAUTIONS ON CHILD RESTRAINTS
WARNING
●Infants and small children should always be
placed in an appropriate child restraint
while riding in the vehicle. A child restraint
that requires a top tether strap for installa-
tion should not be used in this vehicle. Fail-
ure to use a child restraint can result in seri-
ous injury or death.
● Infants and small children should never be
carried on your lap. It is not possible for even
the strongest adult to resist the forces of a
severe accident. The child could be crushed
between the adult and parts of the vehicle.
Also, do not put the same seat belt around
both your child and yourself.
● Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front seat. An inflating supple-
mental front air bag could seriously injure or
kill your child. A rear-facing child restraint
must only be used in the rear seat. ●
INFINITI recommends that the child restraint
be installed in the rear seat. According to
accident statistics, children are safer when
properly restrained in the rear seat than in
the front seat. If you must install a front-
facing child restraint in the front seat, see
“CHILD RESTRAINT INSTALLATION USING
THE SEAT BELTS” later in this section.
● Improper use or improper installation of a
child restraint can increase the risk or sever-
ity of injury for both the child and other oc-
cupants of the vehicle and can lead to seri-
ous injury or death in an accident.
● Follow all of the child restraint manufactur-
er’s instructions for installation and use.
When purchasing a child restraint, be sure to
select one which will fit your child and ve-
hicle. It may not be possible to properly in-
stall some types of child restraints in your
vehicle.
● This vehicle is not equipped with upper teth-
ers. A child restraint system requiring the
use of a top tether strap cannot be properly
installed and should not be used in this
vehicle.
● If the child restraint is not anchored prop-
erly, the risk of a child being injured in a
collision or a sudden stop greatly increases.
SSS0099
SSS0100
CHILD RESTRAINTS
1-18Safety — Seats, seat belts and supplemental restraint system
—
—
10/14/09—tbrooks


●Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
● Adjustable seatbacks should be positioned
to fit the child restraint, but as upright as
possible.
● After attaching the child restraint, test it be-
fore you place the child in it. Push it from
side to side while holding the seat near the
lower LATCH attachment or by the seat belt
path. The child restraint should not move
more than 1 inch (25 mm) from side to side.
Try to tug it forward and check to see if the
belt holds the restraint in place. If the re-
straint is not secure, tighten the belt as nec-
essary, or put the restraint in another seat
and test it again. You may need to try a dif-
ferent child restraint. Not all child restraints
fit in all types of vehicles.
● When your child restraint is not in use, keep
it secured with the LATCH lower anchors or a
seat belt to prevent it from being thrown
around in case of a sudden stop or accident.CAUTION
Remember that a child restraint left in a closed
vehicle can become very hot. Check the seating
surface and buckles before placing your child in
the child restraint.
This vehicle is equipped with a universal child
restraint lower anchor system, referred to as
part of the Lower Anchors and Tethers for
CHildren System or LATCH. Some child re-
straints include two rigid or webbing-mounted
attachments that can be connected to these
lower anchors. For details, see “LATCH Lower
Anchors” later in this section.
LATCH child restraints generally require the use
of a top tether strap. However, this vehicle does
not have top tether anchor locations. Do not
install a child restraints in this vehicle that
requires the use of a top tether strap.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
(See “CHILD RESTRAINT INSTALLATION USING
THE SEAT BELTS” later in this section.) In gen-
eral, child restraints are also designed to be
installed with the lap portion of a lap/shoulder
seat belt. Several manufacturers offer child restraints for
infants and small children of various sizes.
When selecting any child restraint, keep the
following points in mind:
●
Choose only a restraint with a label certify-
ing that it complies with Federal Motor Ve-
hicle Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
● If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated. Cana-
dian law requires the top tether strap on front-
facing child restraints to be secured to the des-
ignated anchor point on the vehicle.
Safety — Seats, seat belts and supplemental restraint system1-19
—
—
10/14/09—tbrooks


LATCH LOWER ANCHORS
Your vehicle is equipped with special lower
anchor points that are used with Lower Anchors
for CHildren (LATCH) compatible child re-
straints. These lower anchors may also be
referred to an ISOFIX or ISOFIX compatible
system. With these lower anchors, you do not
have to use a vehicle seat belt to secure the
child restraint.
The LATCH lower anchor points are provided to
install child restraints in the rear outboard
seating positions only. Do not attempt to install
a child restraint in the center position using the
LATCH lower anchors.
LATCH lower anchor point locations
The LATCH lower anchors are located at the rear
of the seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH lower anchors.
WARNING
●Attach LATCH system compatible child re-
straints only at the locations shown in the
illustration. If a child restraint is not secured
properly, your child could be seriously in-
jured or killed in an accident. ●
Do not secure a child restraint in the center
rear position using the LATCH lower anchors.
The child restraint will not be secured
properly.
● Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
LATCH label location
SSS0933
LATCH lower anchor location
SSS0637
1-20Safety — Seats, seat belts and supplemental restraint system
—
—
10/14/09—tbrooks


Installing child restraint LATCH lower
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two anchors located at certain
seating positions in your vehicle. With this
system, you do not have to use a vehicle seat
belt to secure the child restraint. Check your
child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
CHILD RESTRAINT INSTALLATION
USING LATCH LOWER ANCHORS
WARNING
●
Attach LATCH compatible child restraints
only at the locations shown. For the LATCH
lower anchor locations, see “LATCH Lower
Anchors” earlier in this section. If a child
restraint is not secured properly, your child
could be seriously injured or killed in an
accident.
● The LATCH lower anchors are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstance are they to be used for adult seat
belts or harnesses.
● Inspect the lower anchors by inserting your
fingers into the lower anchor area and feel-
ing to make sure there are no obstructions
over the LATCH lower anchors, such as seat
belt webbing or seat cushion material. The
child restraint will not be secured properly if
the LATCH lower anchors are obstructed.
● This vehicle is not equipped with upper teth-
ers. A child restraint system requiring the
use of a top tether strap cannot be properly
installed and should not be used in this
vehicle.
LATCH webbing-mounted attachment
SSS0648
LATCH rigid attachment
SSS0649
Safety — Seats, seat belts and supplemental restraint system1-21
—
—
10/14/09—tbrooks


Rear-facing
Follow these steps to install a rear-facing child
restraint using LATCH lower anchors:
1. Position the child restraint on the seat.Always follow the child restraint manufac-
turer’s instructions. 2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchor. 3. For child restraints that are equipped with
webbing mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rearward
firmly in the center of the child restraint
with your hand to compress the vehicle
seat cushion and seatback while tighten-
ing the webbing of the anchor attach-
ments.
Rear-facing (webbing-mounted) — step 2
SSS0648
Rear-facing (rigid-mounted) — step 2
SSS0649
Rear-facing — step 3
SSS0639
1-22Safety — Seats, seat belts and supplemental restraint system
—
—
10/14/09—tbrooks

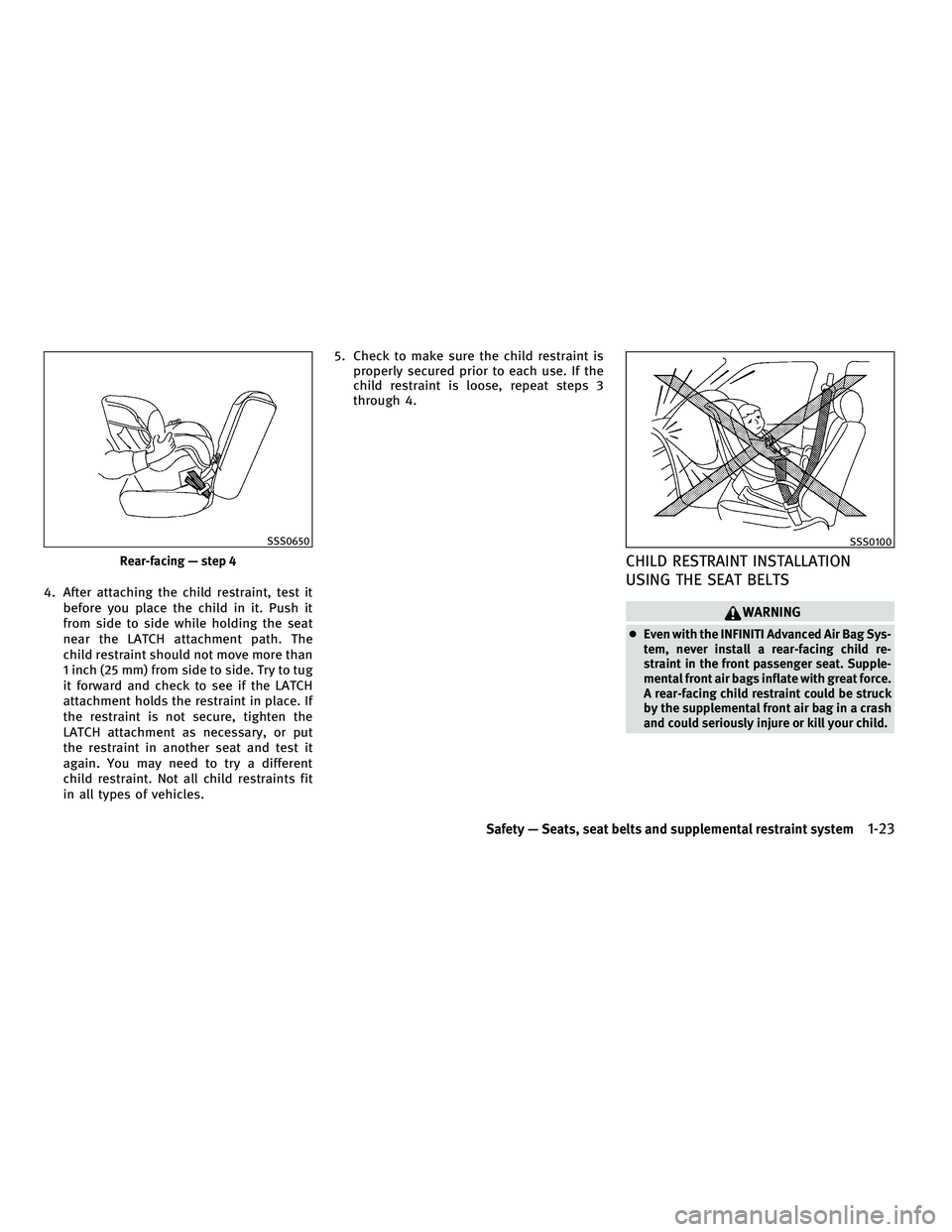

4. After attaching the child restraint, test itbefore you place the child in it. Push it
from side to side while holding the seat
near the LATCH attachment path. The
child restraint should not move more than
1 inch (25 mm) from side to side. Try to tug
it forward and check to see if the LATCH
attachment holds the restraint in place. If
the restraint is not secure, tighten the
LATCH attachment as necessary, or put
the restraint in another seat and test it
again. You may need to try a different
child restraint. Not all child restraints fit
in all types of vehicles. 5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 4.
CHILD RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
●Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front passenger seat. Supple-
mental front air bags inflate with great force.
A rear-facing child restraint could be struck
by the supplemental front air bag in a crash
and could seriously injure or kill your child.
Rear-facing — step 4
SSS0650SSS0100
Safety — Seats, seat belts and supplemental restraint system1-23
—
—
10/14/09—tbrooks
